USER MANUAL TS-506BK Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

RICE COOKER

COCINA DE ARROZ / CUISEUR À RIZ

ITEM NO.: TS-506BK

(3 CUPS UNCOOKED/6 CUPS COOKED)

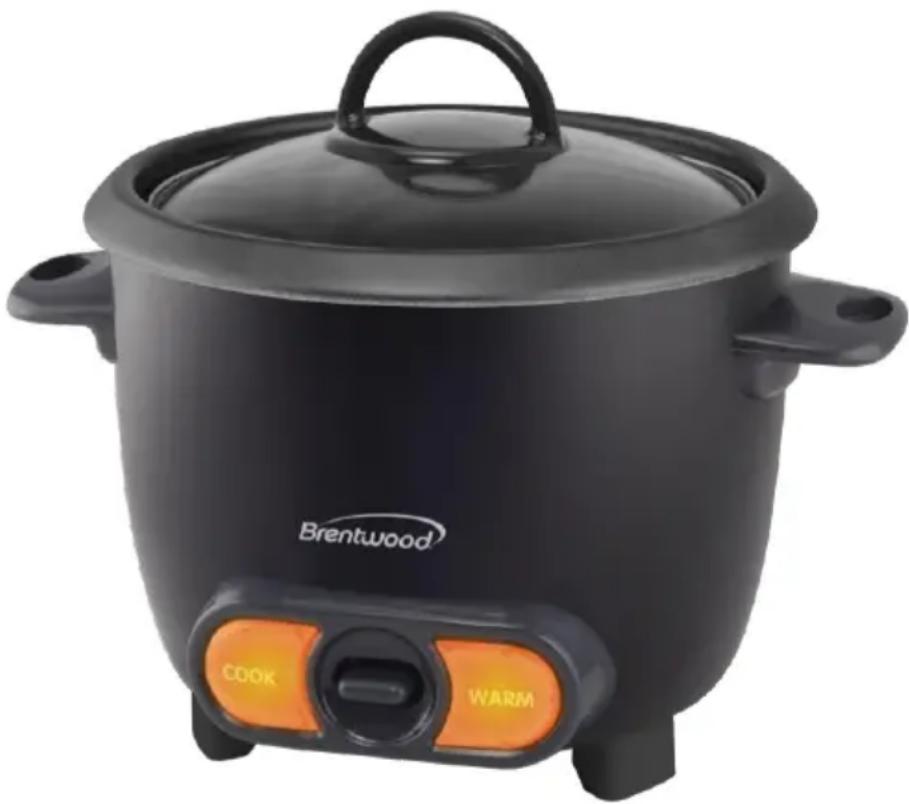

Black Brentwood rice cooker with 'COOK' and 'WARM' buttons on side (no visible text or symbols on body)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING-- To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.
• Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.
• Do not touch hot surfaces. Use protective oven mitts or gloves to avoid burns or personal injury.
• Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.
• Do not use attachments not recommended or sold by the product manufacturer.
• Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Do not operate the product empty. Use extreme caution when moving an appliance containing hot food, water, or other liquids.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the product from the electrical outlet with a wet hand.
• This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or is exposed to water.
• This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 5.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

- The marked electrical rating must be at least as great as that of the product.

- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit in a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter plug. Do not attempt to defeat the safety purpose of the polarized plug.

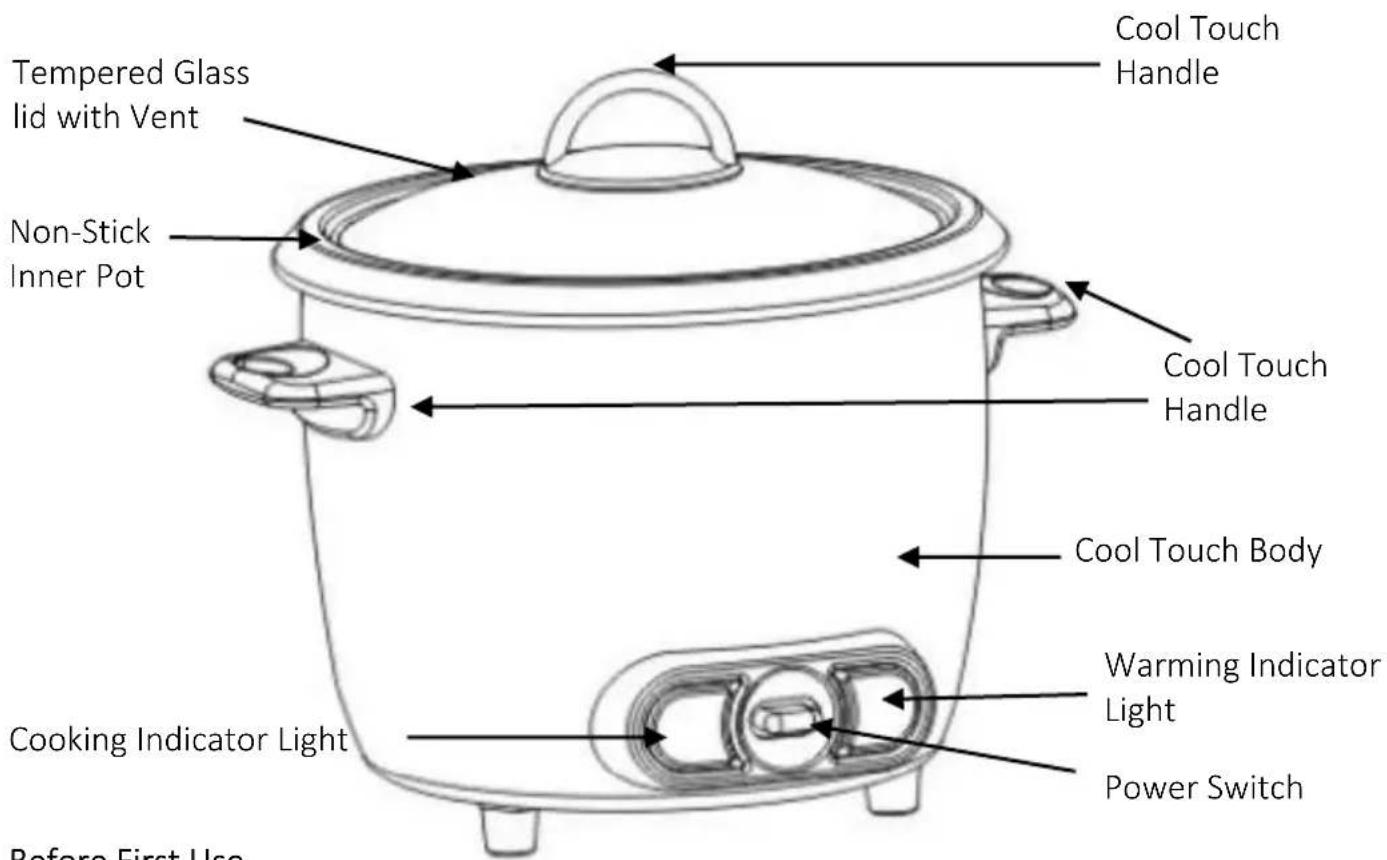

Parts:

Tempered Glass lid with Vent Non-Stick Inner Pot Cool Touch Handle Cool Touch Handle Cool Touch Body Warming Indicator Light Power Switch Cooking Indicator Light Before First Use

Before First Use

IMPORTANT: Please check all packaging material carefully for accessories before discarding.

1. Place the Inner Pot into the Rice Cooker. Pour in 2 cups of water and then cover with the Lid.
2. Plug the product into an electrical outlet, and then push the switch down to "Cook".

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. After 20 min., pull the switch up, and then unplug the product from the electrical outlet.

2. Allow the product to cool then pour the water from the Liner, rinse and dry thoroughly.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Using Your Rice Cooker:

WARNING: Avoid contact with Hot parts.

ATTENTION: Do not use the product to cook raw whole meats (e.g. roasts, steaks, etc.), whole chickens or other poultry, whole fish, or ground meats. Cook ground meats separately.

1. Using the measuring cup, measure and add rice to the Non-Stick Inner Pot. Then add the amount of water needed to cook the rice. Use the chart provided.

CAUTION: Do not overfill the product or operate it when empty.

1. Plug the product into an electrical outlet, and then push the switch down to "Cook". The indicator will light up when it is cooking. NOTE: If the button is difficult to press down, the inner pot may not be inserted correctly, or the appliance may need to cool down.

2. When heating is complete, the switch will pop up. You can then leave Rice covered for at least 15 minutes to steam the rice.

3. Once finished, unplug the product. Remember to grasp the plug not the cord when unplugging.

WARNING: Always unplug the product from the electrical outlet when it is not in use or when left unattended.

NOTICE: Do not touch the ventilating hole as the steam is very hot and can burn.

Note: The WARM setting will keep the contents warm.

Cups of Raw Rice	Amount of Water to Add	Makes Cups of Cooked Rice
2 Cups	2-2 1⁄2 Cups	4 Cups
3 Cups	3-3 1⁄2 Cups	6 Cups

Cleaning Your Rice Cooker:

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

NOTICE: To avoid damaging the product, do not pour cold water into the Non-Stick Inner Pot after use and do not use abrasive cleaners/pads to clean any part of the product.

- Remove the Inner Pot and Lid from the Cooker. Wash these in warm soapy water. Do not use a scouring pad as this may damage the Non-Stick of the Inner Pot.

- Clean the outside of the Cooker with a clean damp cloth. Do not submerge any part of the cooker in water.

- You can also wipe the heating plate on the inside of the cooker with a damp cloth making sure to dry completely before re-using.

- Dry all parts thoroughly before storing or using again.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
