RC-5020W - Rice cooker Brentwood - Free user manual and instructions

USER MANUAL RC-5020W Brentwood

© 2024 Brentwood Appliances, Inc.

RICE COOKER

ARROCERA ELÉCTRICA

CUISSEUR À RIZ

ITEM NO: RC-5006W (6 cups cooked), RC-5010W (10 cups cooked), RC-5016W (16 cups cooked) & RC-5020W (20 cups cooked)

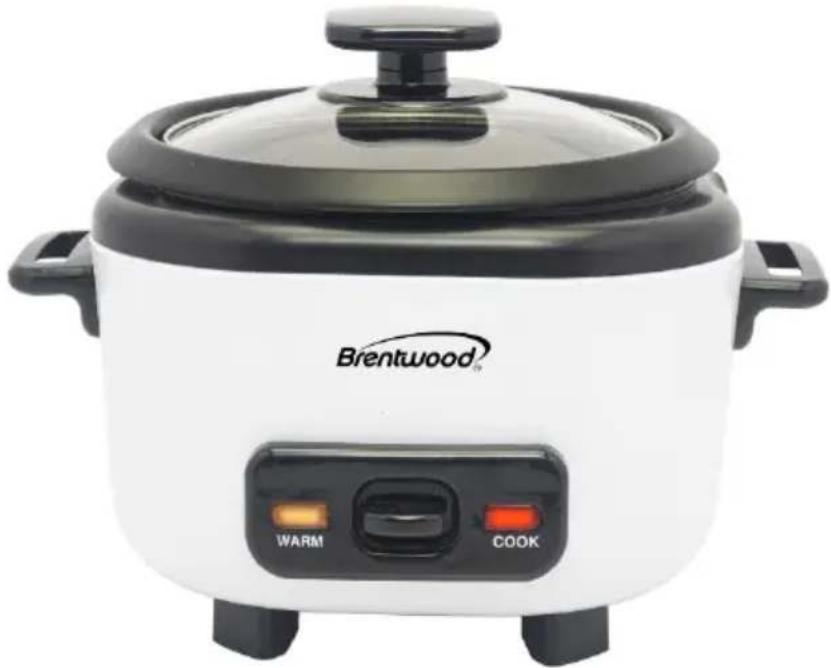

White Brentwood rice cooker with black lid and two side buttons labeled 'WARM' and 'COOK' (no visible text beyond branding)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical product, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE.

WARNING: To reduce the risk of fire, electric shock, serious personal injury, and property damage, please note the following:

- Store the cooker out of reach of children and supervise its use by minors.

- Do not use the cooker for anything other than its intended purpose.

- If the cooker malfunctions, do not attempt to repair it yourself. Refer to the Warranty Policy on Page 7 for guidance.

- Do not use attachments not recommended or sold by the manufacturer.

- Regularly inspect the cord and plug for damage. Do not use the cooker if any part is damaged.

- Ensure that the voltage of the power supply matches the specifications of the cooker. Use a suitable outlet.

- Keep the power cord away from hot surfaces and sharp edges to prevent damage.

- Ensure the cooker is placed in a well-ventilated area to prevent overheating. Avoid blocking the steam vents.

- Ensure that the cooker is properly seated in the base to prevent liquid spills, which could damage it.

- Ensure a safe distance between the cooker and flammable materials, such as clothing, curtains, or paper.

- Do not exceed the maximum fill line indicated in the inner pot to prevent overflow during cooking.

- The cooker is designed for electric use only; do not place it on a stovetop or other heat source.

- Only use the inner pot and any additional accessories provided with the cooker. Do not use metal utensils that may scratch the non-stick surface.

- Only use ingredients specified for rice cooking. Avoid using ingredients that may damage the inner pot.

- Upon initial use, a smoky smell may occur as protective coatings or films on the cooker's parts burn off. This process is normal and ensures proper product function and safety.

- The exterior of the cooker may become hot during use. Use caution when handling and allow it to cool before cleaning.

• Be careful when opening the lid, as hot steam may escape and cause burns. Always open the lid away from your face.
• Never leave the cooker unattended while plugged in, especially when it is turned on.
• Do not leave cooked rice in the cooker for extended periods. Transfer leftovers to a separate container and refrigerate promptly.
  • Always unplug the cooker when not in use.
• Let the cooker cool down completely before storing it to prevent damage or fire hazards.
• Store the cooker in a dry place when not in use. Avoid storing it in damp or humid areas.
• Do not immerse the cooker in water or any other liquids. Always keep it away from water and ensure it is unplugged before cleaning.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Using an extension cord with the product is not recommended. However, if one must be used:

• The marked electrical rating of the extension cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: The product is equipped with a polarized plug (one blade is wider than the other) to reduce the risk of electrical shock, which is a safety feature. The plug is designed to fit into a polarized outlet in only one direction. If you are unable to insert the plug into the outlet, try reversing it. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug or attempt to bypass its safety features.

WARNING

FOR HOUSEHOLD USE ONLY! PLEASE READ INSTRUCTIONS BEFORE USE & SAVE FOR FUTURE REFERENCE.

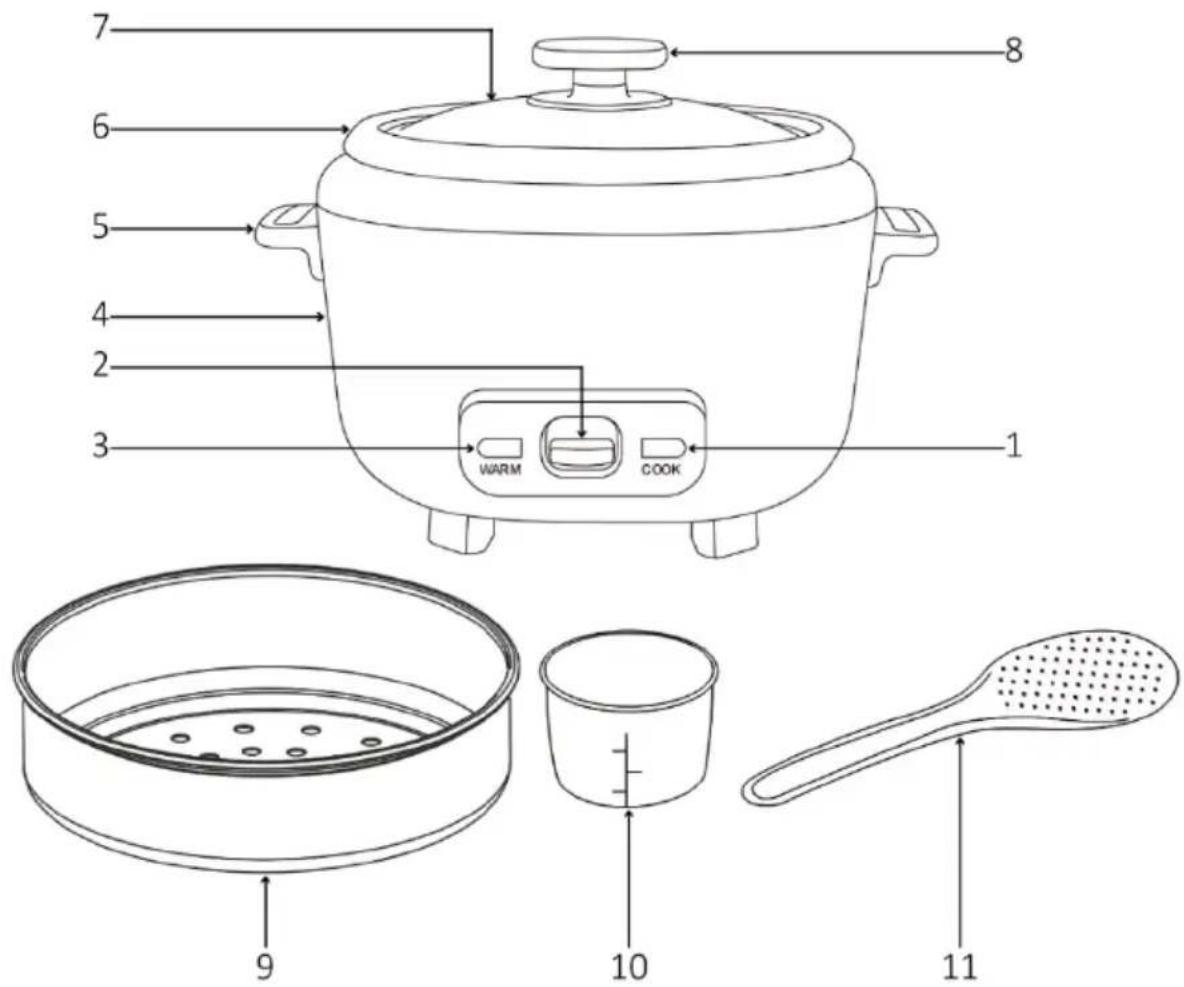

1 2 3 4 5 6 7 8 WARM COOK 9 10 11

1	Cooking Indicator Light	7	Tempered Glass Lid with Vent
2	Power Switch	8	Cool Touch Knob
3	Warming Indicator Light	9	Inner Steam Tray
4	Cool Touch Body	10	Measuring Cup
5	Cool Touch Handle	11	Rice Paddle
6	Non-Stick Inner Pot

BEFORE USING THE RICE COOKER

IMPORTANT: Check for any visible damage or defects. Ensure that the power cord is intact and free from fraying.

NOTE: The (*) symbol indicates that these steps should only be followed upon initial use.

1. Place the cooker on a flat, stable surface away from heat sources and water. Ensure there is enough space around the cooker for ventilation.
2. Check the heating element. Make sure it is clean and free of any debris.

3. *To test the cooking function, fill the inner pot with about 2 cups of water only.

4. *Plug in the cooker and push down the power switch to begin the cooking cycle. It will automatically switch to "WARM" once the water reaches boiling and evaporates.

NOTE: Upon initial use, a smoky smell may occur as protective coatings or films on the cooker's parts burn off. This process is normal and ensures proper product function and safety.

1. *Once the cycle is complete, carefully open the glass lid and check if the water has boiled away.

2. *After the test run, allow the inner pot to cool slightly, then empty out any remaining water.

3. Remove the glass lid and the inner pot from the cooker and wash them with warm, soapy water and a soft sponge. Rinse and dry thoroughly.

IMPORTANT: The glass lid and the inner steam tray are the only parts that are dishwasher safe.

USING THE RICE COOKER

1. Using the provided measuring cup, measure the desired amount of rice into the inner pot.

2. Rinse the rice under cold water to remove excess starch for fluffier results.

3. Add the appropriate amount of water based on the type of rice and the desired texture. Refer to the water-to-rice ratio guide below.

Cups of Uncooked Rice	Amount of Water to Add	Cups of Cooked Rice
2 cups	2 to 2 1⁄2 cups	4 cups
3 cups	3 to 3 1⁄2 cups	6 cups
5 cups	5 to 5 1⁄2 cups	10 cups
8 cups	8 to 8 1⁄2 cups	16 cups
10 cups	10 to 10 1⁄2 cups	20 cups

NOTE: Adjust water ratios according to the specific type of rice, and feel free to add spices, broth, or vegetables to enhance flavor.

1. Place the inner pot in the cooker, ensuring it is properly seated.

2. Close the glass lid securely to ensure proper cooking.

3. Plug in the cooker and push down the power switch to begin the cooking cycle.

4. Allow the cooker to cook until it automatically switches to the "WARM" setting. This usually takes about 10-15 minutes.

5. Once the cooking cycle is complete, carefully open the glass lid and use the rice paddle to fluff the rice gently.

6. Scoop out the rice and serve as desired.

NOTE: Once comfortable, try different recipes, such as soups or steamed dishes, using the cooker.

USING THE STEAMER

1. Using the provided measuring cup, fill the inner pot of the rice cooker with 1 to 2 cups of water for steaming.
2. Place the inner steam tray in the cooker, ensuring it is properly seated.
3. Place the food you want to steam in the inner steam tray. Make sure not to overcrowd it, allowing steam to circulate evenly.
4. Close the glass lid securely to ensure proper cooking.
5. Plug in the cooker and push down the power switch to begin the cooking cycle.
6. Allow the cooker to cook until it automatically switches to the "WARM" setting. This usually takes about 10-15 minutes.
7. Once the cooking cycle is complete, carefully open the glass lid and check the food for doneness; if it needs more time, close the glass lid and continue steaming for a few more minutes.
8. Use tongs or a fork to carefully remove the food from the inner steam tray and serve as desired.

CLEANING AND MAINTENANCE

1. If you are done cooking, unplug the cooker. Let the glass lid and the inner pot cool down completely before handling.
2. Remove them from the cooker and wash them with warm, soapy water. Rinse and dry thoroughly.
   WARNING: Avoid abrasive cleaners or scouring pads that can scratch the surface.
   IMPORTANT: The glass lid and the inner steam tray are the only parts that are dishwasher safe.
   NOTE: If food is stuck, soak the inner pot in warm, soapy water for a few minutes before scrubbing.
3. Use a damp cloth to clean the exterior of the cooker.
   WARNING: Avoid submerging the exterior in water or using harsh chemicals.
4. Check the heating element for any food residue and wipe it gently with a damp cloth. Ensure it is dry before reassembling.
5. Once everything is dry, reassemble the cooker and store it in a cool, dry place away from direct sunlight and heat sources. Ensure that all components are stored together to avoid misplacement.

ONE YEAR LIMITED WARRANTY

Write down the following information about your product to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase: ____ Store/Dealer: ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option. However, you are responsible for all costs associated with returning the product to us and for the return of a product or component under this warranty to you. If the product or component is no longer available, we will replace it with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (e.g., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this product to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go Online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES

Tasses de Riz Cru	Quantité d'Eau à Ajouter	Tasses de Riz Cuit
2 tasses	2 to 2 1⁄2 tasses	4 tasses
3 tasses	3 to 3 1⁄2 tasses	6 tasses
5 tasses	5 to 5 1⁄2 tasses	10 tasses
8 tasses	8 to 8 1⁄2 tasses	16 tasses
10 tasses	10 to 10 1⁄2 tasses	20 tasses

© 2024 Brentwood Appliances, Inc.
