USER MANUAL AF-300W Brentwood

Brentwood ^® Appliances

© 2021 Brentwood Appliances, Inc.

AIR FRYER 3L CAPACITY

FREIDORA DE AIRE 3L DE CAPACIDAD / FRITEUSE À AIR DE 3L CAPACITÉ ITEM NO.: AF-300BK (BLACK) AF-300BKC (BLACK/COPPER), AF-300BL (BLUE) & AF-300W (WHITE)

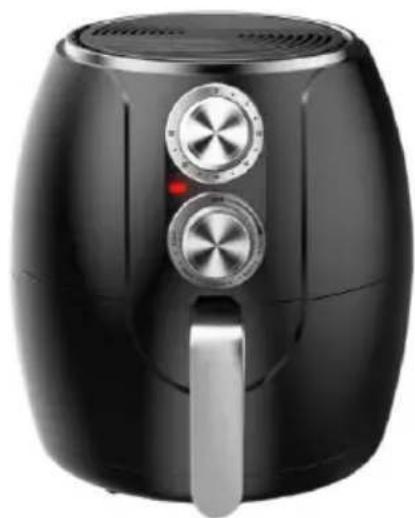

Black air fryer with control knobs and a handle, no visible text or symbols

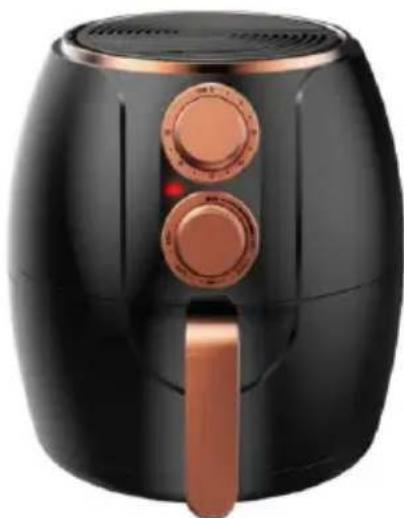

Black and white photo of a black air fryer with two copper buttons and a handle (no visible text or symbols)

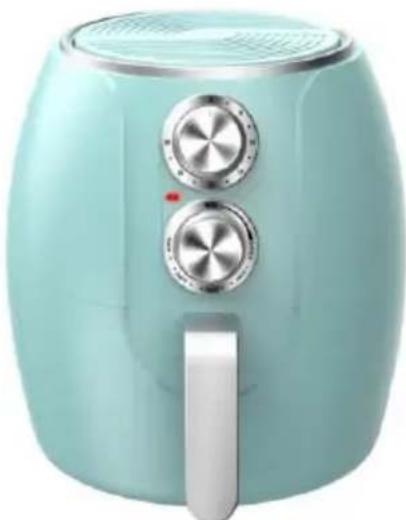

Modern light blue air fryer with dual control knobs and a silver handle (no text or symbols visible)

White air fryer with dual control knobs and a handle (no visible text or symbols)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• Never immerse the housing, which contains electrical components and the heating elements, in water or rinsing under the tap.
• Avoid any liquid enter the appliance to prevent electric shock or short circuit.
• Keep all ingredients in the basket or prevent any contact from heating elements.
• Do not cover the air inlet and the air outlet when the appliance is working.
• Fill the pan with oil may cause a fire hazard.
• Don't touch the inside of the appliance while it is operating.
• Check if the voltage indicated on the appliance fits the local main voltage.
• Do not use the appliance if there is any damage on plug, main cord or other parts.
• Do not go to any unauthorized person to replace or fix damaged main cord.
• Keep the main cord away from hot surfaces.
• Do not plug in the appliance or operate the control panel with wet hands.
• Do not place the appliance against a wall or against other appliances. Leave at least 6 in. free space on the back and sides and 6 in. free space above the appliance.
• Do not place anything on top of the appliance.
• Do not use the appliance for any other purpose than described in this manual.
• Do not let the appliance operate unattended.
• During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings.
• Be careful of hot steam and air when you remove the pan from the appliance.
• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the basket from the appliance.
• Ensure the appliance is placed on a horizontal, even and stable surface.
• This appliance is designed for household use only. It may not be suitable or safe to use in environments such as staff kitchens, farms, motels, and other non-residential environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.
• If the appliance is used improperly or for professional or semi-professional purposes or it is not used according to the instructions in the user manual, the guarantee becomes invalid and we could refuse any liability for damage caused.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 7.
  • Always unplug the appliance while not using.
• The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

ENGLISH

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• If the product is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do it alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

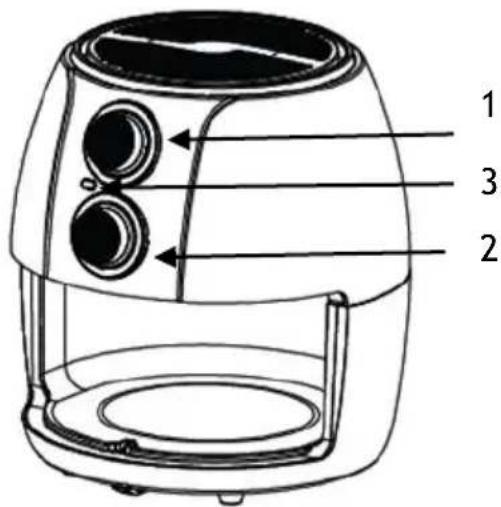

Parts:

1. Power-on knob with timer (0-30)
2. Knob for Temperature (190-410 degrees)
3. Power Indication Light

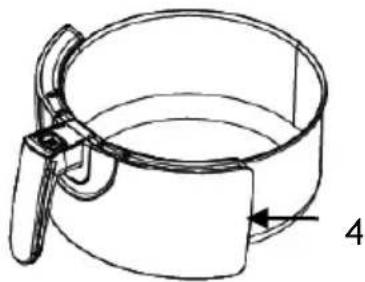

4. Frying Basket

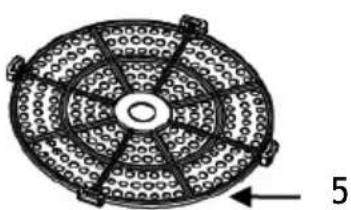

5. Rack (put into Basket)

Circular mechanical component with radial slots and a central hub, no visible text or symbols

Line drawing of a cylindrical container with a handle and label '4' (no text or symbols on the diagram itself)

1 2 3

Item Number	AF-300
Voltage	120V
Power	1200W
Capacity	3L

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

WARNING: Do not place any part of the product in a dishwasher.

1. To remove any dust that may have accumulated, wash the Fryer Basket with warm soapy water and dry thoroughly. Wipe the interior and exterior of the Fryer with a damp towel. Dry thoroughly.

Note: NEVER immerse the fryer body, cord or plug in water.

Using Your Fryer:

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. Carefully pull the basket out of the fryer and put the ingredients in the basket.
2. Slide the basket back into the fryer, carefully align with the guides in the body of the fryer.
3. To switch on the appliance, turn the timer knob to the required preparation time.
4. Turn the temperature control knob to the required temperature.

Note: If you want, you can also let the appliance preheat without any ingredients inside. In that case, turn the timer knob to more than 3 minutes and wait until the heating-up light goes out (after approx. 3 minutes). Then fill the basket and turn the timer knob to the required preparation time.

1. Some ingredients require shaking halfway through the preparation time. To shake the ingredients, pull the basket out of the appliance by the handle and shake it. Then slide the basket back into the fryer.

Caution: Do not press the button on the handle during shaking.

1. When you hear the timer bell, the set preparation time has elapsed. Pull the basket out of the appliance. Check if the ingredients are ready.

2. To remove ingredients, pull the basket out of the fryer. Use a non-metal spatula to remove ingredients to a clean plate.

Cleaning Your Fryer:

WARNING: Always turn the appliance to "Off" and unplug the product, allow it to cool before cleaning or storing it.

1. Wipe the outside of the appliance with a moist cloth.
2. Clean the basket and rack with hot water, dish soap and a non-abrasive sponge.
3. You can use degreasing liquid to remove any remaining food.

Tip: If food is stuck to the basket or the rack, fill the basket with hot soapy water. Put the rack in the basket and let the trivet and the basket soak for approx. 10 minutes.

1. Clean the inside of the appliance with hot water and non-abrasive sponge.

IMPORTANT: Never submerge the base or clean under running water.

Basic Food Settings:

These are suggestions (indications only) as some ingredients differ in origin, shape and size. Please add -3- minutes if you do not preheat the air fryer.

	Amount (g)	Time (min.)	Temp. (°F)	Remark
Potato & fries
Frozen French fries	300-500	15-20	410	Shake during cooking
Fresh French fries	300-500	20-30	350	Shake during cooking
Potato gratin	300-600	20-30	410	Shake during cooking
Meat & Poultry
Steak	100-500	10-20	410	Turn over during cooking
Pork chops	100-500	10-20	410	Turn over during cooking
Hamburger	100-500	10-15	350
Sausage roll	100-500	10-15	410
Chicken wings/drumsticks	100-500	15-25	410	Turn over during cooking
Chicken breast	100-500	15-20	410	Turn over during cooking
Snacks
Spring rolls	100-500	8-15	410	Use oven-ready. Turn over during cooking
Frozen chicken nuggets	100-500	8-15	410	Use oven-ready. Turn over during cooking
Frozen fish fingers	100-500	8-15	410	Use oven-ready. Turn over during cooking
Frozen bread crumbed cheese snacks	100-500	8-15	410	Use oven-ready. Turn over during cooking
Stuffed vegetables	100-500	8-15	320
Baking
Cake	400	20-25	320	Use baking tin
Quiche	500	20-25	350	Use baking tin/oven dish
Muffins	400	15-20	320	Use baking tin
Sweet snacks	500	15-20	320	Use baking tin/oven dish

Recipes:

French Fries

Serves 4

Ingredients

- 2 Russet potatoes

• 1 tablespoon olive oil

Directions:

1. Blanch the potatoes in water until tender.
2. Let cool. Cut into fries. Toss with olive oil and salt and pepper.
3. Place the potatoes into the Fry Basket and then into the Air Fryer.
4. Turn knobs to set cooking time to 18 minutes and temperature to 400 degrees.
5. Halfway through cooking, toss the fries. Shake periodically.

Chicken Wings

Makes 2 batches

Ingredients

• 10 large chicken drumettes
- Cooking spray
• 1/4 cup rice vinegar
- 3 tbsp honey
• 2 tbsp unsalted chicken stock
• 1 tbsp lower-sodium soy sauce
• 1 tsp toasted sesame oil
• 3/8 tsp crushed red pepper
• 1/2 clove of garlic, finely chopped
- 1 tbsp chopped unsalted roasted peanuts
• 1/2 tablespoon chopped fresh chives

Directions: Place chicken in single layer in air fryer basket; coat well with cooking spray. Cook at 400^ F until skin is very crispy, 30 minutes, turning drumettes over halfway through cooking. Meanwhile, stir together vinegar, honey, stock, soy sauce, oil, crushed red pepper, and garlic in a small skillet. Bring to a simmer over medium-high; cook until slightly thickened and almost syrupy, 6 minutes. Place drumettes in a medium bowl. Add honey mixture and toss to coat. Sprinkle with peanuts and chives.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S.A. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES

Circular mechanical component with radial grooves and central hub, no visible text or symbols

Line drawing of a cylindrical container with a handle and label '4' (no text or symbols on the diagram itself)

Diagram of a toaster oven with labeled parts including air fryer, two shades, and a tray.

Circular mechanical component with radial grooves and central hub, no visible text or symbols

Line drawing of a cooking pot with handle and lid, labeled with number 4 (no text or symbols on the diagram itself)

1 2 3

© 2021 Brentwood Appliances, Inc.
