USER MANUAL DF-701 Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

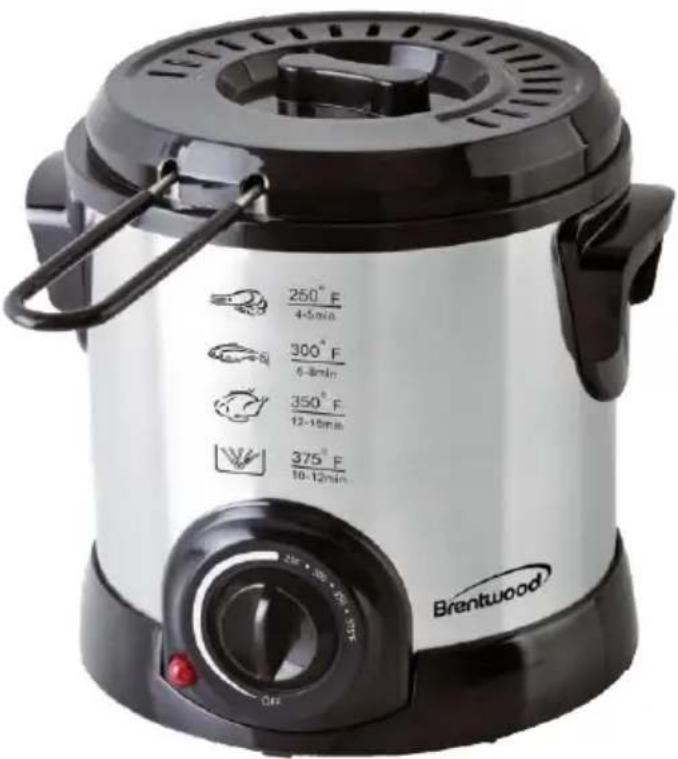

ELECTRIC DEEP FRYER

FREIDORA ELÉCTRICA FRITEUSE ÉLECTRIQUE

ITEM NO.: DF-701

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

▲ Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.

Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.

- Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.

- Do not touch hot surfaces. Use handles or knobs when handling product. Use protective oven mitts when removing the Lid or handling hot containers to avoid burns.

- Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.

- The use of accessory attachments is not recommended by the appliance manufacturer as it may cause injuries.

- Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the product from the electrical outlet with a wet hand.

- This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.

- Do not operate the product empty.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Housing is dropped in or exposed to water.

- This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 6.

- Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS:

A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

— The marked electrical rating must be at least as great as that of the product.
- Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider

than the other blade) to reduce the risk of electrical shock. This is a safety feature.

The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

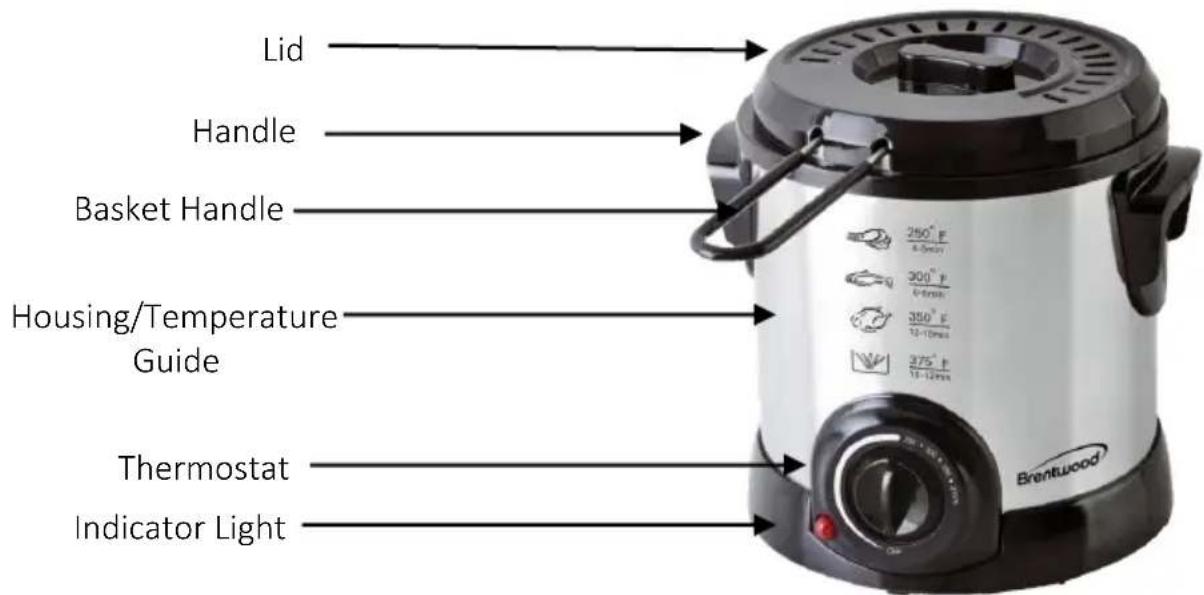

Parts:

Lid Handle Basket Handle Housing/Temperature Guide Thermostat Indicator Light 250°F 4-5min 300°F 4-brush 350°F 12-10min 275°F 18-12min Brentwood

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

WARNING: Do not place any part of the product in a dishwasher.

Make sure the Fryer is unplugged. Wash the Fryer Basket with warm soapy water and dry thoroughly. Wipe the interior and exterior of the Deep Fryer with a damp towel. Dry thoroughly.

Note: NEVER immerse the fryer body, cord or plug in water.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Using Your Deep Fryer:

WARNING: Never turn on the fryer when empty and make sure it is on a flat surface.

1. Unfold the wire mesh basket handle, squeeze the tines of the handle together and allow fitting into the basket bracket.
2. Pour between 0.8-1.0 liters of oil into the fryer. The level of oil must be between the marked MAX and MIN lines on the wall of the vessel.

WARNING: Always ensure the correct amount of oil is in the fryer before switching the power on. The heating element will become overheated and the risk of oil fire if you do not follow this instruction.

1. Plug into the outlet and set thermostat to the required temperature (see the reference menu). The power indicator will to out when the set temperature is reached.
2. Add the food (as dry as possible) into the basket first. Too many pieces lower the oil temperature causing food to absorb oil and/or cook improperly. Place uniform sized pieces of food into the basket so that they will cook evenly. Be sure to dry all foods before frying.
3. Place the basket back into the fryer.
4. After the cooking time has elapsed, lift the basket out of the oil to drain.

NOTE: Use only a good quality vegetable oil or all-purpose shortening for deep frying.

Deep frying foods in butter, margarine, olive oil or animal fat are not recommended because of lower smoking temperatures.

Frying Times and Temperature Guide:

The Frying times in this chart are a guide and should be adjusted to accommodate the different quantitates, thickness, and taste.

Food	Degree °F	Time
Mushrooms	300 °F	3-5 min
Crumbed Chicken	335 °F	12-13 min
Whole Shrimp	335 °F	2-4 min
Fish cakes	335 °F	3-5 min
Fillets	335 °F	5 min
Onions	375 °F	2-4 min
French fries	335 °F	8-10 min
Potato chips	375 °F	2-4 min

Cleaning Your Deep Fryer:

WARNING: Always turn the appliance to "Off" and unplug the product, allow it to cool before cleaning or storing it.

NOTICE: Always disconnect appliance from the outlet and then remove the Magnetic Plug from the unit. The plug should always remain on during operation. If it becomes disconnected, immediately unplug the cord from the wall outlet then reconnect the magnetic cord to the socket.

1. Let the oil cool down completely. Oil retains its temperature for a long while after use.
   CAUTION: Do not attempt to move or carry the fryer while it is still hot.
2. Oil can be reused several times. Get the maximum use from your Fryer by always having it ready for use. One way of doing this is to keep the cooled and strained. Oil should be filtered after each use.
3. After draining the oil, the fryer should be wiped out with absorbent paper then with a

damp cloth and a little mild soap and finally with a dry cloth. The interior of the fryer has a plain aluminum surface. To avoid damage, no abrasives or sharp instruments should be used.

1. The exterior should be cleaned with a damp cloth, never use abrasives or scouring pads.

2. The basket can be washed in warm soapy water.

3. Clean the lid to ensure the vents are not blocked or clogged by oils or solid fats.

NOTE: Do not immerse cord, plug and fryer in water or other liquid.

HINTS:

• The thermostat is calibrated in steps marked, 250°F, 300°F, 350°F, 375°F, allowing you to select the best temperature to suit the food to be fried.
• POWER INDICATOR will light automatically while the temperatures keep rising and go out when the set temperature is reached.
• The heating element is thermostatically controlled and will switch on and off (light on and off) automatically during the cooking process to maintain the desired cooking temperature. It is normal
• Should the fryer leak, please contact the store where you bought it. To ensure safe operation, excessive food or utensils must not be inserted into the fryer.
• Use only metal kitchen utensils with insulated handles in hot oil.
• As is usual practice extra care should be exercised when frying, especially when children are close by.
• Select the temperature for frying considering the food to be cooked. As a general guide, foods that have been pre-cooked in some way need a higher temperature and less cooking time than those foods which are completely raw.

Caution: Always add the required amount of oil to the deep fryer BEFORE switching the power on.

• Solid oil products, such as butter, margarine or animal fats of any kind should not be used in the deep fryer as they increase the chance of a fire hazard.
• Water and oil do not mix – never add any water or other liquid to hot oil. Even small amounts of water will cause the oil to splatter.
• The deep fryer will generate a lot of heat and steam during and after the cooking. To prevent the risk of burns, do not touch or block the steam ventilation area on the lid.
• Take care when opening the lid. This product generates heat and steam at a high temperature, which will escape immediately when the lid is opened. Avoid touching hot surfaces.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S.A. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
