USER MANUAL TS-117S Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

TURKISH COFFEE MAKER

CAFETERA TURCA CAFETIÈRE TURQUE

ITEM NO.: TS-117S

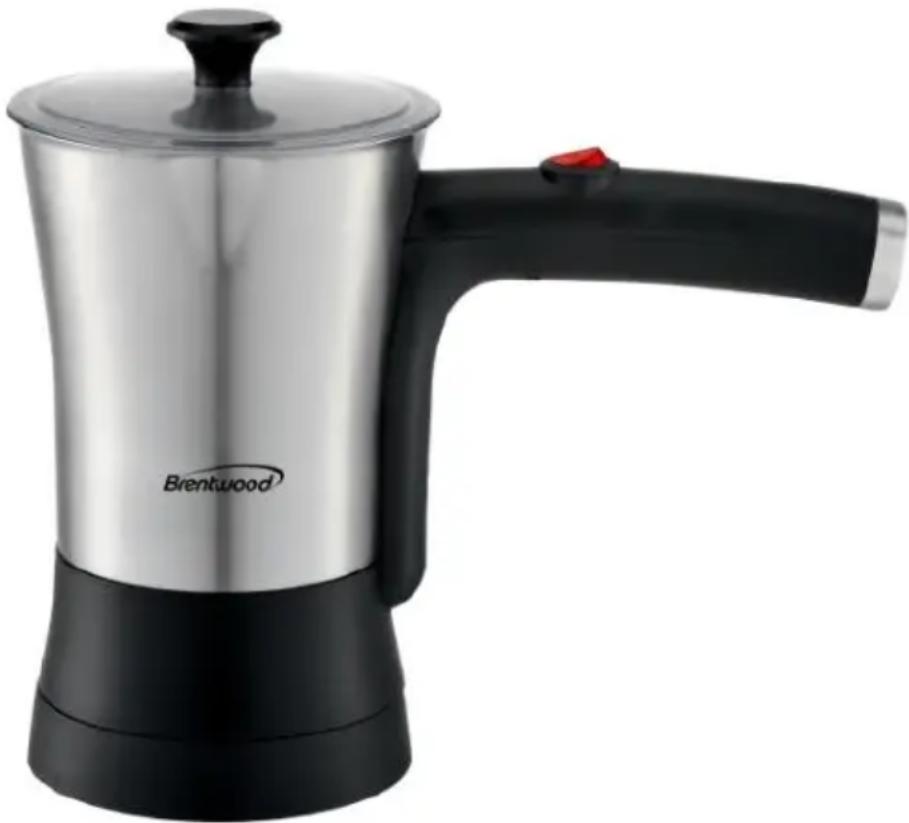

Brentwood coffee maker with black handle and lid, no visible text or symbols on device body

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the appliance is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.
• Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.
• Do not touch hot surfaces. Use handles or knobs when handling product. Use protective oven mitts or gloves when removing the Lid or handling hot containers to avoid burns and personal injury.
• This appliance generates heat and steam during use. Please take the proper precautions to avoid burns, fire, and personal/ property damage.
• Only use attachments recommended, provided, or sold by the product manufacturer.
• Attachments, when furnished, may become hot during use. Allow any attachments to cool before handling them.
• Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use extreme caution when moving an appliance containing food or liquids.
• Use the appliance in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the appliance from the electrical outlet with a wet hand.
• This appliance is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the appliance outdoors or for any other purpose.
• Do not operate the appliance empty.

• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

• Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.

• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 7.
• Do not overload wall outlet, extension cords, or integral convenience holders, as this can result in a fire or electric shock.
• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

SPECIAL INSTRUCTIONS:

A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this appliance, but if one must be used:

• The marked electrical rating must be at least as great as that of the appliance.
• If the appliance is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This appliance is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the

Close-up of a black electrical plug with two metallic pins (no visible text or symbols)

electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

Note: Before your first use, wash the pot and lid using warm soapy water. Rinse thoroughly. Then fill the pot with water up to the MAX level. Turn off your appliance when the water starts boiling and pour the contents out. Dry before reassembling the coffee maker.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

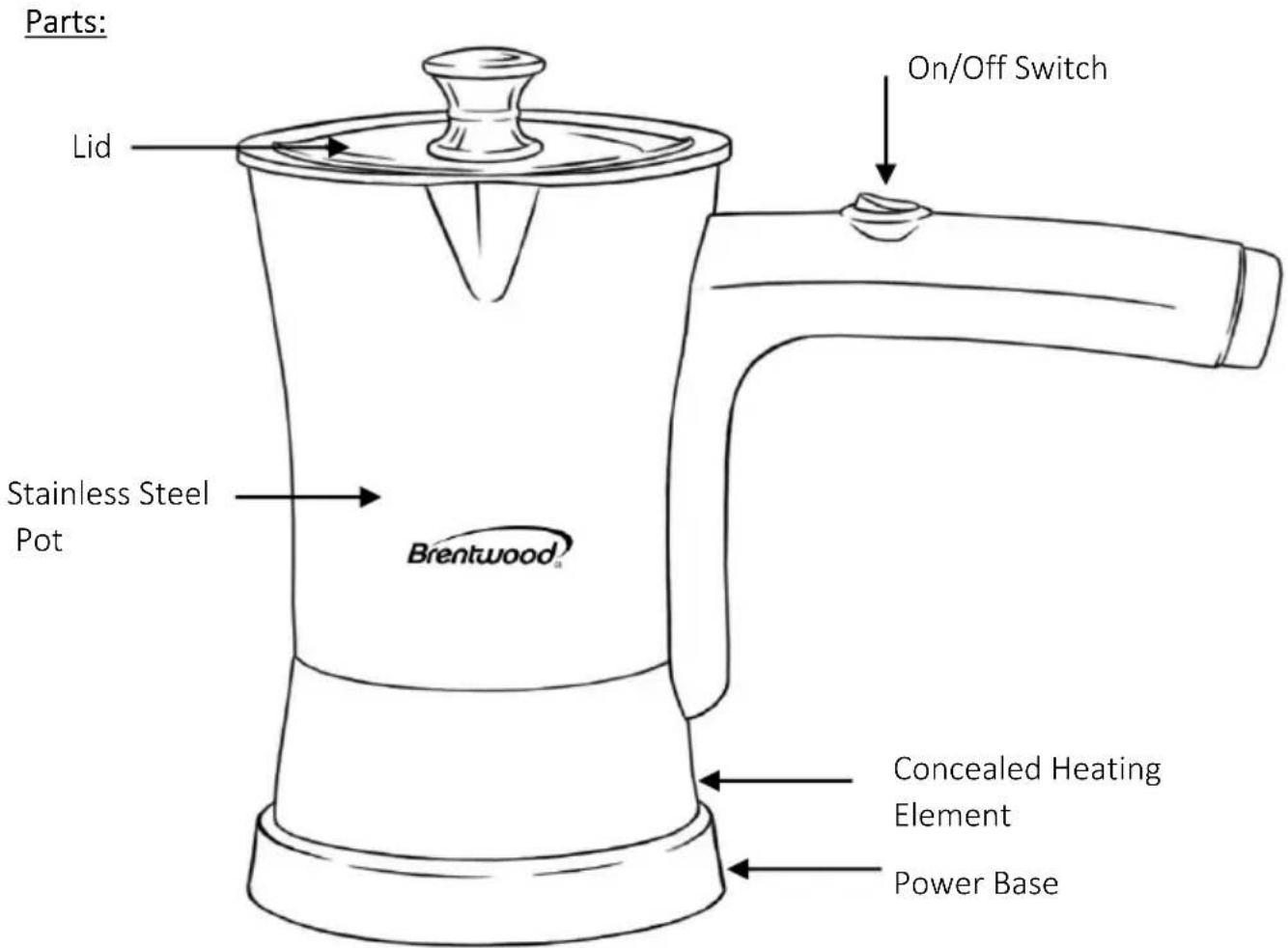

Parts: Lid On/Off Switch Stainless Steel Pot Brentwood Concealed Heating Element Power Base

Using Your Turkish Coffee Maker:

WARNING: Hot surfaces.

1. Place the power base on a clean, flat surface.
2. When filling with water, remove your appliance from its power base.
3. According to the number of cups of coffee (for 3-4 persons, max-10 oz.), put a sufficient amount of cold water, Turkish coffee, and sugar into your Turkish Coffee Maker.
4. Place the appliance onto the power base and move the switch to ON "O".
5. During the operation time, mix your coffee continuously. You can use a metal spoon when you are mixing.
6. When the coffee starts to bloat out, turn off the appliance and pour a little coffee into the cups (for foam).
7. Place your appliance back onto the power base unit and restart the coffee maker; then pour the coffee into the cups.

NOTE: When there is no water in the coffee pot or if the water runs out during use, the boil-dry protection automatically switches off the heating element. Should this happen, turn the power switch off, unplug the unit, and allow it to cool before continue using or storing.

CAUTION: Do not overfill the appliance or operate it when empty.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

Cleaning Your Turkish Coffee Maker:

WARNING: Always unplug the appliance and allow it to cool before cleaning or storing it.

NOTICE: Never immerse the motor base, plug, or cord in water or any other liquid.

• Before cleaning turn off the on/off switch located on your coffee maker, unplug it from the outlet, and allow it to cool down.
• It is recommended to rinse parts immediately after use to make cleaning easier.
• Discharge the water and remaining coffee from the appliance and wipe the outside of it thoroughly with a dry or damp cloth.
• NEVER immerse the power base unit and the body into water, nor wash them in a dishwasher.
• Avoid using abrasive and chemical cleaning agents (liquid bleach, hydrochloric acid, etc.) in cleaning any accessories of the appliance excepting of special cleaners.
• Store product in a cool, dry place, away from the reach of children.

Descaling Your Pot:

WARNING: Always unplug the product before any cleaning. Dry all parts after every use. Descale your pot regularly to avoid tougher stains.

Descaling:

Descaling is the removal of mineral deposits from stainless steel. All water contains minerals including purified and filtered water. After your first use, you may see the first signs of deposits which may be white to reddish brown in color. These stains are not rust nor are they toxic.

Note: Reheating coffee in your pot may discolor or stain the stainless-steel surface at the base of the pot.

To descale your pot, fill the pot full of water, add a small amount of white vinegar, and boil. Unplug the pot and allow the solution to sit for an hour. For darker stains leave overnight. This will remove most deposits that have built up from normal use. Rinse out solution, add fresh water, and boil again. Allow to cool, follow with thorough cleaning, and dry before next use.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S.A. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

RECOMMANDATIONS ADDITIONNELLES:

Close-up of a black electrical outlet plug with metal contacts (no visible text or symbols)
