USER MANUAL KT-33BS Brentwood

Brentwood® SELECT

© 2022 Brentwood Appliances, Inc.

AUTOMATIC HOT WATER DISPENSER

Exterior view of a modern rice cooker with black lid and digital display showing temperature reading (no text or symbols on device body)

KT-40BS (4 Liter)

Exterior view of a modern rice cooker with black and silver casing, no visible text or symbols on the device body

KT-33BS (3.3 Liter)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING-- To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• The appliance must be connected to a grounded outlet.
• Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.
• Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.
• Do not touch hot surfaces. Use protective oven mitts or gloves when removing the Lid or handling hot containers to avoid burns or personal injury.
• Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.
• Do not use attachments not recommended or sold by the product manufacturer.
• Keep the appliance and the power supply cord away from any wet surface. Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Do not overfill the Kettle. Do not immerse the Kettle or base into water.
• Use extreme caution when moving an appliance containing hot food, water, or other liquids.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the product from the electrical outlet with a wet hand.
• This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.
• Do not operate the product empty.
• Do not allow cord to touch hot surfaces. Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.
• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 9.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of

becoming entangled in or tripping over a longer cord. An extension cord is not recommended fo use with this product, but if one must be used:

- The marked electrical rating must be at least as great as that of the product

- If the product is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.

- Arrange the extension cord so that it will not drape over the countertop or tabletop

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polariz outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

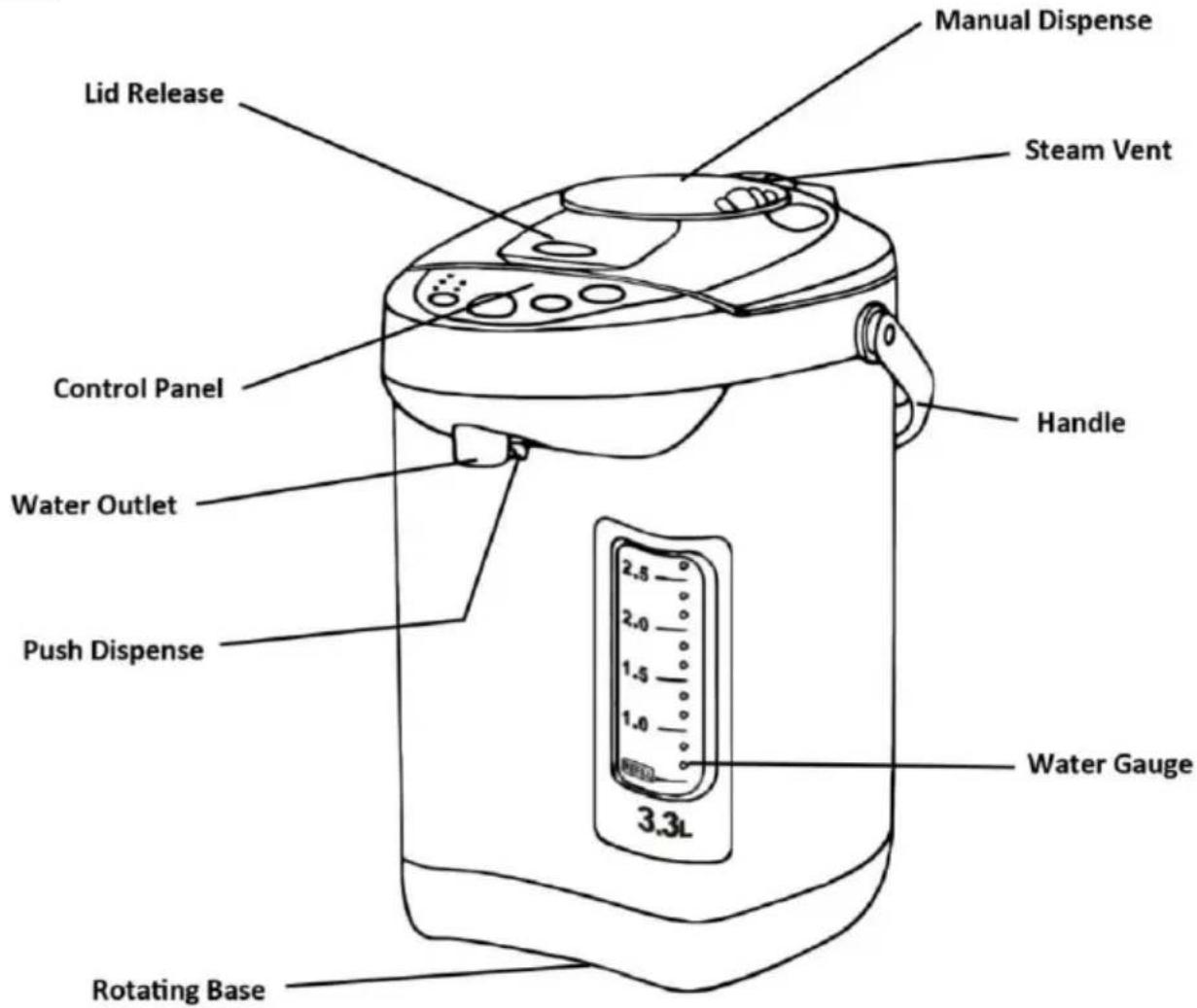

Parts:

Manual Dispense Lid Release Steam Vent Control Panel Handle Water Outlet Push Dispense Water Gauge 3.3L Rotating Base

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

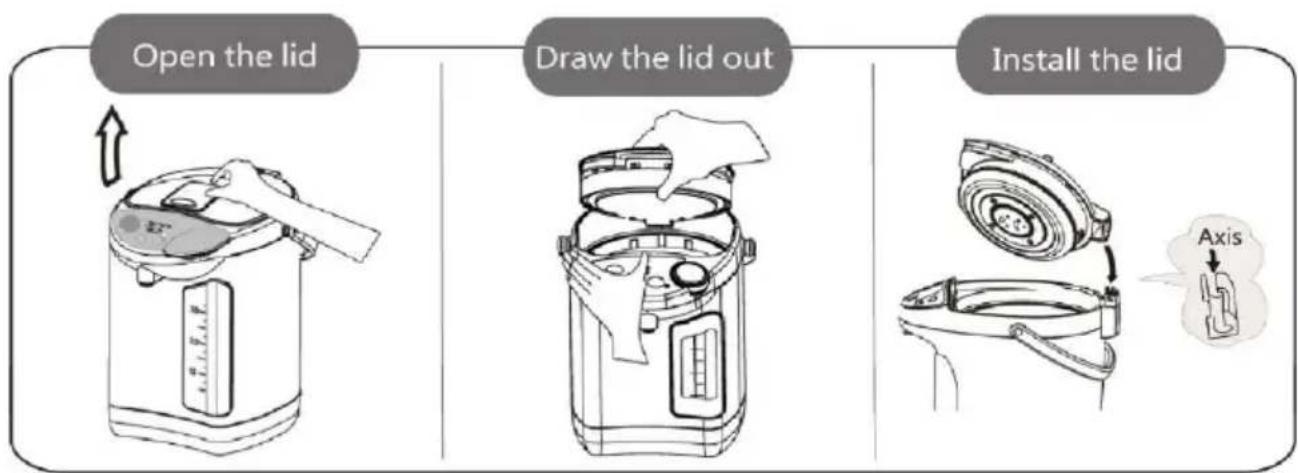

Lid Assembly:

Open the lid Draw the lid out Install the lid Axis

IMPORTANT: THIS APPLIANCE TURNS 'ON' ONCE YOU PLUG IT IN. IF YOU DO NOT WANT THE APPLIANCE 'ON' YOU MUST UNPLUG THE UNIT.

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

■ Before your first use we recommend filling the Kettle to the maximum level mark on the appliance with fresh tap

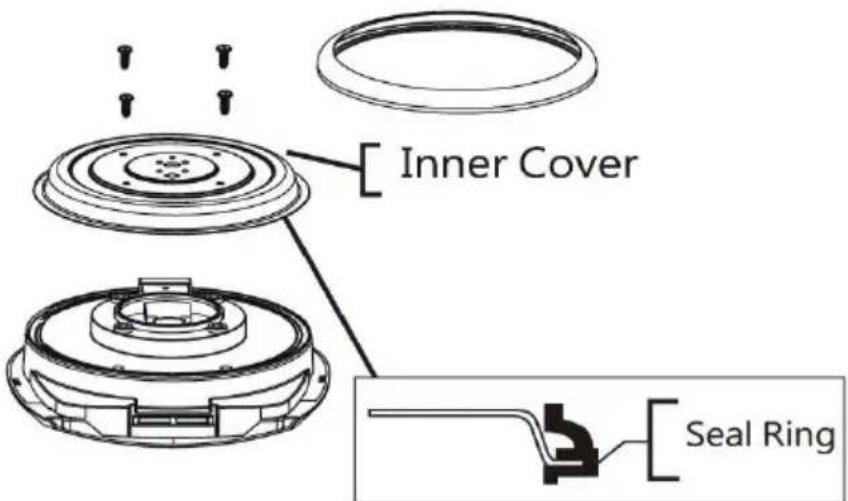

Inner Cover Seal Ring

water and bring to boil. Empty the water from the Kettle. Once cooled rinse Kettle with water.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

Using Your Hot Water Dispenser:

1. Open the lid then fill the water into the water reservoir.
   CAUTION: Do not overfill the product or operate it when empty. Do not go over the FULL line inside the reservoir.
2. Close the lid. Select your water temperature.
3. When water has reached its chosen temperature, the yellow light will blink once ready. The water is ready to dispense by manual (Air Pressure Pump), Cup Touch Dispense, or by pressing on the Dispense Button feature. Note: The Cup Touch Dispense feature and Dispense Button feature can only be operated when plugged into electricity.

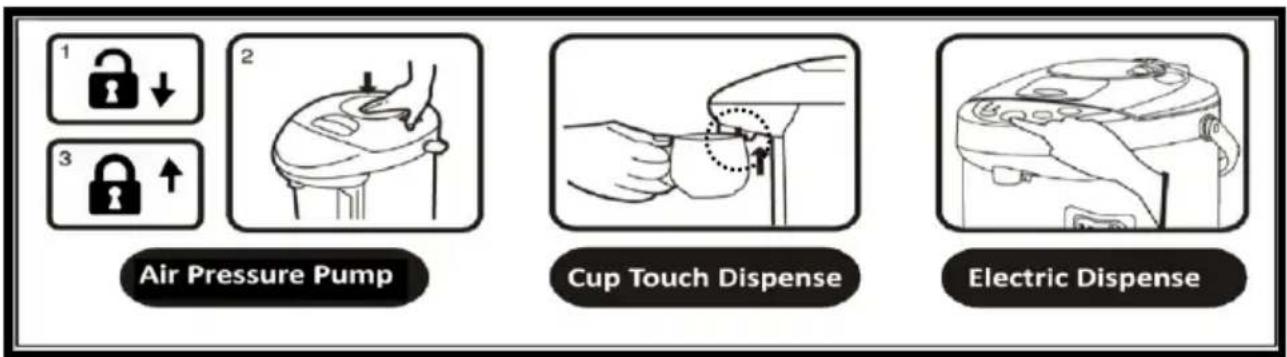

1 2 3 Air Pressure Pump Cup Touch Dispense Electric Dispense

Note: If you choose to keep your appliance plugged in, this will keep repeating the last cycle selected. If you wish to keep it plugged in but do not want it to keep boiling, select a lower temperature and chose the 'Temp Decline' feature. This will keep the water hot but not boiling repeatedly. Or simply unplug the appliance and the water will remain hot for hours without electricity. Water temperature will decline 5± degrees for each hour during colder weather, and 5± degrees for each hour and a half during warmer weather.

1. Air Pressure Pump Feature – Is the only feature that does not require the appliance to be plugged in to an electrical outlet. When the item is unplugged from the electrical outlet, the only way to dispense water is by using the Air Pressure Pump.

- To use the pump manually, make sure the Air Pressure Pump lever is down to the unlock

' 🔍 position.

- If you wish to lock the pump so no water can be dispensed, shift the lever up to the lock

' 🔍 position.

1. Cup Touch Dispense Feature and Dispense Button Feature – These two features on this appliance need the following to operate. 1. Appliance needs to be plugged in to an electrical outlet. Once this item is plugged in, it is ON. The ‘Unlock’ button on the control panel must also be pressed before using these two features.

Cup Touch Dispense – Press the ‘Unlock’ button, place your cup lip under the spout and press the cup slightly up to activate the Cup Touch Dispense feature. By pressing the lip cup up, this will release the hot water into your cup. You do not need to touch the machine with your hands.

WARNING: DO NO USE YOUR FINGERS TO OPERATE THIS DISPENSE FEATURE. Only use this feature with a cup or bowl. Never with your hands. Water is extremely HOT and it will burn.

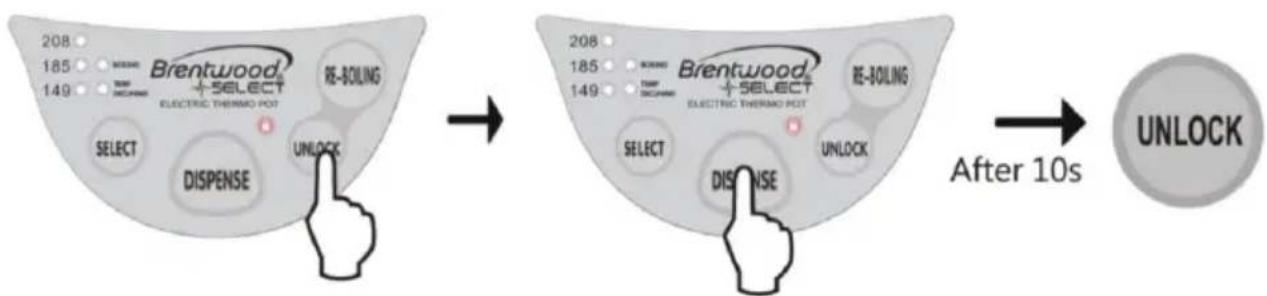

Dispense – Press the ‘Unlock’ button on control panel, then place your cup anywhere under the spout. Press ‘Dispense’ on the control panel and the water will dispense from the spout into your cup.

Important Note: Unit will automatically lock after 10 seconds.

    H["Brentwood + SELECT ELECTRIC THERMO POT"] --> I["208"]
    H --> J["185"]
    H --> K["149"]
    H --> L["RE-BOILING"]
    H --> M["SELECT DISPENSE"]
    H --> N["UNLOCK"]

    O["After 10s"] --> P["UNLOCK"]

1. If you wish to Re-Boil or change the Temperature of the water in the tank, follow these steps.

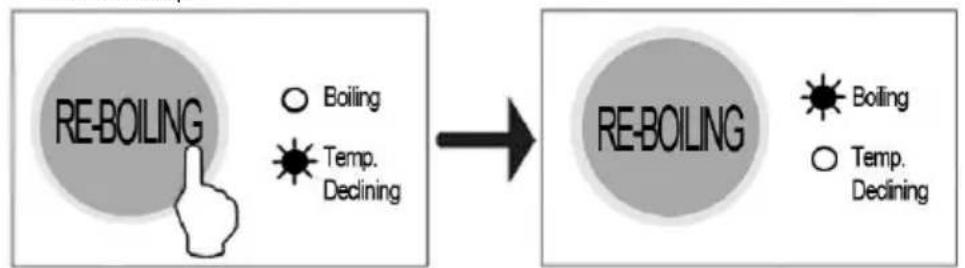


PRESS ONCE

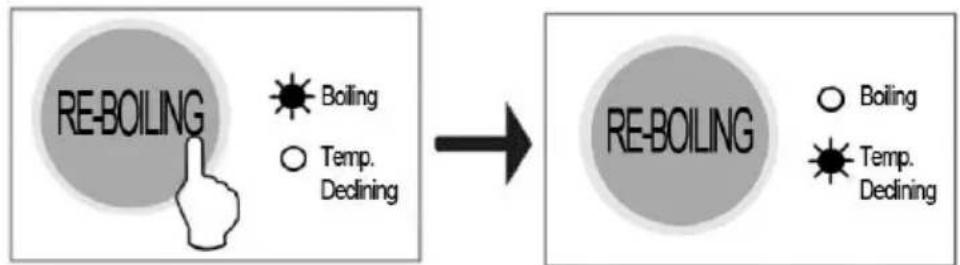


PRESS ONCE

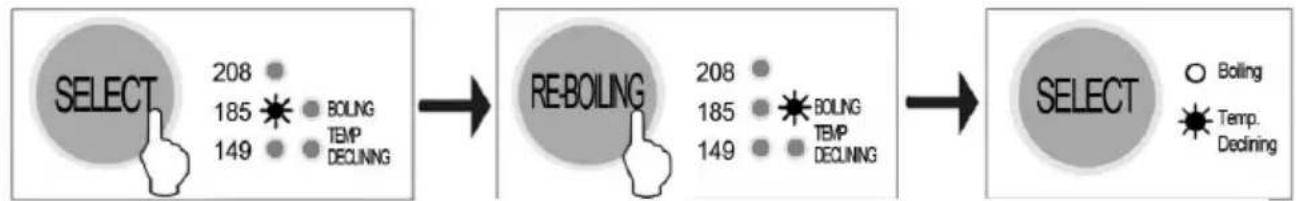


PRESS ONCE
PRESS TWICE TO CHANGE FROM 'BOILING' TO 'TEMP DECLINING'.

NOTE: This Item has boil protection and will shut off automatically.

Cleaning Your Hot Water Dispenser:

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

NOTICE: To avoid damaging the product, do not pour cold water into the Appliance after use and do not use abrasive cleaners/pads to clean any part of the product.

• Make sure the Kettle is empty and has had time to cool before handling it.
WARNING: Do not place any part of the product in a dishwasher.
• DO NOT USE RUNNING WATER.
- Dry all parts thoroughly before storing or using again.

Descaling:

Descaling is the removal of mineral deposits from stainless steel. All water contains minerals including purified and filtered water. After your hot pots first use, you may see the first signs of deposits which may be white to reddish brown in color. These stains are not rust nor are they toxic.

To descale your Hot Pot, fill it full of water, add a small amount of white vinegar, and boil.

Unplug the Hot Pot and allow the solution to sit for an hour. For darker stains leave overnight. This will remove most deposits that have built up from normal use. Rinse out solution, add fresh water, and boil again. Allow to cool, follow with thorough cleaning, and dry before next use.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
