USER MANUAL KT-2200 Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

Hot Water Dispenser

Model No.: KT-2200

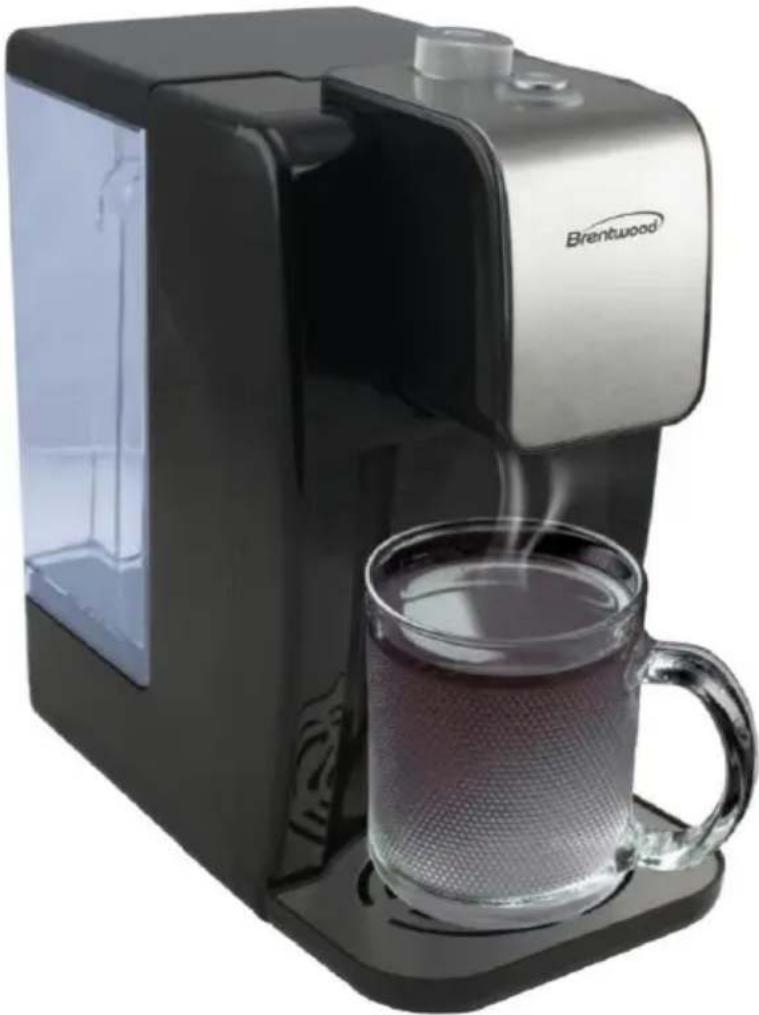

Exterior view of a Brentwood coffee maker with a glass mug filled with purple liquid, emitting steam (no text or symbols visible on the device itself)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING-- To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.

- The kettle is only to be used with the stand that has been provided.

• The appliance must be connected to a grounded outlet.

- Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.

- Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.

- Do not touch hot surfaces. Use handles or knobs when handling product. Use protective oven mitts or gloves when removing the Lid or handling hot containers to avoid burns or personal injury.

- Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.

- Do not use attachments not recommended or sold by the product manufacturer.

- Keep the appliance and the power supply cord away from any wet surface. Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Do not overfill the Kettle. Do not immerse the Kettle or base into water.

- Use extreme caution when moving an appliance containing hot food, water, or other liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the product from the electrical outlet with a wet hand.

- This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.

- Do not operate the product empty.

- Do not allow cord to touch hot surfaces. Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.

• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS:

A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product
• If the product is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.
  — Arrange the extension cord so that it will not drape over the countertop or tabletop

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

- Fill the dispenser to the Minimum level mark on the appliance with fresh tap water. Turn the temp dial to 212°F. Place a 0.5L container on the tray. Press the power dial. Once all the water is dispensed, press the power button. Remove the water tank and rinse.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

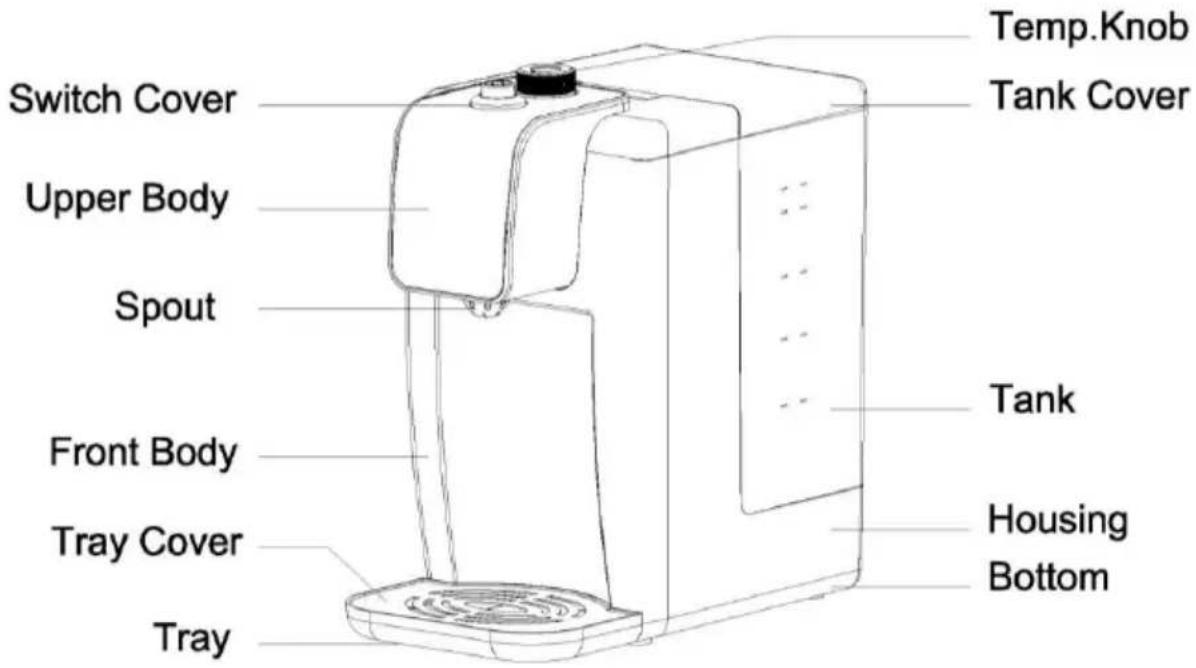

Parts:

Switch Cover Upper Body Spout Front Body Tray Cover Tray Temp.Knob Tank Cover Tank Housing Bottom

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Using Your Dispenser:

1. Open the lid, then fill water into the tank. CAUTION: Do not overfill the product or operate it when empty. Close the lid.

Technical line drawing of a mechanical device with two views showing internal components and assembly (no text or symbols)

1. Set your water temperature by turning the temperature knob. Place a mug on the tray. Press power button to turn ON. The power button will be red when water is heating. When the power button turns green, the water is heated and will dispense in your mug.

2. Press the power button to stop dispensing water.

3. Repeat the above steps whenever you would like hot water.

Cleaning Your Kettle:

WARNING: Always unplug the product and allow it to cool before cleaning or storing.

NOTICE: To avoid damaging the product, do not pour cold water into the appliance after use and do not use abrasive cleaners/pads to clean any part of the product.

WARNING: Do not place any part of the product in a dishwasher.

- Appliance should only be cleaned with a soft damp towel and dried before storing. DO NOT USE RUNNING WATER. Water tank can be detached for cleaning.

- Dry all parts thoroughly before storing or using again.

- After cleaning the appliance, please open the drainage stopper in order to clean up waste water, please tighten the drainage stopper after opening it.

- You can remove the spout (the spout is removable) to clean up scale deposit.

Note: If water leakage from the bottom is found, please tighten the drainage stopper.

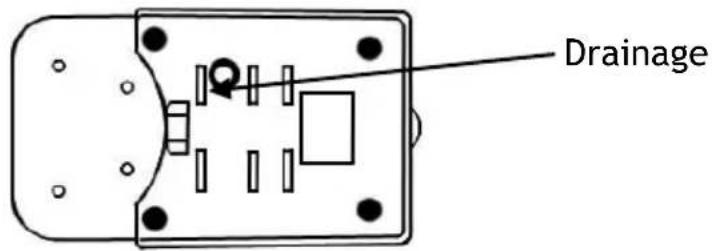

Drainage

Reset Hole Reset Key

Note: The appliance has a reset thermostat behind the body to recover the heating function for abnormal operation, if the unit is has no power, not working, not boiling the water, you can reset the thermostat by using the reset key.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other that a specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES

Partes: Switch Cover Upper Body Spout Front Body Tray Cover Tray Temp.Knob Tank Cover Tank Housing Bottom

Technical line drawing of a mechanical device with two views showing internal components and assembly (no text or symbols)

Pièces: Switch Cover Upper Body Spout Front Body Tray Cover Tray Temp.Knob Tank Cover Tank Housing Bottom

CONSERVEZ CES INSTRUCTIONS À TITRE DE RÉFÉRENCE

Technical line drawing of a mechanical device with open lid and internal components, showing assembly and disassembly (no text or symbols)

Top-down schematic of a device casing with internal components and mounting holes (no text or symbols)

Reset Hole Reset Key as e, rez
