USER MANUAL TS-3430PK Brentwood

Brentwood® Appliances

© 2023 Brentwood Appliances, Inc.

MINI TOASTER OVEN (3L)

MINI HORNO TOSTADOR / MINI-FOUR

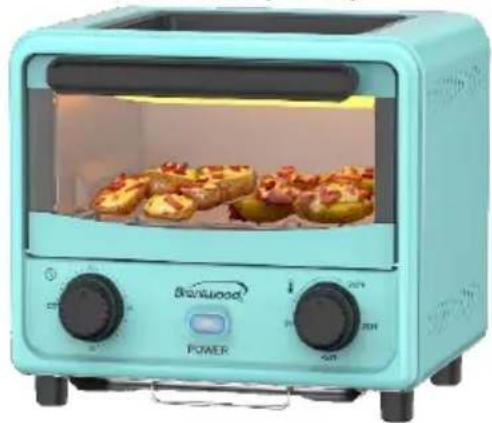

TS-3430BL (BLUE)

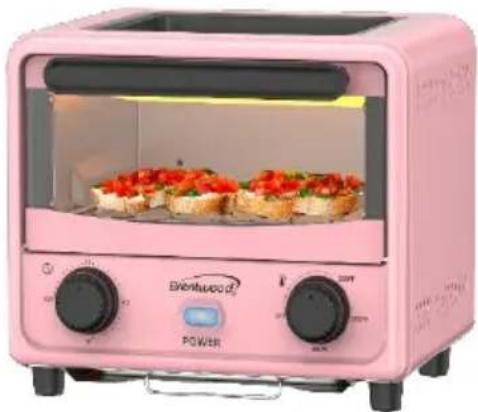

TS-3430PK (PINK)

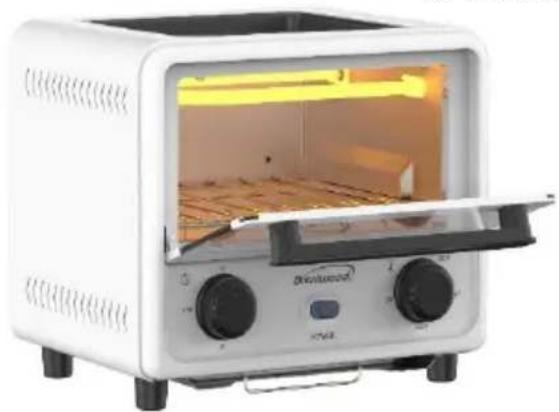

TS-3430W (WHITE)

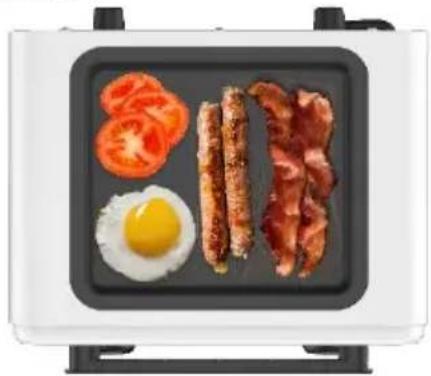

Top Griddle View

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING - To reduce the risk of fire, electric shock, serious personal injury, and property damage please note the following:

• This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children and children with disabilities.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning.
• Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.
• Do not expose or immerse this appliance, Power Cord, and Plug of this product in water or other liquids.
• Do not overfill the product or operate it when empty.
• This is not a toy and should only be used by an adult for cooking purposes only.
• Do not place any combustibles into the oven chamber.
• Do not touch hot surfaces. Use protective, heat resistant cooking gloves or oven mitts to avoid burns or personal injury.
• Take proper precautions to prevent burns, fire, or personal or property damage.
• Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.
• Do not use attachments that are not included within the original packaging. Only use the accessories that were sold by the product manufacturer.
• Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use extreme caution when moving an appliance containing hot food. Always wear protective oven mitts when inserting or removing items from the hot oven.
• Use appliances on a heat resistant table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.
• Do not plug or unplug the product from the electrical outlet with a wet hand.
• This product is intended solely for non-commercial, non-industrial, household use in cooking food for human consumption; do not use the product outdoors or for any other purpose.

• Do not let cord hang over edge of table or counter where it may be tripped over or pulled.
  Do not allow cord to touch hot surfaces.

• Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.

• This product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Please review the Warranty Policy on Page 9.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.
• Do not cover the Removable Grill Rack or the Removable Griddle Tray or any part of this oven with metal foil. This may cause overheating.
• Oversized foods or metal utensils must not be inserted in an electric oven as they may create a fire or risk of electric shock.
• Do not store any item or utensil in the oven while it is operating.
• Extreme caution should be used when using containers of anything other than metal, glass or ceramic that was made for cooking.
• Do not place cardboard, plastic, paper, or any similar materials in the oven.
• Do not operate if glass has deep scratches or cracks, the heat may cause it to burst outward.
  Glass door may become hot while the appliance is operating, please operate with care.
• The temperature of accessible surfaces may be high when the appliance is operating.

SPECIAL INSTRUCTIONS:

• A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
• Longer extension cords are available and may be used if care is exercised in their use.

• An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.

• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

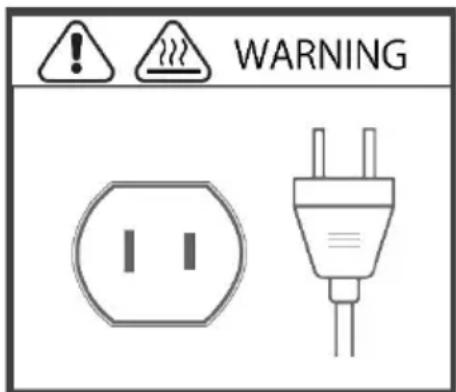

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

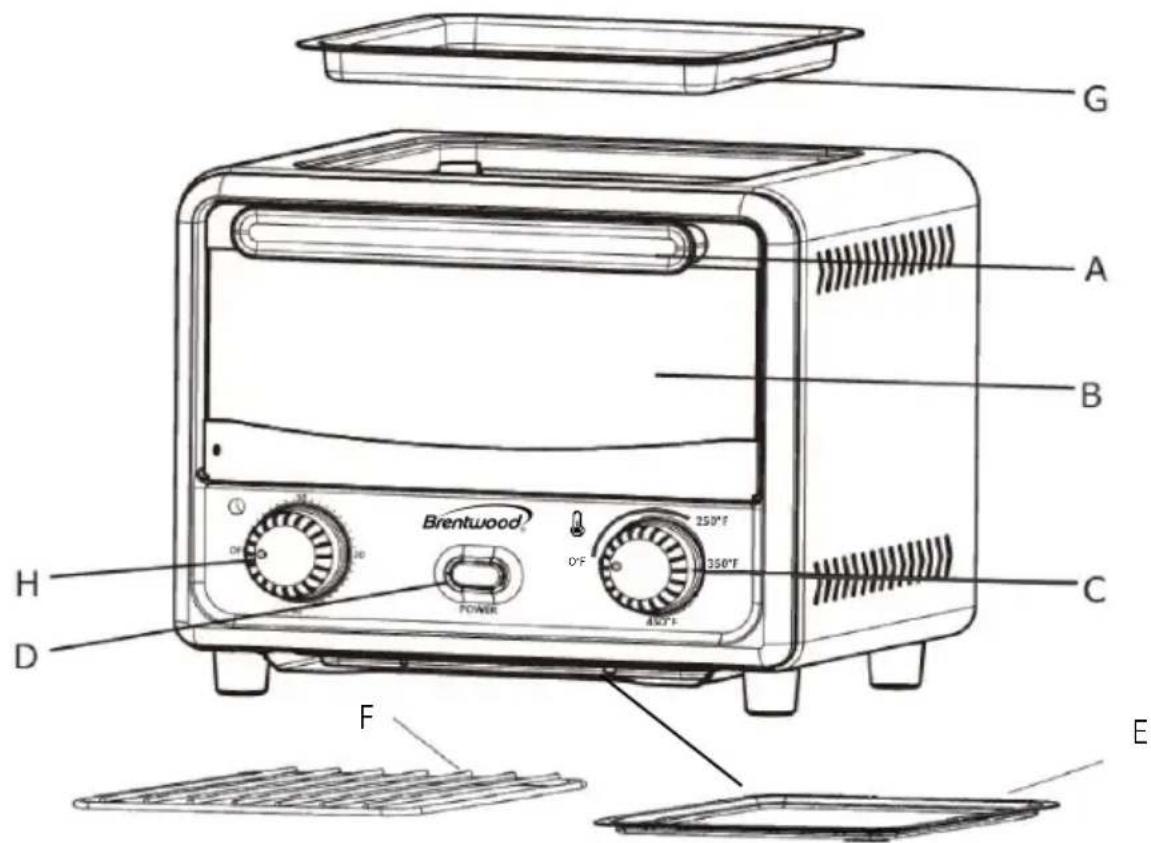

PARTS:

A. Handle

E. Crumb Tray*

B. Glass Door

F. Removable Grill Rack*

C. Temperature Dial

G. Removable Griddle Tray*

D. Power Indicator Light

H. 30 Minute Timer Dial

*Dishwasher Safe

Product Specifications:

Rated Voltage: 120V 60Hz Rated Power: 500 Watts Capacity: 3 L

IMPORTANT: This appliance requires 6 inches from all walls, cabinets, and flammables while in use.

FOR HOUSEHOLD USE ONLY!
PLEASE READ INSTRUCTIONS BEFORE USING AND SAVE FOR FUTURE REFERENCE.

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

WARNING: this Mini Toaster Oven will generate heat. Use oven mitts or heat resistant gloves when cooking. Stay clear of any hot parts and keep all body parts at bay. We recommend you use heat resistant cooking gloves when operating.

WARNING: Do not submerge the oven in water or any other liquid. Accessories are dishwasher safe. Please read all Instructions and Safeguards before operating this appliance.

1. Removing all Accessories to clean before use.

Removable Grill Rack - Open the oven and pull out the Grill Rack and remove any wrapping that may be found in the oven and around the Grill Rack.

Removable Crumb Tray - Pull the Crumb Tray out which you will find below the Dials. How to remove the top Griddle Tray:

Removable Griddle Tray – To remove the top Griddle Tray hold the front of the Toaster Oven by the handle and with the other hand slightly lift the back part of the oven until you see the top Griddle Tray separate from the Oven. Use the hand lifting the back of the oven to reach for the Griddle Tray. Place the Griddle Tray to the side, and place hand back under the oven to slowly lift back upright.

1. Wash your Grill Rack, Griddle Tray and Crumb Tray with a soft, clean sponge and warm soapy water. You may also place these parts in a dish washer. Rinse and dry thoroughly before reassembling all parts back.
2. Check that the Temperature Dial is on the 0^ position and Time Dial is on the OFF position before plugging into an electrical outlet.
3. Connect the appliance to the nearest electrical outlet.

IMPORTANT: This appliance requires 6 inches from all walls, cabinets, and flammables while in use.

1. Before using the oven for the first time, adjust the temperature to the maximum, and preheat it for 10-15 minutes to remove any residue left from manufacturing

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element being used for the first time. It quickly goes away.

Toaster Oven Features and Accessories:

• Temperature Dial: This dial will turn on and generate heat for both the Griddle Tray and the Toasting Oven sections of your new Mini Toaster Oven. Choose your desired Griddle and/or Toasting Temperature anywhere from the 5^-450^ then set the timer to activate the heating element.

NOTE: When not in use, always unplug the appliance from the electrical outlet. Never use the toaster oven or Griddle tray as storage when not in use or when in use.

• Timer Dial: Turning the dial clockwise allows you to activate the oven. Without the timer on, the Mini Toaster Oven will not heat. Your timer allows you to set the cooking time from 1 minute to 30 minutes max. A bell will sound indicating time has elapsed.

• Power Indicator Light: When the Indicator Light is on, the appliance operates and is generating heat. The indicator Light will only turn on when the Temperature and Timer are both set. The appliance will not heat if the Timer is not set.

• Grill Rack: For toasting, baking, and general cooking. If a dish is needed, please make sure it is oven safe.

NOTE: We do not recommend using a lid of any kind when using the toaster oven, food will not properly heat.

• Griddle Tray: For frying eggs, meats, poultry, fish, and various other foods that you would otherwise cook on a frying pan.

Using Your Toaster Oven and Griddle Tray: This Mini Toaster Oven will generate heat.

WARNING: Use oven mitts or heat resistant gloves when cooking. Stay clear of any hot parts and keep all body parts at bay. We recommend you use heat resistant cooking gloves when operating.

CAUTION: Glass door will become hot while the appliance is working, do not place any weight on the door while it is fully open. Be careful where you touch it, this is an oven, and it will get hot and can scall. Avoid touching any parts other than the handles and knobs while operating.

Allow the Toaster Oven to cool before handling. Allow to cool 10-15 minutes before cleaning and storing.

1. Place your Mini Toaster Oven on a heat resistant and stable counter and leave six inches from any wall, cabinets, or flammables.
2. Before plugging into an electrical outlet, check that both Temperature Dial is on the 0^ F position and Time Dial is on the OFF position, then plug in your appliance into an electrical outlet
3. Place food directly onto the Grill Rack in the Oven or on top of the Griddle Tray.

Oven Suggestion If your food has lots of drippings when heated, we suggest you use an oven safe dish to cook your food in, to keep your Toaster Oven clean and avoid any drippings on to the heating element below.

Griddle Tray Suggestion: We do recommend you place a little oil onto the Griddle Tray before cooking to avoid any stuck on or burnt on foods. Mind any oil spatter your food may create. Tip: Use an oil splatter screen when frying oily foods.

1. Next, select the desired temperature and use the timer to set the time needed to fully cook your food.

WARNING: Surfaces and parts will get hot during use.

CAUTION: IF APPLIANCE IS OPERATING, DO NOT LEAVE IT UNATTENDED. ALWAYS TURN THE TEMPERATURE DIAL TO THE 0^ F POSITION AND THE TIME DIAL TO THE OFF POSITION AND UNPLUG WHEN NOT IN USE.

1. While cooking, only use wood or silicone utensils to cook with.
2. Timer will sound bell indicating time has elapsed. Check food for doneness. When cooking raw meats, you should always use a meat thermometer to check for internal temperature and that it reaches the USDA Recommended Safe Minimum Internal Temperatures.

Please refer to the 'USDA Recommended Safe Minimum Internal Temperatures' table in this manual.

1. If your food requires more time, or if your food has not reached the consistency you like, set more time on the timer.

NOTE: If running Toaster Oven continuously, the cooking time will be shorter than when using for the first time, due to the heating element being at a higher temperature than when first started. Keep this in mind for your recipes while cooking.

WARNING: If temperature in the oven gets too hot, the built-in temperature controller will automatically turn off, and the heating element will not work. The heating element will resume working once it cools down.

1. When food is done, turn Temperature Dial to the 0^ position and Time Dial to the OFF position and always disconnect your Toaster Oven from the electric outlet when not in use.

NOTE: Always unplug the appliance from the electrical outlet when it is not in use or will be left unattended.

1. Do not handle the oven immediately after use. Allow 10-15 minutes before disassembling for cleaning and storing.

USDA Recommended Safe Minimum Internal Temperatures
FOOD	TYPE	INTERNAL TEMPERATURE (°F)
Beef, Lamb & Veal	- Ground	- 160
	- Steak and Roasts (Medium)	- 160
	- Steak and Roasts (Rare)	- 145
Chicken & Turkey	- Breasts	- 165
	- Ground, Stuffing, and Casseroles	- 165
	- Whole bird, legs, thighs, and wings	- 165
Eggs	- Any Type	- 160
Fish & Shellfish	- Any Type	- 145
Leftovers	- Any Type	- 165
Pork	- Chops, Fresh (Raw) Ham, Ground, Ribs, and Roasts	- 160

Cleaning Your Toaster Oven:

1. Always unplug the product and allow it to cool 10-15 minutes prior to cleaning or storing.
2. Do not submerge any part of this appliance. Do not use steel wool scouring pads or abrasive cleaners. DO NOT scrape walls with metal utensils they can damage the Coating.
3. Your Toaster oven features a Quick-Clean Coating. If desired, you may wipe the walls and glass door of any residue with a damp cloth and mild detergent. Wipe dry.
4. Removing Griddle Tray: Before removing the top tray, check for any excess oil buildup.

IMPORTANT TIP: Before tilting your oven to separate the Griddle Tray, remove any excess oil buildup. If excess oil might go over the lip of the tray when removing, we suggest you remove oil first. Remove the buildup oil with a dry paper towel and discard. If it requires a spoon to remove, use silicone or a wood spatula and spoon it into a jar or onto a paper towel and discard.

NOTE: Do not dump oil in any sink. Dispose of it properly in a trash bin.

• Removable Griddle Tray—If the Griddle Tray has minor oil buildup, tilt the toaster oven to separate the Griddle for cleaning. See section, "Before First Use' Section 1 on how to remove the Griddle Tray. By tilting the Toaster Oven forward the tray will automatically separate from the rest of the toaster oven.

• Removable Griddle Tray, Grill Rack, and Crumb Tray can be washed with warm soapy water and soft sponge or placed in a dishwasher.

• Store in a dry cool environment.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase Store/Dealer

Model/Item No:

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace it with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am - 5:00 pm PT

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES
