USER MANUAL MPI-41 Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

PORTABLE STEAM IRON & GARMENT STEAMER

PLANCHA DE VAPOR PORTÁTIL Y VAPORIZADOR DE PRENDAS FER À VAPEUR ET VAPEUR PORTABLE POUR LES VÊTEMENTS

ITEM NO.: MPI-41

Exterior view of a Brentwood air conditioner with black and white body (no text or symbols visible)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

BEFORE

READ ALL INSTRUCTIONS

USE

⚠ WARNING-- To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

- This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.

- Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.

- Do not immerse the Base, Power Cord, or Plug of this product in or expose the Power Cord or Plug to water or other liquids.

- Do not touch hot surfaces. Use handles or knobs when handling product.

- Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.

- Do not use attachments not recommended or sold by the product manufacturer.

- Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the product from the electrical outlet with a wet hand.

- This product is intended solely for non-commercial, non-industrial, household use this product cannot be used outdoors or for any other purpose.

- Do not operate the product empty.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate the product if it has a damaged or cut Power Cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the Motor Housing is dropped in or exposed to water.

- This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 7.

- Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS:

• The Iron should always be turned to "MIN" before plugging or unplugging from outlet.
• Always disconnect Iron from electrical outlet when filling with water, emptying or when not in use.
• Burns can occur from touching hot metal parts, hot water or hot steam. Use caution when you turn the Steam Iron upside down as there still be hot water in the reservoir.
• Never immerse the iron, cable or plug in any liquid.
• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating must be at least as great as that of the product
• If the product is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

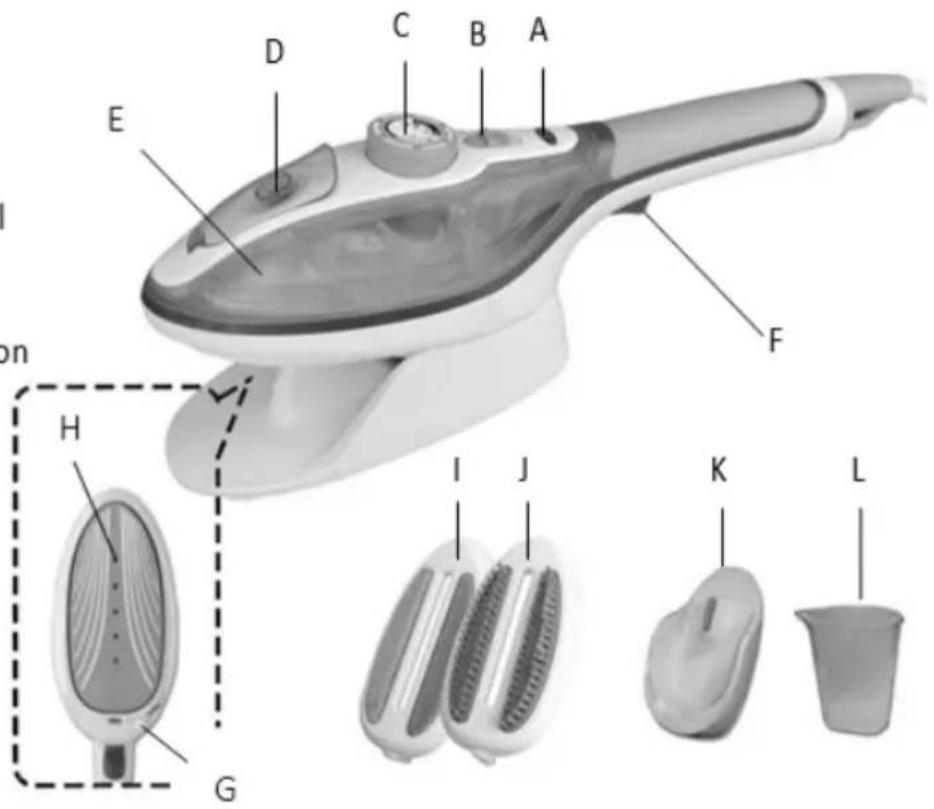

Parts:

A. Indicator Light
B. Steam Dial
C. Temperature Dial
D. Filler Cap
E. Water tank
F. Burst steam button
G. Release button
H. Steam vent
I. Brush
J. Lint Brush
K. Base
L. Water cup

A B C D E F G H I J K L

GARMENT LABEL	FABRIC TYPE	THERMOSTAT REGULATION
	Synthetic	low temperature
	Silk - Wool	medium temperature
	Cotton - Linen	high temperature
	FABRIC SHOULD NOT BE IRONED

Before First Use

First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction.

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

Attention: If applicable, remove the plastic liner from iron plate before plugging in to use. THIS IRON DOES NOT HAVE AUTO SHUT OFF. Use low intensity for delicate fabrics such as sequins, embroidery, etc.

1. Insert the power plug into an outlet.
2. Hold the steam brush horizontally.
3. Place the temperature regulator at the desired position, at the same time turn off the adjustable horizontal steam regulator.

4. Heat the steam brush up at the highest setting for a few minutes. By doing this you will clear production residues from the sole of the appliance.

5. Then iron a piece of material (rag), to remove any impurities that may possibly be on the sole of the iron.

Using Your Steam Iron:

ATTENTION: Remove all possible adhesive tags and protective foils from the steam iron. NEVER fill the water tank with fluids other than water. NEVER attempt to attach or detach the accessories when the appliance is heated up. Risk of Burns!

1. Open the filler cap. Then using the measuring cup, pour water into the water tank to the Max fillline.
2. Close the cover to the filler.
3. You can use as a traditional steam iron without any accessories.
4. Adjust the temperature according to different fabrics.

Attachments :

Assemble the Fabric and lint brush with the soleplate to remove dust on the clothes, sofas, curtains, blankets or other home textiles

• Attach the head of the Fabric brush to the head of soleplate, then push the back of the fabric bristle brush to lock the soleplate. When the switch is locked, it is ready for use.
• To detach, hold the handle with your one hand, and use your other hand to hold the Fabric brush. Then slide the lock down and raise the back of the fabric bristle brush. When the head of the fabric bristle brush depart from the soleplate it is ready.
• To avoid damage to the fabric bristle brush, it's necessary to adjust the temperature control to desired position.

Attention: The temperature on the soleplate is very hot and may burn the inner side of the fabric brush after some time and use.

For best ironing results:

• Some garments should be ironed inside out.
• When ironing, touch the fabric lightly with the iron and move it in different directions to remove wrinkles. It is important for the iron to touch the fabric of the garment.
• The iron will not remove stains from a garment.
• Steam brush and iron combination can be used with almost any kind of fabric, including silk, cotton, polyester and wool. Please read the garment's care label to check that it can be steam ironed. Certain materials such as leather, suede and velvet cannot be steam ironed.
• To ensure the garment can be steam ironed, test the iron on a small part of the interior of the garment. If no damage occurs, the entire garment can be ironed.

Cleaning and maintenance

• When you have finished using the Steam brush and iron combination, make sure that it is completely unplugged from the electrical outlet before starting to clean.
• Allow the water in the appliance to cool for 15 minutes. Then carefully remove the water- reservoir cap. Turn the appliance upside down to empty out all the water
• Clean the appliance and accessories only when they have completely cooled.
• Store the appliance in a dry, and safe place

Warning: Never put detergent, chemicals, salt, perfume, dye or any other liquid except water into the water reservoir. Many of these substances are highly flammable and may cause bodily harm, while certain additives can corrode and clog the appliance's components. Never should you add essences to perfume water.

Removing mineral deposits:

A common problem with steam irons is the accumulation of mineral deposits in the tubes. This is normal when tap water is used to fill the iron. To reduce or remove these mineral deposits, use filtered, mineral or distilled water. The following steps, if taken at least once a month, can reduce the level of minerals, when distilled water cannot be used regularly:

1. Ensure the appliance is unplugged and cool.
2. Make a solution that is 50% vinegar and 50% water. Pour in the solution into water tank.
3. Allowit to steam for 40 minutes, adding more solution when the water reservoir becomes empty.
4. Pour any remaining solution out.
5. Fill the water reservoir with clean fresh water and empty. Repeat as often to remove the vinegar smell from the iron.

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00 am – 5:00 pm PT

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
