USER MANUAL TS-1005 Brentwood

Brentwood® Appliances

© 2023 Brentwood Appliances, Inc.

FOOD STEAMER

VAPORERA ELECTRICA / CUISEUR VAPEUR ÉLECTRIQUE

ITEM NO.: TS-1005

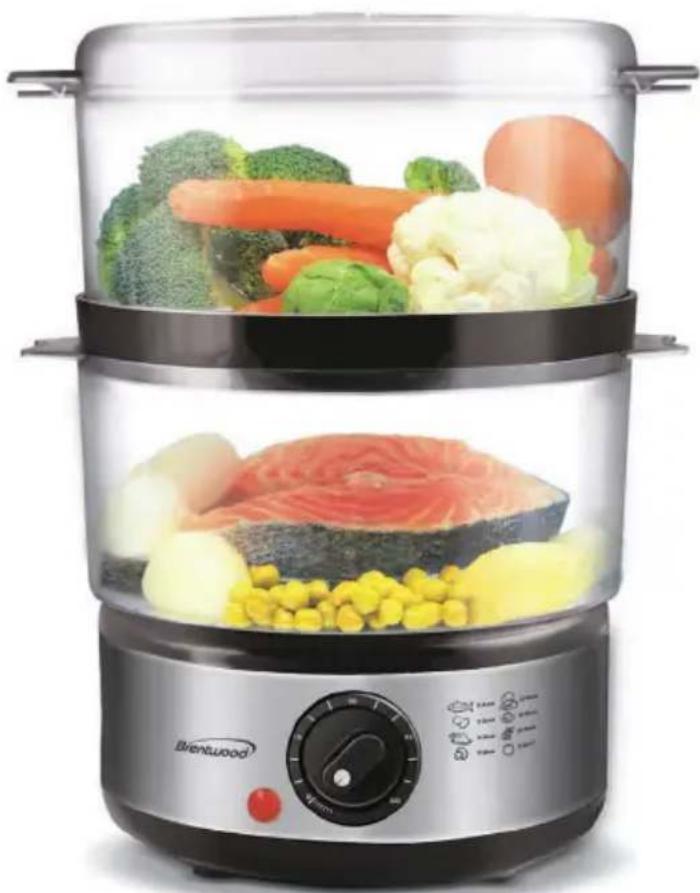

Brentwood steamer with fresh vegetables and fish, no visible text or symbols on the food or background.

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the appliance is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning it.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.

- Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.

- This appliance generates heat and steam during use. Please take the proper precautions to avoid burns, fire, and personal or property damage.

- Do not use attachments not recommended or sold by the Manufacturer.

- Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing food or liquids.

- Use the appliance in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or sturdy flat surface.

- Keep the appliance away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the appliance from the electrical outlet with a wet hand.

- This appliance is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the appliance outdoors or for any other purpose.

- Do not operate the appliance empty.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.

- This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 8.

- Do not overload wall outlet, extension cords, or integral convenience holders, as this can result in a fire or electric shock.

- Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this appliance, but if one must be used:

• The marked electrical rating must be at least as great as that of the appliance.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

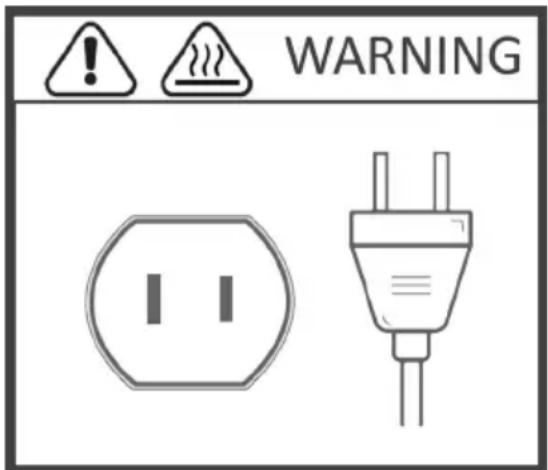

WARNING: This appliance is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

WARNING

FOR HOUSEHOLD USE ONLY. READ THESE INSTRUCTIONS AND SAVE FOR FUTURE REFERENCE!

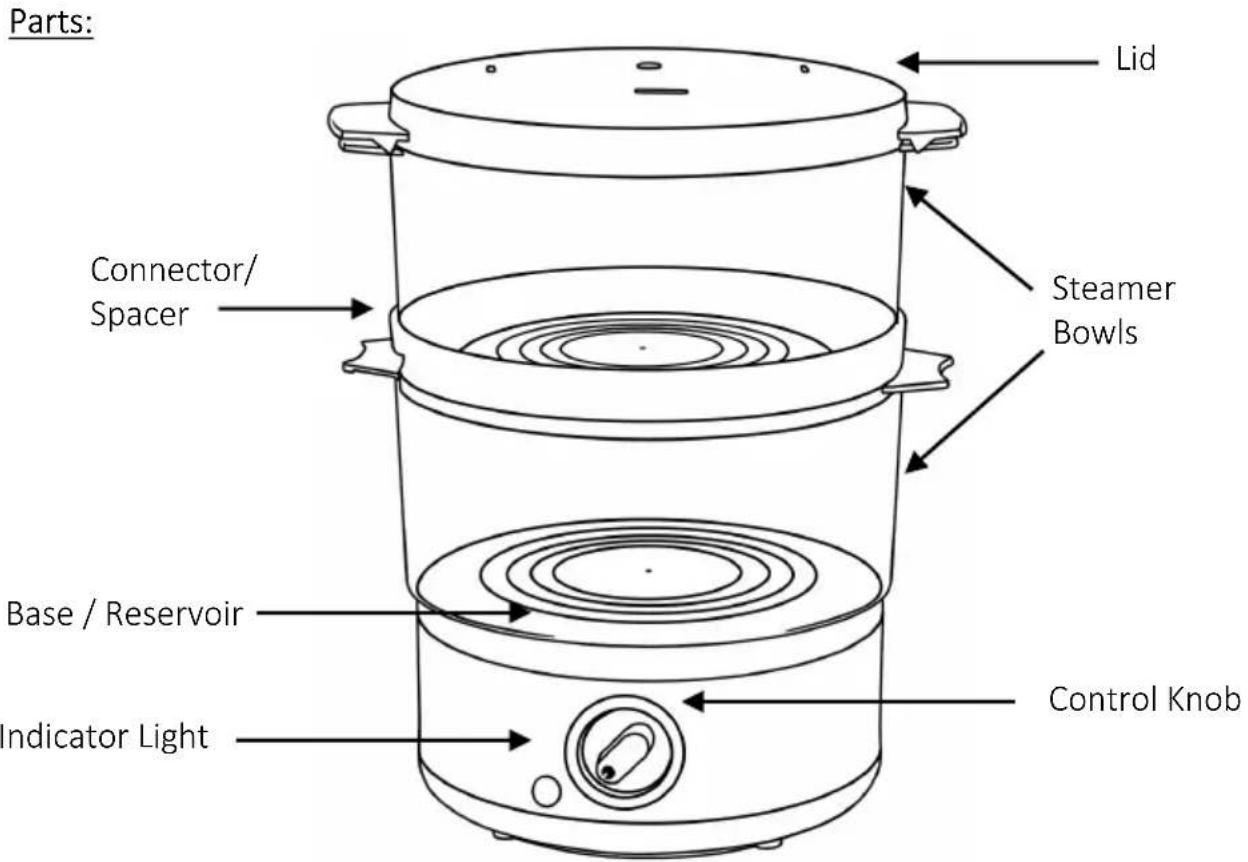

Parts: Lid Steamer Bowls Connector/ Spacer Base / Reservoir Indicator Light Control Knob

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

- Before your first use, wash the bowls and accessories using warm soapy water. Rinse and dry thoroughly before reassembling.

- Fill reservoir with cold water up to the fill line. Plug into an electrical outlet. Allow the product to operate for about 15 minutes. When time has elapsed, allow it to cool.

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

Using Your Food Steamer:

WARNING: Avoid contact with hot surfaces.

CAUTION: Do not overfill the appliance or operate it when empty. Always unplug the product from the electrical outlet when it is not in use or will be left unattended.

NOTE: According to the US Department of Agriculture's Food Safety and Inspection Service, all meats (fish, poultry, beef, etc.) should be cooked thoroughly before consuming, determine the internal temperature of meats using a food thermometer (not included).

USDA website can provide food temperature information.

1. Place the desired amount of cold water in the reservoir. Always ensure that the water level does not exceed the line "Max" and is not less than the line "Min" as shown in the tank.

2. Never pour other liquid than water in the tank. Never cook food directly in the water tank.

3. Assemble containers and cover. Check that the removable containers are assembled correctly and that the side handles are aligned, to avoid accidental leakage of steam.

4. Place food, vegetables or meat, (evenly sliced) in the different removable containers.

NOTE: It is recommended not to cut food directly on the containers so as not to damage them and always use wooden utensils and/or heat resistant plastic.

1. For better cooking, DO NOT overfill the containers. Check that the food does not obstruct the steam outlet openings of the containers.
2. Set the timer knob to the desired time. The lamp lights up to signal that the unit is heating. Cooking stops when the timer reaches -0-.
3. Monitor the food during cooking. Do not move the device during operation and after use to avoid scalding.
4. Never use the device without the cover. By opening the lid, be careful of steam and drops of boiling water.
5. After use, turn the timer button to the OFF position (0), unplug the appliance and let it cool down.

Long cooking

- If it is necessary, add water during cooking (long cooking).

• First place the timer knob in off position. Remove the containers and add water into the tank of the electrical base, by taking the necessary precautions to avoid being scalded.
  — Put the containers on the base again. Then replace the timer knob to the desired position.

CLEANING AND MAINTENANCE

• Before cleaning, always switch off the appliance, disconnect the appliance and let it cool.
• Clean the outside of the appliance with a sponge or slightly wet linen.
• The parts (removable) in contact with food like plate, bowl, forks, spatula etc. can be washed in hot water with sponge and soft detergent or put in the dishwasher.
• Never immerse the appliance in water or any other liquid!
• Do not use abrasive cleaners, gritting, or metal brush or another cutting object.
• It is advisable to descale the appliance regularly (twice a year minimum).
• Keep the appliance in a cool, dry place and out of reach from children.

COOKING GUIDEHORA DE COCINARTEMPS DE CUISSON	AMOUNTCANTIDADLE MONTANT	WATERAGUAEAU	LEVEL TIME (MIN.)TIEMPO (MIN.)TEMPS (MIN.)
ASPARAGUSESPÁRRAGOSASPERGES	16 oz450 g	MINIMUM 10-12
BROCCOLIBRÓCOLIBROCOLI	8 oz225 g	MINIMUM	06-10
CABBAGEREPOLLOCHOU	8 oz225 g	MINIMUM 08-11
SLICED CARROTZANAHORRILLADOCAROTTE	8 oz225 g	MINIMUM 08-10
CAULIFLOWERCOLIFLORCHOUFLEUR	1 head	MINIMUM	11-14
CHICKENPOLLOPOULET	2 pieces	MINIMUM	25-35
CLAMS SHELLALMEJASCOQUILLAGES	16 oz450 g	MINIMUM 08-12
CORNMAÍZBLÉ	3 pieces	MINIMUM	18-20
CRABCANGREJOCRABE	2 Small	MINIMUM	38-40
FISH FILETFILETE DE PESCADOFILET DE POISSON	8 oz225 g	MINIMUM 18-35
PEASCHÍCHAROSPOIS	10 oz280 g	MINIMUM	12-15
CUT POTATOESPAPASPATATES	8 oz225 g	MINIMUM 08-10
SAUSAGESSAUCISSESSALCHICHAS	5 MINIMUM 18-22

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANDADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com
