USER MANUAL TS-825 Brentwood

Brentwood® Appliances

© 2021 Brentwood Appliances, Inc.

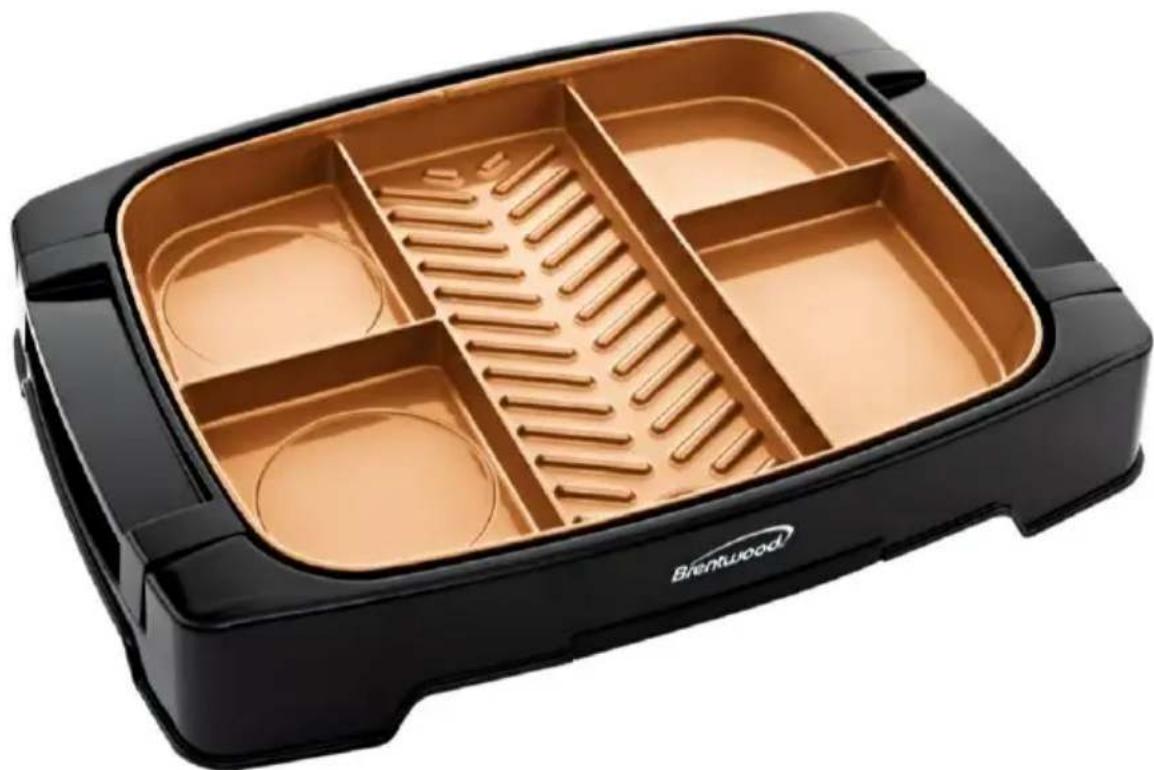

5-SECTION ELECTRIC GRILL & GRIDDLE

PARRILLA ELÉCTRICA DE 5 SECCIONES GRIL ÉLECTRIQUE À 5 SECTIONS

ITEM NO.: TS-825

Black Brentwood electric heater with open lid and side compartments (no text or symbols visible)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

ENGLISH

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury, and property damage please note the following:

- This product is not intended for use by children. Keep the product out of the reach of children and pets. Extra caution is necessary when using this appliance near children.

- Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning.

- Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when not in use.

- To protect against electrical shock do not immerse cord, or plug in water or other liquid

- Do not touch hot surfaces. Use handles or knobs when handling product to avoid burns or personal injury.

- Take proper precautions to prevent burns, fire, or personal or property damage as this appliance generates heat and steam during use.

- This appliance generates heat; only operate this appliance on heat-resistant surfaces.

- Never leave this appliance unattended during operation.

- Only use attachments and accessories recommended and sold by the Manufacturer.

- Attention: During the first use the heating element undergoes a minor chemical reaction that may result in a slight odor and/or minor smoking. It quickly goes away.

- Do not place on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.

- Use extreme caution when moving an appliance containing hot food, water, oil, or other liquids.

- Use the product in a well-ventilated area. Keep at least 4-6 inches of space on all sides of the product to allow adequate air circulation.

- Use appliance on a table or flat surface. Keep the product away from curtains, wall coverings, clothing, dishtowels, or other flammable materials.

- Do not plug or unplug the product from the electrical outlet with a wet hand.

- This product is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.

- Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.

• Do not attempt to examine or repair this product yourself. Only qualified service personnel should perform any servicing. Please read the Warranty on Page 7.
• Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

— The marked electrical rating must be at least as great as that of the product.
- If the product is of a 3-prong grounding type, the extension cord must be a grounding-type 3-wire cord.
— Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a polarized plug (one blade is wider than the other blade) to reduce the risk of electrical shock. This is a safety feature. The plug will fit into a polarized outlet only one way. If you are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not fit, contact a qualified electrician. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord. Do not alter the plug. Do not attempt to defeat the safety purpose of the polarized plug.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

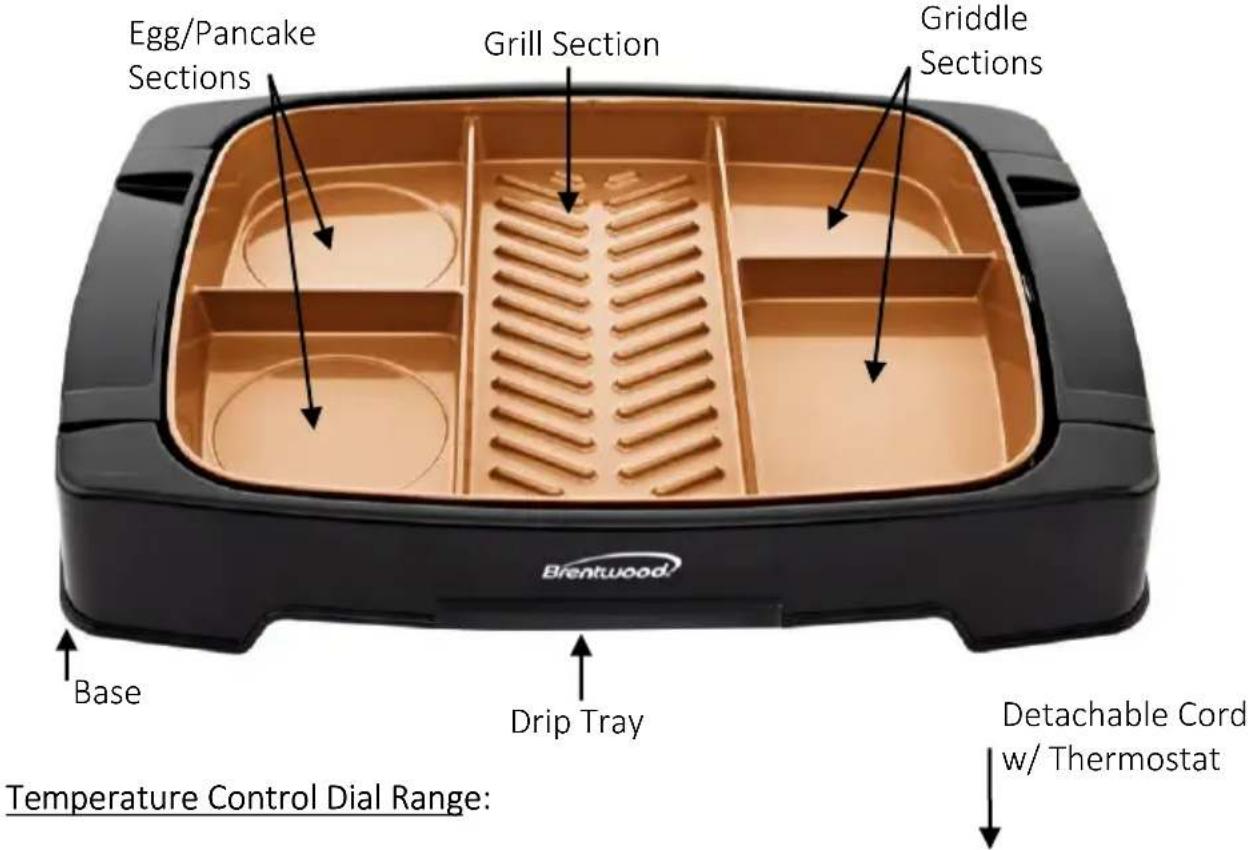

Parts

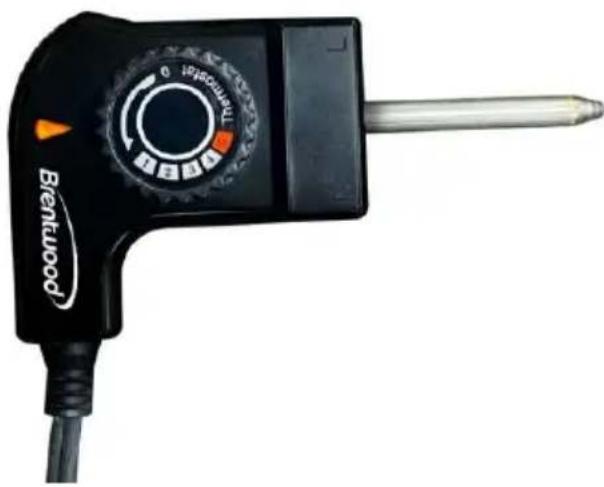

Egg/Pancake Sections Grill Section Griddle Sections Base Drip Tray Detachable Cord w/ Thermostat Temperature Control Dial Range:

Dial	Approx. Temperature
1	240-320°F
2	320-350°F
3	350-380°F
4	380-410°F
5	410-430°F

Close-up of a black Brentwood handheld tool with a rotary dial and screwdriver, no visible text or symbols on the device itself.

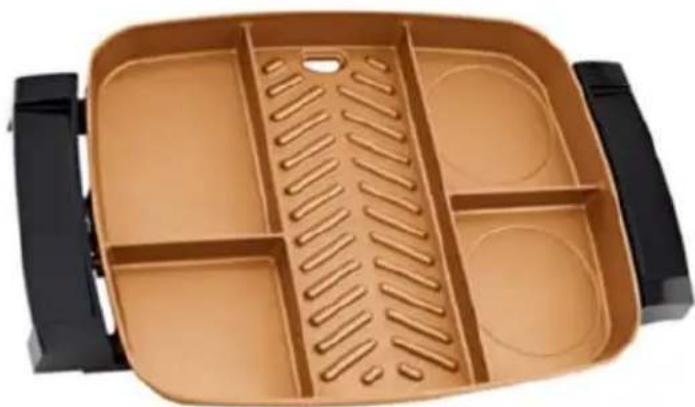

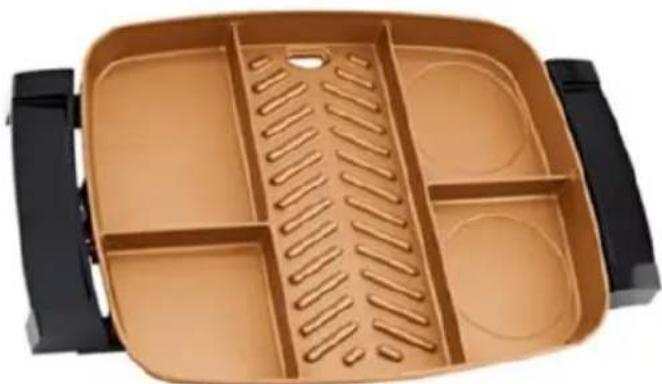

Removable Cooking Tray

Top-down view of a brown and black plastic food tray with side compartments (no text or symbols visible)

Using Your Indoor Electric Grill:

IMPORTANT: Please check all packaging material carefully before discarding as there may be accessory parts contained within the packaging material.

WARNING: Always use your Grill/Griddle on a dry, level, heat-resistant surface. Do Not Use without Drip Tray securely in place.

1. First, please clean cooking surface before first use with a non-abrasive, damp cloth and dry.
2. Place Drip Tray onto base of Grill/Griddle.
3. Plug the detachable thermostat with dial control into Grill/Griddle and plug into an electrical outlet. Then turn the Control Knob to desired heat level. Preheat the Electric Grill/Griddle until indicator light shuts off.

NOTE: A slight odor and small smoking can occur upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. Prepare ingredients while grill preheats for 2-3 minutes. Please the prepared ingredients onto the cooking plate.

2. Cook for required length of time, then remove food with a heat-resistant plastic or wooden spatula.

3. Turn off grill/griddle by turning the temperature control dial to the "OFF" position. Then unplug from outlet and let grill/griddle cool down before removing the power supply cord from the base.

Tips:

• The power indicator light may turn on and off, this indicates the proper temperature of your grill is being maintained.
• Always preheat the non-sticking plate before starting to cook. Carefully apply a thin coat of cooking oil to the nonstick cooking plate, a paper towel can be used. This will help prolong the life of the non-stick coating.
• Frozen food should always be thawed before it is grilled.
• When cooking foods that require different temperatures, cook the foods that require the highest heat setting first and then turn down the grill before adding the remaining ingredients.

CAUTION: Always use oven mitts when handling. The handles of the grill become very hot during cooking.

WARNING: Always unplug the product from the electrical outlet when it is not in use or will be left unattended.

Cleaning Your Electric Grill/Griddle:

WARNING: Always unplug the product and allow it to cool completely before cleaning.

• Remove the heat control from the grill. Carefully lift drip pan out of base. Dispose of any liquid in the drip pan. NEVER try to clean the drip tray when any contents are still hot.
• Wash Drip pan and removable grill/griddle tray with warm soapy water and non-metal cleaning pad. Do not use abrasive cleaners or metal pads as they may damage the nonstick.
  • DO NOT IMMERSE THIS APPLIANCE IN WATER.
  • Dry completely before storing.

Specifications:

Power Supply: 120V\~60Hz

Power: 1500W

Food Table Reference:

The food table below helps you select the basic settings for the types of food you want to prepare. Keep in mind that these settings are suggestions.

Note: As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

Food	Approximate Temp.	Approximate Cooking Time
Bacon	375	4-7
Chicken	375	25 - 40
Eggs (Scrambled/Fried)	300	2 – 5
Fish	355	5 -10
French Toast	375	4 -6
Hamburgers	375	8 -12
Pork Chops	375	15 – 20
Potatoes	390	10 – 12
Sausage	355	20 – 30
Steak 1”	390	6 – 7 –Rare; 10-12 – Medium; 12-15 - Well

ONE YEAR LIMITED WARRANTY

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE

CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S.A. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES

Close-up of a black Brentwood electric shaver tool with a rotary dial and handle (no visible text or symbols on the device body)

Top-down view of a brown and black plastic food tray with side compartments (no text or symbols visible)

RECOMMANDATIONS ADDITIONNELLES:

Close-up of a black Bentwood electric shaver with a metallic probe inserted (no visible text or symbols)

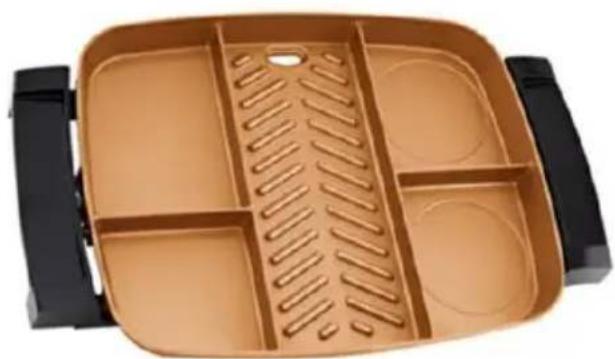

Plateau de Cuisson Amovible
