USER MANUAL TS-821 Brentwood

© 2024 Brentwood Appliances, Inc.

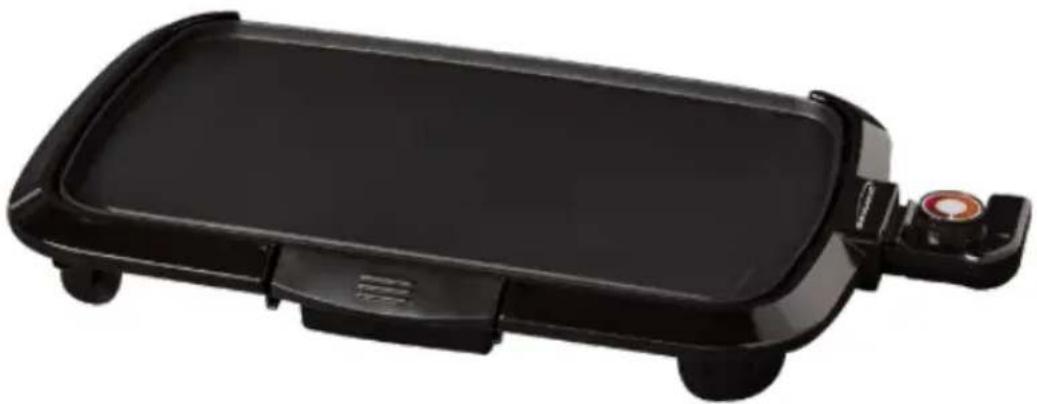

16" x 10" ELECTRIC GRIDDLE

PLANCHA ELÉCTRICA DE 25 X 40 CM PLAQUE DE GRIL ÉLECTRIQUE 25 X 40 CM

ITEM NO: TS-821

Black rectangular flat-screen grater with a small side-mounted knob (no text or symbols visible)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical product, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE.

WARNING: To reduce the risk of fire, electric shock, serious personal injury, and property damage, please note the following:

• The griddle is not intended for use by children. Keep it out of their reach and exercise extra caution when using it near children.
• The griddle is intended solely for non-commercial, non-industrial household use for cooking food intended for human consumption. Do not use it outdoors or for any other purpose.
• Before each use, examine the griddle and power cord for any signs of damage or wear. Do not use the griddle if you notice frayed wires, cracks, or other damage, as this could pose a risk of electric shock or fire.
• Do not attempt to repair electrical or mechanical issues yourself. Refer to the Warranty Policy on Page 7 for guidance.
• Place the griddle on a stable, heat-resistant surface.
• Keep the griddle away from materials and surfaces that could catch fire, such as paper, cloth, or other flammable items.
• Use the griddle in a well-ventilated area and maintain at least 4-6 inches of space on all sides for adequate air circulation.
• Ensure the electrical outlet voltage matches the voltage specified on the griddle's rating label.
  • Do not overload the electrical outlet or extension cord.
• Plug the power cord into the electrical outlet before turning on the griddle.
• Never plug in or unplug the griddle with wet hands.
• Prevent the power cord from touching hot surfaces or hanging off the edge of the counter.
• Upon initial use, a smoky smell may occur as protective coatings or films on the griddle's parts burn off. This process is normal and ensures proper product function and safety.
• Avoid exceeding the maximum temperature setting to prevent fire hazards or damage to the griddle.
• Always supervise the griddle while it is in operation and never leave it unattended.
  • Use handles and protective oven mitts to avoid touching hot surfaces.
  • Wait until the griddle has completely cooled before attempting to move it.
• Ensure that the drip tray is correctly positioned when using the griddle and check it frequently to prevent overflow during use.

- Use only heat-resistant utensils made of wood, silicone, or plastic; metal utensils can damage the griddle's surface.

• After cooking, turn off and unplug the griddle before cleaning.

- Allow the griddle to cool completely before cleaning; never immerse it or its electrical components in water or expose them to liquids, especially while the oil is hot.

- Store the griddle and its components in a dry place when not in use, ensuring all parts are completely dry to prevent rust or corrosion.

- Do not use attachments not recommended or sold by the griddle manufacturer.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Using an extension cord with the product is not recommended. However, if one must be used:

- The marked electrical rating of the extension cord must be at least as great as that of the product.

- Arrange the extension cord so that it does not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: This product is equipped with a 3-prong grounding plug as a safety feature. The plug will fit into an outlet in only one orientation. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord, and the extension cord must be a 3-wire grounding-type cord. Do not attempt to bypass the safety purpose of the plug.

WARNING

FOR HOUSEHOLD USE ONLY! PLEASE READ INSTRUCTIONS BEFORE USE & SAVE FOR FUTURE REFERENCE.

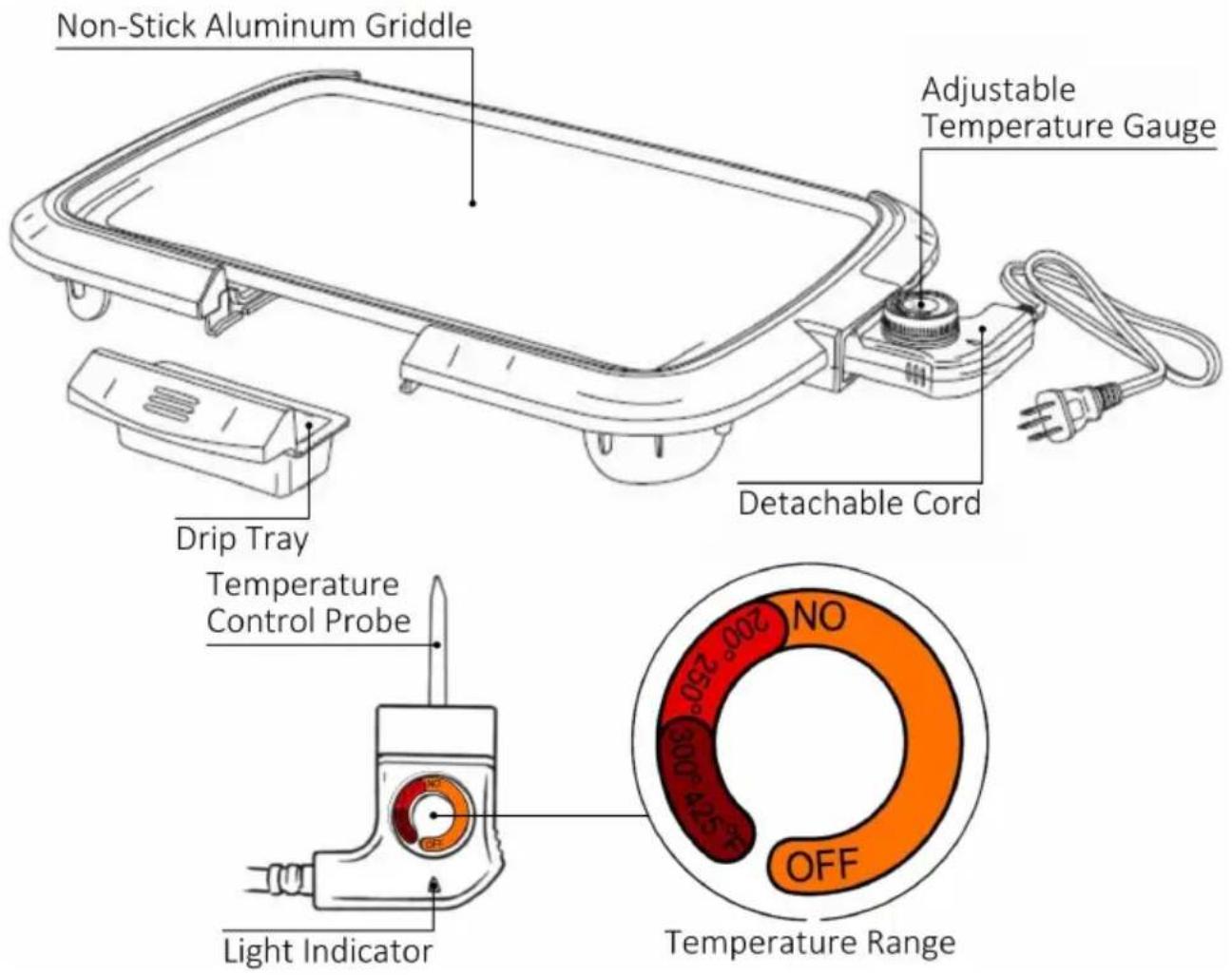

Non-Stick Aluminum Griddle Adjustable Temperature Gauge Detachable Cord Drip Tray Temperature Control Probe Light Indicator NO 200° 250° 300° 425° OFF Temperature Range

BEFORE USING THE GRIDDLE

IMPORTANT: Before first use, inspect the griddle for any damage or defects. Ensure that all parts are intact and in good condition.

1. Wipe down the griddle with a warm, soapy, damp cloth, and then dry it thoroughly with a clean cloth.

WARNING: Avoid submerging the electrical components or heating elements in water.

1. Place the griddle on a stable, flat surface in a well-ventilated area. Ensure it is positioned away from any combustible materials and that there is ample space around the griddle for proper air circulation.

2. Insert the drip tray by sliding it into its designated position.

3. Plug the detachable power cord into the griddle. Turn the adjustable temperature gauge to the OFF position. Then, plug the power cord into the outlet.

USING THE GRIDDLE

1. Set the desired temperature by turning the temperature gauge.

NOTE: If it is the first use, you may want to run the griddle without food to burn off any residual manufacturing coatings or odors. This should be done in a well-ventilated area.

1. Preheat the griddle for at least 3-7 minutes.
2. Once the griddle has preheated, you can begin cooking. Note that cooking times will vary widely between different foods.

Food	Temperature	Time	Instructions
Bacon	325-350°F	8-14 min	Turn food as needed.
Sausage	325-350°F	20-30 min	Turn food as needed.
French Toast	350°F	6-10 min	Flip food as needed.
Hamburger	350°F	3-14 min	Flip food as needed.
Pancake	350°F	2-6 min	Pour batter and flip when bubbles appear.

1. When you have finished cooking, turn the temperature gauge to the OFF position and remove the plug from the socket.
2. Let the griddle cool down completely before attempting to handle or clean it. This may take some time, depending on the temperature at which it was used.

CLEANING AND MAINTENANCE OF THE GRIDDLE

1. Ensure the detachable cord is unplugged from the griddle.
2. After the griddle has cooled down, remove, empty, and clean the drip tray.
3. Wash the griddle by hand only.

NOTE: For best results, use non-abrasive cleaners. Do not use steel wool pads. Do not use abrasive detergents. Always clean the griddle before storing it.

WARNING: Do not place the griddle in the dishwasher. Do not immerse the griddle in water or any other liquid.

1. Wipe the surface of the griddle with warm, soapy water. Rinse and dry completely with a soft cloth.

ONE YEAR LIMITED WARRANTY

Write down the following information about your product to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase: ____

Store/Dealer: ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option. However, you are responsible for all costs associated with returning the product to us and for the return of a product or component under this warranty to you. If the product or component is no longer available, we will replace it with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (e.g., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this product to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go Online at www.brentwoodus.com
