USER MANUAL TS-810 Brentwood

© 2025 Brentwood Appliances, Inc.

12-INCH ELECTRIC GRILL

PARRILLA ELÉCTRICA DE 30 CM

Black Boekwood grater with a mounted control panel and side legs (no text or symbols visible)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL THE INSTRUCTIONS BEFORE USE.

WARNING: To reduce the risk of fire, electric shock, serious personal injury and property damage, please note the following:

• Before each use, inspect the grill for any visible damage. If any parts are broken or damaged, do not use the grill and refer to the warranty policy on page 6 for guidance.
• Set up the grill on a flat, heat-resistant surface to prevent it from tipping over or overheating.
• Ensure there is proper ventilation in the area to avoid the accumulation of smoke or fumes, especially during heavy usage.
• Keep the grill away from flammable items like paper towels, cloths and other combustible materials.
• Upon initial use, a smoky smell may occur as protective coatings or films on the grill's parts burn off. This process is normal and ensures proper appliance function and safety.
• Keep children and pets away from the grill when it is in use and while it is cooling down.
• Never leave the grill unattended while in use to prevent accidents and fires.
  • Use the grill only for cooking purposes as described in the instruction manual.
• Never use the grill on a wet or damp surface to avoid electrical hazards.
• Ensure the grill and its electrical components are always kept dry. Never submerge the grill in water.
• Always keep your hands dry when operating or adjusting the grill to prevent electric shock.
• Use caution when cooking at high temperatures, as the grill can get extremely hot and cause burns.
• Do not allow the grill to overheat by keeping the temperature settings within recommended levels.
• Use oven mitts or heat-resistant gloves when handling the grill, as the cooking surface and handles can become very hot.
• Use minimal oil or butter when cooking to prevent spills and grease build-up on the grill.
• Always unplug the grill and allow it to cool before cleaning. Follow the manufacturer's cleaning instructions carefully.
• Do not use abrasive cleaners or utensils to clean the grill, as they may damage the cooking surface.

- Store the grill in a cool, dry place when not in use. Ensure the power cord is neatly coiled to prevent damage.

SPECIAL INSTRUCTIONS:

- A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Using an extension cord with the grill is not recommended. However, if one must be used:

- The marked electrical rating of the extension cord must be at least as great as that of the grill.

○ Arrange the extension cord so that it does not drape over the countertop or tabletop where it can be tripped over or pulled.

WARNING: The grill is equipped with a 3-prong grounding plug as a safety feature. The plug will fit into an outlet in only one orientation. Never use the plug with an extension cord unless you can fully insert the plug into the extension cord and the extension cord must be a 3-wire grounding-type cord. Do not attempt to bypass the safety purpose of the plug.

- Overheat protection is a safety feature designed to prevent the grill from reaching dangerously high temperatures that could damage the grill or pose safety risks. If it happens, follow these safety precautions to ensure safe handling and avoid damage or injury:

1. Disconnect the grill from the power source to stop further heating and reduce the risk of electrical hazards.

2. Allow the grill to cool completely before attempting to move or inspect it to avoid burns.

3. After cooling, check for possible causes:

■ Ensure vents or airflow openings are not obstructed.

■ Too much grease can cause overheating.

■ If the grill gets too hot frequently, the thermostat might be faulty.

■ The appliance shuts off automatically after extended use to prevent overheating.

1. Clean the grill thoroughly according to the manufacturer's guidelines.

2. Turn the grill on at a lower setting to test if it operates normally. Do not leave it unattended during this test.

WARNING

FOR HOUSEHOLD USE ONLY! PLEASE READ INSTRUCTIONS BEFORE USE & SAVE FOR FUTURE REFERENCE.

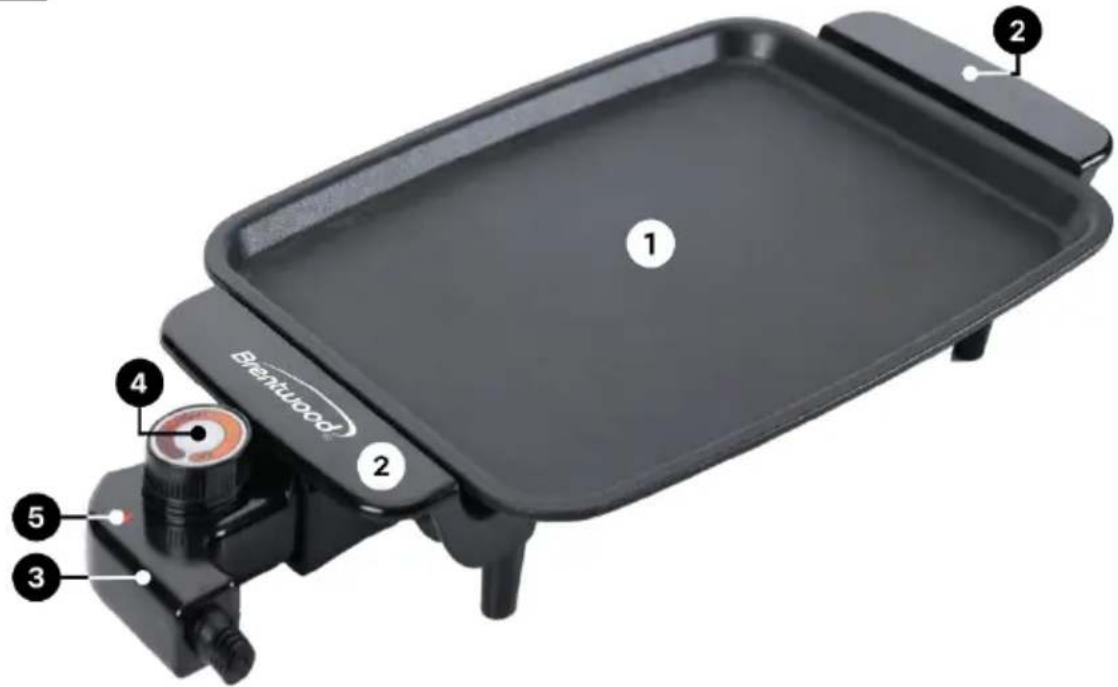

Brentwood 1 2 3 4 5

1	Grill Plate	4	Temperature Control Knob:OFF – 200°F – 250°F – 300°F – 425°F
2	Cool-Touch Handles
3	Power Cord	5	Indicator Light

BEFORE USING THE ELECTRIC GRILL

1. Check that all parts are included and ensure they are undamaged and intact, looking for any visible signs of damage such as cracks, dents or frayed cords.

2. Use a damp cloth to wipe the grill plate and remove any dust or residue. WARNING: The grill is not dishwasher safe.

3. Dry the grill plate completely with a clean towel, ensuring it is fully dry before plugging in the grill.

USING THE ELECTRIC GRILL

IMPORTANT: Upon initial use, a smoky smell may occur as protective coatings or films on the grill's parts burn off. This process is normal and ensures proper appliance function and safety.

1. Place the grill on a stable, heat-resistant surface, ensuring it is completely dry.

2. Insert the power cord into the grill's power input and plug the other end into a power outlet. The indicator light will turn on, showing the grill is connected to power.

3. Turn the temperature control knob to the desired setting. The indicator light will turn off when the grill reaches the set temperature.

4. Place your food on the grill and cook as desired.

5. After cooking, turn the temperature control knob to the "OFF" position and unplug the power cord from the outlet.

CLEANING AND MAINTENANCE

1. Let the grill cool completely before handling or cleaning.

2. Once the grill is cool, wipe the grill plate with a damp cloth to remove food residue.

WARNING: The grill is not dishwasher safe.

1. Dry the grill plate completely with a clean towel, ensuring it is fully dry before storing.

2. Store the grill in a cool, dry place. Coil the power cord neatly to avoid damage.

ONE YEAR LIMITED WARRANTY

Write down the following information about this appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase: ____ Store/Dealer: ____

Model/Item No: ____

THIS WARRANTY APPLIES TO THE APPLIANCES PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this appliance and is in lieu of any other warranty or condition. This appliance is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this appliance, at our option. However, you are responsible for all costs associated with returning this appliance or part to us under this warranty to you. If this appliance or part is no longer available, we will replace it with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions or damage to this appliance resulting from accident, alteration, abuse or misuse. THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM. This warranty is void if this appliance is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (e.g., 120V 60Hz). We exclude all claims for special, incidental and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go Online at www.brentwoodus.com

PRECAUCIONES IMPORTANTES
