USER MANUAL Reference Premiere RP-1000SW KLIPSCH

PAUL W. KLIPSCH CAK EST. 1946 HOPE, AR

|

一

1

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

|

一

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

—

|

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

REFERENCE PREMIERE

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound.

Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection.

Experience the power, detail and emotion of Klipsch. We are the Keepers of the Sound ^® .

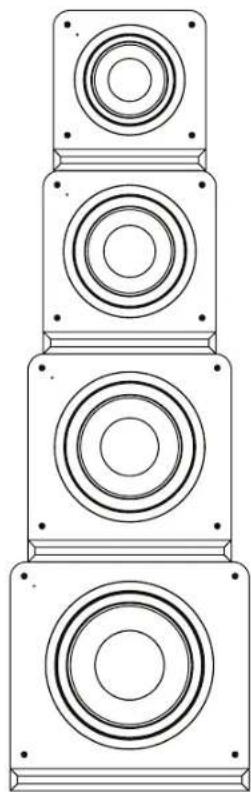

Line drawing of a multi-tiered speaker tower with four circular speakers (no text or symbols)

ENGLISH

REFERENCE PREMIERE SUBWOOFERS

RP-1000SW RP-1200SW RP-1400SW RP-1600SW

INSPECTION

We want your new speaker system to look as good as it did leaving the factory! Please check promptly for any transit damage. Carefully unpack your new speaker system and verify the components against the packing list. In extreme circumstances, items may have become

damaged in transit. If any damage is discovered, notify the delivery service and dealer where the system was purchased. Make a request for inspection, and follow their instructions for evaluation. Be sure to keep the product's original shipping carton.

POSITIONING YOUR REFERENCE PREMIERE SUBWOOFER

Klipsch powered subwoofers are designed to reproduce deep bass and deliver the impact that makes your movies and music come alive. For optimum performance, place your subwoofer in a corner of the room on the same wall as your front channel speakers. (refer to Figure 1). Please note that room placement can have a dramatic effect on the performance of your powered subwoofer. Corner placement, as suggested above, will increase the amount of bass output, while placing the subwoofer along the middle of a wall, or out in the room will decrease the amount of bass output. Experiment with a number of different placement options and control settings to find the one that best suits your particular room and taste. When choosing your subwoofer's location, keep in mind that you will need to connect the subwoofer's built-in amplifier to an AC power outlet.


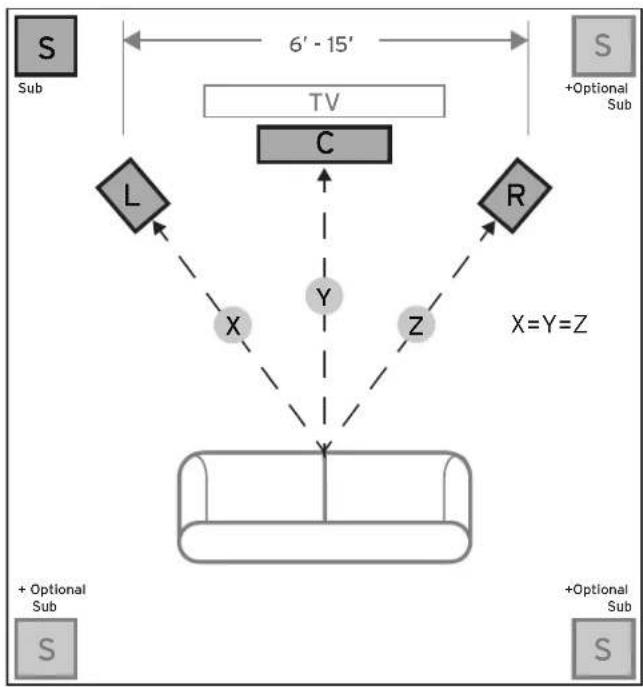

FIGURE 1
SPEAKER PLACEMENT IN LISTENING AREA

CONNECTIONS AND CONTROLS

CAUTION: Ensure that the subwoofer is unplugged from the AC wall outlet before making any connections.

"LINE IN" Connection - Most of today's surround receivers (and pre-amplifiers) have a line level subwoofer output labeled Subwoofer Pre Out, Sub Out, SW Out, etc. If you have this output, connect one end of a subwoofer cable to it and connect the other end of the cable into the subwoofer line input labeled L/LFE. This connection allows the subwoofer to operate with both music and surround sound movies (refer to your receiver manual). In absence of a subwoofer output on your receiver, as an alternative hookup, you can connect Left and Right channel Pre-Amp Outputs from your receiver (if provided) to the L/LFE and R inputs on the subwoofer.

WA-2 Port Connection - For wireless connectivity of your new Klipsch Reference Premiere subwoofer, the optional WA-2 Wireless subwoofer kit is available. The WA-2 will only operate with select Klipsch, Energy, Mirage and Jamo brand subwoofers that have a "WA Port" input. The WA-2 is a 2.4 GHz product designed to wirelessly transmit a signal up to a 50 foot radius. See klipsch.com for more details.

Level - If your subwoofer is connected to a Subwoofer Output of a surround receiver, first set the subwoofer volume level control in the receiver to the "half way" or "0 dB" position. Then increase the volume (or gain) of the subwoofer up until the subwoofer's volume level matches the output of your main speakers. After this setup is completed, the volume control on your system's main amplifier or pre-amplifier will be the volume control for both your subwoofer and speakers together. If your subwoofer is connected to the L/R Pre-Amp Outputs of a receiver there will be no subwoofer volume in that receiver to set before setting the subwoofer's gain control.

"LOWPASS" Control - The crossover point chosen determines where low bass frequencies are "handed off" from the speakers to the subwoofer. If setting the crossover point in the receiver, turn the Lowpass Filter knob on the subwoofer to the farthest point right (160Hz). Set the crossover point based on the size of the main left/right speakers you are using in the system. As a general rule, for larger, floorstanding speakers, set the crossover point between 50Hz-90Hz. If using small bookshelf or "satellite" speakers for the mains, set the crossover point between 90Hz-150Hz. The smaller the speaker, the higher the setting until the bass frequencies blend well between the speakers and your subwoofer once your system is completely hooked up. If your receiver does not have a crossover point setting, set the Lowpass Filter on the subwoofer instead within the same recommended settings (see receiver manual for additional speaker setup info).

"PHASE" 0/180 - This control is used to acoustically match the subwoofer's output to your main speakers. Select the position, either 0^ or 180^ , in which your subwoofer has more output at the listening position.

"POWER" AUTO/ON/OFF -When this switch is in the "ON/AUTO/STANDBY" position, the subwoofer will automatically turn "on" when it senses a signal. It will automatically go into "standby mode" after 15-20 minutes with no signal. When this switch is in the "OFF" position, the subwoofer will remain "off" until the switch is manually turned back to the "ON/AUTO/STANDBY" position.

Power LED indicator - Located on the front baffle, this LED indicates the operating status of the built-in amplifier. The LED will light green when the amplifier is on and receiving a signal. If the LED is dark and not lit, the amplifier is off. For more information on the controls mentioned in this manual and on bass management, see your dealer or visit www.klipsch.com

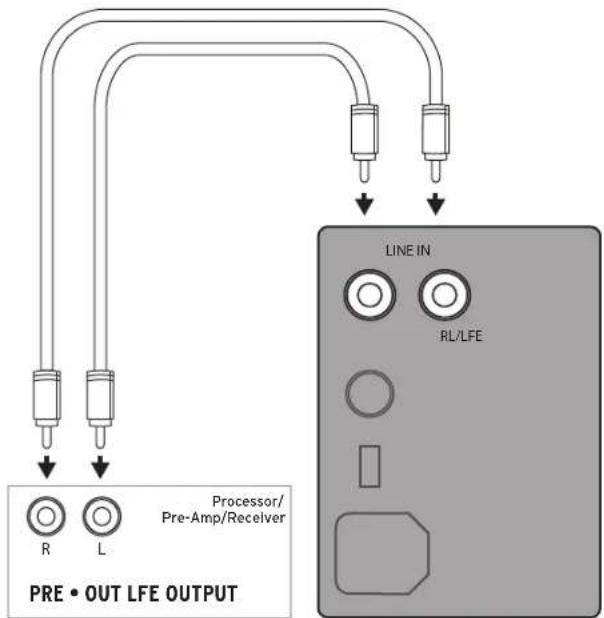

FIGURE 2 RP-1000SW, RP-1200SW, RP-1400SW AND RP-1600SW SUBWOOFER HOOK UP

PRE • OUT LFE OUTPUT R L Processor/ Pre-Amp/Receiver LINE IN RL/LFE

Left and Right pre-outs on Processor/Pre-Amp/Receiver connected to Left and Right line inputs on subwoofer amplifier

OR

LINE IN RL/LFE Processor/ Pre-Amp/Receiver

LFE Output on Processor/Pre-Amp/Receiver connected to LFE input on subwoofer amplifier

CARE AND CLEANING

Your subwoofer has a durable vinyl finish that should only require dry dusting or cleaning with a dry cloth. Avoid the use of abrasive or solvent-based cleaners and harsh detergents. The brush attachment of your vacuum should remove any dust from your subwoofer enclosure.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

- Keep up-to-date on new products and promotions.

- Your personal information will never be resold.

- This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.

REFERENCE PREMIERE

Line drawing of a multi-tiered speaker tower with four circular speakers (no text or symbols)

FRENCH

CAISSONS DE GRAVES REFERENCE PREMIERE

RP-1000SW RP-1200SW RP-1400SW RP-1600SW

INSPECTION

LINE IN RL/LFE

ENTRETIEN ET NETTOYAGE

Line drawing of a multi-tiered speaker tower with four circular speakers (no text or symbols)

GERMAN

REFERENCE PREMIERE-SUBWOOFER

RP-1000SW RP-1200SW RP-1400SW RP-1600SW

INSPEKTION

Line drawing of a multi-tiered speaker tower with four circular speakers (no text or symbols)

SPANISH

SUBWOOFERS REFERENCE PREMIERE

RP-1000SW RP-1200SW RP-1400SW RP-1600SW

INSPECCIÓN

CUIDADO Y LIMPIEZA

Line drawing of a multi-tiered speaker tower with four circular speakers (no text or symbols)

PORTGUESE

SUBWOOFERS REFERENCE PREMIERE

RP-1000SW RP-1200SW RP-1400SW RP-1600SW

INSPEÇÃO

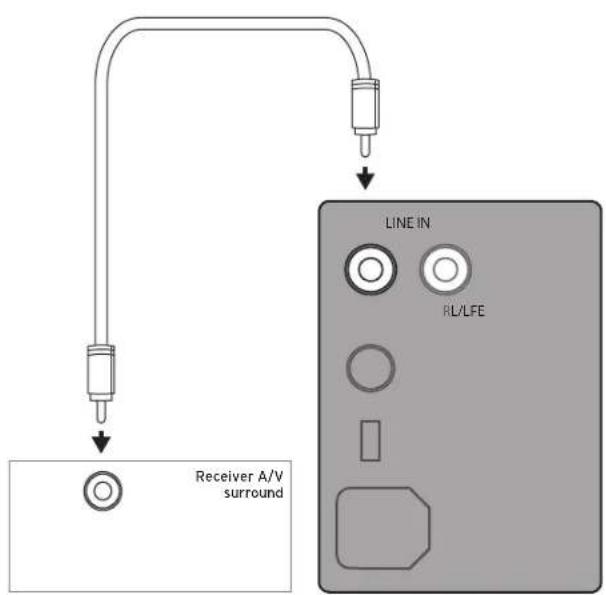

PRE • OUT LFE Receiver A/V surround LINE IN RL/LFE

OU

Receiver A/V surround LINE IN RL/LFE

CUIDADO E LIMPEZA

Line drawing of a multi-tiered speaker tower with four circular speakers (no text or symbols)

ITALIAN

SUBWOOFER REFERENCE PREMIERE

RP-1000SW RP-1200SW RP-1400SW RP-1600SW

ISPEZIONE

Line drawing of a multi-tiered speaker tower with four circular speakers (no text or symbols)

CHINESE

参考系列低音炮

RP-1000SW RP-1200SW RP-1400SW RP-1600SW

开箱检查

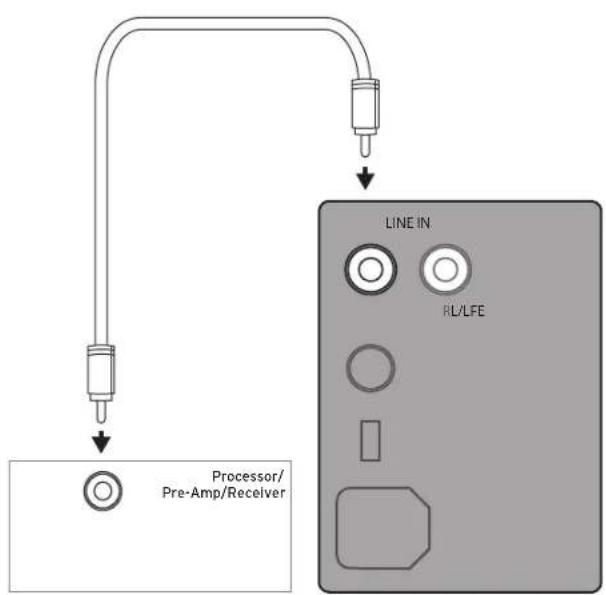

PRE • OUT LFE R L Processor/ Pre-Amp/Receiver LINE IN RL/LFE

或

LINE IN RL/LFE Processor/ Pre-Amp/Receiver

保养和清洁

Line drawing of a multi-tiered speaker tower with four circular speakers (no text or symbols)

Technical line drawing of a mechanical component with concentric circles and mounting holes (no text or symbols)

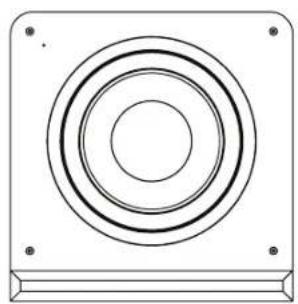

Technical line drawing of a circular component with mounting holes (no text or symbols)

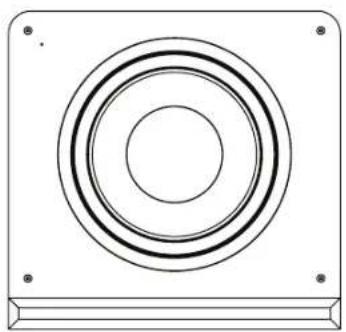

Technical line drawing of a circular component with mounting holes (no text or symbols)

Technical line drawing of a circular component with mounting holes (no text or symbols)

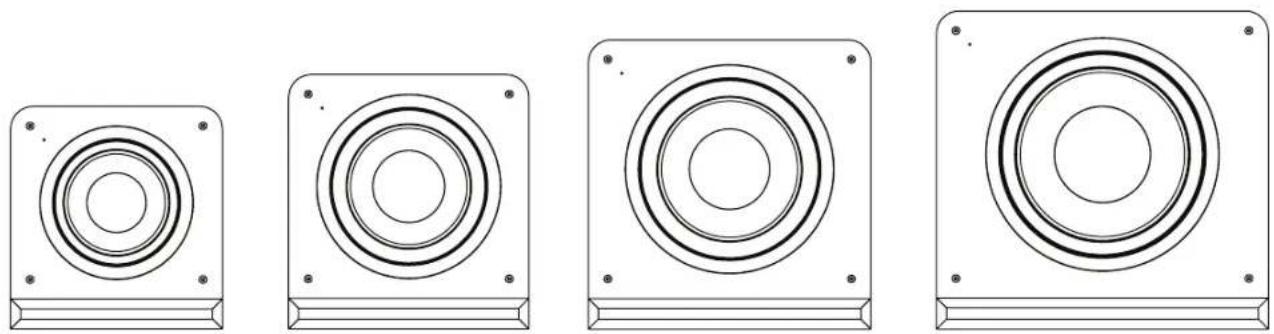

RP-1000SW RP-1200SW RP-1400SW RP-1600SW

الفحص

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

©2022. Klipsch Group, Inc. Klipsch Group, Inc. is a wholly owned subsidiary of Vox International Corporation.

Kipsch and Keepers of the Sound are trademarks of Klipsch Group, Inc., registered in the United States and other countries.

Vol 2010
