CCM-108937.1 - Cupcake maker Emerio - Free user manual and instructions

Product type	Cotton candy machine
Brand	Emerio
Model	CCM-108937.1
Power supply	220-240 V ~ 50/60 Hz
Power	500 W
Maximum sugar capacity	About 15 g per serving (1 measuring spoon)
Preheating time	5 minutes
Maximum continuous operation time	30 minutes
Required cooling	At least 10 minutes after 30 minutes of use
Bowl material	Transparent plastic
Removable parts	Large bowl, transparent ring, black ring, extraction head
Cleaning of removable parts	Dishwasher safe
Cleaning of the motor unit	Wipe with a damp cloth, never immerse
Cleaning of the extraction head	Hand wash with warm soapy water
Included accessories	Measuring spoon
Safety	Overheat protection; do not touch hot surfaces; do not immerse
Warranty	2 years
Customer service	Emerio B.V., www.emerio.eu/service
Repairability	Do not open; contact an authorized service center

Frequently Asked Questions - CCM-108937.1 Emerio

How to use the cotton candy machine?

Make sure all parts are correctly assembled. Set the switch to I to preheat for 5 minutes, then set to O. Pour one measuring spoon of sugar (max 15 g) into the extraction head, then set back to I. Use a wooden stick to collect the cotton candy by turning horizontally above the transparent part.

How much sugar to use?

Use the provided measuring spoon for one serving, about 15 g of sugar. Do not overfill the extraction head.

Can I use hard candies instead of sugar?

Yes, you can use hard candies provided they are based on sucrose or white sugar, without starch, with dimensions less than 20 mm length/width and 10 mm thickness. Place 2 to 6 candies in the center of the extraction head.

How to clean the machine?

Unplug and let it cool. The removable plastic parts (bowl, ring, extraction head) can go in the dishwasher. The extraction head can be hand washed with warm soapy water. Clean the motor unit with a damp cloth. Never immerse the motor unit.

What to do if the cotton candy does not form?

Check that the small holes of the extraction head are not clogged. Clean the head thoroughly after each use. Make sure the appliance has been heating for 5 minutes before adding sugar. Use standard white sugar.

Can the appliance overheat?

Yes, the appliance should not operate for more than 30 minutes continuously. After 30 minutes, let it cool down for at least 10 minutes to avoid fire hazard.

What accessories are supplied with the appliance?

The machine comes with a large bowl, a transparent ring, a black ring, an extraction head, a housing with switch, and a measuring spoon. Wooden sticks are not included but can be used.

Can I use the machine for other things than cotton candy?

No, the appliance is designed exclusively for making cotton candy from sugar or specific hard candies. Do not put other foods in it.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or a qualified person to avoid hazard. Do not use the appliance with a damaged cord.

What is the warranty of this appliance?

The appliance comes with a 2-year warranty from date of purchase against manufacturing defects. The warranty does not cover damage due to improper use, worn accessories, or glass/plastic parts. Keep your receipt.

USER MANUAL CCM-108937.1 Emerio

Red and white electric shaver with a clear dome and control panel (no visible text or symbols)

Cotton candy maker (EN)

Instruction manual – English ...... - 2 -

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "cleaning and maintenance" of the manual.
7. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
8. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
9. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
10. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
11. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
12. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
14. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
15. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
16. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
17. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
18. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
19. Never leave the appliance unattended during use.
20. This appliance is not designed for commercial use.
21. Do not use the appliance for other than intended use.
22. Do not wind the cord around the appliance and do not bend it.

23. Do not use outdoors. Extreme caution must be used when moving this appliance.

24. Check if there is any foreign object inside the heating element compartment before switching to "I" position.

25. The heating element in the center can get hot. Avoid contact until cooled down.
26. Keep hands away from the appliance when it is in use.
27. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
28. Do not place anything other than the intended sugar in the extractor head.

1. Caution, hot surface

Warning!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Only use the provided accessories.
2. Regarding the instructions for the maximum quantities of sugar, thanks to refer to the below paragraph of the manual.

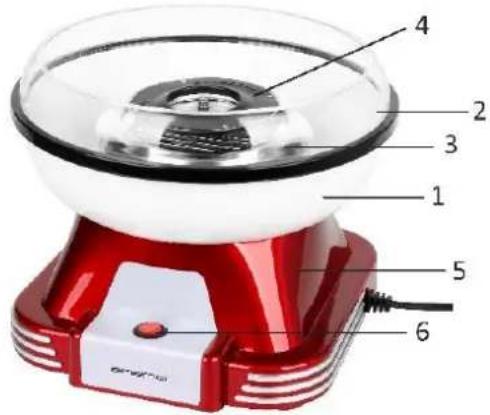

PARTS DESCRIPTION

1. Big bowl
2. Transparent ring and black ring
3. Heating element
4. Extractor head
5. Housing
6. On/off switch

HOW TO USE

1. Place the housing of the cotton candy maker on a firm surface at a distance from wet environments and flammable objects.
2. Put the big bowl on the housing by rotating it anticlockwise. Make sure it firmly locked by the locking tab on the motor unit.

Close-up of a hand holding a circular mechanical component with internal components (no visible text or symbols)

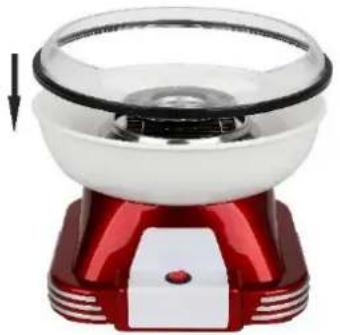

1. Attach the transparent ring over the edge of the big bowl. Press the black ring to bond them tightly.

Red and white ceramic kitchen tool with a black handle, no visible text or symbols

Note: Do not use the cotton candy maker if the transparent ring is loose.

1. Place the extractor head into the heating element. Pay attention to align the joint.

Close-up of a hand placing a tray into a metal bowl containing food items (no visible text or symbols)

1. Connect the power plug of the cotton candy maker to the socket.

Make sure that all parts are correctly assembled and that the appliance is switched off before connecting it to the socket.

1. Turn the switch to "I" position and allow to run for 5 minutes, this will allow it to warm up then switch to "O" position.

2. Pour one spoon of sugar with the provided measuring spoon into the center receptacle of the extractor head. Switch to "I" position.

Hand pouring white powder into a glass bowl on a red stand (no text or symbols visible)

If you want to use hard candies, you must evenly place two or more hard candies in the center of the extractor head, and the hard candy ingredients are best saccharose or white sugar, and not to contain starch. The length and width of the hard candy shall less than 20 mm, thickness not exceed 10 mm, and the max quantity can be processed 5 or 6 pcs at a time.

NOTE: Do not overfill the sugar receptacle. Only pour one spoon of sugar with the providing measuring spoon each time. Maximum quantity of sugar is about 15g.

1. Use the bamboo sticks or use a normal piece of paper and make a roll out of it. Use this as the stick to roll up the cotton candy. You shall hold the stick horizontal over the transparent part and go from left to right when you roll up the cotton candy. You can use also a wooden stick which is suitable for using for food preparation.

Illustration of a bowl with a spoon and a lid, containing concentric rings (no text or symbols)

NOTE: Do not put the paper roll or wooden stick inside the transparent part, this action can get you burned.

1. Turn off the appliance when all the sugar has been dispensed. Wait until the extractor head has come to a complete stop, you can pour another spoon of sugar in the extractor head and begin again. The cotton candy maker should be flowing more quickly as the unit is warmed up sufficiently.

Important! The appliance is subject to overheating if used more than 30 minutes at a time. Therefore, it must be allowed to cool for at least 10 minutes for every 30 minutes of use. Overheat may pose a fire hazard.

CLEANING AND MAINTENANCE

1. Always unplug the appliance and let it cool down completely before disassembling it for cleaning.

2. All removable plastic parts are dishwasher safe.

3. Clean the motor unit by wiping it with a soft damp cloth. Never immerse the motor unit in water.

4. The extractor head can be hand washed in warm soapy water.

Important! Inspect the heating elements during cleaning to ensure that they are free from any sugar residue before reusing. If there is any sugar residue left on the heating elements, pull out the plug and allow the product to cool. Then scrap any residue away with a wooden or plastic instrument. Any residue left on the heating elements may pose a fire risk.

NOTE: The cotton candy is made by heating sugar. This turns sugar into a liquid form. Then the sugar liquid is forced out of tiny holes in the extractor head by centrifugal force as the extractor head spins. As the liquid sugar hits the air it returns to a solid fluffy material that adheres to a paper cone, or wooden stick.

It is very important that the unit will be cleaned properly after each use. If it is not, the holes will get clogged and sugar will not be able to sift through the tiny holes properly.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power: 500W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service

Looking for spare parts? Have a look at https://spareparts.emerio.eu
