USER MANUAL WCP-300 LG

Contact office for compliance of this product :

LG Electronics Inc.

EU Representative, Krijgsman 1,

1186 DM Amstelveen, The Netherlands

English

Svenska

LG Electronics, Inc

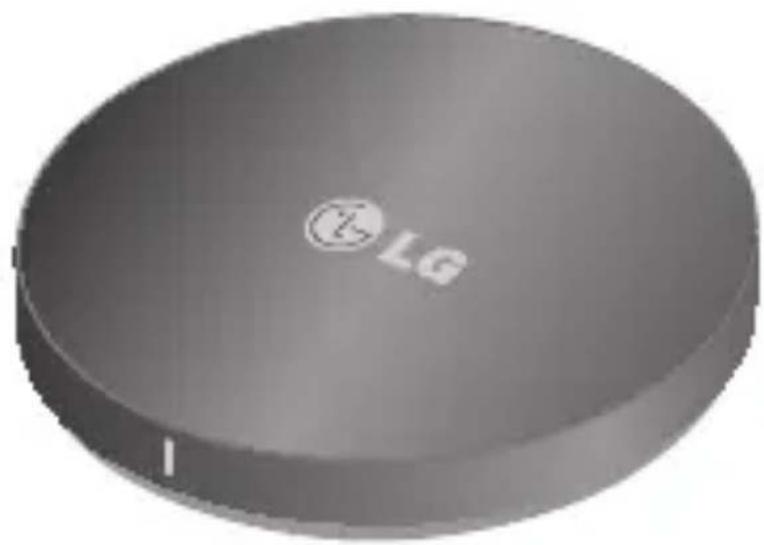

Wireless Charging Pad

WCP-300 User Manual

Circular metallic object with 'LG' logo and printed text, no readable symbols or numbers beyond the logo.

Rev 1.0 EU

All rights reserved.

LG Electronics Inc., 2014

LG Electronics, Inc

Wireless Charging Pad

WCP-300 User Manual

Circular gray object with a logo and 'LG' mark, no visible text or symbols on the body.

All rights reserved.

LG Electronics Inc., 25th July 2014

Note: For optimal performance and to prevent any damage to, or misuse of the WCP-300, please read all of the information carefully before using the WCP-300.

Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc..

Included in the Package

Gray circular object with a small white mark on its surface (no text or symbols visible)

Illustration of a closed book with abstract cover design (no readable text or symbols)

WCP-300 (Wireless Charger)

* Power Adapter

* USB Cable

card

User Manual WEEE CardWarr

* These items could be changed or excluded as it may chance.

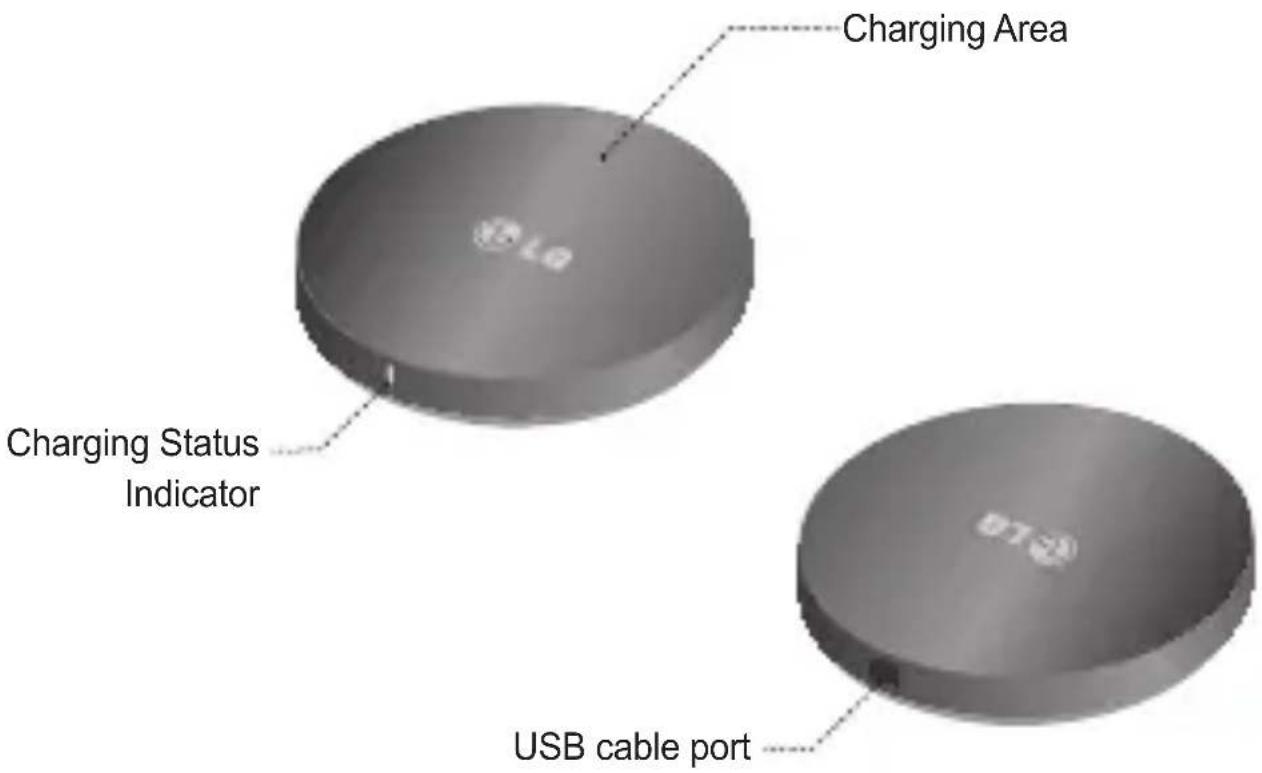

Description of Parts

Charging Area Charging Status Indicator USB cable port

How to Use

Setup

Exterior view of a circular electronic device with a cable and indicator lights (no text or symbols visible)

- Connect the USB cable to the power adapter and plug it into an electrical socket.

Charging

Close-up of a handheld electronic device with a circular base and cable (no visible text or symbols)

Illustration of a black rectangular device with a cable inserted, no visible text or symbols

1. Make sure the USB cable and power adapter are connected and plugged into a electrical socket.
2. Place the device on the wireless charging pad.

NOTE: Make sure that the battery compartment (The center of the phone) is directly on the wireless charging pad. Otherwise, the device will not charge.

NOTE: The WCP-300 is compatible with all QI certified devices.

Charging Indicator

Function W	CP-300 Status LED color
Operating	Power supply disconnected OffPower supply connected Solid Amber
Charging	Charging Flickering GreenCharging complete Solid Green

Precautions

• Do not drop the Wireless Charging Pad from high places.
• Do not modify, repair, or take the Wireless Charging Pad apart.
• Do not clean with water alcohol or benzene.
• Keep the Wireless Charging Pad away from humidity and dust.
• Do not place heavy objects on the Wireless Charging Pad.
• Do not place sharp objects near or on the Wireless Charging Pad.
• Keep Wireless Charging Pad away from any liquids, moisture or creams.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Item Description
Input / Output DC 5V, 1800mA / DC 5V, 1000mA
Charging time < 4 hours (Based on 1500mAh Battery)
Operation temperature -10°C ~ 60°C
Dimension Φ 69.8mm(Dia.) X 11.9mm(H), 62g

Declaration of Conformity

FCC NOTICE TO USERS: This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC ID: BEJWCP300

C€1177

Declaration of Conformity

Hereby, LG Electronics European Shared Service Center B.V., declares that this Wireless-charger WCP-300 is compliant with the essential requirements and other relevant provisions of Directive 1999/5/EC. The complete Declaration of Conformity may be requested through the following postal address:

LG Electronics European Shared Service Center B.V.

European Standard Team

Krijgsman 1

1186 DM Amstelveen

The Netherlands

or can be requested at our dedicated DoC email for Europe :

[e-mail]

Safety Instructions

WARNING: Failure to follow the instructions may cause serious injury and even death.

CAUTION: Failure to follow the instructions may cause injury to persons or damage to the product.

• Read the owner's manual carefully and keep it to hand.
• When disconnecting the power adapter, always remove with the plug, do not pull the wire by itself.
• Never handle the power adapter with wet hands, as this could cause fire or electric shock.
• Refer servicing to qualified personnel only.
• Do not open the housing
• Do not twist or pinch the USB cable while connected to the power adapter. If the USB cable or power adapter need to be replaced, ensure that they comply with the manufacturer's recommendation.
• Unplug the device during lighting storms and when unused for extended periods of time.

When using an electrical device, especially when children are present, basic safety precautions should always be followed, including the following:

DANGER to reduce the risk of electric shock

• Always unplug the device from the electrical outlet before cleaning.
• Do not reach for a device that has fallen into water. Unplug it immediately.
• Do not place or store device where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.

WARNING to reduce the risk of burns, fire, electric shock or injury to persons

• Do not use with extension cord.
• Children should be closely supervised to ensure that they do not play with the device.
• Use this device only for its intended use as described in this manual. Do not use with unauthorized accessories of devices.
• Never operate this device if it has a damaged cord, plug, cable or housing. If it is not working properly, if it has been dropped or damaged, return it to the LG Service Center for examination and repair.
• Keep cord away from heated surfaces.
• This device is designed for indoor use only. Do not use outdoors.
• Only set on dry surfaces. Do not place on surface wet from water or cleaning solvents.
• Please do not put any metal substance like coin when charging. It can cause product damage and serious burns.
