USER MANUAL EV80 KOKIDO

3D rendering of a vacuum cleaner with a conical top and base, showing mechanical components and mounting feet (no text or symbols visible)

EV80

EV81

Table Of Contents

SAFETY WARNINGS & INSTRUCTIONS P.7

PARTS DIAGRAM P.10

GETTING STARTED P.11

Charging The Battery P.11

Set-Up Before Use P.13

Handle assembly P.13

Telescopic pole connector assembly P.13

Filter base unit assembly P.14

Telescopic pole (not included) assembly P.15

Specific Telescopic pole (not included) assembly P.15

Pool Preparation P.15

OPERATION P.16

EMPTYING THE FILTER BASE P.16

How to remove the battery pack P.19

TROUBLESHOOTING P.21

Remark: Product/parts photos/drawings in this manual are for demonstration only. Product/parts in photos/drawings may vary with the model purchased.

Table des matières

Information contained in this Instruction Manual will help you operate the item safely, protect yourself and others from hazards, and prevent damage to the device and other property.

SAVE THESE INSTRUCTIONS

WARNING!

- This is not a TOY. Children should be kept out of reach from this pool vacuum and its accessories.

- Never allow children to operate this pool vacuum.

- This appliance is not intended for use by persons with reduced physical, sensory, mental capabilities, or a lack of experience and knowledge, unless they are given supervision or instructions concerning the safe use of the appliance and understand the hazards involved by a person responsible for their safety.

- Children must not play with this product.

- Cleaning and maintenance of the pool vacuum must not be carried out by children.

- Make sure the pool vacuum is fully immersed in the pool before initiating operation. The minimum water level required to operate the pool vacuum must reach above the power ON/OFF switch of the pool vacuum when it is held in a vertical position. Operating the pool vacuum when it is not immersed correctly could damage the unit and void the warranty.

- Maximum operating depth in water is 3 meters (10ft).

- Maximum water temperature: 5°C (41°F) – 35°C (95°F)

- ☑☐☐ Detachable supply unit (external adaptor).

- The pool vacuum should only be recharged with the external adaptor and charging base delivered with this product.

- For the purposes of recharging the battery, only use the detachable supply unit (external adaptor model number: DSS12D-1261000-B / DSS12D-1261000-C / DSS12D-1261000-D/ LX135100U) that provided with this pool vacuum to charge the battery.

- Connect the external adaptor to a power source through a residential current device (RCD) / a ground fault circuit interrupter (GFCI). If in doubt, consult a qualified electrician.

- Do NOT use this pool vacuum if any damage is detected.

- Replace damaged parts with ones that are certified by the distributor or manufacturer.

- Turn off the power, disconnect the external adaptor from the power source, and unplug the external adaptor from the charging base before detaching the pool vacuum from the charging base.

- Disconnect the pool vacuum from the supply mains and make sure the pool vacuum is OFF prior to carrying out regular maintenance – such as cleaning the filter and the charging contact plates.

- DO NOT attempt to replace the installed rechargeable Li-ion battery

pack.

- DO NOT handle the pool vacuum, external adaptor, and charging base while it is charging with wet limbs and without shoes.

- You should not operate this pool vacuum when people/pets are present in the water.

- DO NOT use this pool vacuum without an intact filter screen in place, as your warranty will be voided as a result.

- Suction entrapment hazard: This pool vacuum generates suction. Do not allow hair, body, or any loose parts of your clothing to make contact with the suction hole of the pool vacuum during its operation.

- Never insert body parts, clothing or other objects into the openings and moving parts of the pool vacuum.

- DO NOT use this pool vacuum to pick up any toxic substance, flammable, and combustible liquids (i.e. gasoline) in the presence of explosive or flammable fumes.

- Under no circumstances should you attempt to disassemble the pool vacuum and replace the impeller, motor, and battery by yourself.

- Never insert fingers or any object to touch the impeller.

- The built-in battery must be removed by a skilled technician before it is scrapped.

- This pool vacuum contains a battery that are only to be removed by skilled persons.

- The pool vacuum must be disconnected from the supply mains as the battery is removed.

- For details regarding battery recycling/disposal, refer to the section "BATTERY DISPOSAL" in this manual and contact your local authorities for more information.

- The battery must be disposed safely in accordance with local ordinances or regulations.

- External adaptor and charging base:

- Never use the external adaptor and charging base for anything other than charging the battery of the pool vacuum that is supplied in the same pack.

- The external adaptor and charging base should not be used outdoors, nor should it be exposed to rain, humidity, and any liquid or heat.

- The transformer ( or external adaptor) is to be located outside zone 1

- Keep the external adaptor and charging base out of reach of children.

- Never use the external adaptor and charging base if any damage is detected.

- DO NOT handle the external adaptor and charging base with wet hands.

- DO NOT handle the pool vacuum, external adaptor, and charging base while charging with wet hands and without shoes.

- Keep the external adaptor disconnected from power when it is not in use.

- Never attempt to open the external adaptor and ccharging base.

- If the supply cord of the external adaptor is damaged, the external adaptor must be replaced by the manufacturer or its service agent to prevent hazards of any kind.

- Make sure the pool vacuum and the charging base are completely dry before charging.

CAUTION!

- This pool vacuum is designed for underwater use only; it is not an all-purpose vacuum cleaner. DO NOT attempt to use it to clean anything other than your pool / spa.

- Use only original accessories delivered with this product.

- DO NOT use this pool vacuum right after pool-shocking. It is recommended to leave the pool circulating for at least 24-48 hours.

- If you are planning on using the pool vacuum in a saltwater pool, make sure all salt are dissolved before deploying the pool vacuum.

- DO NOT use this pool vacuum with another automatic cleaner/cleaner simultaneously in the pool/spa.

- Avoid picking up hard, sharp objects with this product. They may damage the pool vacuum and filter.

- Exercise caution when cleaning pool stairs.

- To avoid damages to the external adaptor and charging base, do not attempt to carry the pool vacuum by the cord of external adaptor / charging base or pull the cord to disconnect it from the power source and charging base.

- Charge the pool vacuum indoor in a clean, dry area with good ventilation and an ambient temperature between 5°C (41°F) and 35°C (95°F).

- DO NOT leave the pool vacuum charged for over 10 hours.

- If the pool vacuum will not be used for an extended period, detach it from the charging base and use a damp cloth to clean and dry the pool vacuum and accessories. Make sure to charge the pool vacuum to about 30% to 50% of the battery capacity before it is stored. Store in a well-ventilated area away from sunlight, heat, ignition sources, pool chemicals, and children. Never leave the pool vacuum plugged in for long-term storage. Recharge the pool vacuum every three months.

Above warnings and cautions are not intended to incorporate all possible instances for risks and / or severe injuries. Pool / spa owners should always exercise extra caution and common sense when utilizing the product.

Technical diagram of a cleaning or cleaning device with numbered parts and labeled parts in Chinese

Technical diagram of a car interior with numbered components and exploded view

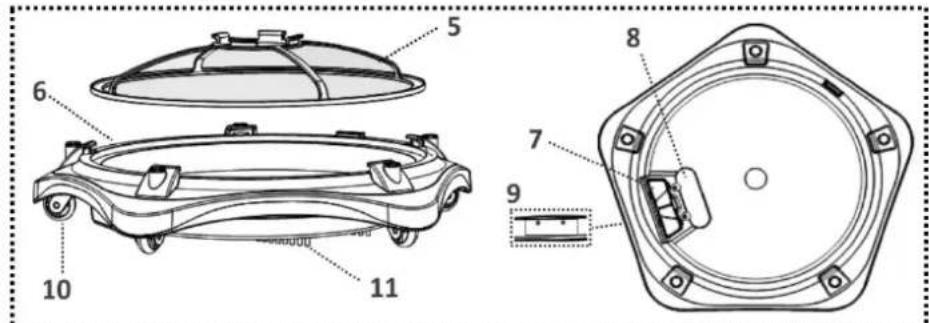

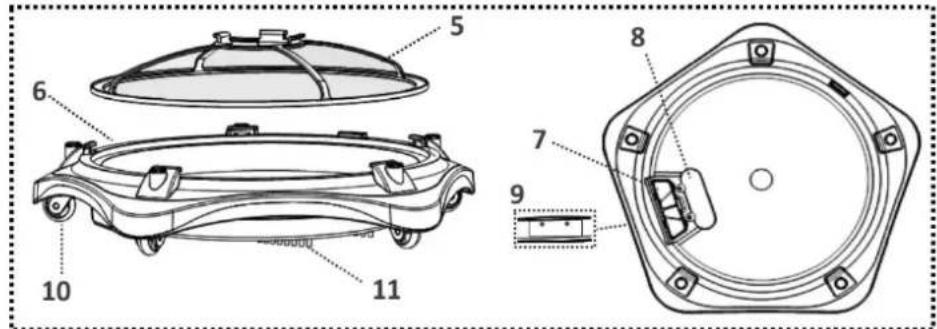

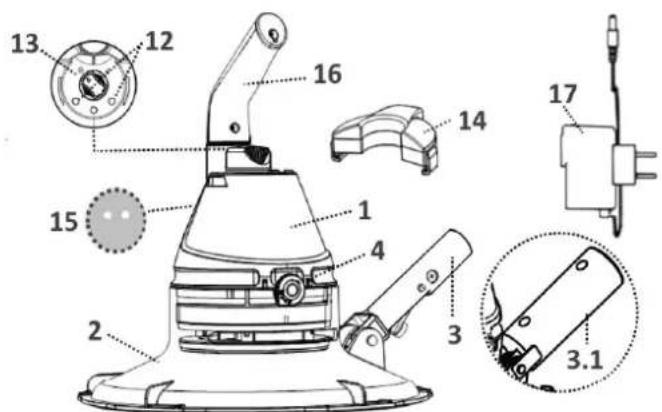

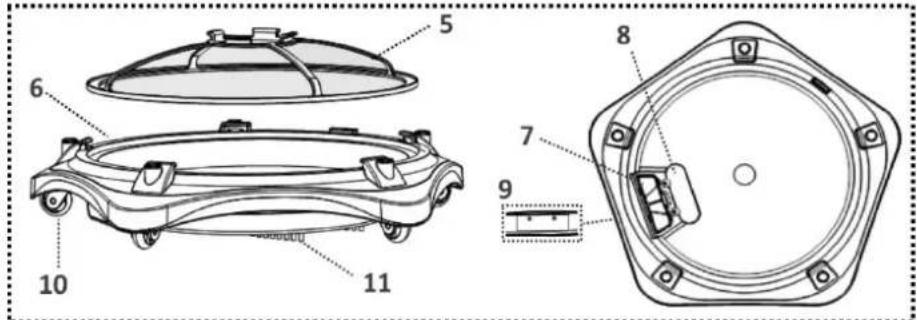

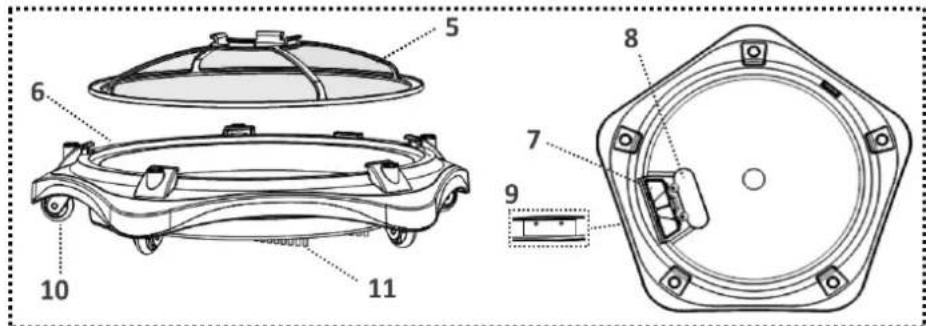

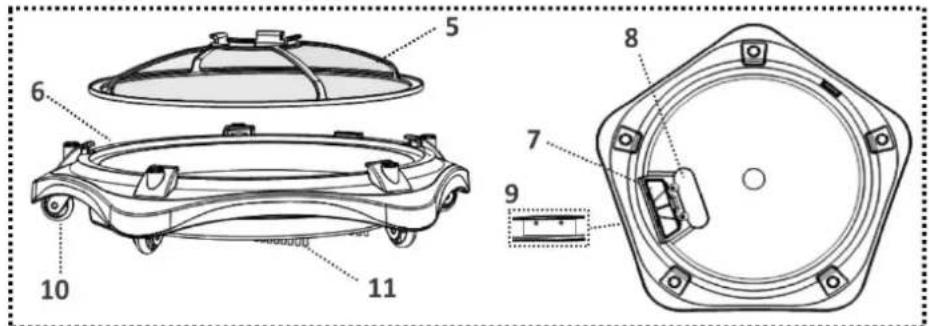

		Replacement parts number			Replacement parts number
1.	Rear body Model EV80:-EV80ASM01/21EV80ASM01/21/US	9.	Draining flap		----
		10.	Wheel x 5		EV80-04
2.	Transparent lid EV80-01-001 11. Bristle x 4 EV51ASM04
3.	Telescopic pole connector	EV80ASM02 (for USA / EU countries)	12.	Charging contact plate	----
3.1.	Specific telescopic pole connector	K098U (for Australia / New Zealand)	13.	Power ON/OFF Switch	----
4.	Locking knob (on both side)	----	14.	Charging base
5.	Filter screen EV80-02 15. Draining holes (inside handle chamber)				----
6.	Filter base EV80-03 16. Handle			K629ASM14
7.	Draining filter plate	----	17.	External adaptor	K62900163 EV5000163/US (USA) K62900163/AU (for Australia / New Zealand)
8.	Suction nozzle flap	----

GETTING STARTED

Charging the battery

IMPORTANT NOTE: Fully charge the pool vacuum (about 6 hs) before using it for the first time.

WARNING!

• Use only the original external adaptor and charging base provided.
• Make sure the pool vacuum and the charging contact plates are clean and dry before set-up and charging. (TIPS: Use a cotton bud to dry the charging contact plates)
- Charging must be done indoors, in a well-ventilated area away from sunlight, children, heat, ignition sources, and with an ambient temperature between 5°C (41°F) and 35°C (95°F).
- Never use the external adaptor and charging base if any damage is detected.
- The charging contact plates are waterproof. However, remnants of water on the contact plates could result in natural occurrence of stains (a byproduct of chemical reaction between water and electric currents). Otherwise, the stains can be removed by light scrubbing with a cotton bud soaked with juice of lemon or vinegar.
- Make sure that the pool vacuum is turned off prior to charging.

1. Place the unit on a flat surface. Make sure the pool vacuum is off by turning the power ON/OFF switch to the OFF position prior to charging.

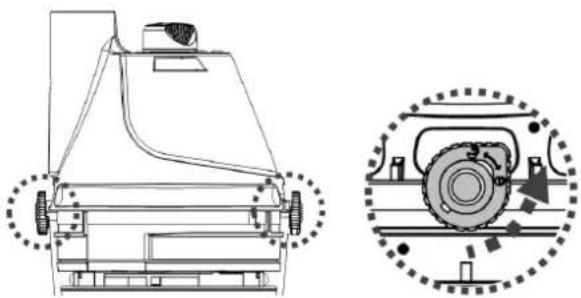

2. Turn the locking knob (on each side) anticlockwise until it points to the green dot marking (unlock position) to unlock and release the rear body from the transparent lid.

Technical line drawing of a mechanical device with circular annotations highlighting internal components (no text or symbols present)

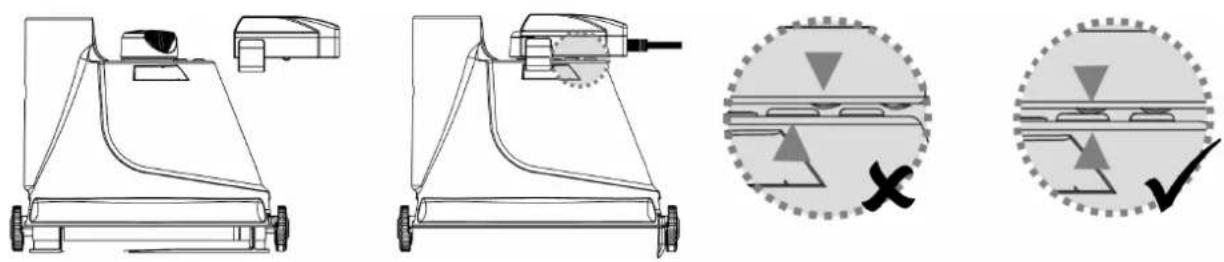

1. Place the rear body (upside down - power on/off switch face up) on a flat surface. Align and slide the hook of the charging base onto the side notch at the bottom of the rear body until it stops. Make sure their contact plates are properly in contact. Plug the female jack of the external adaptor into the charging port at the end of the charging base.

Technical diagram showing three different types of lawn pushers with corresponding safety instructions and cross symbols.

1. Connect the external adaptor to the power source. Once the pool vacuum begins charging, the indicator light on the external adaptor will turn red. Normally, it takes about 5-6 hours to reach a full charge. The indicator light will turn green when the pool vacuum is almost fully charged.

NOTE: if the motor is generating noise, ensure "OFF" is selected on the power switch.

- Immediately disconnect the external adaptor from the power source if you detect any of the following:

• Offensive or unusual odor
• Excessive heat
• Deformation, cracks, leaks

• Smoke

• When charging is complete, disconnect the external adaptor from the power source and detach the charging base from the unit and external adaptor.

Normally, the pool vacuum can operate up to 40 minutes (for Model EV80) / 90 minutes (for Model EV81) on a full charge (charged for 5-6 hours)

Note: Clean the filter regularly. Too much debris inside the filter will increase burden to the motor operation and then shorten the operating duration.

FACT: Rechargeable lithium-Ion battery is classified as a consumable item. It has a limited life and will gradually lose its capacity to hold a charge. Therefore, running time of the pool vacuum will gradually reduce through repeated charging and discharging in operation.

Once the lifespan of the battery reaches its end, refer to section "BATTERY DISPOSAL" for instructions regarding battery disposal

NOTE: Let the pool vacuum rest for 30 to 40 minutes before charging it again.

Set-Up Before Use

Handle assembly

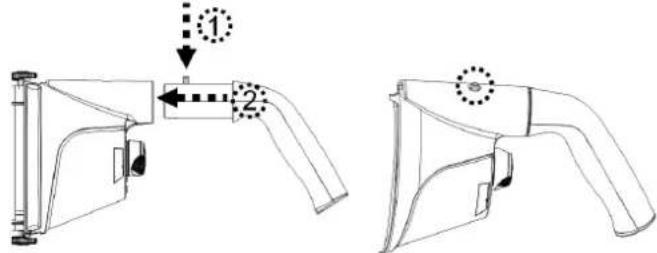

Insert the handle into the pool vacuum as shown, until the side pin on the handle is secured to the handle's locking hole on the rear body.

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

To release the handle, press down on the side pin and pull out the handle.

Telescopic pole connector assembly

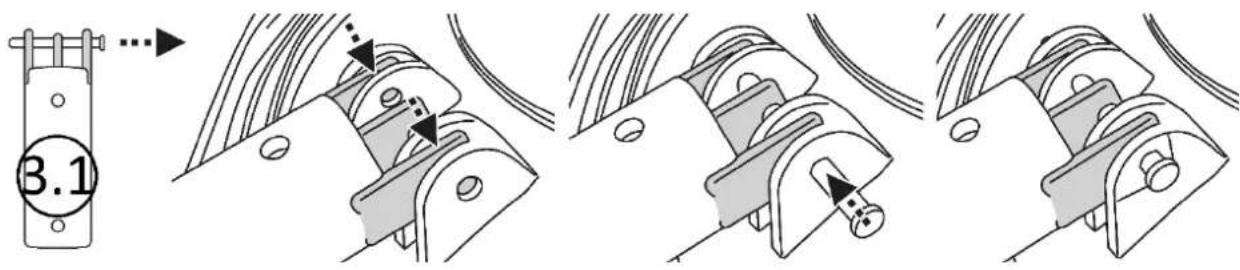

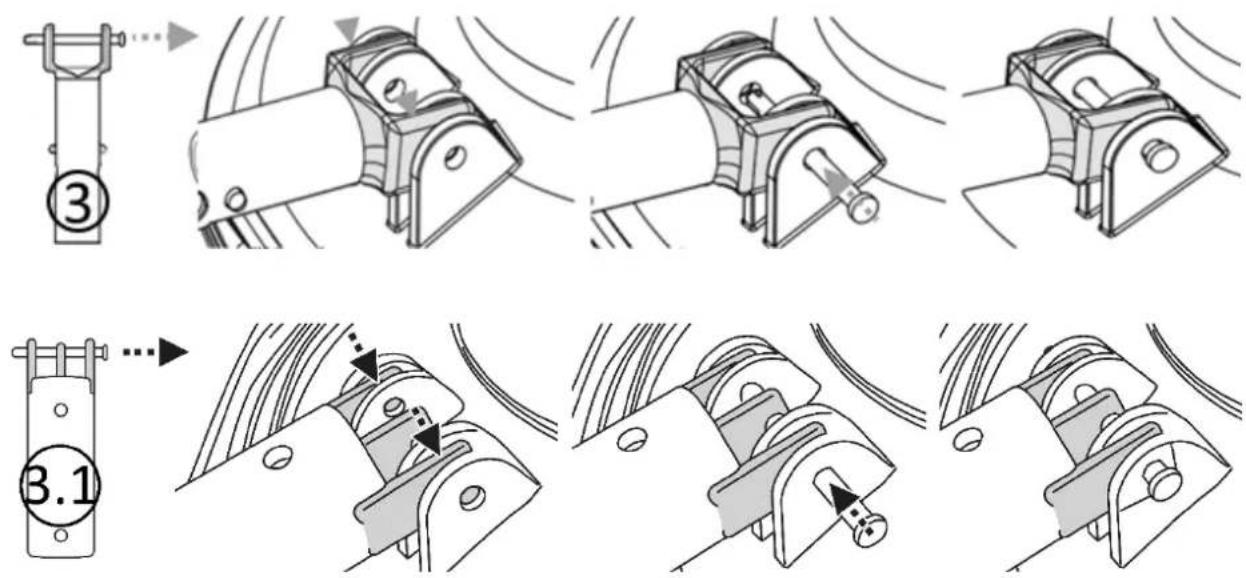

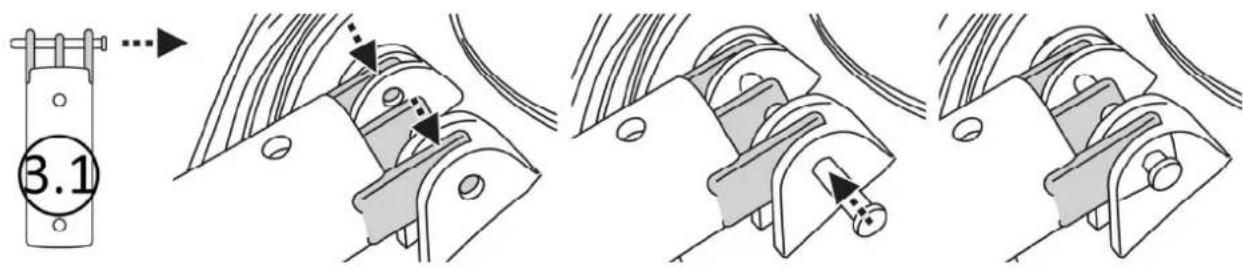

Pull to detach the locking pin from the pole connector. Align the holes on the front arms of the pole connector to the holes of the hinge on the transparent lid. Insert the locking pin through all the holes in order to secure the pole connector on the lid.

Technical diagram showing mechanical assembly steps with numbered instructions and component illustrations

Filter base unit assembly

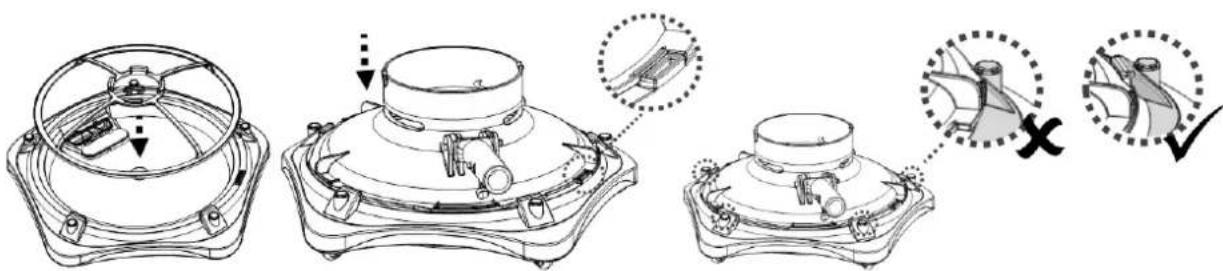

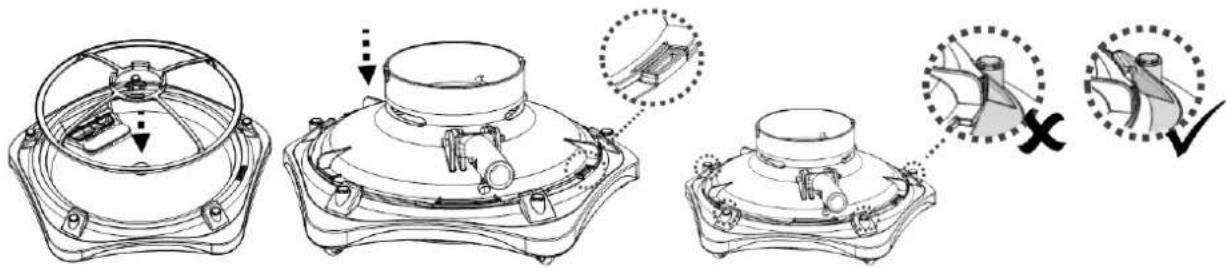

First, place the dome filter screen onto the base. Then, place the transparent lid on top and align both orange line markings. Make sure the flange of transparent lid is not resting on any of the arches of the base.

Technical diagram illustrating mechanical assembly steps with labeled components and checkmark indicators

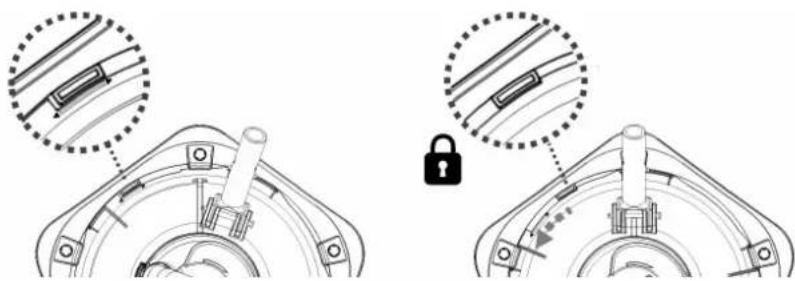

Push on the tab to turn the transparent lid in the same direction as the red arrow (anticlockwise) until all tabs reach the arches and lock the transparent cover in place.

Mechanical assembly diagram showing two stages of a lock mechanism with no text or symbols

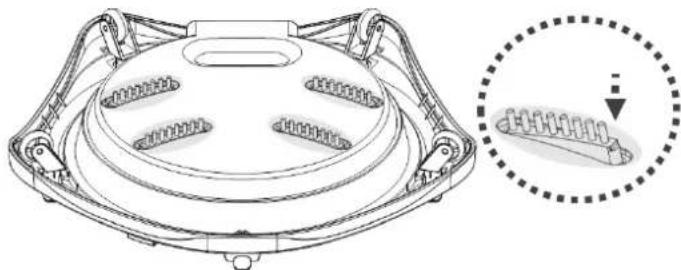

Align and insert all brushes into the notches on the underside of the cleaner.

Technical line drawing of a mechanical component with mounting brackets and a magnified inset showing a spiral component (no text or symbols)

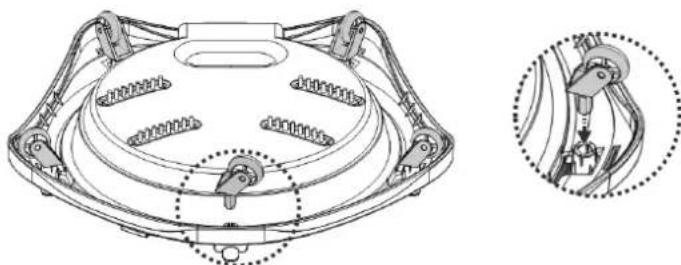

Align and insert the wheels into the cavities on the underside of the cleaner.

Technical line drawing of a mechanical component with mounting brackets and internal gear-like structures (no text or symbols)

Telescopic pole (not included) assembly

Note:

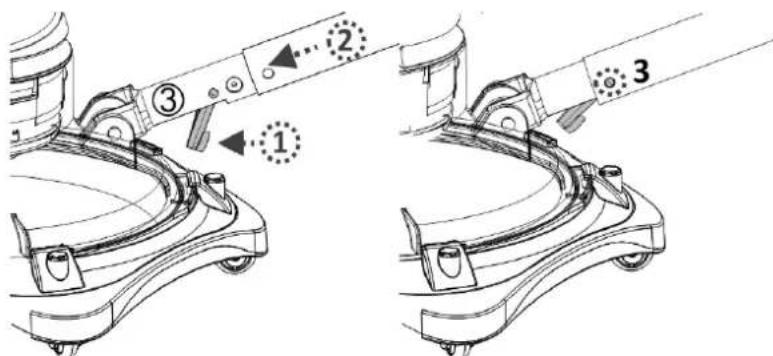

1. A V-clip is installed inside the pole connector to secure the telescopic pole in position.
2. Make sure to assemble the handle. You need to hold it as well while putting the pool vacuum into pool water or lifting it out of the pool.

Press the button of the V-clip to retract the side tabs and then slide the telescopic pole onto the pole until the side holes of the telescopic pole match the side tabs. Release the V-clip button and the telescope pole is secured to the pole connector.

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

To release the telescopic pole, press the V-clip button and pull the pole away from the cleaner.

Specific Telescopic pole (not included) assembly

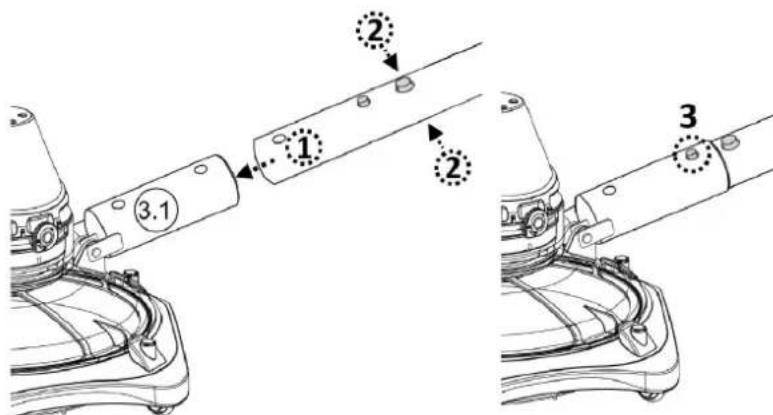

Insert the telescopic pole (with internal wishbone clip) to the pole connector as shown until its small side pins are secured to the handle's locking holes.

3.1 1 2 2 3

Pool Preparation

• If there are stones, roots or metal corrosion in contact with the underside of the liner, discard them prior to using the pool vacuum. If necessary, seek assistance from a qualified professional.
• If the liner is brittle, damaged or wrinkled, contact a qualified professional to perform the necessary repairs or perform a liner replacement prior to using the pool vacuum.
• If you are using a saltwater pool, make sure all salt are dissolved before placing the pool vacuum into the water.

OPERATION

WARNING!

• Make sure the pool vacuum is off
- Do not use the pool vacuum if any damage is detected.
- Oil stain could occur due to possible leakage of lubricants applied to the O-ring.
- Do not operate this pool vacuum if there are people/pets present in the water.
- Make sure the pool vacuum is fully immersed in the pool before initiating operation. The minimum water level required to operate the pool vacuum must reach above the power ON/OFF switch of the pool vacuum when it is held in a vertical position. Operating the pool vacuum when it is not immersed correctly could damage the unit and void the warranty.
- DO NOT use the pool vacuum without an intact filter screen in place. Using your pool vacuum without an intact filter screen in place will VOID your warranty.
- DO NOT cover the side slot of the vacuum during operation. The impeller /motor may be damaged as a result.
• DO NOT leave the pool vacuum in the water when it is not in use.

1) Bring your pool vacuum to the side of your pool / spa. Immerse the pool vacuum in water and turn the power ON/OFF switch to the ON position to initiate operation.

CAUTION! Make sure the pool vacuum is always facing downwards when it is placed into the pool. Otherwise it may bend the pole connector and damage it during the process. Make sure to assemble the handle as well. Hold both the handle and telescopic pole simultaneously to place the pool vacuum into water.

2) To remove the pool vacuum from the pool / spa, lift the pool vacuum while pointing it downwards in order to allow water to escape from the outlet valve. Water is going to escape via the handle / pole connector and draining holes inside the handle chamber on the rear body.

CAUTION! Make sure the pool vacuum is always facing downwards when it is removed from the pool. Otherwise, the pole connector may be bent and damage the pool vacuum in the process. Make sure to hold the handle as well when lifting the pool vacuum out of the water.

3) Rinse the pool vacuum with fresh water after every use. DO NOT use any detergent.

EMPTYING THE FILTER

WARNING! Using the pool vacuum without a filter screen in place will VOID your warranty.

In order to maximize the cleaning efficiency, be sure to clean the filter screen before and after each use.

CAUTION! If the pool vacuum is charging, disconnect the external adaptor from the power source and detach the pool vacuum from the charging base. Make sure the pool vacuum is OFF

- Emptying filter base

1. Place the pool vacuum on a stable surface.
2. Release the rear body from the transparent lid.

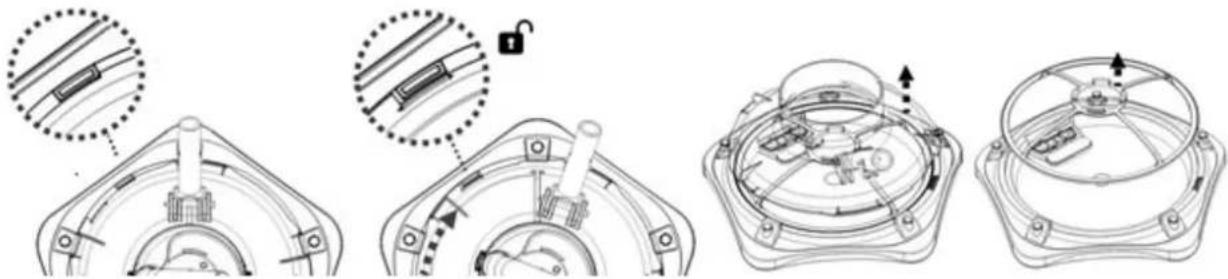

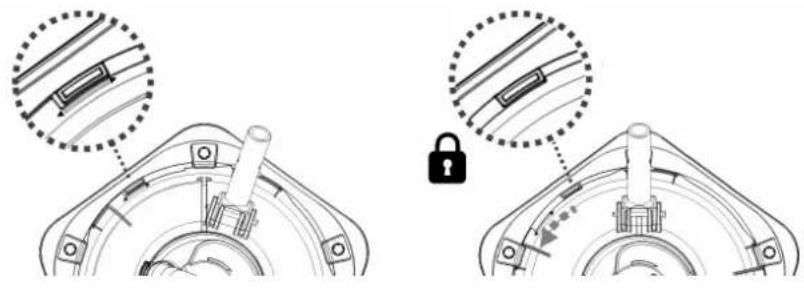

3. Push on and rotate the tabs on the transparent round cover clockwise until the orange bar on the transparent cover and the base are aligned. Lift the transparent cover off the base. Hold the small grips on the top of the filter screen to lift it off the base and gain access to the debris.

Technical line drawings of mechanical components with zoomed-in detail views (no text or symbols)

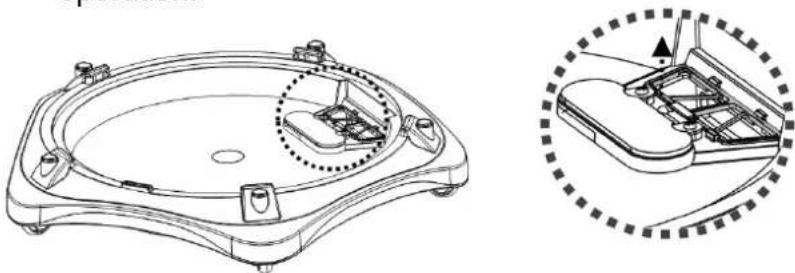

1. Clean out all debris from the base, suction nozzle flap, and draining filter plate. Use clean water to rinse the entire base. To detach the filter plate, pry the rib of the plate. If the draining filter plate is damaged, replace it with a new one before the next operation.

Technical line drawing of a CD or DVD disc assembly with internal components and mounting holes (no text or symbols)

Note: Do not remove the draining filter plate. Without it, debris will escape from the base's debris compartment during operation.

1. Reverse the steps to install the filter screen and cover onto the base. Make sure the flange of the transparent cover is under the arch.

Technical line drawing of a mechanical device with multiple views and adjustment annotations (no text or symbols)

Mechanical assembly diagram showing two stages of a lock mechanism with close-up insets (no text or symbols)

1. Be sure to clean and dry the charging contact plates after every use to avoid the forming of stains (byproduct of a natural chemical reaction between electric current and water). Otherwise, the stains can be removed by light scrubbing with a cotton bud soaked with juice of lemon or vinegar.
2. Battery discharges on its own during storage. Make sure to charge the pool vacuum to about 30% to 50% of the battery capacity before it is stored.

3. You must re-charge the battery at least once every three months when it is not in use.

4. Unplug the external adaptor from socket and then unplug the adapter jack from the charging base.

5. Detach accessories from the pool vacuum. If necessary, rinse the pool vacuum and accessories with fresh water. DO NOT use detergent.
   • Make sure to drain the water from the rear body through the holes located inside the chamber that connects to the handle/ pole connector, and the hole on the rear of the body.

Technical line drawing of a mechanical device with two circular inset views (no text or symbols)

• Make sure to drain the water from the handle through its hole on the bottom end.
• Use a damp cloth to clean and dry the pool vacuum and its accessories.
- Store them in a well-ventilated area away from the sunlight, children, heat, ignition sources, and pool chemicals. Ambient temperature for storage should be 10^ C – 25^ C ( 50^ F – 77^ F). NOTE: A higher temperature may reduce the battery life during storage.

WARNING!

• Never attempt in any way to disassemble the pool vacuum.

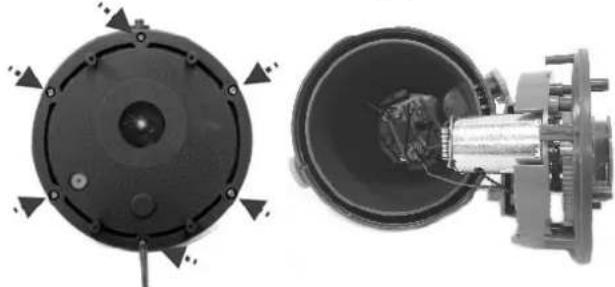

• Under no circumstances should you attempt to disassemble the pool vacuum and replace the impeller, motor and battery by yourself.

CAUTION!

• Excessive heat can damage the battery and reduce its lifespan as a result. Consult your dealer regarding battery replacement if the following happens:
• Battery does not charge fully.
• Battery operation time is noticeably reduced. Observe and record the run times of the first few operations (on a full charge). Use these run times as a reference point for comparison with run times in the future.
• The battery must be removed from the pool vacuum before it is scrapped.
• The pool vacuum must be disconnected from the supply mains when removing the battery
• The battery is to be disposed safely and according to local ordinances or regulations.

NOTE: Incorrect maintenance may reduce the battery life and affect its capacity as a result.

BATTERY DISPOSAL (To be carried out by an authorized technician)

Your pool vacuum battery is a maintenance-free rechargeable lithium-ion battery pack, which must be disposed properly. Recycling is required; please contact your local authority for information.

WARNING! Never attempt to disassemble a battery pack

• Remove all personal items such as rings, bracelets, necklaces and watches when the battery pack is unwired from the pool vacuum.
• A battery can produce a short circuit current high enough to weld a ring (or similar item) to metal, causing a severe burn in the process.
• Wear complete eye protection, gloves and protective clothing when the battery pack is being removed.
• Avoid touching the wires altogether and avoid allowing them to make contact with any metal items, which could cause sparking and/or short circuit the battery.
• Never smoke or allow a spark or flame in the vicinity of the battery or the pool vacuum.
• Do not expose the battery to fire or intense heat as this may result in an explosion.

CAUTION!

If a battery leak occurs, avoid contact with the leaking fluids and place the damaged battery in a plastic bag.

• If leaking fluids come in contact with skin and clothing, wash immediately with plenty of soap and water.
• If leaking fluids come in contact with eyes, immediately flush eyes with cool running water for at least 15 minutes and do not rub them. Seek medical attention as soon as possible.

How to remove the battery pack for battery disposal only (To be done by authorized technician)

Recommended tools (not included): Philips screwdriver

1. Turn the locking knob (on each side) anticlockwise until it points to the green dot marking (unlock position) to unlock and release the rear body from the transparent lid.

2. Use the screwdriver to unscrew the 4 screws located on the top plate and then detach it from the rear body to expose the rear body's cover.

Three black circular speaker or speaker components with ventilation grilles, shown from different angles (no text or symbols visible)

1. Unfasten 6 screws and detach the cover to expose the PCBA, motor assembly, and battery pack.

Two views of a mechanical device showing internal components and mounting holes (no text or symbols visible)

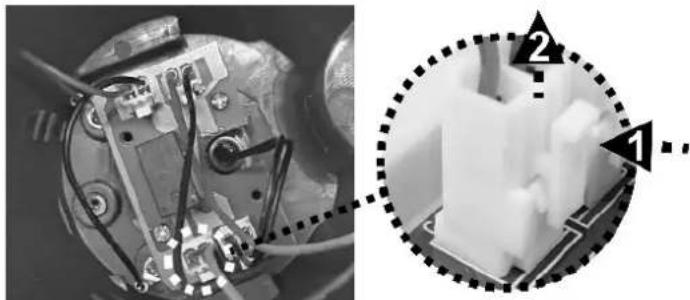

1. To detach the battery connection wire, press the clip on the connector and then pull it out.

Close-up of a mechanical component with wiring and a close-up view showing internal components (no text or symbols visible)

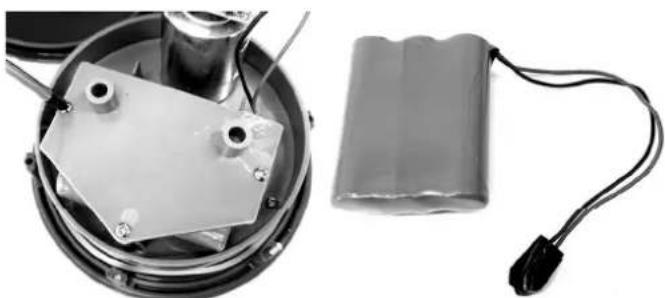

1. Unfasten the 3 screws to remove the battery compartment cover and then remove the battery pack. NOTE: Wrap the connector immediately with insulating tape in order to avoid short circuit caused by contact of both wire terminals.

Close-up of a mechanical device with a battery pack and cable, no visible text or symbols

TROUBLESHOOTING

Problem Possible Cause			Solution
Pool vacuum does not capture the debris			Battery is running out Charge the Impeller is jammed Power off the	battery again.pool vacuum and visually check the gap in middle of the pool vacuum to see if the impeller is jammed by larger debris. If possible, use a small tool to remove it with intensive care & caution. If necessary, contact your dealer for further instructions.WARNING! Make sure the pool vacuum is powered off when the unit is being serviced.
			Impeller is broken Contact your dealer for impeller replacement.
			Filter base is full Clean the filter base.
			Larger debris / large volume of debris	Remove the brushes from the filter base bottom
Debris escapes from the filter base			Suction nozzle flap is broken Suction nozzle flap works like a door to prevent the debris from escaping from the filter. Contact dealer for replacement parts and instruction.
			Draining filter plate is damaged Replace with a new draining filter plate.
Handle / pole connector cannot be secured in assembly			Side pin is broken Replace with a new handle / pole connector.
Pool vacuum is activated even though the switch indicates it's off.			Presence of magnetic objects nearby has inadvertently switched on the motor.	Move the magnetic objects or vacuum away from each other.
Pool vacuum cannot be charged / recharged			Battery is damaged Contact dealer for battery replacement.WARNING! DO NOT open the pool vacuum and replace the battery by yourself. This could result in severe or fatal injuries and the warranty will be voided as a result.
			Contact plates of the charger base and unit are not connected.	Make sure that the charger base is assembled on the unit properly so that their contact plates are touching.
			External adaptor is out of order Contact dealer for replacement.WARNING! Using the wrong external adaptor will result in damaging the pool vacuum / battery and voiding the warranty as a result.
Cleaner does not move smoothly			Wheel is jammed/ damages Clean the wheels. Replace damage wheels.
			Brushes underneath is damaged Replace damaged brushes
Operation time is shorter as expected			Battery is not fully charged Charge the pool vacuum for at least 6 hrs. NOTE: if any stains are found on the charging contact plates, remove them by using a cotton bud soaked with lemon juice or vinegar
Environmental Programmes, WEEE European Directive
			Please respect the European Union regulations and help to protect the environment. Return non-working electrical equipment to a facility appointed by your municipality that properly recycles electrical and electronic equipment. Do not dispose them in unsorted waste bins. For items containing removable batteries, remove batteries before disposing of the product.
			© 2020 Kokido Development Ltd. 20011012 All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of Kokido Development Ltd. (V2)

If soft copy of this instruction manual is required, please contact our customer service by email: [e-mail]

SAVE THESE INSTRUCTIONS

AVERTISSEMENTS DE SÉCURITÉ ET INSTRUCTIONS

Technical diagram of a cleaning or cleaning device with numbered parts and labeled parts in Chinese

Technical diagram of a car interior with numbered parts, likely an electric vehicle or fan assembly.

Technical line drawing of a mechanical device with circular annotations highlighting components (no text or symbols present)

Technical diagram showing three stages of a lawn mower with labeled components and directional arrows indicating movement or positioning.

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Technical diagram showing mechanical assembly steps with numbered annotations and directional arrows

3.1

Technical line drawing of a mechanical component with multiple views and annotations (no readable text or symbols)

Mechanical assembly diagram showing two views of a mechanical component with a lock and internal components (no text or symbols)

Technical line drawing of a mechanical component with mounting brackets and a magnified inset showing a disassembled part (no text or symbols)

Technical line drawing of a mechanical component with internal gear-like structure and a close-up inset showing a pin mechanism (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Technical line drawings of mechanical components with zoomed-in detail views (no text or symbols)

Technical line drawing of a mechanical disc assembly with internal components and a close-up inset showing internal structure (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components and annotations in Chinese

ENTRETIEN ET STOCKAGE

REMARQUE:

Technical line drawing of a mechanical device with two circular inset views (no text or symbols)

Three views of a black plastic speaker or fan component with circular vent holes and mounting holes (no text or symbols visible)

Two views of a mechanical device showing internal components and mounting holes (no text or symbols visible)

Close-up of a mechanical component with wiring and a close-up view of a white plastic housing (no text or symbols visible)

Close-up of a mechanical device with a battery pack and cable, no visible text or symbols

DEPANNAGE

Technical diagram of a cleaning or cleaning device with numbered parts and labeled parts in Chinese

Technical diagram of a vehicle interior with numbered components and a magnified view of the circular component.

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

Technical diagram showing three stages of a lawn mower with labeled components and directional arrows indicating movement or positioning.

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Technical diagram showing mechanical assembly steps with numbered annotations and directional arrows

3.1

Technical diagram illustrating the assembly of a mechanical component with labeled parts and directional arrows, including checkmark and cross symbols.

Mechanical assembly diagram showing two stages of a lock mechanism with no text or symbols

Technical line drawing of a mechanical component with mounting brackets and a magnified inset showing a disassembled part (no text or symbols)

Technical line drawing of a mechanical component with mounting brackets and a close-up inset showing a disassembled assembly (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Technical line drawings of mechanical components with zoomed-in detail views (no text or symbols)

Technical line drawing of a CD or DVD disc assembly with internal components and mounting holes (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical device with two circular inset views (no text or symbols)

Three views of a black plastic speaker or fan component with circular and square cutouts (no text or symbols visible)

Two views of a mechanical device showing front and side views with no visible text or symbols.

Close-up of a mechanical component with wiring and a close-up view of a white plastic component (no text or symbols visible)

Close-up of a mechanical device with a battery pack and cable, no visible text or symbols

Technical diagram of a cleaning or cleaning device with numbered parts and labeled parts in Chinese

Technical diagram of a car interior with numbered components and labeled parts

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

Technical diagram showing three different types of lawn pushers with labeled cross-sections and safety symbols.

Technical diagram showing two mechanical component configurations with labeled parts and directional arrows indicating motion or assembly.

Technical line drawings of mechanical components with no visible text or symbols

3.1

Montage van de filterbasisunit

Technical line drawing of a mechanical component with multiple views and annotations (no readable text or symbols)

Mechanical assembly diagram showing two views of a mechanical component with a lock and internal components (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a disassembled part (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing a detailed view of the assembly (no text or symbols present)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Technical line drawings of mechanical components with zoomed-in detail views (no text or symbols)

Technical line drawing of a disc assembly with internal components and a close-up view (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components and checkmark indicators

ONDERHOUD EN OPSLAG

NB:

Technical line drawing of a mechanical device with two circular inset views (no text or symbols)

Three black circular speaker components with perforated surfaces, shown from different angles (no text or symbols visible)

Two views of a mechanical device showing front and side views with no visible text or symbols.

Close-up of a mechanical component with wiring and a close-up view showing internal components (no text or symbols visible)

Close-up of a mechanical device with a battery pack and cable, no visible text or symbols

Problemen oplossen

Technical diagram of a cleaning or cleaning device with numbered parts and labeled parts in Chinese

Technical diagram of a car interior with numbered parts, including front, side, and top views

SPEGNIMENTO ACCENSIONE

Technical line drawing of a mechanical device with cross-sectional view (no text or symbols)

Technical diagram showing three different types of lawn pushers with labeled cross-sections and checkmark indicators.

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Technical diagram showing mechanical assembly steps with numbered annotations and directional arrows indicating motion or movement.

Technical illustration of a mechanical component with multiple views and close-ups, showing internal components and assembly (no text or symbols)

Mechanical assembly diagram showing two stages of a lock mechanism with close-up insets (no text or symbols)

Technical line drawing of a mechanical component with mounting brackets and a magnified inset showing a disassembled part (no text or symbols)

Technical line drawing of a mechanical component with internal gear and mounting brackets, plus an inset close-up showing a mechanical assembly detail (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion or movement.

Technical line drawings of mechanical components with zoomed-in detail views (no text or symbols)

Technical line drawing of a CD or DVD disc assembly with internal components and mounting brackets (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical device with two circular inset views (no text or symbols)

Three views of a speaker or speaker grille with circular components and central hub (no text or symbols visible)

Two views of a mechanical device showing internal components and mounting holes (no text or symbols visible)

Close-up of a mechanical component with wiring and a close-up view of a 3D-printed component (no text or symbols visible)

Close-up of a mechanical device with a battery pack and wiring, no visible text or symbols

Technical diagram of a cleaning or cleaning device with numbered parts and labeled parts in Chinese

Technical diagram of a car interior with numbered parts and exploded view, likely for assembly or maintenance instructions.

Technical line drawing of a mechanical device with circular annotations highlighting components (no text or symbols present)

Technical diagram showing three different types of lawn pushers with labeled cross-sections and checkmark indicators.

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Technical diagram illustrating mechanical assembly steps with numbered annotations and component illustrations

Technical line drawing of a mechanical component with multiple views and annotations (no readable text or symbols)

Mechanical assembly diagram showing two steps of a lock mechanism with no text or symbols

Technical line drawing of a mechanical component with mounting brackets and a magnified inset showing a detailed detail (no text or symbols)

Technical line drawing of a mechanical component with multiple arms and a close-up inset showing a close-up detail (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Technical diagram showing mechanical assembly steps with numbered components and directional arrows

Technical line drawings of mechanical components with zoomed-in detail views (no text or symbols)

Technical line drawing of a CD or DVD disc assembly with internal components and mounting holes (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components and checkmark indicators

Technical line drawing of a mechanical device with two circular insets showing close-ups (no text or symbols)

Three black circular speaker or speaker components with perforated surfaces, shown from different angles (no text or symbols visible)

Two views of a mechanical device showing internal components and mounting holes (no text or symbols visible)

Close-up of a mechanical component with wiring and a close-up view of a white plastic housing (no text or symbols visible)

Close-up of a mechanical device with a battery pack and wiring, no visible text or symbols

We reserve the right to change all or part of the features of the articles or contents of this document, without prior notice. International patents pending
