VIGI C320I - Surveillance Camera TP-LINK - Free user manual and instructions

Brand	TP-Link
Model	VIGI C320I
Category	Surveillance camera
Product type	Outdoor network camera
Resolution	4 MP (2688 x 1520)
Night vision	Yes, up to 30 m
Power supply	12 V DC or PoE (802.3af/at)
Power consumption	Max. 7 W
Viewing angle	Horizontal: 88°, Vertical: 46°
Protection	IP67 (outdoor)
Dimensions	76 x 70 x 150 mm
Weight	350 g
Main features	Motion detection, H.265+ compression, Plug & Play with VIGI NVR
Care and cleaning	Clean the lens with a soft, dry cloth. Do not use solvents.
Safety	Do not disassemble. Use a compliant PS2 or LPS power supply. Keep away from fire and water.
Spare parts and repairability	Not user-repairable. Contact TP-Link support for any issues.
Warranty	TP-Link limited warranty (see conditions on website)
General information	Manual available in multiple languages on notice-facile.com

Frequently Asked Questions - VIGI C320I TP-LINK

How to activate the VIGI C320I camera?

Use the VIGI app, VIGI Security Manager or a web browser. Connect the camera to the same network as your NVR or computer, then follow the instructions to set a password and activate the device.

How to connect the camera to a TP-Link VIGI NVR?

Connect the camera to the same network as the NVR. On the NVR screen, right-click and select Add Camera. If Plug & Play is enabled, the camera will be added automatically. Otherwise, create a password.

Can I use the camera with a different brand NVR?

Yes. First activate the camera with VIGI Security Manager or the VIGI app, then refer to the NVR manual to add the camera using its IP address.

How to access the camera via a web browser?

Find the camera's IP address on your router. Open a web browser and enter https://. Select your country and time zone, then set a password to activate the camera.

How to view the camera remotely with my smartphone?

Download the VIGI app from the App Store or Google Play. Log in with your TP-Link ID, tap + and follow the instructions to add the camera.

What type of power supply does the camera require?

The camera accepts 12 V DC or PoE (802.3af/at). Use a Class 2 (PS2) or current-limited (LPS) power source compliant with IEC 62368-1.

Is the camera compatible with night vision?

Yes, the VIGI C320I is equipped with infrared LEDs for night vision up to 30 meters.

How to reset the camera to factory settings?

Press and hold the reset button (located on the cable or housing) for about 10 seconds until the LED blinks. Refer to the manual for exact location.

What are the requirements to use VIGI Security Manager?

VIGI Security Manager is a Windows-only application. Download it from the TP-Link website. Your computer must be on the same network as the camera.

What to do if the camera does not power on?

Check that the power supply is properly connected and that the Ethernet cable (if PoE) is well connected to a PoE switch or injector. Try with another cable or power source.

USER MANUAL VIGI C320I TP-LINK

For technical support, the user guide and more information, please visit https://www.tp-link.com/support.

7106509961 REV1.4.0@2022 TP Link

Images may differ from your actual products.

CONTENTS

01 / English

05 / Deutsch

09 / Español

13 / Ελληνικά

17 / Français

21 / Italiano

25 / Português

29 / Nederlands

33 / 日本語

37 / 한국어

41 / 繁體中文

45 / ไทย

49 / Tiếng Việt

53 /

Mount Your Camera

Mount your camera according to the diagrams in the Quick Start Guide included in the package.

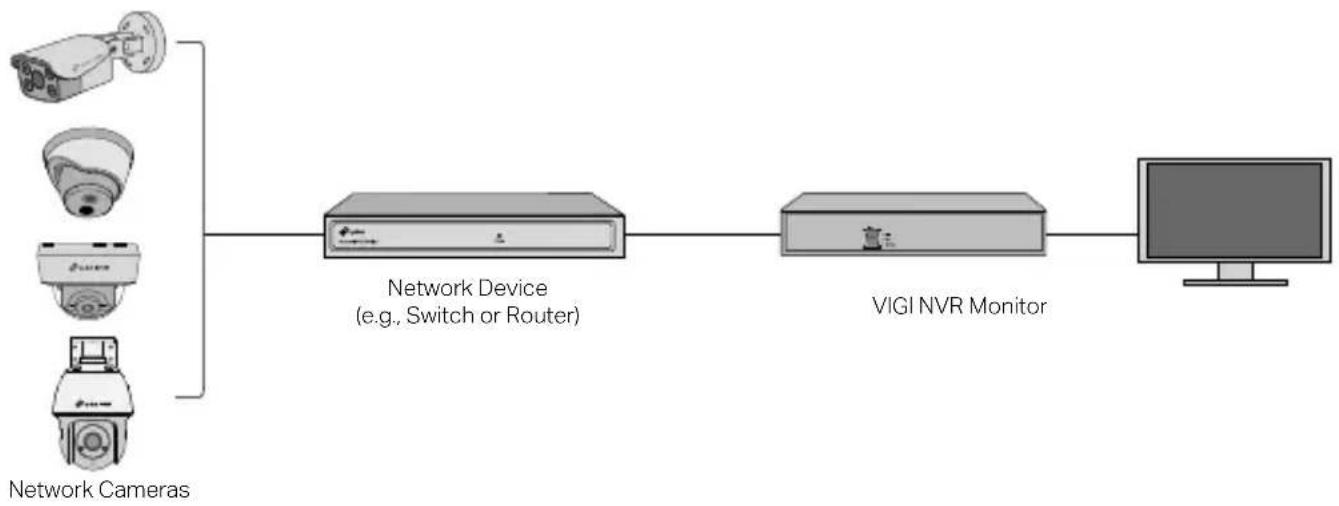

Use Your Camera with an NVR

The camera works with an NVR for easier batch access and management. Here we use a VIGI NVR as an example.

1 Connect your cameras to the same network as your NVR (as shown above).

English

2 Power on your cameras with the PoE power supply or an external power supply.

Note: The camera's standard power supply is 12V DC or PoE (802.3af/at). The power source should comply with Power Source Class 2 (PS2) or Limited Power Source(LPS) of IEC 62368-1. Some models do not support DC power supply. You can check the detailed specifications on the product page at https://www.tp-link.com/.

3 Add your cameras with the NVR.

Before you start, make sure the NVR is working properly. Then add your camera with the NVR.

1) Go to the NVR management page, right click on the screen, and click Add Camera.

2) Select your camera and click + to add your camera directly. If you have disabled Plug & Play on your NVR, create a password or use a preset password for your camera.

Done! You can now view live video and manage cameras.

Using your cameras with other NVR brands

1 Power on your cameras and connect them to the network.
2 Activate the camera using the VIGI Security Manager or VIGI app (refer to the next section).
3 Refer to the NVR's User Manual to add cameras.

More Management Methods

You can also access and manage your cameras via any of the methods below.

Method 1: Via the VIGI App

Remotely view live video, manage cameras, and get instant alerts.

1 Download and install the VIGI app.

2 Open the VIGI app and log in with your TP-Link ID. If you don't have an account, sign up first.
3 Tap the + button on the top right and follow the app instructions to activate and add your cameras.

Method 2: Via a Web Browser

Note: Some models do not support web management. You can check the detailed specifications on the product page at https://www.tp-link.com/.

View live video and modify camera settings via a web browser.

1. Find the camera's IP address on your router's client page.
2. On your local computer, open a web browser and enter https://camera's IP address

English

(https://192.168.0.60 by default).

1. Select your Country/Region and Time Zone.
2. Set a password to activate the camera.

Done. You can view the live video on the Preview page, and go to the Settings page to change camera settings.

Method 3: Via the VIGI Security Manager (Windows only)

View live video and modify camera settings on your computer.

1 Download the VIGI Security Manager on your computer at https://www.tp-link.com/download-center/
2 Install the VIGI Security Manager and open it.
3 Cameras on the same network as your computer can be automatically discovered. Go to Settings > Discovered Devices, click + Add to activate your discovered cameras by setting passwords, and follow the instructions to add your cameras.

For frequently asked questions, please refer to https://www.tp-link.com/support/faq/2850/

./https://www.tp-link.com

.הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,

./https://www.tp-link.com

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

(Windows) VIGI:3

https://www.tp-link.com/download-center/

English: Safety Information

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.

For indoor camera

- Keep the device away from water, fire, humidity or hot environments.

- Adapter shall be installed near the equipment and shall be easily accessible.

For outdoor camera

- Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.

- Adapter shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	銅Cadmium(Cd)	六價鉻Hexavalent chromium( Cr^6 )	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenylethers (PBDE)
PCB ○○	○○○○
外殼 ○○	○○○○
電源供應器	-○○○○○
其他及其配件	-○○○○○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. “—”係指該項限用物質為排除項目。Note 3: The “—” indicates that the restricted substance corresponds to the exemption.

English:

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the

Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.

The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/

Deutsch:

For TP-Link Branded Products Only. For more information about warranty, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the

date of original retail purchase by the end-user purchaser.
