OPERATING MANUAL

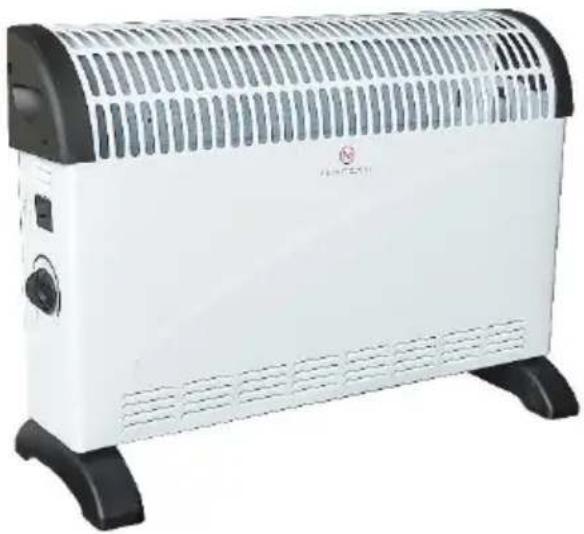

2000 Watt Convector Heater

SHX07KV2000

White electric heater with black cooling fins and a red logo on top (no visible text or symbols)

CONGRATULATIONS!

THANK YOU FOR PURCHASING THIS SHX PRODUCT.

This product is intended for use in well-insulated areas and for occasional use only.

TABLE OF CONTENTS

Important information on safety, place of use and electrical connections

Recycling, disposal and Declaration of Conformity

Scope of delivery

Description of the appliance

Starting up and functions

Safety features

Cleaning and maintenance

Activities at the start/end of the season

Technical information

Required data for single-room electrical heating devices

PLEASE READ THE OPERATING MANUAL CAREFULLY BEFORE BEGINNING ASSEMBLY,, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF CLAIMS UNDER WARRANTY.

Intended Use

This appliance is intended exclusively for the heating of domestic living spaces and may not be used for any other purpose.

IMPORTANT INFORMATION ON SAFETY, STANDARDS AND ELECTRICAL CONNECTIONS

Three black-and-white warning symbols: a hand crossed out, an exclamation mark, and a lightning bolt symbol.

1. Use this appliance only in accordance with the guidelines in this operating manual. Any other use not recommended by the manufacturer may result in fire, electrical shock or personal injury.

2. This appliance is intended exclusively for the heating of domestic living spaces and may not be used for any other purpose.

3. Remove the packaging and check that the appliance is not damaged. If you are in doubt, do not use the appliance and contact your dealer.

4. Before connecting to the mains power supply, check that the mains voltage and type matches the information provided on the type plate of the appliance.

5. The electrical socket to which you connect the appliance must not be defective or loose, must be suitable for the current load required, and above all must be reliably earthed.

6. Avoid using an extension cable, because this could overheat and cause a fire.

7. Do not situate the appliance directly beneath a wall power socket. In case of doubt, have your electrical installation checked by a qualified electrician.

8. It is forbidden to adapt or modify the properties of this appliance in any way. Use only replacement parts and accessories recommended by the manufacturer (failure to do so may result in loss of warranty cover).

9. Do not use this heater if it shows visible signs of damage.

10. Children over 3 and under 8 years may only switch the appliance on or off under supervision or if they have been instructed in its safe use and understand the resultant dangers, on the condition that the appliance is positioned or installed in its normal place of use. Children over 3 and under 8 years must not be allowed to insert the plug into the socket, alter the settings, clean the appliance or perform user maintenance on the appliance.

11. Do not operate the appliance unattended. Whenever you leave the room, always switch off the appliance.

12. Do not use the appliance in small rooms where people are present who are unable to leave the room by themselves, unless they are under constant supervision.

13. Do not allow children to play with the appliance.

Keep children under 3 years away from the appliance unless they are under constant supervision.

1. Keep the packaging materials away from children.

If swallowed, these pose a risk of suffocation.

1. The appliance is not suitable for continuous or high-precision operation.

2. Do not use this heater if it has previously been dropped.

3. This appliance is for use in dry indoor spaces only.

4. Do not use the appliance near water or high humidity, e.g. in damp cellars, or hear swimming pools, baths or showers. Make sure that water cannot get into the appliance.

5. Do not use the appliance in close proximity to petrol, gas, oil, alcohol or other explosive or flammable liquids or gases.

6. To minimise the risk of fire, ensure a distance of at least one metre between the air outlet of the appliance and any flammable materials such as:

a. Pressurised containers (e.g. spray cans)
b. Furniture
c. Textiles of any kind

1. This heater should be operated on a level, stable surface or attached to a wall if necessary.

Do not place any objects on top of the appliance.

1. Never cover the appliance while it is in operation or while cooling down after use.

2. Always switch the appliance off before unplugging it.

3. Do not pull the mains cable to disconnect the appliance from the mains supply. Always pull by the plug to disconnect the mains cable.

4. Caution: certain parts of this appliance may become very hot and cause burns. Take particular care if children or vulnerable persons are present. Always allow the appliance to cool down before cleaning it or removing it from its mounting.

5. Unplug the appliance when you are not using it and before cleaning it or performing any maintenance.

Do not allow children to clean or perform user maintenance on the appliance without supervision.

1. To avoid electric shocks, do not touch the plug with wet hands.

WARNING: Children of 8 years and above and persons with limited physical, sensory or mental capabilities or without experience or knowledge may use the appliance under supervision or if they have been instructed in its safe use and understand the resultant dangers.

WARNING: If the power cable to this appliance becomes damaged, it must be replaced by the manufacturer, its customer services department or a similarly qualified person in order to prevent hazards.

WARNING: To prevent the heater becoming overheated, do not cover it or place any item over it.

ATTENTION	RISK OF INJURYThis appliance becomes hot during use.Never touch the appliance while it is in use → this may result in severe BURNS.
ATTENTION	RISK OF FIREWARNING: To prevent the heater becoming overheated, do not cover it or place any item over it.
ATTENTION	SAFE DISTANCEMaintain a safe distance of at least one metre from flammable items such as furniture, curtains, paper and similar.PLACE OF USEPosition the appliance in such a way that air can flow in and out without hindrance.RISK OF BURNSThis appliance becomes very hot during use and can cause burns. Take particular care if children or vulnerable persons are present.RISK OF OVERHEATINGDo not use the appliance in rooms with a volume less than 4m3.

Symbol markings on the appliance Symbol:

Meaning:

Attention! Do not cover The symbol on the device indicates that it is not permitted to suspend any item (e.g. towels, clothing etc.) above the appliance or directly in front of it. To prevent overheating and the risk of fire, the heater must not be covered.

Recycling, disposal and Declaration of Conformity

	RECYCLINGThe packaging materials can be recycled. It is recommended that you dispose of them in separated waste.
	DISPOSALThe pictogram with the crossed out dustbin indicates that electrical and electronic appliances must be disposed of separately from household waste (WEEE). Electrical and electronic appliances can contain harmful and environmentally hazardous materials. Do not dispose of them in unsorted residual waste, but at a registered collection centre for waste electrical and electronic equipment. By doing so, you will help to conserve resources and protect the environment. For further information please consult your dealer or your local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the essential requirements, regulations and guidelines of the EU. The detailed declaration of conformity can be viewed at any time via following link:https://www.schuss-home.at/downloads

Scope of delivery

• Convector heater
• Feet (x2)
• Fixing screws (x4)
• Operating manual

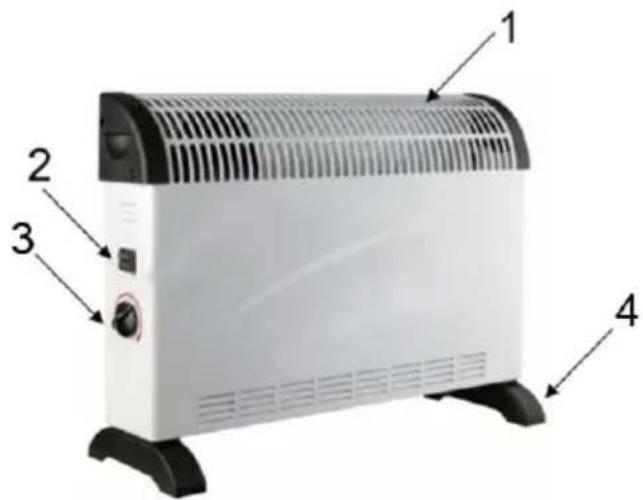

Description of the appliance

Labeled diagram of a solar heating device with numbered parts for identification

(1) Air outlet
(2) Function switch
(3) Thermostat
(4) Feet

Starting up and functions

1. Remove the appliance from the packaging and remove all packaging materials.
2. Check the appliance for possible damage.

3. Attach the feet as follows:

4. Carefully turn the appliance upside down.
   • Fit the feet using the screws provided.

5. Turn the heater back upright and place it on a stable, level surface where it will not tip over and which is not heat-sensitive. Next, connect the appliance to the power supply.

6. Before operating the unit, check that all function switches are set to 'off' and that the thermostat is set to 'MIN'.

7. Now insert the power plug into a suitable outlet socket.

8. To switch the appliance on, proceed as follows:

9. First, rotate the thermostat control clockwise up to the limit at 'MAX' to set the maximum possible temperature.

10. Now set the function switches to suit the power level you require:

11. 750 W → Lowest power setting, 750 watts

12. 1250 W → Medium power setting, 1250 watts

13. To obtain maximum power (2000 watts), activate both switches.

14. Once the desired temperature is reached, turn the thermostat down towards 'MIN' until the indicator lamps on the function switches go out.

15. The convector will now maintain this temperature by switching on and off automatically.
16. To switch the fan heater off completely, turn the thermostat controller down to 'MIN' and switch all function switches to off.

ATTENTION

Please follow the information on assembling the appliance provided in the safety information section very carefully.

Safety features

This convector heater features a protection system designed to protect it and to minimise the risk of fire.

Please be aware that this mechanism is not intended to act as an auto-stop or other convenience function. Always switch the appliance off, unplug from the power socket and allow the convector to cool before moving, cleaning or putting it into storage.

Overheating protection

If there is any danger of the appliance overheating (e.g. because something is covering it or due to power supply overload), the built-in overheating protection will switch the heater off.

Once it has cooled, the appliance switches back on automatically and resumes its previous operation.

ATTENTION

A common cause of overheating is a build-up of dust or fluff inside the appliance. You are advised to clean the appliance regularly and to use a vacuum cleaner to remove such a build-up.

Cleaning and maintenance

Before cleaning the appliance, switch the convector off, unplug from the power socket and wait until the appliance has cooled completely.

Clean the appliance with a soft, moderately damp cloth, then wipe with a dry cloth.

To remove dust, use a vacuum cleaner, particularly at the air inlet and outlet grilles.

ATTENTION

Do not immerse the heater in water or other liquids or allow it to come into contact with these.

Never use petrol, alcohol or solvents to clean the appliance – this could be dangerous.

Do not spray insecticides or similar agents onto the heater.

Do not use the appliance in wet rooms.

DO NOT COVER – RISK OF FIRE

Activities at the start of the season

Check that the power supply cable is in good condition and that the earthing is functioning.

Follow the installation and safety instructions carefully.

Activities at the end of the season

Switch the appliance off and disconnect the mains plug. Pack the appliance away, ideally in its original packaging, and store it in a cool, dry place.

TECHNICAL INFORMATION

Article number:	SHX07KV2000
Input voltage:	220-240 V~
Frequency:	50-60 Hz
Power range:	750 – 1250 – 2000 W
Heating temperature range:	5 – 40°C
Weight:	2.0 kg
Dimensions:	50 × 39 × 20 cm
Contact address for further information:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 Vienna,AustriaServiceline: [phone]www.schuss-home.atFB no.: 236974 t / FB court:Vienna

Required data for single-room electrical heating devices

Article number SHX07KV2000
Information	Symbol	Value	Unit		Information	Unit
Heat output					Single-room electric storage heaters only:Method of heat transfer control
Nominal heat output	P_nom	2.0	kW		Manual control of heat transfer with integrated thermostat	No
Minimum heat output (guideline)	P_min	0.75	kW		Manual control of heat transfer with feedback of room and/or outside temperature	No
Maximum continuous heat output	P_max,c	2.0	kW		Electronic control of heat transfer with feedback of room and/or outside temperature	No
Auxiliary current consumption					Fan-assisted heat outlet	No
At Nominal heat output	el_max	0.000	kW		Type of heat output/room temperature control
At Minimum heat output	el_min	0.000	kW		Single heat output level, no room temperature control	No
In standby mode	el_sB	0.000	kW		Two or more manually settable output levels, no room temperature control	No
					Room temperature control with mechanical thermostat	Yes
					With electronic room temperature control	No
					Electronic room temperature control and timed control through the day	No
					Electronic room temperature control and timed control through the week	No
					Other control options
					Room temperature control with presence detection	No
					Room temperature control with detection of open windows	No
					With remote control option (WiFi)	No
					With adaptive start-up control	No
					With operating time limiter	No
					With ball-type sensor	No
Contact information:	Schuss Home Electronic GmbHScheringgasse 3 - 1140 Vienna - Austriahttps://www.schuss-home.at/

WARRANTY

By purchasing this SHX quality product, it means you have decided to place trust in durability, reliability and innovation.

For this SHX appliance, we grant a warranty period of 2 years from the date of purchase valid in Austria and Germany!

If, contrary to expectations, service work on your appliance is still necessary during this period, we hereby guarantee either free repairs (spare parts and working time) or (at the discretion of Schuss) that we will replace the product. If it is not possible to either repair or exchange the product for economic reasons, we reserve the right to create a time value credit.

In any case, please contact the customer hotline as a first step (see the operating manual – 'contact addresses for further information and service line').

We would like to point out that repair work that has not been performed by authorised contract workshops will immediately terminate the validity of this warranty.

This warranty does not cover:

• Damage due to non-adherence to the operating manual
  • Repair or replacement of parts due to normal wear and tear
• Appliances that are used commercially, even in part
• Appliances mechanically damaged due to external influence (any fall(s), impact(s), breakage(s), improper use, etc.) as well as signs of wear and tear of an aesthetic nature
  • Appliances that have been improperly treated
• Appliances that have not been opened by our authorised service workshop
  • Unfulfilled consumer expectations
• Damage caused by force majeure, water, lightning and overvoltage
• Appliances that have had their type designation and/or serial number on the appliance changed, deleted, made illegible or removed

• Defects due to extreme contamination

• Services outside our contract workshops, the transport costs to either an authorised workshop or to us and back, and the associated risks

We would like to expressly point out that a fixed amount of €60 (indexed basis CPI 2015, June 2020) will be charged within the warranty period in the event of operating errors or if no error has been detected.

The provision of a warranty service (repairs or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid upon presentation of the proof of purchase (must include the name and address of the dealer as well as the complete appliance designation) and the corresponding warranty certificate, on which the appliance type and the serial number (on the box and on both the back and underside of the appliance) are to be noted! Without presenting the warranty certificate, only the legal warranty applies! We would like to expressly point out that the statutory warranty rights are unaffected by this warranty and continue unabated.

A liability for damage on the part of Schuss Home Electronic GmbH and its vicarious agents only exists in the event of gross negligence or intent. In any event, liability for lost profits, expected but not occurred savings, consequential damage and damage arising from claims of third parties is excluded.

The contact address of the respective service workshop is available on our homepage www.schuss-home.at.

Congratulations on making your choice. We wish you a lot of pleasure with the SHX appliance!

ADDRESS

SHX Vertrieb

Schuss Home Electronic GmbH

A-1140 Vienna (Austria), Scheringgasse 3

Tel.: [phone]

Type designation:....

Serial number:
