MOP-49M - Toaster MPM - Free user manual and instructions

Product Type	Sandwich maker / Toaster
Brand	MPM
Model	MOP-49M
Usage	Household
Cooking plates	Extra-deep with non-stick coating
Power indicator light	Red
Thermostat indicator light	Green (turns off when temperature reached)
Handles	Yes, for opening the lid
Lid lock	Yes (latch)
Power cord length	0.69 m
Care and cleaning	Clean the plates with a damp cloth after complete cooling; do not immerse
Safety	Do not use near water; hot surface; do not leave unattended
Recommended accessories	Wooden or plastic spatula
First use	Preheat for 10 min at maximum temperature, then clean
Repairability	Have it repaired at an authorized service center
Disposal	Do not dispose of with household waste; take to a WEEE collection point

Frequently Asked Questions - MOP-49M MPM

How to use the appliance for the first time?

Before first use, clean the plates with a damp cloth. Preheat for 10 minutes at maximum temperature, then let cool and wipe again.

What to do if the green indicator light does not turn off?

The green indicator light indicates that the thermostat is heating. It turns off when the temperature is reached. If this does not happen, check that the appliance is plugged in and that the thermostat is working properly.

Can I use metal utensils on the plates?

No, only use wooden or plastic spatulas to avoid damaging the non-stick coating.

How to clean the appliance?

Unplug the appliance and wait for it to cool completely. Clean the plates with a soft damp cloth. For stubborn residues, pour a little cooking oil, wait 5 minutes, then wipe. Never immerse the appliance.

What types of food can I cook?

This appliance is designed for grilling sandwiches, paninis and other snacks. You can also use it to reheat flat foods.

Does the appliance have an automatic shutdown?

No, the appliance does not have automatic shutdown. You must unplug it after use and do not leave it unattended.

Can I use the appliance outdoors?

No, the appliance is intended for indoor use only. Do not use it outdoors.

What to do if the power cord is damaged?

Do not use the appliance. Have it repaired at an authorized service center. Do not replace the cord yourself.

Are the plates removable?

The plates are not removable. Clean them directly on the appliance after cooling.

How to prevent food from sticking?

Lightly grease the plates with butter, margarine or oil before each use. The non-stick coating makes removal easier.

USER MANUAL MOP-49M MPM

Black and white photo of a modern kitchen grater with a logo on the front panel (no visible text or symbols on the device itself)

OPIEKACZ DO KANAPEK model MOP-49M

Sandwich toaster/Toster для бутербродов/Sandwich-Toaster/Grille-pain/Tosti-ijzer

PRZED PIERWSZYM UŻYCIEM ZAPOZNAJ SIĘ Z INSTRUKCJĄ OBSŁUGI

PL INSTRUKCJA OBSŁUGI 3

EN USER MANUAL....12

RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ.... 17

Legible signature of the buyer

INSTRUCTIONS ASSOCIATED WITH USE SAFETY

Before use, thoroughly read the operation manual.
Extreme care is required in case of children presence in vicinity of the appliance!

- Do not use your roaster for any other purpose except of its assignment.

Do not immerse the appliance, its cord and plug in water or any other fluids!
Do not leave the roaster without supervision in course of its operation.
Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the roaster in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

The use of any accessories not recommended by the manufacturer may result in damage of the appliance, fire or injuries.

Do not use the roaster outdoors.
Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.
Do not stand the roaster in vicinity of electric and gas cookers, burners, ovens etc.
Do not touch any hot surfaces in course of roasting – open the roaster by means of holder designed for this purpose only.

Prior to commencing the cleaning, pull out the plug from the plug socket and allow the roaster to cool completely.

When opening the appliance in course of roasting, proceed carefully owing to hot damp from the area under the heating panels!!

The roaster should be connected into the socket with grounding pin!

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Store the appliance and its cord out of reach of children under 8 years of age.

Make sure that children do not play with the appliance.

- Use on a flat, stable surface.

The equipment is not designed to work with external schedulers or a separate control system.

Warning! Hot surface!

Do not pull the plug by holding the power cord.

Do not connect the power plug with wet hands.

The temperature of surfaces may be higher when the appliance is in use.

This appliance is intended for household use only.
To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.
Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).
WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard!

WARNING! Oils and fats may burn when overheated. Please be careful!

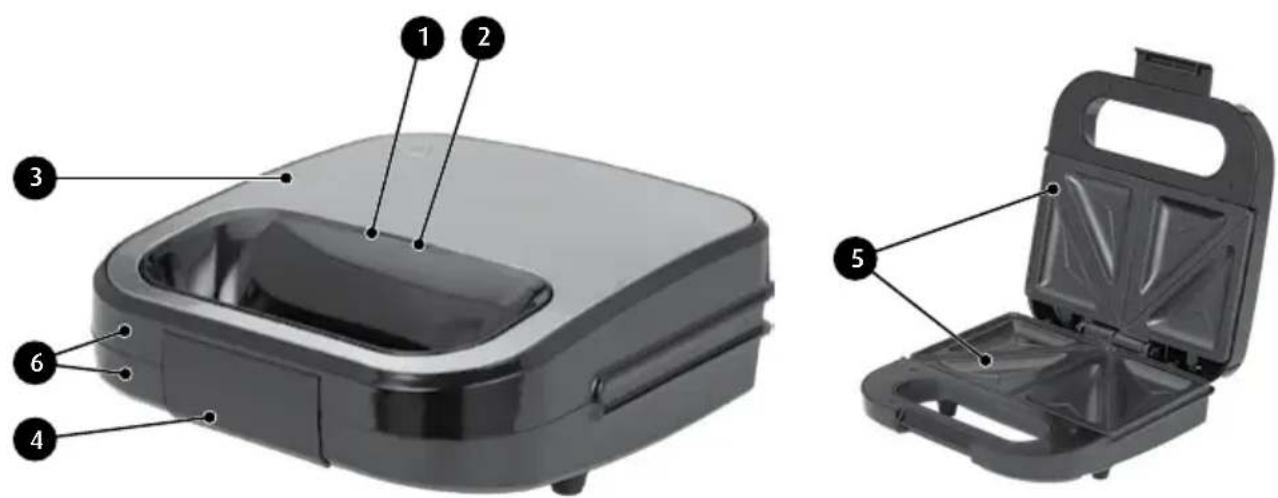

APPLIANCE DESCRIPTION

1. Red caution lamp (power supply)
2. Green caution lamp (thermostat)

3. Upper cover

4. Clip

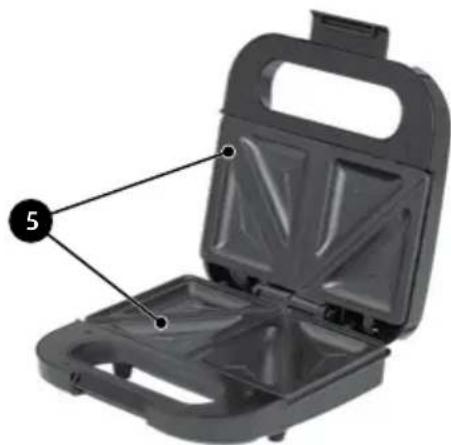

5. Heating panel
6. Handles

The deep hot plates help making sandwiches with more products between the slices. The hot plates are non-stick coated.

PRIOR TO THE FIRST USE:

ATTENTION! Before cleaning the heating plates make sure the appliance is unplugged!

1. Prior to the first use of the roaster, thoroughly wash the heating panels of the roaster with the cloth moistened with warm water and thoroughly wipe with dry cloth thereafter.

2. Stand the appliance on a flat, stable and dry surface which is resistant to high temperatures.

3. Before using for the first time, the hot plates must be properly conditioned by running them hot. Place the appliance on a firm, dry, level and smooth surface, plug the power cord to the mains. Leave it running for 10 minutes. Next, unplug the appliance from the mains and wait until it cools down completely. The hot plates may smoke slightly during this process. This is natural and will no recur during further use. Wipe the hot plates with a damp cloth and wipe them dry.

NOTE! Bread may burn! Therefore the appliance must not be used near or below curtains and in vicinity of other combustible materials!

NOTE! The working surfaces of the roaster are heated up to extremely high temperatures! Touch the holders only!

USE OF THE ROASTER

NOTE! When opening the cover, proceed carefully owing to hot damp from the area under the heating panels!

1. Oil the heating plates ⑤ with butter, margarine or other fat.
2. Insert the plug into the socket – red caution lamp (power supply) ① and green caution lamp (thermostat) ② will go on. Close the cover of the appliance ③.
3. Prepare the sandwiches.
4. When the green indicator lamp ② will go off, open the cover by pulling the latch ④ and put the sandwiches on the heating panels. Gently close the cover and clamp with clip ④.
5. When checking the condition of sandwiches in course of their roasting, open the cover carefully owing to hot damp escaping from the both sides of the roaster!
6. Open the cover and remove roasted sandwiches using wooden or plastic spatula.
7. Before preparation of the next sandwiches, always close the cover in order to maintain required temperature. The green caution lamp (thermostat) will go on and off in course of roasting to indicate that required temperature is maintained.
8. After finished roasting pull out the plug from the plug socket and allow the appliance to cool completely.

NOTE! Do not use and metal and sharp knives or forks, otherwise the damages of heating surfaces are possible!

CLEANING AND MAINTENANCE

1. Prior to commencing the cleaning (and after finishing the roasting), pull out the plug from the plug socket and allow the appliance to cool completely.
2. Thoroughly wipe the heating panels, clean the roaster edges using soft cloth or towel.
3. If complete removal of any food residuals from the surface of heating panels is problematic, pour some edible onto dirty surface and try to clean after about 5 minutes. Your efforts will be successful this time.
4. Wipe the external surface of the roaster using wet cloth.

ATTENTION! Do not immerse the appliance in water or any other liquids! Do not wipe the inside of the appliance with acute, abrasive cloths or sponges, as this can damage the heating surfaces!

TECHNICAL DATA:

The technical parameters are given on the data plate of the product. Power cord length: 0,69 m

CE

NOTE! MPM agd S.A. reserves the right to introduce technical modifications!

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause

a release of substances that are hazardous to the environment and health. Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.

Open black plastic guitar box with labeled parts (no text or symbols on body)

BESCHRIJVING VAN HET APPARAAT

1. Rood controlelampje (netspanning)

2. Vergrendeling

3. Groen controlelampje (thermostaat)

4. Bakplaten

5. Bovenklep

6. Handgrepen

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
