USER MANUAL VP6040 Concept

Rod and hand-held cordless vacuum cleaner

Illustration of a modern electric vacuum cleaner with blue and silver body (no text or symbols visible)

VP6040

CZROENSKPLHULVDEFRITES

PODĚKOVÁNÍ

Exploded view diagram of a power supply or control device with numbered components and labeled buttons

POPIS DISPLEJE

Technical line drawing of a mechanical component with two views (no text or symbols)

VYPRÁZDNĚNÍ PRACHOVÉ NÁDOBY

Diagram illustrating a mechanical device transformation, showing a rotating component before and after disassembly.

ČISTĚNÍ FILTRŮ

Exploded view diagram of a mechanical device with numbered parts and a power button icon

POPIS DISPLEJE

1 Stav batérile
2 Indikátor zaseknutej kefy
3 Indikátor napájania
4 Indikátor plnej nádoby na prach
5 Indikátor batérie

0.00 1 2 3 min max 4 5

SK

concept

concept

SK

NÁVOD NA OBSLUHU

ZOSTAVENIE VYSÁVAČA

Technical line drawing of two mechanical components with no visible text or symbols

VYPRÁZDNENIE NÁDOBY NA PRACH

Diagram illustrating a mechanical device transformation, showing a rotating component before and after disassembly.

ČISTENIE FILTROV

Exploded view diagram of a mechanical device with numbered parts for identification

OPIS WYŚWIETLACZA

Technical line drawing of two mechanical components with no visible text or symbols

PL

concept

concept

PL

Diagram illustrating a mechanical device transformation, showing a rotating component transforming into a base with material.

SZÜRÖK TISZTÍTÁSA

Exploded view diagram of a mechanical device with numbered parts for identification

DISPLEJA APRAKSTS

1 Akumulatora stāvoklis
2 lesprūdušas birstes indikators
3 Strāvas indikators
4 Pilnas puteklu tvertnes indikators
5 Akumulatora indikators

0.00 1 2 3 min max 5 4

LIETOŠANAS INSTRUKCIJA

PUTEKLUSÜCÉJA MONTÄZA

Pims piederumu pievienošanas vai nonemšanas vienmér atvienojiet un izvelciet uzlădes adapteru no kontaktliqzdas.

Technical line drawings of three mechanical components (no text or symbols)

LV

concept

concept

LV

PUTEKLU TVERTNES IZTUKŠOŠANA

Lai iztukšotu puteklu tvertni, nospiediet iztukšošanas taustinu Atveriet tvertni, izberiet puteklus un aizveriet tvertnes väku.

1 2 et tos. jemiet to. visti vai noskalot ar üdeni. Laujiet

FILTRA TİRİŞANA

1. Atveriet puteklu tvertni
2. Pagrieziet filtrus un iznemiet tos
3. Pagrieziet Hepa filtru un iznemiet to.
4. Abus filtrus var iztirit ar birsti vai noskalot ar üdeni. Laujiet filtriem kârtigi nozüt.

KARTES CARD TİRİŞANA

Lai nonemtu un notiritu veltna birsti, nospiediet pogu uz birstes sâniem.

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before Initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Battery voltage DC 22,2 V
Input 200 W
Sound level ≤76 dB
Battery 2 200 mAh
Operating hours 20 minutes high power /	40 minutes low power
Full charging time 4,5 hours

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Make sure the mains voltage and current protection correspond to the values on the rating plate of the charging station.
• Do not leave the appliance without supervision when it is turned on.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the charger and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Pay extra attention if the appliance is used near children.
• Do not use the appliance as a toy.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use a charger with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Keep the appliance away from heat sources such as radiators, ovens and other, protect it from direct sunlight and humidity.
• Do not touch the appliance with wet hands.

• Do not insert any objects into the openings. Do not use the appliance if any of the openings is clogged.
  • Take extra caution when vacuuming on stairs.

• If the appliance intake is clogged, switch off the appliance and remove the dirt before switching on again.

• When attaching accessories during cleaning or in the event of a malfunction, switch off the appliance and disconnect the charger from wall socket.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not vacuum anything burning like cigarettes, matches or hot ash.
• Do not use the appliance in rooms with increased air humidity, do not vacuum flammable liquids such as petrol and do not use the appliance in rooms where these substances may be present.
• Never vacuum without vacuum cleaner filters. Every time you use the appliance, make sure the vacuum cleaner filters are properly installed.
• Do not immerse the power cord or the charger in water or any other liquid.
• Check the appliance and the charger cord for damage regularly.
• Never switch on a damaged appliance.
• Before cleaning and after use of the appliance, switch off the appliance and allow it to cool down.
• Before vacuuming, remove all large or sharp objects from the surface intended for vacuum cleaning, such objects may damage the vacuum cleaner filter.
• Do not use the appliance with dirty filters.
• Do not put the battery in fire or expose it to temperatures above 40 °C.
• Do not touch the moving parts of the appliance during operation.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision.
• Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

EN

concept

concept

EN

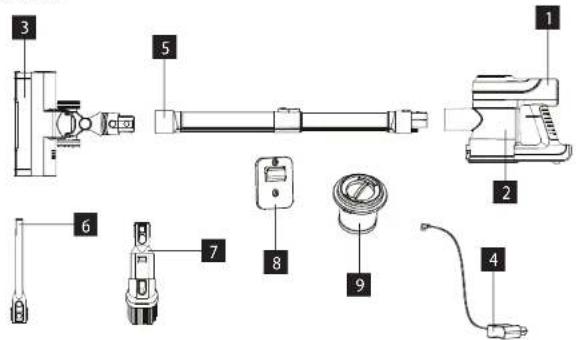

PRODUCT DESCRIPTION

1 Vacuum cleaner body
2 Dust container
3 Turbo b
4 Adapter
5 Telescopic pole
6 Gravel nozzle

7 Slotted nozzle with brush
8 Wall bracket
9 Hepa filter
10 POWER button
11 ON/OFF button

Exploded view diagram of a mechanical device with numbered parts for identification

DISPLAY DESCRIPTION

1 Battery status
2 Stuck brush indicator
3 Power indicator
4 Full dust container indicator
5 Battery indicator

0.00 1 2 3 min max 5 4

OPERATING INSTRUCTIONS

Vacuum cleaner assembly

Always disconnect the plug out of the electrical outlet before assembling or removing accessories!

1. Insert the suction tube into the hand-held unit of the vacuum cleaner, you will hear a click. To remove the tube from the hand-held unit, press the lock button and pull to disconnect.
2. Insert the turbo brush into the suction tube, you will hear a click. To remove the turbo brush from the extension tube, press the lock button and pull to disconnect. The turbo brush can be connected to the hand-held unit in the same way.

CHARGE

Connect the adapter. During charging the battery indicator flashes, the moment the appliance is fully charged the battery indicator will light up.
If the battery is discharged, the battery indicator will start flashing. At that moment, charge the appliance.

USE

1. Press the on/off button to switch on the appliance.
2. Press the POWER button to set the vacuum cleaner to Low/High power.
3. Press the on/off button again to turn the vacuum cleaner off
   Note: The maximum power of the handheld unit is recommended for heavily soiled areas or for carpets with medium or high pile.

ACCESSORIES

Select the accessories according to the nature of the surface to be cleaned.

Slot nozzle – suitable for wall corners, car cushioning, radiators, etc.

Slot nozzle with brush - suitable for bed linen, fabric, sofas, etc.

Technical line drawing of a mechanical component with two views (no text or symbols)

EN

concept

concept

EN

EMPTYING THE DUST CONTAINER

To empty the dust container, press the emptying button. Open the container, empty the dust and close the container cover.

Diagram illustrating a mechanical device transformation, showing a rotating component before and after disassembly.

CLEANING FILTERS

1. Open the dust container
2. Turn the filters over and take them out.
3. Turn the Hepa filter and remove it.
4. Both filters can be cleaned with a brush or rinsed with water. Allow the filters to dry thoroughly.

CHARGING

Slide the button on the side of the brush to remove and clean the roller brush.

Note: With prolonged use, large amounts of hair, thread, etc. may become attached to the roller. In the event of a large amount of hair, the brush may stop the appliance. It is necessary to clean the brush regularly.

ERROR MESSAGES

Error message Meaning of

EA Bad adapter voltage.

E7 Battery overvoltage.

E5 Low battery voltage.

E4 Motor overheating.

E0 Excessive current.

E8 Short circuit in the connection to the motor.

E2 Short circuit in motor or brush.

E9 Dust container is full.

E3 Brush is blocked.

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.
