USER MANUAL Moto G24 MOTOROLA

Before using your phone, please read the legal, safety and regulatory information provided with your product.

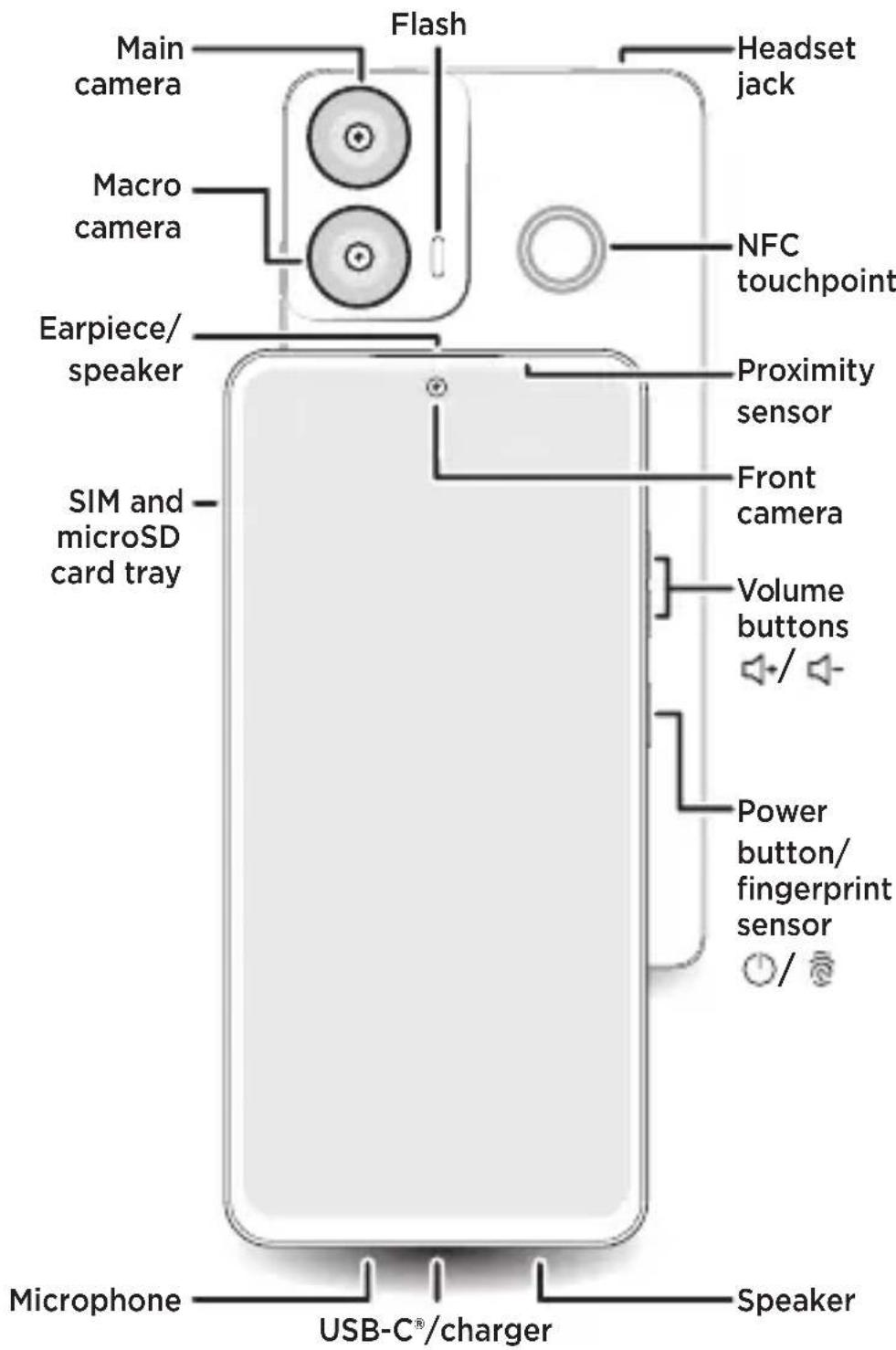

Flash Headset jack Main camera Macro camera NFC touchpoint Earpiece/ speaker Proximity sensor SIM and microSD card tray Front camera Volume buttons / Power button/ fingerprint sensor / Microphone USB-C®/charger Speaker

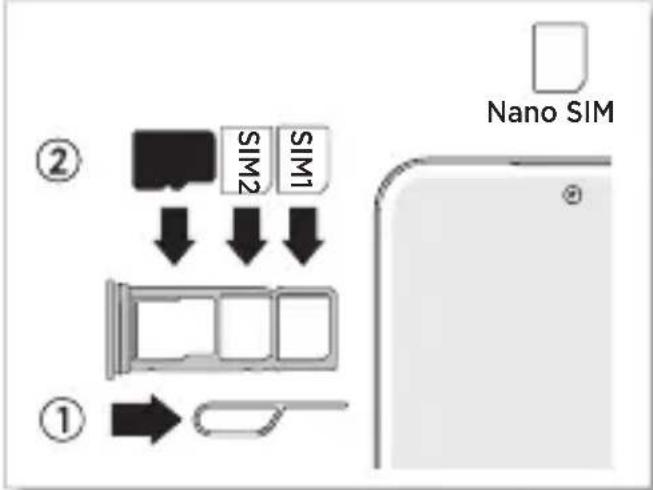

Put the card(s) in and power on

1 Insert the SIM tool into the hole next to the tray to pop out the tray.

Make sure that you use the correct size of SIM card and don't cut the SIM card.

2 Insert the SIM card(s) with the gold contacts down, then gently push the tray into the slot.

Add a microSD card micro (optional, sold separately) for additional storage.

② SIM2 SIM1 ① Nano SIM

3 Press and hold the power button (to turn on your phone, then follow the prompts to get started.

To turn off your phone, press the power and volume up buttons ⏻ + ▶+ at the same time.

Help and more

Get answers, updates and info:

• Help is here: from the Home screen, swipe up and tap Settings > Help to learn how to use your phone and get support.
• Get more: get software, user guides and more at www.motorola.com/mymotoq.
  • Get apps: tap Play Store to browse and download apps.

Legal information. This guide provides important legal, safety and regulatory information that you should read before using your product. For the complete legal information, from the Home screen swipe up and tap Settings > then type Legal information or visit www.motorola.com/device-legal.

Water repellent. Your phone is not waterproof. For more about your phone's water-repellent design and care, swipe up and tap

Settings > Help.

Charging and battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service centre or similar skilled personnel.

If your phone becomes unresponsive, press and hold the power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger (may be sold separately). Use of other chargers is not recommended and may impair the charging performance. Don't charge your phone in temperatures below -20°C or above 45°C. Chargers that do not comply with applicable national standards may be unsafe, with risk of death or injury, and may cause slow charging or product damage. To view applicable standards and to learn more, see the "Legal information" section of this guide or visit www.motorola.com/device-legal.

Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning will be shown. Tap OK to dismiss it, or wait one to five seconds, then press the volume up button to dismiss the alert and enable the volume to continue to be adjusted.

Disposal and recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling.

Extreme heat or cold. Don't use your phone in temperatures below -20°C or above 45°C. Don't store/transport your phone in temperatures below -20°C or above 60°C.

Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing. Motorola reserves the right to correct or change any information without notice.

Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt out, see the legal guide

that came with your phone.

SAR information (on e-label). To view specific absorption rate (SAR) values for this phone, from the Home screen swipe up and tap Settings > 0, then type Regulatory labels, from your phone's dial pad, type *#07# or visit www.motorola.com/sar.

Supported frequencies and power (Model XT2423-2, XT2425-3).

This phone is capable of operation on the following frequencies, subject to location and network availability.

Operating mode	Frequency range MHz/band	Maximum nominal transmit power dBm
Bluetooth 24	00 - 2483.5 20 dBm EIRP
Wi-Fi 2400 -	2483.5 20 dBm EIRP
Wi-Fi 5150 -	5250 23 dBm EIRP
Wi-Fi 5250 -	5350 20 dBm EIRP
Wi-Fi 5470 -	5725 20 dBm EIRP
Wi-Fi 5725 -	5850 14 dBm EIRP
NFC 13.56 -25	0.03 dBuA/m @ 10m
GNSS 1559 -	1610 N/A
FM receive 8	7.5 - 108 N/A
GSM	2/3/5/8	33/30
UMTS	1/2/5/8/19	24
LTE	1/2/3/5/7/8/18/19/20/26/28/38/40/41	23

Copyright and trademarks. MOTOROLA, the stylised M logo, MOTO and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play, and other related marks and logos are trademarks of Google LLC. microSD Logo is a trademark of SD-3C, LLC. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners.

© 2023 Motorola Mobility LLC. All rights reserved.

Product ID: moto g24 (Model XT2423-2)

moto g24 power (Model XT2425-3)

Manual Number: P201-CKZ006-000-A

Abstract black-and-white logo with a stylized white letter 'M' on a dark circular background (no text or symbols)

motorola.com

EAC

P201-CKZ006-000-A

Black and white barcode image with vertical lines and a central vertical bar

Printed in China
