Digitales Thermo-Hygrometer

Thank you for choosing this product from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
• Please pay particular attention to the safety notices!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Thermo-hygrometer
• Instruction manual

3. Range of application and all the benefits of your new instrument at a glance

• Indoor temperature and humidity
• Permanent indication of maximum and minimum values with manual or auto reset
• Comfort level (smiley)
  • Time
  • Wall mounting or table stand

- This product is exclusively intended for the range of application described above. The product should only be used as described within these instructions.

WARNING!

Risk of injury!

• Keep this device and the batteries out of reach of children.
• Small parts can be swallowed by children (under three years old).
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Make sure the polarities are correct.
• Never use a combination of old and new batteries together, nor batteries of different types. Remove the batteries if the device will not be used for an extended period of time.
• Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor.

Digital thermo-hygrometer

CAUTION

• Unauthorised repairs, alterations or changes to the product are prohibited.
• Do not expose the device to extreme temperatures, vibrations or shocks.
• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Suitable for indoor use only. Protect it from moisture!

5. Elements

A: Display (Fig. 1):

A 1: Minimum value indoor temperature
A 2: Automatic reset
A 3: Maximum value indoor temperature
A 4: Indoor temperature
A 5: Time with seconds
A 6: Indoor humidity
A 7: Maximum value indoor humidity
A 8: Minimum value indoor humidity
A 9: Comfort level (smiley)
A 10: Battery symbol

B: Buttons (Fig. 2):

B 1: set button

B 2: minmax button

B 3: + button

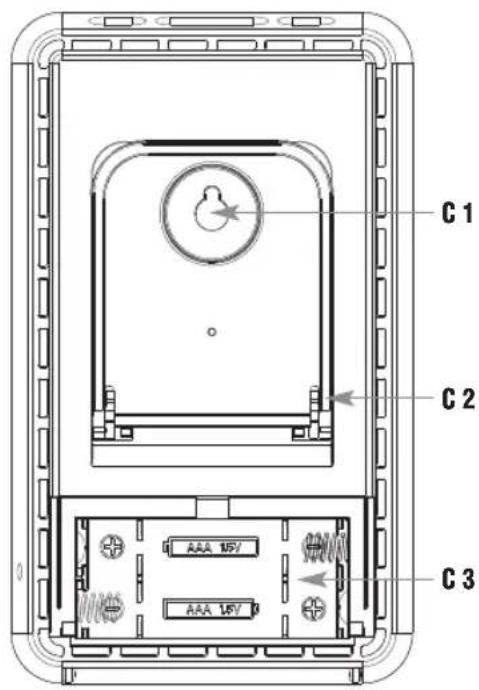

C: Housing (Fig. 2):

C 1: Wall mounting hole
C 2: Stand (fold out)
C 3: Battery compartment

Digital thermo-hygrometer

6. Getting started

• Remove the protective film from the display.
• Open the battery compartment and insert two new AAA 1.5 V batteries, polarity as illustrated.
• Close the battery compartment.
• All LCD segments will be displayed for a short moment.

7. Manual settings

7.1 Time setting

• After batteries are inserted, the hour digits will be flashing for 20 seconds.
• Press the + button to adjust the hours.
• Confirm the setting with the set button and set minutes in the same way.
• Confirm with the set button.
• Optionally you can set the time in the setting mode.

7.2 Setting mode

• Press and hold the set button for 2 seconds. AUTO MIN MAX is flashing and ON appears.
• In the setting mode, you can deactivate (AUTO MIN MAX OFF) or activate again the automatic reset of the maximum and minimum values with the + button (default: ON). If the automatic reset is activated, AUTO appears permanently on the display.
• Confirm with the set button. The hour digits flash. Set the hours and minutes as described in "Time setting".
• Confirm with the set button.

Digital thermo-hygrometer

7.3. Operation

• Press and hold the + button in the setting mode for quick setting.
• The device will automatically quit the setting mode if no button is pressed for 20 seconds.

8. Max/min values

- The maximum and minimum temperature and humidity values since the last reset are permanently displayed.

8.1 Automatic reset mode

- Provided that in the setting mode the automatic reset is activated (display AUTO). The maximum and minimum values are automatically reset at midnight.

8.2 Manual reset mode

- Press and hold the minmax button for 3 seconds to clear the recorded values..

9. Comfort level

- On the display appears a smiley to indicate the comfort level of the indoor climate (see Fig. 3).

10. Mounting

- Position the thermo-hygrometer by hanging it on a wall with a nail or a screw using the built-in hanging slot or place it on a surface with the fold-out stand. - Avoid radiators and direct sunshine.

Digital thermo-hygrometer

11. Battery replacement

• Change the batteries when the battery symbol appears on the display.
• Open the battery compartment and insert two new batteries 1.5 V AAA, polarity as illustrated.
• Close the battery compartment.

12. Troubleshooting

Problem Solution

No display on the device

→ Ensure the batteries' polarities are correct
→ Change the batteries

Incorrect indication

→ Change the batteries

If your device fails to work despite these measures, please contact the retailer where you purchased the product from for advice.

13. Waste disposal

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment.

Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up.

Digital thermo-hygrometer

Disposal of the electrical device

Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately.

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

This product must not be disposed of in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. The return service is free of charge. Observe the current regulations in place!

Disposal of the batteries

Never dispose of empty batteries and rechargeable batteries with ordinary household waste. They contain pollutants which, if improperly disposed of, can harm the environment and human health. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The return service is free of charge.

The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead.

Digital thermo-hygrometer GB

14. Specifications

Temperature

Measuring range

-10 °C... +60 °C

Resolution

0,1°C

Accuracy

± 1°C

Humidity

Measuring range

10 ... 99 %rH

Resolution

1%

Accuracy

±4% @ 30...85°C

Indication LL.L / HH.H

Temperature is outside measuring range

Power consumption

Batteries 2 x 1,5 V AAA (not included)

Dimensions

72 x 16 (52) x 120 (116) mm

Weight

81 g (device only)

Digital thermo-hygrometer GB

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.tfa-dostmann.de
