USER MANUAL Ampster TV II TANGENT

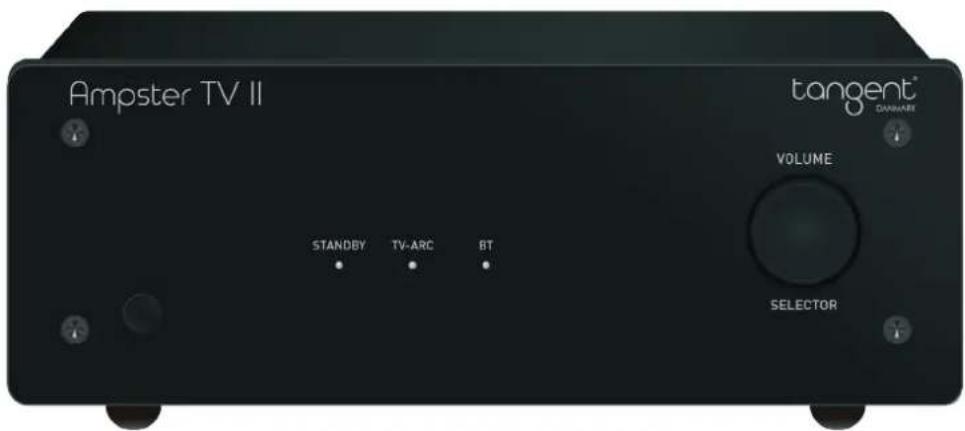

Ampster TV II Mini stereo amplifier

User's manual Brugermanual Mode d'emploi Bedienungsanleitung Bruksanvisning Kayttoopas Manual del usuario Brukermanual

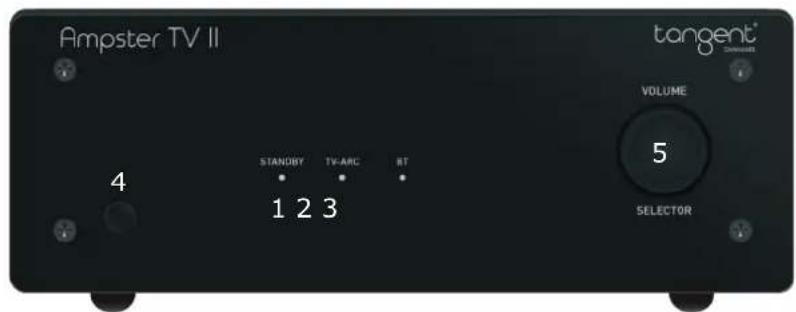

Amplifier:

1. Power Indicator
2. TV Input Indicator
3. Bluetooth Input Indicator
4. Remote Sensor
5. Volume Knob/Input Selector
6. Antenna
7. HDMI ARC Input
8. SUB Out
9. Speaker Output -&+ L&R
10. Power Input
11. On/Off Switch

Including in the package:

Remote Control

Instruction Manual

(UK)

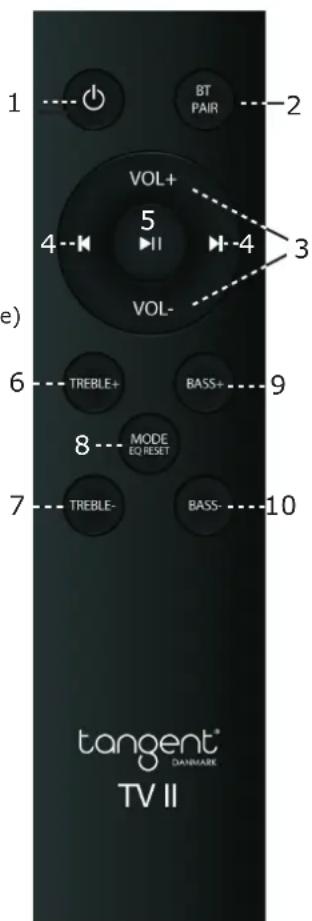

Remote control:

1. On/Off Button
2. BT pair
3. Volume +/-
4. Previous/Next (BT mode)
5. Play/Pause (BT mode)
6. Treble +
7. Treble -
8. Mode
9. Bass +
10. Bass -

UK)

Connect:

1. Connect the power cord to the back of the amplifier then connect it to a wall outlet.
2. Connect your TV with a HDMI cable, remember to select the HDMI ARC/CEC on your TV. (only works on compatible TV's)
3. Turn the power button to the On position, after two seconds the unit will enter working status and the input indicator will lit up.
4. Press the Mode on the remote or push the volume knob to choose between TV or BT source.

Note: The amplifier will shut off automatically if the temperature exceeds 85^ , to indicate this the Power indicator will turn orange. The amplifier will re-start automatically when the temperature has dropped below 60± 10^ .

Bluetooth Pairing:

1. Choose Bluetooth input on the remote (or push the selector button) to activate the Bluetooth source.
2. Activate Bluetooth on your phone/tablet and start searching for new Bluetooth devices.
3. When your phone/tablet finds the Tangent Ampster TV II, choose this unit and begin pairing up. (You can force the Ampster TV II into pairing mode, with a press on BT pair)

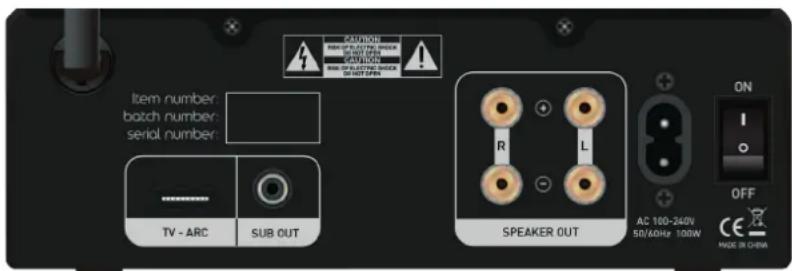

Connect your speakers:

Connect your loudspeakers to the Speaker Output.

Connect the -/black from left loudspeaker to the -/black left input.

And connect the + / red from left loudspeaker to the + / red left input.

Connect the -/black from right loudspeaker to the -/black right input.

And connect the + / red from right loudspeaker to the + / red right input.

Connect your subwoofer to SUB out.

Note:

Remember to change into the desired input source on the amplifier.

EQ Setting:

Treble + = Push button to increase treble, with 2dB each time. (max.8dB)

Treble - = Push button to decrease treble, with 2dB each time. (max.8dB)

Bass + = Push button to increase bass, with 2dB each time. (max.8dB)

Bass - = Push button to decrease bass, with 2dB each time. (max.8dB)

Reset EQ: Long press (2-3sec) on MODE/EQ reset and it will reset the EQ settings.

Each time that you adjust or reset, you can see the standby LED make a confirmation blink.

(UK)

Button/Indicator Function

Power/Standby indicator

Power: Power on-The product in power off status, then push the power source button on rear panel at "ON" position the LED indicator blinks one time and the startup sound from electric relay in the unit, after about 2 seconds the amplifier will be in working status.

Power off:

Push the power source button at "OFF" position, then the close sound from the electric relay and unit go into power off status.

Standby:

Press the standby button on the remote control, or push the Volume/selector button (3-4sec). Then the unit will go into standby, and the standby LED will be red color. The unit is in standby status. (When the Ampster TV II goes into auto standby when inactive (no signal) in 15min, you can wake it up via bluetooth signal).

Power on (from standby mode): Press standby on the remote control or push the Volume/selector button. And after about 2 seconds the amplifier will be in last time working status before standby. In TV mode using HDMI arc/cec, the Ampster TV II will power ON & OFF when you turn your TV on & off.

Bluetooth input indicator

When Bluetooth mode is selected indicator lights. Solid when connected to a device and flashing when in pairing mode.

Volume and input switch button

This selector can adjust volume (turn left or right) and also switch the input mode (push) (For standby push and hold the button)
In TV mode using HDMI arc/cec, the volume is controlled by your TV.

(UK)

Important Safety Instructions:

To reduce the risk of electrical shock, fire, etc.:

1. Do not place unit near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
2. Do not block any ventilation openings of unit.
3. The unit shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the unit.
4. Do not place any heavy loads onto the unit, and do not step on it, the load may fall and cause serious injury to the unit.
5. Never unplug your unit by pulling on the power cord. Always grap the plug firmly and pull straight out from the outlet.
6. Repair or replace all electric service cords that have become frayed or otherwise damaged immediately. Do not use a cord that shows cracks or abrasion damage along its length, the plug, or the connector end.
7. To prevent fire or shock hazard, do not expose unit to rain or moisture.
8. During lightning or raining days, unplug the unit for additional protection during thunderstorms or when the unit is not used for prolonged periods. This will prevent damage to the unit from lightning and power surges.
9. Do not attempt to carry out any service work yourself. By opening or removing the cabinet, you may be exposed to dangerous voltage or other hazards. Any service work should be carried out by qualified technicians.
10. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.
11. Clean only with dry cloth
12. Please pay attention to the environmental aspects of battery disposal. Battery must be recycled or disposed of properly. This product must not be disposed together with the domestic waste. This product has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and healthy way.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

(UK)

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

(DK)

Amplificateur :

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG., Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

Verstärker:

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

Förstärkare:

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

Vahvistin:

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

(FIN)

Amplificador:

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

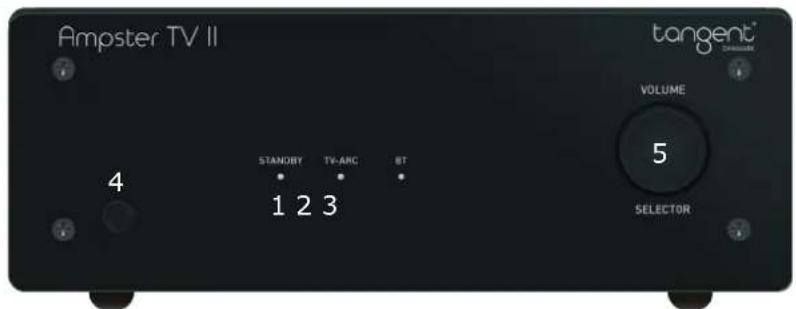

Amplifier:

1. Power Indicator
2. TV Input Indicator
3. Bluetooth Input Indicator
4. Remote Sensor
5. Volume Knob/Input Selector
   6.Antenna
6. HDMI Input
7. SUB Out
8. Speaker Output -&+ L&R
9. Power Input
10. On/Off Switch

Including in the package:

Remote Control

Instruction Manual

(N)

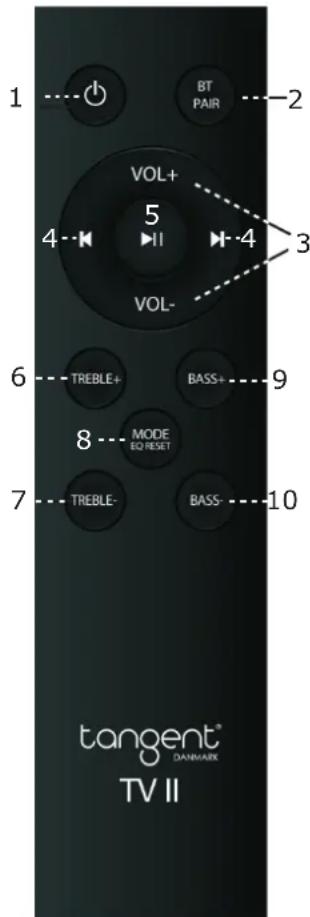

Fjernkontroll:

1. På/Av-knapp
2. BT-parring
3. Volum + / -
4. Forrige/Neste (BT-modus)
5. Spill/Pause (BT-modus)
6. Diskant +
7. Diskant -
8. Modus
9. Bass +
10. Bass -

Koble til:

Speaker terminals: Binding posts

Standby function: Autostandby after 15min

(No signal)

Standby powerconsumption: < 0,5W standby (EUP 2013)

Mains Voltage: 100-240V AC 50/60Hz

Dimensions: 195x70x194mm (WxHxD)

Weight: 1,8Kg

SKU: TANAMPIITV

EAN: 5703959120908

Preliminary data Tangent reserves the right to make changes without notice
