Download the instructions for your Sander in PDF format for free! Find your manual SPS 140 - MILWAUKEE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SPS 140 by MILWAUKEE.
USER MANUAL SPS 140 MILWAUKEE
Original instructions
Accessory
Zubehör
Accessoires
Accessorio


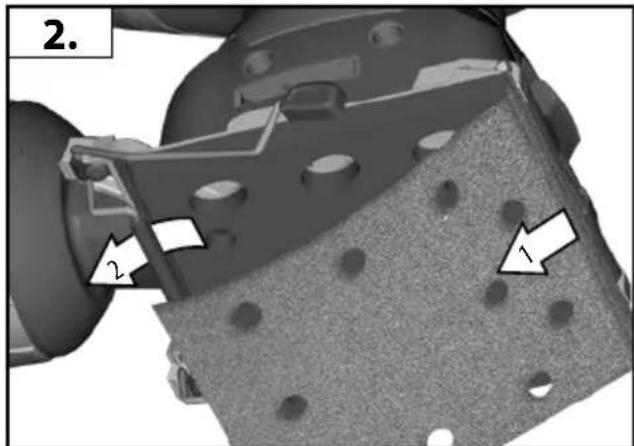

2. 2 1


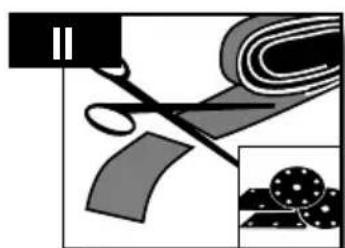

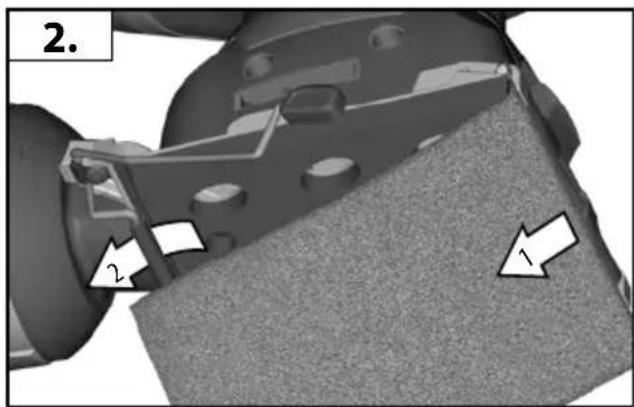

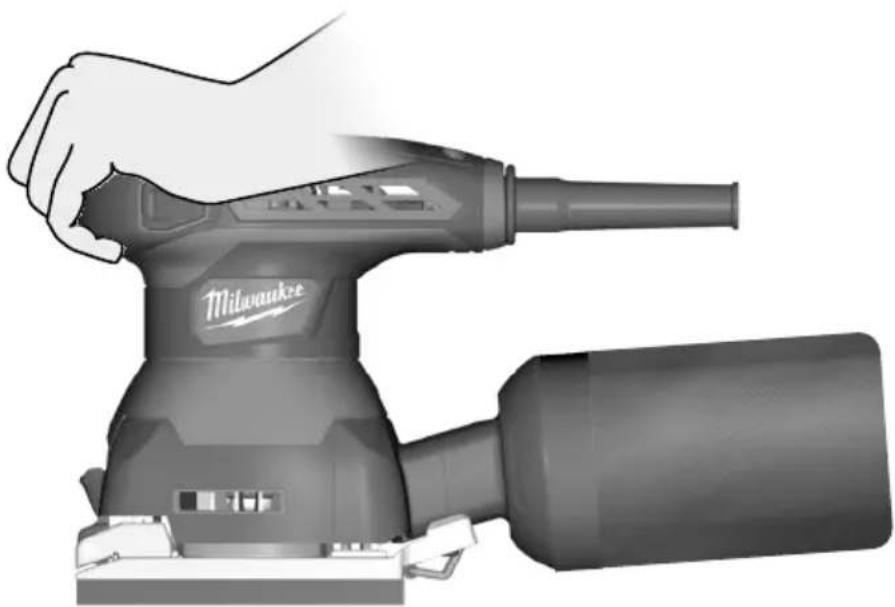

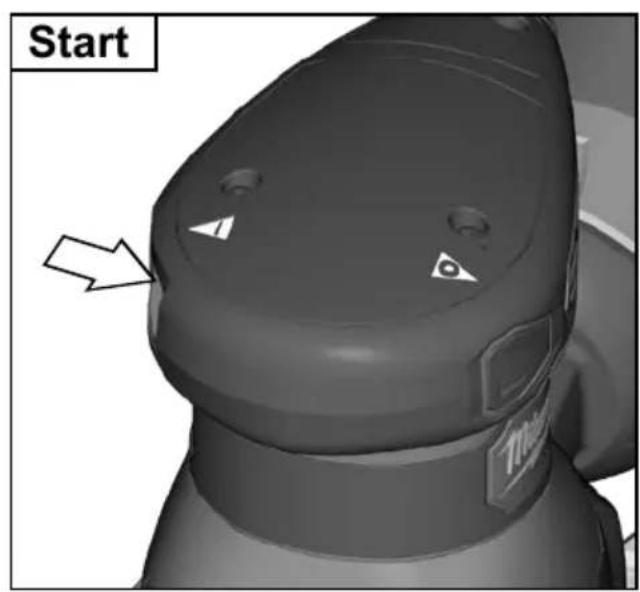

Start


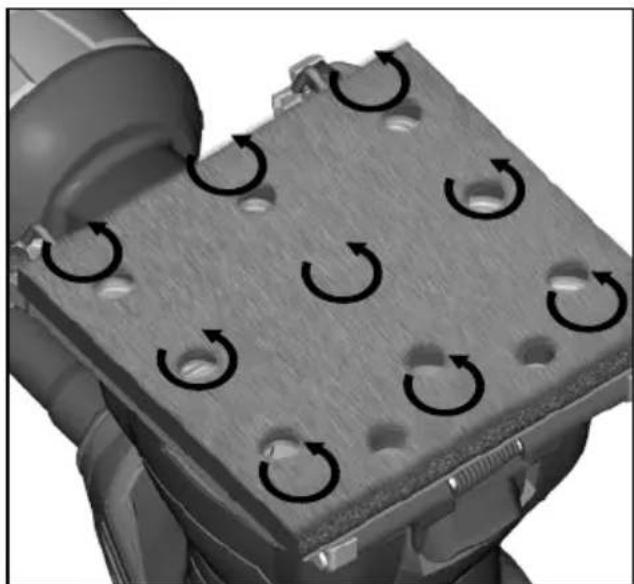

Close-up of a mechanical component with circular arrows indicating rotational flow (no text or symbols)≡ START STOP


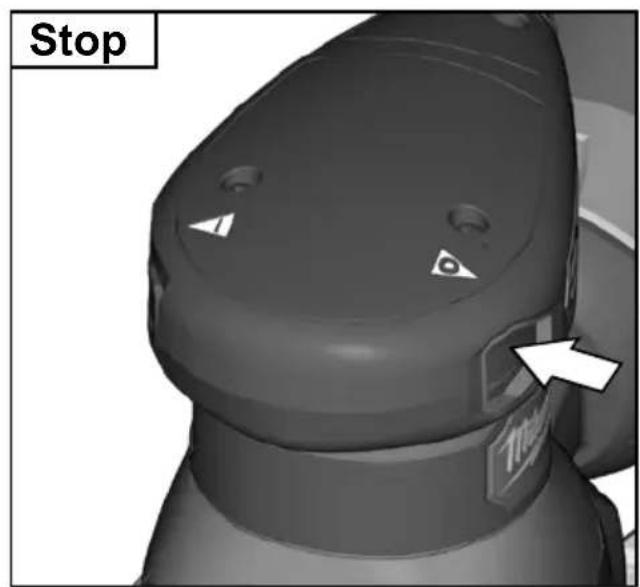

Stop


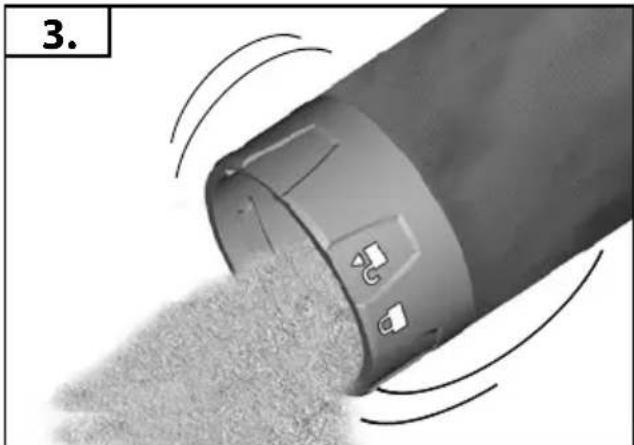

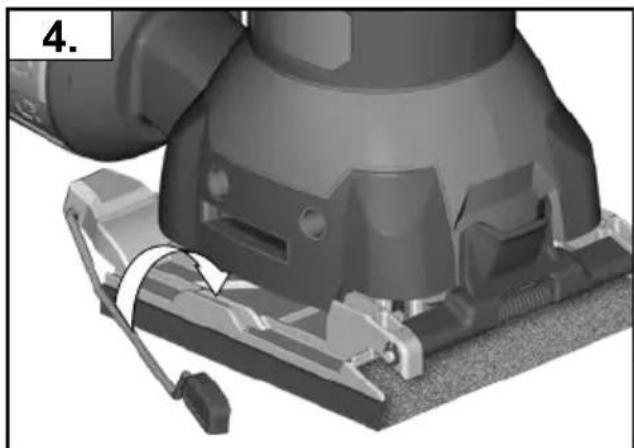

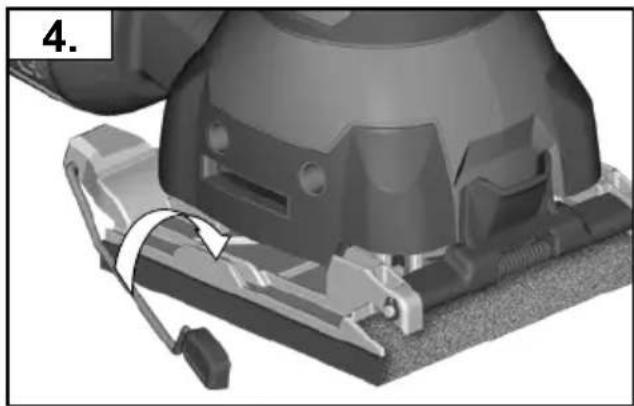

| A A5 | 2-250 4931 4472 | 95 |
| B A5 | 300 / 500 4931 4 | 472 94 |


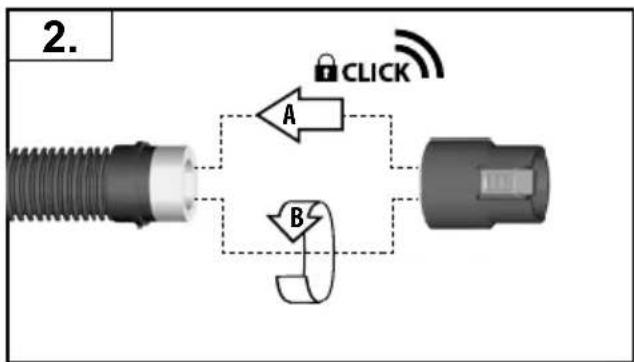

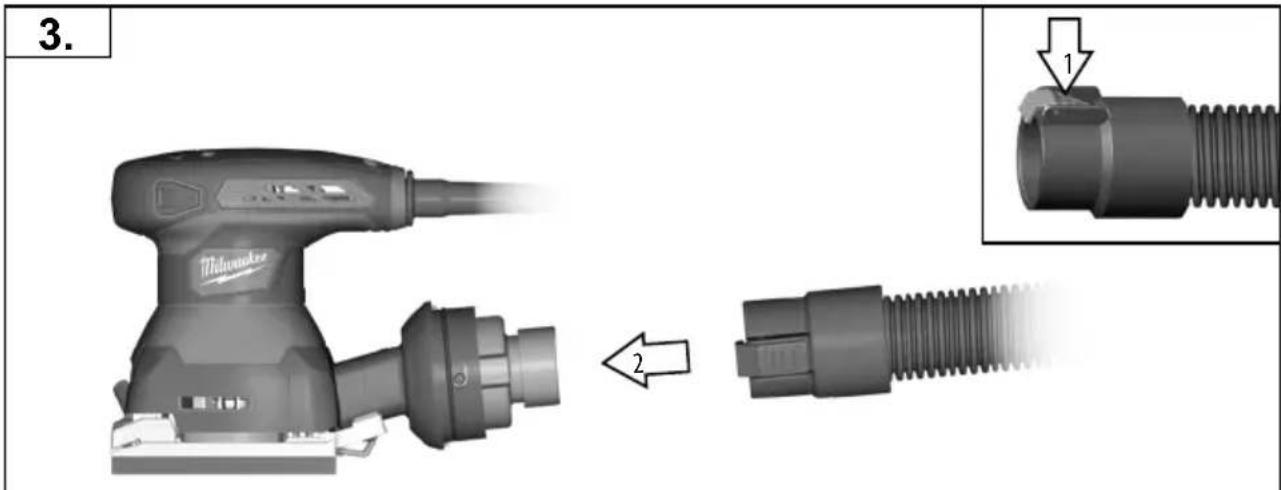

3. Talwokor 2. 1

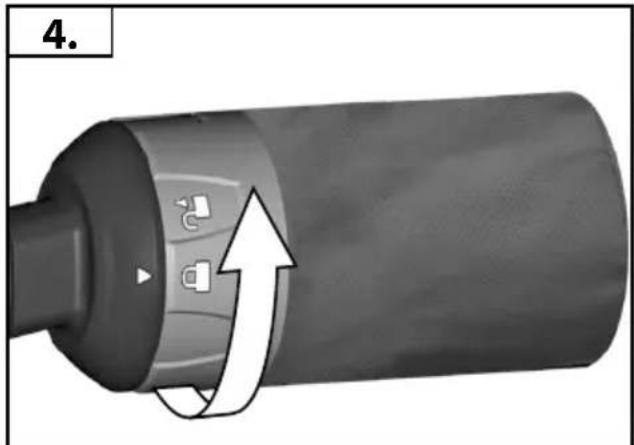

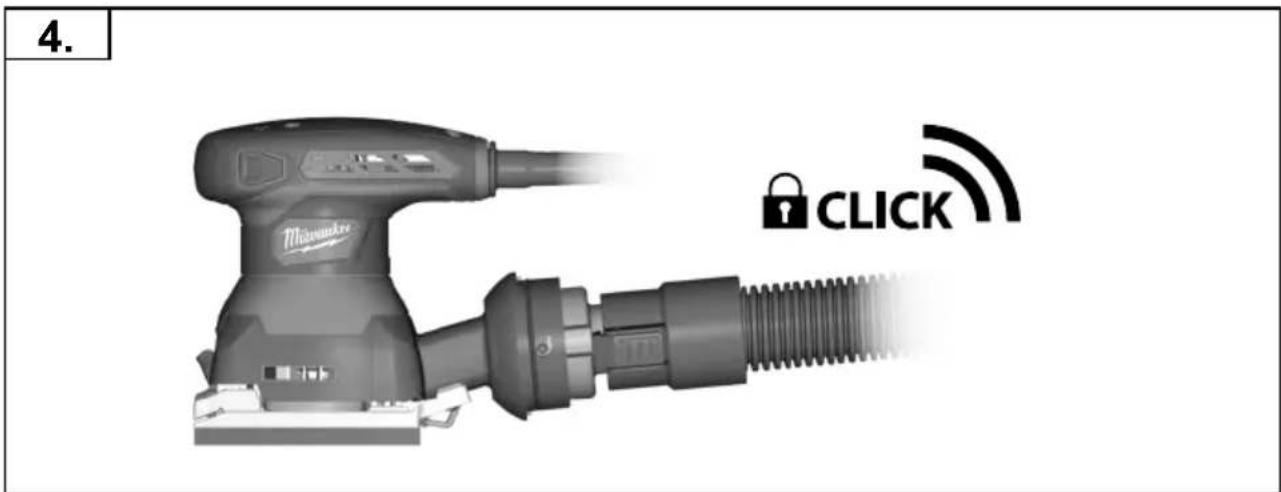

4. MIawake CLICK


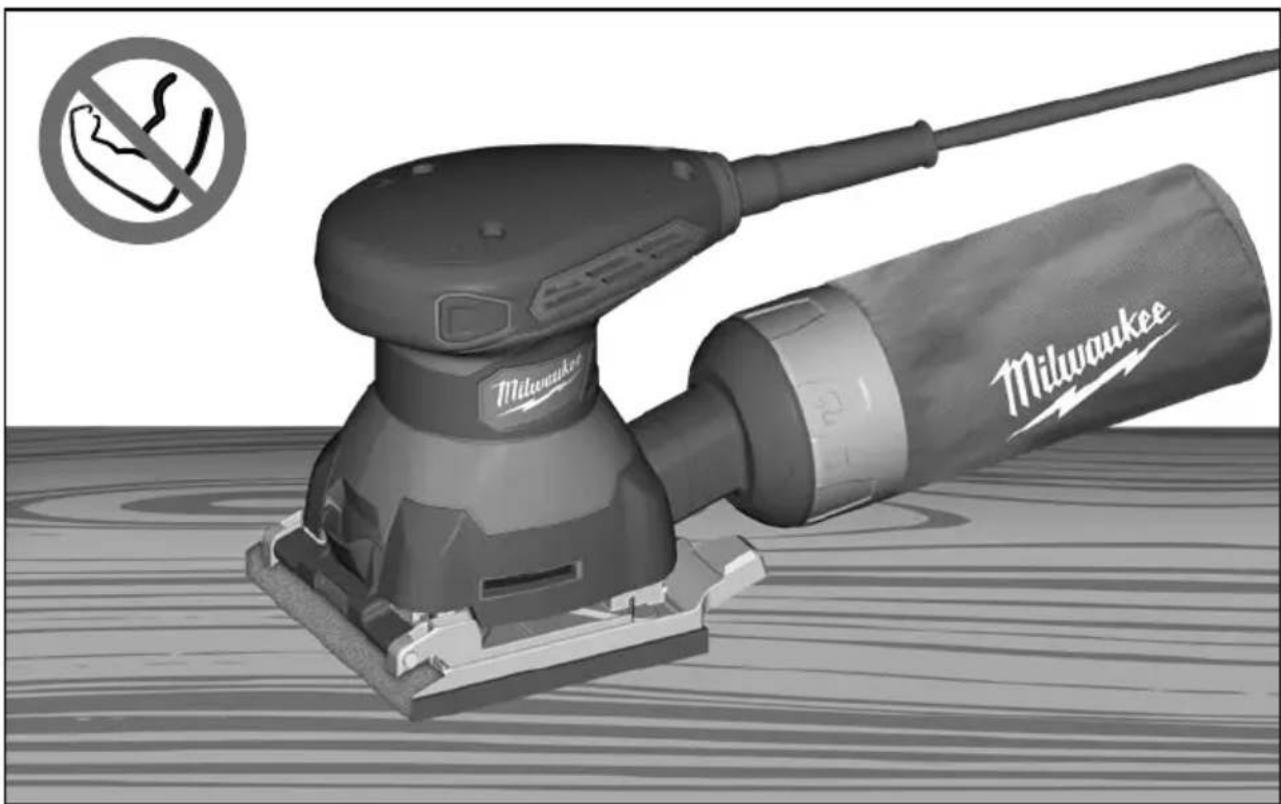

Black-and-white illustration of a Milwaukee electric tool on a wooden surface, with no visible text or symbols.| TECHNICAL DATAOscillating sander | SPS 140220-240 V |
| Production code 4470 16 04... | 4470 26 04......000001-999999 |
| Frequency 50/60 Hz | |
| Power input 1,2 A | |
| Rated input 260 W | |
| No-load speed 14 700 min | -1 |
| Orbital travel diameter 1,6 mm | |
| Dimensions of grinding plate 113 x 105 mm | |
| Weight according EPTA-Procedure 01/2014 1,6 kg | |
| Recommended Ambient Operating Temperature -18°C ... +50°C | |
| Noise informationMeasured values determined according to EN 62841. Typically, the A-weighted noise levels of the tool are:Sound pressure level (Uncertainty K=3dB(A))Sound power level (Uncertainty K=3dB(A))Wear ear protectors! | 79,5 dB (A)90,5 dB (A) |
| Vibration informationVibration total values (triaxial vector sum) determined according to EN 62841Vibration emission value ahUncertainty K= | 8,0 m/s ^2 1,5 m/s ^2 |
WARNING
The vibration and noise emission level given in this information sheet has been measured in accordance with a standardized test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration and noise emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration and noise emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration and noise should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration and/or noise such as: maintain the tool and the accessories, keep the hands warm, organization of work patterns.
Wear ear protectors. Exposure to noise can cause hearing loss.
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
SANDER SAFETY WARNINGS
Wear ear protectors. Exposure to noise can cause hearing loss.
Appliances used at many different locations including wet room and open air must be connected via a residual current device (FI, RCD, PRCD) of 30mA or less.
Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear, helmet and ear defenders.
Always disconnect the plug from the socket before carrying out any work on the machine.
Make sure the machine is switched off before plugging in.
Keep mains lead clear from working range of the machine. Always lead the cable away behind you.
Before use check machine, cable, and plug for any damages or material fatigue. Repairs should only be carried out by authorised Service Agents.
The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.
Do not machine any materials that present a danger to health (e.g. asbestos).
This machine is suitable only for dry sanding.
MAINS CONNECTION
Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.
Appliances used at many different locations including wet room and open air must be connected via a residual current device (FI, RCD, PRCD) of 30mA or less.
Make sure the machine is switched off before plugging in.
Keep mains lead clear from working range of the machine. Always lead the cable away behind you.
Before use check machine, cable, and plug for any damages or material fatigue. Repairs should only be carried out by authorised Service Agents.
SPECIFIED CONDITIONS OF USE
The oscillating sander can be used for sanding wood, plastics and metal.
ELECTRONICS
In case of overload, the rotational speed is being reduced until machine stops.
Please note that the machine will automatically accelerate back to its original operating speed if the load is removed from it.
MAINTENANCE
The ventilation slots of the machine must be kept clear at all times.
Always disconnect the plug from the socket before carrying out any work on the machine.
If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard.
Use only Milwaukee accessories and Milwaukee spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the directives
2011/65/EU (RoHS)
2006/42/EC
2014/30/EU
and the following harmonized standards have been used.
EN 62841-1:2015
EN 62841-2-4:2014
EN 55014-1:2017+A11:2020
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN IEC 63000:2018
Winnenden, 2020-11-14
Alexander Krug / Managing Director
Authorized to compile the technical file
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
GB-DECLARATION OF CONFORMITY
We declare as the manufacturer under our sole responsibility that the product described under „Technical Data“ fulfills all the relevant provisions of the following Regulations
S.I. 2012/3032 (as amended), S.I. 2008/1597 (as amended),
S.I. 2016/1091 (as amended) and that the following designated standards have been used:
BS EN 62841-1:2015
BS EN 62841-2-4:2014
BS EN 55014-1:2017+A11:2020
BS EN 55014-2:2015
BS EN 61000-3-2:2014
BS EN 61000-3-3:2013
BS EN IEC 63000:2018
Winnenden, 2020-11-14
Alexander Krug / Managing Director
Authorized to compile the technical file
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
SYMBOLS
CAUTION! WARNING! DANGER!
Please read the instructions carefully before starting the machine.
Always disconnect the plug from the socket before carrying out any work on the machine.
Do not use force.
Accessory - Not included in standard equipment, available as an accessory.
Do not dispose of electric tools together with household waste material. Electric tools and electronic equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.
Class II tool. Tool in which protection against electric shock does not rely on basic insulation only, but in which additional safety precautions, such as double insulation or reinforced insulation, are provided. There being no provision for protective earthing or reliance upon installation conditions.
n_0
No-load speed
V
Voltage
\~
AC Current
European Conformity Mark
British Conformity Mark
Ukraine Conformity Mark
EAC
EurAsian Conformity Mark
