USER MANUAL Synfonia Efalock

Close-up of a black camera lens with 'OFF' label, no visible text or symbols beyond the lens graphic

Close-up of a black mechanical component with ribbed texture (no visible text or symbols)

IMPORTANT SAFETY NOTES:

▷ All safety instructions should be read carefully before use.
Before using the device, check that the current setting of the device matches the power outlet. When using electrical equipment - especially with children nearby - basic safety measures must be observed.
Intended use: This device is suitable exclusively for drying human hair.
The device is designed for indoor use only and was developed for professional use in hair salons.

CAUTION!

Electric shock:

• Unplug the device after use.
• Keep the device away from moisture, water and other liquids.
• Do not use the device in the bathtub, shower, over a sink filled with water or with wet hands.
• The device must not be immersed in water or other liquids. Do not touch a device that has come into contact with water - immediately remove the mains plug.
• The device must be disconnected from the mains for cleaning, care and maintenance.
• Do not use the device if the connecting cable is damaged. Disconnect the device from the mains immediately and inform the EFALOCK customer service.

WARNING:

Do not use this device near bathtubs, washbasins or other objects containing water.

CAUTION!

Swallowing of small parts:

- Keep the device out of the reach of children. Also keep the packaging material, such as foil, away from children.

Property damage and personal injury:

• Never leave the device unattended when it is switched on. Careful supervision is required if the device is used near / for / or in the vicinity of children or disabled persons.
• The device may only be used as specified and for no other purposes.
• Do not use spare parts that have not been recommended or sold by the seller.
• Keep the connecting cable away from hot surfaces.
• Check the device frequently for damage, in particular the cable and plug. In case of doubt, have the unit checked by an authorised repair workshop.
• If the device does not work properly, has been dropped, damaged or dropped into water, do not attempt to repair the device yourself, but take it to a service centre.
  • Repairs may only be carried out by an authorised service centre.
• Never wrap the cable around the device.
• The air inlet must not be covered. Clean the air inlet regularly to protect the device from overheating. The device is equipped with a safety thermostat. In the event of overheating (e.g. if the air inlet is blocked) the device switches off automatically. In this case, contact customer service.
• The device generates heat during its use. If the set temperature seems too hot to you, lower the temperature setting.
• Do not use hairspray while the device is switched on.
• Let the device cool down after use.

NOTE!

Persons (including children) who are unable to use the device safely due to their physical, sensory or mental abilities or their inexperience or lack of knowledge should not use this device without supervision or instruction from a responsible person. Children should be supervised to ensure that they do not play with the device.

NOTE!

As additional protection, the installation of a residual current device (RCD) with a rated trip current of no more than 30 mA in the bathroom circuit is recommended. Ask your installer for advice.

TECHNICAL DATA

• Model: SYNFONIA
  • Function: professional hair dryer
  • Art. No. 14102472
  • Mains operation: 220-240 V/50-60 Hz
  • Power: 1800 W
  • Motor: digital high speed brushless motor
  • Weight incl. motor: 350 g
• Cable: 3 m

▷ Subject to technical changes.

SCOPE OF DELIVERY

• EFALOCK hair dryer SYNFONIA
- 2 ondulating nozzles (6,5 cm, 7,5 cm); diffuser
- Cleaning brush
- Instruction manual

▶ Make sure that your hands are completely dry before connecting the device to the power supply.

1. Move the on/off switch from 0 to 1. (In fig. to 1.)

2. Settings: The display shows which settings you are using (in Fig. Item 6)

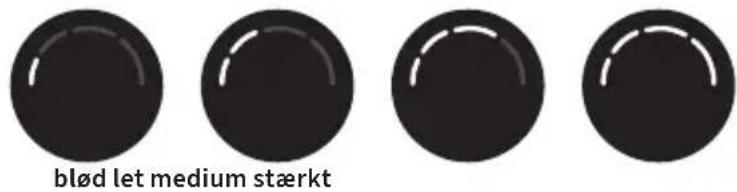

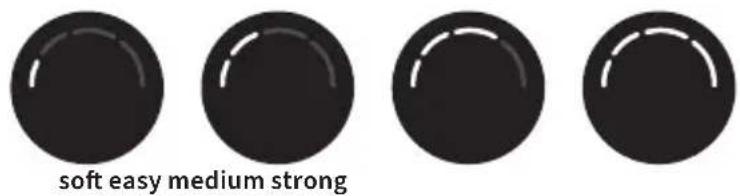

a) Air velocity set with keys +/- (in fig. to 2.)

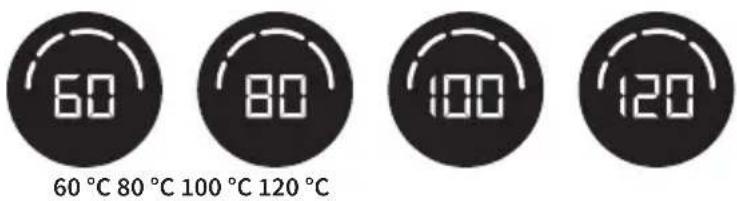

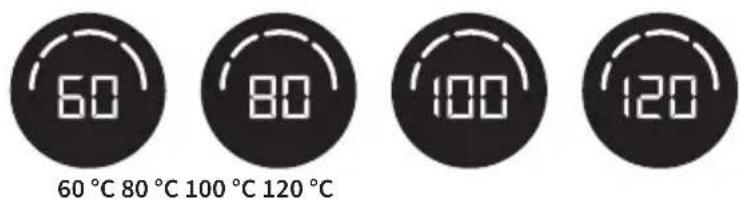

b) Temperature set with keys +/- (in fig. to 3.)

1. Locking function: After setting the desired temperature and air flow speed, the dial buttons can be locked. To do this, click the slider 🔒 slide (Figure 1.) The cold air function continues to function. (in Fig. 4.)
2. Cold air function: Press the COOL SHOT button (in fig. to 4.) and release the button to activate it. When the cold air function is active, the hairdryer blows cold air regardless of the temperature setting. To deactivate this function, press the COOL SHOT button and release the button.
3. Magnetic attachments (in Fig. to 7.): The attachments are held in place magnetically and can be easily attached (see Fig. at 6.). Change the attachments only when they have cooled down.

CLEANING, CARE & STORAGE

▷ Switch off the device and disconnect it from the power supply before maintenance. Clean only when the unit has cooled down!

Regular filter cleaning:

▶ ATTENTION: The high-performance motor is protected by the air inlet filter (in Fig. to 5.). It is therefore absolutely necessary to clean the filter immediately when cleaning indicator 888 appears in the display. This is the only way to protect the motor, maintain correct functioning of the unit and guarantee a long service life. The accumulation of dirt due to improper cleaning of the filter can cause damage to the motor!

Cleaning indicator:

After a usage time of 40 h, the 888 lights up in the display. This indicates that the filter must be cleaned immediately.

Manual filter cleaning:

Close-up of a black camera lens with 'OFF' status indicator and a small hand pointing to it (no readable text or symbols beyond the label)

1. Remove the filter cover: To do this, use the hook from the handle of the supplied cleaning brush (in fig. to 8.) to carefully pull out the grille of the filter cover.

Close-up of a black mechanical component with cutouts (no visible text or symbols)

1. Clean the filter with the supplied cleaning brush.

Automatic self-cleaning:

1. Switch the hairdryer off.
2. Press and hold (approx. 5 sec.) the speed button (+) to activate the self-cleaning function (in fig. to 3.). The hairdryer blows air in the opposite direction through the filter. Make sure that the air inlet and outlet are free of obstacles.
3. The self-cleaning process takes 10 seconds. A countdown from 10 - 0 is shown in the display.
4. After the end of the cleaning process, place the filter cover back on the protective filter. The filter attachment locks into place magnetically.

Storage

Make sure that the device is protected from dust and other environmental influences.

SPARE PARTS

Only use original spare parts that can be ordered from the EFALOCK service partner.

DISPOSAL

This device is marked in accordance with the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU. At the end of its service life, this electrical device must not be disposed of in the residual waste garbage can, but must be handed in at a collection point for the recycling of electronic devices. This also applies to electrical equipment that was last used in a non-private sector, but e.g. in commerce or trade. If the acceptance of non-privately used electrical equipment has been excluded by the responsible local public disposal facilities, their waste advice center will provide information on environmentally sound disposal.

The symbol on the product, the operating instructions or the packaging indicates this. The materials are recyclable according to their marking. Reuse, recycling or other forms of recovery of old equipment make an important contribution to protecting the environment.

CONSIGNES DE SECURITE IMPORTANTES :

Close-up of a black camera lens with 'OFF' label and partial view of a small object (no readable text or symbols)

Close-up of a mechanical component with grooves and brackets (no visible text or symbols)

▷ Subject to technical changes.

ÁMBITO DE ENTREGA

Close-up of a black camera lens with 'OFF' label and a small object beside it (no readable text or symbols beyond the label)

Close-up of a black mechanical component with grooves and slots (no visible text or symbols)

Close-up of a black mechanical component with grooves and slots (no visible text or symbols)

WERKING VAN HET APPARAAT

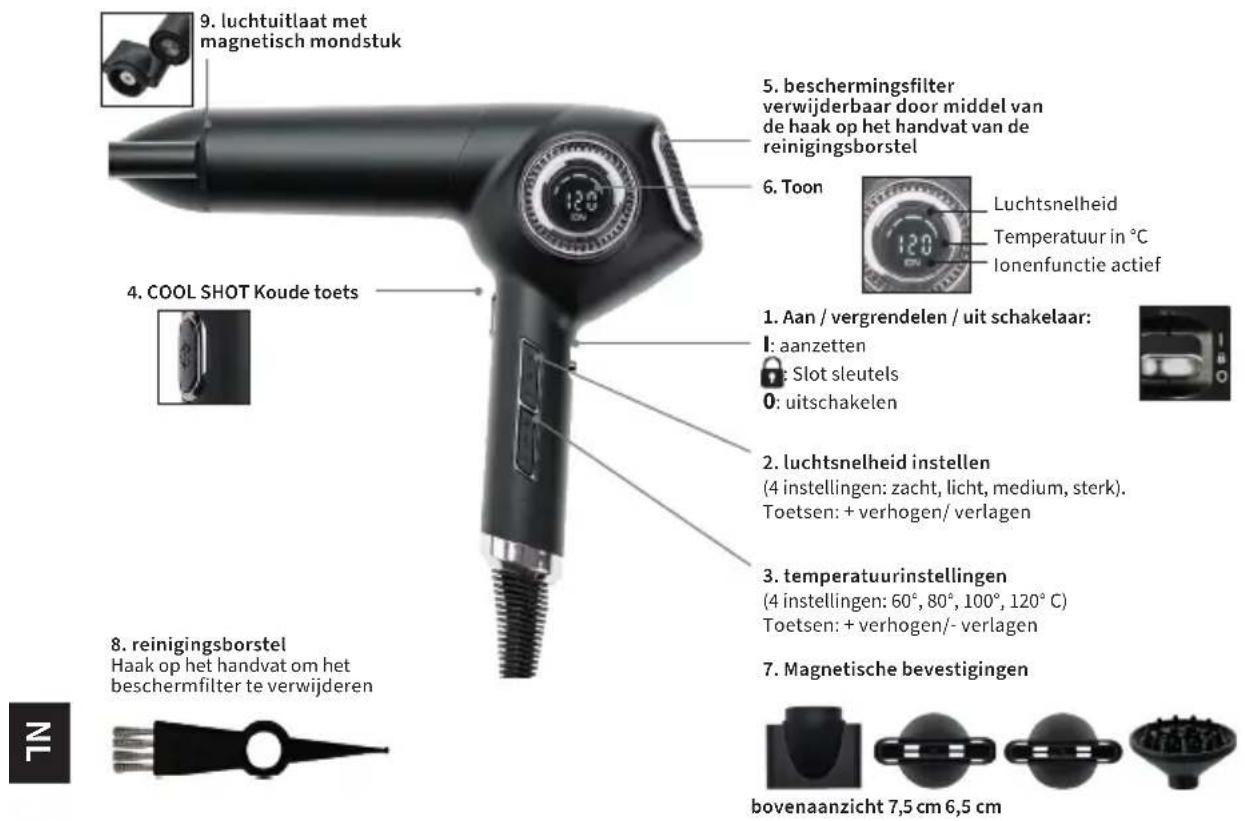

Beschrijving:

Four black circular shapes with white curved lines, arranged horizontally (no text or symbols)

Close-up of a mechanical component with grooves and brackets (no visible text or symbols)

a) Air velocity set with keys +/- (in fig. to 2.)

b) Temperature set with keys +/- (in fig. to 3.)

Close-up of a black mechanical component with a circular opening and textured handle (no visible text or symbols)

Close-up of a black camera lens with 'OFF' label and partial view of a hand holding the lens (no readable text or symbols beyond the lens)

Close-up of a black mechanical component with ribbed texture (no visible text or symbols)

Close-up of a black camera lens with 'OFF' status indicator and a small hand pointing to it (no readable text or symbols beyond the label)

Close-up of a black mechanical component with ribbed texture (no visible text or symbols)

Close-up of a car tire with visible tread pattern and side profile (no text or symbols)

1. Odstranite pokrov filtra: V ta namen s kavljem na ročaju priložene čistilne krtače (na sliki 8) previdno izvlecite rešetko pokrova filtra.

2. Filter očistite s priloženo krtačko za čiščenje.

Four black circular shapes with white curved lines, arranged horizontally (no text or symbols)

Close-up of a black camera lens with 'OFF' button and a small object on the right (no readable text or symbols beyond basic markings)

Close-up of a black mechanical component with ribbed texture (no visible text or symbols)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY:

In case of claims and necessary repairs, please fill out completely and attach this voucher.

EFALOCK®

PROFESSIONAL

SignatureDate of purchase
