USER MANUAL BEH 600 Alpha Tools

Labeled diagram of a power iron with numbered parts for identification

Exterior view of a gray electric plow with labeled parts (no text or symbols visible)

3

D

General information on safety and accident prevention

The safe and accident-free operation of this tool is assured only if you read this safety information and the operating instructions carefully and observe the same.

● Every time you use the machine, always check the mains cable and plug first. Only work with the machine when it is in perfect working order and undamaged. Have any damaged parts repaired or replaced immediately by a qualified electrician.

● Always unplug the machine before doing any work on it, before changing tools and when the machine is not in use.

● To prevent damage to the mains cable, always lead it away from the rear of the machine.

- When working outdoors, use only approved extension cables. The extension cable used must have a cross-section of at least 1.5 ~mm^2 . The plug connections must be earthed and splash-proof.

● Always keep your tools in a safe place and away from children.

- Clamp the workpiece in place to prevent slipping.

- Do not plane materials which contain asbestos.

Observe the professional association's accident-prevention regulations (VBG 119) on this point.

● Use only original spare parts.

● Have any repair work which may be necessary performed only by a qualified electrician.

● Noise levels at the place of work may exceed 85 dB (A). If this is the case, operating personnel must be equipped with ear defenders. The noise emitted by this electric tool was measured to IEC 59 CO 11, IEC 704, DIN 45635 Part 21, NFS 31-031 (84/537/EEC).

● Make sure you have a firm footing when working with the machine. Avoid abnormal postures.

- Do not expose your electric tool to the rain. Do not use electric tools in wet or damp surroundings or near flammable liquids.

- Do not carry the electric tool by the mains cable. Protect the mains cable from damage by oil, solvents and sharp edges. Do not carry the electric tool by the cable.

- Keep your workplace clean and tidy.

● Make sure the ON/OFF switch is in the OFF position before you plug in the machine.

- Wear suitable work clothes. Do not wear loose-fitting clothes or jewelry. If you have long hair, wear a hair net.

- For your own safety, use only original accessories and spare parts made by the machine manufacturer.

● The machine vibrations were analyzed according to ISO 5349.

GB

Operating instructions for the hand-held plane

MACHINE DESCRIPTION

1 Knob for setting the planing depth

2 ON/OFF switch

3 Safety lock-off

4 Rear baseplate

5 Belt guard

6 Front baseplate

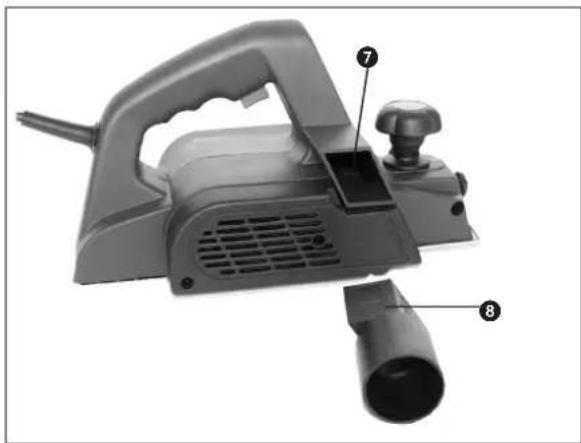

7 Chip outlet

8 Adapter for chip extraction

USE

The electric hand-held plane is for the planing.

rebating and chamfering of wooden parts.

POWER SUPPLY

Before using your machine for the first time, make sure your power supply is the same as that specified on the type plate. Under no circumstances should your power supply exceed that specified by more than 10%.

SWITCH

The electric hand-held plane is equipped with a safety switch to prevent accidents. To switch the machine on, press the lock-off button on the side of the machine and then press the ON switch. To switch off the hand-held plane, release the ON switch, which will then jump back to its starting position.

CHIP EXTRACTION

For optimum chip extraction, you can use the adapter supplied to connect the hand-held plane to a chip extraction system.

Slide the adapter over the chip outlet on the side of the machine. You can now attach a suitable chip extraction system to the round socket on the adapter.

USING THE MACHINE

Important: The electric hand-held plane must be switched on before coming into contact with the workpiece.

Setting the planing depth

The planing depth can be set between 0 and 2 mm by turning the setting and guide knob to the left or right. Always turn the knob until it engages.

When you have finished working with the plane, set

the planing depth so that the knife is lowered and protected against damage.

Planing flat surfaces

Set the desired planing depth. Place the front baseplate of the electric hand-held plane on the workpiece and switch it on. Holding the plane in both hands, slide it over the surface, making sure both the front and rear baseplates are lying flat on the workpiece.

To finish the planed surface, set a very low planing depth and rework the planed surface as often as necessary.

Chamfering edges (45°)

45°

You can chamfer edges to 45^ both quickly and easily by making use of the V-groove in the front baseplate of the plane. Position the V-groove of the plane on the edge to be chamfered and guide it steadily along the edge, always retaining the same angle.

Changing the planing knives

Important: Before doing any work on the machine, always disconnect it from the mains first.

The electric hand-held plane is equipped with two, carbide-tipped, double-sided knives. These knives have two blades and can be turned over. The guide groove ensures that the planing depth remains the same, even after the knife has been turned. Worn, blunt or damaged blades must be replaced.

Carbide-tipped, double-sided knives cannot be resharpened.

Loosen the three hexagonal screws (1) with the enclosed spanner and, using a piece of wood, push the carbide-tipped, double-sided knife sideways out

of the knife block.

1

Clean the knife bed before inserting the knife.

Insert the knife by proceeding in the reverse order. Make sure the planing knife is flush with both ends of the knife block. Always replace both knives at the same time to ensure even planing.

Important: Before using your electric hand-held plane for the first time, make sure the knives are installed correctly and are firmly in place.

Replacing the drive belt

Loosen the screw and take off the belt guard.

Remove the worn drive belt and clean both belt discs.

Place the new drive belt on the small belt disc and, while turning the knife block, pull the belt over the large belt disc too.

Make sure the longitudinal grooves on the drive belt are inside the guide grooves of the drive wheels.

Remount the belt guard and screw it firmly in place.

TECHNICAL DATA

Power supply 230 V - 50 Hz
Rating 650 W
Idling speed n_tr	16,000 rpm
Planing depth 0-2 mm
Planing width 82 mm
Noise pressure level LPA 89 dB (A)
Noise power level LWA 102 dB (A)
Vibrations _w	<2.5 m/s ^2
Weight 2.7 kg
Earthing II / [E]

F

INSTRUCTIONS RELATIVES AU TRAVAIL

The product described in these instructions comes with a 6-year warranty covering defects. This 6-year warranty period begins with the passing of risk or when the customer receives the product.

For warranty claims to be accepted, the product has to receive the correct maintenance and be put to the proper use as described in the operating instructions.

Your statutory rights of warranty are naturally unaffected during these 5 years.

This warranty applies in Germany, or in the respective country of the manufacturer's main regional sales guidance, as a supplement to Saudi

regulations. Please note the details for contacting the customer service center responsible for your region or the service address listed below.

E CERTIFICADO DE GARANTIA

Eschenstraße 6 - D-94405 Landau/Isar (Germany)

Info-Tel. [phone] • Telefax 0180-5 835 830

D-94405 Landsour/Bar

Tel. [phone] (12 CfmH), Fax [phone] (12 CfmH)

Unit 5 Morgeth Wharf

Twelve Quaves

Birkenhead, Mirral

CH 41 1NG

Tel. [phone]. Fax [phone]

E Commercial Einball, S.A.

Commercial Emitter, S.A. Travisie Villa Enter, 9 B

Treveiler Villa Estate, 5 B Religano Industrial EL Nogal

E-28119 Algate-Madrid

© Einbell Portugal Ltda

Anortado 2105

Apanado 2100 Bus da Alceia, 225 Apartado 2100

P-4405-017 Arcozelo VNG

Tel. [phone] Fax [phone]

① Einhell Italia s.r.l

Via Marconi, 16

H Einball Hungary Ltd

Vairla Peter u. 12

H-1089 Budapest

Tel. [phone] Fax [phone]

TR Semak

mekine ticaret ve sanavd lti.

Altay Cesme mah Yasemin Sok No: 19

TB 34843 Maltene - Istanbul

Tel. [phone]. Fax [phone]

Vobler s.r.o

Zupné

SK-95301 Zlate Moravce

Tel. [phone], Fax [phone]

(2) Turkishlan

Investitions- Baugesellschaft

Christofor Stefanidil

Belinskii-102

KZ-186000B st. Chlmkent

Tel/Fax [phone]

（2）本次股东大会决议

(RO) Novatech

Ed. Laser Catarpiu 24-25

Sc. A AP & Sector 1

BO-75121 Bucures

Tel. [phone], Fax [phone]

(2) Poker Plus S.B.O.

Areal vu Bechovice

Burlave 10 P

CZ-19011 Prahe - Bechovice 911

BG Slay GmbH

Mioci Koloni, 18 W

Минар Койпн 60. 18 W ВС 0000 Новка

Bd-8000 Vama Tel. [phone]

(HR) Finbell Cross

Volka Vos 2

HR-49224 Lepalci

Tel [phone]. Fax [phone]

(8.0) GMA-Elektromechenike d o o

Costa Andonia Bilensa 115

Cusa Andreja Bittero SLO 1000 Ljubljana

SLO 1000 Ejubljana Tel. [phone] Fax [phone]

©10 An. Mavrolidonovian E. A

1. Mayrolopaudus S.A. Technical & Commercial Company

2. Papastratou & Asklipiou Str.

GB 18545 Pirăus

Tel [phone], Fax [phone]

Bermas

Altufyevskop shasse, 2A

RUS-127273 Moscow

Tel [phone]. Fax [phone]

(17) Diritto

Metalo str. 23

LT-02190 Vilnius

Tel. [phone]. Fax [phone]

(2) AS Balcil

Boiu aley

Haaslava vald

EE-62102 Tar

Tel. [phone] Fax [phone]

(14) Halai Trading Co. LLC

(1) Alborz Abzer Co. Ltd

No. 111, Bastan Passage, Imam Khomeini Ave.

IR-11146 Techeran

Tel [phone], Fax [phone]

Einhell

Poskovi Centar 96

BA-72250 Vite:

(76) Eurasia Industrial and Automotive Supply

Beegemer Str.

Duncenville

ZA-Vereenpling 1930

Tel [phone]. Fax [phone]

D

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.
