Product Type	Uninterruptible Power Supply (UPS)
Brand	Conceptronic
Model	ZEUS04EM
Capacity	2200 VA / 1320 W
Input Voltage	230 V AC, 50/60 Hz
Output Sockets	Battery backup and surge protected outlets
Display	LCD Screen
Power Button	Press and hold for 2 seconds to turn on/off
Communication Port	USB Port
Protection	Circuit breaker (disconnector), surge protection
Audible Alarms	Beep every 30 s (discharge), 2 s (low battery), 0.5 s (overload)
Silent Mode	Enable/disable by double-pressing the power button quickly
Management Software	Power Master+ (downloadable at powermonitor.software)
Battery Type	Sealed lead-acid battery
Recommended Charging Time	8 hours for full charge
Operating Temperature	0-40 °C (indoor, no conductive contaminants)
Maintenance	Recharge the battery every 3 months for extended storage
Safety	Do not open the unit, risk of electric shock; replace battery by a professional
Weight	Approximately 15 kg (estimated)
Dimensions (W x D x H)	Approximately 300 x 400 x 200 mm (estimated)

Frequently Asked Questions - ZEUS04EM CONCEPTRONIC

How long should I charge the battery before first use?

It is recommended to charge the battery for at least 8 hours to reach maximum capacity. Charge loss may occur during transport and storage.

Can I plug a laser printer into the UPS?

No, do not plug a laser printer, photocopier, heater, or other high-power devices. These devices can overload and damage the UPS.

What does a beep every 2 seconds mean?

A beep every 2 seconds indicates that the battery is low. The UPS is in battery mode and has little remaining runtime.

How to disable the audible alarm?

Quickly press the power button twice. You will hear two short beeps confirming that the alarm is disabled.

What to do in case of overload?

Turn off the UPS, unplug at least one device from the battery outlets, wait 10 seconds, check the circuit breaker, then turn it back on. The audible alarm will stop.

Where can I download Power Master+ software?

Download the software from the official website: https://www.powermonitor.software/. Install it and restart your computer.

The UPS does not turn on, what should I do?

Check that the power cord is plugged into a 230 V outlet. If the switch was operated too quickly, wait 10 seconds before trying again.

Can I replace the battery myself?

Replacement must be done by qualified personnel due to risk of electric shock. Use the same number and type of batteries.

How to maintain the UPS during extended storage?

Store it with the battery fully charged and recharge it every 3 months to preserve battery life.

Is the UPS compatible with all computers?

Yes, the UPS is designed for use with computers. Do not plug medical or life-support equipment.

USER MANUAL ZEUS04EM CONCEPTRONIC

Press the switch for 2 seconds to turn the UPS ON or OFF.

1. Led Indicator

This LED is illuminated when the UPS is working.

1. USB port

This port allows connection and communication from the USB port on the computer to the UPS unit.

1. Modem/LAN Internet Protection

(ZEUS01E/01ES/02E/02ES/03E/04E/07E/07ES/08E)

Communication protection ports will protect any standard modem, fax, telephone line, or network cable

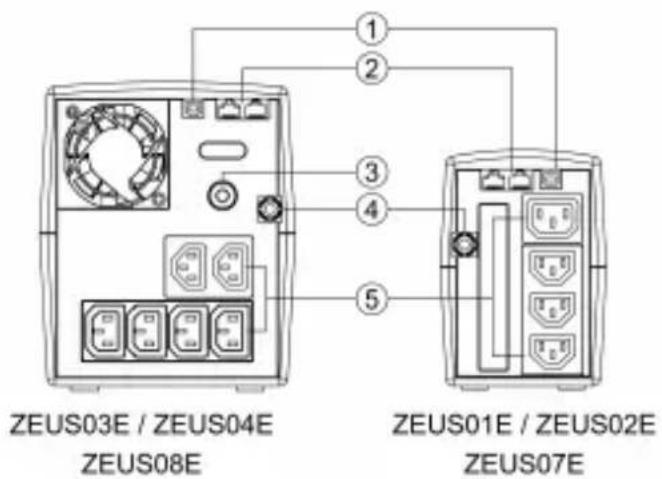

1. Input Circuit Breaker

The circuit breaker provides optimal overload protection.

1. Input power cord

2. Battery Backup & Surge Protected Outlets

Provide battery backup and surge protection. They ensure power is provided to connected equipment over a period of time during a power failure.

ZEUS01 / ZEUS02 / ZEUS07

Definitions for alarm

	LED Status	Alarm
Normal	LED lighting	off
Battery Discharge	Flash once every 30 sec	Beep once every 30 sec
Battery Low	Flash once every 2 sec	Beep once every 2 sec
Overload	Flash once every 0.5 sec	Beep once every 0.5 sec
Off charging mode	LED off	off
Fault	LED off	Continuous alarm

Mute setting: The audible alarm can be turned OFF or ON by quickly pressing the power button twice. The default setting is for the Alarm On. You will hear two short beeps when the Alarm is turned off.

ZEUS03 / ZEUS04 / ZEUS08

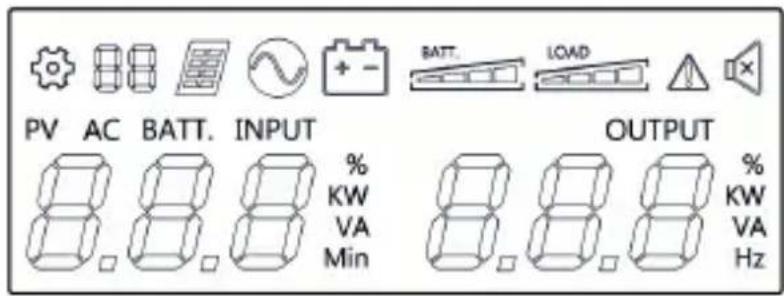

Definitions for illuminated lcd indicators

	Setting Item		Line mode
[7826]	PV mode		Bat-mode
	Fault		Sound disable
	Bat mode: battery capacityLine mode:1. Battery charging: cycle lighting2. Battery full charged: lighting3. Line mode without charger:battery capacity		Load capacity

3. Installation & usage

Hardware installation guide

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8 hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC outlet. The unit will charge in both the on and off position.
2. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data storage device (Zip drive, Jazz drive, Tape drive), etc. into the battery power supplied outlets. DO NOT plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device into the battery power supplied outlets. The power demands of these devices will overload and possibly damage the unit.
3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g. air conditioner, refrigerator, copier, etc. Avoid using extension cords.
4. Press the power switch to turn the unit on. The power on indicator light will illuminate and the unit will "beep".
5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off and unplug at least one piece of equipment from the battery power supplied outlets. Wait 10 seconds. Make sure the circuit breaker / fuse is normal and then turns the UPS on.
6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
7. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the battery every three months to ensure battery life.

Software Installation on your PC

Power Master management software provides a user-friendly interface for your power systems. The graphic user-interface is intuitive and displays essential power information at a glance. Please follow procedure below to install the software.

Installation procedure:

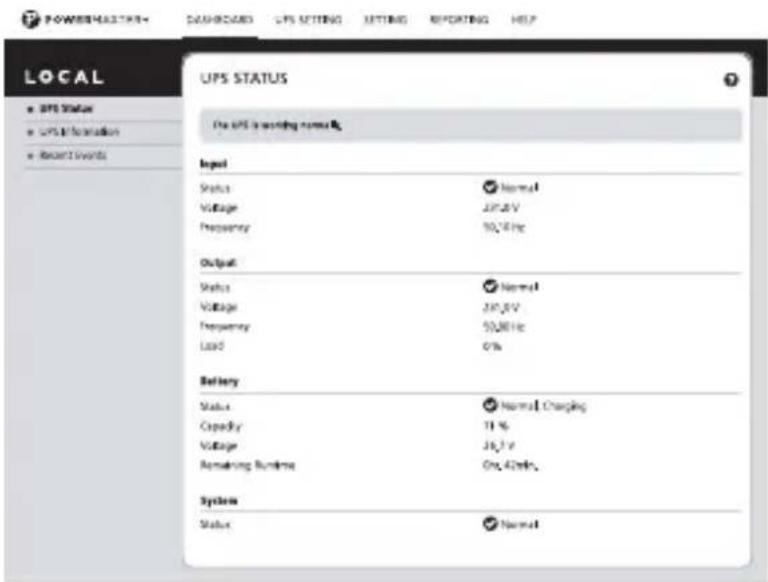

1. Download Power Master+ from the website: https://www.powermonitor.software/
2. Double-click the file and follow the installation steps. When your computer restarts, the Power Master software will appear as a blue icon located in the system tray.

Trouble shooting

Problem	Possible Cause	Solution
The UPS does not perform expected runtime	Batteries are not fully charged.	Recharge the battery by leaving the UPS plugged in.
The UPS will not turn on	The on/off switch is designed to prevent damage by rapidly turning it off and on.	Turn the UPS off. Wait 10 seconds and then turn the UPS on.
	The unit is not connected to an AC outlet.	The unit must be connected to a 230Vac 50/60Hz outlet.
Outlets do not provide power to equipment	Circuit breaker is tripped due to overload	Turn the UPS off and unplug at least one piece connected equipment. Unplug the power cord of the UPS then press the circuit breaker knob.
	Batteries are discharged	Allow the unit to recharge for at least 4 hours.

Caution:

• To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area, free of conductive contaminants.
• Risk of electric shock, do not remove the cover. No user serviceable parts. Refer servicing to qualified service personnel.
• Risk of electric shock, hazardous live parts inside this UPS can be energized from the battery supply even when the input AC power is disconnected.
• Risk of electric shock, Battery Circuit is not isolated from AC input, hazardous voltage may exist between battery terminals and ground. Test before touching.
• Use the power supply only in a socket that is installed as close as possible to the device and easily accessible and easy to unplug.
• To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants. (See the specifications for the acceptable temperature and humidity range.)
• To reduce the risk of overheating the UPS, do not cover the UPS' cooling vents and avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces.
• Do not attach non-computer-related items, such as medical equipment, life-support equipment, microwave ovens, or vacuum cleaners to UPS.
• Do not plug the UPS input into its own output.
• Do not allow liquids or any foreign object to enter the UPS. Do not place beverages or any other liquid-containing vessels on or near the unit.
• In the event of an emergency, press the OFF button and disconnect the power cord from the AC power supply to properly disable the UPS.
• Do not attach a power strip or surge suppressor to the UPS.
• Unplug the UPS prior to cleaning and do not use liquid or spray detergent.
• Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions. Keep unauthorized personnel away from batteries.
• The battery supply should be therefore disconnected in the plus and minus pole at the quick connectors of the battery when maintenance or service work inside the UPS is necessary.
• When replacing the batteries, use the same number and type of batteries.
• Do not dispose of batteries in a fire. The battery may explode. Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes.
• Do not plug the power supply in a socket that is hidden behind of any furniture.
• Do not cover the power supply connected into the socket.
• Use the product only in dry indoor rooms and protect it from moisture.
• If in doubt or if the power adapter malfunctions, discontinue use and contact our customer support or an authorized service center.
• Discontinue use immediately if the power adapter shows visible damage, emits unusual odors, or becomes excessively hot.

Note:

This manual contains important safety instructions. Please follow all instructions carefully during installation. Read this manual thoroughly before attempting to unpack, install or operate.

Note:

The UPS is designed to be for use with computer loads only.

Disposal of waste electrical equipment and batteries: Do not dispose of waste electrical equipment and batteries with household waste. Please hand them to your local recycling point. Batteries should be fully discharged when disposed of. Incorrect storage/disposal can harm the environment and/or cause injury.
