Hershey's S'mores Maker 6203 - Electric cooking appliance WestBend - Free user manual and instructions

Brand	WestBend
Model	Hershey's S'mores Maker 6203
Product type	Electric s'mores cooking appliance
Power supply	120 V, AC only
Wattage	Not specified (estimated: 300-500 W)
Main functions	Roast marshmallows, melt chocolate
Maximum temperature	Hot air heating (temperature not specified)
Capacity	1 marshmallow at a time, tray for 2 crackers
Materials	Plastic, metal, glass (screen)
Dimensions (L x W x H)	Not specified (estimated: 25 x 20 x 15 cm)
Weight	Not specified (estimated: 1 kg)
Color	Black with Hershey's logo
Included accessories	2 forks, 1 cracker tray, 1 locking lid
Care and cleaning	Removable parts dishwasher safe (top rack) or wash in soapy water; wipe exterior with a damp cloth
Safety	Locking lid required for operation, manual shut-off, do not exceed 10 minutes of continuous use, hot surfaces
Spare parts and repairability	Parts available through WestBend (www.westbend.com); 1-year warranty
Warranty	1-year limited (parts and labor) for household use
General information	Household use only, do not immerse, polarized plug

Frequently Asked Questions - Hershey's S'mores Maker 6203 WestBend

How to use the Hershey's S'mores Maker?

Place the appliance on a flat, dry surface. Lock the locking lid. Place a broken graham cracker on the tray, add a chocolate square. Spear a marshmallow on a fork. Plug in, press the ON/OFF button. Hold the marshmallow about 1 inch above the opening for 1-2 minutes, turning. Place the roasted marshmallow on the chocolate, cover with the other half of the cracker and remove the fork. Turn off the appliance after use.

What type of marshmallow should I use?

Use fresh, regular-sized marshmallows. Do not use giant, mini, or specialty marshmallows.

Can I roast anything other than marshmallows?

No, the appliance is designed only for roasting marshmallows. Do not attempt to cook other foods.

How to clean the S'mores Maker?

Unplug and let cool completely. Remove the lid, tray, and forks. Wash them in warm soapy water or in the dishwasher (top rack). Wipe the exterior with a damp cloth. Never immerse the appliance.

What if the marshmallow falls onto the screen?

Turn off the appliance immediately and let it cool. Clean the screen before roasting another marshmallow.

Can I use an extension cord?

Extension cord use is not recommended. If necessary, use a grounded extension cord with a power rating at least equal to the appliance's.

How long can I run the appliance continuously?

Do not operate the appliance for more than 10 minutes at a time. Let it cool completely before reuse.

What if the appliance does not heat up?

Make sure the locking lid is properly locked. Check that the appliance is plugged in and the ON/OFF button is pressed. If the problem persists, contact customer service.

Are the parts dishwasher safe?

Yes, the locking lid, cracker tray, and forks are dishwasher safe (top rack for the first two, utensil basket for the forks).

Where can I get replacement parts?

Order online at www.westbend.com, email [e-mail], or call [phone].

USER MANUAL Hershey's S'mores Maker 6203 WestBend

HERSHEY'S

LICENSED

PRODUCT

Register this and other Focus Products Group International products through our

website: www.registerfocus.com

Product registration is not required to activate warranty.

Important Safeguards....2

Before Using for the First Time 3

Using Your HERSHEY'S S'mores Maker....4

Helpful Hints....5

Cleaning Your HERSHEY'S S'mores Maker 5

Recipe....5

Warranty....6

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including:

• Read all instructions.
• Do not touch hot surfaces. Use hot pads or oven mitts. Locking cover becomes hot during operation.
• Always unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• This appliance is not a toy. Close supervision is necessary when this appliance is used by or near children.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. For service information see warranty page.
• The use of accessory attachments not recommended by Focus Products Group International may cause injuries.
• DO NOT use plastic forks, wooden or bamboo sticks, or other flammable utensils while using this appliance. Always use the roasting forks provided.
• Do not use this appliance outdoors.
• Do not let cord hang over the edge of the table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• To disconnect, turn any control to "OFF," then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• To protect against electric shock, do not immerse cord, plugs, or other electric parts in water or other liquids.
• Do not attempt to repair this appliance yourself.
• An appliance that is plugged into an outlet should not be left unattended.
• This appliance will not shut off automatically. To avoid overheating, do not operate the appliance for more than 10 minutes at one time. Allow to cool completely before additional uses.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

• Longer extension cords are available, but care must be exercised in their use. While use of an extension cord is not recommended, if you must use one, ensure that the marked electrical rating of the extension cord is equal to or greater than that of the appliance. If the plug is of the grounded type, the extension cord must be a grounding-type 3-wire cord. To avoid pulling, tripping or entanglement, position the extension cord so that it does not hang over the edge of the counter, table or other area where it can be pulled on by children or tripped over.

• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Do not remove locking cover from the appliance until it has cooled completely.
  • For household use only.

SAVE THESE INSTRUCTIONS

BEFORE USING FOR THE FIRST TIME

Please check all packaging material carefully before discarding. Accessory parts may be contained within the packaging material.

Wash the locking cover, "cracker" tray, and roasting forks in warm, soapy water. Rinse and dry thoroughly. The removable parts may be washed in a dishwasher, top rack only; forks can be washed in the utensil basket.

Wipe the exterior of the roasting base with a soft, damp cloth and dry. Note: DO NOT immerse the roasting base in water or any other liquid. Do not drip any water inside the roasting base. DO NOT put the roasting base into the dishwasher. This will permanently damage the appliance and will void the warranty.

1. Position roasting base on a dry, level, heat-resistant surface away from any edge. Place the locking cover in position over the top of the roasting base, then turn to lock. The HERSHEY'S S'mores Maker will not operate if the lock is not engaged.

2. Center a graham cracker over the ridge in the "cracker" tray then gently press down to crack the graham cracker. Place squares of your favorite HERSHEY'S chocolate onto the graham cracker. Place a fresh, standard-sized marshmallow onto the end of the roasting fork.

3. Do not use jumbo campfire, mini-style, or specialty marshmallows with this appliance.

4. Do not attempt to roast or cook anything other than marshmallows with this appliance.
5. Do not roast more than one marshmallow at a time.

6. Do not use any utensils other than the included roasting forks.

7. Plug the cord into a 120 volt, AC outlet ONLY. As soon as the HERSHEY'S S'mores Maker is plugged in, you will hear the fan begin to blow. No heat will be produced at this time. Press the "ON/OFF" switch to the on position, toward the "XXXX" symbol. Hot air will immediately begin blowing. The "ON/OFF" switch will be illuminated when the appliance is heating. Caution: Keep hands and face away from hot air. Do not block airflow or set the marshmallow directly on screen.

8. Hold the marshmallow over the top of the machine, approximately 1 inch from the rim. Roast one side of the marshmallow for 45 seconds to 1 minute, then turn and roast the other side. The marshmallow will be lightly browned, soft and puffy, and s'mores-ready after about 1 12 - 2 minutes. Do not continuously turn the marshmallow. If the marshmallow begins to melt off the fork, immediately remove from the heat. If your marshmallow falls onto the screen, immediately turn the S'mores Maker off. Always clean the screen before any additional roasting.

9. When the marshmallow is done, place it on the graham cracker half with the chocolate, then use the other cracker half to press down and hold the marshmallow while you carefully pull out the roasting fork. Be careful! The roasting fork and marshmallow will be hot! DO NOT attempt to remove the marshmallow from the fork with your fingers.
10. Only roast one marshmallow at time. DO NOT run the HERSHEY'S S'mores Maker for longer than 10 minutes at a time. When you are done making s'mores, press the "ON/OFF" switch to "OFF) and unplug the appliance. Let appliance cool for 10-15 minutes before additional uses, cleaning, moving, or putting it away. Always use hotpads to handle a hot appliance.

- A small amount of smoke and/or odor may occur upon heating due to the release of manufacturing oils – this is normal.

- Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.

HELPFUL HINTS

• For a fun, non-traditional s'more, try HERSHEY'S other chocolate bars, like HERSHEY'S Cookies and Cream, HERSHEY'S Krackel®, and HERSHEY'S Special Dark. Other candies also make fun "chocolate" layers for your s'more, the only limit is your imagination!
• This appliance works best with fresh, standard-sized marshmallows. Do not use the jumbo campfire, mini, or specialty marshmallows.
• Fresh, standard shaped marshmallows roast the most evenly. If your marshmallows are misshapen, try to gently squeeze them back into their original shape.
• The HERSHEY'S S'mores Maker will help you make perfect s'mores indoors, but will not brown your marshmallow like a campfire or an open flame will. Marshmallows will be s'mores-ready after 1 12 - 2 minutes, we do not advise heating for longer than 2 minutes.
• Do not place the “cracker” tray over the roasting base to melt your chocolate or heat any food product.
• While we don't recommend it, the "cracker" tray is microwave-safe. If used to melt chocolate on a graham cracker, do not microwave for longer than 10-15 seconds. Monitor carefully, as all microwave ovens operate differently.
• The S'mores Maker is not made to cook other foods. Do not attempt to cook or roast anything other than marshmallows.

CLEANING YOUR HERSHEY'S S'MORES MAKER

1. Unplug the appliance from the electrical outlet. Allow the entire appliance to cool, with the locking cover in place, before cleaning. Note: Do not immerse the roasting base in water or any other liquid. Do not use any abrasive cleansers or scrubbers on any part of the HERSHEY'S S'mores Maker.
2. Remove the locking cover from the roasting base. Wash the locking cover, "cracker" tray, and roasting forks in warm, soapy water. Rinse and dry thoroughly. The removeable parts may be washed in a dishwasher, top rack only; forks can be washed in the utensil basket.
3. Use a soft, damp cloth to wipe the exterior of the roasting base. If necessary, use a slightly damp cloth to wipe out the roasting base and screen, then dry thoroughly. Do not allow any water to drip into the roasting base. Ensure that all vents are clean before each use.

This appliance has no user serviceable parts.

RECIPE

HERSHEY'S S'mores

4 marshmallows
4 graham crackers, broken into halves
2 (1.55 oz. each) HERSHEY'S Milk Chocolate Bars, broken into halves

Place 12 of HERSHEY'S Milk Chocolate Bar (1.55 oz.) on graham cracker half. Carefully roast the marshmallow; place roasted marshmallow over the chocolate. Top with second graham cracker half; gently press together. Repeat for each serving; serve immediately.

4 Servings.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Products Group International, LLC (“the Company”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided that the appliance is operated and maintained in conformity with the Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at the Company’s discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by the Company, if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Customer Care Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from the Company several ways. Order online at www.westbend.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Products Group International, LLC.

Attn: Customer Care Dept.

P. O. Box 53

West Bend, WI 53095

To order with a check or money order, please first contact Customer Care for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the appliance, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Products Group International, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known: ____

Item number and Date Code (shown bottom/back of product):

HERSHEY'S

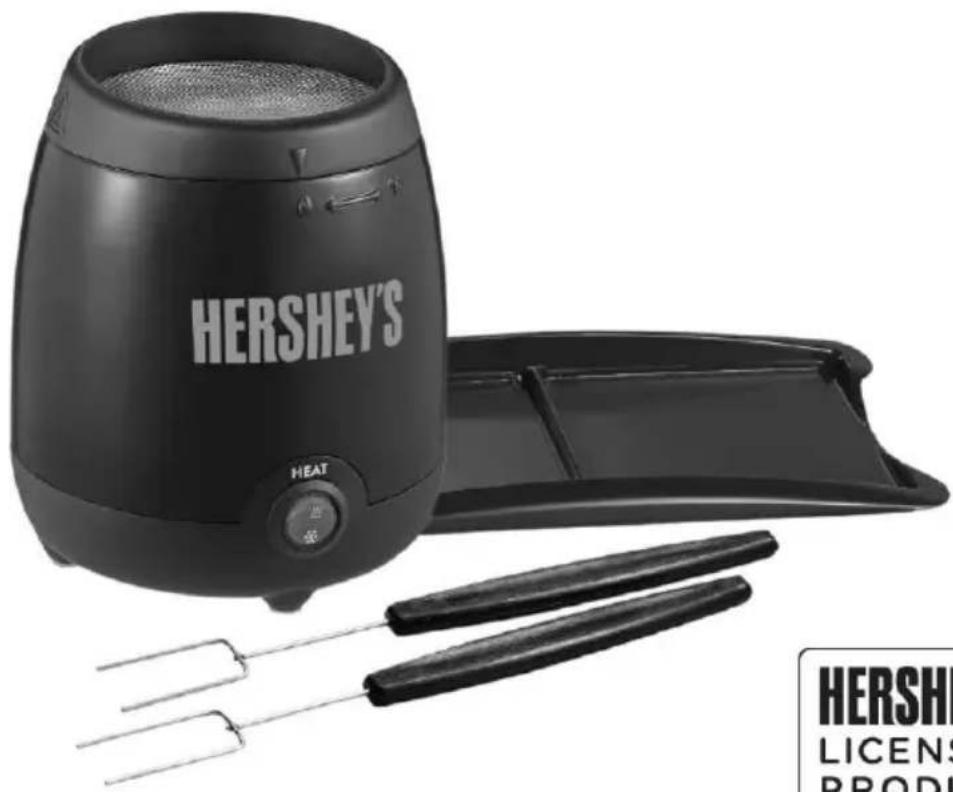

MACHINE À S'MORES DE HERSHEY'S

Mode d'Emploi

HERSHEY'S

LICENSED

PRODUCT

Focus Products Group International, LLC.

Attn: Customer Care Dept.

P. O. Box 53

West Bend, WI 53095

Focus Products Group International, LLC.
