Welcome to AEG! Thank you for choosing our appliance.

Get usage advice, brochures, trouble shooter, service and repair information:

www.aeg.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION...... 25
2. SAFETY INSTRUCTIONS.... 27
3. INSTALLATION....29
4. PRODUCT DESCRIPTION.... 32
5. BEFORE FIRST USE....33
6. DAILY USE....33
7. ADDITIONAL FUNCTIONS....36
8. HINTS AND TIPS....41
9. CARE AND CLEANING.... 43
10. TROUBLESHOOTING.... 44
11. TECHNICAL DATA.... 46
12. ENERGY EFFICIENCY......47
13. ENVIRONMENTAL CONCERNS......47

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- This appliance is for cooking purposes only.

- This appliance is designed for single household domestic use in an indoor environment.

- This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

- Smoke is an indication of overheating. Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid.

- WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Danger of fire: Do not store items on the cooking surfaces.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use the appliance before installing it in the built-in structure.
• Do not use a steam cleaner to clean the appliance.
  • After use, switch off the hob element by its control and do not rely on the pan detector.
• If the glass ceramic surface / glass surface is cracked, switch off the appliance and unplug it from the mains. In case the appliance is connected to the mains directly using junction box, remove the fuse to disconnect the appliance from power supply. In either case contact the Authorised Service Centre.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

WARNING!

Risk of injury or damage to the appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Keep the minimum distance from other appliances and units.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
- Seal the cut surfaces of the cabinet with a sealant to prevent moisture from causing swelling.
- Protect the bottom of the appliance from steam and moisture.
- Do not install the appliance next to a door or under a window. This prevents hot cookware from falling from the appliance when the door or the window is opened.
• Each appliance has cooling fans on the bottom.
- If the appliance is installed above a drawer:

• Do not store any small pieces or sheets of paper that could be pulled in, as they can damage the cooling fans or impair the cooling system.
• Keep a distance of minimum 2 cm between the bottom of the appliance and parts stored in the drawer.
• Remove any separator panels installed in the cabinet below the appliance.

2.2 Electrical Connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to a socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• Do not change the specification of this appliance.
• Remove all the packaging, labelling and protective film (if applicable) before first use.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to "off" after each use.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation.
• When you place food into hot oil, it may splash.
• Do not use aluminum foil or other materials between the cooking surface and the cookware, unless otherwise specified by the manufacturer of this appliance.
• Use only accessories recommended for this appliance by the manufacturer.

WARNING!

Risk of fire and explosion.

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
  • The vapours that very hot oil releases can cause spontaneous combustion.
  • Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not put a hot pan cover on the glass surface of the hob.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
  • Cookware made of cast iron or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

2.4 Care and cleaning

- Clean the appliance regularly to prevent the deterioration of the surface material.

• Switch off the appliance and let it cool down before cleaning.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects, unless otherwise specified.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your local authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Before the installation

Before you install the hob, write down the information below from the rating plate. The rating plate is on the bottom of the hob.

Serial number ....

3.2 Built-in hobs

Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.

3.3 Connection cable

- The hob is supplied with a connection cable.

- To replace the damaged mains cable, use the cable type: H05V2V2-F which withstands a temperature of 90 °C or higher. A single wire must have a minimal cross section in accordance with the table below. Speak to your local Service Centre. The connection cable may only be replaced by a qualified electrician.

WARNING!

All electrical connections must be made by a qualified electrician.

CAUTION!

Connections via contact plugs are forbidden.

CAUTION!

Do not drill or solder the wire ends. It is forbidden.

CAUTION!

Do not connect the cable without cable end sleeve.

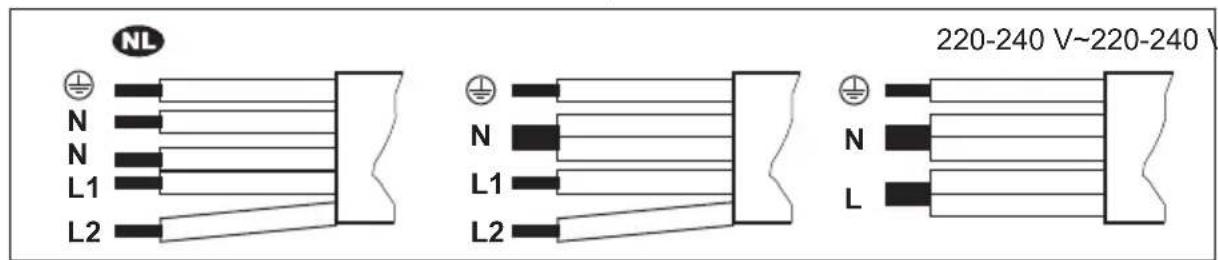

One-phase connection

1. Remove the cable end sleeve from black, brown and blue wires.
2. Remove a part of the insulation of the brown, black and blue cable ends.
3. Connect the ends of black and brown cables.
4. Apply a new wire end sleeve on the shared wire's end (special tool required).
5. Connect the ends of two blue cables.
6. Apply a new wire end sleeve on the shared wire's end (special tool required).

Two-phase connection

1. Remove the cable end sleeve from blue wires.
2. Remove a part of the insulation of the blue cable ends.
3. Connect the ends of two blue cables.
4. Apply a new end wire sleeve on the shared wire's end (special tool required).

NL 220-240 V~220-240 V N N L1 L2 N L1 L2 N L

220 - 240 V\~

Two-phase connection: 400 V2N\~ One-phase connection: 220 - 240 V\~

5x1,5 mm ^2 5x1,5 mm ^2 or 4x2,5 mm ^2 5x1,5 mm ^2 or 3x4 mm ^2

Green - yellow Green - yellow Green - yellow

N Blue and blue N Blue and blue N Blue and blue

L1 Black L1 Black L Black and brown

L2 Brown

L2 Brown

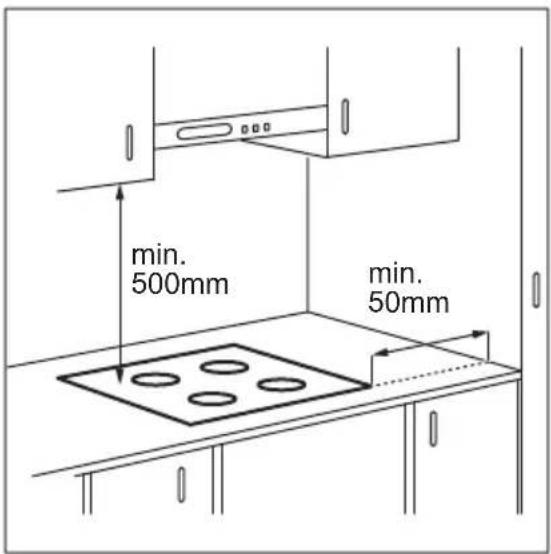

3.4 Assembly

If you install the hob under a hood, please see the installation instructions of the hood for the minimum distance between the appliances.

If the appliance is installed above a drawer, the hob ventilation can warm up the items stored in the drawer during the cooking process.

590 520 60 260 44 min. 50 490°1 560°1 max. R5 min. 1500 min. min. 12 55 min. 28

Find the video tutorial "How to install your AEG Induction Hob - Worktop installation" by typing out the full name indicated in the graphic below.

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your AEG Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

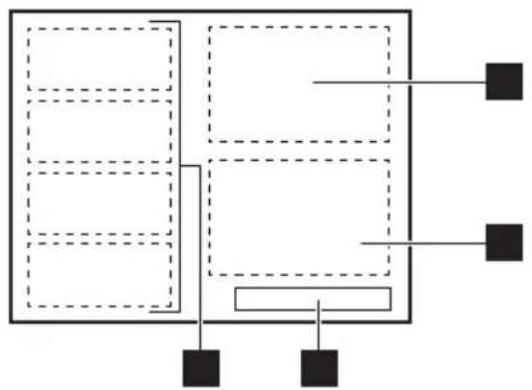

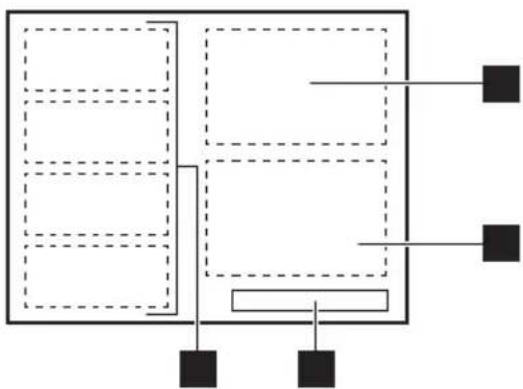

4.1 Cooking surface layout

1 Induction cooking zone
2 Control panel
3 Flexible induction cooking area consisting of four sections

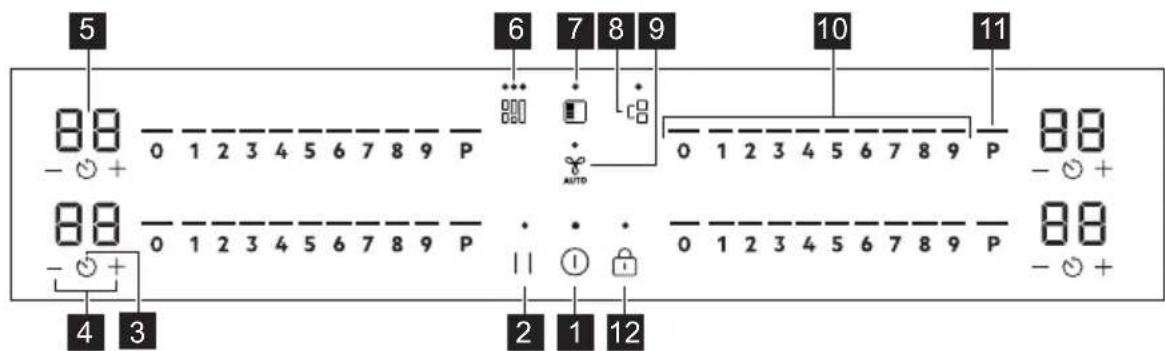

4.2 Control panel layout

5 88 - + 0 1 2 3 4 5 6 7 8 9 P 6 7 8 9 10 11 0 1 2 3 4 5 6 7 8 9 P 88 - + 88 - + 0 1 2 3 4 5 6 7 8 9 P - || | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | 4 3 2 1 12 - ○ +

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

	Sensor field	Function Description
1	➊	On / Off To activate and deactivate the appliance.
2		Pause To activate and deactivate the function.
3	➌	Timer To set the function.
4	+/-	- To increase or decrease the time.
5	- Timer display To show the time in minutes.

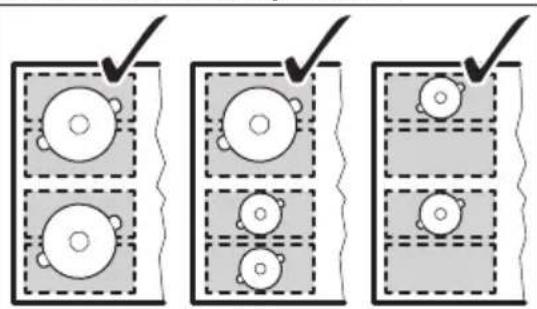

6	➂	FlexiBridge (Flexible Bridge) To switch between three modes of the function.
7	➓	PowerSlide To activate and deactivate the function.
8	➔	Bridge To activate and deactivate the function.
9	AUTO	Hob ^2 Hood To activate and deactivate the manual mode of the function.
10	- Control bar To set a heat setting.
11	P	PowerBoost To activate the function.
12		Lock / Child Safety Device To lock / unlock the control panel.

4.3 Display indicators

Indicator Description

E+ digit	There is a malfunction.
≡/∅	OptiHeat Control (3 step Residual heat indicator): continue cooking / keep warm / residual heat.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Power limitation

Power limitation defines how much power is used by the hob in total, within the limits of the house installation fuses.

The hob is set to its highest possible power level by default.

To decrease or increase the power level:

1. Enter the menu: press and hold for 3 seconds. Then, press and hold 🔒.
2. Press on the front timer until appears.
3. Press / on the front timer to set the power level.

6. DAILY USE

WARNING!

Refer to Safety chapters.

4. Press to exit.

Power levels

Refer to "Technical data" chapter.

CAUTION!

Make sure that the selected power fits the house installation fuses.

• P73 — 7350 W
• P15 — 1500 W
• P20 — 2000 W
• P25 — 2500 W
• P30 — 3000 W
• P35 — 3500 W
• P40 — 4000 W
• P45 — 4500 W
• P50 — 5000 W
• P60 — 6000 W

6.1 Activating and deactivating

Press and hold ⓣ to activate or deactivate the hob.

6.2 Pot detection

This feature indicates the presence of cookware on the hob and deactivates the cooking zones if no cookware is detected during a cooking session.

If you put cookware on a cooking zone before you select a heat setting, the indicator above 0 on the control bar appears.

If you remove cookware from an activated cooking zone and set it aside temporarily, the indicators above the corresponding control bar will start blinking. If you do not place the cookware back on the activated cooking zone within 120 seconds, the cooking zone will automatically deactivate.

To resume cooking, make sure to put the cookware back on the cooking zones within the indicated timeout.

6.3 Using the cooking zones

Place the cookware in the centre of the selected zone. Induction cooking zones adapt to the dimension of the bottom of the cookware automatically.

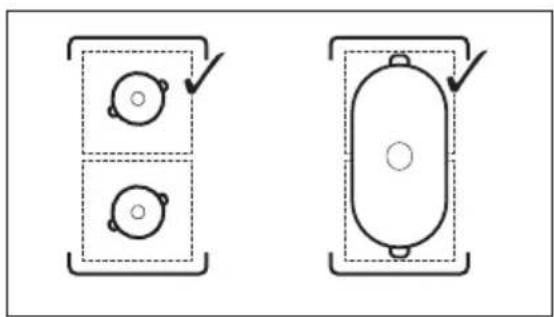

You can cook with large cookware placed on two cooking zones at the same time using Bridge function. The cookware must cover the centres of both zones but not go beyond the area marking. If the cookware is located between the two centres, Bridge function will not be activated.

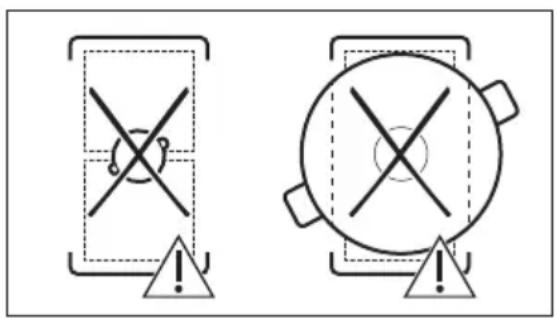

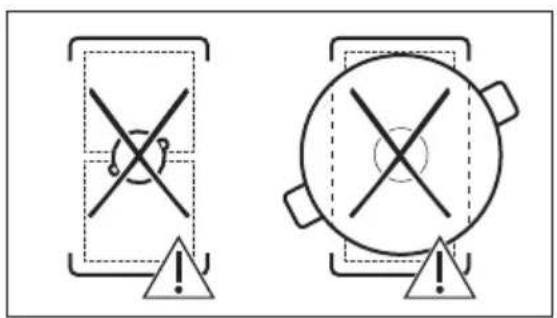

Two technical diagrams showing circular components inside rectangular chambers, one with a checkmark and the other with an arrow (no text or symbols)

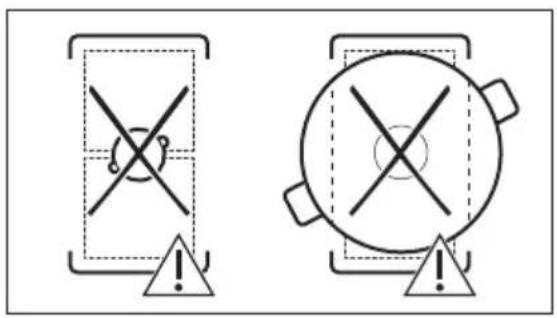

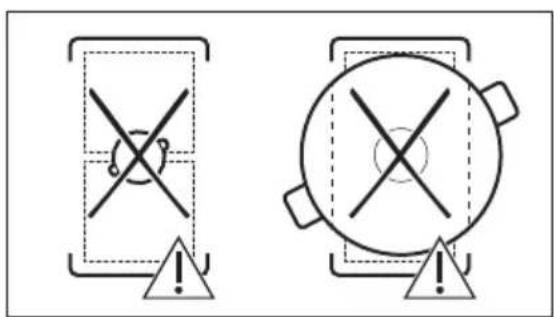

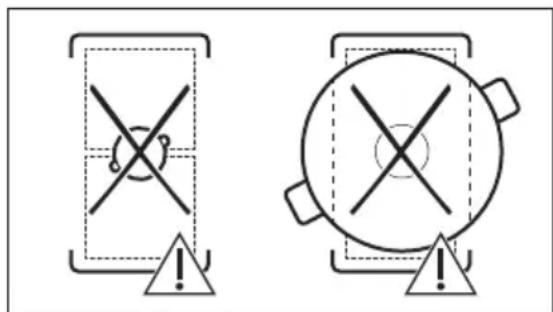

Two warning symbols: a cross symbol inside a shield and a circle with cross, both marked with an exclamation mark.

6.4 Heat setting

0 1 2 5 6 7 8 9 P

1. Press the desired heat setting on the control bar.
   The indicators above the control bar appear up to the selected heat setting level.
2. To deactivate a cooking zone, press 0.

6.5 PowerBoost

This function makes more power available to the induction cooking zones. The function can be activated for the induction cooking zone only for a limited period of time. After this time the induction cooking zone automatically sets back to the highest heat setting.

i

Refer to "Technical data" chapter.

To activate the function for a cooking zone: touch P

To deactivate the function: change the heat setting.

6.6 OptiHeat Control (3 step Residual heat indicator)

!

WARNING!

☐ / ☐ As long as the indicator is visible, there is a risk of burns from residual heat.

The induction cooking zones produce the heat necessary for the cooking process directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.

The indicators appear when a cooking zone is hot. They show the level of the residual heat for the cooking zones you are currently using:

• continue cooking,
• keep warm,

- residual heat.

The indicator may also appear:

• for the neighbouring cooking zones even if you are not using them,
- when hot cookware is placed on cold cooking zone,
- when the hob is deactivated but the cooking zone is still hot.

The indicator disappears when the cooking zone has cooled down.

6.7 Timer options

Count Down Timer

Use this function to specify how long a cooking zone should operate during a single cooking session.

1. Press .00 appears on the timer display.
2. Press or to set the time (00-99 minutes).
3. Press to start the timer or wait 3 seconds. The timer begins to count down.
   To change the time: select the cooking zone with and press on.

To deactivate the function: select the cooking zone with ⏻ and press . The remaining time counts back to 00.

The timer finishes counting down, a signal sounds and 00 blinks. The cooking zone deactivates. Press any symbol to stop the signal and blinking.

Minute Minder

1. Press ⏻
2. Press or to set the time.
   The timer finishes counting down, a signal sounds and 00 blinks. Press any symbol to stop the signal and blinking.

To deactivate the function: press ⏻ and —. The remaining time counts back to 00.

6.8 Power management

If multiple zones are active and the consumed power exceeds the limitation of the power supply, this function divides the available power between all cooking zones. The hob controls heat settings to protect the fuses of the house installation.

• If the hob reaches the limit of maximum available power (refer to the rating plate), the power of the cooking zones will be automatically reduced.
• The heat setting of the cooking zone selected first is always prioritised. The remaining power will be divided between the other cooking zones according to the order of selection.
• For cooking zones that have a reduced power, the control bar blinks and shows the maximum possible heat settings.
• Wait until the display stops flashing or reduce the heat setting of the cooking zone selected last. The cooking zones will continue operating with the reduced heat setting. Change the heat settings of the cooking zones manually, if necessary.

6.9 Menu structure

The table shows the basic menu structure.

User settings

Symbol	Setting Possible options
b Sound On / Off (--)
P Power limitation 15 - 73
H Hood mode 0 - 6
E Alarm / error history	The list of recent alarms / errors.

To enter user settings: press and hold ① for 3 seconds. Then, press and hold ⏻The settings appear on the timer of the left cooking zones.

Navigating the menu: the menu consists of the setting symbol and a value. The symbol appears on the rear timer and the value appears on the front timer. To navigate between the settings press ⏻ on the front

timer. To change the setting value press + or on the front timer.

To exit the menu: press ①.

OffSound Control

You can activate / deactivate the sounds in the Menu > User settings.

Refer to "Menu structure".

When the sounds are off you can still hear the sound when:

• you touch, ①
  • the timer comes down,
• you press an inactive symbol.

7. ADDITIONAL FUNCTIONS

7.1 Automatic Switch Off

The function deactivates the hob automatically if:

• all of the cooking zones are deactivated,
• you do not set any heat setting or fan speed setting after the activation of the hob,
• you spill something or put something on the control panel for more than 10 seconds (a pan, a cloth, etc.). A signal sounds and the hob deactivates. Remove the object or clean the control panel.
• the appliance gets too hot (e.g. when a saucepan boils dry). Let the cooking zone cool down before you use the hob again.
• you do not deactivate a cooking zone or change the heat setting. After some time, the hob deactivates.

The relation between the heat setting and the time after which the appliance deactivates:

Heat setting The hob deactivates after

1 - 2 6 hours

3 - 4 5 hours

5 4 hours

6 - 9 1.5 hours

7.2 Pause

This function sets all operating cooking zones to the lowest heat setting.

When the function operates, and can be used. All other symbols on the control panels are locked.

The function does not stop the timer functions.

1. To activate the function: press ||. The heat setting is lowered to 1.
2. To deactivate the function: press . || The previous heat setting appears.

7.3 Lock

You can lock the control panel while the hob operates. It prevents an accidental change of the heat setting.

Set the heat setting first.

To activate the function: press 🔒. To deactivate the function: press 🔒 again.

The function deactivates as you deactivate the hob.

7.4 Child Safety Device

This function prevents an accidental operation of the hob.

To activate the function: press ⒶDo not set any heat setting. Press and hold ⏰for 3 seconds, until the indicator above the symbol appears. Deactivate the hob with Ⓐ

The function stays active when you deactivate the hob. The indicator above 🔒 is on.

To deactivate the function: press ①Do not set any heat setting. Press and hold 🔒 for 3 seconds, until the indicator above the symbol disappears. Deactivate the hob with ①.

Cooking with the function activated: press ①, then press for 3 seconds, until the indicator above the symbol disappears. You can operate the hob. When you deactivate the hob with the function operates again.

7.5 Bridge

The function operates when the pot covers the centres of the two zones. For more information on the correct placement of cookware refer to "Using the cooking zones".

This function connects two right side cooking zones and they operate as one.

First set the heat setting for one of the right side cooking zones.

To activate the function: touch ■ To set or change the heat setting touch one of the control sensors.

To deactivate the function: touch ■The cooking zones operate independently.

7.6 Flexible induction cooking area

WARNING!

Refer to Safety chapters.

FlexiBridge function

The flexible induction cooking area consists of four sections. The sections can be combined into two cooking zones with different size, or into one large cooking area.

You choose the combination of the sections by choosing the mode applicable to the size of the cookware you want to use. There are three modes: Standard, Big Bridge, and Max Bridge.

To set the heat setting use the two control bars on the left side.

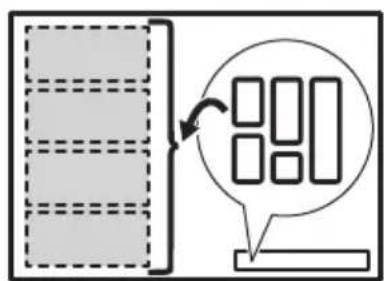

Switching between the modes

To switch between the modes press 0.5 The heat setting levels will be kept.


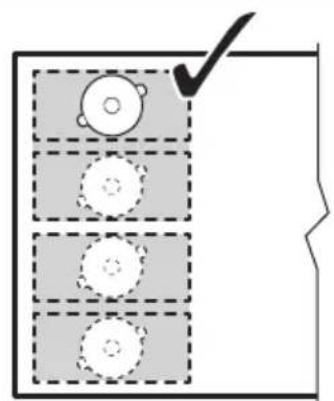

Diameter and position of the cookware

Choose the mode applicable to the size and the shape of the cookware. The cookware should cover the selected area as much as possible.

Place the cookware with the bottom diameter smaller than 160 mm centrally on a single section. You can use a roaster pan for the Big Bridge and the Max Bridge modes.

Simple diagram of a checklist with three circular items and a checkmark (no text or labels)

100-160mm

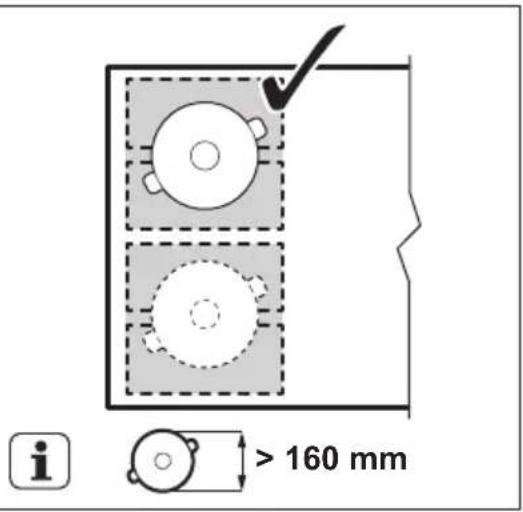

Place the cookware with the bottom diameter larger than 160 mm centrally between two sections.

i > 160 mm

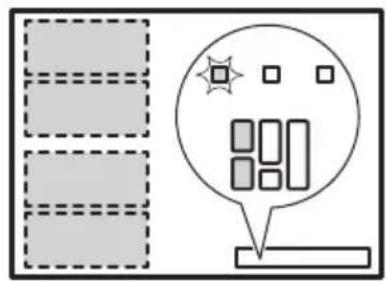

FlexiBridge Standard mode

This mode is activated by default when you activate the function. It connects the sections into two separate cooking areas. You can set the heat setting for each area separately. Use the two control bars on the left side.

Diagram showing a grid layout with dashed boxes and a speech bubble containing rectangular blocks, including a star symbol and a speech bubble with numbers.

Correct cookware position:

Diagram showing three panels of a device with circular components and checkmarks, likely illustrating a selection or status comparison.

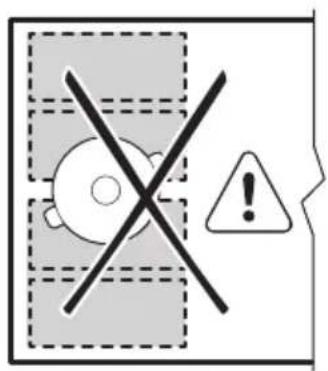

Incorrect cookware position:

Warning sign with crossed-out symbol and exclamation mark, indicating no clear safety or hazard

FlexiBridge Big Bridge mode

To activate the mode press until you see the correct mode indicator This mode connects the three rear sections into one cooking area. The front section is not connected and operates as a separate cooking zone. You can set the heat setting for each area separately. Use the two control bars on the left side.

Diagram showing a grid with dashed borders and a circular icon containing a 8:10 display, likely representing a digital interface or status.

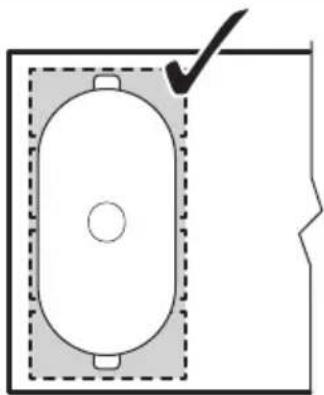

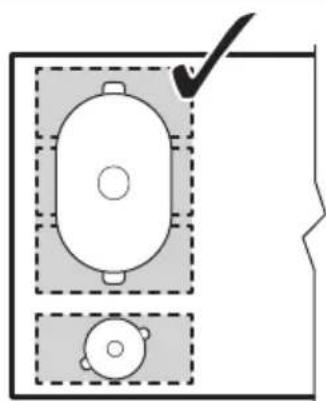

Correct cookware position:

Make sure to place the cookware on the three connected sections. If you use cookware smaller than two sections the control bar blinks and after 2 minutes the zone deactivates.

Top-down diagram of a room layout with an oval object and two smaller circular objects, no text or symbols present.

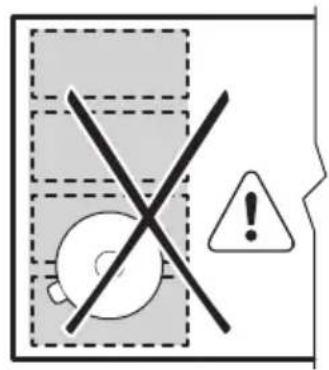

Incorrect cookware position:

Safety warning sign with crossed-out triangle and exclamation mark, indicating no intersection or explosion

Warning sign with cross symbol, warning triangle, and question mark, indicating incorrect safety or hazard

FlexiBridge Max Bridge mode

To activate the mode press until you see the correct mode indicator. This mode connects all sections into one cooking area. To set the heat setting use any of the two control bars on the left side.

Diagram showing a grid with dashed lines and a speech bubble containing rectangular blocks, alongside a star symbol.

Correct cookware position:

Make sure to place the cookware on the four connected sections. If you use cookware smaller than three sections the control bar blinks and after 2 minutes the zone switches off.

Simple line drawing of a rectangular room with a central circular element and a checkmark on the wall (no text or symbols)

Incorrect cookware position:

Warning sign with crossed-out circle, exclamation mark, and warning triangle

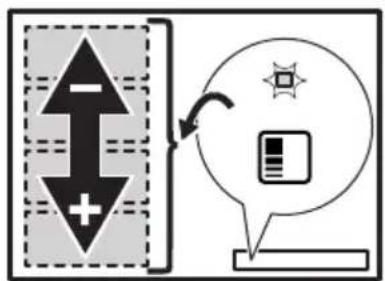

PowerSlide

This function allows you to adjust the temperature by moving the cookware to a different position on the induction cooking area.

• The function divides the induction cooking area into three areas with different heat settings. The hob detects the position of the cookware and adjusts the heat setting corresponding with the position.
• You can place the cookware in the front, middle or rear position. If you place the cookware in the front you get the highest heat setting. To decrease it, move the cookware to middle or rear position.
• When you activate the function for the first time you will get the following default heat settings: 9 for the front position, 6 for the middle position and 3 for the rear position.
• You can change the heat settings for each position separately. The hob will remember your heat settings next time you activate the function.
• The heat setting display of the left front control bar shows the heat setting for this function. To change the heat setting use the left front control bar only. The left rear control bar is deactivated while the function operates.

i

Use only one pot with a minimum bottom diameter of 160 mm when you operate the function.

1. Place the correct cookware on the left front side of the cooking area.
2. Press and hold to activate the hob.

A signal sounds and indicators above ① and ② appear.

1. Press ☐ to activate the function.
   A signal sounds and an indicator above the symbol appears.
2. Move the cookware back and forth on the cooking area as needed. To change the position of the cookware lift it up and place it on a different part of the area. Do not slide the cookware as it may cause scratches and discolouration of the surface.

The heat setting level on the control bar adjusts automatically.

1. To change the default heat setting levels, move the cookware to the area you want to adjust first.
2. Press any of the available heat setting levels on the left front control bar.

The updated heat setting levels will be remembered for the next time you use the function.

1. Repeat the procedure for the remaining cooking areas, if needed.
2. To deactivate the function, press 📄. You can also press 0 on the left front control bar.

A signal sounds and the indicator above the symbol disappears. The heat setting level changes to 0.

You can set a timer while PowerSlide operates. In this case the timer does not deactivate the cooking zones when the set time runs out. The timer affects all three cooking areas activated by the function at the same time.

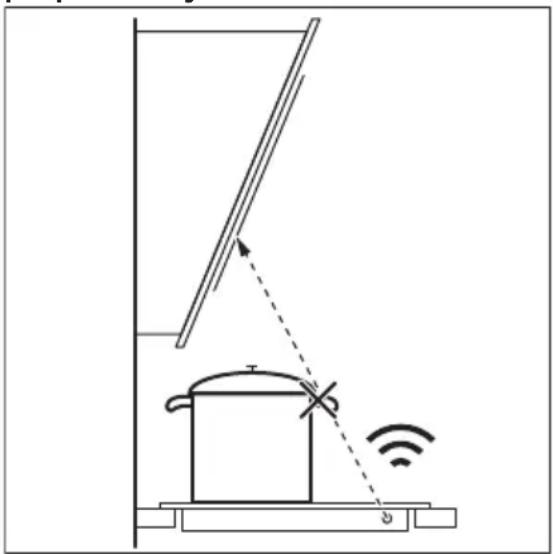

7.7 Hob ^2 Hood

It is an advanced automatic function which connects the hob to a special hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan from the hob manually.

i

For most of the hoods the remote system is originally deactivated. Activate it before you use the function. For more information refer to hood user manual.

Operating the function automatically

To operate the function automatically set the automatic mode to H1 – H6. The hob is originally set to H5. The hood reacts whenever you operate the hob. The hob recognizes temperature of the cookware automatically and adjusts the speed of the fan.

Automatic modes

Automat- ic light		Boiling1)	Frying2)
H0 Off Off Off
H1 On Off Off
H23)	On Fan speed	1	Fan speed 1
H3 On Off Fan speed			1
H4 On Fan speed		1	Fan speed 1
H5 On Fan speed		1	Fan speed 2
H6 On Fan speed		2	Fan speed 3

1) The hob detects the boiling process and activates fan speed in accordance with automatic mode.

2) The hob detects the frying process and activates fan speed in accordance with automatic mode.

3) This mode activates the fan and the light and does not rely on the temperature.

Changing the automatic mode

1. Deactivate the hob.

2. Press for 3 seconds. The display comes on and goes off.

3. Press for 3 seconds.
4. Press ⏻ a few times until H comes on.
5. Press of the timer to select an automatic mode.

i

To operate the hood directly on the hood panel deactivate the automatic mode of the function.

i

When you finish cooking and deactivate the hob, the hood fan may still operate for a certain period of time. After that time the system deactivates the fan automatically and prevents you from accidental activation of the fan for the next 30 seconds.

Operating the fan speed manually

You can also operate the function manually.

To do that press when the hob is active.

This deactivates automatic operation of the function and allows you to change the fan speed manually. When you press AUTO you raise the fan speed by one. When you reach an intensive level and press AUTO again you will set fan speed to 0 which deactivates the hood fan. To start the fan again with fan speed 1 press AUTO

i

To activate automatic operation of the function, deactivate the hob and activate it again.

Activating the light

You can set the hob to activate the light automatically whenever you activate the hob. To do so set the automatic mode to H1 – H6.

i

The light on the hood deactivates 2 minutes after deactivating the hob.

8. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

8.1 Cookware

i

For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.

Use the induction cooking zones with suitable cookware.

• To prevent overheating and improve the performance of the zones, the cookware must be as thick and flat as possible.
- Ensure cookware bases are clean and dry before placing on the hob surface.
• Always be careful no to slide or rub the cookware on the edges and corners of the glass as it may chip or damage the glass surface.

Cookware material

• correct: cast iron, steel, enamelled steel, stainless steel, multi-layer bottom (with a correct marking from a manufacturer).
• not correct: aluminium, copper, brass, glass, ceramic, porcelain.

Cookware is suitable for an induction hob if:

• water boils very quickly on a zone set to the highest heat setting.

- a magnet pulls on to the bottom of the cookware.

Cookware dimensions

- Induction cooking zones adapt to the dimension of the bottom of the cookware automatically. Place the cookware in the centre of the selected cooking zone.

- The cooking zone efficiency is related to the diameter of the cookware. To ensure optimal heat transfer use cookware with diameter similar to the size of a given cooking zone, no larger and no smaller

than recommended. To check the recommended cookware diameter refer to "Technical data" > "Cooking zones specification".

– Cookware with a diameter smaller than the declared minimum receives only part of the power generated by the cooking zone which results in slower heating.
- For both safety reasons and optimal cooking results, do not use cookware larger than indicated in "Cooking zones specification". Avoid keeping cookware close to the control panel during the cooking session. This might impact the functioning of the control panel or accidentally activate hob functions.

Refer to "Technical data".

8.2 Noises during operation

If you can hear:

• crack noise: cookware is made of different materials (a sandwich construction).
  • whistle sound: you use a cooking zone with a high power level and the cookware

is made of different materials (a sandwich construction).

• humming: you use a high power level.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
  The noises are normal and do not indicate any malfunction.

8.3 Öko Timer (Eco Timer)

To save energy, the heater of the cooking zone deactivates before the count down timer sounds. The difference in the operation time depends on the heat setting level and the length of the cooking operation.

8.4 Simplified cooking guide

The correlation between the heat setting of a zone and its consumption of power is not linear. When you increase the heat setting, it is not proportional to the increase of the consumption of power. It means that a cooking zone with the medium heat setting uses less than a half of its power.

The data in the table is for guidance only.

Heat setting Use to: Time	(min)	Hints
1 Keep cooked food warm. as neces-	sary	Put a lid on the cookware.
1 - 2 Hollandaise sauce; melt: butter, choco-late, gelatine.		5 - 25 Mix from time to time.
2 Solidify: fluffy omelettes, baked eggs. 10 - 40 Cook with a lid on.
2 - 3 Simmer rice and milk-based dishes,heat up ready-cooked meals.		25 - 50 Add at least twice as much liquid as rice, mix milk dishes halfway through the procedure.
3 - 4 Stew vegetables, fish, meat. 20 - 45 Add a few tablespoons of water.		Check the water amount during the process.
4 - 5 Steam potatoes and other vegetables. 20 - 60 Cover the bottom of the pot with 1-2cm of water. Check the water level during the process. Keep the lid on the pot.
4 - 5 Cook larger quantities of food, stews and soups.		60 - 150 Up to 3 l of liquid plus ingredients.
Heat setting Use to: Time		Hints (min)
6 - 7 Gentle fry: escalope, veal cordon bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts.		as necessary	Turn over when needed.
7 - 8 Heavy fry, hash browns, loin steaks, steaks.		5 - 15 Turn over when needed.
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
P	Boil large quantities of water. PowerBoost is activated.

8.5 Hints and tips for Hob ^2 Hood

When you operate the hob with the function:

• Protect the hood panel from direct sunlight.
• Do not spot halogen light on the hood panel.
• Do not cover the hob control panel.
• Do not interrupt the signal between the hob and the hood (e.g. with the hand, a cookware handle or a tall pot). See the picture.

The hood pictured below is for illustration purpose only.

Diagram of a smart heating or monitoring system with a lever, pot, and Wi-Fi signal (no text or symbols)

Other remotely controlled appliances may block the signal. Do not use any such appliances near to the hob while Hob ^2 Hood is on.

Cooker hoods with the Hob ^2 Hood function

To find the full range of cooker hoods which work with this function refer to our consumer website. The AEG cooker hoods that work with this function must have the symbol AUTO.

9. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

9.1 General information

• Clean the hob after each use.
  • Always use cookware with a clean base.

• Scratches or dark stains on the surface have no effect on how the hob operates.

• Use a special cleaning agent suitable for the surface of the hob.

• Always use a scraper recommended for hobs with a glass surface. Use the scraper only as an additional tool for cleaning the glass after the standard cleaning procedure.

WARNING!

Do not use knives or any other sharp, metal tools to clean the glass surface.

The printing on the flexible induction cooking area may become dirty or change its colour as an effect of moving the cookware. You can clean the area in the described way.

9.2 Cleaning the hob

• Remove immediately: melted plastic, plastic foil, salt, sugar and food with sugar, otherwise, the dirt can cause damage to the hob. Take care to avoid burns. Use a special hob scraper on the glass surface at an acute angle and move the blade on the surface.
• Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and a non-abrasive detergent. After cleaning, wipe the hob dry with a soft cloth.
• Remove shiny metallic discoloration: use a solution of water with vinegar and clean the glass surface with a cloth.

10. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

10.1 What to do if...

Problem Possible cause Remedy
You cannot activate or operate the hob.	The hob is not connected to an electrical supply or it is connected incorrectly.	Check if the hob is correctly connected to the electrical supply.
The fuse is blown. Make sure that the fuse is the cause of		the malfunction. If the fuse is blown again and again, contact a qualified electrician.
You did not set the heat setting for 60 seconds.		Activate the hob again and set the heat setting in less than 60 seconds.
You touched 2 or more sensor fields at the same time.		Touch only one sensor field.
Pause operates. Refer to "Pause".
There is water or fat stains on the control panel.		Clean the control panel.
You can hear a constant beep noise.	The electrical connection is incorrect.	Disconnect the hob from the electrical supply. Ask a qualified electrician to check the installation.
You cannot select the maximum heat setting for one of the cooking zones.	The other zones consume the maximum available power.Your hob works properly.	Reduce the heat setting of the other cooking zones connected to the same phase. Refer to "Power management".
An acoustic signal sounds and the hob deactivates.An acoustic signal sounds when the hob is deactivated.	You put something on one or more sensor fields.	Remove the object from the sensor fields.
The hob deactivates. You put something on the sensor field ➀	Remove the object from the sensor field.
Residual heat indicator does not come on.	The zone is not hot because it operated only for a short time or the sensor is damaged.	If the zone operated sufficiently long to be hot, speak to an Authorised Service Centre.
Hob2Hood does not work. You covered the control panel. Remove the object from the control panel.
You use a very tall pot which blocks the signal.	Use a smaller pot, change the cooking zone or operate the hood manually.
There is no sound when you touch the panel sensor fields.	The sounds are deactivated. Activate the sounds. Refer to "Daily use".
The flexible induction cooking area does not heat up the cookware.	The cookware is in a wrong position on the flexible induction cooking area.	Place the cookware in the correct position on the flexible induction cooking area. The position of the cookware depends on the activated function or function mode. Refer to "Flexible induction cooking area".
The diameter of the bottom of the cookware is incorrect for the activated function or function mode.	Use cookware with a diameter applicable to the activated function or function mode. Refer to "Flexible induction cooking area".
The indicator above the symbol comes on.	Child Safety Device or Lock operates.	Refer to "Child Safety Device" and "Lock".
The control bar blinks. There is no cookware on the zone or the zone is not fully covered.	Put cookware on the zone so that it fully covers the cooking zone.
The cookware is unsuitable. Use cookware suitable for induction hobs. Refer to "Hints and tips".
The diameter of the bottom of the cookware is too small for the zone.	Use cookware with correct dimensions. Refer to "Technical data".
FlexiBridge (Flexible Bridge) operates. One or more sections of the function mode which operates are not covered by the cookware.	Place the cookware on the correct number of sections of the function mode which operates or change the function mode. Refer to "Flexible induction cooking area".
PowerSlide operates. Two pots are placed on the flexible induction cooking area or the cookware covers more than one cooking area activated by the function.	Use only one pot. Refer to "Flexible induction cooking area".

Problem Possible cause Remedy

and a number come on.

There is an error in the hob. Deactivate the hob and activate it

again after 30 seconds. If comes on again, disconnect the hob from the electrical supply. After 30 seconds, connect the hob again. If the problem continues, speak to an Authorised Service Centre.

10.2 If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Make sure, you operated the hob correctly. If not the servicing by a service

technician or dealer will not be free of charge, also during the warranty period. The information about guarantee period and Authorised Service Centres are in the guarantee booklet.

11. TECHNICAL DATA

11.1 Rating plate

Model TI64IG00FB PNC 949 598 166 00

Typ 62 B4A 09 AA 220 - 240 V / 400 V 2N, 50 Hz

Induction 7.35 kW Made in: Germany

Ser.Nr. 7.35 kW

AEG

11.2 Cooking zones specification

Cooking zone Nominal power (maximum heat setting) [W]	PowerBoost [W]	PowerBoost maximum dura- tion [min]	Cookware diame- ter [mm]
Right front 2300 3200 10 145 - 265
Right rear 2300 3200 10 145 - 265
Flexible induction cooking area	2300 3200 10 minimum 105

The power of the cooking zones can be different in some small range from the data in the table. It changes with the material and dimensions of the cookware.

For optimal cooking results use cookware no larger than the diameter in the table.

12. ENERGY EFFICIENCY

12.1 Product Information

Model identification TI64IG00FB
Type of hob Built-In Hob
Number of cooking areas 2
Heating technology Induction
Length (L) and width (W) of the cooking area Left L 45.8 cm	W 21.4 cm
Length (L) and width (W) of the cooking area Right L 36.8 cm	W 26.5 cm
Energy consumption of the cooking area (EC electric cooking)	Left 191.1 Wh/kg
Energy consumption of the cooking area (EC electric cooking)	Right 182.9 Wh/kg
Energy consumption of the hob (EC electric hob) 187.0 Wh/kg

IEC / EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance.

12.2 Energy saving

You can save energy during everyday cooking if you follow the hints below.

• When you heat up water, use only the amount you need.
• If it is possible, always put the lids on the cookware.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

13. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

How to install your AEG Induction Hob - Worktop installation

4. TUOTEKUVAUS

Two technical diagrams showing circular components inside rectangular chambers, one with a checkmark and the other with an arrow (no text or symbols)

Two warning symbols with crosshair and warning triangle, one containing a circular symbol with a minus sign and the other a circle with an exclamation mark.

6.4 Tehoasetus

0 1 2 5 6 7 8 9 P

Diagram showing a vertical panel with three rows of circular components and a checkmark in the top-right corner (no text or symbols)

100-160mm

Simple diagram showing two circular objects inside a square with a checkmark and dashed lines, no text or symbols present.

160 mm

FlexiBridge Standarditila

Diagram showing a grid layout with dashed boxes and a speech bubble containing rectangular blocks, including a star symbol and a speech bubble with numbers.

Diagram showing three panels of a device with circular components and checkmarks, likely illustrating a selection or status setup.

Warning sign with crossed-out circle and exclamation mark, indicating no clear safety or hazard

FlexiBridge Big Bridge -tila

Diagram showing a grid layout with dashed boxes and a circular icon containing a 8:10 display, alongside a pointer pointing to the 8:10 value.

Top-down diagram of a room layout with two circular objects and a checkmark pointing to a central oval (no text or symbols)

Safety warning sign with crossed-out circle, triangle, and exclamation mark symbol

Warning sign with cross symbol and warning triangle, indicating no clear safety or hazard

FlexiBridge Max Bridge -tila

Diagram showing a grid with dashed lines and a speech bubble containing rectangular blocks, alongside a star symbol.

Simple line drawing of a rectangular room with a central circular element and a checkmark on the wall (no text or symbols)

Warning sign with crossed-out circle and exclamation mark, indicating no intersection or explosion

PowerSlide

Diagram of a cooking pot with a lever and sensor signal, no text or symbols present

How to install your AEG Induction Hob - Worktop installation

4. DESCRIPTION DE L'APPAREIL

Two technical diagrams showing circular components inside rectangular chambers, one with a checkmark and the other with a checkmark (no text or symbols)

Two warning symbols: a cross symbol inside a container and a circle with cross on top, both marked with an exclamation mark.

Pure diagram of a checklist with three rows and a checkmark, no text or symbols present

100-160mm

Diagram showing a grid layout with dashed boxes and a speech bubble containing rectangular blocks, likely representing a digital interface or layout.

Diagram showing three panels of a device with four circular components, each marked with a checkmark and dashed lines indicating selection or status.

Warning sign with cross symbol and warning triangle, indicating no hazard or absence of a device

FlexiBridge Mode Big Bridge

Diagram showing a grid layout with dashed boxes and a speech bubble containing rectangular blocks, likely representing a UI or interface element.

Top-down diagram of a room layout with two furniture units and a checkmark indicating a detail (no text or symbols)

Safety warning sign with crossed-out circle, triangle, and exclamation mark

Warning sign with cross symbol and warning triangle, containing a question mark and exclamation mark

FlexiBridge Mode Max Bridge

Diagram showing a grid layout with dashed boxes and a circular icon containing rectangular blocks, alongside a speech bubble with a star symbol.

Simple line drawing of a rectangular room with a central circular element and a checkmark on the wall (no text or symbols)

Warning sign with crossed-out circle and exclamation mark, indicating no intersection or absence of warning

PowerSlide

Diagram of a cooking pot setup with a lever and sensor, showing no text or symbols

NL N N L1 L2

N L1 L2

N L

220 - 240 V\~

Tveggja-fasa tenging: 400 V2N\~ Eins-fasa tenging: 220 - 240 V\~

5x1,5 mm² 5x1,5 mm² eða 4x2,5 mm² 5x1,5 mm² eða 3x4 mm²

How to install your AEG Induction Hob - Worktop installation

4. VÖRULÝSING

4.1 Uppsetning eldunarhellu

Two technical diagrams showing circular components inside rectangular chambers, one with a checkmark and the other with an arrow (no text or symbols)

Two warning symbols with crosshair and warning triangle, indicating incorrect safety or hazard conditions.

6.4 Hitastilling

0 1 2 5 6 7 8 9 P

Diagram showing a checklist with three circular items and a checkmark, likely for checklist or selection.

100-160mm

Simple line drawing of a pot and a washer in a container, with no text or symbols present.

160 mm

Diagram showing a grid layout with dashed boxes and a circular icon containing rectangular blocks and a star, likely representing a digital display or interface.

Diagram showing three groups of circular objects with checkmarks, likely illustrating a counting or classification exercise.

Warning sign with cross symbol and warning triangle, indicating no hazard or absence of a device

FlexiBridge Big Bridge-stilling

Diagram showing a grid layout with dashed boxes and a speech bubble containing 8 blocks, likely representing a digital interface or UI element.

Top-down diagram of a room layout with a central oval object and two smaller circular objects, no text or symbols present.

Safety warning sign showing crossed safety symbols and warning labels in two scenarios

FlexiBridge Max Bridge stilling

Diagram showing a grid with dashed boxes and a speech bubble containing rectangular blocks, alongside a star symbol.

Simple line drawing of a rectangular room with an oval interior and a checkmark on the wall (no text or symbols)

Warning sign with crossed-out circle, exclamation mark, and warning triangle

PowerSlide

Diagram of a cooking pot with a lever and sensor signal, no text or symbols present

How to install your AEG Induction Hob - Worktop installation

4. PRODUKTBESKRIVELSE

Two technical diagrams showing circular components inside rectangular chambers, one with a checkmark and the other with an arrow (no text or symbols)

Safety warning symbols for emergency exit, showing no text, a cross symbol, and warning indicators

6.4 Varmeinnstilling

0 1 2 5 6 7 8 9 P

Simple diagram of a checklist with a checkmark and three circular items, no text or symbols present.

100-160mm

Diagram showing a grid layout with dashed boxes and a circular icon containing rectangular blocks and a star symbol, likely representing a digital display or interface.

Diagram showing three groups of circular objects in grids with checkmarks, likely illustrating a selection or grouping scenario.

Warning sign with crossed-out symbol and exclamation mark, indicating no clear safety or hazard

FlexiBridge Big Bridge-modus

Diagram showing a grid layout with dashed boxes and a speech bubble containing 8:10 blocks, alongside a star symbol.

Top-down diagram of a room layout with two furniture units and a checkmark (no text or symbols)

Safety warning sign with crossed-out triangle and warning symbol

Warning sign with cross symbol, question mark, and warning triangle

FlexiBridge Max Bridge-modus

Diagram showing a grid with dashed borders and a speech bubble containing rectangular blocks, alongside a star symbol and a speech bubble pointing to a blank rectangular box.

Simple line drawing of a rectangular room with a central circular opening and a checkmark on the wall (no text or symbols)

Warning sign with crossed-out circle, exclamation mark, and warning triangle

PowerSlide

Diagram of a cooking pot setup with a lever and sensor, showing no text or symbols

Andre fjernstyrte produkter kan blokkere signalet. Bruk ikke slike produkter i nærheten av platetoppen mens Hob²Hood er på.

How to install your AEG Induction Hob - Worktop installation

4. PRODUKTBESKRIVNING

4.1 Hällens layout

Two technical diagrams showing circular components inside rectangular chambers, one with a checkmark and the other with an arrow (no text or symbols)

Two safety warning symbols: a warning sign with cross and warning symbol inside a shield frame, and a circular warning sign with cross and warning symbol inside a triangle frame.

Simple diagram of a checklist with three rows and a checkmark on top (no text or symbols)

100-160mm

Diagram with geometric shapes and a speech bubble containing Chinese characters, likely representing a UI or layout concept.

Diagram showing three groups of four identical circles with checkmarks, likely representing a counting or selection task.

Warning sign with crossed-out circle and exclamation mark, indicating no liability or failure

FlexiBridge Big Bridge-läge

Diagram showing a layout with dashed boxes and a circular icon containing rectangular blocks, possibly representing a digital interface or layout.

Top-down diagram of a room layout with two furniture units and a checkmark on the wall (no text or symbols)

Safety warning sign with crossed-out circle, warning triangle, and exclamation mark

Warning sign with cross symbol, question mark, and warning triangle

FlexiBridge Max Bridge-läge

Diagram showing a grid layout with dashed boxes and a speech bubble containing rectangular blocks, alongside a star symbol.

Simple line drawing of a rectangular room with a central circular feature and a checkmark on the wall (no text or symbols)

Warning sign with crossed-out circle and exclamation mark, indicating no intersection or absence of warning.

PowerSlide

8.2 Buller under drift

Om du kan höra:

Diagram of a smart air lift with a pot and signal icon, no text or symbols present

i
