MHI-1100 Notes on using the operating manual

Please read this manual carefully before installing and starting up the device and store it in a safe place. If the device is resold, this operating manual must be handed over to the purchaser along with the device.

Contents

1 Notes on using the operating manual 11
2 Safety and installation instructions. 12
3 Scope of delivery 13
4 Intended use 13
5 Technical description 14
6 Using the interior heater. 14
7 Guarantee 15
8 Troubleshooting 15
9 Disposal 16
10 Technical data 16

1 Notes on using the operating manual

Caution

Safety instruction: Failure to observe this instruction can cause material damage and impair the function of the device.

Caution

Safety instruction relating to a danger from an electrical current or voltage. Failure to observe this instruction could cause material damage or personal injury and impair the function of the device.

Note

Supplementary information on operating the device.

▶ Action: This symbol indicates that action is required on your part. The required action is described step-by-step.

√This symbol describes the result of an action.

Please observe the following safety instructions.

Safety and installation instructions MHI-1100

2 Safety and installation instructions

Attention!

WAECO International will not be held liable for claims for damage resulting from the following:

– Damage to the device resulting from mechanical influences and excess voltage
– Alterations to the device made without the explicit permission of WAECO International
- Use for purposes other than those described in the operating manual

• Do not operate the device if it is visibly damaged.
• The device may not be used by people whose sensitivity to warmth is restricted in any way.
• This device may only be repaired by qualified personnel. Inadequate repairs can lead to considerable hazards.
• Do not open the housing of the device under any circumstances!

● Electrical devices are not toys!

Keep electrical devices out of reach of children. Do not let them use the devices without supervision.

- Check that the voltage specification on the type plate is the same as that of the power supply.

● Never pull the plug out of the socket by the cable.

- Disconnect the connection cable – before cleaning and maintenance – and after use

- Caution – Danger of fatal injury from electric shocks!

Do not touch exposed cables with your bare hands.

- Before starting the device, ensure that the power supply line and the plug are dry.

MHI-1100 Scope of delivery

2.1 Operating the device safely

- Caution – Danger of overheating!

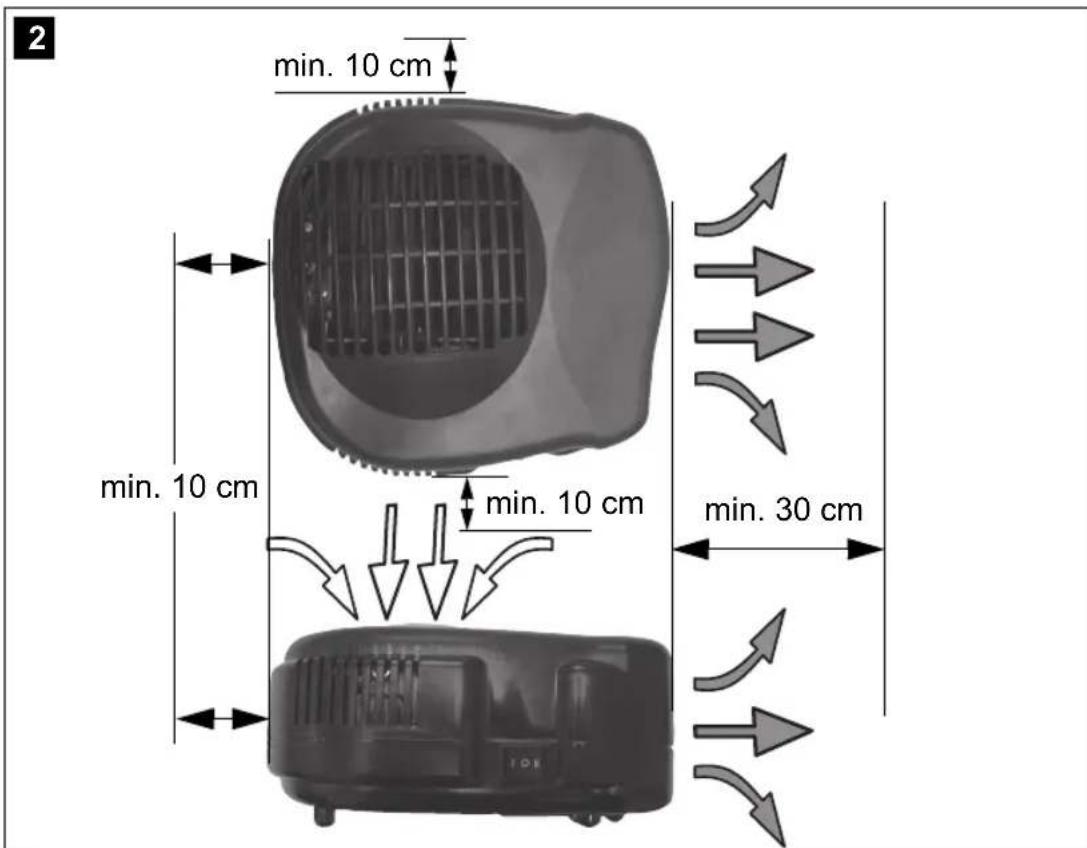

Always make sure there is sufficient ventilation so that heat generated during normal operation can dissipate. Make sure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate (see fig. 2, page 3).

- Do not operate the device near flames or other heat sources (heating, direct sunlight, gas ovens etc.).

- Never operate the device in vehicles when the engine is running.

The interior heater must be stored in such a way while driving so that it does not pose a safety risk in the event of a collision or the driver slamming on the brakes.

● Never immerse the device in water.

● Protect the device and the cable against heat and moisture.

3 Scope of delivery

Quantity Description

1 Interior heater

1 Operating manual

4 Intended use

The cartronic interior heater is for heating the vehicle interior. The device can also be used in other rooms, provided a 230 V AC power supply is available.

Attention! Danger of burns!

Do not use the interior heater for the purpose of warming persons, animals or objects directly. The device is only suitable for heating the surrounding air.

Technical description MHI-1100

5 Technical description

The cartronic 1100 W interior heater is equipped with a three-stage switch (see fig. 3, A, page 4).

The interior heater is operated with a PTC heating element that regulates the output according to the temperature of the incoming air. As soon as the vehicle interior is warm, the output and therefore also the current consumption is reduced accordingly (PTC = positive temperature coefficient).

The interior heater is equipped with an automatic overheating fuse. If this fuse shuts down, the heater must be sent to the factory to be repaired (see "Troubleshooting" chapter on page 15).

6 Using the interior heater

▶Open the bracket on the bottom of the device.

▶Place the cartronic interior heater at a suitable location in the vehicle interior (e.g. the front passenger footwell, see fig. 2, page 3).

Caution! Fire hazard!

The interior heater may not be placed on the dashboard or seats. The device must be aligned in such a way that there is sufficient free space (see fig. 2, page 3).

Note

To heat up the vehicle interior as quickly as possible, the interior heater must be positioned as low as possible in the vehicle. The warm air that comes from the blower should be set in such a way that it is not directed at the seat or any obstacles. If this happens, the outgoing warm air is reflected and sucked back into the device before the car's passenger area can be heated. That results in a reduced or even completely absent heating effect.

▶Connect the device to a 230 V AC socket using the connection cable.

MHI-1100 Guarantee

▶ Use the switch (see fig. 3, A, page 4) to select the desired heating level:

Switch position Heating capacity

0 The device is switched off.
1 The output is 550 W (measured at -20 °C).
2 The maximum output of 1100 W is established (measured at -20 °C).
The maximum output at 0 °C is 1000 W.

7 Guarantee

Our general guarantee conditions apply. If the device is defective, please contact your specialist dealer. For repair and guarantee processing, the following documents must be sent along with the device:

● a copy of the receipt with purchasing date
● a reason for the claim or description of the fault

8 Troubleshooting

Fault Possible cause Suggested remedy

The interior is cold. The interior heater does not work.	The switch is not set correctly.	Observe the "Using the interior heater" chapter on page 14.
	The plug is not inserted correctly.	Check the connections to the 230 V mains supply.
The interior is cold. The interior heater started to heat and then shut down.	The automatic overload protection has switched off the heater.	Send or bring the interior heater back to the dealer/supplier.
Interior heater blows cold air.	The heating element is defective.	Send or bring the interior heater back to the dealer/supplier.
The interior heater radiates warmth, but the fan does not work.	The fan motor is defective.	Send or bring the interior heater back to the dealer/supplier.

Disposal MHI-1100

9 Disposal

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

When you finally wish to dispose of the device, please consult the nearest recycling centre or your specialist dealer for information on the applicable disposal regulations.

10 Technical data

Supply voltage: 230 V, 50 Hz

Output: 1100 W at -20 °C

1000 W at 0 °C

Protection class: protection class II

Current consumption: 10 A

Working temperature: from -45 °C to +70 °C

Noise level: 65 dB (at a distance of 10 cm)

Cable length: 70 cm

Dimensions (L x W x H in cm): 18.5 x 18.5 x 9

Weight: 1,1 kg

Variations, technical improvements and delivery options reserved.

Approvals/certificates.

CE
