10 Operating Manual

10.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your device will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

10.2 Information on this manual

These Operating Instructions are a component of the Profi Party Pan (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning
• Operation
• Troubleshooting and/or
• Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual.

The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
• Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

11 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

11.1 Intended use

This device is only intended for use in households in enclosed spaces for warming up and cooking foods. This appliance couldn't be used as Grill or Roast appliance.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

11.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children without supervision.
▶ Do not leave the device unsupervised when it is in operation.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.

HINWEIS

▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled
▶ Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.
▶ Connector must be removed before the appliance is cleaned and that the appliance inlet must be dried before the appliance is used again.
▶ Only the appropriate connector must be used.
▶ The appliance is not intended to be operated by means of an external timer or a separate remote-control system
▶ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
- This unit couldn't be used as GRILL or ROAST appliance.

11.3 Sources of danger

11.3.1 Danger of Burning

▲WARNUNG WARNING

The items cooked on this appliance as well as the cooking utensils used and the surface of the appliance can become very hot.

Adhere to the following safety instructions in order to avoid burning or scalding yourself or others:

▶ Protect your hands during all work at the hot appliance by using heat insulating gloves, dish cloths or similar.
▶ Be cautious when lifting the frying pan lid.
▶ Do not come too close to the frying pan with your face and hands as hot steam may be produced.

11.3.2 Danger of Explosion

▲WARNUNG WARNING

Incorrect use of the appliance incurs a danger of explosion due to the overpressure produced.

Adhere to the following safety instructions in order to prevent a danger of explosion:

▶ Never heat food or liquids in sealed containers such as, for example, cans. The container can burst due to the overpressure generated.

11.3.3 Danger of Fire

▲WARNUNG WARNING

There is a risk of fire if the appliance is used incorrectly.

Adhere to the following safety instructions in order to avoid a risk of fire:

▶ During operation remove all easily inflammable items (e.g. detergents, aerosol cans, oven, cloths and dishcloths, etc.) from the immediate vicinity of the appliance.
- Avoid overheating oils and fats for extended periods. Overheated oil and fat can ignite rapidly.

11.3.4 Dangers due to electrical power

AGEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▶ If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
▶ Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not touch the appliance or the mains plug with wet hands.
▶ Do not insert objects into the openings of the appliance. There is a risk of electrocution if contact is made with voltage-carrying connections.

12 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

12.1 Safety information

▲WARNUNG Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

12.2 Delivery scope and transport inspection

As a rule, the Profi Party pan is delivered with the following components:

• Ellrona Profi Party Pan
• Operating Instructions

HINWEIS

Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

12.3 Unpacking

To unpack the device, remove the device out of the carton and remove the packaging material.

12.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS

Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.5 Setup

12.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The appliance must be positioned on a solid, even, horizontal and heat-resistant base with sufficient load-supporting capacity for the appliance itself plus the heaviest anticipated cooking contents.
• Select an installation location where children cannot reach the appliance's hot surface.
• The appliance is not intended as a built-in appliance.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• To operate correctly, the appliance requires a sufficient flow of air. Leave a 15 cm gap on all sides when setting up the appliance.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

12.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

13 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

1 2 3 4 5 6

13.1 Description of the parts

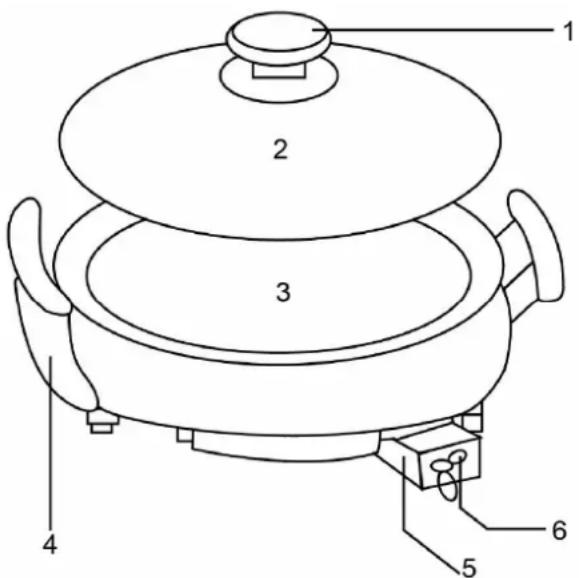

1 lid knob
2 lid
3 hotplate of the party pan
4 handle of the party pan
5 socket
6 temperature controller

a b c d e

13.2 Assembling the lid knob

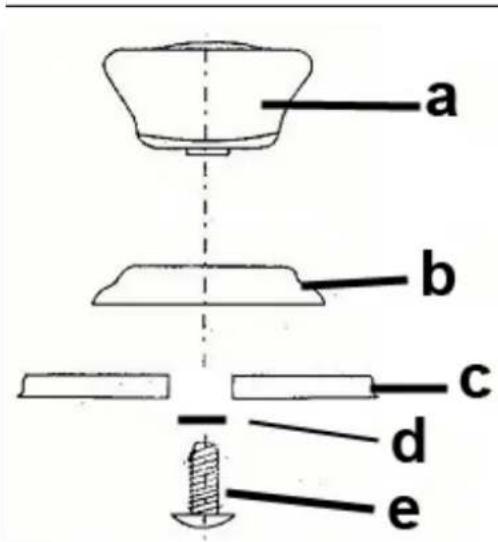

a lid knop
b plastic ring
c glass lid
d washer
e screw

HINWEIS

Please note

▶ Tighten the screw of the handle only carefully, to prevent breaking of the glass.

13.3 Automatic temperature controller

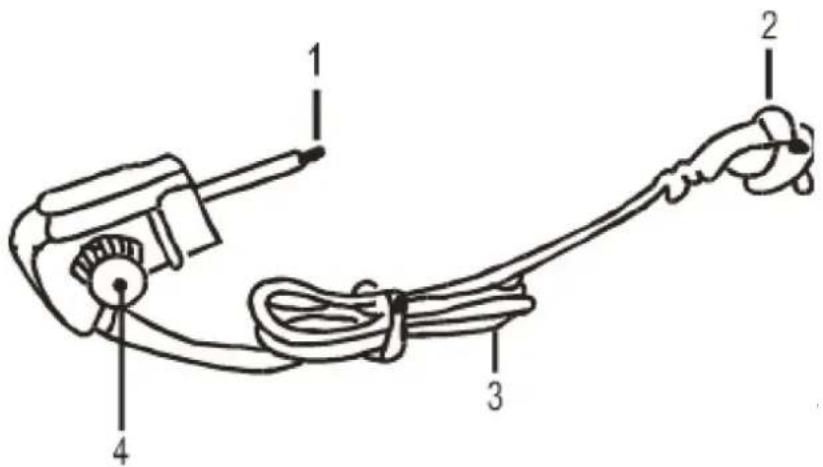

1 temperature sensor
2 electric plug
3 electric cable
4 temperature regulator

Diagram of a tool with labeled parts including a handle, cable, and adjustment knob

The automatic temperature controller is a highly sensitive part. Therefore, it

is advisable to make sure that it does not fall down, be pushed or be shaken.

Only use the automatic temperature controller which has been supplied with the appliance. Never use a different controller.

When connecting the automatic temperature controller make sure that it has been plugged in correctly. Do not pull the cable but the plug of the temperature controller. Do not handle with exaggerated force or bend.

Always keep the temperature controller and the pin of the holder clean.

Turn off and immediately stop using the automatic temperature controller in case it is damaged or overheated. Do not repair by yourself. Take the appliance to the next authorised dealer and have it repaired

Before using or removing the automatic temperature controller make sure that the scale is turned off as it may otherwise lead to overheating or failure.

13.3.1 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

14 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

⚠️WARNUNG

Warning

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

14.1 Switch-On

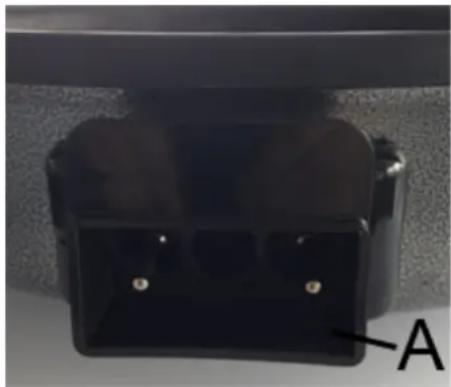

Close-up of a black plastic enclosure with mounting holes and a labeled arrow pointing to the corner (no text or symbols on the enclosure itself)

First of all put the temperature adjust scale to the position „OFF“ and then assert the automatic temperature controller in the holder “A”

If the temperature controller isn't fixed properly, a very high temperature can arise which can cause injuries or

damages to the appliance. Please ensure that the temperature controller is plugged in correctly.

Hand holding a plug inserted into an electrical socket (no text or symbols visible)

Then put the plug in a 230 volt safety-contact power outlet.

Please use the temperature adjust scale different concerning the meal you are preparing. The temperature sensor is designed to maintain the temperature.

Scale setting at the controller

OFF MIN

MIN = least temperature level = keep warm function

1-2 = temperature range up to 100^ C approx.

3-4 = temperature range up to 200°C approx.

5 = max. temperature range up to 240^ C approx.

OFF = heating is off

Caution: In position "Off" the pan can still be extremely hot over a longer period

Heating levels	Food type
1 & 2 scrambled eggs, etc.
3 & 4 pancake, etc.
5 Fry steak, fish, etc.
MIN	Keep warm

14.2 Cooking

Please wait 5 – 10 minutes after you have switched on the device. If the control light has turned out you can start with the cooking.

If the food is cooked completely you can maintain the temperature of the food by turning the temperature controller back to the position „MIN“.

• During the use of this appliance pops can occur. This is not a malfunction. Due to the thermal expansion of the heater and of the hot plate these pops arise.
• Do not lay your hand under the pan; do not lay any inflammable material on the Profi Party Pan.

14.3 Use of the lid

Use the lid to steam your food and especially for pizza, beef steak, barbecue in foil, hamburger, fried egg,

Simple line drawing of a smiling cooking pan with a side dish (no text or symbols)

pancake and other fried food. Thus you receive a very smooth taste. When roasting steam arise between hot plate and lid. Be careful when opening the lid.

14.4 After the use

Please be ensure that the temperature adjust scale is in position „OFF“ after the use.

HINWEIS

▶ Switch the appliance off after use. This avoids unnecessary use of energy, and ensures your safety.
▶ If the appliance is unused for extended periods of time, we recommend that the appliance be unplugged from the mains.

15 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.1 Safety information

▲VORSICHT

Attention

Please observe the following safety notices, before you commence with cleaning the device:

The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
▶ Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.

▲VORSICHT

Attention

The hob can be hot after use. There is a danger of burning! Wait until the appliance has cooled down. Unplug the appliance before removing the temperature controller out of the party pan.
▶ Caution: Allow the temperature controller to cool down before removing it. After the use of the hot plate it can be very hot.
▶ Clean the hob after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
▶ If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
▶ Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.
▶ Do not use a sharp metal pusher
▶ Do not cut the food with a knife on the surface.
▶ Do not put the automatic temperature controller on the hot plate. It must not come into contact with the hot plate.
▶ No cleansing agents (except liquid soap), nylon brushes or metallic brushes must be used as the surface of the hot plate could be damaged.
▶ Always clean the plate after having used it with a damp cloth as food leftovers or oil sticked to the surface could adhere or bind.

15.2 Cleaning

After the use the Profi Party Pan has to be cleaned as follows:

name	method	note
Hot plate	Remove residues from cooking, after the preparation by using a soft cloth or a tissue while the hot plate is still warm.	Do not use any cleansing agents (except liquid soap), nylon brushes or metallic brushes. The hot plate can be damaged.
Excessive dirt	After cooling down cover the holder to avoid that water enters. After that clean the hot plate with a soft cloth and a little dish liquid.	Do not submerge the hot plate in water or do not wash it with water while the plate is still hot (risk of accident and risk of injury)
Lid	Clean it with a soft sponge and with a little dish liquid.	Do not use thinner, fuel, cleansing agents (except dish liquid) or chemically treated cloths. The surface will be damaged.
Automatic temperature controller	Clean it with a soft tissue or a dry, soft cloth	In order to prevent an electric shock or a fire do not clean the construction set of the automatic temperature controller.

▲VORSICHT Attention

▶ In order not to damage the plastic components, do not use any solvent-based cleaning detergents such as, for example, petrol.

16 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not

put your old device into the non-recyclable waste under any circumstances.

Meaning of crossed –out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

HINWEIS

Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  ▶ Ensure that your old device is stored safely away from children until it is taken away.

17 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery.

All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

18 Technical Data

Device Ellrona	Profi Party Pan
Item No.: 61490
Mains data 220-240 V, 50/60 Hz
Power 1500 W (Max.)
Temperature 240°C (Max.)

Mode d'emploi

Poêle réception

Exterior view of a modern oval-shaped ceramic dish with a lid and side handles, labeled 'ellrona' (no other text or symbols visible)

Diagram of a tool with labeled parts including a handle, cable, and spring, showing numbered callouts.

Close-up of a black plastic enclosure with mounting holes and a labeled arrow pointing to the corner (no text or symbols on the enclosure itself)

Hand holding a plug inserted into an electrical socket (no text or symbols visible)

Simple line drawing of a smiling cooking pan with a side dish (no text or symbols)

Line drawing of a hand holding a circular object with an arrow, no text or symbols present

Black ceramic pot with lid and side handles, labeled 'ellrona' (no other text or symbols visible)

Istruzioni d'uso

27.1 In generale

Diagram of a tool with labeled parts including a handle, cable, and adjustment knob

Close-up of a black plastic enclosure with two small holes and a label 'A' pointing to it (no other text or symbols visible)

Simple line drawing of a smiling cooking pan with a side dish (no text or symbols)

Line drawing showing hands installing or adjusting a wall-mounted appliance with a power plug (no text or symbols)
