63210 - Kitchen scales Ellrona - Free user manual and instructions

Technical Features	Maximum capacity of 5 kg, accuracy of 1 g, backlit LCD screen, tare function, measurement units: g, oz, lb.
Usage	Ideal for weighing ingredients in the kitchen, easy to use with intuitive buttons.
Maintenance and Repair	Clean with a damp cloth, do not immerse in water, regularly check the batteries.
Safety	Use on a flat surface, do not overload beyond the maximum capacity.
General Information	Lightweight, compact design, 2-year warranty, suitable for beginners and experienced users.

Frequently Asked Questions - 63210 Ellrona

How do I calibrate my Ellrona 63210 scale?

To calibrate your scale, place a reference weight on the platform and press the "tare" button. Make sure your scale is on a flat surface before starting.

Why does my scale not display any weight?

Check that the scale is properly powered and that the platform is empty. If the problem persists, try replacing the batteries.

How do I change the measurement units on my scale?

To change the measurement units, press the "units" button until the desired unit (grams, ounces, etc.) appears on the screen.

My Ellrona 63210 scale shows an error message. What should I do?

An error message may indicate an overload or misuse. Remove all weight from the scale, turn it off, then turn it back on. If the error persists, consult the user manual.

How do I clean my scale without damaging it?

Use a soft, damp cloth to clean the surface of the scale. Avoid using abrasive chemicals or immersing the scale in water.

Are the batteries in my Ellrona 63210 scale replaceable?

Yes, the batteries in your scale are replaceable. Refer to the user manual for instructions on replacing the batteries.

What is the maximum capacity of the Ellrona 63210 scale?

The maximum capacity of the Ellrona 63210 scale is 5 kg.

My scale won't turn on, what should I do?

Make sure the batteries are installed correctly and are not depleted. Replace them with new batteries if necessary.

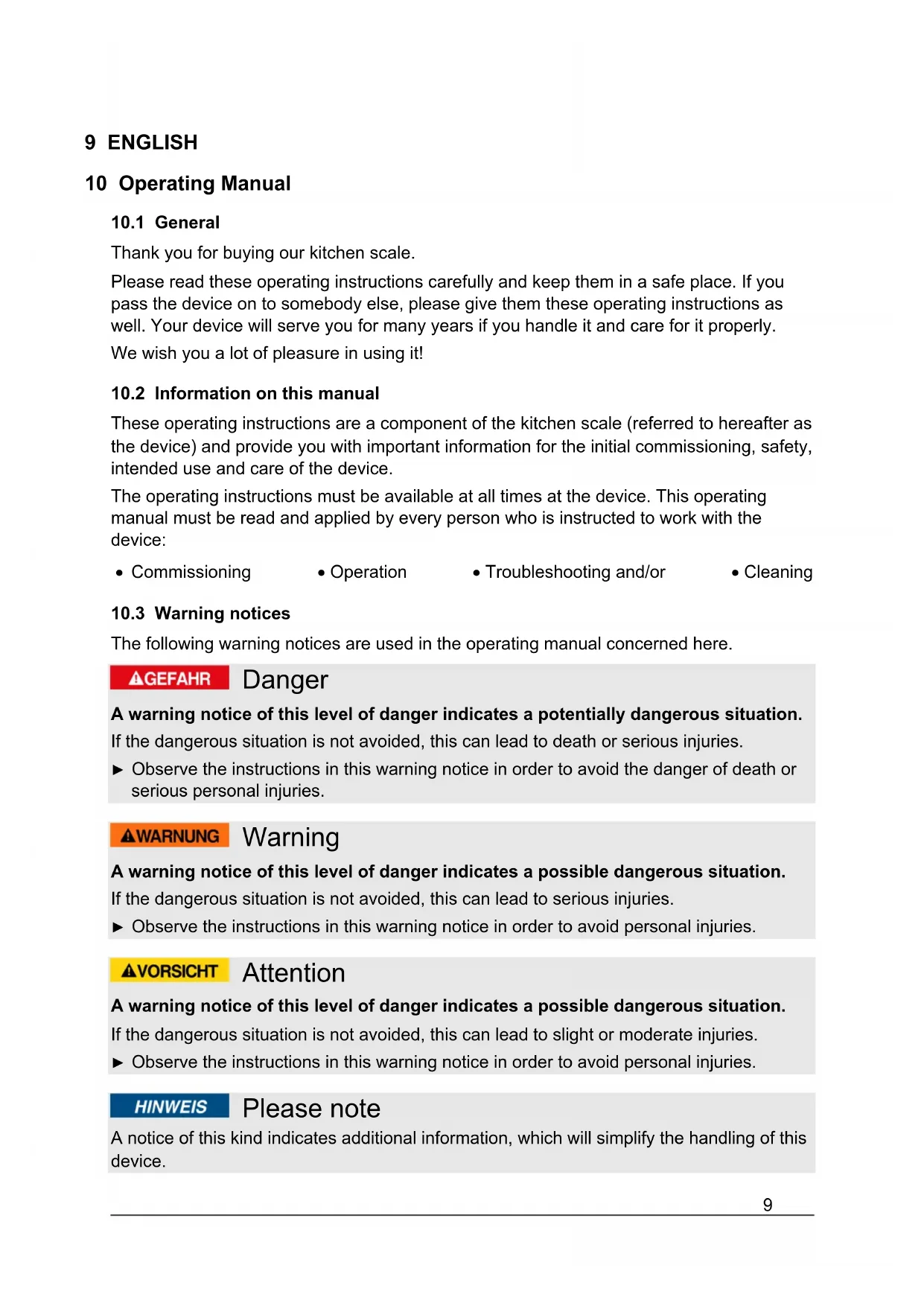

USER MANUAL 63210 Ellrona

Thank you for buying our kitchen scale. Please read these operating instructions carefully and keep them in a safe place. If you pass the device on to somebody else, please give them these operating instructions as well. Your device will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

10.2 Information on this manual

These operating instructions are a component of the kitchen scale (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The operating instructions must be available at all times at the device. This operating manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning

10.3 Warning notices

The following warning notices are used in the operating manual concerned here. Danger A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. Warning A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid personal injuries. Attention A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid personal injuries. Please note A notice of this kind indicates additional information, which will simplify the handling of this device.10

10.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observance of the manual Uses for non-intended purposes Improper repairs Technical alterations, modifications of the device Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 11 Safety This chapter provides you with important safety notices while handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for weighing food. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. This device is not suitable for medical or commercial applications; it is not officially scaled. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this operating manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The user bears the sole risk.11

11.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages before using it. Never put a damaged device into operation. ► This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ► Children shall not play with the appliance. ► Cleaning and user maintenance shall not be made by children without supervision. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► Do not throw or drop the scale, otherwise the scale is easy to damage. 12 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages.

12.1 Safety information

Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation.

12.2 Delivery scope and transport inspection

As a rule, the kitchen scale is delivered with the following components: kitchen scale battery (type CR2032) operating instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, remove the device out of the carton and remove the packaging material. Before the device is used for the first time, remove the protective strip in the battery compartment.12

12.4 Disposal of the packaging

The packaging protects the device against damages during transport. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging of the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

12.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfill the following prerequisites: The device must be set up on a firm, flat and horizontal surface with sufficient load- bearing capacity for the scale and the maximum weight of the food that should be weighed. Choose the setup location in such a way that children cannot reach the device. Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

The rating plate with the performance data can be founded on the back of the device. 13 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.

Open the battery cover and put in a battery (3V type CR2032).

13.2 Replacing the battery

When the display indicates low battery , open the battery cover which is located underneath the device and replace the battery with a new one. When inserting the battery, always observe the correct polarity. The +-symbol must face upwards. Auto switch-off occurs if the display shows “LO” because of low battery. During extended periods of non-using, always remove the battery.13

A = OFF/TARE key B = Display C = Unit key (g / oz) Place the scale onto a firm and even surface. Press on the scale to activate it, the display will show “0”. Put the ingredients in a suitable bowl or container. Place the bowl or container on the scale and the weight of food will appear on the display. Solid ingredients can be placed directly onto the scale. After weighing, press the key “OFF/TARE” and the system returns to time mode. After 60 sec of non-use, the system automatically switches back to time mode.

13.3.2 Tara function

Switch to weight mode and put the container on the scale, the display will show the weight of container. Press the key “OFF/TARE”, display shows zero and clears the weight of container. Then put the food into the container, the weight of food will appear on the display.

13.3.3 Unit exchange

When the scale is overloaded, „EEEE“ will appear on the display.

14 Cleaning and maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.14

14.1 Safety information

Attention Please observe the following safety notices, before you start to clean the device: ► The device must be cleaned and food residues must be removed at regular intervals. If the scale is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition of the device as well as in growth of fungus and bacteria. ► Never immerse the device into water and do not put it in the dishwasher. ► If dampness enters into the device, this can damage the electronic components. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items.

Wipe the housing and the display with a soft dry or slightly damp, lint-free cloth. 15 Disposal of the old device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Meaning of crossed-out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 16 Guarantee We provide a 24 month guarantee for this product, starting from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not15 responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 17 Technical data Device ELLRONA kitchen scale Item-no. 63210 Dimensions 8.07 x 5.71 x 0.67 inch Capacity
