Brand	Pelgrim
Model	AL514ZWA
Product type	Built-in oven with accessory drawer
Width	595 mm
Height	595 mm
Depth	550 mm
Power supply	Electric
Maximum drawer load	30 kg
Main functions	Storage drawer for utensils and oven accessories
Drawer opening	By pressing the front panel
Care and cleaning	Soft cloth and soapy water; do not use abrasive products or steam cleaner
Safety	Do not sit or lean on the open drawer
Spare parts	Contact the after-sales service (number on warranty card)
Repairability	Refer to the warranty card for after-sales service contact details
General information	Translated manual available on request; latest version on the website

Frequently Asked Questions - AL514ZWA Pelgrim

How to install the accessory drawer?

Slide the drawer into the cabinet niche, check that the frame is in place, then fix it to the side walls with the 2 screws and spacers provided.

What is the maximum weight supported by the drawer?

The maximum load is 30 kg. Do not exceed this limit to avoid damaging the slides.

Can I store food or liquids in the drawer?

No, the drawer is designed only for storing kitchen utensils and oven accessories. It should not contain food or liquids.

How to clean the drawer?

Clean all surfaces with a soft cloth and warm soapy water. Wipe with a clean damp cloth and dry. Never use abrasive products, chemical solvents or steam cleaner.

The drawer opens by itself or is stuck, what to do?

Check that nothing is obstructing the mechanism. If the problem persists, contact the after-sales service with the complete type number.

What accessories can I store in this drawer?

You can store oven racks, baking trays, cutlery and dishes. Make sure the total load does not exceed 30 kg.

Can I sit or lean on the open drawer?

No, this could damage the slides. The drawer is not designed to support a person's weight.

Where to find the after-sales service number?

The complete type number is on the manual and warranty card. The after-sales service contact details are indicated on that card.

How to get a translated manual?

On notice-facile.com, select your language and enter your email to receive a specifically translated version.

Is this drawer compatible with all Pelgrim ovens?

This drawer is designed to be integrated under a Pelgrim built-in oven. Check your cabinet dimensions (min. height 564-570 mm, width 595 mm, depth 550 mm).

USER MANUAL AL514ZWA Pelgrim

Using the accessory drawer 5

Maintenance 5

Introduction

Congratulations on choosing this drawer. Read these instructions thoroughly before you first use the drawer, and keep the instructions for future use.

Building in

1. Check the drawer after unpacking. Do not install the drawer if it is damaged; contact your supplier.
2. Before first use, remove all packaging material from inside the drawer.
3. Slide the drawer into the niche of the kitchen cabinet. Check that the drawer housing is positioned properly.
4. Open the drawer and fasten it to the side walls of the cabinet using the 2 screws and spacers provided.

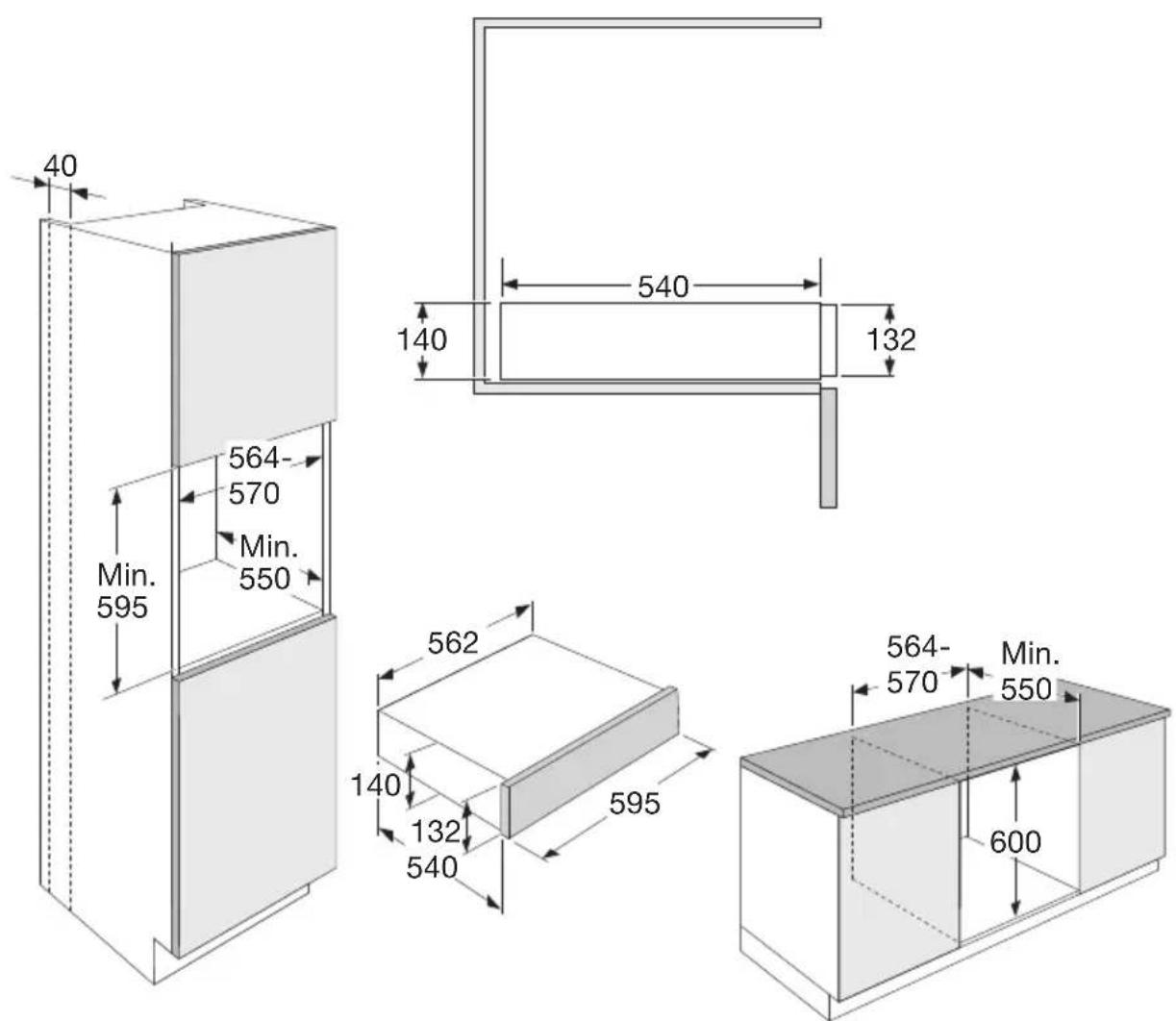

40 564- 570 Min. 595 550 140 540 132 562 140 132 540 595 564- 570 Min. 550 600

Using the accessory drawer

• Use the drawer to store cooking utensils such as cutlery and crockery or accessories for the built-in oven such as oven racks and baking trays.
• The drawer can be opened by briefly pressing the front panel.

• Do not lean or sit on the open drawer. Otherwise, the slide rails may be damaged.
• The drawer can carry a maximum weight of 30 kg.
• The drawer is not intended for storing food or liquids.

Maintenance

• Clean all surfaces with a soft cloth and warm soapy water.
• Wipe with a clean wet cloth afterwards and dry the surfaces.

Important:

• NEVER use abrasive cleaning agents or chemical solvents.
• DO NOT use a pressure washer or steam cleaner to clean the drawer.

Warning symbol with exclamation mark inside a triangle

When contacting the service department, have the complete type number at hand.

Addresses and telephone numbers of the service organisation can be found on the warranty card.

You can find the latest version of the user manual on our website.

www.pelgrim.nl

www.pelgrim.be

919765
