Product type	Built-in oven with accessory drawer
Brand	Pelgrim
Model	AL814MAT
Category	Oven
Drawer dimensions (W x D x H)	540 x 562 x 140 mm
Maximum drawer capacity	30 kg
Drawer usage	Storage of kitchen utensils and oven accessories
Drawer opening	By pressing the front panel
Main material	Steel and glass
Power supply	Electric (230 V)
Power	2.5 kW (estimate)
Cleaning	Soft cloth and soapy water; do not use abrasive products or steam cleaner
Safety	Do not sit or lean on the open drawer
Installation	Built into kitchen cabinet; fixing with screws and spacers provided
Included accessories	Accessory drawer, fixing screws, spacers
Manual languages	French, German, English, Dutch
Number of manual pages	20
Built-in dimensions (W x H x D)	595 x 550 x 540 mm (min)

Frequently Asked Questions - AL814MAT Pelgrim

How to install the accessory drawer?

Slide the drawer into the kitchen cabinet niche, check that the frame is properly in place, open the drawer and fix it to the side walls using the 2 screws and spacers provided.

What is the maximum load of the drawer?

The drawer can support a maximum load of 30 kg.

How to clean the drawer?

Clean all surfaces with a soft cloth and warm soapy water. Wipe with a clean damp cloth and dry. Never use abrasive products, chemical solvents, or high-pressure or steam cleaners.

Can I store food in the drawer?

No, the drawer is not intended for storing food or liquids. It is designed for storing kitchen utensils and oven accessories.

How to open the drawer?

The drawer opens by briefly pressing the front panel.

What to do if the drawer is damaged after unpacking?

Do not install the drawer if it is damaged. Contact your supplier for a replacement.

Can I use the drawer to store hot dishes?

It is not recommended to store hot dishes in the drawer, as it is not designed to withstand high temperatures. Use it for cold utensils.

Is the drawer compatible with all Pelgrim ovens?

The drawer is designed to be used with the Pelgrim built-in oven model AL814MAT. For other models, check the compatibility of the built-in dimensions.

How to fix the drawer to the cabinet?

After sliding the drawer into the niche, open it and fix it to the side walls of the cabinet using the 2 screws and spacers provided.

Where to find the complete manual for the oven and drawer?

The manual is available for free download on the Pelgrim website or on notice-facile.com. You can also contact after-sales service. Keep the complete type number handy.

USER MANUAL AL814MAT Pelgrim

Using the accessory drawer 5

Maintenance 5

Introduction

Congratulations on choosing this drawer. Read these instructions thoroughly before you first use the drawer, and keep the instructions for future use.

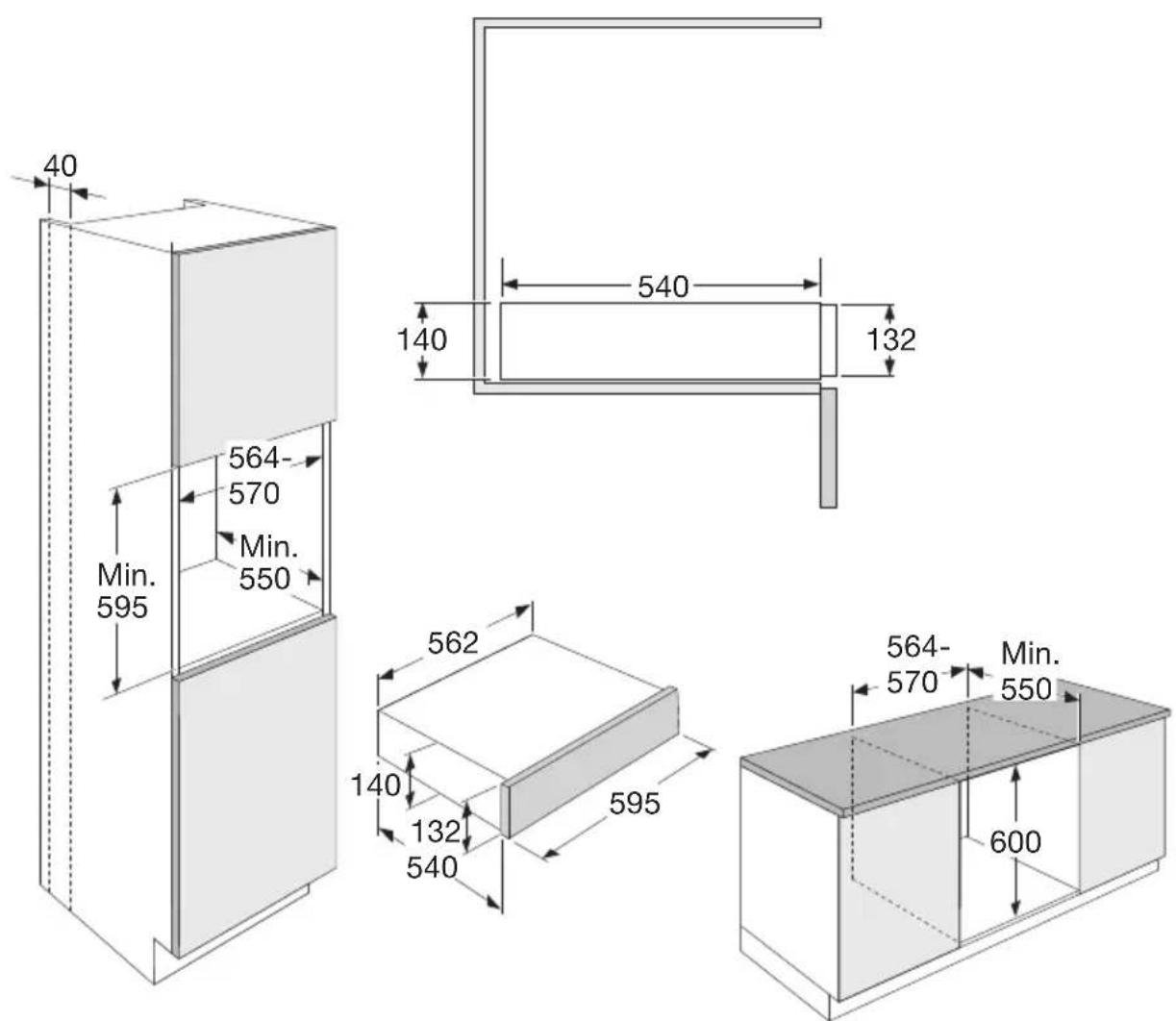

Building in

1. Check the drawer after unpacking. Do not install the drawer if it is damaged; contact your supplier.
2. Before first use, remove all packaging material from inside the drawer.
3. Slide the drawer into the niche of the kitchen cabinet. Check that the drawer housing is positioned properly.
4. Open the drawer and fasten it to the side walls of the cabinet using the 2 screws and spacers provided.

Using the accessory drawer

• Use the drawer to store cooking utensils such as cutlery and crockery or accessories for the built-in oven such as oven racks and baking trays.
• The drawer can be opened by briefly pressing the front panel.

• Do not lean or sit on the open drawer. Otherwise, the slide rails may be damaged.
• The drawer can carry a maximum weight of 30 kg.
• The drawer is not intended for storing food or liquids.

Maintenance

• Clean all surfaces with a soft cloth and warm soapy water.
• Wipe with a clean wet cloth afterwards and dry the surfaces.

Important:

• NEVER use abrasive cleaning agents or chemical solvents.
• DO NOT use a pressure washer or steam cleaner to clean the drawer.

When contacting the service department, have the complete type number at hand.

Addresses and telephone numbers of the service organisation can be found on the warranty card.

You can find the latest version of the user manual on our website.

www.pelgrim.nl

www.pelgrim.be
