OZUL03BE - Phone charger CONCEPTRONIC - Free user manual and instructions

Product type	Mobile phone charger
Brand	Conceptronic
Model	OZUL03BE
Power supply	AC input, USB-C Power Delivery output
Indicator light	Power LED
Compatibility	Devices equipped with a USB-C port
Package contents	Charger and power cord
Intended use	Recharging batteries of mobile devices
Operating environment	Dry indoor only
Cleaning	Dry lint-free cloth
Safety	Do not open, do not expose to water or heat
Built-in protection	Against short circuits, overheating and overvoltage
Standards	CE, UKCA
Technical support	www.conceptronic.net, email [e-mail]
Disposal	Do not dispose of with household waste, recycle

Frequently Asked Questions - OZUL03BE CONCEPTRONIC

How to use the Conceptronic OZUL03BE charger?

Plug the power cord into the AC input of the charger and then into a wall outlet. Then connect the USB-C connector to your device. The power LED lights up to indicate power on.

Does the charger support fast charging?

Yes, this charger is compatible with Power Delivery (USB-C PD) technology for fast charging of compatible devices.

Can I use this charger with a non-USB-C smartphone?

No, the charger is designed for devices equipped with a USB-C port. For other connector types, an adapter may be necessary, but it is recommended to use only certified accessories.

Is it safe to leave the charger plugged in permanently?

It is recommended to unplug the charger when not in use to save energy and avoid any risk of overheating. The charger has built-in protections, but continuous use is not necessary.

What should I do if the power LED does not light up?

Check that the power cord is properly connected to the wall outlet and to the AC input of the charger. Test with another outlet. If the problem persists, contact technical support at [e-mail].

Can I charge my laptop with this charger?

Yes, if your laptop is equipped with a USB-C port and accepts charging via USB-C PD. Check the charging power required by your device. This charger is suitable for many compatible laptops.

How to clean the charger?

First unplug the charger from the outlet. Clean it with a dry lint-free cloth. Never use water or liquid products.

Is the charger compatible with iPhones?

Yes, iPhone models equipped with a USB-C port (iPhone 15 and later) are compatible. For older models with a Lightning connector, a USB-C to Lightning cable is required.

What safety precautions should I follow?

Avoid water, humidity and heat sources. Do not let children play with the charger. Do not use the device if damaged. Unplug it before cleaning. Do not open or modify the device.

Where can I get help if I have a problem?

Visit the website www.conceptronic.net and click on 'support'. You can also send an email to [e-mail]. The complete manual is available for free download.

USER MANUAL OZUL03BE CONCEPTRONIC

A: AC input
B: USB-C connector
C: Power LED

DE

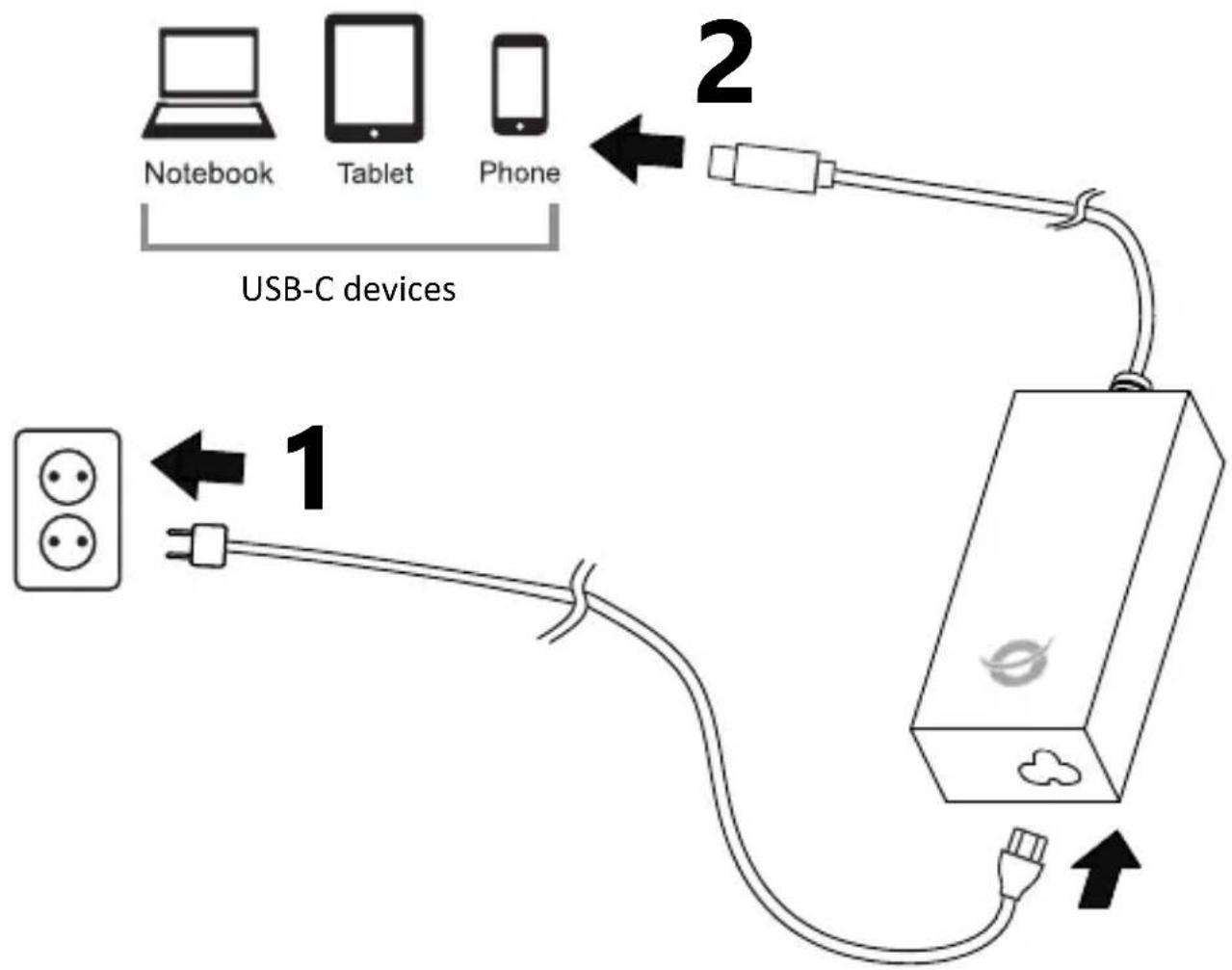

Connecting the Product

Specifications

AC input	100.0 ~ 240.0V 50/60Hz, 1.8A max
DC output	DC 5V.0/3.0A, 9.0V/3.0A, 12.0V/3.0A, 15.0V/3.0A, 20.0V/5.0A (PD) DC 5.0-20.0V/5.0A (PPS)
Average Efficiency (230V/50Hz)	81.55% for 5.0V/3.0A 86.66% for 9.0V/3.0A 88.96% for 12.0V/3.0A 88.03% for 15.0V/3.0A 89.57% for 20.0V/5.0A
Efficiency at load 10% (230V/50Hz)	75.74% for 5.0V/3.0A 80.17% for 9.0V/3.0A 80.72% for 12.0V/3.0A 80.04% for 15.0V/3.0A 84.18% for 20.0V/5.0A
Operating temperature	-20°C ~ 35°C
Storage temperature	-20°C ~ 80°C
Operating humidity	5% ~ 90% RH
Size	131.5 × 57.5 × 31 mm

English

Congratulations on the purchase of your Conceptronic OZUL03BE/OZUL03BUK. When problems occur, we advise you to visit our support site (go to www.conceptronic.net and click on 'Support'). If you have other questions about your product and cannot find it on our website, please contact us at [e-mail].

For more information about Conceptronic products, please visit the Conceptronic website: www.conceptronic.net.

Installation & usage

1. Connect the power cable to the AC input of the USB PD charger and to a free wall outlet.
2. Connect the USB-C connector to your USB-C device.

Safety and Warnings instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

• Keep the device away from water, humidity, fire or hot environments.
• Keep your device and all its parts and accessories out of the reach of small children.
  ■ Do not leave the packaging material lying around carelessly. This may become dangerous playing material for children.
  ■ Do not use the device if there are any signs of damage to the housing, plug, or cable.
  ■ Avoid dropping, throwing or crushing the device.
  ■ Do not open, change or damage the device.
  ■ Confirm that the wall outlet provides the same type of power indicated on the device (both Voltage [V] and frequency [Hz]).
  ■ Use the product only in dry indoor rooms and protect it from moisture.
  ■ Disconnect the product from the mains before cleaning.
  ■ Clean the product with a dry, fibre-free cloth.

Disposal of waste electrical equipment: Dispose of the product at a recycling point. Do not dispose of together with household waste. Incorrect storage/disposal can harm the environment and/or cause injury.

CE / UKCA marking: Conceptronic declares that this product complies with the directives listed in the section 'Declaration of Conformity'.

Deutsch

Digital Data Communications GmbH - Im Defdahl 10 F, 44141 Dortmund, Germany CONCEPTRONIC® is a registered trademark of Digital Data Communications GmbH © Copyright Digital Data Communications GmbH. All Rights Reserved.
