USER MANUAL OZUL04BE CONCEPTRONIC

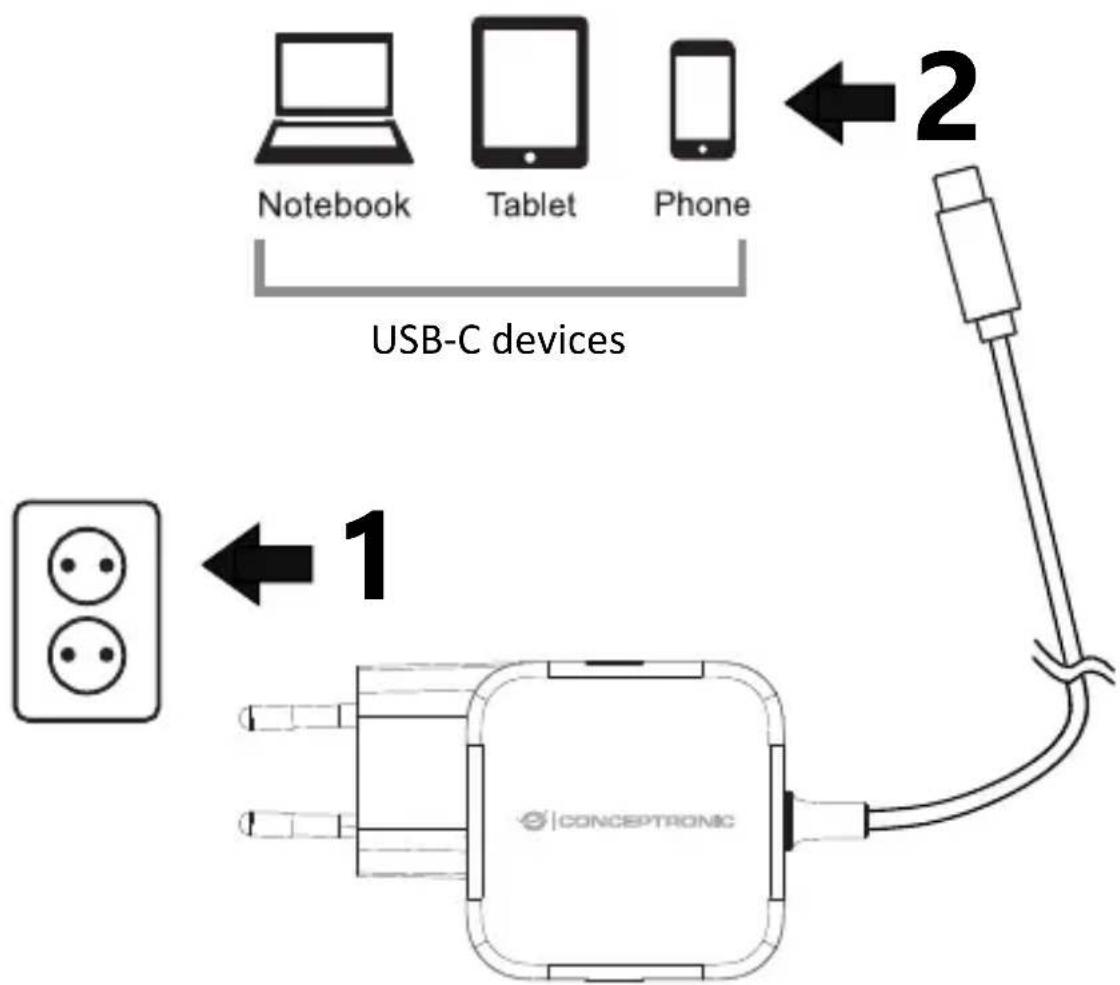

Connecting the Product

Specifications

AC input 100.0 ~ 240.0V 50/60Hz, 1.6A max
DC output	PD 3.0: 5.0V/3.0A, 9.0V/3.0A,12.0V/3.0A,15.0V/3.0A, 20.0V/3.25A, 20.3V/3.3APPS: 3.3-21.0V/3.0A
Total power output 67.0W Max
Average active efficiency Output load with 3.3V/3.0A: 78.81%Output load with 21.0V/3.0A: 88.87%
Efficiency at load 10% Output load with 21.0V/3.0A: 83.93%
Operating temperature 0°C ~ 40°C
Storage temperature -20°C ~ 80°C
Operating humidity 20% ~ 80% RH
Storage humidity 10% ~ 90% RH
Size 50 × 29 × 40 mm
Cable length 180cm

English

Congratulations on the purchase of your Conceptronic OZUL04BE.

When problems occur, we advise you to visit our support site (go to

www.conceptronic.net and click on 'Support'). If you have other questions about your product and cannot find it on our website, please contact us at

[e-mail].

For more information about Conceptronic products, please visit the Conceptronic website: www.conceptronic.net.

Installation & usage

1. Plug the USB PD charger to a free wall outlet.

2. Connect the USB-C connector to your USB-C device.

Safety and Warnings instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

• Keep the device away from water, humidity, fire or hot environments.
• Keep your device and all its parts and accessories out of the reach of small children.
  ■ Do not leave the packaging material lying around carelessly. This may become dangerous playing material for children.
  ■ Do not use the device if there are any signs of damage to the housing, plug, or cable.
  ■ Avoid dropping, throwing or crushing the device.
  ■ Do not open, change or damage the device.
  ■ Confirm that the wall outlet provides the same type of power indicated on the device (both Voltage [V] and frequency [Hz]).
  ■ Use the product only in dry indoor rooms and protect it from moisture.
  ■ Disconnect the product from the mains before cleaning.
  ■ Clean the product with a dry, fibre-free cloth.

Disposal of waste electrical equipment: Dispose of the product at a recycling point. Do not dispose of together with household waste. Incorrect storage/disposal can harm the environment and/or cause injury.

CE marking: Conceptronic declares that this product complies with the directives listed in the section 'Declaration of Conformity'.
