EK701B - Egg cooker INVENTUM - Free user manual and instructions

Product type	Egg cooker
Brand	Inventum
Model	EK701B
Capacity	Up to 7 eggs
Power	350 W (estimated)
Voltage	220-240 V
Frequency	50/60 Hz
Materials	Plastic and stainless steel (heating plate)
Dimensions (L x W x H)	20 x 15 x 15 cm (estimated)
Weight	0.5 kg (estimated)
Cord length	0.8 m (estimated)
Color	White and blue (based on image)
Included accessories	Measuring cup, egg piercer, egg holder, lid
Functions	Cooking soft-boiled, medium-boiled, and hard-boiled eggs
Automatic shut-off	Yes, with audible signal when water has evaporated
Indicator light	Yes, blue during operation
Safety	Overheat protection, automatic shut-off in case of dry boiling
Cleaning and maintenance	Lid and egg holder washable in hot water and dish soap; base to be cleaned with a damp cloth; descaling recommended with vinegar
Warranty	5 years Inventum (subject to conditions)
Use	Household use only

Frequently Asked Questions - EK701B INVENTUM

How many eggs can I cook at once with the Inventum EK701B egg cooker?

You can cook up to 7 eggs simultaneously. Use fresh eggs and place them in the 7 openings of the egg holder, with the small hole facing upwards.

How to get soft-boiled, medium-boiled, or hard-boiled eggs?

Use the provided measuring cup. It contains three measurement charts corresponding to different degrees of cooking. The amount of water depends on the number of eggs and the desired result (see chart in the manual). For example, for 1 hard-boiled egg, pour 110 ml of water.

What to do if the appliance does not turn on?

Check that the plug is properly inserted and the outlet is powered. Ensure the on/off switch is in the on position. If the blue indicator light does not turn on, contact customer service. Do not attempt to repair the appliance yourself.

How to clean the egg cooker?

Unplug the appliance and let it cool completely. Wash the lid and egg holder with hot water and mild dish soap, then dry them thoroughly. Clean the base and water tank with a slightly damp cloth. Never immerse the base in water.

How to descale the water tank?

Pour vinegar into the measuring cup, fill with water to the brim, then pour this mixture into the water tank. Let it sit for 30 minutes without turning on the appliance. Then empty the tank and dry it.

Can I use the appliance without the lid?

No, never use the egg cooker without the lid and egg holder. The lid is essential for steaming and to prevent burns.

What does the audible signal from the appliance mean?

The audible signal indicates that all water has evaporated and the eggs are ready. It triggers automatically and only stops when you press the on/off switch. Remember to unplug after use.

Is the appliance safe to use around children?

The appliance can be used by children over 8 years of age under supervision. Keep the appliance and cord out of reach of children under 8 years. Hot surfaces and steam pose burn risks.

What accessories are provided with the Inventum EK701B egg cooker?

The included accessories are: a graduated measuring cup, an egg piercer, an egg holder, and a lid. All are necessary for the operation of the appliance.

How to store the appliance after use?

Let the appliance cool completely, clean it, and dry it thoroughly. Store it in a dry place, protected from dust. Wind the cord without excessive bending.

USER MANUAL EK701B INVENTUM

Exterior view of a black INVENTUM steamer with eggs inside (no text or symbols on the main body)

• gebruiksaanwijzing
• instruction manual
• Gebrauchsanleitung
  • manuel d'utilisation

Nederlands

1. safety instructions page 9
2. appliance description page 11
3. before first use
4. for your safety
5. boiling eggs
6. tips
7. cleaning & maintenance
   guarantee & after sales service
   page 11
   page 11
   page 11
   page 12
   page 12
   page 24

Deutsch

1 safety instructions

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention! Avoid touching hot surfaces of the appliance when the appliance is in use.
• The appliance heats up very quickly, but cools down slowly. Be careful with hot water and steam emmited during use.
• Do not use any accessories not supplied with this appliance.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
  • Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.
• Never unplug it from the socket by pulling on the cable.
• When relocating the appliance, make sure it is switched off and cooled down completely. Touch it only on the handles.
• Always ensure that your hands are dry before handling the plug, switch or power cord.

• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised. This can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and maintenance shall not be made by children.
  • Children must not play with the appliance.

• Unplug the appliance as soon as you have finished using it and when you are cleaning it.
• This appliance is only intended to be used in household and not in:

- staff kitchen areas, in shops, offices and other working environments;

- by clients in hotels, motels and other residential type environments;

- Bed and Breakfast type environments

- farm houses.

• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
• Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.
• Never immerse the appliance, power cord and plug in water or any other liquid to protect against electrical hazards.
• If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

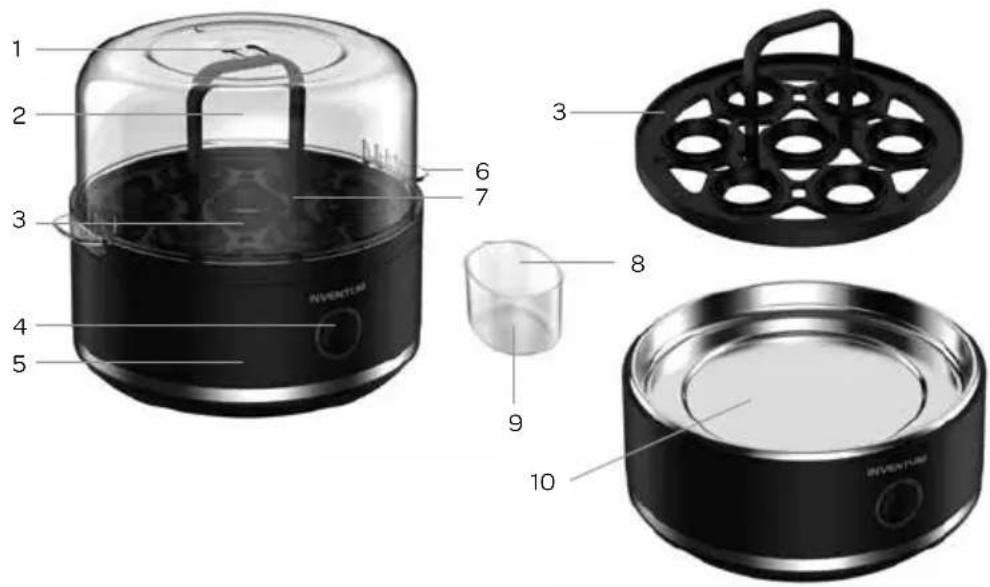

2 appliance description

1. Steam opening
2. Cover
3. Egg tray
4. Switch
5. Main unit
6. Handle - cover
7. Handle - egg tray
8. Measuring cup
9. Egg pecker
10. Waterreservoir

3 before the first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any visible damage, possible from transportation. Place the appliance on a stable and heat resistant surface.

Clean the main unit and the water reservoir with a damp cloth and dry thoroughly. Clean the cover and the egg tray with warm water and a mild detergent. Make sure the cover and the egg tray are dry before placing them.

There can be some smoke and smell when using it for the first time. Residues left over from the manufacturing process are being burned on the surface of the unit.

4 for your safety

The egg boiler heats up water. This creates steam which emits from the cover. Therefore do not touch the cover and the main unit during use.

This egg boiler can boil up to 7 eggs per cooking session. Use fresh eggs.

Make sure the water reservoir does not overflow.

This appliance is suitable only for boiling eggs. Please do not try to heat up anything else with this appliance.

Do not operate the appliance without the cover and the egg tray.

5 boiling eggs

• Place the main unit on a stable heat resistant surface.
• Place the egg tray on the main unit.
• Make a tiny hole in the small end of the egg using the egg pecker. Please do not use force, otherwise the egg might break. Caution, danger of injury: The needle of the egg pecker is very sharp!
• Please put in the bigger end of the egg into the egg tray.
• Now fill the water reservoir with the required quantity of cold, clear water using the measuring cup. The quantity of water depends upon the number of eggs to be boiled and the hardness desired (soft, medium or hard boiled).

Eggs	Water (ml)
	Soft Medium Hard
1 60 80 110
2 60 75 110
3 55 70 100
4 55 65 90
5 45 55 85
6 45 50 80
7 40 45 70

• Now pour the water from the measuring cup into the water reservoir. Take care not to spill any water on the housing of the main unit!
• Cover the egg tray with the cover. Please ensure that egg tray and cover fit properly on the main unit.
• Plug in the appliance and press the on/off switch. The indicator lamp lights up.

The hot plate on the main unit begins to heat up the water in the water reservoir.

Caution: parts of the unit become very hot during and after use! While the unit is in use, touch it only at the handles. Please watch out particularly for hot water and emitted steam!

Burning hazard: Do not shift the unit while it is in use. The water is boiling and hot steam escapes through the steam opening. The cover must not be taken off while eggs are being boiled. Or the steam would escape immediately and the eggs will not be boiled properly.

• When the water in the water reservoir has all evaporated, the eggs are done. An audible signal is emitted. The indicator lamp goes out. The hot plate on the main unit now starts cooling down.
• Press the on/off button. The audible signal discontinues. Remove the plug from the socket.
• Please lift up cover from the appliance carefully. Hold it by the handle!
• Remove the egg tray from the appliance by the handle. Help the eggs shrink by holding them under cold, flowing water. The eggs are now ready to serve.
• Put back the egg tray after drying it with a piece of cloth.

6 tips

• The number of eggs and the size influence the cooking time.
• The cooking result is affected when the eggs are too cold. The eggs can be boiled too soft.
• The temperature and the amount of water affect the cooking time. Therefore measure the correct amount of water carefully and use cold water.

7 cleaning & maintenance

Always unplug the appliance before cleaning and let it cool down completely.

Clean the cover and the egg tray with water and some dishwashing liquid. Make sure the cover and the egg tray are dried thoroughly before placing them back.

Use a damp cloth and if necessary some dishwashing liquid to clean the main unit and the water reservoir. Dry everything thoroughly. Make sure no water gets in the main unit.

Egg shells contain a lot of calcium salts. The salt can deposit in the water reservoir, unless it is cleaned regularly. This calcium salt can be white or brown. Therefore clean and dry the water reservoir after every use.

When there is a lot of calcium in the water reservoir which cannot be removed with a damp cloth, descale the appliance.

Decalcification of the water reservoir:

To do this, pour a little household vinegar into the measuring cup. Fill it up with water and pour the mixture in the water reservoir.

Leave it for 30 minutes. Attention: please do not boil the mixture in the appliance.

Pour the mixture out and dry the watr reservoir.

General terms and conditions of service and warranty

5-year Inventum warranty!

1. Customers enjoy a 5-year full manufacturer's warranty on all Inventum products.
2. Within this period, a defective product or part, which makes normal functioning of the product or part impossible, will always be repaired free of charge or, if repair is not possible and/or does not provide a solution, replaced (by the same or equivalent product). The assessment of this lies with Inventum.
3. In order to make a claim under the 5-year Inventum warranty you must, within two months after discovering the fault or defect, either return the product to the shop where you bought it, or contact the Inventum customer service department by using the form at www.inventum.eu/service.
4. The warranty period starts from the date stated on the product's original sales receipt.
5. To invoke the warranty, you must always send a copy of the original proof of purchase with the service request and present the original proof of purchase to the service technician.
6. The 5-year warranty applies only to normal domestic use of Inventum products within the Netherlands.

Warranty exclusions

1. The 5-year Inventum guarantee does not apply in case of: normal wear and tear, consumables, improper use, insufficient or incorrect maintenance, incorrect and/or inexpert assembly and installation of the appliance, repairs by unauthorised third parties, business or commercial use, missing serial number, damage caused by an external cause. This enumeration is not exhaustive.
2. B-choice products and products that have been built-in in a showroom are not covered by the 5-year Inventum warranty. All optical damage such as dents, scratches and slight traces of use are excluded from any warranty.

Reporting malfunctions on Inventum products

1. Faults or defects on Inventum products can be reported by using the service request form on the website www.inventum.eu/service or through the seller of the product.
2. A copy of the original proof of purchase must be included with the request.
3. Inventum's service department determines whether the product will be repaired or replaced, based on the request and the sales receipt.

Important to know

• Products sent without prior notification will not be accepted. Further to the notification you will be informed by Inventum whether a warranty applies and whether you must return the product.
• The replacement or repair of a defective product, or a part thereof, does not lead to an extension of the original warranty period.
• Products eligible for replacement or repair must be emptied and clean.

For a detailed explanation of the warranty conditions and items excluded from them, please visit Inventum's website www.inventum.eu/algemene-voorwaarden

These general warranty and service conditions apply to Inventum brand products purchased after 27 April 2022 and intended for use within the Netherlands.

For Inventum products used outside the Netherlands, but within a EU Member State, the warranty rules of that country apply. Inventum provides warranty and service by a white goods technician only in the Netherlands.

As a consumer, you are entitled by law to a properly working product. Does the product break down sooner than you might expect? This means that the product is not in conformity. In that case, the law offers you, the buyer, with a number of legal remedies for your protection. This legal protection is not affected by the above commercial warranty given by Inventum on Inventum products used within the Netherlands.

Packaging made from recycled material

FSC® C187167

instagram.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908

EK701B/01.1023
