USER MANUAL Milk Shake Chipolino

7 (8) (8)

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОΥΡΕΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๕๖๖

8-1 (9)

8-2 1 2

9-19-29-3

Black-and-white photo of a baby boom chair with floral cushion, no visible text or symbols

"click"

L L L L K 9-4

d

Line drawing of a mechanical device with no visible text or symbols

ВНИМАНИЕ!

TO ASSURE SAFE USAGE OF THIS PRODUCT FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS GIVEN IN THIS USER MANUAL!

INSTRUCTION MANUAL FOR HIGH CHAIR/SWING

"MILK SHAKE" 2 in 1

This high chair has been manufactured in accordance with the requirements of Directive 2001/95/EC of the European Parliament and of the Council and complies with European Standard EN 14988:2017+A1:2020 Children's high chairs. Requirements and test methods and EN 16232:2013+A2:2023 Child use and care articles. Infant swings, and regulations of the national legislation, as well as the Consumer Protection Law.

ATTENTION! WARNINGS!

✿ WARNING! NEVER LEAVE THE CHILD UNATTENDED!
✿ WARNING! DO NOT USE THIS PRODUCT AS SWING ONCE YOUR CHILD CAN SIT UP UNAIDED OR WEIGHT MORE THAN 9 KG!

✿ WARNING! THIS PRODUCT IS SUITABLE FOR CHILDREN, WHO CAN SIT ALONE UNAIDED, AGED UP TO 3 YEARS AND WEIGHING NO MORE THAN 15 KG.
WARNING! ALWAYS USE THE SAFETY BELTS, WHEN THE CHILD IS IN THE CHAIR! ALWAYS CHECK IF THEY ARE SECURELY FIXED TO THE HIGH CHAIR'S FRAME!
✿ WARNING! DANGER OF FALLING: DO NOT LET THE CHILD CLIMB ON THE PRODUCT!
✿ WARNING! DO NOT USE THE HIGH CHAIR BEFORE HAVING MADE SURE THAT ALL PARTS ARE IN GOOD ORDER AND ARE SET IN THE CORRECT POSITION!
✿ WARNING! KEEP THIS PRODUCT AWAY FROM FIRE! BE AWARE OF THE RISK OF OPEN FIRE AND OTHER SOURCE OF STRONG HEAT IN THE NEAR VICINITY OF THE HIGH CHAIR!
✿ WARNING! OBSERVE THE RISK OF THE PRODUCT TILTING IF THE CHILD REACHES AND PUSHES WITH ITS FEET SOLD BASE SUCH AS A TABLE.
✿ WARNING! NEVER USE THIS PRODUCT ON AN ELEVATED OR UNEVEN SURFACE (E.G. A TABLE)!
✿ WARNING! TO AVOID INJURY ENSURE THAT CHILDREN ARE KEPT AWAY WHEN UNFOLDING AND FOLDING THIS PRODUCT!
✿ WARNING! DO NOT MOVE OR LIFT THIS PRODUCT WITH THE BABY INSIDE IT!
✿ WARNING! DO NOT LET CHILDREN PLAY WITH THIS PRODUCT TO AVOID RISK OF INJURIES!
✿ Never let the child sleep in this product. This product does not replace a cot or a crib. Should the child fall asleep, then it should be placed in a suitable cot or crib.
❖ Always apply the parking devices of wheels! USE THE WHEELS ONLY FOR MOVING THE CHAIR!

EN

- Assembly of the product to be done only by adult!

Use the swing only for babies aged up to 6 months with weight up to 9 kg.
This high chair is not suitable and must not be used by children, who cannot sit unaided (minimum 6 months)!
This high chair must not be used for children weighing more than 15 kg!

The high chair has a single seat, intended for one child only.

Do not lift the chair by the food tray!

• Discontinue using the product if you find any missing or damaged parts!
  Do not let your child stand in the high chair!
  ✿ Never lift, move, make any setting or repair to the chair, while there is a child in it!
  Do not place the chair near stairs, pools or other hazardous areas!

◆ Use the high chair only by its purpose.

Do not use any spare parts or other components, which are not approved by the producer! The producer does not take any responsibility for the safety of the child when you have not used the proper and original spare parts, approved and provided by him!
Do not apply any changes or modifications to the high chair's construction! Contact the dealer or an authorized repair service for advice and/or repair instead!
Do not put any objects over the product to avoid damages of frame or fabric cover.
Do not put on product additional strings to avoid risk of strangulation!
Do not allow children younger than 3 years near the high chair during the assembly or disassembly, in order to prevent the risk of injury or swallowing of small parts!
The packaging of the product must be kept out of the reach of children to avoid the risk of strangulation!

MAIN FEATURES OF THE PRODUCT

High chair is suitable for one child, who can sit alone unaided, aged up to 3 years and weighing not more than 15 kg.
✿ Swing is suitable for babies and young children aged from 0 up to 6 months, who cannot sit alone unaided and weighing not more than 9 kg.

◆ 5-point safety belt
◆ Adjustable leg rest
Adjustable backrest
◆ Height adjustable seat
◆ Tray can be adjusted in 3 positions forth and back
Double tray (Upper part of the tray is detachable)
◆ Compact folding for storage

MAIN PARTS DIAGRAM

1.1. Legs of high chair (left and right)
1.2. Seat
2. Food tray (set)
3. Fabric cover
4. Safety belt
5. Front and rear support
6. Wheels

ASSEMBLY INSTRUCTIONS. FUNCTIONS

ATTENTION! Follow exactly the instructions given and the order for assembly and usage, described in texts and pictures. You will not need any tools for the assembly.

ATTENTION! CHECK THE STABILITY OF FIXING AFTER EACH OPERATION!

1. ASSEMBLY OF FRONT AND REAR SUPPORTS

1-1. ATTENTION! During assemble pay attention to front support (a) and rear support (b). At front support (a) are assembled the mechanisms for swinging function (they block and release the swinging).

Press pins "c" and insert the tubes of front support (a) into the tubes of front part of high chair (see figure) until you hear a click and pins jump out of the openings.

Press pins “c” and insert the tubes of rear support (a) into the tubes of rear part of high chair (see figure) until you hear a click and pins jump out of the openings.

Note: After assembly the pins at both supports must be directed inwards.

1-2. UNFOLDING THE CHAIR

Press the buttons "d" at both sides of chair and unfold it as shown in the figure. By fixing you will hear a click sound.

2. INSTALLING AND ADJUSTMENT OF FOOD TRAY

Press the button (1) and set the armrest (2) down until it fixes and you hear a click sound. Pull out the two levers (4) under the tray. Insert the tray (3) in the seat armrest and release the levers until it is fixed and you hear a click sound.

Note: Try to pull the tray inwards to make sure that it is securely fixed to the seat.

Tray can be set in 3 positions (forth and back). Pull the two levers (4) and move the tray forth/back until you reach the required position. Then release the levers. You must hear a click sound by fixing of each position.

Upper part of the tray can be removed for cleaning.

3. ASSEMBLY OF WHEELS AND SUPPORTS

Insert and press the wheels into the slots at front and rear legs. By fixing you will hear a click.

INSTALLATION OF FRONT AND REAR LEGS

Note: Before pressing the pins, insert both endings of upper part into the legs.

ATTENTION! Make sure that pins come out of the slots and both parts of legs are strongly and stable fixed!

4. BACKREST ADJUSTMENT

Seat reclines at 3 positions.

Pull the lever (5) at the back of the seat and move the seat to desired position - 1, 2 or 3. When each position is fixed you will hear a click.

5. HEIGHT ADJUSTMENT OF SEAT

Seat is height adjustable in 6 positions.

Press simultaneously the adjustment buttons (6) at rear part of front tubes and move the seat up or down to desired position. Release the buttons to fix the seat. When the position is fixed you will hear a click.

6. LEG REST ADJUSTMENT

Leg rest can be adjusted in 3 positions.

Press simultaneously the buttons (7) on both sides of leg rest to move the leg rest down from higher to lower position. Release to fix the position.

Pull up the leg rest with your hand to set the leg rest from lower to higher position. When the position is fixed you will hear a click.

7. PARKING DEVICE

Activated parking device (8) – press the lever down.

Free parking device (wheels move freely) - lift the lever up.

8. SWINGING FUNCTION

WARNING! Set the seat of the high chair in lowest position!

EN

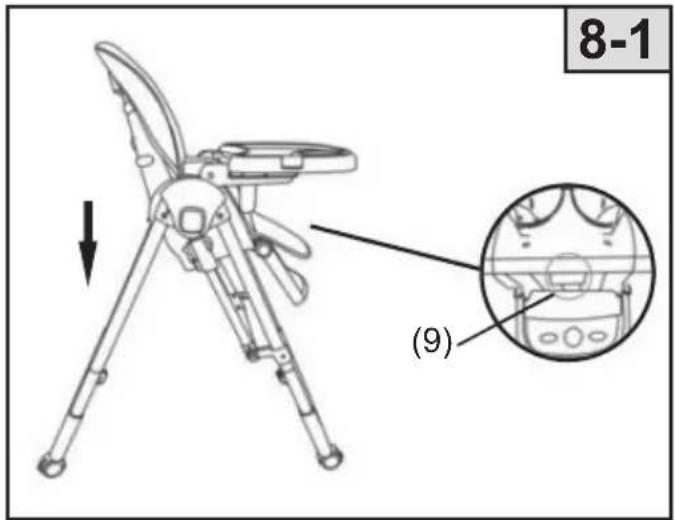

8-1. Press the button (9) under the seat to adjust the seat in position that is suitable for swinging.

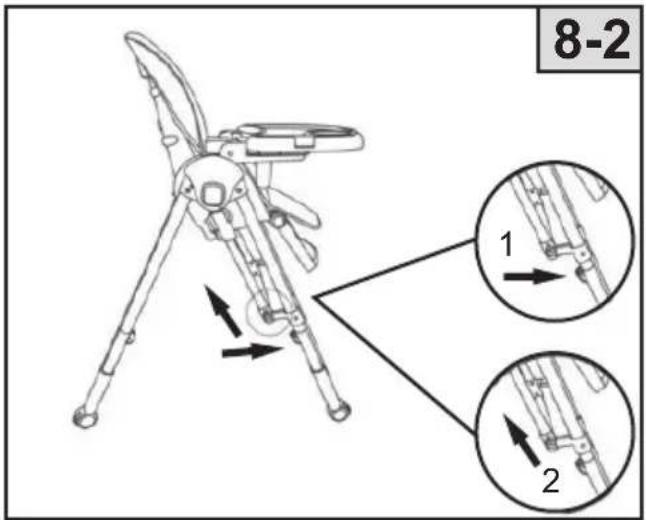

8-2. Move the slider (1) down and pull the seat from the channel of swinging mechanism!

Line drawing of a bicycle suspension system with no text or symbols

WARNING!

Always before using the chair as a swing, you must set the seat in lowest height position and after that to release the locking mechanism.

9. SAFETY HARNESS SYSTEM AND FABRIC COVER INSTALLATION

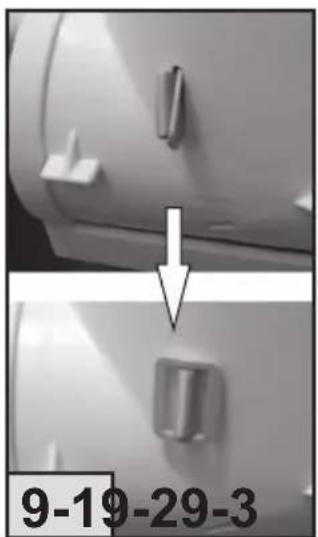

9-1. Thread the ending of belts through the slots at fabric cover. Insert the buckle into the slot at seat and rotate it at 90 degrees to fix the belt.
9-2. Place the fabric cover into the seat/backrest.
9-3. Insert the belt endings into the central buckle (K) and press until you hear a click sound.

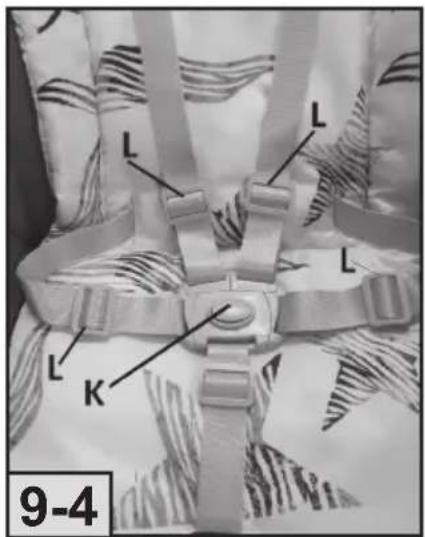

9-4. Set the plastic adjusters up/down to change the length of the belts.

ATTENTION! Safety harnesses must not be worn out or torn and buckles must be strong, without any damages and provide secure connection!

ATTENTION! Belts should not be twisted, they must fit the baby well and their length should not be adjusted while they are fastened!

To unlock press the button at central buckle (K) and split the belts.

10. FOLDING OF HIGH CHAIR

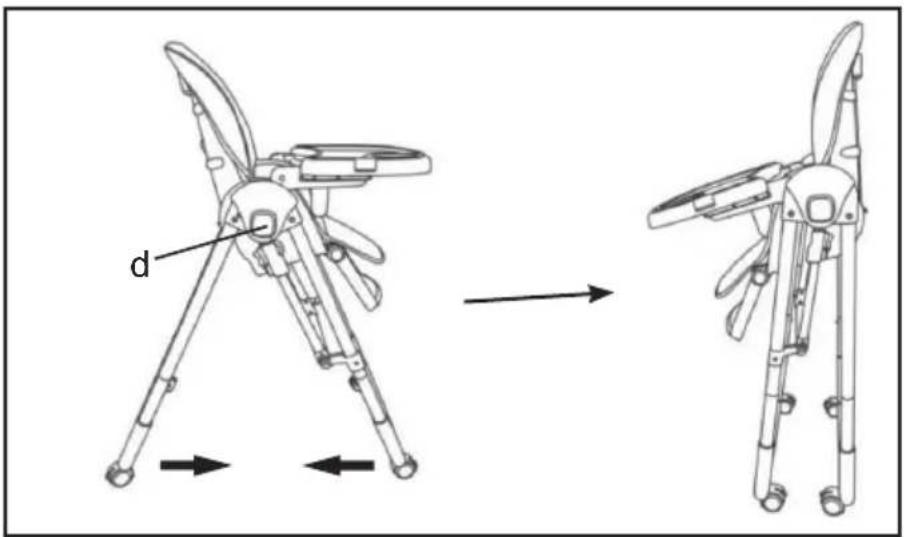

Press simultaneously folding buttons "d" at both sides of legs and fold them.

CARE AND MAINTENANCE

• Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap.
  Do not use abrasive, bleach or other aggressive detergents.
  Always after cleaning leave the high chair fully dry and after that use it or store it. It may appear mold to your high chair if you keep it moist.
  Do not put any objects and things in high chair or on the top of it to avoid damages of the structure.
  ❖ Always store your high chair indoors. Do not expose to direct environment influence - sun, rain, moisture and high temperature intervals!

Fabric composition:

Outer: 100% eco leather

Filling: 100% polyester
