USER MANUAL Eat Up Chipolino

IMPORTANT! READ CAREFULLY AND KEEP THIS USER'S MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE!

INSTRUCTION MANUAL FOR HIGH CHAIR „EAT UP”

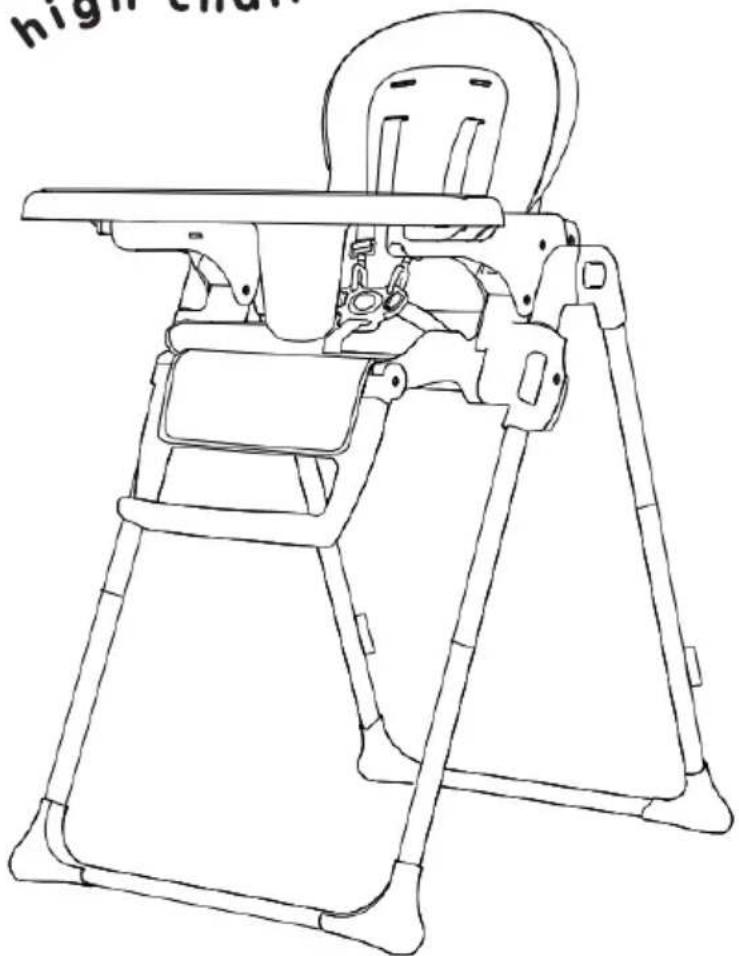

EAT UP high chair

Line drawing of a baby height seat with adjustable armrest and seat plate (no text or symbols)

This high chair has been manufactured in accordance with the requirements of Directive 2001/95/EC of the European Parliament and of the Council and complies with European Standard EN 14988 Children's high chairs. Safety requirements and regulations of the national legislation, as well as the Consumer Protection Law.

ATTENTION! YOUR CHILD WILL BE MOST SECURE IF YOU FOLLOW THE INSTRUCTIONS AND RECOMMENDATIONS GIVEN IN THIS USER'S MANUAL!

CAUTION! NEVER LEAVE YOUR CHILD UNATTENDED!
✿ WARNING! THIS PRODUCT IS SUITABLE FOR CHILDREN, WHO CAN SIT ALONE UNAIDED, AGED UP TO 3 YEARS AND WEIGHING NO MORE THAN 15 KG.
✿ WARNING! ALWAYS USE THE SAFETY BELTS, WHEN THE CHILD IS IN THE CHAIR! ALWAYS CHECK IF THEY ARE SECURELY FIXED TO THE HIGH CHAIR'S FRAME!
✿ WARNING! DANGER OF FALLING: DO NOT LET THE CHILD CLIMB ON THE PRODUCT!
✿ WARNING! DO NOT USE THE HIGH CHAIR BEFORE HAVING MADE SURE THAT ALL PARTS ARE IN GOOD ORDER AND ARE SET IN THE CORRECT POSITION!
✿ WARNING! KEEP THIS PRODUCT AWAY FROM FIRE! BE AWARE OF THE RISK OF OPEN FIRE AND OTHER SOURCE OF STRONG HEAT IN THE NEAR VICINITY OF THE HIGH CHAIR!
✿ WARNING! OBSERVE THE RISK OF THE PRODUCT TILTING IF THE CHILD REACHES AND PUSHES WITH ITS FEET SOLD BASE SUCH AS A TABLE.
- Assembly of the product to be done only by adult!
This high chair is not suitable and must not be used by children, who cannot sit unaided (minimum 6 months)!
This high chair must not be used for children weighing more than 15 kg!
The high chair has a single seat, intended for one child only.
Do not lift the chair by the food tray!
Discontinue using the product if you find any missing or damaged parts!
Do not let your child stand in the high chair!
✿ Never lift, move, make any setting or repair to the chair, while there is a child in it!
Do not place the chair on elevated and/or uneven surfaces, while there is a child in it!
Do not place the chair near stairs, pools or other hazardous areas!
◆ Use the high chair only by its purpose.
Do not use any spare parts or other components, which are not approved by the producer! The producer does not take any responsibility for the safety of the child when you have not used the proper and original spare parts, approved and provided by him!
Do not apply any changes or modifications to the high chair's construction! Contact the dealer or an authorized repair service for advice and/or repair instead!
Do not allow children younger than 3 years near the high chair during the assembly or disassembly, in order to prevent the risk of injury or swallowing of small parts!
The packaging of the product must be kept out of the reach of children to avoid the risk of strangulation!

MAIN FEATURES OF THE PRODUCT

◆ High chair is suitable for one child, who can sit alone unaided
High chair is suitable for one child aged up to 3 years and weighing not more than 15 kg.
◆ Adjustable leg rest
◆ Adjustable backrest – 3 positions
◆ Height adjustable seat
◆ Tray can be adjusted in 2 positions
◆ Double tray (Upper part of the tray is detachable)
◆ Compact folding for storage
❖ Removable eco leather seat, easy for cleaning

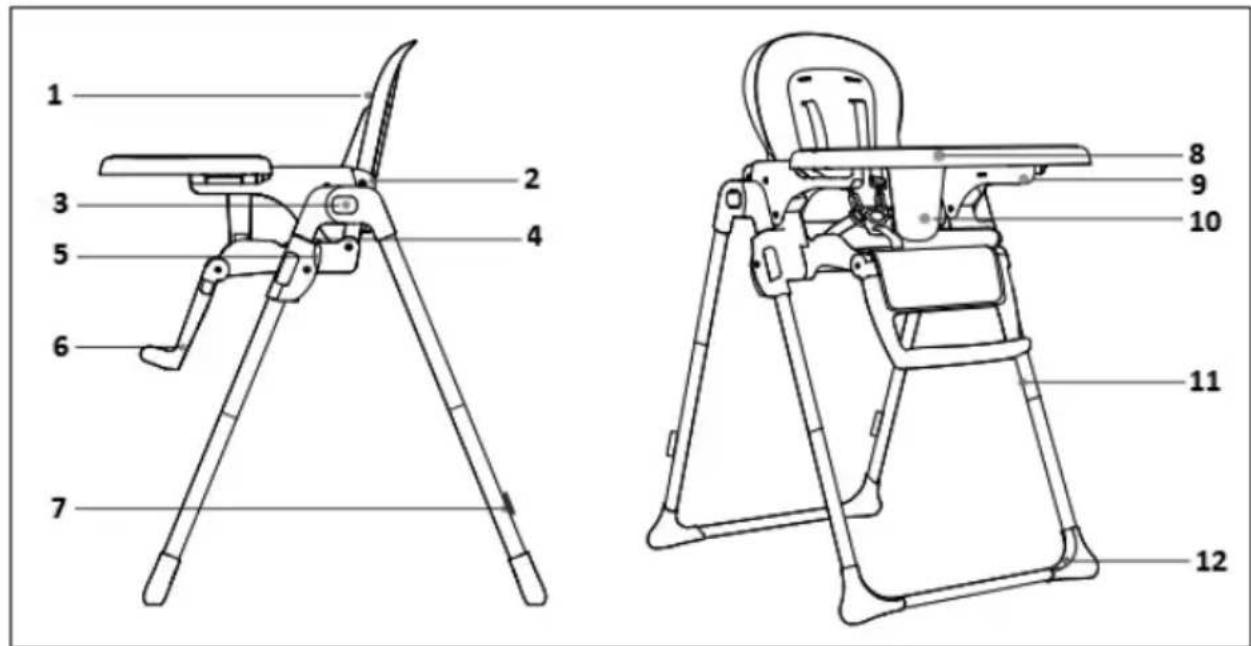

MAIN PARTS DIAGRAM

1 2 3 4 5 6 7 8 9 10 11 12

1. Seat	5. Button for height adjustment of seat	9. Armrest
2. Recline button 6. Leg rest 10.	T-shaped stopper
3. Folding button 7. Hook 11. Upper part of chair's legs
4. Button for seat folding 8. Food	tray 12. High chair's support

Each package contains:

Legs of high chair – left and right 2 pcs.	Front support 1 pc.	Rear support 1 pc.	Seat, set 1 pc.	Food tray set 1 pc.

ASSEMBLY INSTRUCTIONS. FUNCTIONS

ATTENTION! Follow exactly the instructions given and the order for assembly and usage, described in texts and pictures. You will not need any tools for the assembly.

ATTENTION! CHECK THE STABILITY OF FIXING AFTER EACH OPERATION!

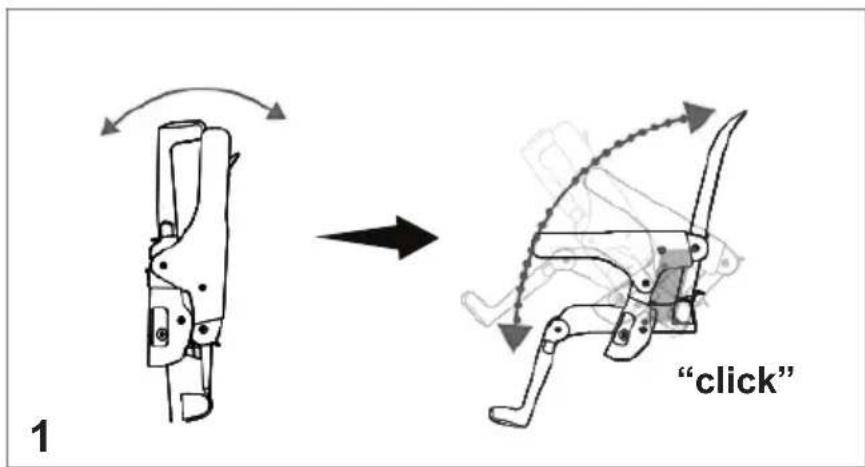

1 - UNFOLDING THE SEAT

Grab the seat with both hands and open it as figure shows. By fixing you will hear a click sound.

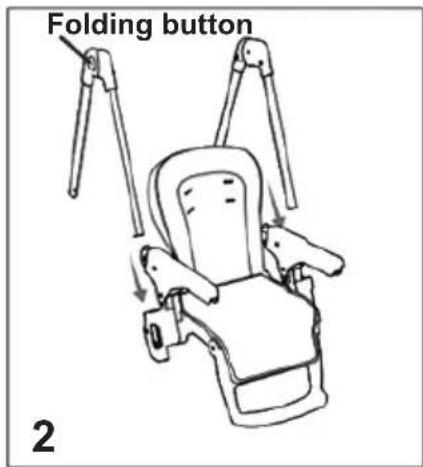

2 - INSTALLATION OF LEFT AND RIGHT LEGS

Insert upper part of high chair's leg into openings at seat as figure shows.

Note: By installation the folding button must be located outwards.

3 - ASSEMBLY OF FRONT AND REAR SUPPORTS

ATTENTION! During assembly pay attention to front and rear supports. Rear support is one that holds the hooks for food tray storage.

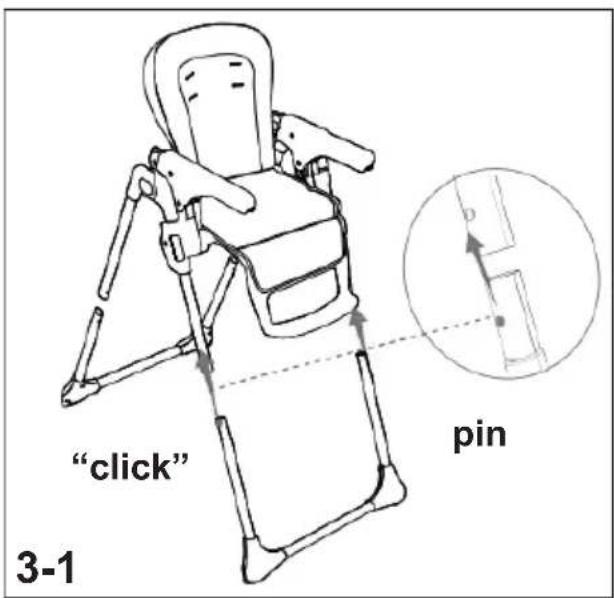

3-1 – Insert the tubes of front support to the tubes of upper legs until you hear a click sound and pins show out of the openings.

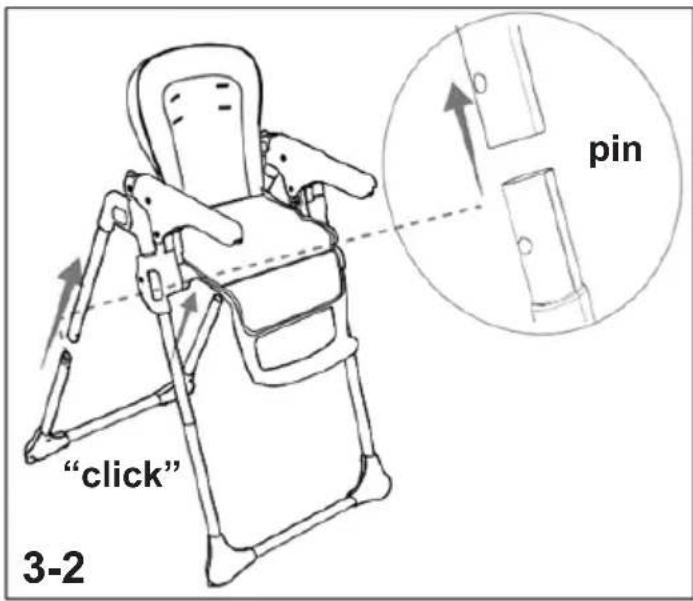

3-2 – Insert the tubes of rear support (the one with the hooks) to the tubes of upper legs until you hear a click sound and pins show out of the openings.

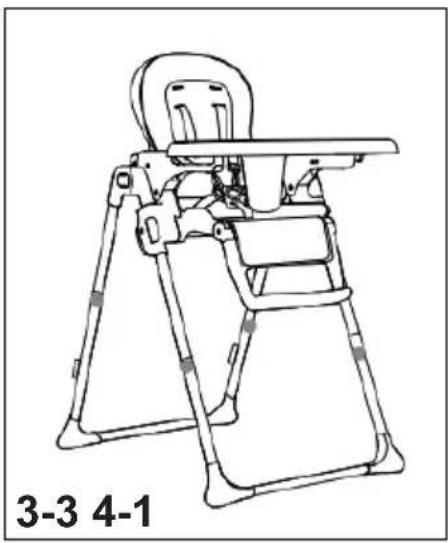

3-3 – Make sure that all pins are stuck in the openings and supports are stable fixed at correct places.

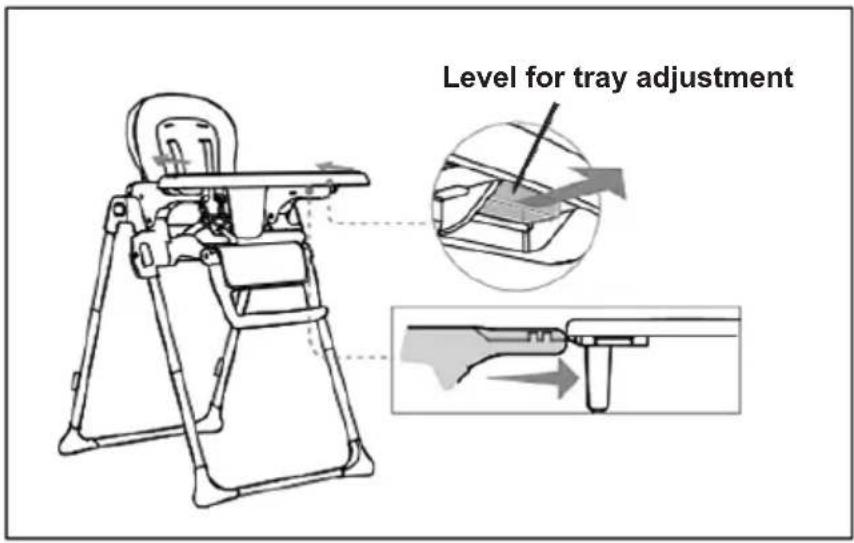

4 - INSTALLING AND ADJUSTMENT OF FOOD TRAY

4-1 – Pull out the two levers under the tray. Insert the tray in the seat armrest and release the levers until it is fixed.

Note: Make sure the tray is fixed by trying to pull it out form the seat.

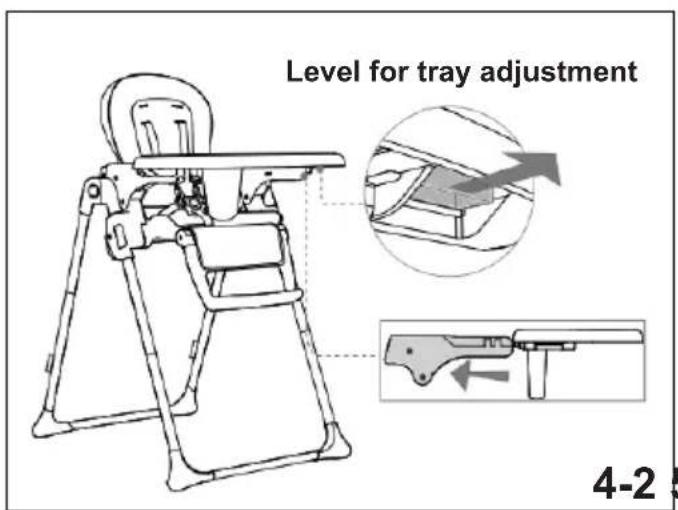

4-2 – The tray may be adjusted in 2 positions (forward and backward). Pull the two levers and move the tray in desired position, then release until the tray is fixed.

The top tray can be removed for easy cleaning.

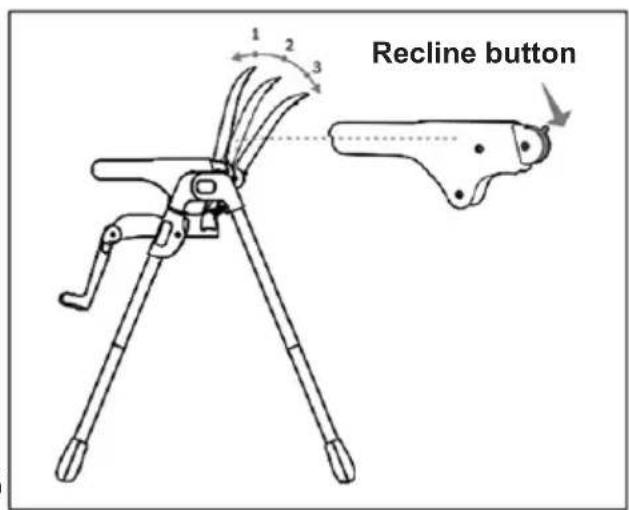

5 - BACKREST ADJUSTMENT

The seat can be reclined in 3 positions.

Press simultaneously the two buttons on both sides and move the seat to desired position - 1, 2 and 3. When the position is fixed you will hear a click.

6 – HEIGHT ADJUSTMENT OF SEAT

The seat can be adjusted in height in 6 positions.

Press simultaneously the two buttons on both sides at back side of front tubes and move the seat to desired position. Release the buttons to fix the seat. When the position is fixed you will hear a click.

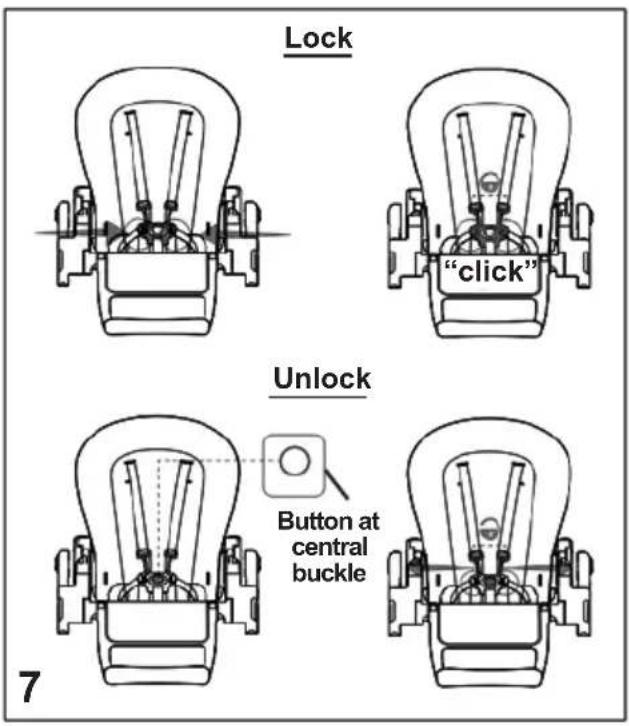

7- SAFETY HARNESS SYSTEM

Lock: Insert the belt endings into the central buckle and press until you hear a click sound. Set the plastic adjusters up/down to change the length of the belts.

ATTENTION! Safety harnesses must not be worn out or torn and buckles must be strong, without any damages and provide secure connection!

IMPORTANT! Belts should not be twisted, they must fit the baby well and their length should not be adjusted while they are fastened!

Unlock: Press the button at middle of central buckle and split the belts.

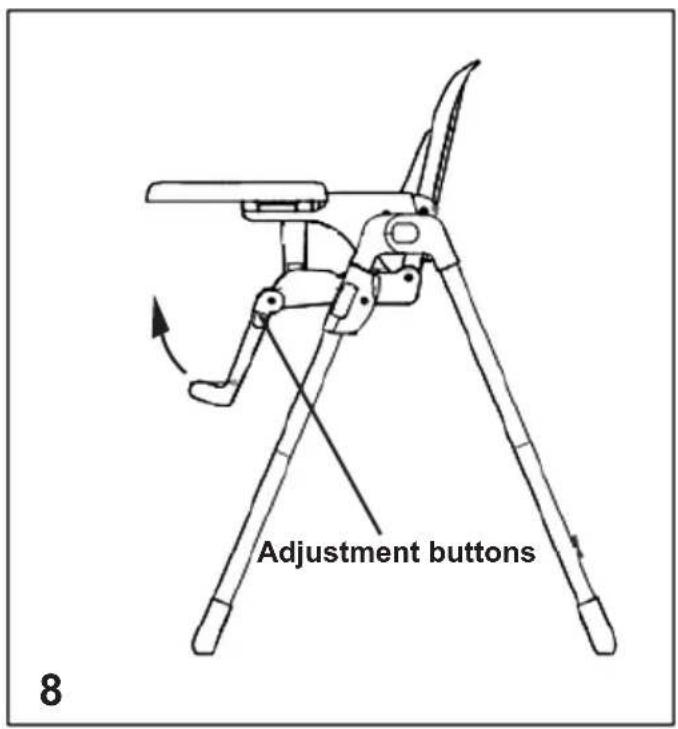

8 - LEG REST ADJUSTMENT

Press simultaneously the buttons on both sides of leg rest to move the leg rest down to desired position. Release the buttons to fix the position.

Pull up the leg rest with your hand to set it from low to higher position. When the position is fixed you will hear a click.

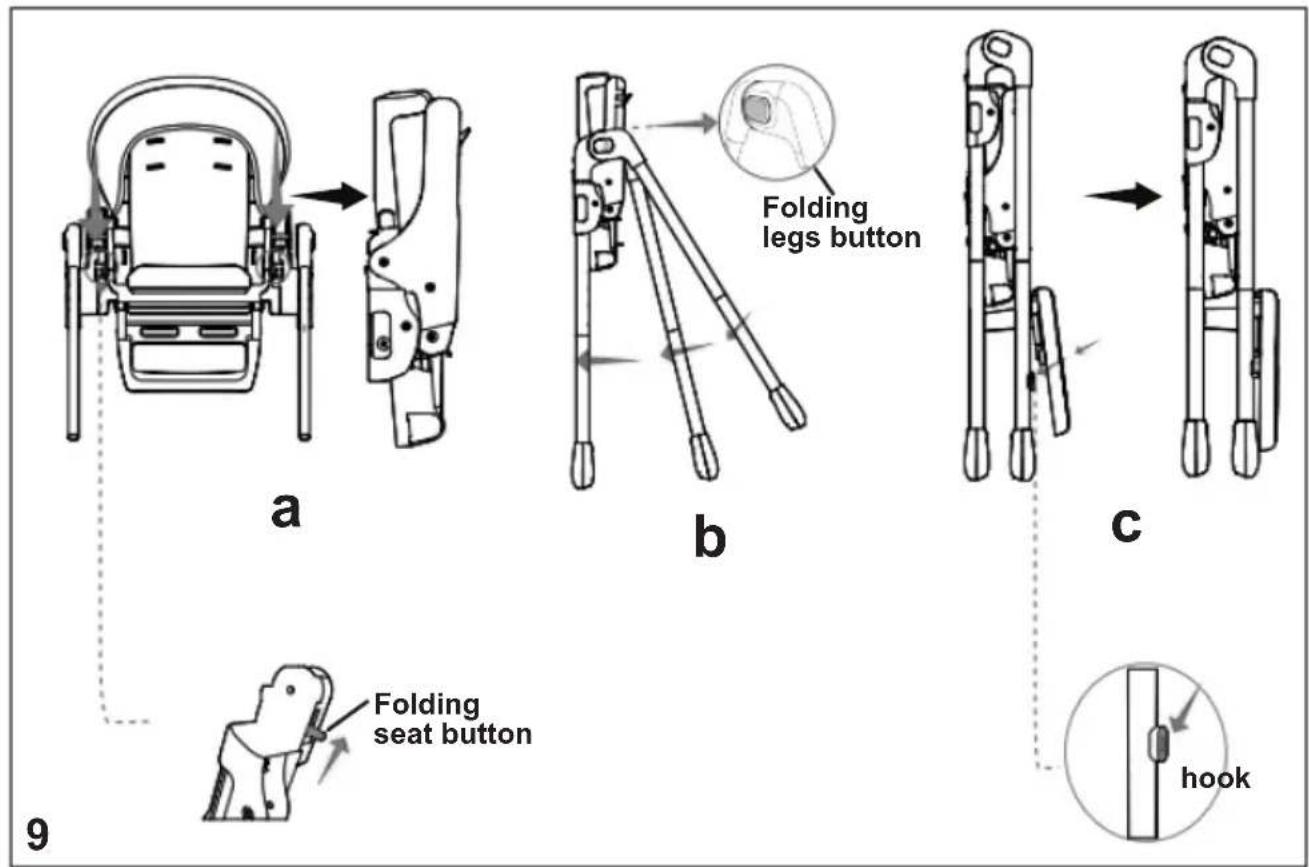

9 - FOLDING OF HIGH CHAIR

Before folding the high chair, please remove the food tray.

9a – Press simultaneously the folding buttons on both sides of seat and fold it.

9b – Press simultaneously the folding buttons on both outer sides of legs and fold them.

9c – Place the food tray on the hooks at rear support to store it.

1 "click"

Folding button 2

"click" pin 3-1

"click" 3-2 pin

Line drawing of a baby boom chair with seat and armrest (no text or symbols on the diagram itself)

Level for tray adjustment

Level for tray adjustment 4-2

1 2 3 Recline button

Lock "click" Unlock Button at central buckle 7

Adjustment buttons 8

a b c folding seat button hook 9

CARE AND MAINTENANCE

• Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap.
  Do not use abrasive, bleach or other aggressive detergents.
  ❖ Always after cleaning leave the high chair fully dry and after that use it or store it. It may appear mold to your high chair if you keep it moist.
  Do not put any objects and things in high chair or on the top of it to avoid damages of the structure.
  Always store your high chair indoors. Do not expose to direct environment influence - sun, rain, moisture and high temperature intervals.

Fabric composition:

Outer: 100% eco leather

Filling: 100% polyester

STHEU023xxxx
