USER MANUAL PERIDUO-713 Perixx

320mm 137mm 30mm

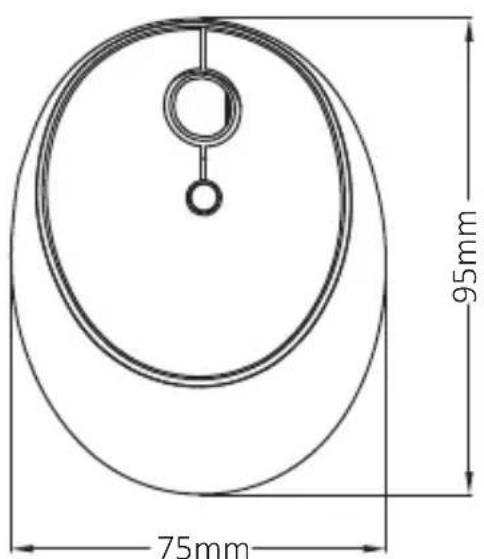

75mm 95mm

Simple line drawing of a curved, elongated object with a 40mm dimension label (no other text or symbols)

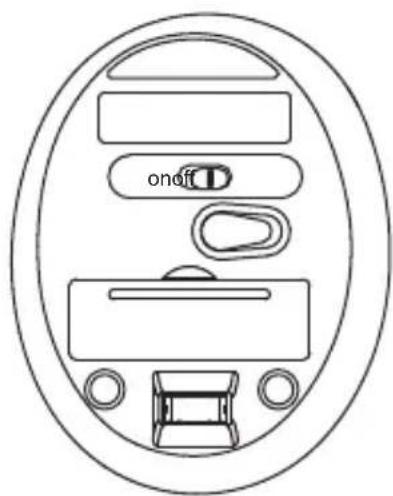

onoff

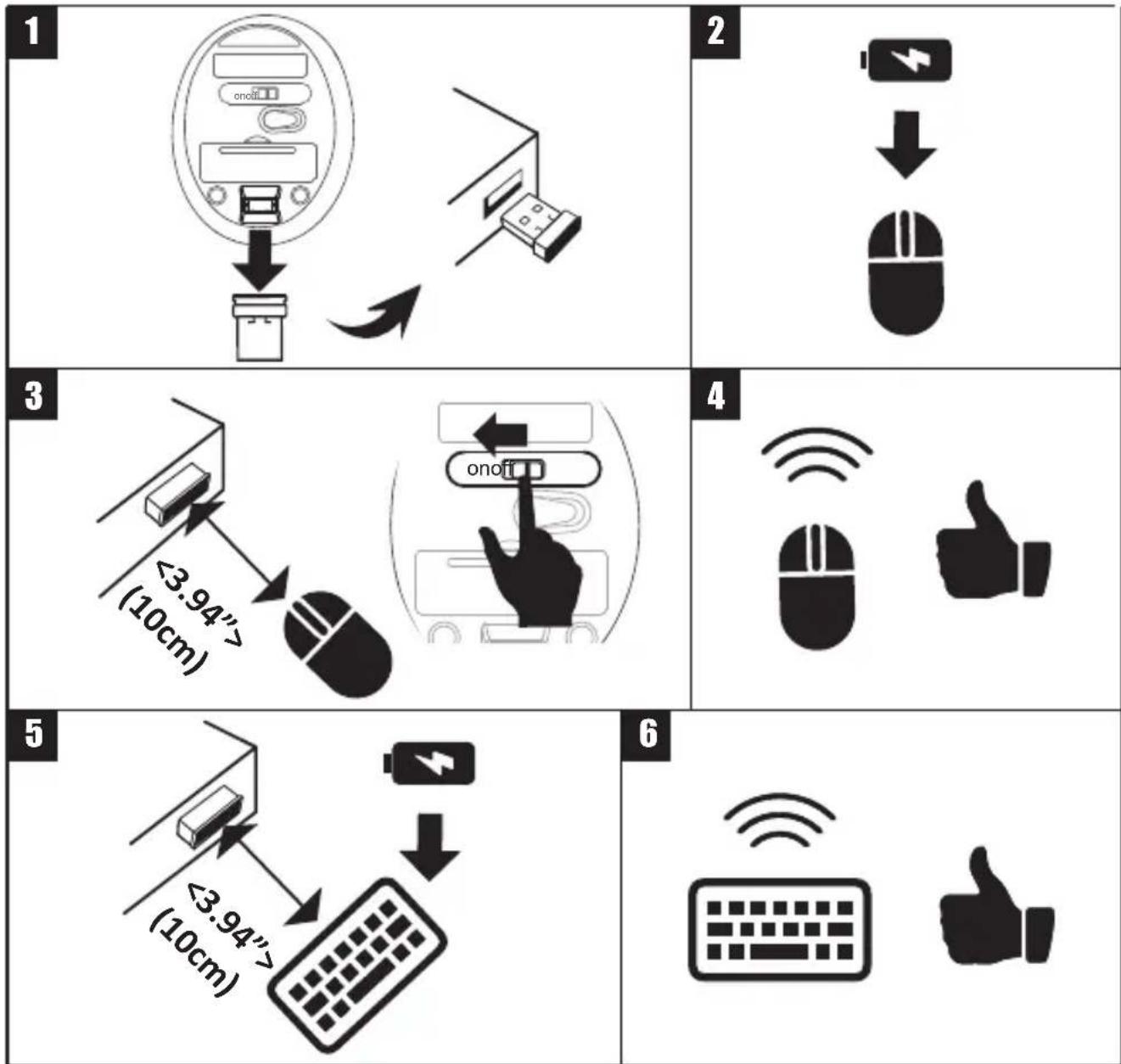

How to connect PD-713 to a USB-A device, such as desktop or notebook:

How to connect PD-713 to a USB-C device, such as iPad or Android tablet:

Front view of a dark rectangular tablet device with a small hole at the bottom (no text or symbols visible)

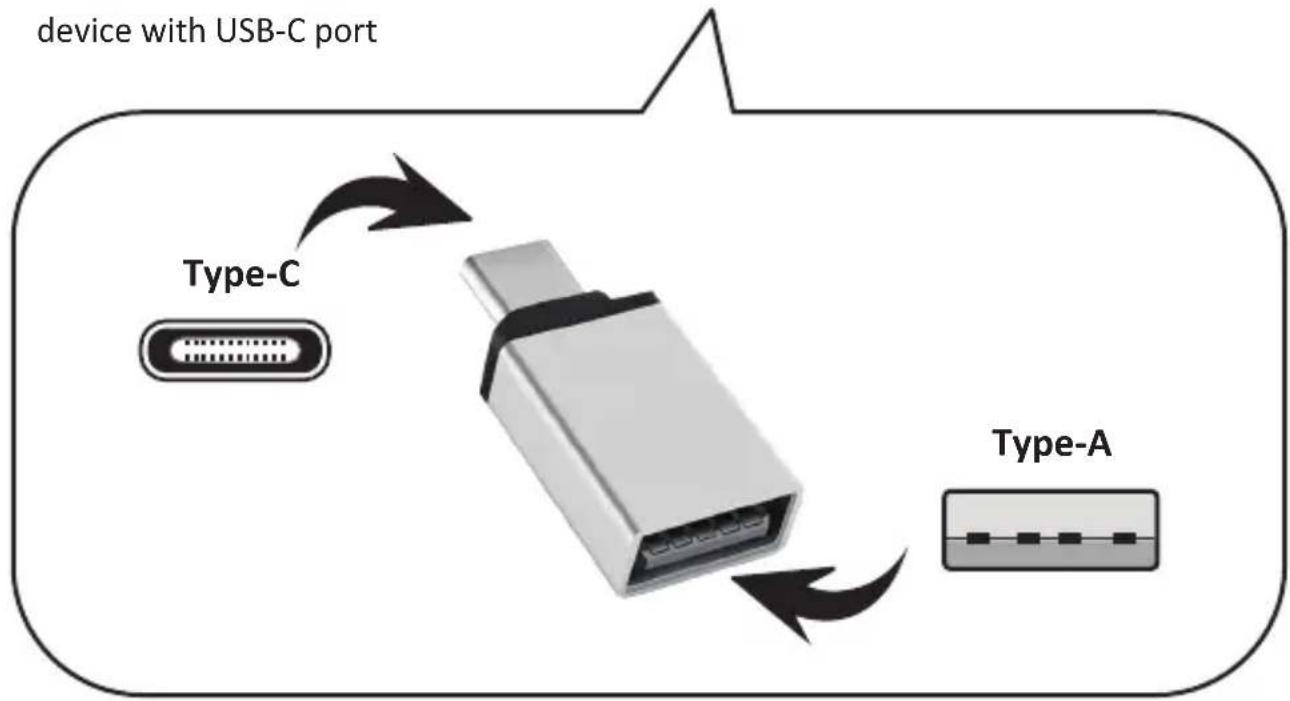

USB-C to USB-A adapter (included)

PD-713 nano receiver (included)

device with USB-C port

device with USB-C port Type-C Type-A

English(US/UK)

FCC Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE 1:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE 2:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

English(US/UK)

Caution

• The manufacturer and re-resellers are not responsible for any technical malfunctions, damage, or personal injury incurred by:
  ▶ Any attempt to dismantle, change or modify the product in any manner
• Malfunction or damage due to misuse or improper alteration or repair.
• Malfunction or damage caused by external influence such as falling
• Malfunction or damage is caused by a fire, salt, gas, earthquake, lightning, wind, water, or other natural calamities, or abnormal voltage.
• Malfunction or damage is caused by other devices connected to the products.
• Malfunction or damage is caused by high temperature, humid, greasy, dusty and hazardous environment.
• You are cautioned that changes or modifications not expressly approved by Perixx Computer GmbH could void your authority to operate the equipment.
• All brand names, trademarks and logos are the properties of their respective owners.

Please Note: Long-term repetitive use of any keyboard and mouse could cause injury to user. Perixx recommends users to avoid excessive use of this or any keyboard and mouse.

Important Safety Instructions

• Avoid Dropping.
• Do not disassemble.
• Do no expose to liquids.
• This product is suitable for moderate climates only.
• The maximum ambient temperature during use of this product must not exceed 40 degree
• Open flame sources, such as candles, must not be placed on this product.
• Only use a dry cloth or brush to clean this product.

English(US/UK)

Specification

Keyboard Mouse

Interface	2.4G
Size	320*137*30mm
Input Current	3V / ≤ 6mA
Weight	516g
Material	ABS
OS requirement	Win 7 / above
Key number	86
Key Type	Membrane
Actuation distance	2.6±0.2mm
Total travel distance	4.2±0.2mm
Durability	8 million keypresses

Interface	2.4G
Size	75*95*40mm
Input Current	1.5V / ≤ 12mA
Weight	82g
Material	ABS
OS requirement	Win 7 / above
Key number	3
DPI	800/1200/1600
Acceleration	8G
Tracking Speed	30 IPS
Report Rate	125HZ
Durability	3 million keypresses

Multimedia Hotkeys

Fn+Esc > Media Player

Fn+F4 > Volume Up

Fn+F8 > Search

Fn+F12 > My Computer

Fn+F1 > Play / Pause

Fn+F5 > Volume Down

Fn+F9 > My Favorite

Fn+F2 > Previous Track

Fn+F6 > Mute

Fn+F10 > Email

Fn+F3 > Next Track

Fn+F7 > Web Home

Fn+F11 > Screen Lock

Deutsch (DE)

Bitte beachten Sie:

Hotkeys/Mutimedia Tasten

Specifications techniques

TECLADOS RATONES

設備名稱:無線鑑盤 型號(型式):PERIDUO-713Equipment name Type designation (Type)
單元:Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (pI)	汞Mercury (Hg)	銅Cadmium (Cd)	六價鉻Hexavalent chromium Cr^+6	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated diphenyl ethers (PBDE)
鍵盤內外殼	○	○	○	○	○	○
鍵盤模組	○	○	○	○	○	○
電路板	○	○	○	○	○	○
電線	○	○	○	○	○	○
備考 1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考 2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考 3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption

無線鍵盤

型號: PERIDU0-713

額定電壓: DC 3V = 6mA

製造號碼:如本體

製造年份:2021

原產地:中國大陸

R3B701

RoHS

限用物質含有情況標示表

設備名稱:無線湧鼠Equipment name 型號(型式):PERIDUO-713Type designation (Type)
單元 Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	銅Cadmium(Cd)	六價鉛HexavalentchromiumCr+s	多溴班苯Polybrominatedbiphenyls(PBB)	多溴二苯醚Polybrominateddiphenyl ethers(PBDE)
湧鼠滾輪	○	○	○	○	○	○
電路板(包含零組件)	○	○	○	○	○	○
湧鼠上下蓋	○	○	○	○	○	○
接收器的外殼	○	○	○	○	○	○
湧鼠腳墊	○	○	○	○	○	○
湧鼠透鏡	○	○	○	○	○	○
備考 1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考 2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考 3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption

無線滑鼠

型號: PERIDU0-713

額定電壓: DC 1.5V = 12mA

製造號碼:如本體

製造年份:2021

原產地:中國大陸

R3B701

RoHS

製造商：佩銳科技(深圳)有限公司
