USER MANUAL D25301D DEWALT

English (original instructions)

Technical diagram showing a mechanical device with labeled parts (i, h, g) and a close-up of its internal structure.

Figure 3

Illustration of a vacuum cleaner connected to a handheld device with a tool, showing no text or symbols.

Figure 4

Illustration of a person aiming a rifle with a head-mounted scope, wearing safety gear (no text or symbols)

Figure 5

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical tool with no visible text or symbols

Figure 6

Technical line drawing of two mechanical devices with a drill bit and a tool, showing motion direction (no text or symbols)

Figure 7

Technical diagram of a mechanical component with labeled parts k and f, showing internal structure and assembly.

TELESKOP SYSTEM TIL ST∅VOPSAMLING D25301D

Tillykke!

ADVARSEL: For at reducere

ADVARSEL: For at reducere

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

D25301D

Contact pressure N 60

Max. stroke mm 150

Max. drill diameter mm 16

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

Safety Instructions

WARNING! Always observe safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury.

Read all of this manual carefully before operating the attachment. Also refer to the manual of any power tool that will be used with this attachment.

SAVE THIS MANUAL FOR FUTURE REFERENCE

General Safety Rules

1. Keep work area clear.

Cluttered areas and benches invite injuries.

1. Keep children away.

Do not let children come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.

1. Use appropriate tool.

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

WARNING: The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

Additional Specific Safety Rules for Dust Extraction Systems

• Do not use the attachment for drilling applications in wood, steel or plastic.
• Do not use the attachment in core drilling applications.
• Do not use the attachment for chiselling applications.
• Use only power tools recommended by DEWALT with this attachment. For more information about DEWALT power tools compatible with this attachment, please contact your local dealer, refer to the addresses at the back of the manual or visit www.dewalt.eu.
• Do not use the tool in damp or wet conditions.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

ENGLISH

- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

Package Contents

The package contains:

1 Dust extraction telescoping system:

1 Side handle

1 Side handle diameter reduction adapter

1 Dust extraction head/dust brush

1 Telescope with depth adjustment slide

1 Dust hose

1 Instruction manual

1 Exploded drawing

- Check for damage to the tool, parts or accessories which may have occurred during transport.

• Take the time to thoroughly read and understand this manual prior to operation.

Description (fi g. 1)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

a. Telescope

b. Dust hose

c. Length adjustment button

d. Depth adjustment button

e. Dust extraction head

f. Dust brush

g. Side handle

h. Adapter

INTENDED USE

The D25301D dust extraction telescope has been designed for the extraction of dust in professional hammerdrilling in masonry or concrete, and with solid drill bits mounted to the power tool. DO NOT use for drilling plastic, wood or metal.

This dust extraction telescope system will fit most DEWALT cordless and corded SDS Plus ^® tools. For more information about DEWALT power tools compatible with this attachment, please contact your local dealer, refer to the addresses at the back of the manual or visit www.dewalt.eu.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

The dust extraction telescope system is an attachment for use with professional power tools.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack or power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Attaching and Removing the Telescope and Side Handle

TO ATTACH THE TELESCOPE AND SIDE HANDLE (FIG. 1-3)

1. Remove the drill bit, side handle and the depth adjustment rod, if attached to the tool.
2. If the nose of the tool (i) is less than 43 mm, the adapter is needed to assemble the side handle.

IF ADAPTER IS NEEDED

a. Open supplied adapter (h) and close onto nose of tool (i).

NOTE: Adapter will slide back and forth on the tool.

b. Place open end of supplied side handle (g) onto adapter and turn side handle until tight.

IF ADAPTER IS NOT NEEDED

Place open end of supplied side handle onto nose of tool and turn side handle until tight.

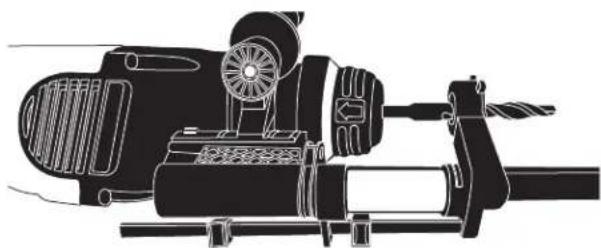

1. Align dust extraction telescope (a) with the side handle and then push the dust extraction telescope against the side handle until the spring-loaded button (j) locks the dust extraction telescope into place.

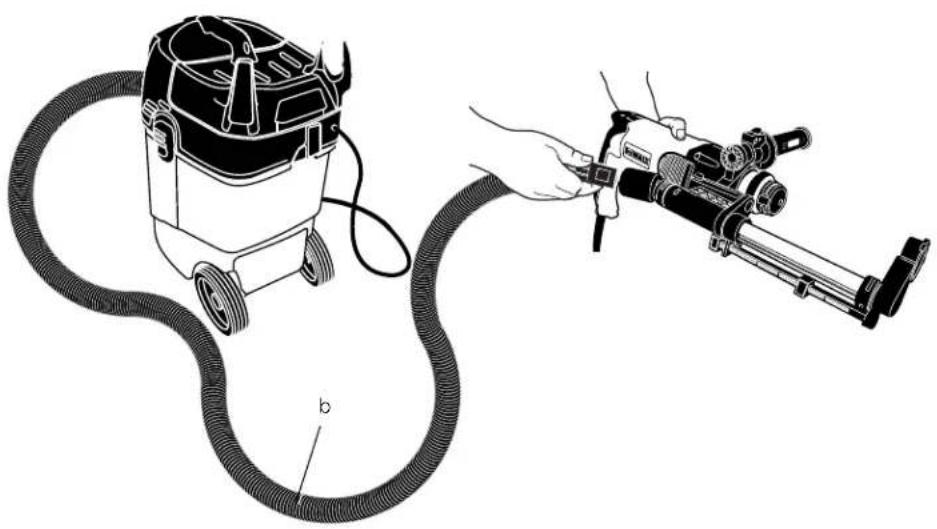

2. Insert the dust hose (b) into the dust extraction telescope and a vacuum (not included) as shown in figure 3.

TO REMOVE THE TELESCOPE AND SIDE HANDLE

1. To remove the telescope, press the spring-loaded button (j) and remove the telescope.
2. Turn side handle (g) to loosen and slide from nose of tool.
3. If adapter (h) was used, open and remove adapter from nose of tool.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack or power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Always observe the safety instructions and applicable regulations.

WARNING: Always read and operate the tool as instructed in the tool instruction manual.

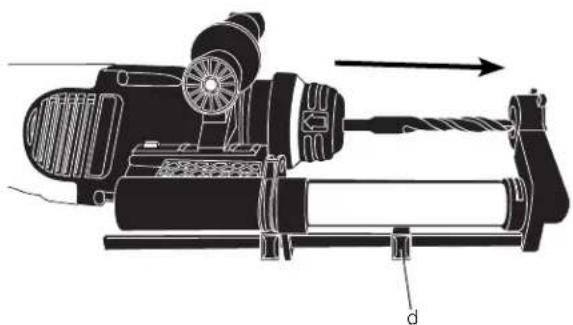

Setting the Drilling Depth (fi g. 5)

Press the depth adjustment button (d) on top of the front slider and move it to the desired drilling depth. Release the button.

Adjusting the Drill Length (fi g. 4, 6)

1. Insert the appropriate drill bit.

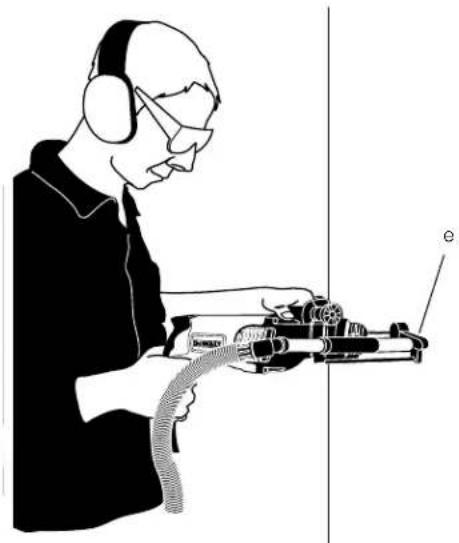

2. Hold the dust extraction head (e) against a wall (fig. 4).
3. Push the tool to make the drill bit touch the surface.

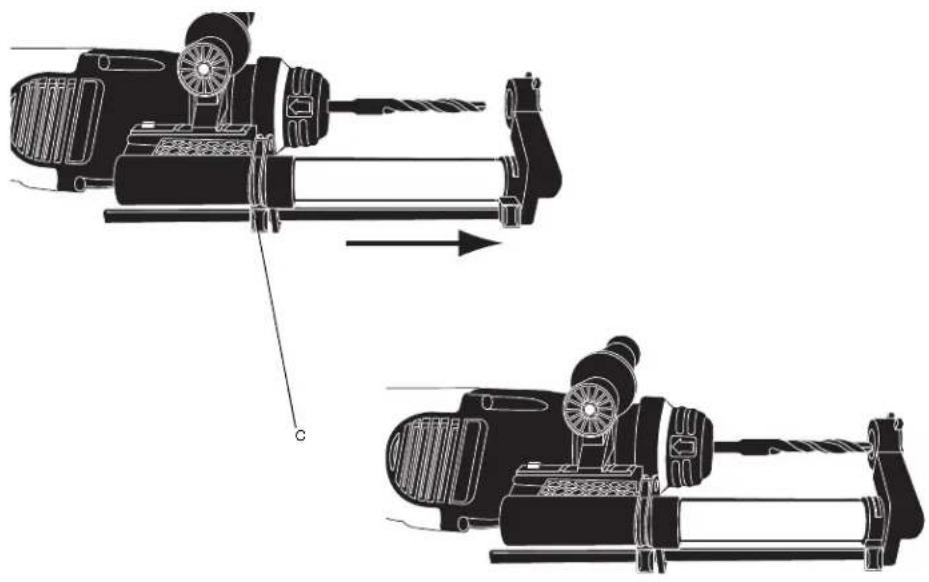

4. Press the length adjustment button (c) on top of the back slider and move it to the desired length. Release the button.
5. Gently withdraw the tool assembly from the wall, taking care that the spring-loaded mechanism does not release.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack or power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your DEWALT dust extraction telescoping system has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper care and regular cleaning.

WARNING: Use only DEWALT replacement parts.

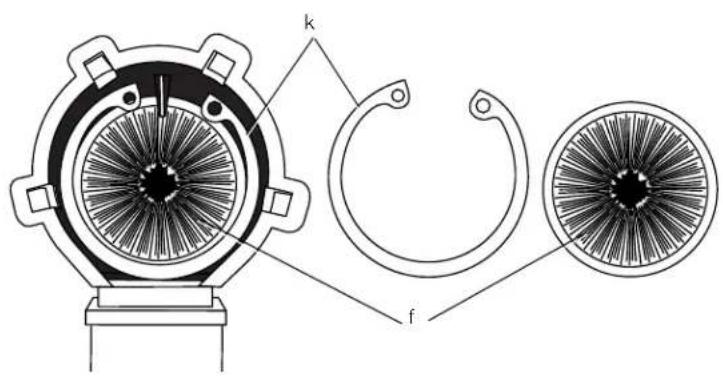

Replacing the Dust Brush (fi g. 7)

WARNING: Wear approved eye protection and approved dust mask when performing this procedure.

The dust brush will wear during use and will need to be replaced.

1. Remove the circlip (k) using a pair of circlip pliers.
2. Replace the dust brush (f).
3. Refit the circlip.

Cleaning

WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT, recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

ENGLISH

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

GUARANTEE

DEWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorised DEWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DEWALT guarantees to replace all defective parts free of charge or – at our discretion – replace the unit free of charge provided that:

• The product has not been misused;
- The product has been subject to fair wear and tear;
• Repairs have not been attempted by unauthorised persons;
• Proof of purchase is produced;
- The product is returned complete with all original components.

If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DEWALT office at the address indicated in this manual. A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at: www.2helpU.com.
