VINDRIKTNING 704.982.42 - Air purifier IKEA - Free user manual and instructions

Product type	Air quality sensor (PM2.5)
Model	VINDRIKTNING 704.982.42
Brand	IKEA
Power supply	USB-C, 5.0 V DC, 2.0 A (adapter not included)
Power consumption	0.5 W
Detection type	Fine particles PM2.5
Detection range	0 to 1000 µg/m³
Air quality indicator	LED: Green (0–35), Orange (36–85), Red (86+)
Operating temperature	0 °C to 40 °C
Operating humidity	0 to 95% RH (recommended 40–60%)
Use	Indoor only
Maximum USB cable length	3.0 m
Cleaning	Soft cloth moistened with mild detergent, then dry
Repairability	Not user-serviceable (dangerous opening)
Start-up time	Approximately 10 seconds (start-up sequence)
Precautions	Do not block air intakes, avoid direct light and heat sources
Recycling	Sorting (wheelie bin symbol) – follow local regulations
Languages of instructions	FR, DA, DE, EL, EN, ES, FI, IS, IT, NL, NO, PT, SV, TR

Frequently Asked Questions - VINDRIKTNING 704.982.42 IKEA

How to use the VINDRIKTNING sensor?

Connect the power adapter to the USB-C port. The sensor performs a start-up sequence of about 10 seconds (flashing LEDs). Once the LEDs are stable, the device is ready to measure air quality.

What do the LED colors mean?

The LEDs indicate the PM2.5 concentration: Green = 0–35 µg/m³ (good), Orange = 36–85 µg/m³ (moderate), Red = 86+ µg/m³ (poor). Flashes during start-up.

What power adapter to use?

The adapter is not included. Use a USB-C adapter providing 5.0 V, 2.0 A. Lower power may prevent operation.

Can I use the sensor outdoors?

No, the device is designed for indoor use only. Do not expose it to rain, excessive humidity, or direct sunlight.

How to clean the VINDRIKTNING?

Unplug the device. Wipe it with a soft cloth moistened with a little mild detergent, then dry with a dry cloth. Never use abrasive products or solvents.

What is the maximum USB cable length?

The recommended maximum length is 3.0 meters to avoid voltage drops and ensure reliable operation.

What if the device does not turn on?

Check that the USB adapter is properly connected and provides 5.0 V, 2.0 A. Try another USB-C cable under 3 m. If the problem persists, contact IKEA support.

Can I repair the sensor myself?

No, never attempt to open or repair the device. Opening exposes you to dangerous voltages. Only a qualified professional can intervene.

What are the recommended usage conditions?

Temperature between 0 °C and 40 °C and relative humidity between 40% and 60% (max 95%). Do not block air intakes and avoid heat sources.

How to recycle the VINDRIKTNING?

The crossed-out wheelie bin symbol indicates it should be recycled. Dispose of it at an appropriate collection point according to local electronic waste regulations.

USER MANUAL VINDRIKTNING 704.982.42 IKEA

Line drawing of a 3D rectangular box with a vertical oval cutout on the front face (no text or symbols)

Design and Quality IKEA of Sweden

1

English	6	Svenska	30
Deutsch	9	Español	33
Français	12	Português	36
Nederlands	15	Ελληνικα 39
Dansk	18	Türkçe	42
Íslenska	21	عربي 45
Norsk	24	Italiano	48
Suomi	27

Air quality sensor features

• USB-C power adapter (5.0V, 2.0A) not included.
  • Measure PM 2.5 particles
  • LED status indicator

Instructions for use

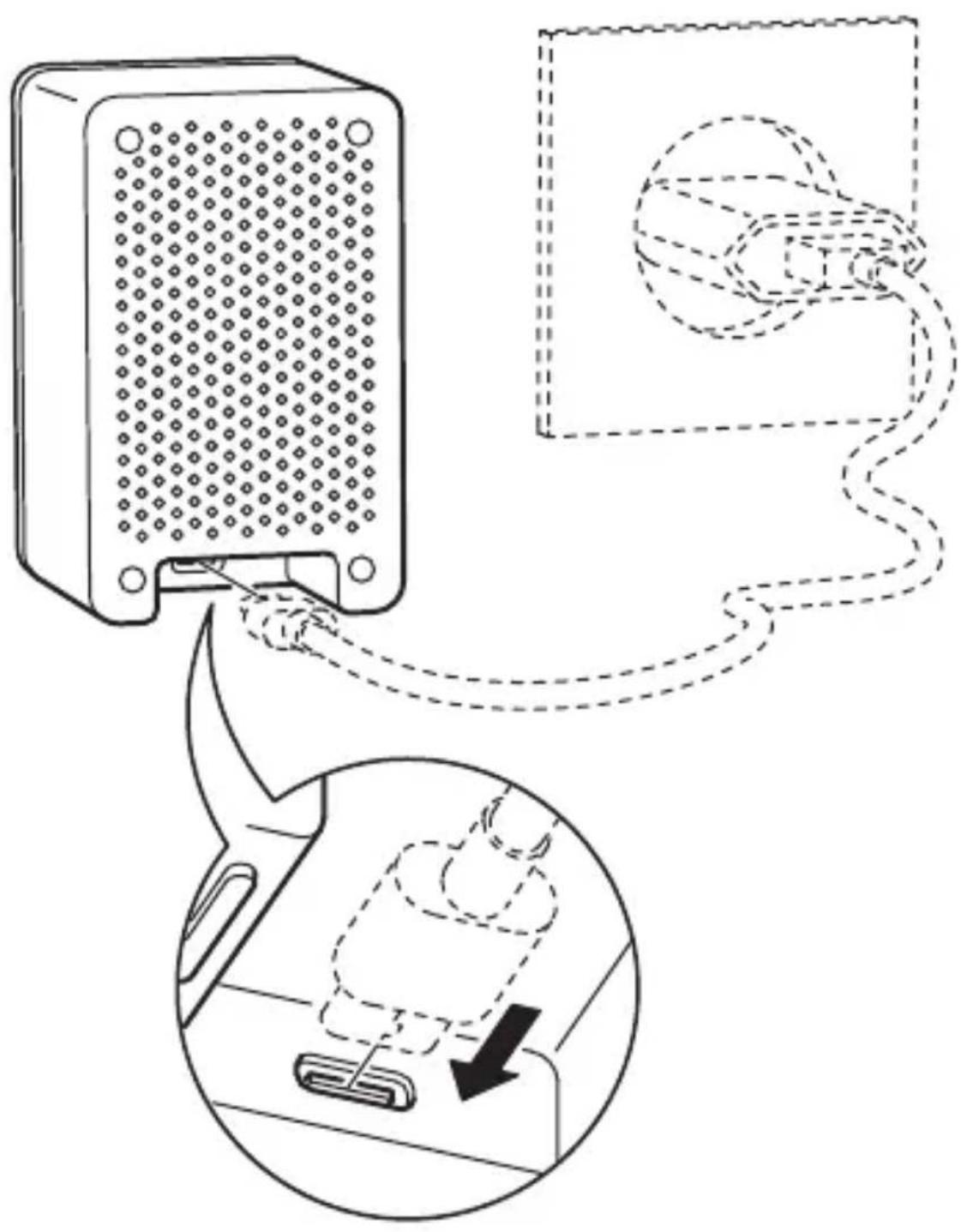

• Connect the power adaptor to the USB-C port.
• The Air quality sensor initiate a start-up sequence for about 10 seconds.
• When the LEDs stop pulsing, the device is ready.

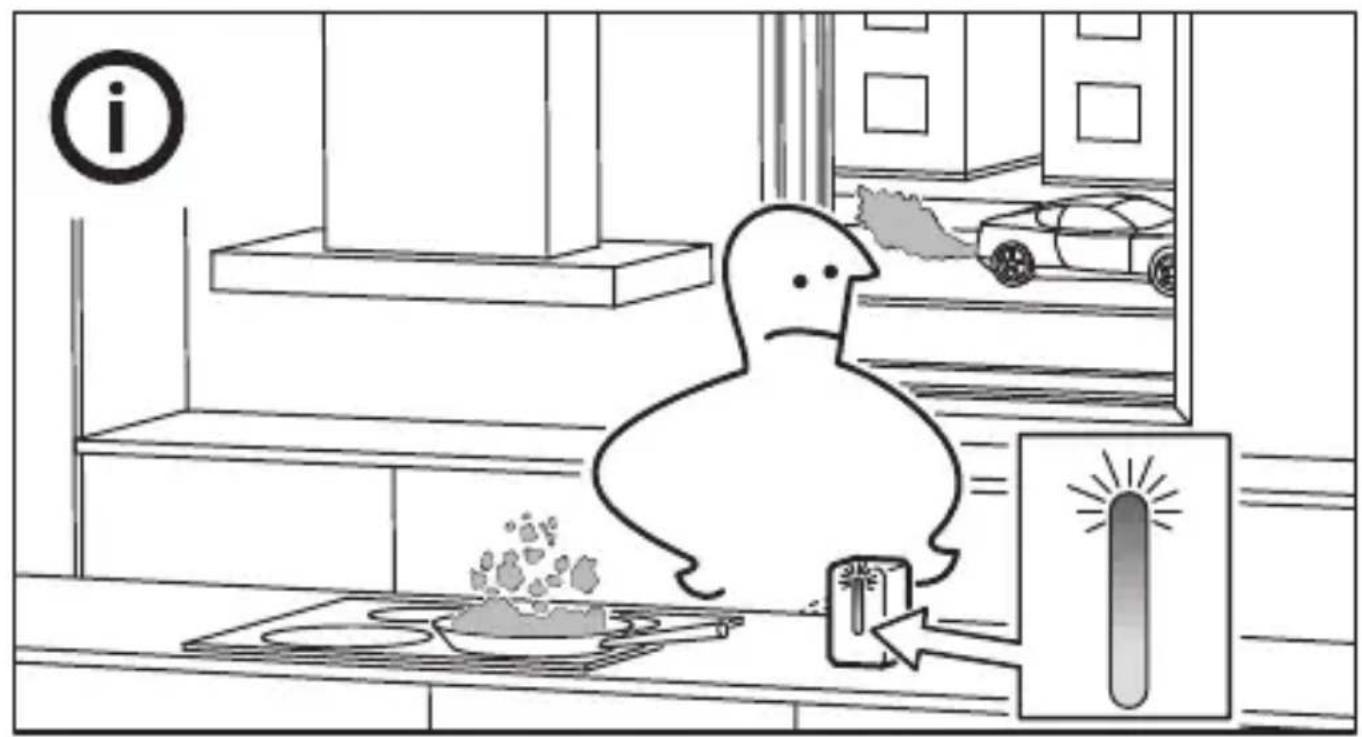

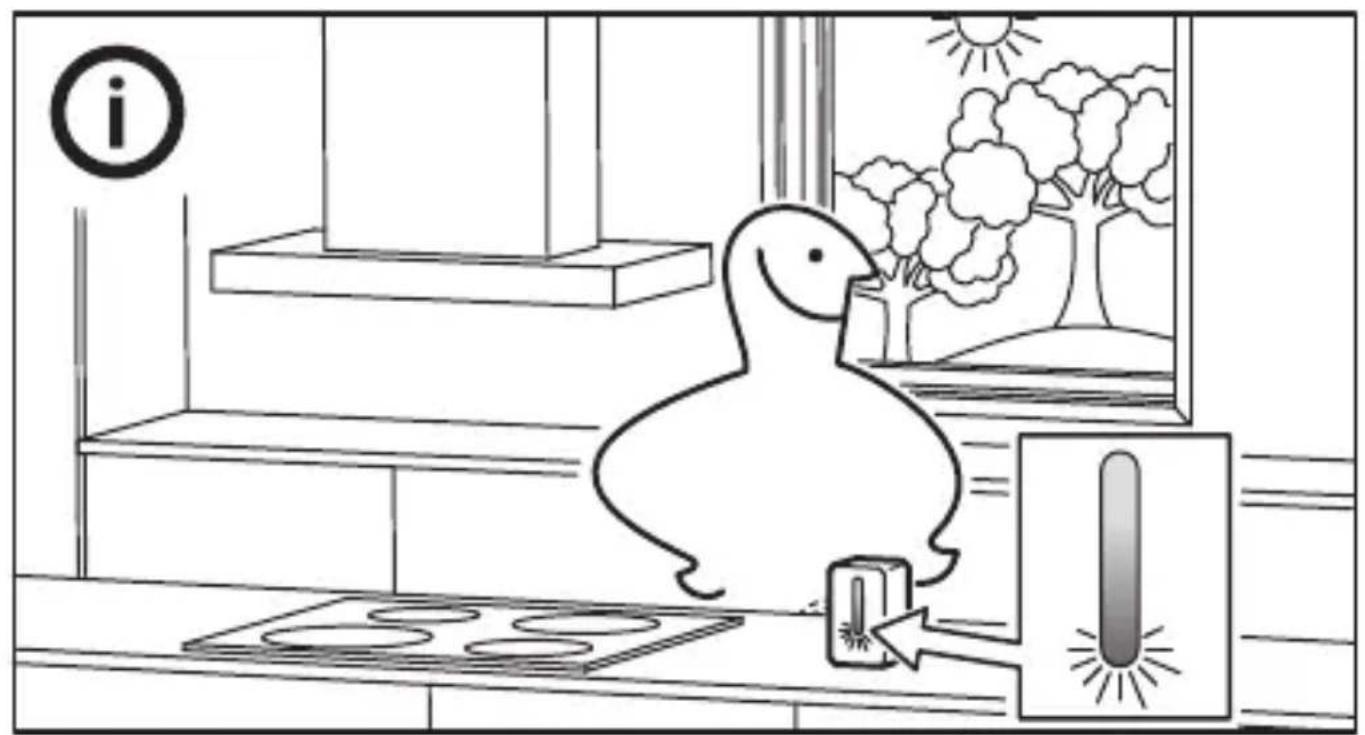

LED indicators for air quality (PM 2.5):

Green: 0-35 /Good + Low

Amber: 36-85/OK + Medium

Red: 86-/Not good + High

Pulsing: Start-up mode

Good to know

• Operation temperature: 0°C to 40°C.
- Operating humidity: 0 to 95% RH (Recommended working humidity: 40 - 60% RH)
- Unplug the product from the power source before cleaning and when it is not in use.

Save these instructions for future use.

Important!

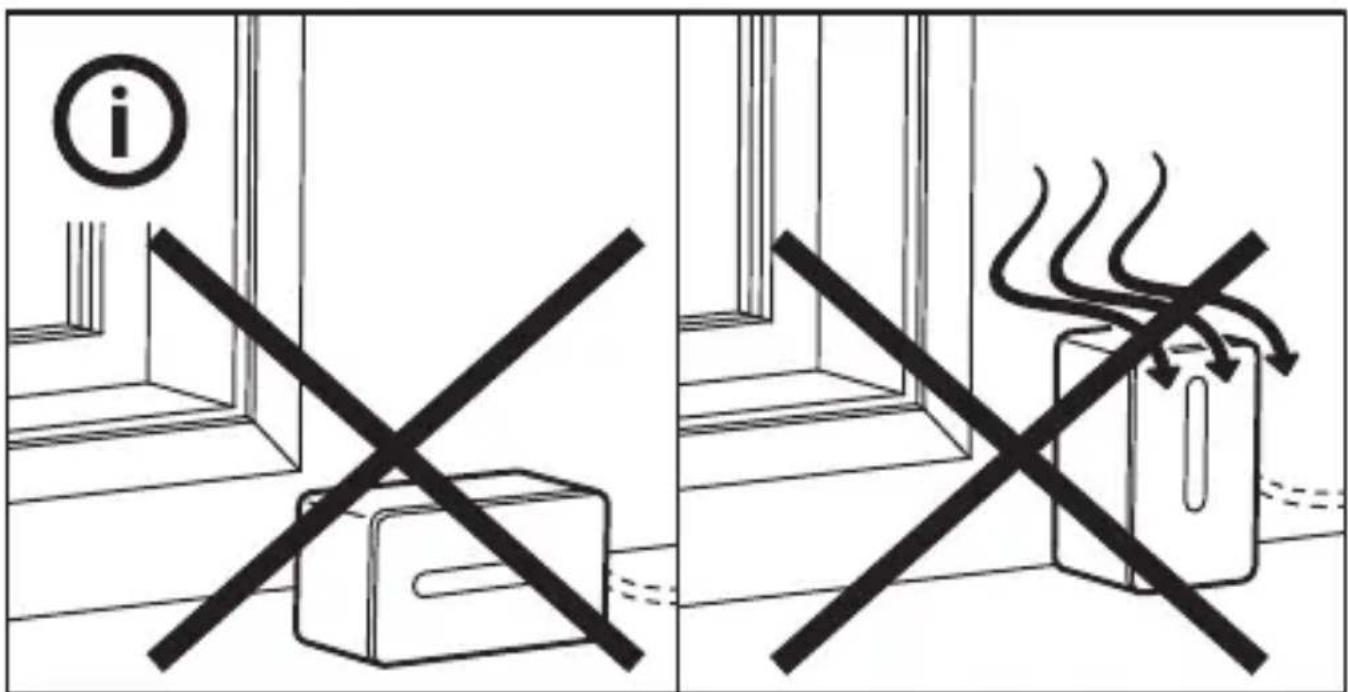

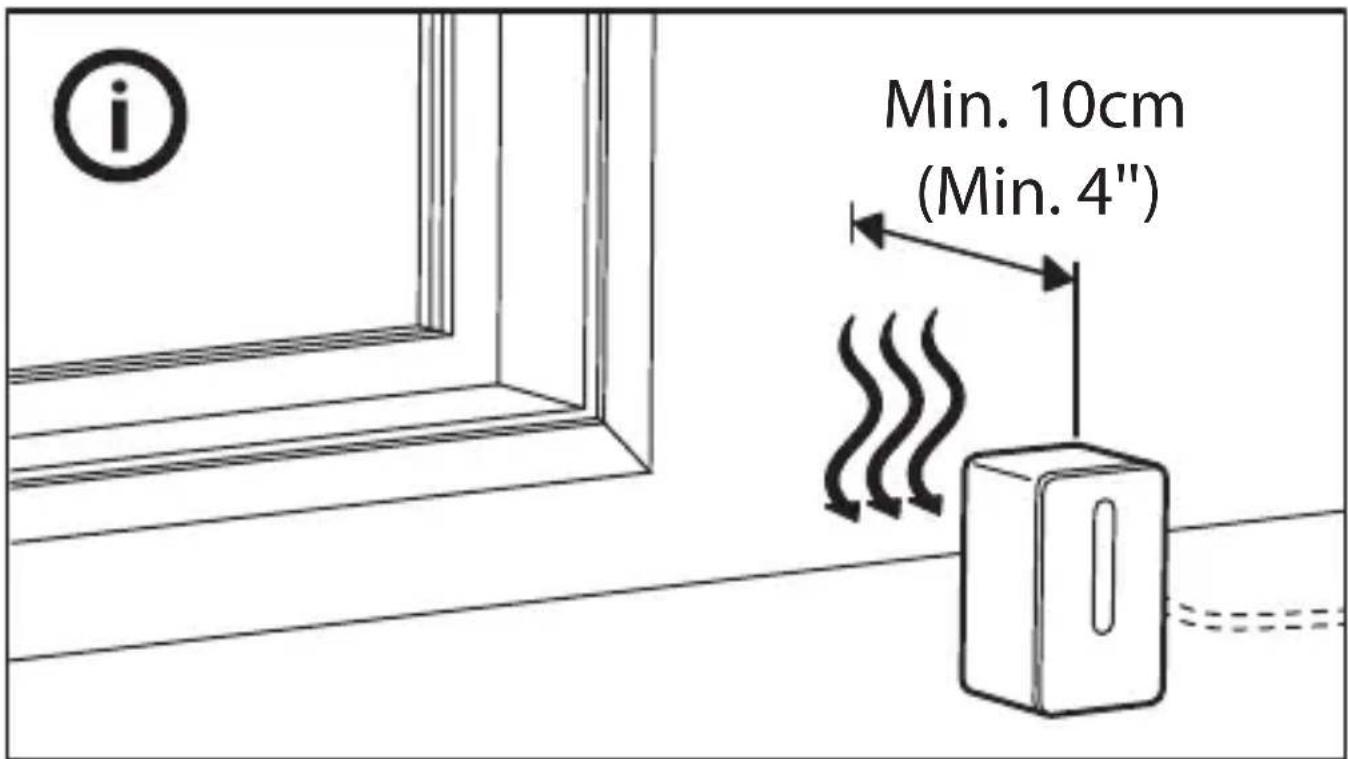

• Do not block the air intakes.
• Do not leave the device in direct sunlight or near any heat source, as it may overheat.
• The wall socket must be located near the equipment and must be easily accessible.
• Do not subject the unit to wet, moist or excessively dusty environments since this can cause damage to the unit.
• Children should be supervised to ensure they do not play with the product.
• Be sure to not exceed the maximum USB cable length recommended for the device.

Care instructions

Wipe with a soft cloth moistened with a little mild detergent. Use another soft, dry cloth to wipe dry.

Note!

Never use abrasive cleaners or chemical solvents as this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Technical data

Type: E2014 VINDRIKTNING

Input: 5.0V DC, 2.0A, 0.5 W, USB-C

Particle detection range: 0\~1000 g/m ^3

Max USB cable length: 3.0 m/9'8"

Indoor use only

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
