VÄRMD 304.307.01 - Oven IKEA - Free user manual and instructions

Brand	IKEA
Model	VÄRMD 304.307.01
Product Type	Built-in microwave oven
Capacity	20 L
Output power (microwave)	800 W
Input power (microwave)	1250 W
Rated voltage	230 V - 50 Hz
External dimensions (H x W x D)	344 x 595 x 394 mm
Net weight	15 kg
Turntable diameter	245 mm
Installation type	Built-in in a 60 cm wide cabinet
Main functions	Microwave cooking, Defrost (weight/time), Quick cooking, Auto menu (8 programs), Kitchen timer, Clock
Microwave power levels	5 levels (e.g. 20%, 40%, 60%, 80%, 100%)
Safety	Child lock, Auto shut-off, Door locking system
Care and cleaning	Clean with a damp cloth, do not use abrasive products, use lemon to deodorize
Included accessories	Glass tray, Turntable support, User manual, Drilling template, Assembly instructions
Warranty	5 years (IKEA warranty)
Spare parts available	Glass tray, turntable support, bulb (via after-sales service)

Frequently Asked Questions - VÄRMD 304.307.01 IKEA

How to set the time on the oven?

To set the time, press the Kitchen Timer/Clock button twice. The hours flash: turn the knob to set the hours (0-23), then press the button again to confirm. The minutes flash: turn the knob to set the minutes (0-59) and press the button to validate. The time is then set.

How to activate the child lock?

In standby mode, press the Stop/Cancel button for 3 seconds. A long beep sounds and the display shows [...] or the current time. To unlock, repeat the same operation: press Stop/Cancel for 3 seconds.

What utensils can I use in the microwave?

Use suitable containers: heat-resistant glass, ceramic, microwave-safe plastic, parchment paper. Avoid metal, aluminum foil, metal ties, wood, and plastic foam. A simple test: place a glass of water with the utensil in the oven, heat for 1 minute at full power; if the utensil becomes hot, it is not suitable.

How to clean the inside of the oven?

Unplug the appliance. Clean with a slightly damp cloth after each use. For easier cleaning, place half a lemon in 300ml of water, heat at maximum power for 10 minutes, then wipe with a soft dry cloth. Never use abrasive products or sharp objects on the glass.

What to do if the oven does not start?

Check that the power cord is properly plugged in. If the problem persists, test the outlet with another device. The fuse may be blown or the circuit breaker tripped: contact a professional. If the door is not properly closed, the oven will not heat; close it properly.

How to defrost food?

Two modes: Defrost by weight: press the Weight/Time Defrost button once (dEF1), turn the knob to select the weight (100-2000g) and press Start/+30 sec. Defrost by time: press twice (dEF2), set the time (max 95 min) and start. Halfway through, the oven beeps: turn the food over and continue.

How to use the auto menu?

Turn the knob to the left to choose a menu from A-1 to A-8 (Pizza, Meat, Vegetables, Pasta, Potatoes, Fish, Soups, Popcorn). Press Start/+30 sec to confirm, then set the weight (preset values according to the table). Press Start again to start cooking.

How to set the cooking time manually?

In microwave cooking mode, after selecting the power, turn the knob to set the time (up to 95 min). The increments depend on the duration: 0-1 min: in steps of 5s; 1-5 min: 10s; 5-10 min: 30s; 10-30 min: 1min; 30-95 min: 5min. Press Start/+30 sec to start.

What power levels are available?

The oven offers 5 microwave power levels: 20%, 40%, 60%, 80% and 100%. To select, press the Microwave button several times or turn the knob until the desired value is displayed (e.g., 80 for 80%). Confirm with Start/+30 sec.

How to make a claim under IKEA warranty?

The IKEA warranty is 5 years. To make a claim, contact IKEA after-sales service (find the number on ikea.com or in store). Have your proof of purchase and the 8-digit article code (on the rating plate) ready. The appliance must be used in a domestic setting.

USER MANUAL VÄRMD 304.307.01 IKEA

a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
b) Do not place any objects between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
c) WARNING! If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 years.
3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in microwave ovens.

10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

12. The content of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. The oven should be cleaned regularly and any food deposits removed.

15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. Only use the temperature probe recommended for this oven. (For ovens provided with a facility to use a temperature-sensing probe.)

17. The microwave oven must be operated with the kitchen furniture door open. (For ovens with a kitchen furniture door in front of the product)

18. This appliance is intended to be used in household and similar applications such as:

— by clients in hotels, motels and other residential type environments;

- farm houses;

— bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
2. Metallic containers for food and beverages are not allowed during microwave cooking.
3. The appliance shall not be cleaned with a steam cleaner.
4. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door)
5. The microwave oven is intended to be used built-in.
6. Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door)

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Diagram showing a book being discarded into a trash bin with a crossed-out wheel, symbolizing waste disposal or disposal.

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improp er use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip ★ for easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300 ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "MATERIALS YOU CAN USE IN MICROWAVE OVEN OR TO BE AVOIDED IN MICROWAVE OVEN".

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

UTENSILS REMARKS
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5 mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags Follow m anufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

UTENSILS REMARKS
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed
Wood Wood will dry out when used in the microwave oven and may split or crack.

2. PRODUCT DESCRIPTION

SETTING UP YOUR OVEN

Name of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray 1x

Turntable ring assembly 1x

Instruction Manual 1x

Drilling template 1x

Assembly Instruction 1x

n H I A GDF E C B

A) Control panel
B) Door opening button
C) Wave guide cover (Do not remove)
D) Turnable shaft
E) Turnable ring assembly
F) Glass tray
G) Observation window
H) Door assembly
I) Safety interlock system

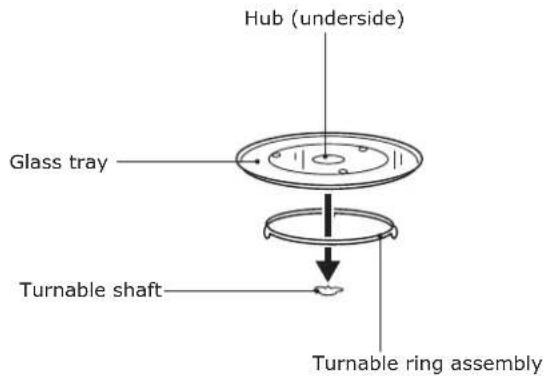

Turnable installation

Hub (underside) Glass tray Turnable shaft Turnable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.
e. Never put frozen food directly on a warm turnable.

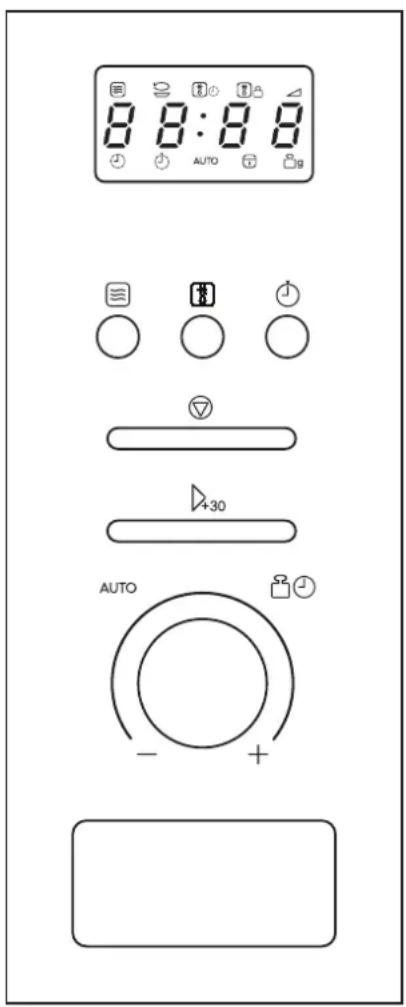

3. CONTROL PANEL

8:8:8 AUTO AUTO - +

INSTRUCTION

Microwave

Kitchen timer/Clock

Start/+30 Sec/Confirm

Time

Weight/Time Defrost

Stop/Clear

AUTO Auto Menu

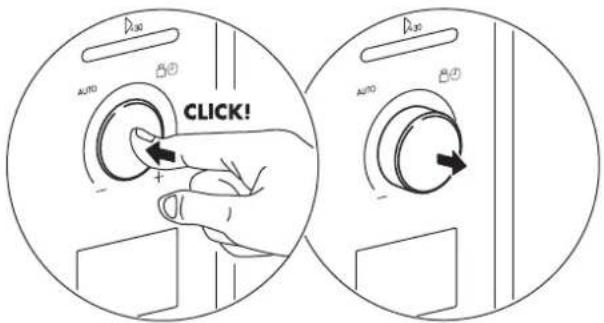

To use the selection knob, push it inwards and it will pop out.

AUTO CLICK! AUTO

8:10:20 8:10:20 1 3 5 2 4

8 B:8 B ① ② ④ ③

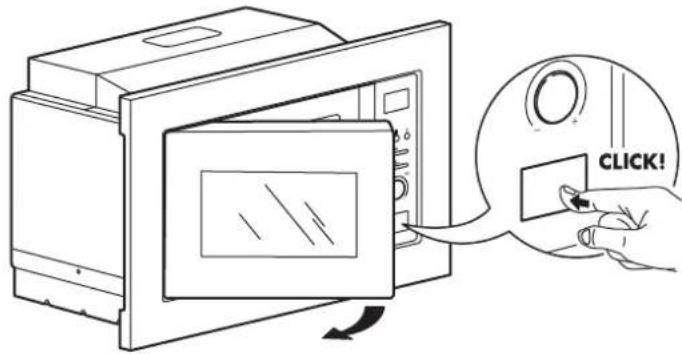

OPEN THE DOOR

Push the button to open the door.

CLICK!

CLOCK SETTING

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1. Press Ⓜ kitchen timer/Clock twice to select clock function, the hour figures will flash.
2. Turn knob to adjust the hour figures, the input time should be within 0--23.
3. Press Ⓜ kitchen timer/Clock, the minute figures will flash, the hour figures will light.
4. Turn knob "to adjust the minute figures, the input time should be within 0--59.
5. Press ⒶKitchen timer/Clock to finish clock setting, : will flash.

Note: During the process of clock setting, if you do not press Kitchen timer/Clock to confirm in 1 minute, the oven will go back to previous status automatically.

LOCK-OUT FUNCTION FOR CHILDREN

Lock: In waiting state, press Stop/Clear for 3 seconds, there will be a long "beep" denoting entering the children-lock state and screen will display [or current time.

Lock quitting: In locked state, press Stop/Clear for 3 seconds, there will be a long "beep" denoting that the lock is released.

MICROWAVE COOKING

1. Press ☐ Microwave once, the screen will display 80 flickering. Press ☐ Microwave repeatedly or turn the knob to choose the power you want.
2. Then press Start/+30 Sec to confirm selected power level.
3. Turn knob to set cooking time from 0:05 to 95:00.
4. Press ▶ Start/+30 Sec again to start cooking.

Note: The time steps for the time when turning the knob are as follow:

Defrost By Weight Defrost By Time

1 2 3

1 2 3

1 2 3

3 1 4 6 2 5

Quick Start alternative 1

1. In stand by mode, press Start/+30 Sec to start cooking with full power for 30 seconds, each added press will increase 30 seconds cooking time up to 95 minutes.

Quick Start alternative 2

1. In stand by mode, turn the knob do the right to set the time.
2. Press ▶ Start/+30 Sec to start cooking at full microwave power.

Note: In microwave or time defrost state, each press of _-30 Start/+30 Sec can increase 30 seconds of cooking time.

Defrost By Weight

1. Press Weight/Time Defrost once, and the oven will display dEF1.
2. Turn the knob "to select the weight of food from 100 to 2000g.
3. Press ▶Start/+30 Sec to start defrosting.

Defrost By Time

1. Press Weight/Time Defrost twice, and the oven will display dEF2.
2. Turn the knob "to select the defrost time. The MAX. time is 95 minutes.
3. Press ▷ Start/+30 Sec to start defrosting.

The product will prompt you to turn the food after half of the time set for defrosting. Open the door and turn the food, shut the door and press ▷Start/+30 Sec to continue the defrosting.

Kitchen Timer

1. Press ⏻Kitchen timer/Clock once, screen will display 00:00, clock indicator will light.
2. Turn the knob to enter the correct time. (Maximum time to set is 95 minutes.)
3. Press ▶Start/+30 Sec to confirm setting, clock indicator will be flickering.

When the kitchen time is reached, clock indicator will go out and the buzzer will ring 5 times.

The product can be set to perform a Multi stage cooking, defrosting followed by reheating:

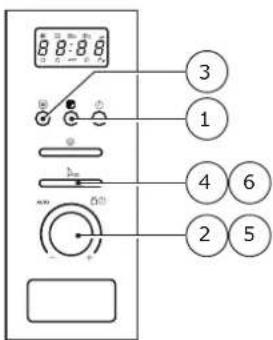

Multi-section cooking

1. Press Weight/Time Defrost twice, and the oven will display dEF2.
2. Turn the knob to select the defrost time.
3. Press Microwave once, the screen will display 80, repeatedly push the button or turn the knob to set the requested microwave power.
4. Press ▶ Start/+30 Sec to confirm power setting.
5. Turn the knob to select cooking time.
6. Press ▶ Start/+30 Sec to start cooking.

The product will prompt you to turn the food after half of the time set for defrosting.

Open the door and turn the food, shut the door and press _-30 Start/+30 Sec to continue the defrosting. The buzzer will sound once again entering the second cooking. When cooking finishes, buzzer sound five times.

1 2

8 B:8 B D# d# 1 2 4 1 3

Inquiring function

1. In state of microwave cooking, press Microwave, the current power will be displayed for 3 seconds.
2. In cooking state, press ⓄKitchen timer/Clock to inquire the time of the day, the time will be displayed for 3 seconds.

Auto Menu

1. Turn the knob "☐" left to choose the menu, and A-1 to A-8 will display.
2. Press ▶ Start/+30 Sec to confirm selected food.
3. Turn the knob "to choose the default weight as the menu chart.
4. Press ▶ Start/+30 Sec to start cooking.

MENU WEIGHT	DISPLAY
A-1 Pizza	200g 200
	400g 400
A-2 Meat	250g 250
	350g 350
	450g 450
A-3 Vegetable	200g 200
	300g 300
	400g 400
A-4 Pasta	50g (with 450g cold water)	50
	100g (with 800g cold water)	100
A-5 Potato	200g 200
	400g 400
	600g 600
A-6 Fish	250g 250
	350g 350
	450g 450
A-7 Beverage	1 cup (120ml) 1
	2 cups (240ml) 2
	3 cups (360ml) 3
A-8 Popcorn	50g 50
	100g 100

Note: The Foodclasses can also be found on the label inside the door.

5. TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, electric fan. It is normal.
Dim oven light In low power	microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents.	In cooking, steam may come out of food. Most will get out from vents, but some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble Possible cause	Use Remedy
Oven can not be started.	(1) Power cord not plugged tightly.	Unplug the cord. Wait 10 seconds and plug it again.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat door not closed well.		Close door well.

6. SPECIFICATIONS

Model: VÄRMD 304.307.01
Rated Voltage: 230V-50Hz
Rated Input Power (Microwave): 1250W
Rated Output Power (Microwave): 800W

Oven Capacity: 20L
Turnable Diameter:	245 mm
External Dimensions: 595x344x394mm
Net Weight: 15kg

7. INSTALLATION AND CONNECTION

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard.
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspondent to the voltage specified on the rating plate.

7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.

8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

9. The product should not be mounted below 85cm.

The accessible surface maybe hot during operation.

8. ENVIRONMENTAL CONCERNS

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

9. IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of your appliance at IKEA. The original sales receipt, is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

Contact nearest IKEA store.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.
- Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

- Consumable parts including batteries and lamps.

- Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible colour differences.

- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

- Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.

- Repairs caused by installation which is faulty or not according to specification.

- The use of the appliance in a non-domestic environment i.e. professional use.

- Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.

- Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

How country law applies

The IKEA guarantee gives you specific legal rights, which cover or exceed all the local legal demands. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;
• the Assembly Instructions and User Manual Safety Information.

AFTER SALES for IKEA appliances

Please don't hesitate to contact IKEA to:

• make a service request under this guarantee.

- ask for clarification on functions of IKEA appliances.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.

How to reach us if you need our service

The IKEA after sales customer service centre will assist you on the phone with basic trouble shooting for your appliance at the time of service call request. Please see the IKEA catalogue or visit www.ikea.com to find your local store phone number and opening time.

In order to provide you a quicker service, please also always refer to the IKEA article number (8 digit code) placed on the rating plate of your appliance.

SAVE THE SALES RECEIPT!

It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

INHALTSVERZEICHNIS

Diagram showing a trash bin with a book and a waste wheel, accompanied by a crossed-out arrow indicating removal or disposal.

Diagram showing a book being discarded into a trash bin with a crossed-out wheel, symbolizing waste disposal or disposal.

POUR RÉDUIRE LES RISQUES DE BLESSURE INSTRUCTIONS DE MISE À LA TERRE

DANGER

B: B ① ③ ②

8 8-8 3 1 4 6 2 5

Diagram showing a trash bin with a book and a waste wheel, accompanied by a crossed-out arrow indicating removal or disposal.

PER RIDURRE IL RISCHIO DI LESIONI FISICHE COLLEGARE A TERRA L'INSTALLAZIONE

PERICOLO
