USER MANUAL AGV 17-125 XE MILWAUKEE

Exterior view of a Milwaukee electric power tool (no text or symbols on the device itself)

AGV 17-125 XE AGV 17-125 XE DMS AGV 17-125 INOX

Original instructions

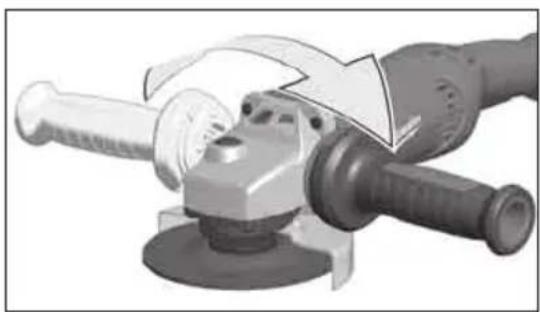

Close-up of a mechanical power tool with a circular base and a curved handle, showing no text or symbols.

Technical diagram showing mechanical assembly with warning symbols and component labels

Technical diagram illustrating a mechanical tool operation with labeled steps 1 and 2 showing tool positioning and cutting process.

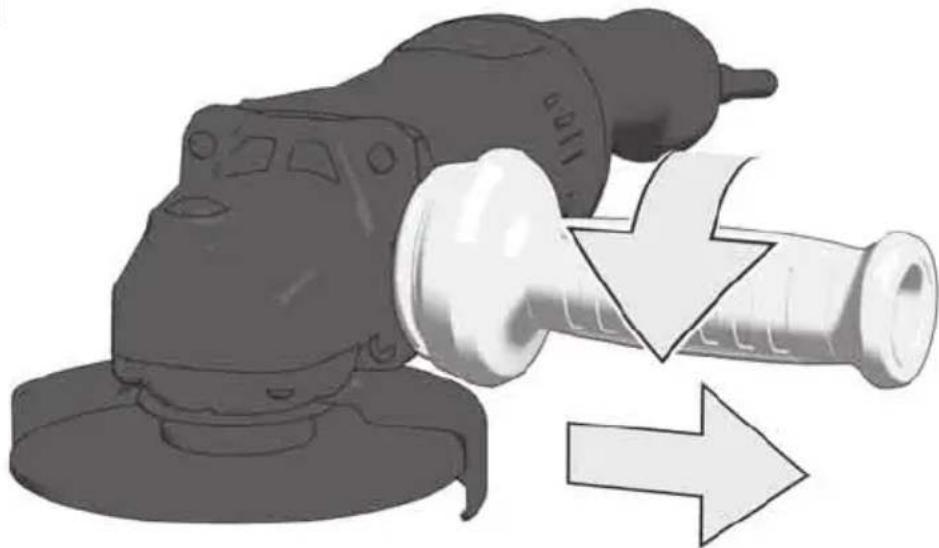

Close-up of a mechanical power tool with a circular base and a curved tool, showing no text or symbols.

Close-up of a sewing machine tool with a black handle and circular base (no visible text or symbols)

Two safety warning symbols: a triangular warning triangle with an exclamation mark and a plug with an arrow pointing left.

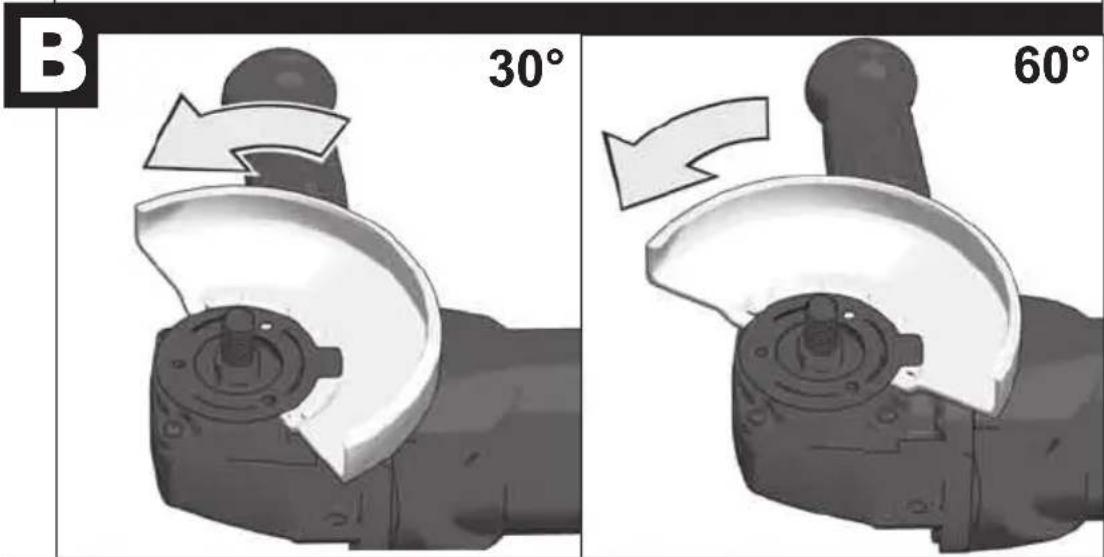

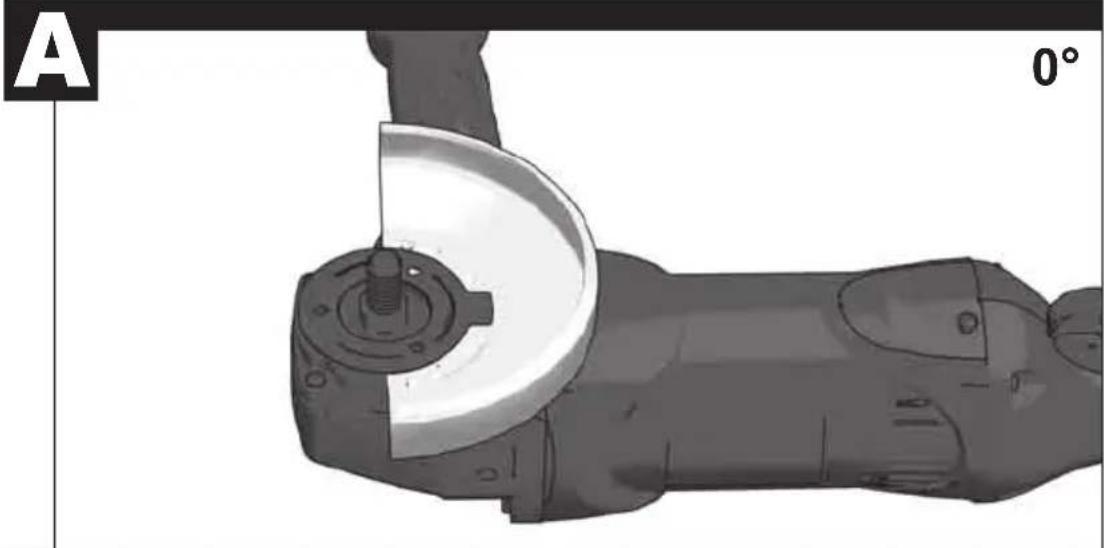

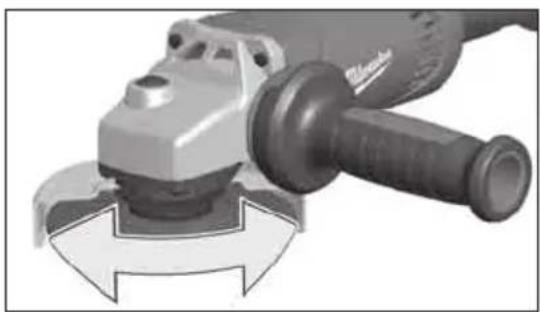

Mechanical component with angular measurement (0°) and labeled section A, no readable text or symbols beyond labels

B 30° 60°

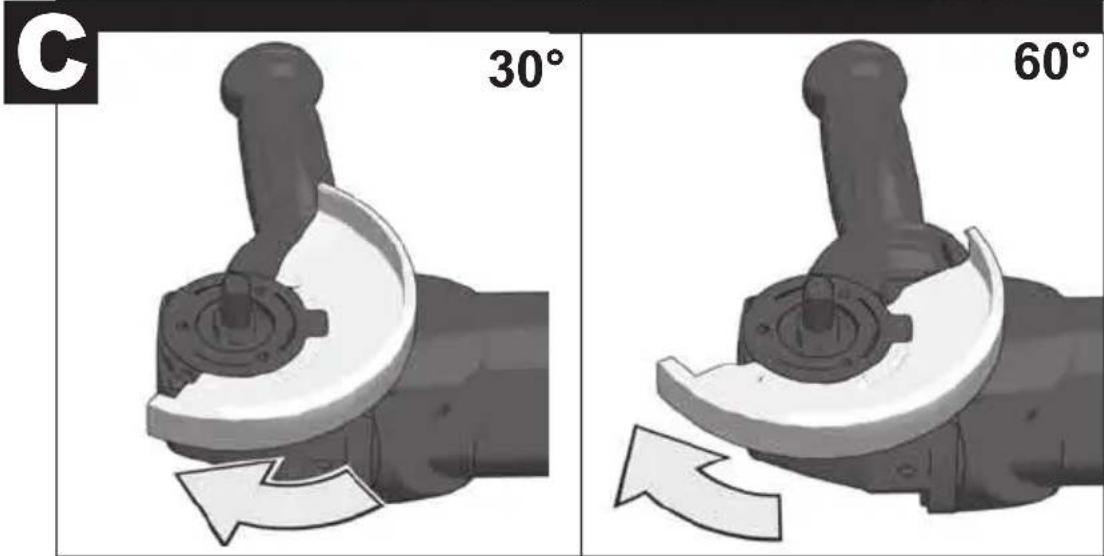

C 30° 60°

Close-up of a hand using a grating tool to cut the pipe (no text or symbols visible)

Two safety warning symbols: a triangular warning triangle with an exclamation mark and a plug with an AC power outlet, indicating hazard or hazard.

1

Illustration of a power tool with a cutting tool and directional arrow (no text or symbols)

2

Illustration of a grinding tool with an arrow indicating process (no text or symbols)

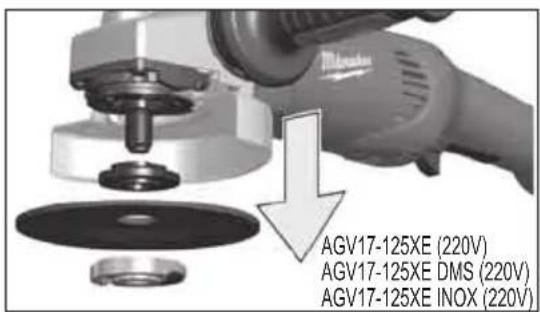

AGV17-125XE (220V) AGV17-125XE DMS (220V) AGV17-125XE INOX (220V)

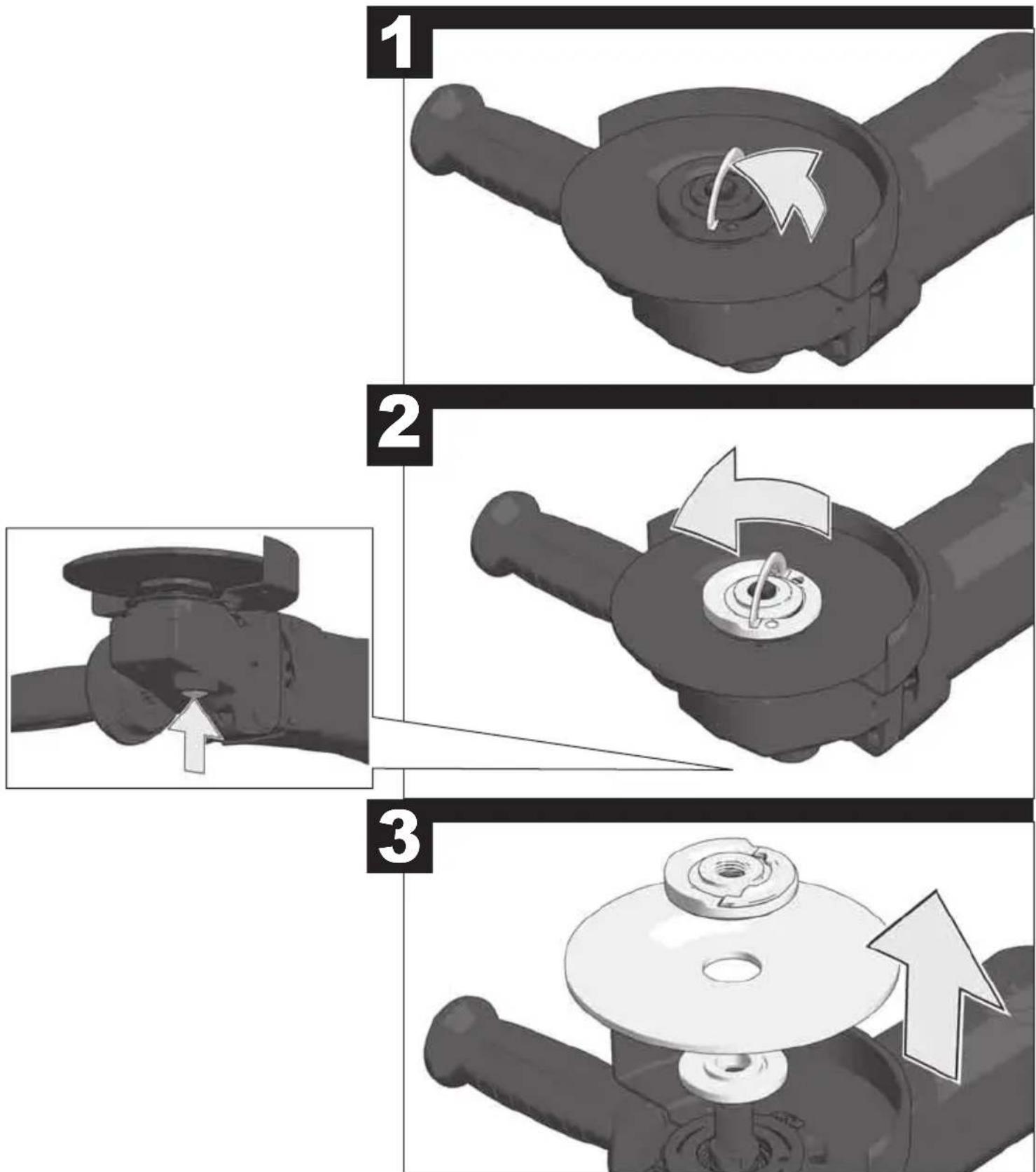

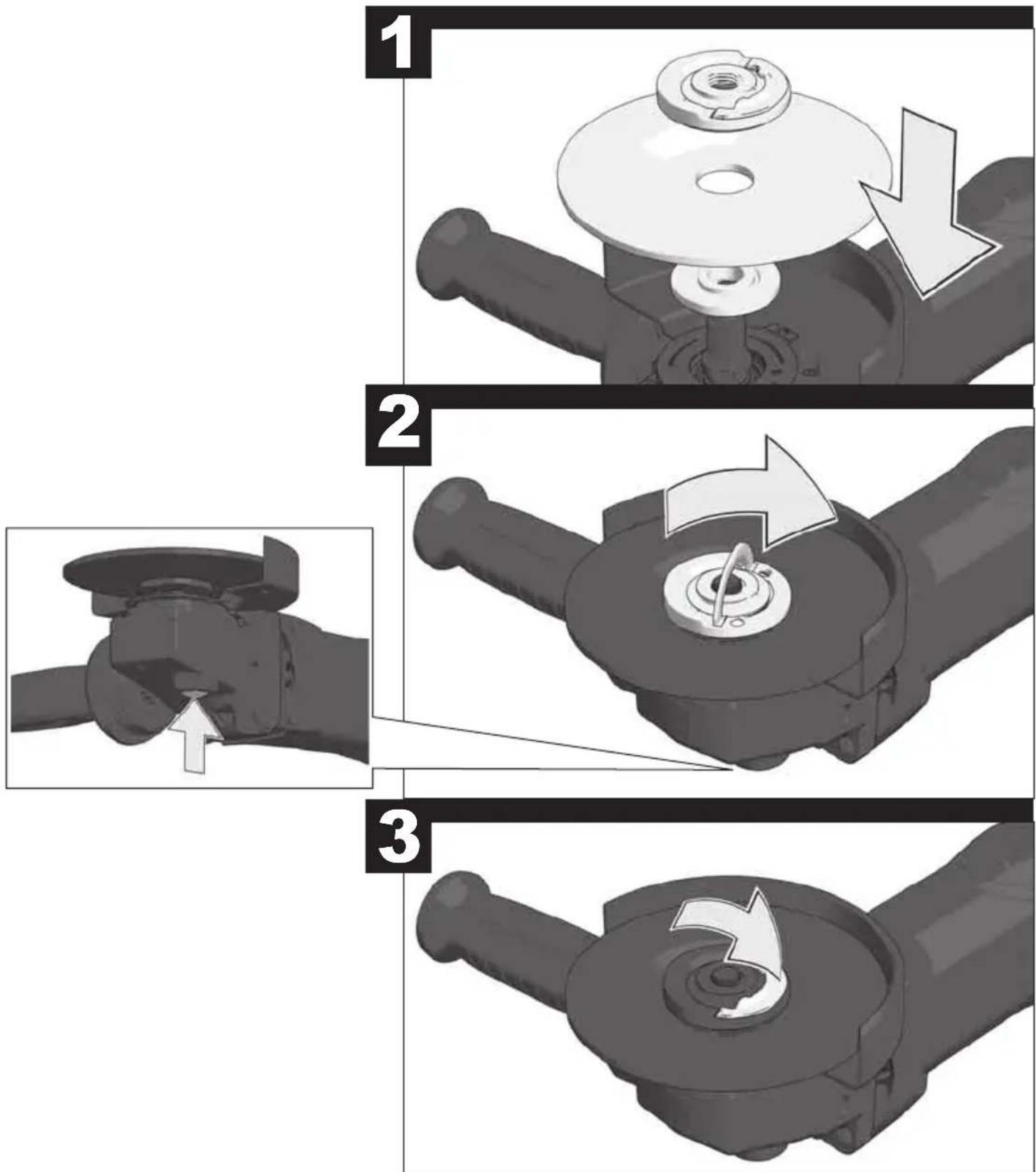

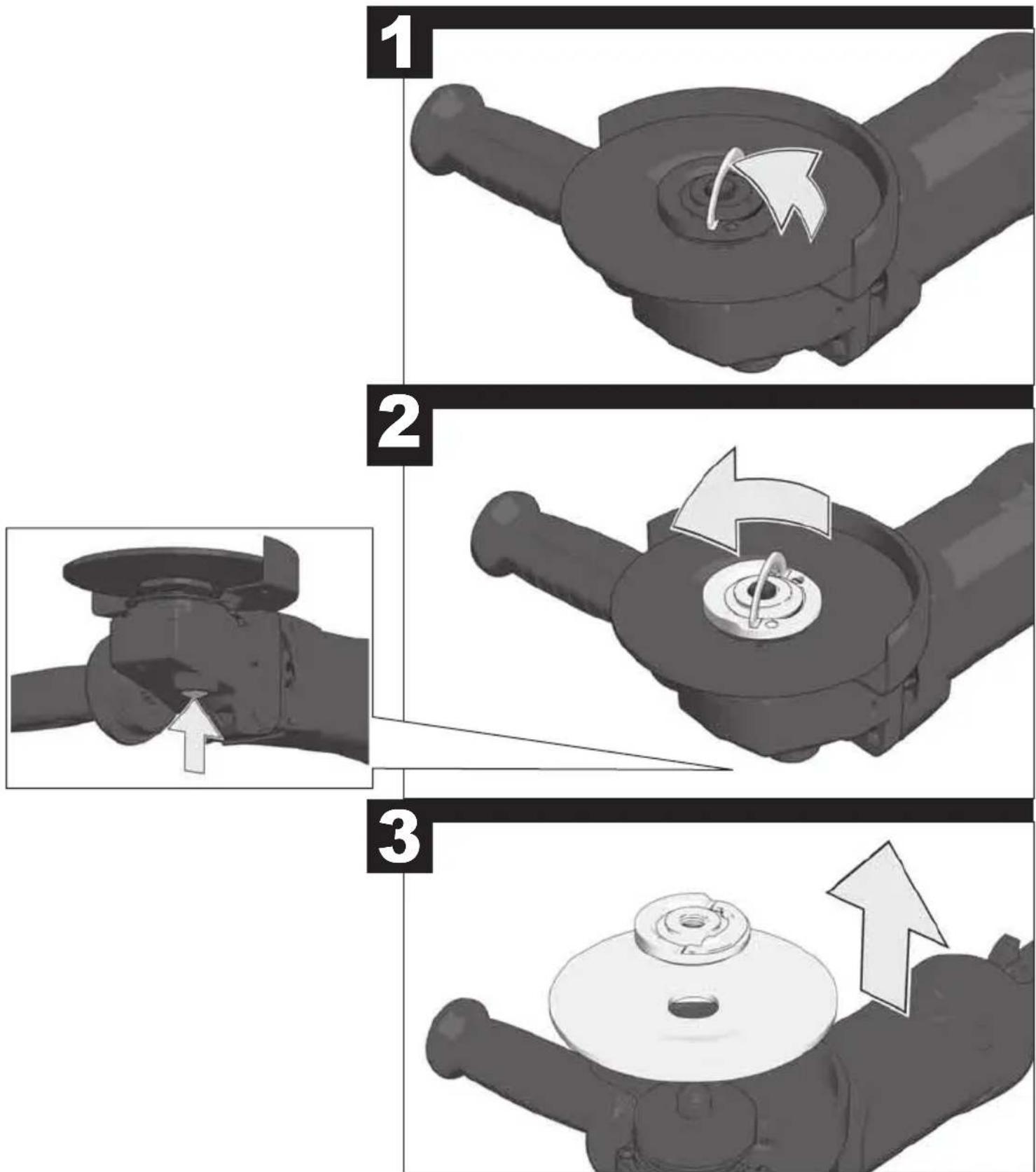

Technical diagram illustrating three-step assembly steps of a mechanical component, showing tool positioning and rotation direction.

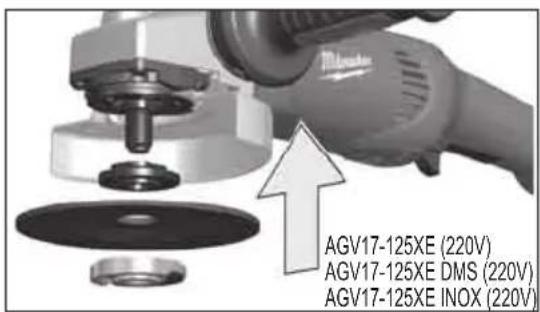

AGV17-125XE (220V) AGV17-125XE DMS (220V) AGV17-125XE INOX (220V)

Technical diagram illustrating three-step assembly steps of a mechanical component, showing hand positioning and rotation direction.

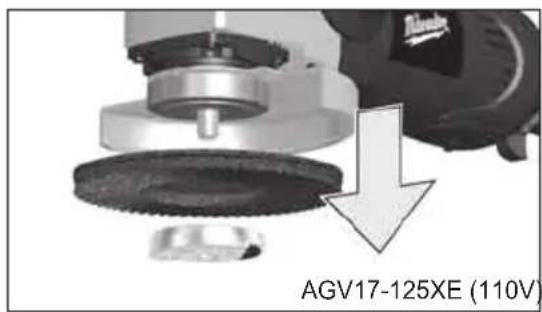

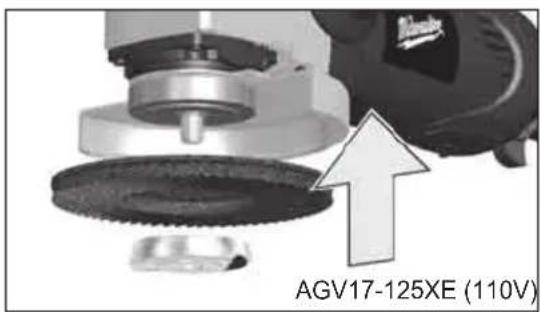

AGV17-125XE (110V)

Technical diagram illustrating three-step assembly steps of a mechanical component, showing tool positioning and rotation direction.

AGV17-125XE (110V)

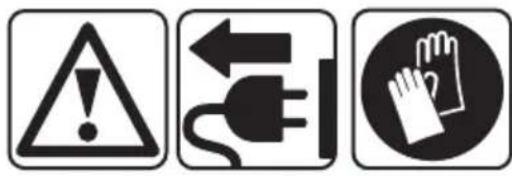

Three black-and-white warning symbols: warning triangle, electrical plug with left arrow, and hand holding a question mark.

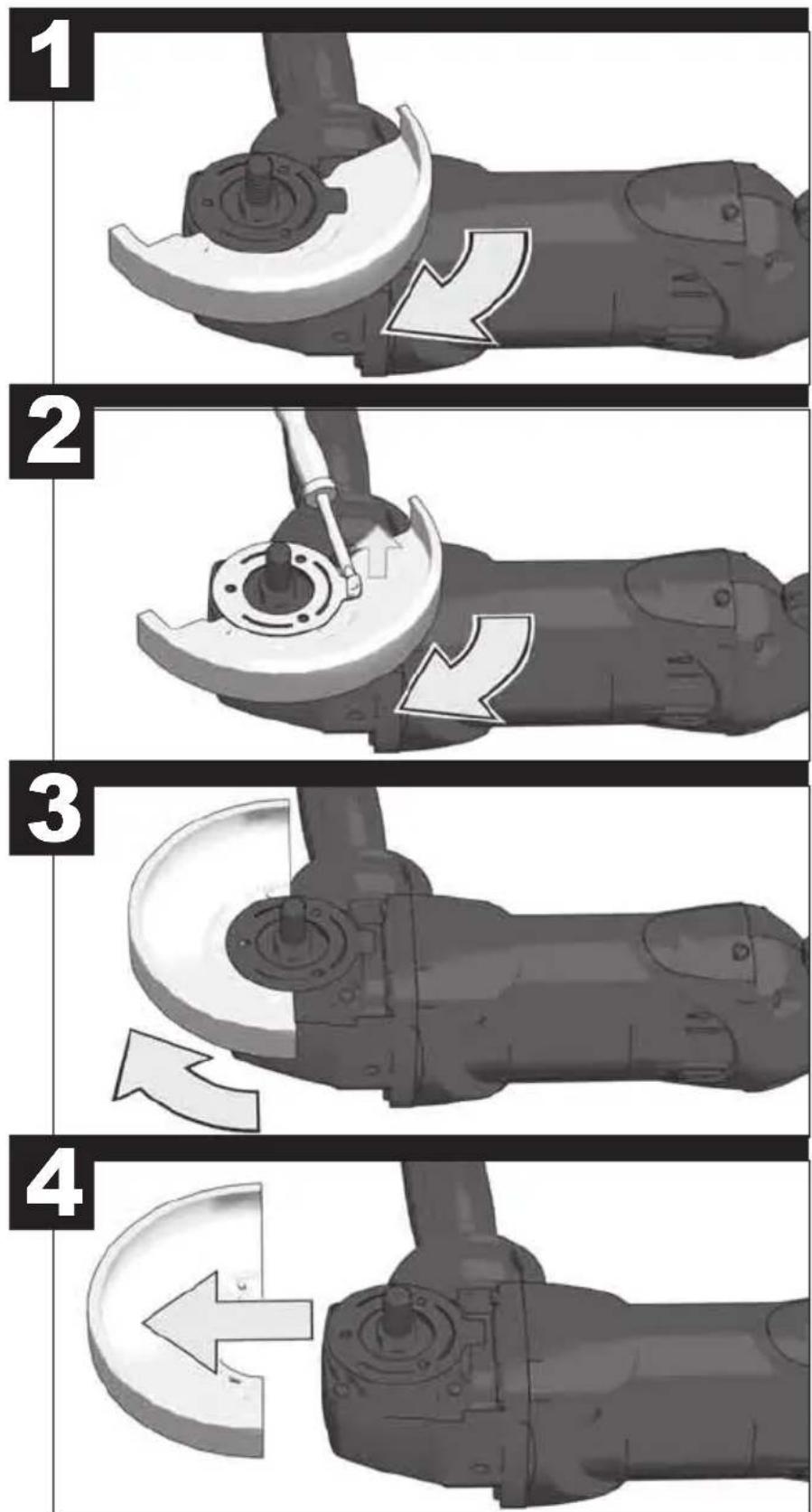

Technical diagram illustrating three-step mechanical assembly steps with labeled arrows indicating motion direction.

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols)

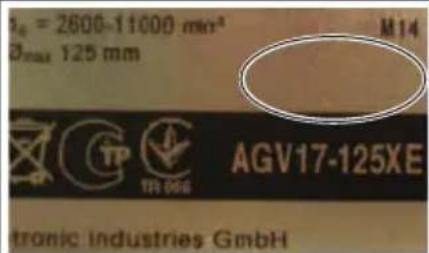

10 = 2600-11000 mm² M14 Ømax 125 mm AGV17-125XE TP TJ1 006 tronic industries GmbH

Switch can be locked

Illustration of a medical or laboratory procedure showing a hand holding tweezers near a device with an eye inset (no text or symbols)

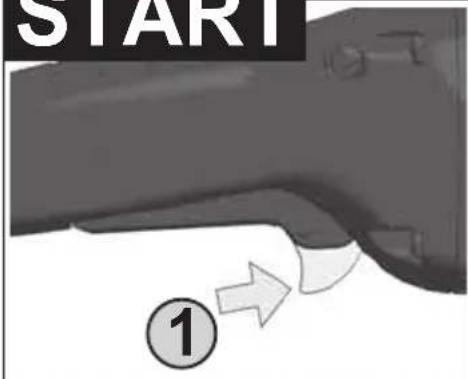

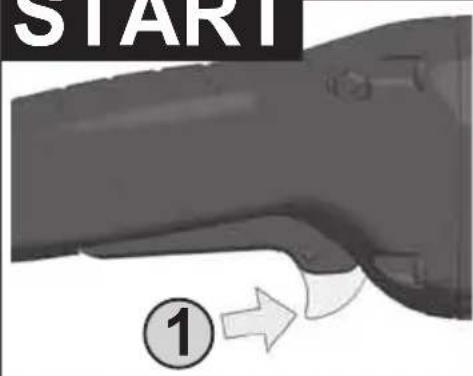

START

START ①

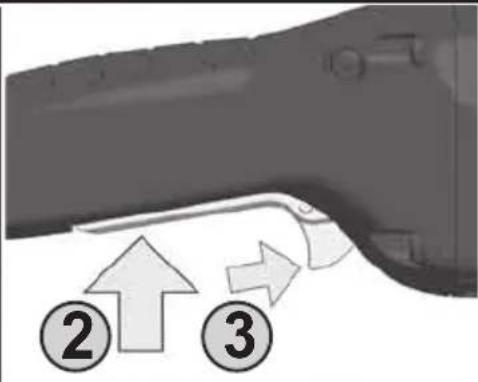

Diagram showing a car body with directional arrows labeled ② and ③, indicating movement or flow direction.

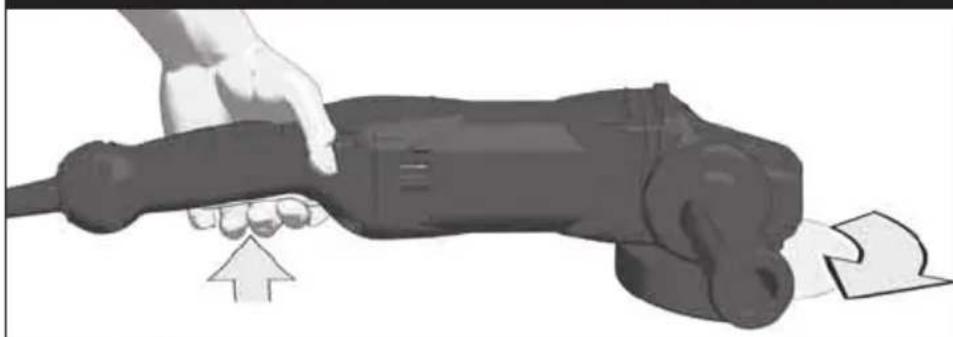

Illustration of a hand holding a black cylindrical object with an arrow indicating motion or force (no text or symbols present)

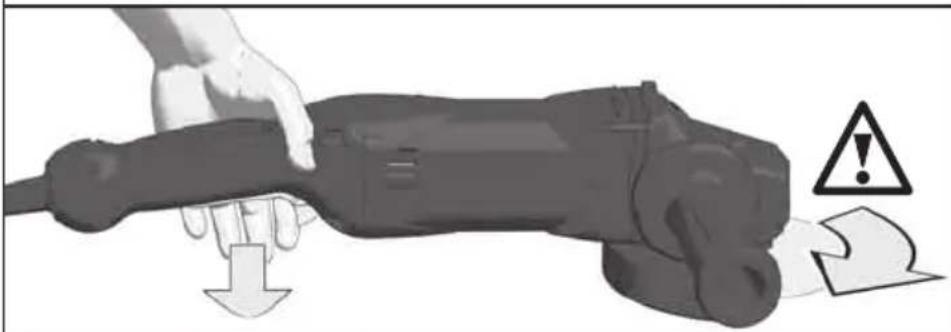

Illustration of a hand pressing down on a device with an exclamation mark and directional arrow (no text or symbols)

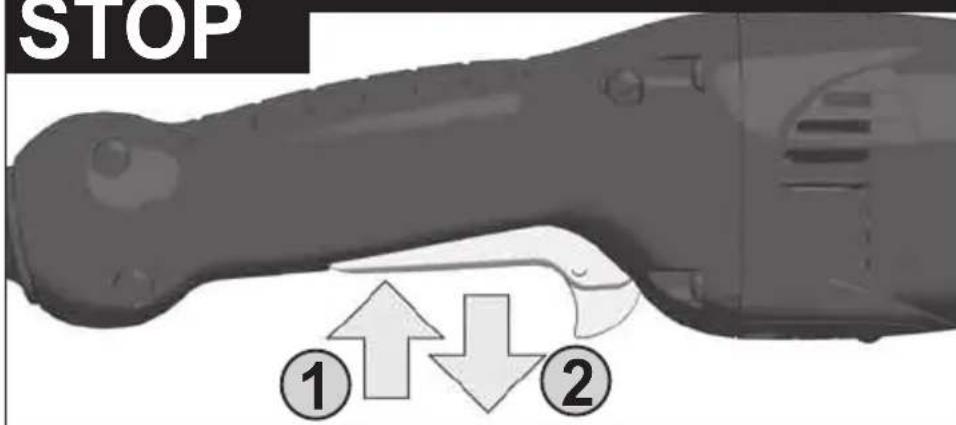

STOP

STOP ① ②

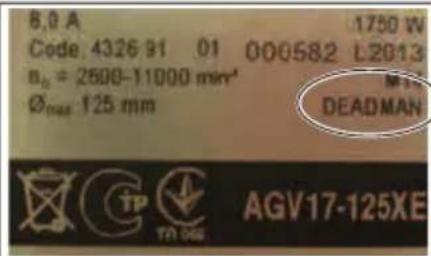

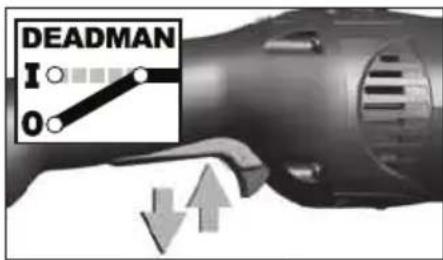

DEADMAN 1 0

8.0 A Code 4326 91 01 000582 L2013 n₀ = 2600-11000 mm² Ømax 125 mm 1750 W DEADMAN AGV17-125XE

Switch cannot be locked

Illustration of a mechanical device with a magnified inset showing an eye (no text or symbols present)

START

START ①

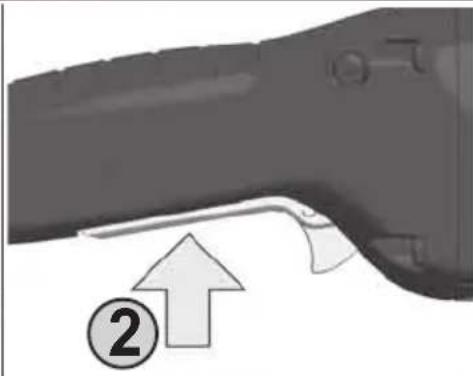

Close-up of a mechanical component with an arrow and number 2 indicating a specific feature (no text or symbols present)

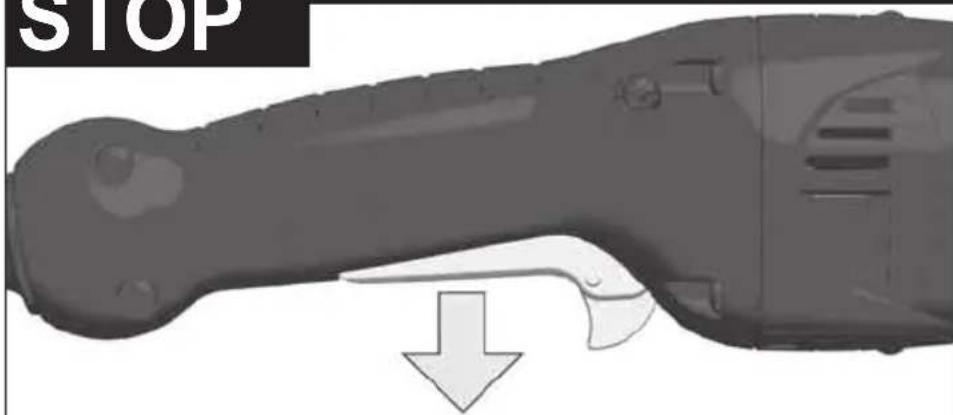

STOP

STOP

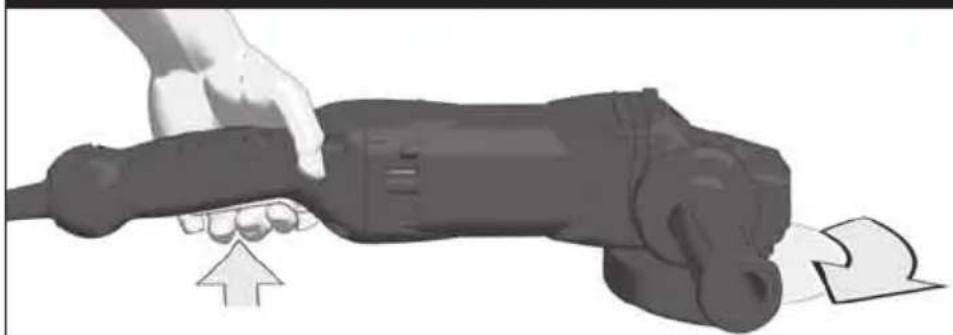

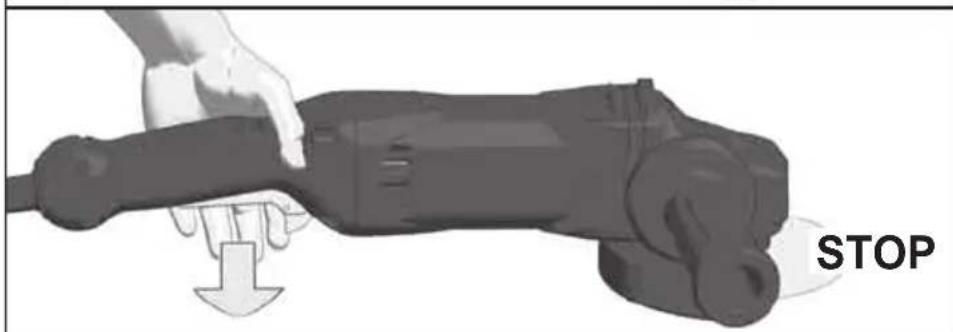

Illustration of a hand pressing down on a mechanical device with an arrow indicating motion (no text or symbols)

STOP

electronic Milwaukee

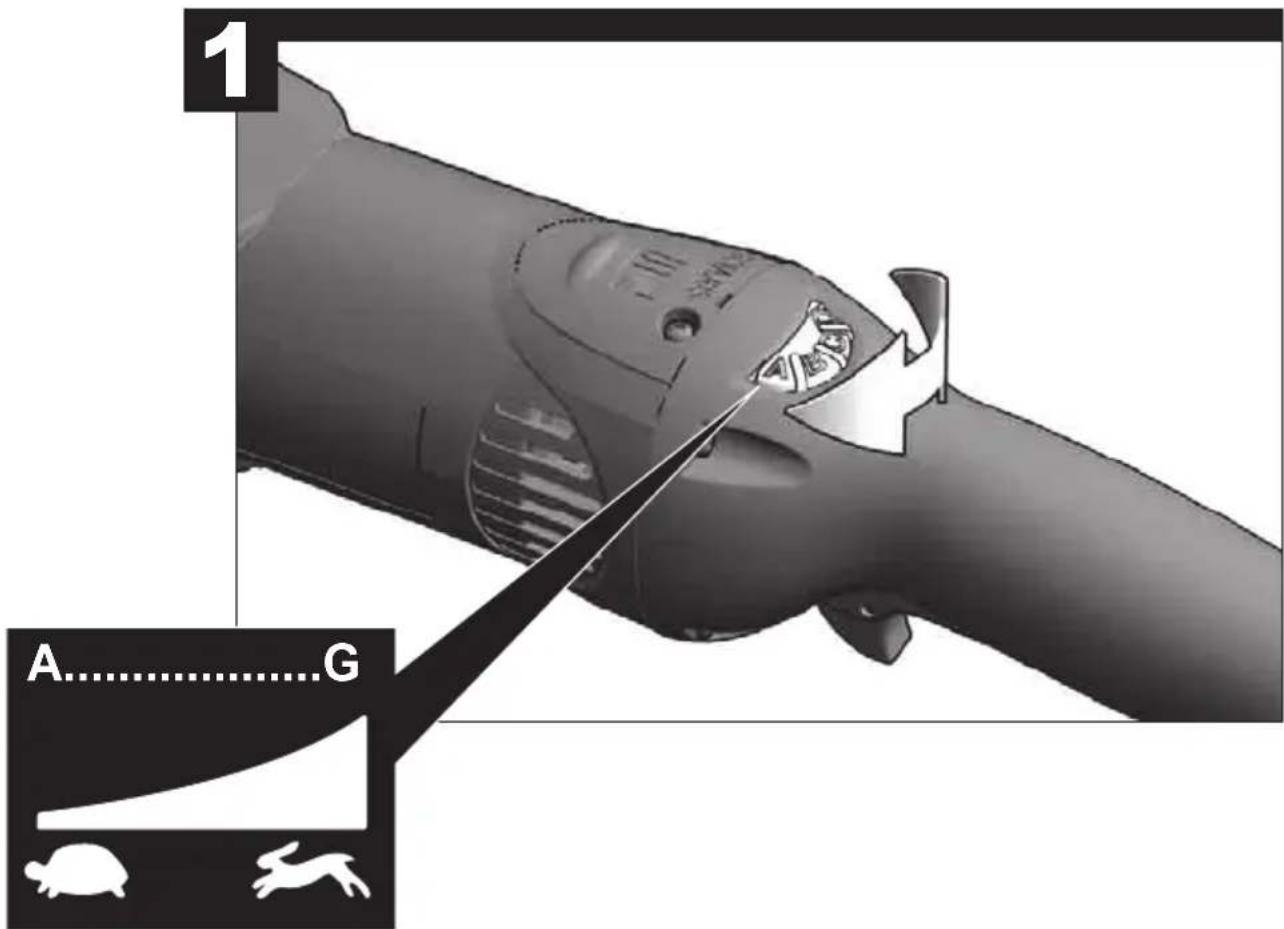

1 A......G

i TIP

Two safety warning symbols: a triangular warning triangle with an exclamation mark and a circular head with a person wearing glasses.

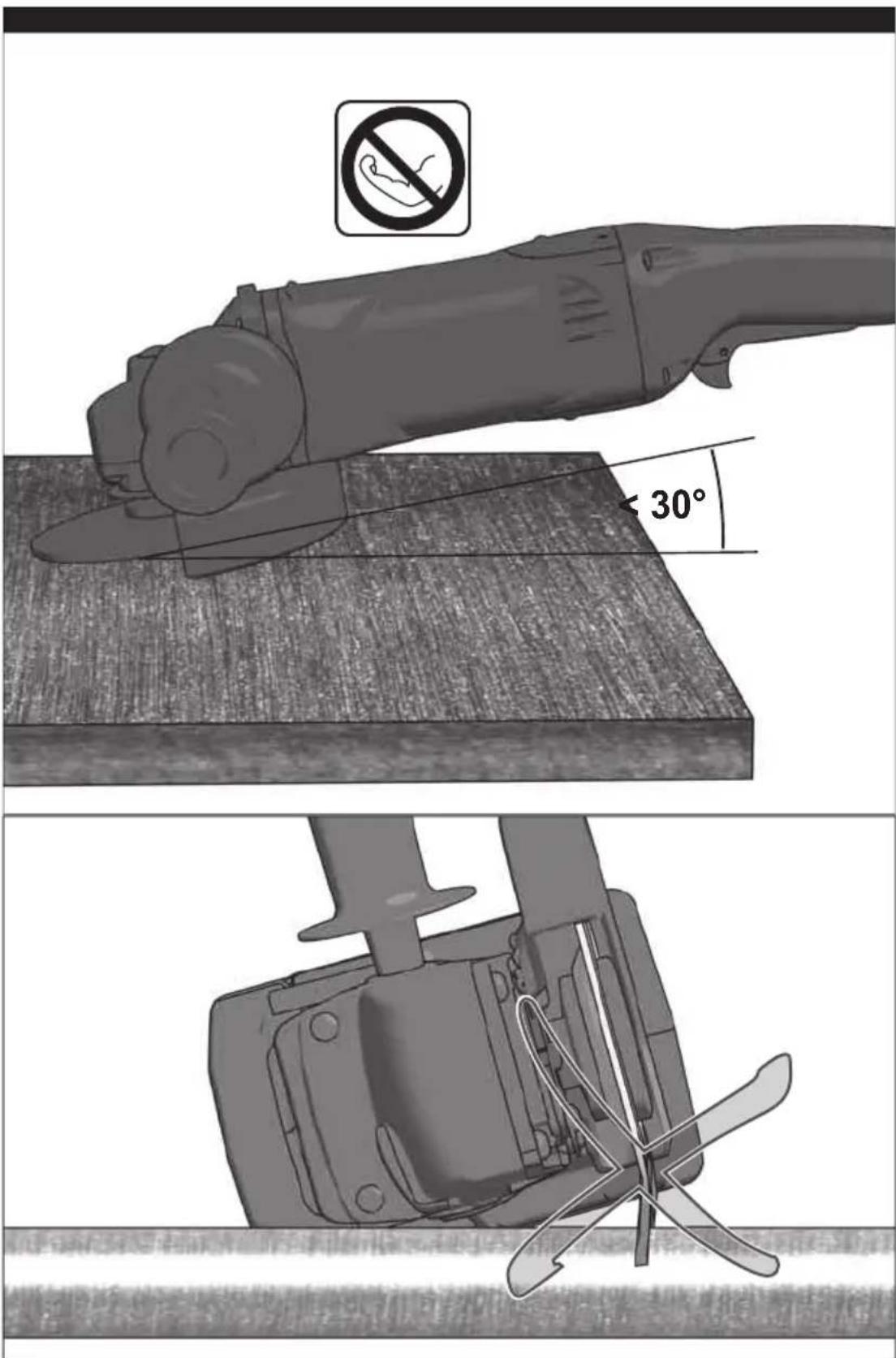

Technical diagram showing a helicopter cutting off a wooden block with a 30-degree angle and no-smoking symbol, alongside a camera with a propeller.

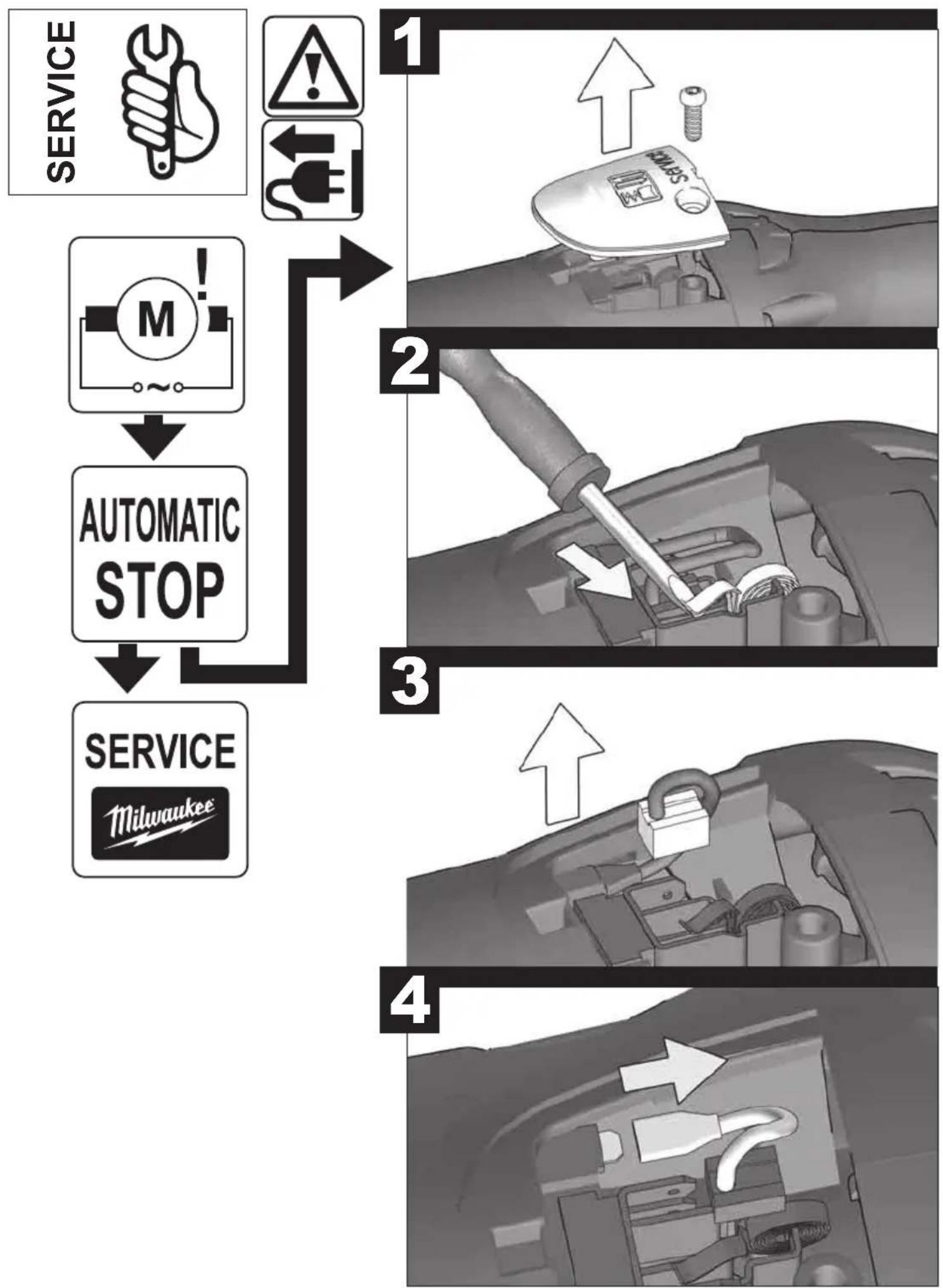

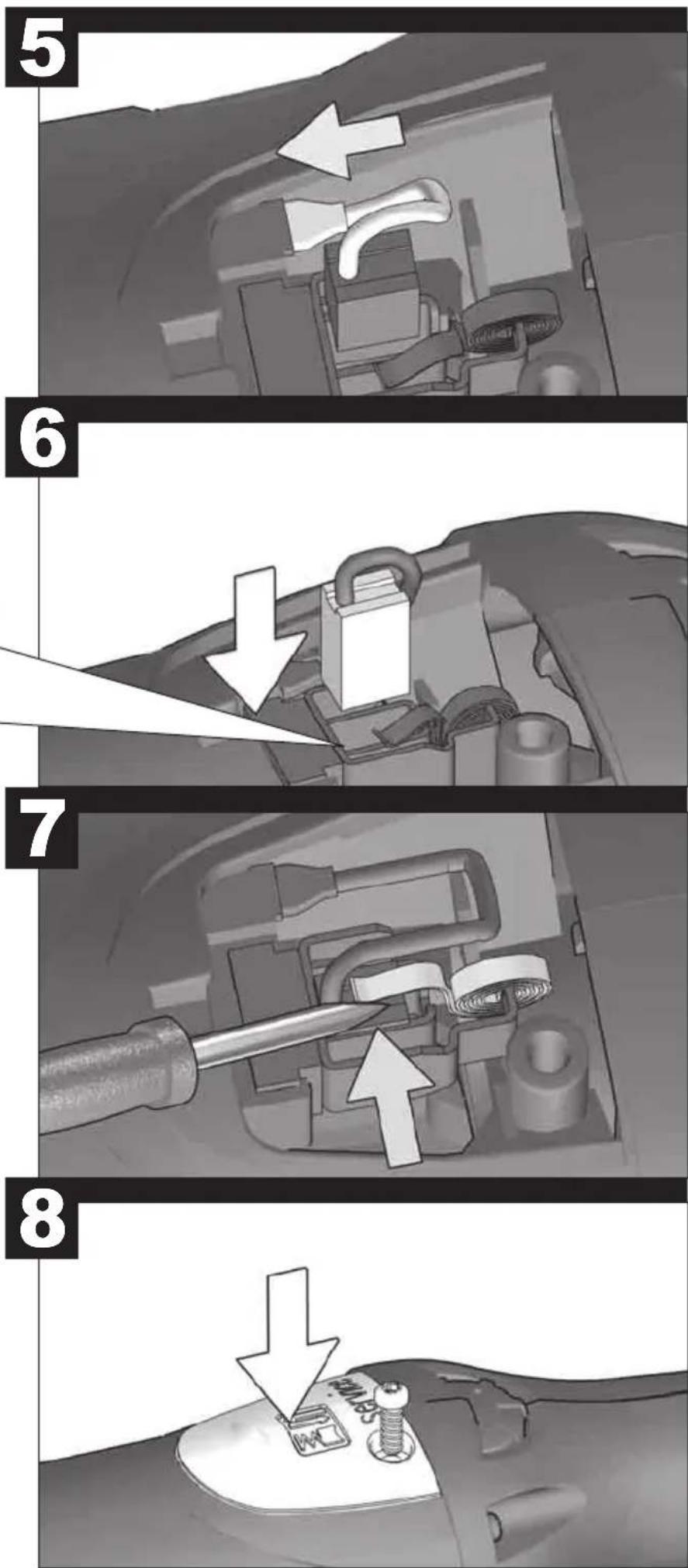


Close-up of a mechanical component with a warning symbol and an exclamation mark (no text or labels)

Diagram showing a mechanical assembly process with numbered steps and directional arrows indicating movement or force.

TECHNICAL DATA Angle Grinder		AGV 17-125 XE AGV 17-125 XE AGV 17-125 XE AGV 17-125 XE
		(110 V) DMS INOX
Production code		4552 01 01... ...000001-999999	4551 86 01... ...000001-999999	4551 89 01... ...000001-999999	4498 71 01... ...000001-999999
Rated input		1600 W 1750 W 1750 W 1750 W
Rated speed		2600-11000 min ^-1	2600-11000 min ^-1	2600-11000 min ^1	2000-7600 min ^-1
D=Grinding disk diameter max. d=Grinding disk hole diameter		125 mm 22,2 mm	125 mm 22,2 mm	125 mm 22,2 mm	125 mm 22,2 mm
	b=Grinding disk thickness max..	6 mm (1/4") 6 mm (1/4") 6 mm (1/4") 6 mm (1/4")
	b=Cutting disk thickness min. / max.	1,0 / 3 mm 1,0 / 3 mm	1,0 / 3 mm 1,0 / 3 mm	1,0 / 3 mm	1,0 / 3 mm
	D=Grinding surface diameter max.	125 mm 125 mm 125 mm 125 mm
	D=Wiring brush diameter max.	75 mm 75 mm 75 mm 75 mm
Thread of work spindle		M14 M14 M14 M14
Weight according EPTA-Procedure 01/2003		2,8 kg 2,8 kg 2,8 kg	2,8 kg
Noise/Vibration Information Measured values determined according to EN 60 745. Typically, the A-weighted noise levels of the tool are: Sound pressure level (Uncertainty K=3dB(A)) Sound power level (Uncertainty K=3dB(A)) Wear ear protectors! Vibration total values (triaxial vector sum) determined according to EN 60745. Surface grinding: Vibration emission value a_h,SG Uncertainty K Sanding Vibration emission value a_h,DS Uncertainty K For other applications, e.g. Abrasive Cutting-Off Operations or Wire Brushing other vibration values could occur.		86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86, 5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A)(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 86,5 dB(A) 8,5 m/s ^2	9,4 m/s ^2	9,4 m/s ^2	9,4 m/s ^2
		1,5 m/s ^2	1,5 m/s ^2	1,5 m/s ^2	1,5 m/s ^2
		6,0 m/s ^2	3,0 m/s ^2	3,0 m/s ^2	3,0 m/s ^2
		1,5 m/s ^2	1,5 m/s ^2	1,5 m/s ^2	1,5 m/s ^2

WARNING

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may signifi cantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

ANGLE GRINDER SAFETY WARNINGS

Safety Warnings Common for Grinding, Sanding, Wire Brushing or Abrasive Cutting-Off Operations:

a) This power tool is intended to function as a grinder, sander, wire brush, or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.

b) Operations as polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool.

Accessories running faster than their rated speed can break and fly apart.

e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

f) The arbour size of wheels, flanges, backing pads or any other accessory must properly fit the spindle of the power tool. Accessories with arbour holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear,

wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping fl ying debris generated by various operations. The dust mask or respirator must be capable of fl ltrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

j) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Cutting accessory contacting a „live“ wire may make exposed metal parts of the power tool „live“ and could give the operator an electric shock.

k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

I) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

n) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

o) Do not operate the power tool near fl ammable materials. Sparks could ignite these materials.

p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a fi rm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.

b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.

c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

e) Do not attach a saw chain, woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations:

a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.

b) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel and sparks that could ignite clothing.

c) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.

d) Always use undamaged wheel fl anges that are of correct size and shape for your selected wheel. Proper wheel fl anges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel fl anges.

e) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional Safety Warnings Specific for Abrasive Cutting-Off Operations:

a) Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.

b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.

c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.

d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.

e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.

f) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Safety Warnings Specific for Sanding Operations:

a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

Safety Warnings Specific for Wire Brushing Operations:

a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.

b) If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional Safety and Working Instructions

When grinding metal, fl ying sparks are produced. Take care that no persons are endangered. Because of the danger of fi re, no combustible materials should be located in the vicinity (spark fl ight zone). Do not use dust extraction.

Avoid fl ying sparks and sanding dust hit your body.

Never reach into the danger area of the machine when it is running.

Immediately switch off the machine in case of considerable vibrations or if other malfunctions occur. Check the machine in order to find out the cause.

Under extreme conditions (e.g. smooth-grinding metals with the arbour and vulcanized fi bre grinding disk), signifi cant contamination can build up on the inside of the angle grinder (metal residue/deposits). For safety reasons, in such conditions a ground fault interrupter must be connected in series. If the ground fault interrupter trips the machine must be sent for service.

Sawdust and splinters must not be removed while the machine is running.

MAINS CONNECTION

Connect only to single-phase AC current and only to the system voltage indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.

Appliances used at many different locations including wet room and open air must be connected via a residual current device (FI, RCD, PRCD) of 30mA or less.

Only plug-in when machine is switched off.

Do not let any metal parts reach the airing slots - danger of short circuit!

Inrush currents cause short-time voltage drops. Under unfavourable power supply conditions, other equipment may be affected. If the system impedance of the power supply is lower than 0,2 Ohm, disturbances are unlikely to occur.

SPECIFIED CONDITIONS OF USE

The angle grinder is intended for grinding and cutting metal, stone and ceramic materials as well as sanding and wire brushing.

Use the safety guard from the accessories range when performing out cutting work.

Please refer to the instructions supplied by the accessory manufacturer

The machine is suitable only for working without water.

WORKING INSTRUCTIONS

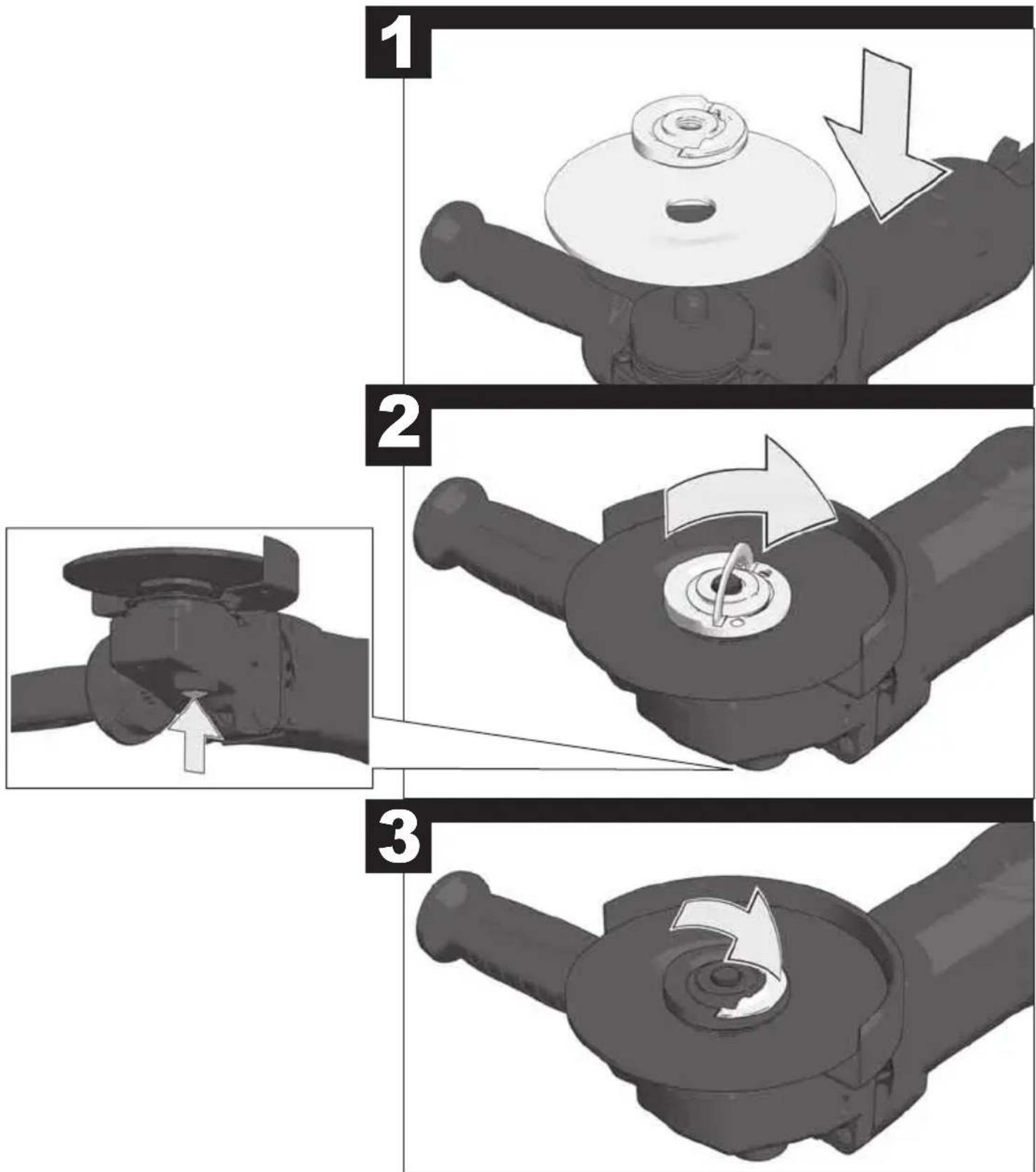

For accessories intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length.

Always use and store the cutting and grinding disks according to the manufacturer's instructions.

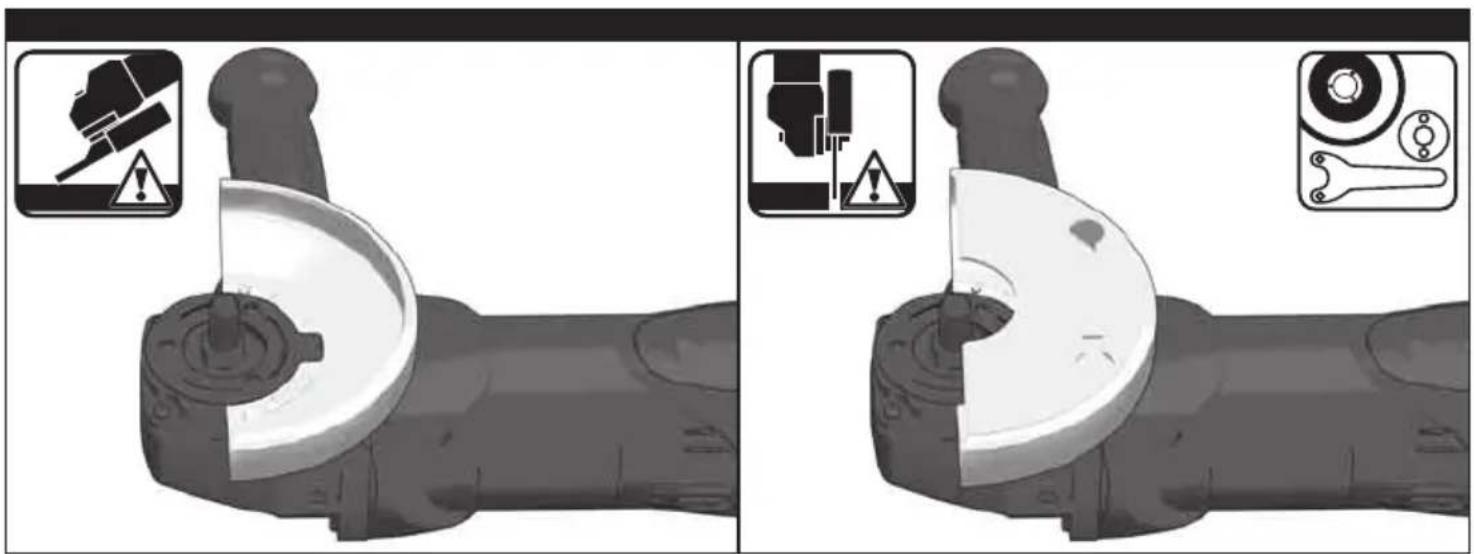

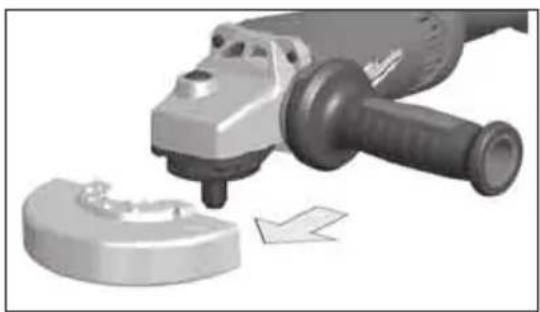

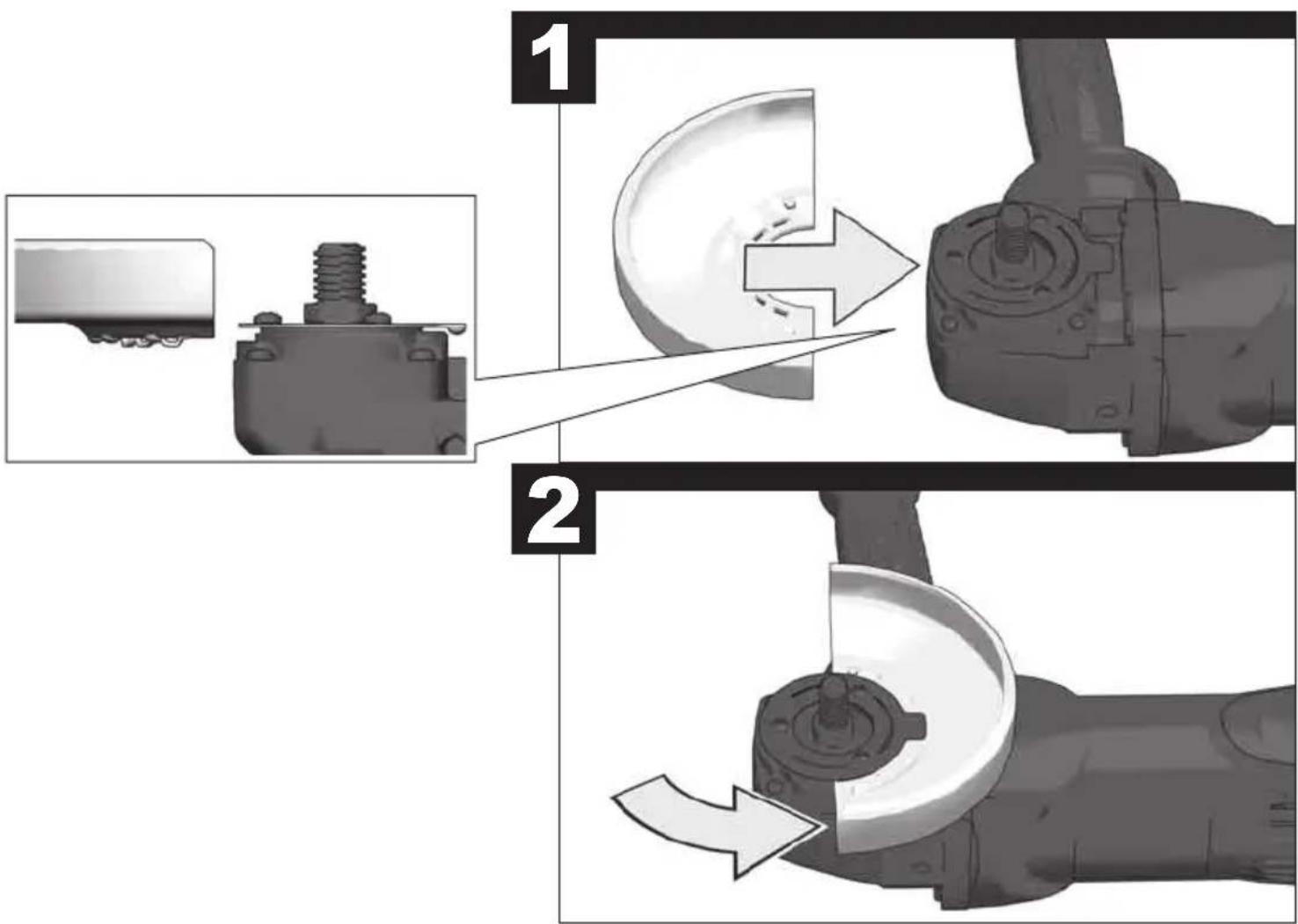

Always use the correct guard for cutting and grinding.

Always use guard with cutting guide from the accessories range for cutting stone.

The grinding surface of the centre depressed wheels must be mounted min. 2 mm below the plane of the guard lip.

The adjusting nut must be tightened before starting to work with the machine.

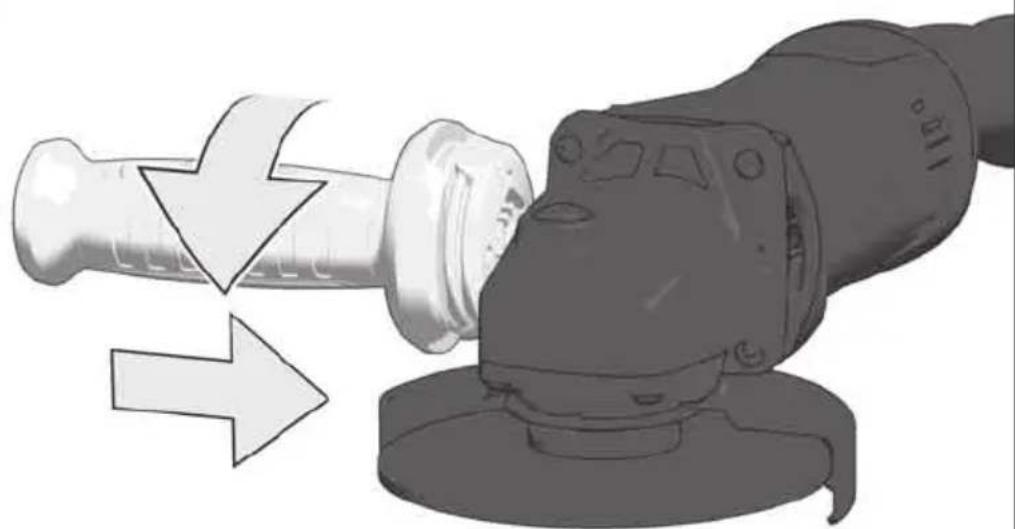

Always use the auxiliary handle.

The workpiece must be fi xed if it is not heavy enough to be steady. Never move the workpiece towards the rotating disk by hand.

STARTUP PROTECTION

A zero-voltage switch prevents the machine from restarting after a power failure. On resuming work, switch the machine off and then back on again.

STARTING CURRENT LIMITER + SMOOTH START

The starting current for the machine is several times greater than rated current. The starting current limiter reduces the starting current to such an extent that a fuse (16 A, slow-blow) is not tripped.

Electronic smooth start for save use prevents jerky run-up of the machine.

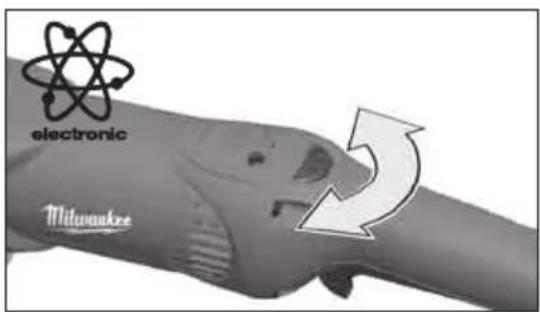

ELECTRONICS

The built-in electronic will keep a constant speed even under increased load. The machine has an overload and anti-kickback safety function and stops if it is overloaded. Switch the machine off and then switch it back on again.

In case of a longer overload period the speed is decreased electronically. The machine continues to run slowly to cool down the motor coil. After switching off and on the machine can be used at rated load.

MAINTENANCE

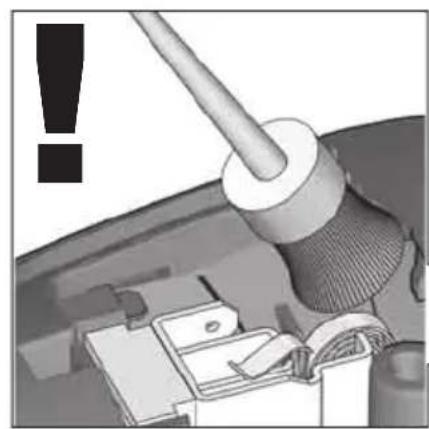

The ventilation slots of the machine must be kept clear at all times.

If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the service organization.

Use only Milwaukee accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses).

If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product described under “Technical Data” fulfi IIs all the relevant provisions of the directives 2011/65/EU (RoHs), 2004/108/EC (until 19 April 2016), 2014/30/EU (from 20 April 2016), 2006/42/EC and the following harmonized standards have been used:

EN 60745-1:2009+A11:2010

EN 60745-2-3:2011+A2:2013+A11:2014+A12:2014+A13:2015

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2001+A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Authorized to compile the technical file.

Techtronic Industries GmbH

Max-Eyth-Straße 10

71364 Winnenden

Germany

SYMBOLS

CAUTION! WARNING! DANGER!

Always disconnect the plug from the socket before carrying out any work on the machine.

Please read the instructions carefully before starting the machine.

Always wear goggles when using the machine.

Wear gloves!

Do not use force.

Only for grinding.

Only for cutting work.

Accessory - Not included in standard equipment, available as an accessory.

Do not dispose of electric tools together with household waste material.

Electric tools and electronic equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.

Class II tool, tool in which protection against electric shock does not rely on basic insulation only, but in which additional safety precautions, such as double insulation or reinforced insulation, are provided.

There being no provision for protective earthing or reliance upon installation conditions.

European Conformity Mark

Regulatory Compliance Mark (RCM). Product meets applicable regulatory requirements.

National mark of conformity Ukraine

EurAsian Conformity Mark.

Winnenden, 2016-02-08

Alexander Krug Managing Director

DÉCLARATION CE DE CONFORMITÉ

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Winnenden, 2016-02-08

Alexander Krug Managing Director

Winnenden, 2016-02-08

Alexander Krug Managing Director

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Winnenden, 2016-02-08

Alexander Krug Managing Director

EurAsian-symbol van overeenstemming.

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.

CE-FÖRSÄKRAN

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Winnenden, 2016-02-08

Alexander Krug Managing Director

Winnenden, 2016-02-08

Alexander Krug

Managing Director

CE - VYHLÁSENIE KONFORMITY

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Winnenden, 2016-02-08

Alexander Krug Managing Director

Winnenden, 2016-02-08

Alexander Krug Managing Director

UPORABA V SKLADU Z NAMEMBNOSTJO

Winnenden, 2016-02-08

Alexander Krug Managing Director

Winnenden, 2016-02-08

Alexander Krug Managing Director

Ovlašten za formiranje tehničke dokumentacije.

Techtronic Industries GmbH

Max-Eyth-Straße 10

71364 Winnenden

Germany

SIMBOLI

PAŽNJA! UPOZORENIE! OPASNOST!

Prije radova na stroju izvući utikač iz utičnice.

Molimo da pažljivo pročitate uputu o upotrebi prije puštanja u rad.

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Igaliotas parengti techninius dokumentus.

Techtronic Industries GmbH

Max-Eyth-Straße 10

71364 Winnenden

Germany

SIMBOLIAI

DĖMESIO! |SPĖJIMAS! PAVOJUS!

Winnenden, 2016-02-08

Alexander Krug Managing Director

Winnenden, 2016-02-08

Alexander Krug

Managing Director

No. RU'C-DE. ME 77. B.01579

Winnenden, 2016-02-08

Alexander Krug

Managing Director

Winnenden, 2016-02-08

Alexander Krug Managing Director

Winnenden, 2016-02-08

Alexander Krug

Managing Director

CE

Winnenden, 2016-02-08

Alexander Krug Managing Director
