USER MANUAL FWB06CATN6V3 DAIKIN

Daikin Europe N.V.

OPERATING LIMITS

1 BEFORE STARTING THE INSTALLATION PROCEDURE

SAFETY SYMBOLS

USE SUITABLE PPE (GLOVES FOR REFRIGERANT, PROTECTIVE GOGGLES)

2 INTENDED USE

INSTALLATION SITE

3 UNIT DESCRIPTION

FWB-C: PERFORMANCE AND COMPACTNESS IN RECESSED CEILING INSTALLATIONS

MAIN COMPONENTS

Structure

Heat exchanger

Fans

Electric motor

Air filter

Air inlet

Installation example

ACCESSORIES

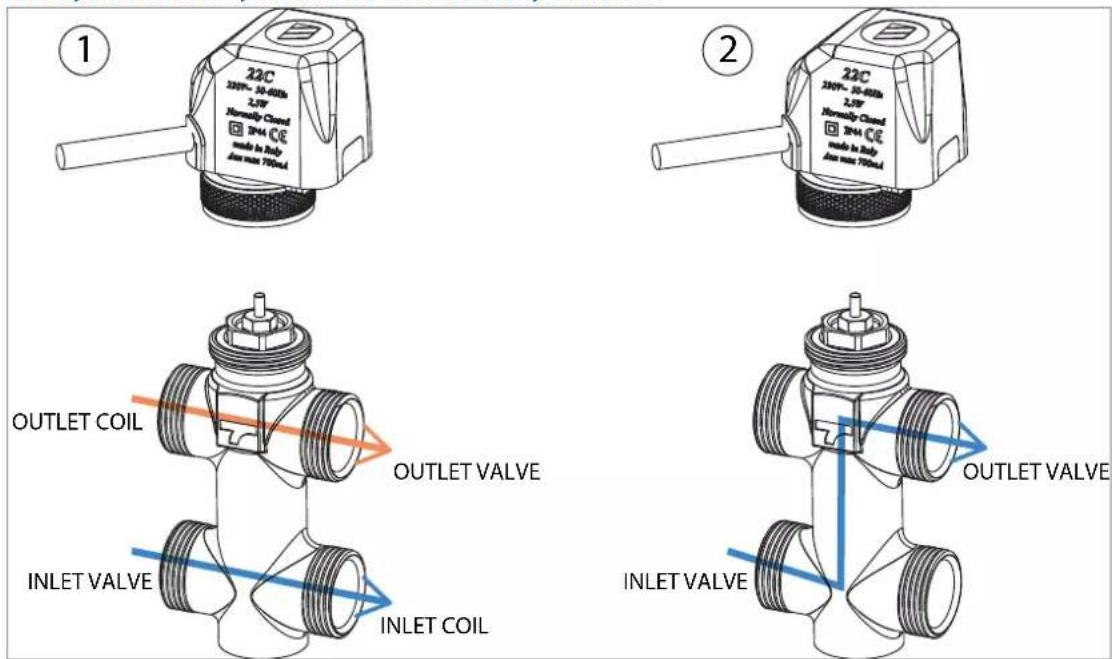

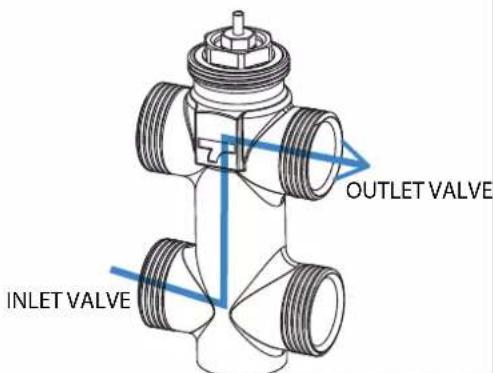

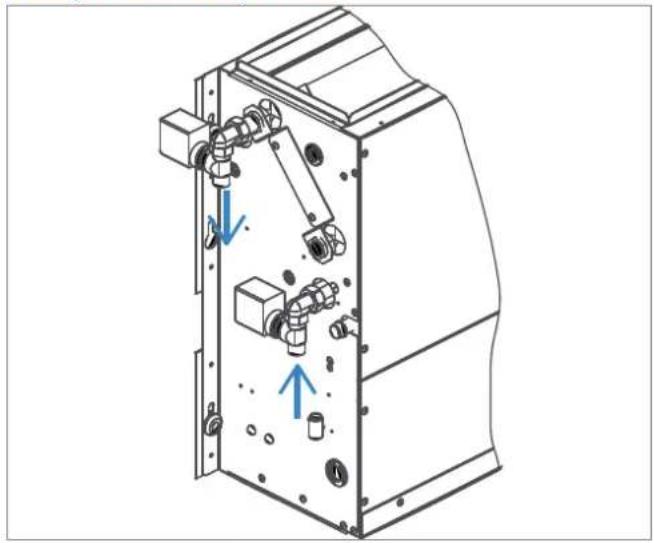

FACTORY MOUNTED KIT VALVES

4 DIMENSIONS

5 INSTALLATION

INSTALLATION REQUIREMENTS

Some rules to follow

WARNING:

Electrical connections

For each thermal ventilating unit provide a main circuit breaker (IL), with opening contacts separated by at least 3 mm and an adequate protection fuse (F).

NOTE: The electric wires (power and control circuits) must be pulled in through the gland on the side of the electric box where the plumbing connections are located and then connected to the terminals.

5.1 ASSEMBLY OF UNITS

Mounting the unit

6 CHECKS BEFORE STARTUP

7 USE

8 MAINTENANCE

CLEANING THE AIR FILTER

CLEANING THE HEAT EXCHANGER

9 TROUBLESHOOTING

5.1 MONTAGGIO UNITÀ

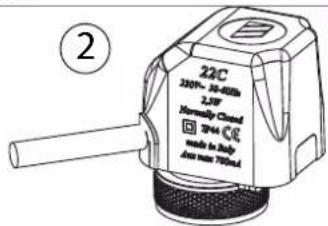

9 RICERCA DEI GUASTI

4 DONNÉES DIMENSIONNELLES

4 DIMENSIONES

4 PODATCI O DIMENZIJAMA

5 UGRADNJA

BILJEŠKA: Električni kabeli (napajanje i upravljanje) moraju se dovesti do priključne ploče kroz stezaljku kabela koja se nalazi na suprotnoj strani od strane hidrauličkih priključaka.

4 РАЗМЕРНЫЕ ДАННЫЕ

Legenda

Legend

Legenda

Pojašnjenje:

Jelmagyarázat

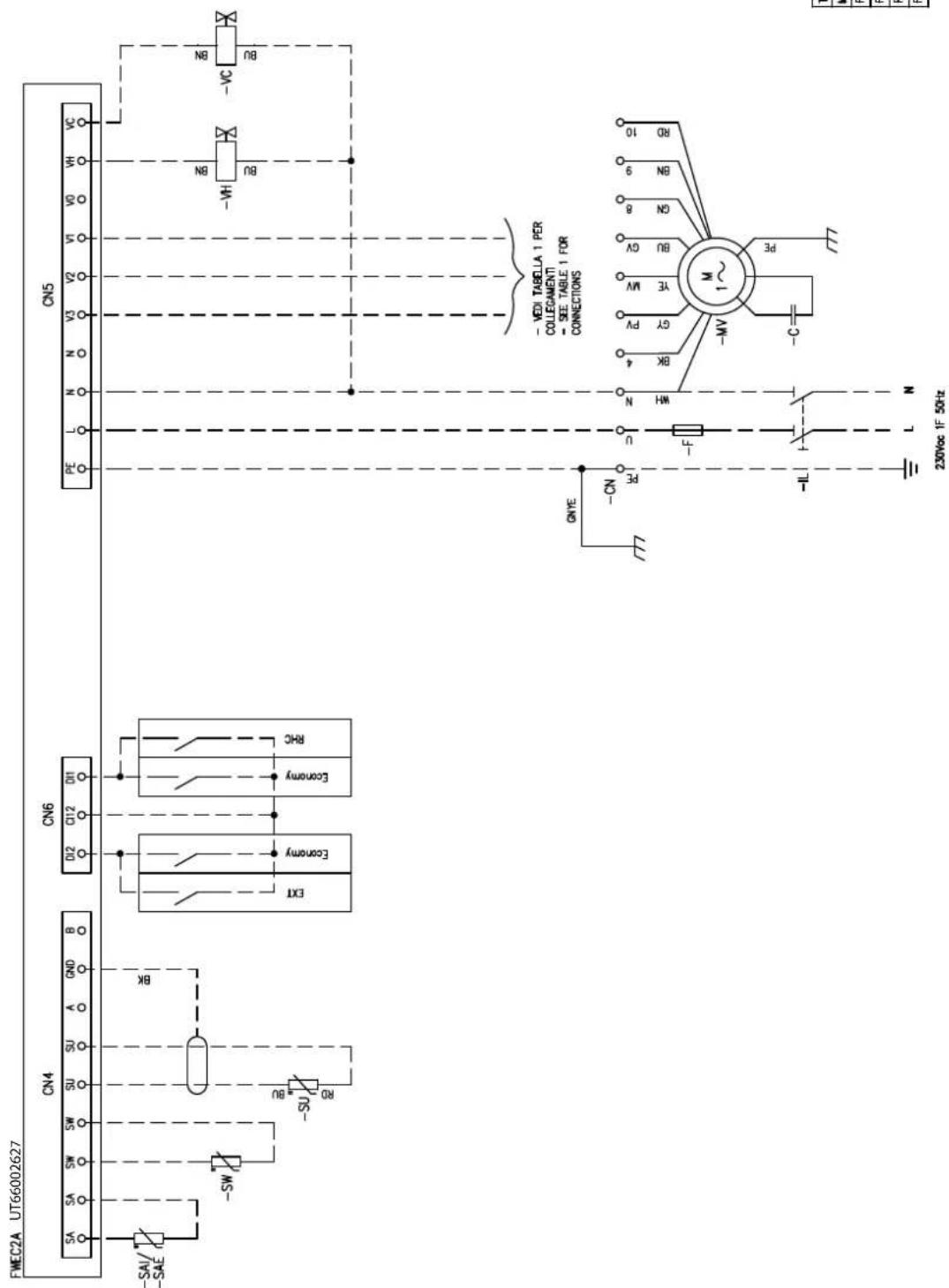

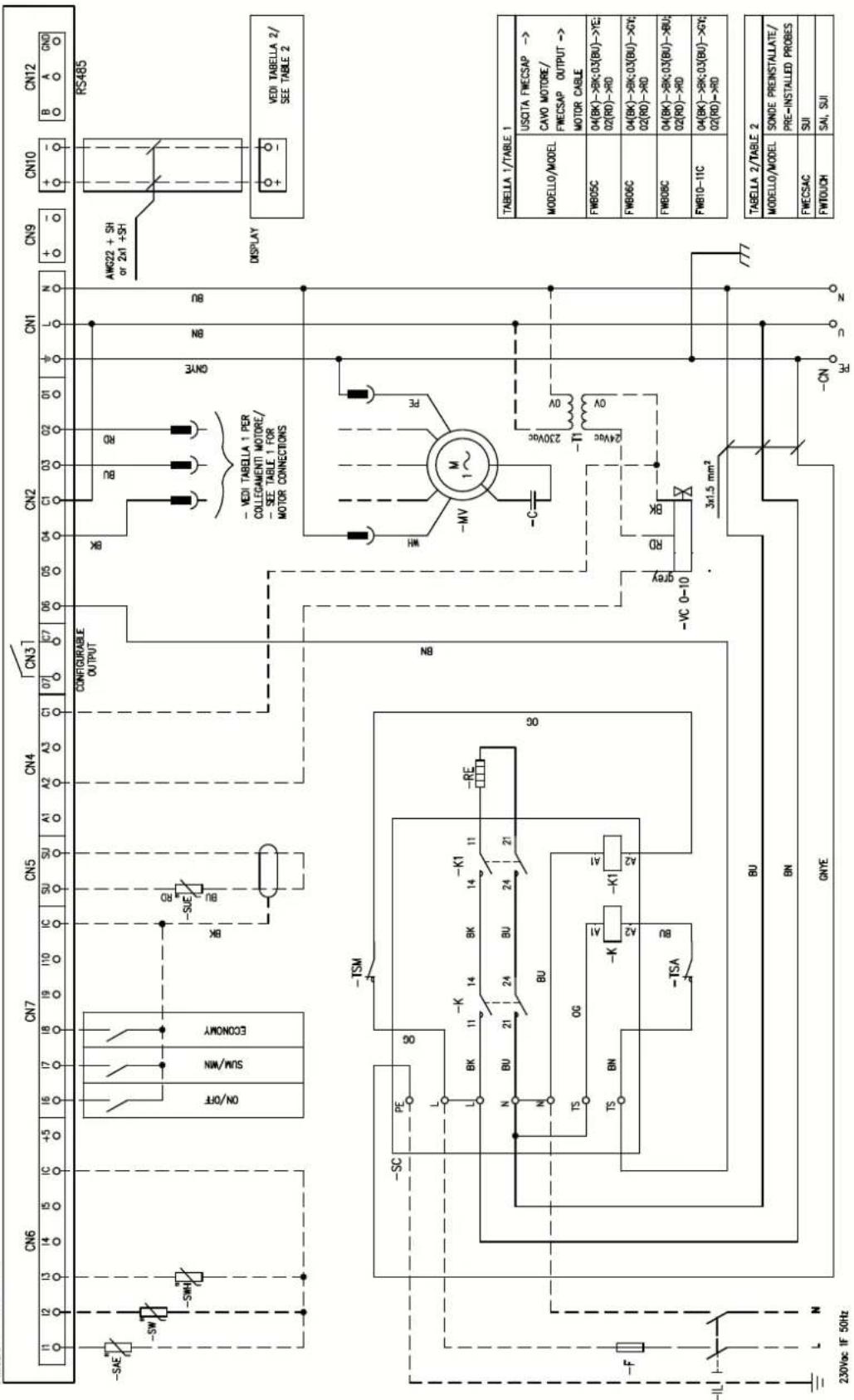

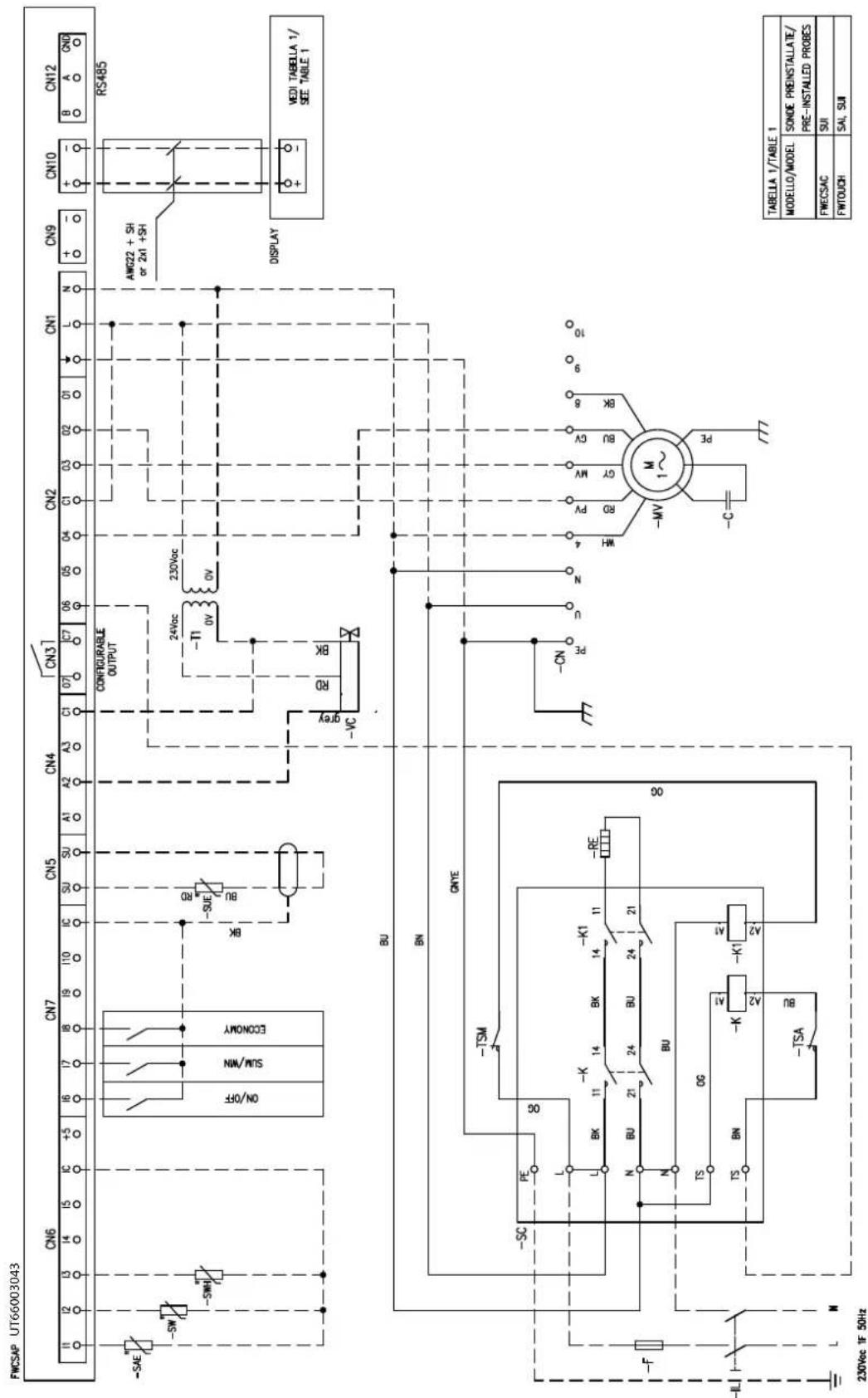

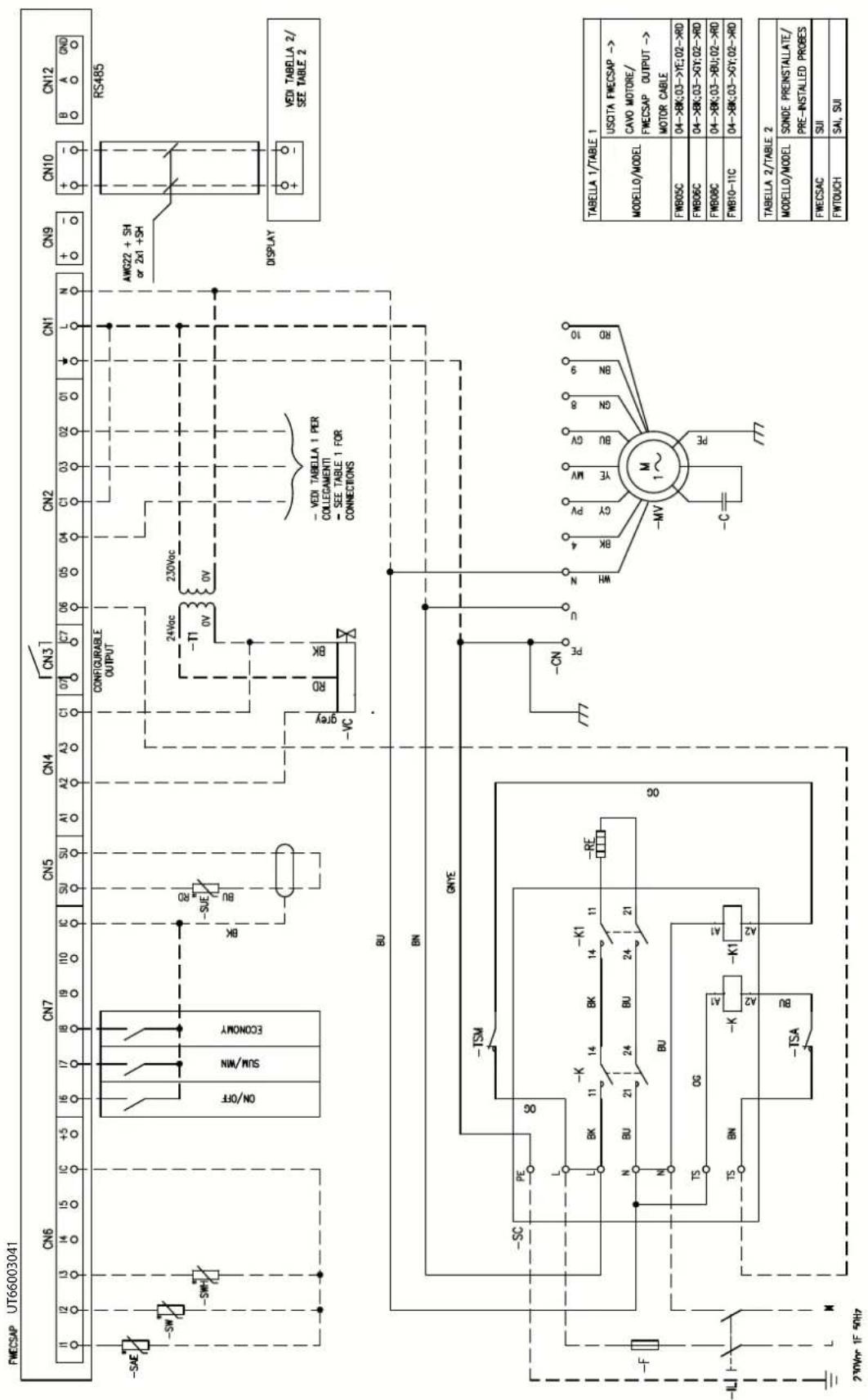

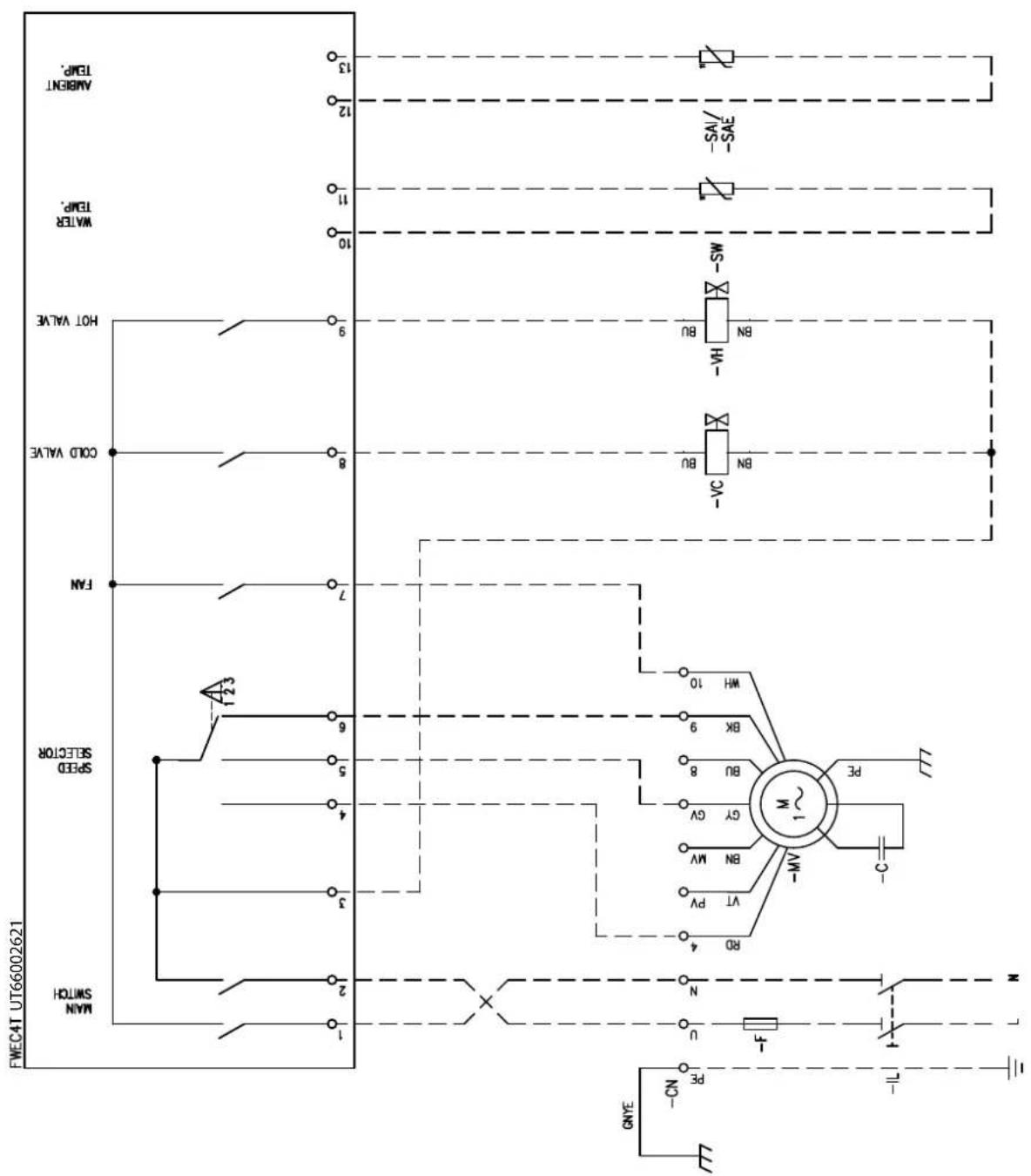

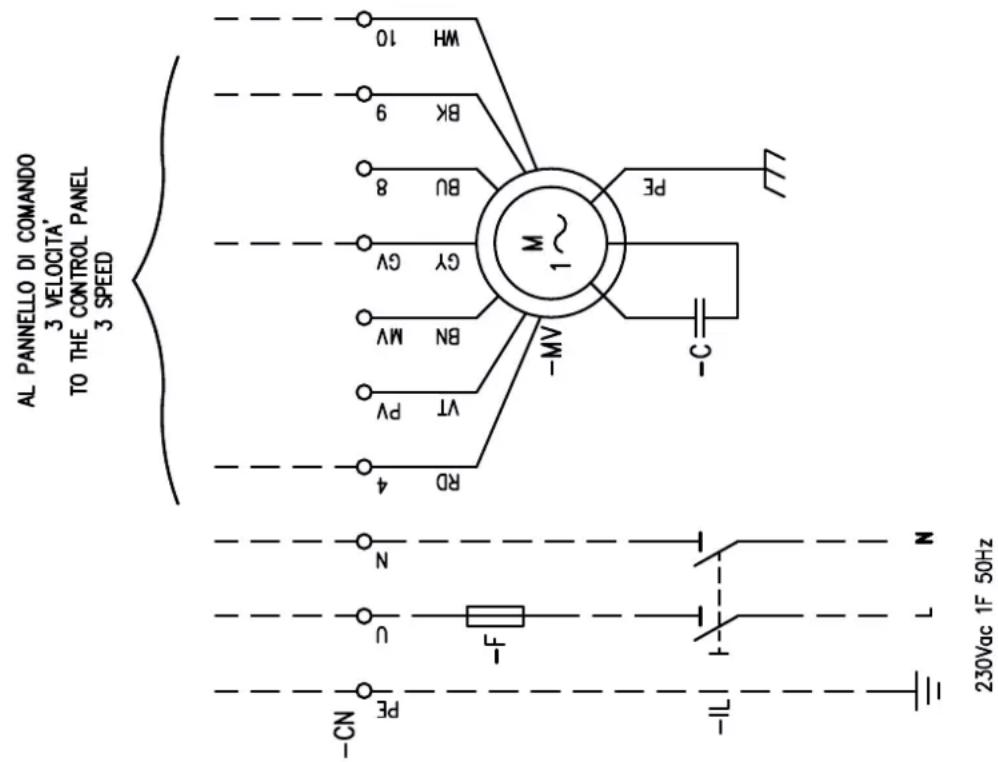

Electrical wirings legend:

Traced connection are on responsibility of the installer.

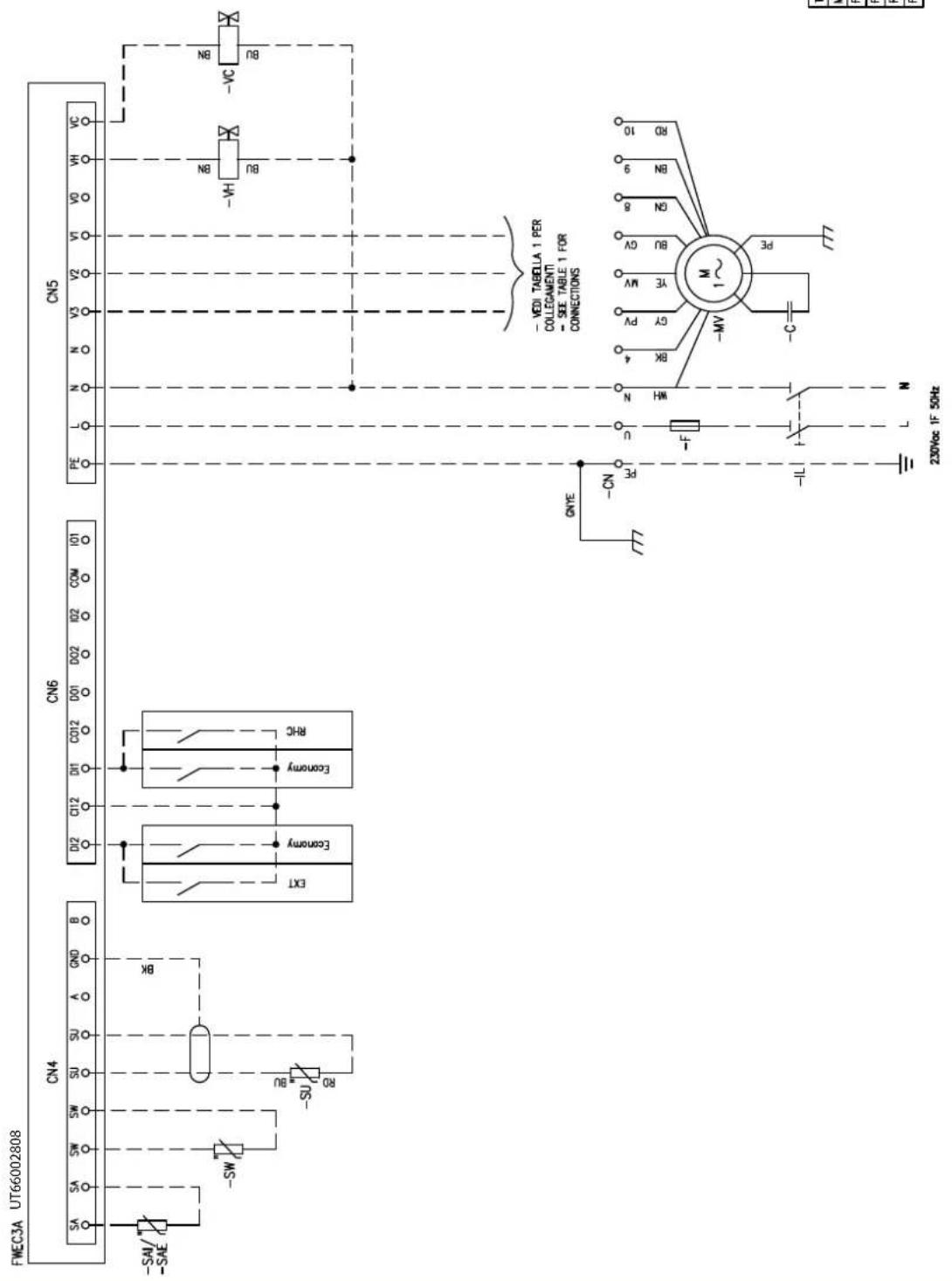

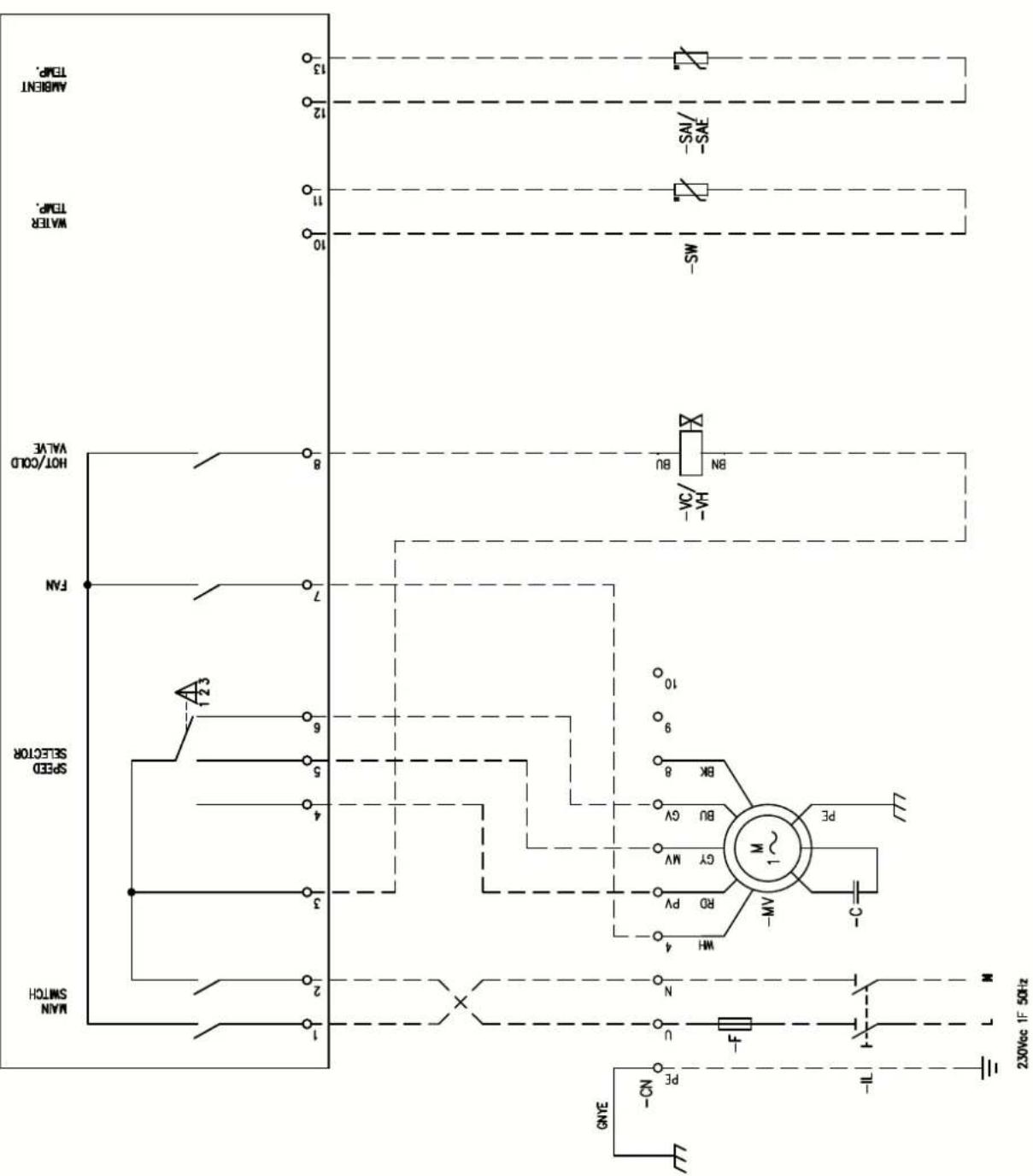

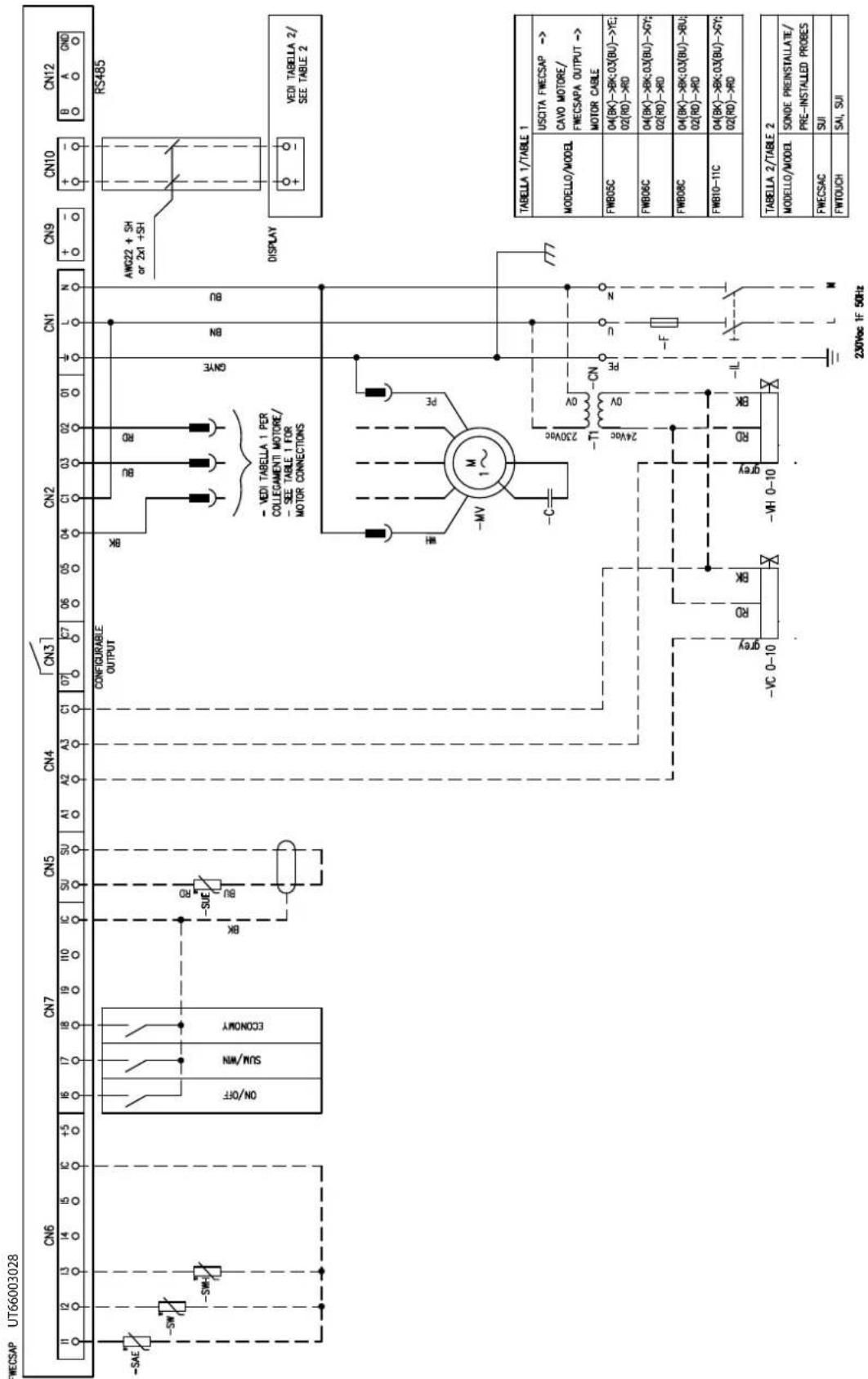

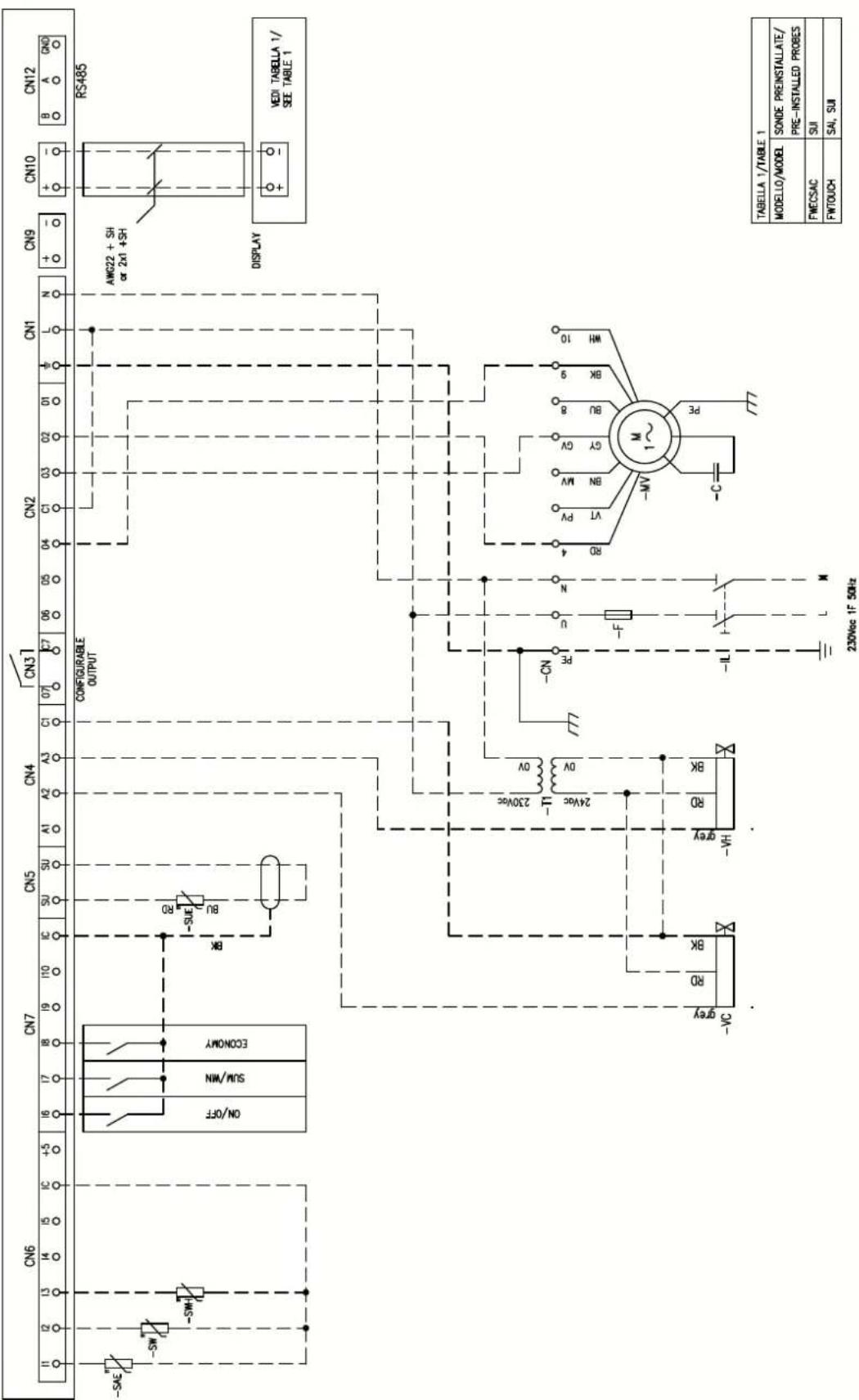

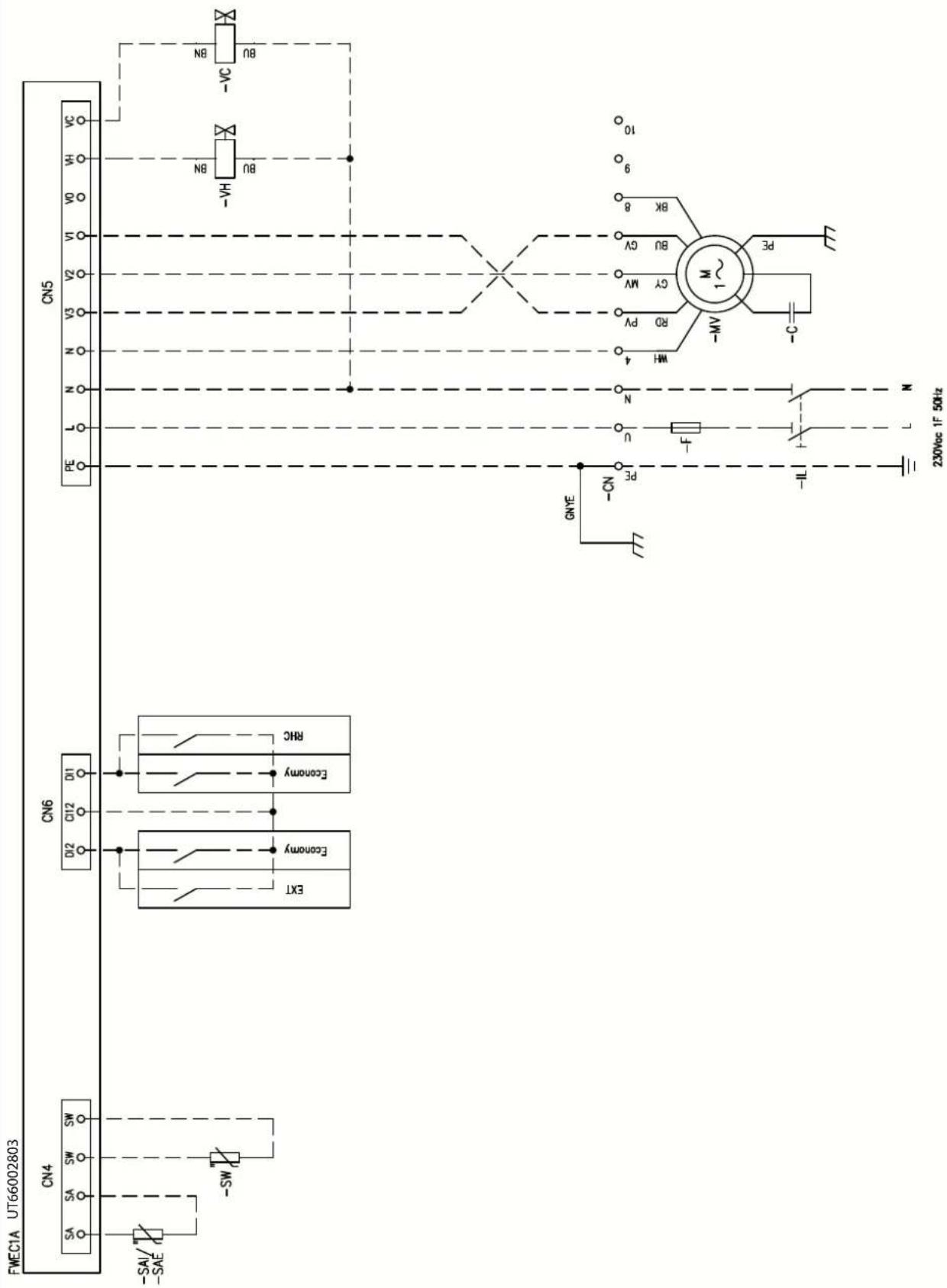

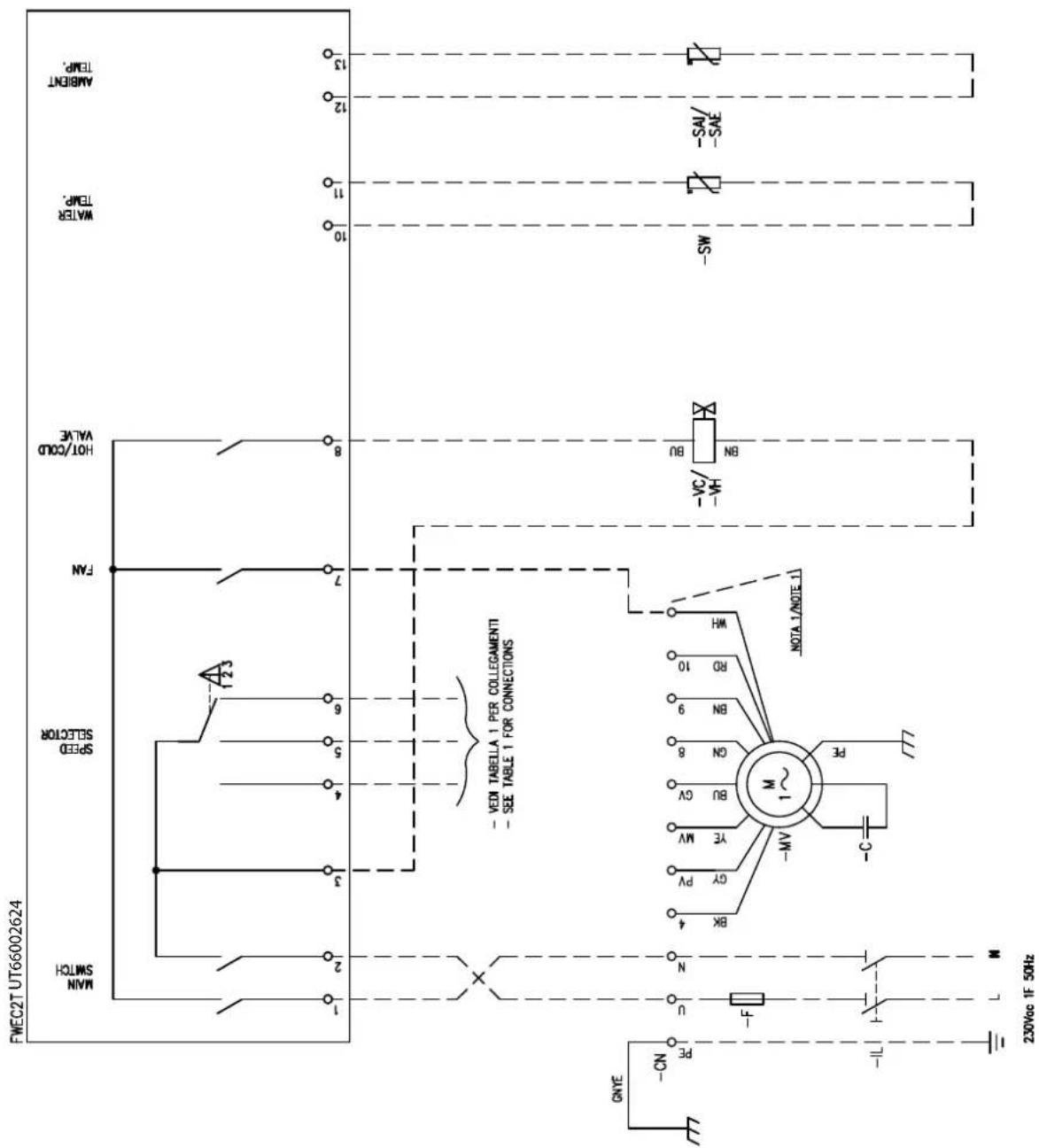

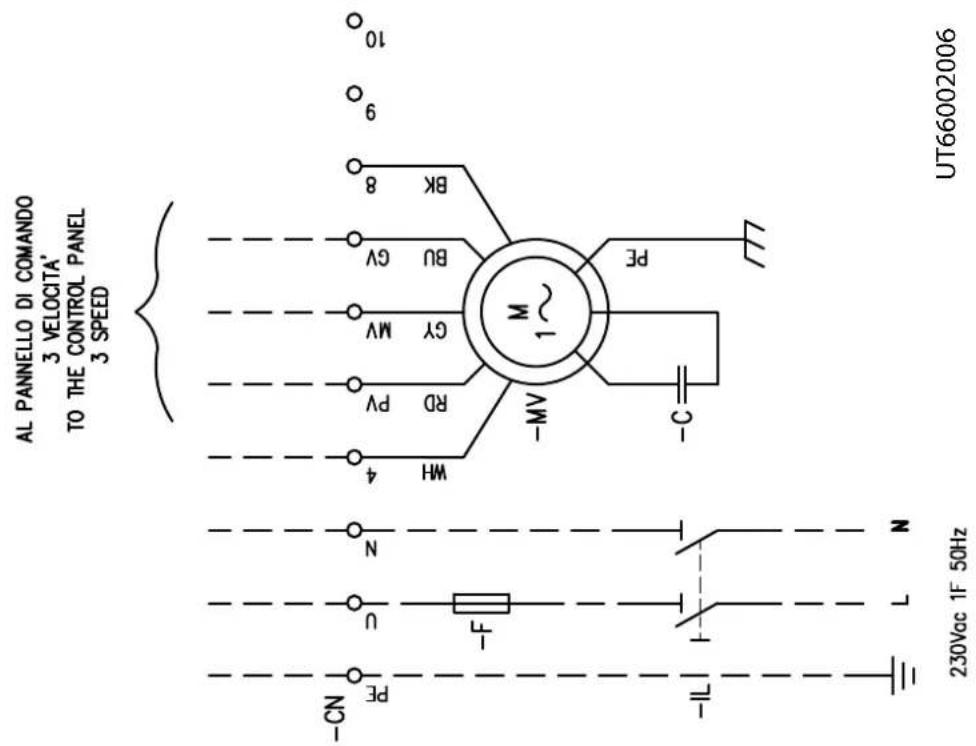

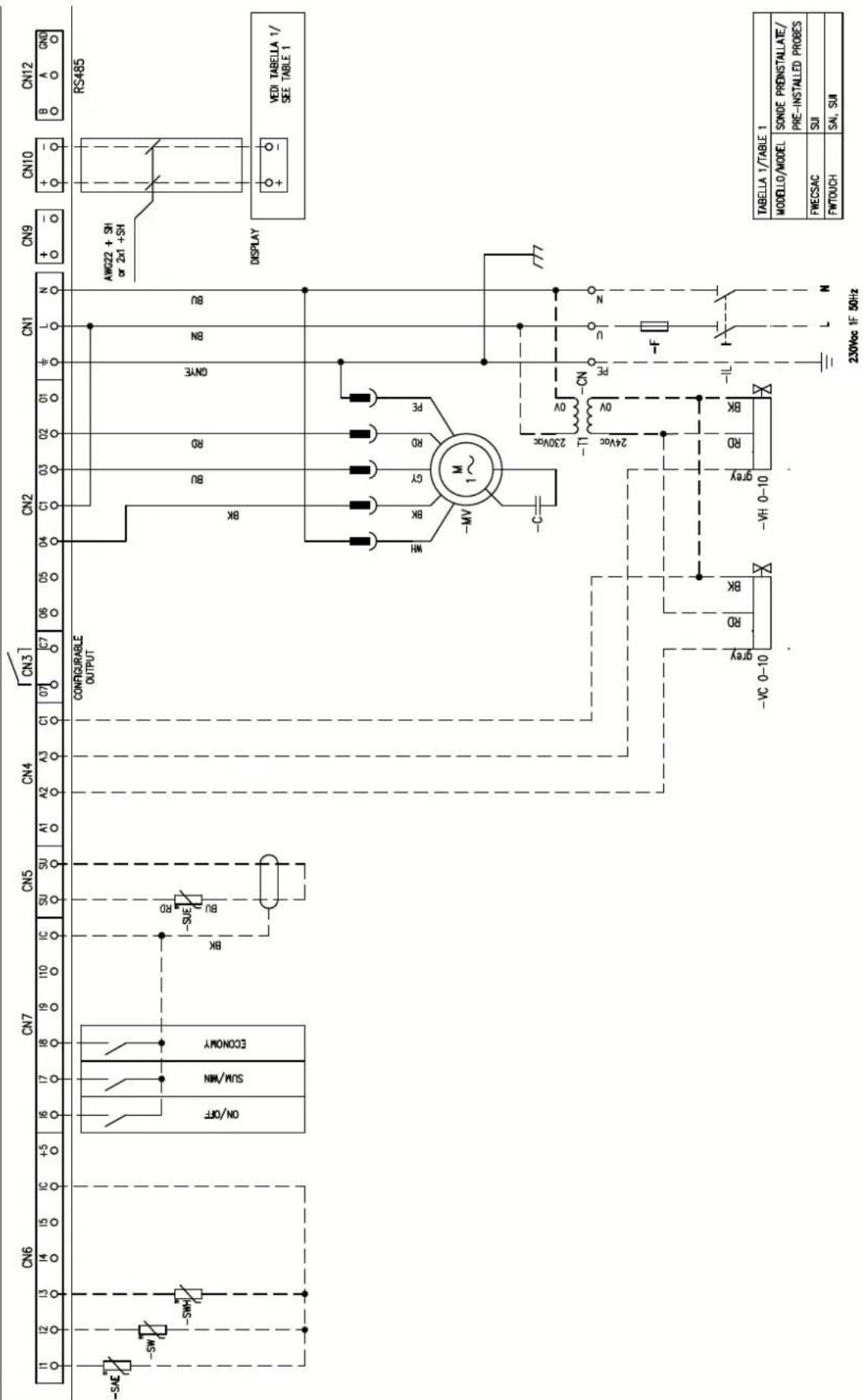

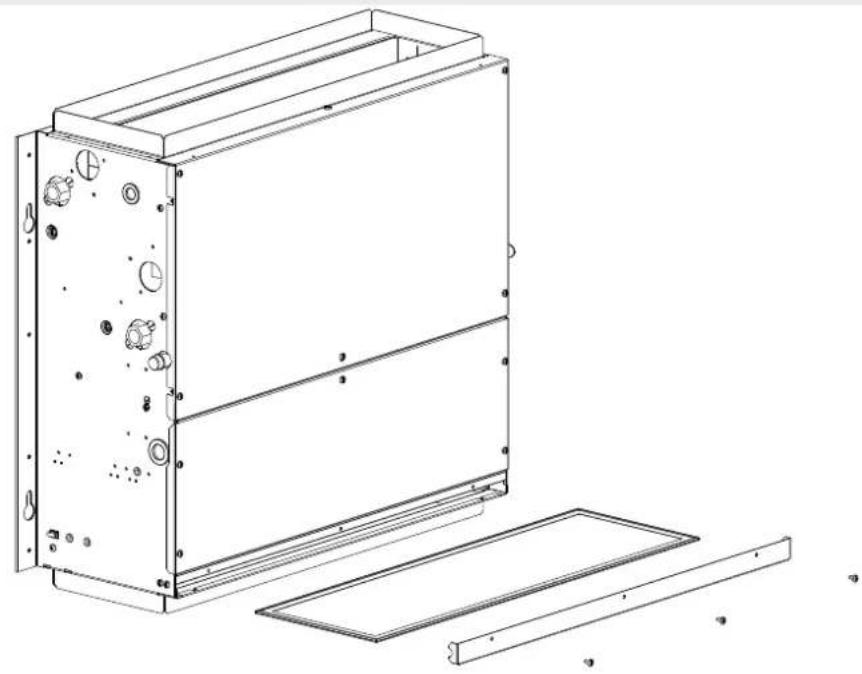

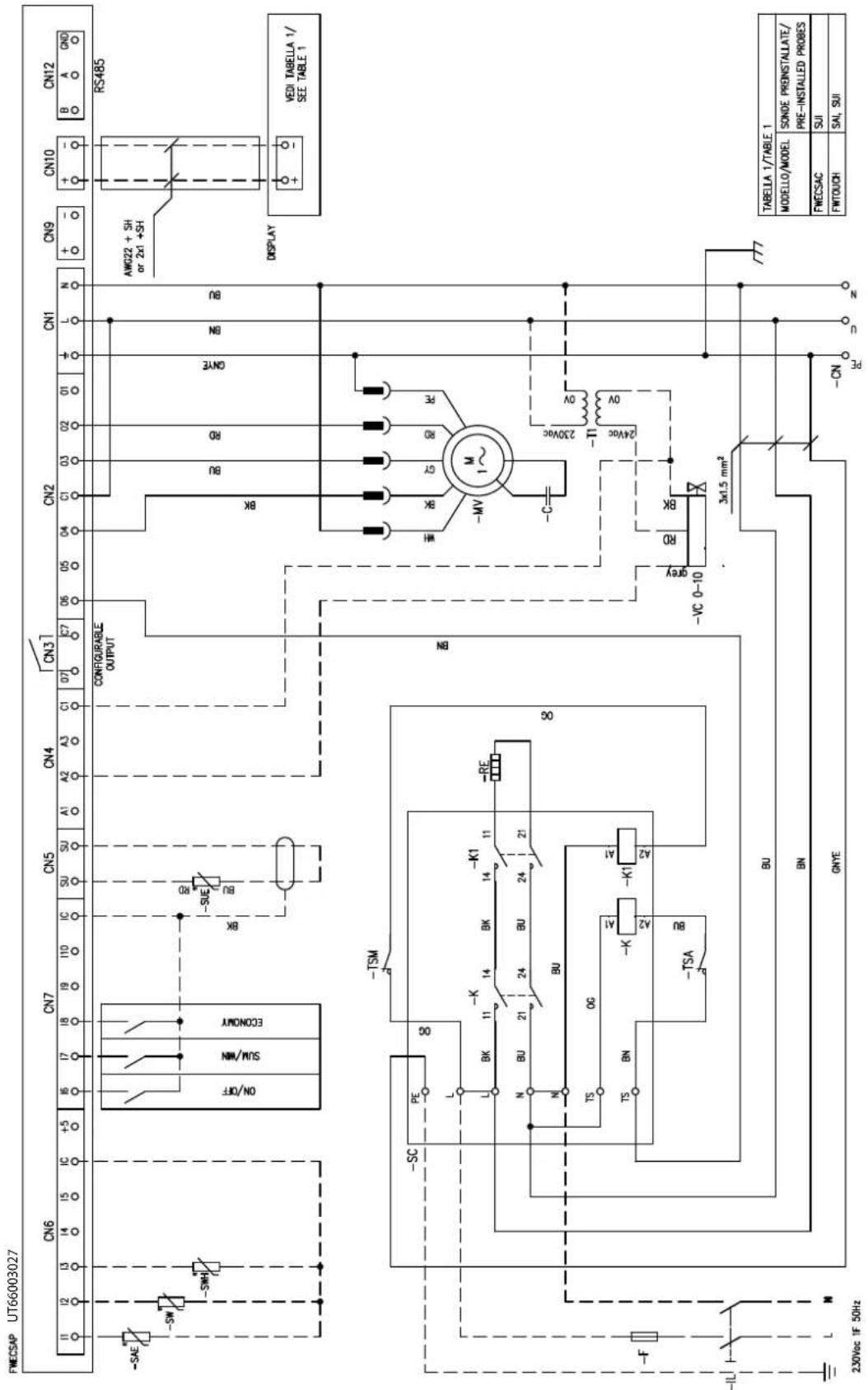

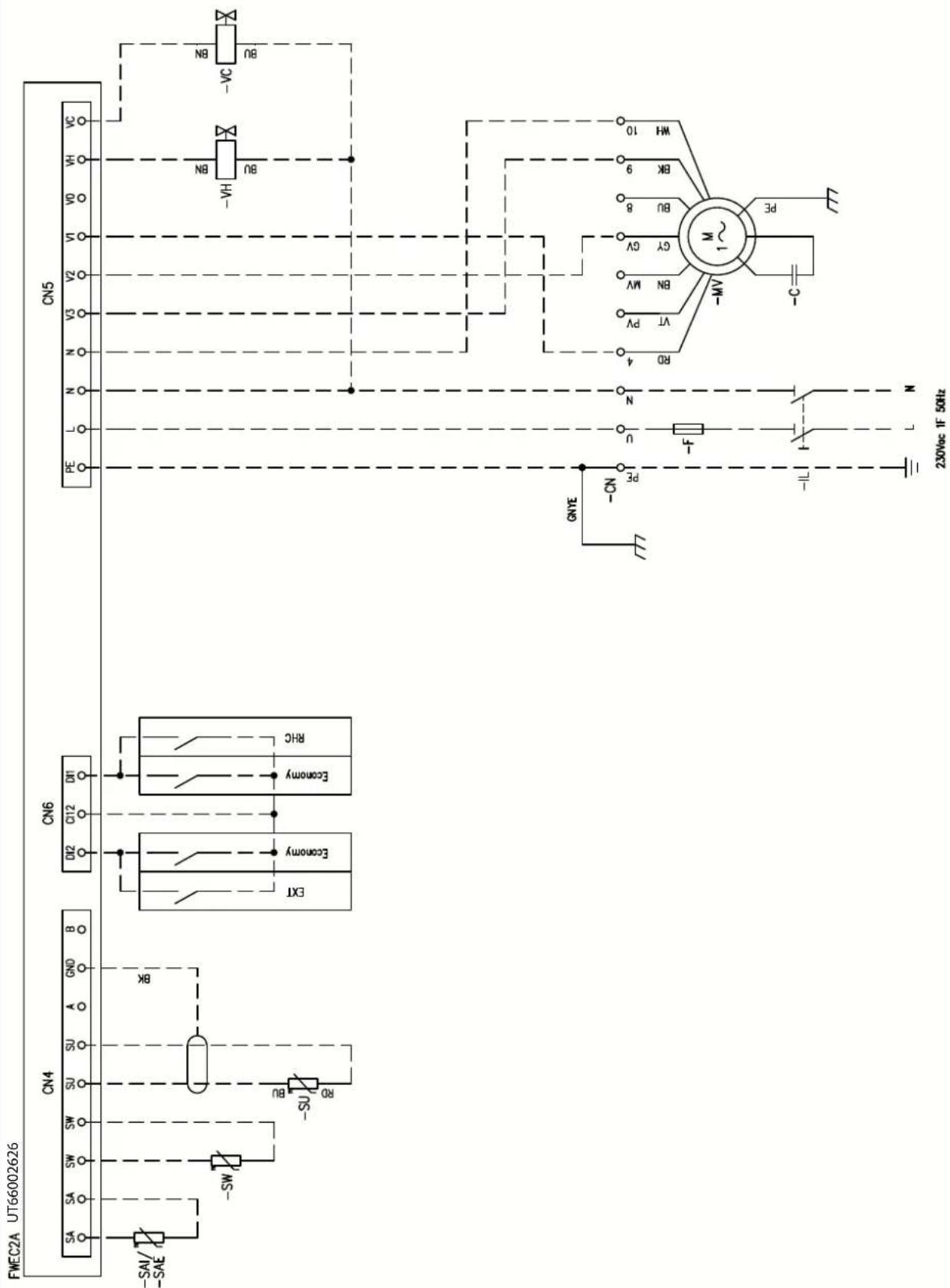

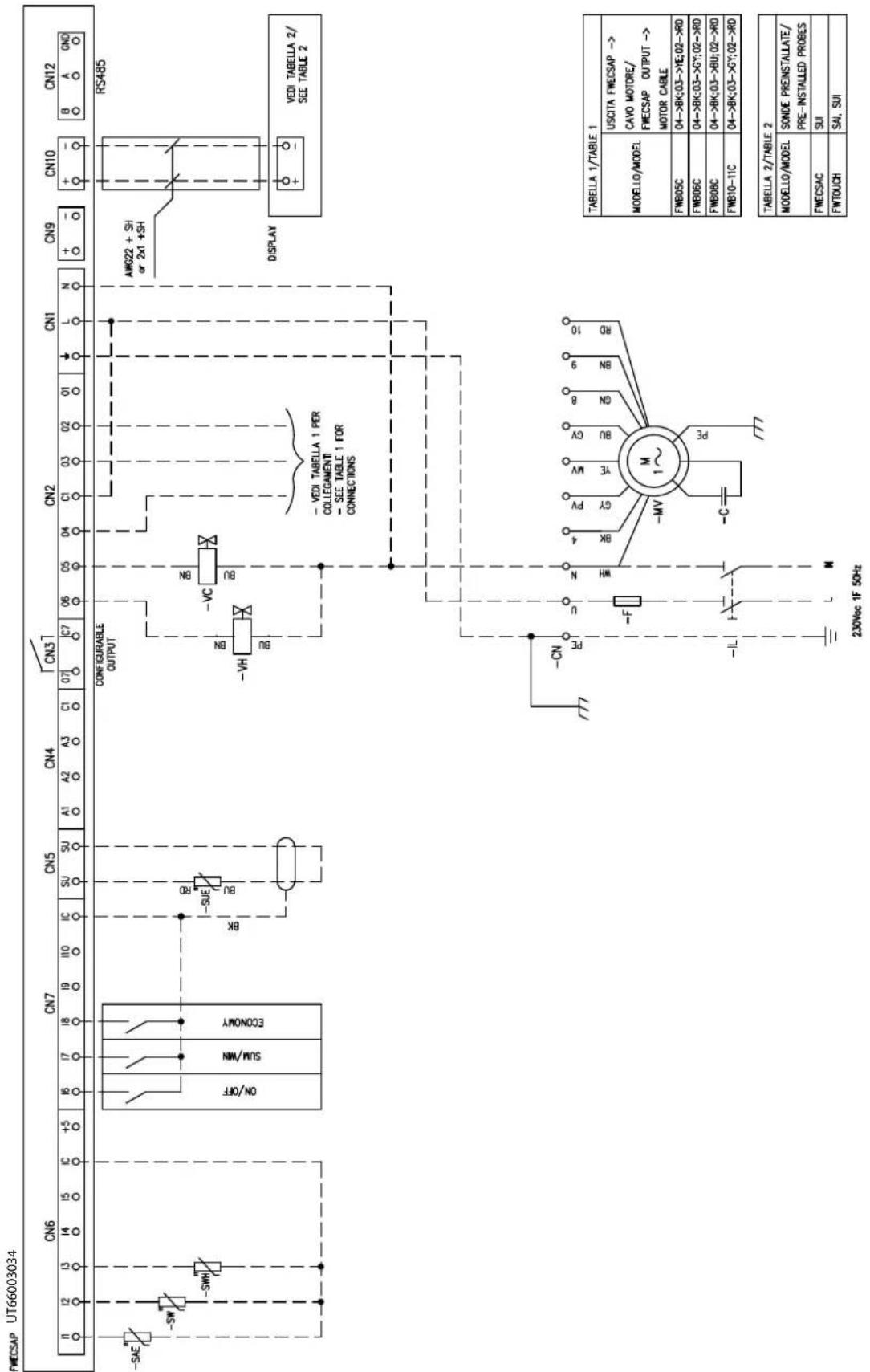

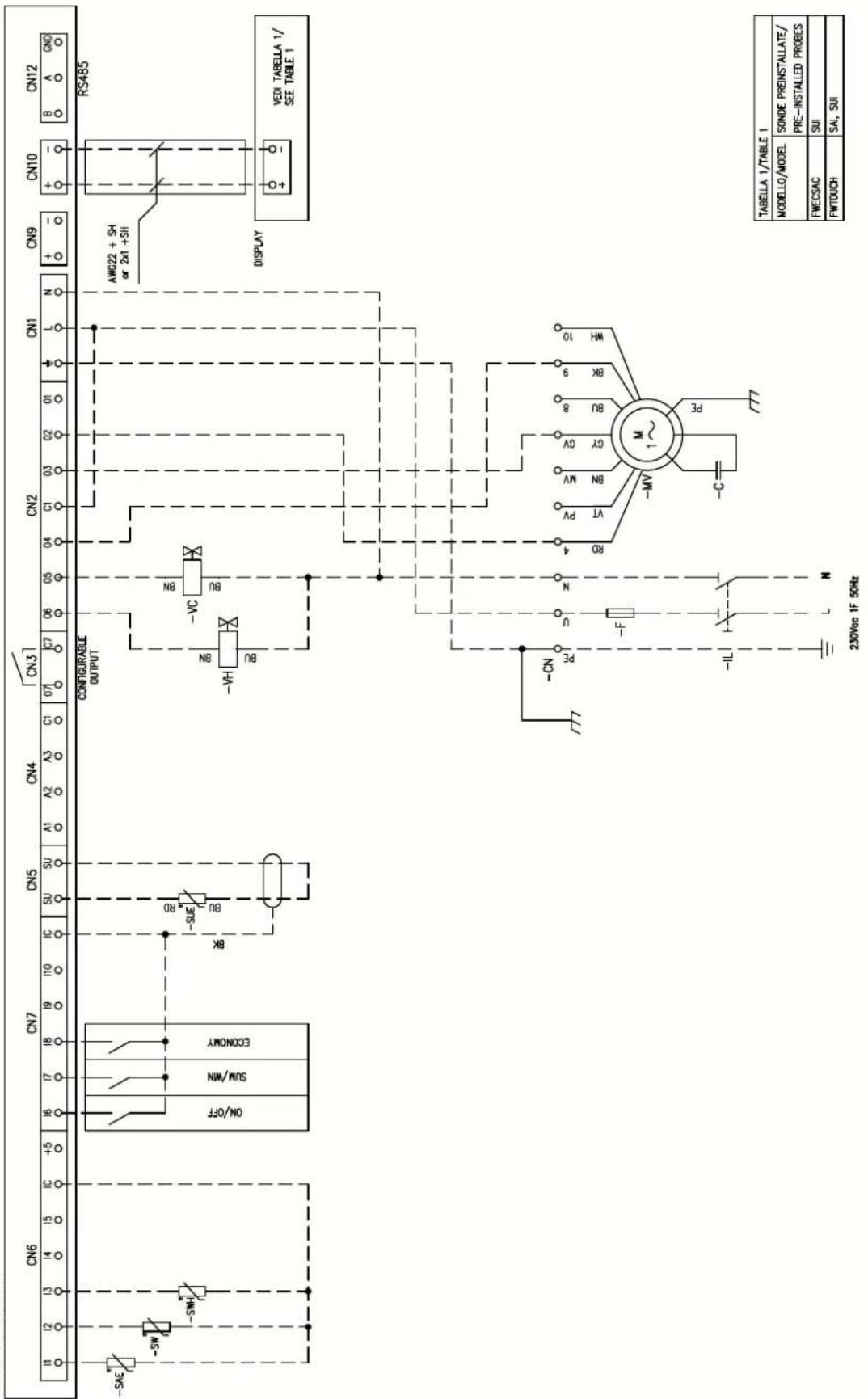

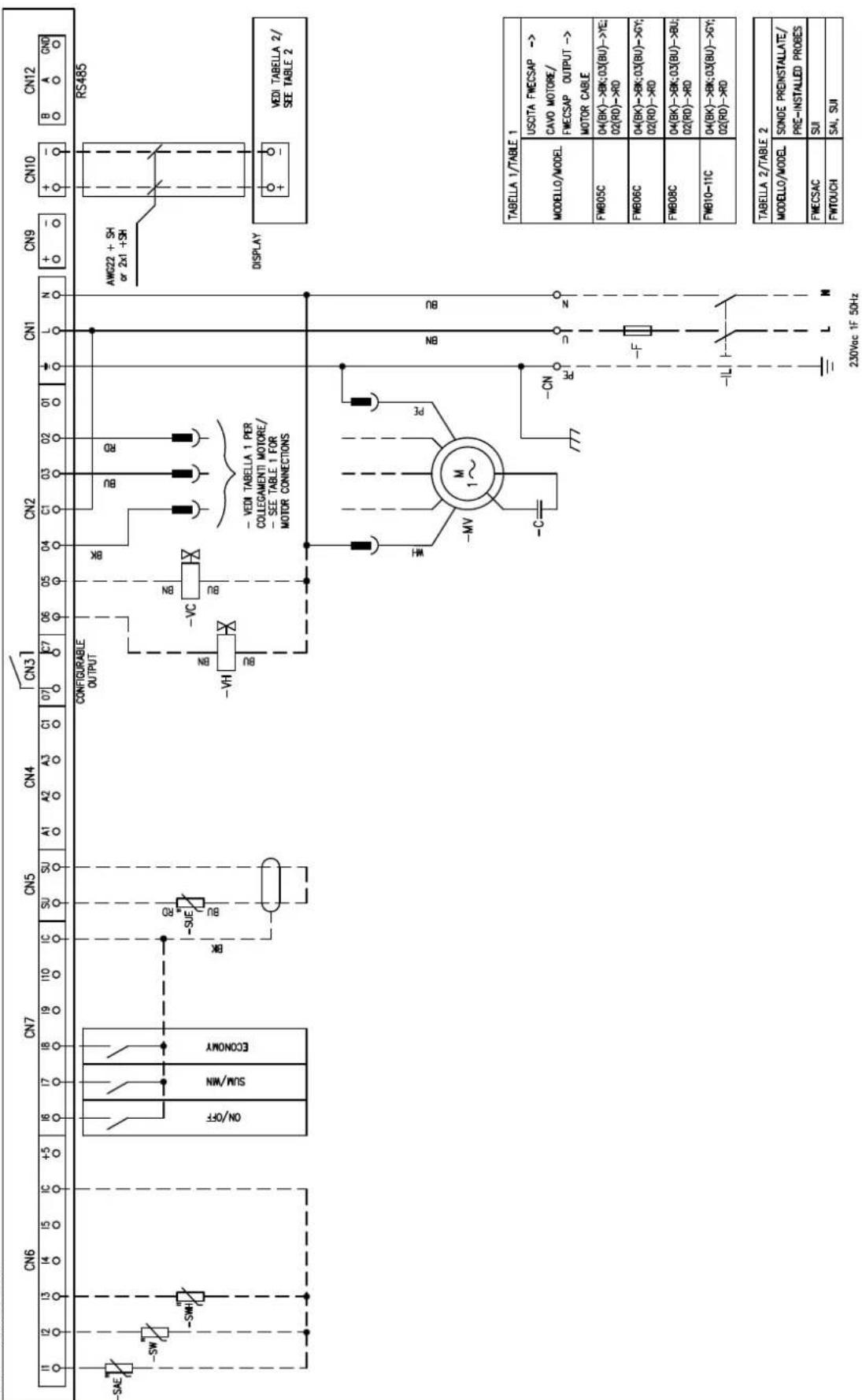

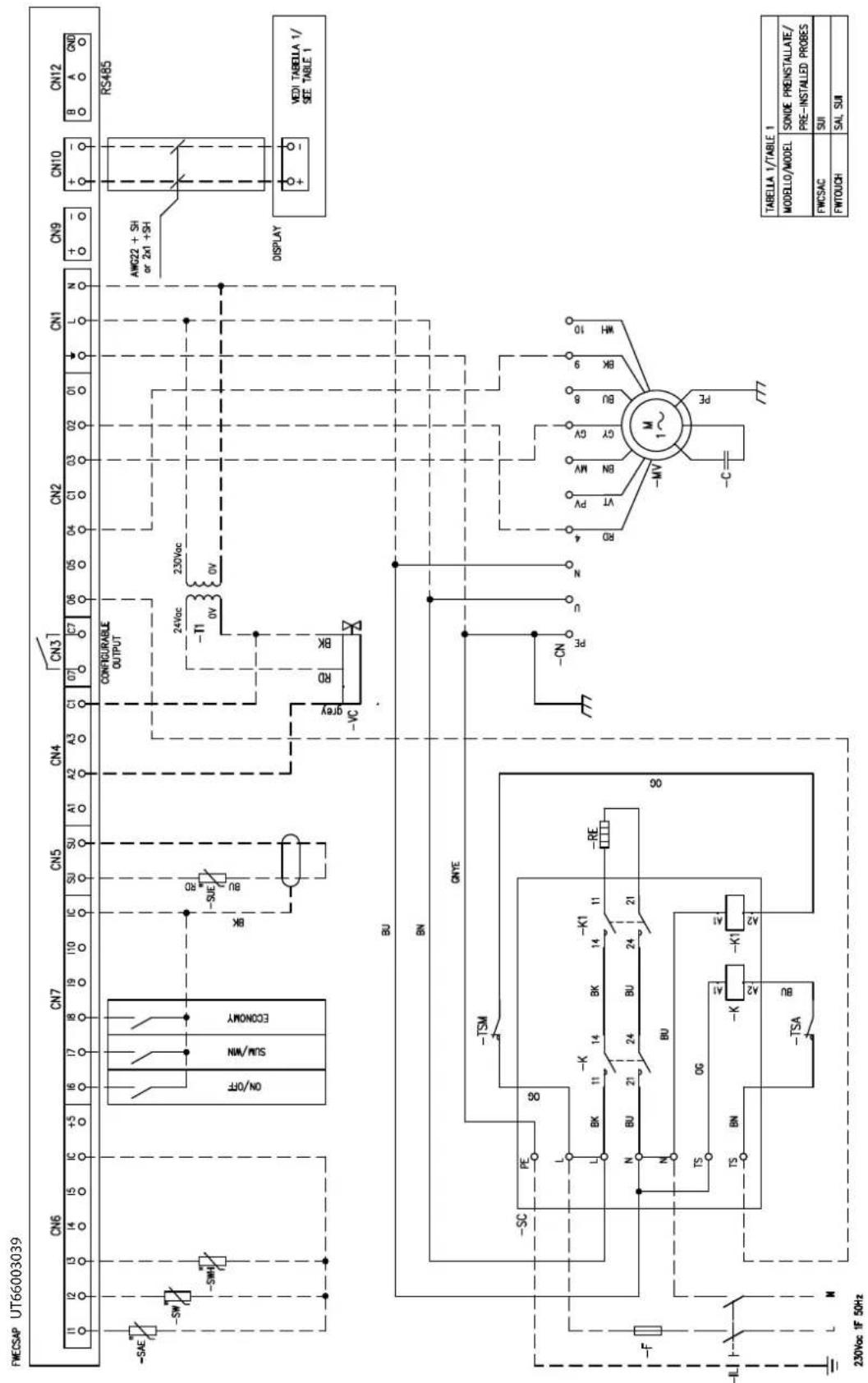

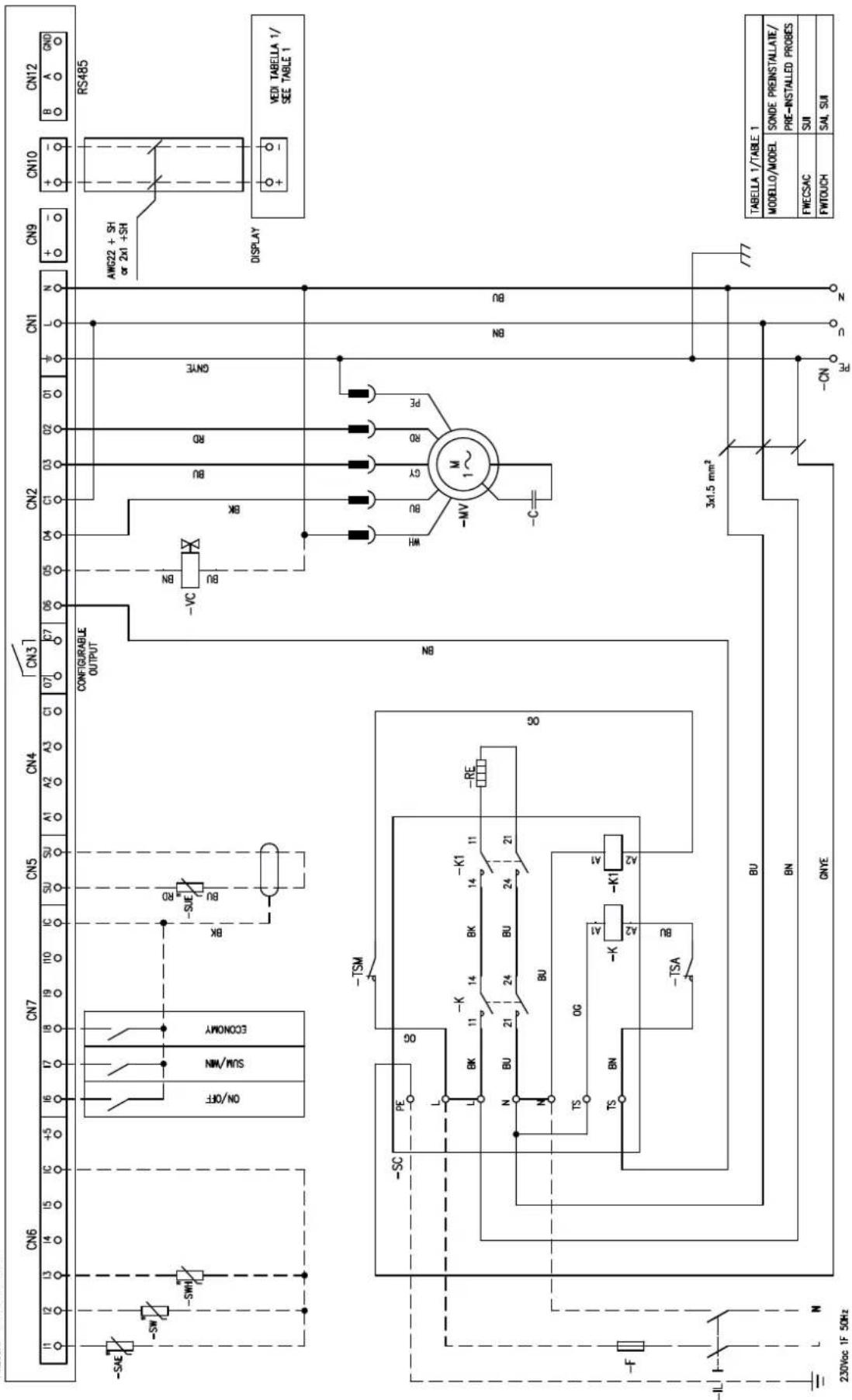

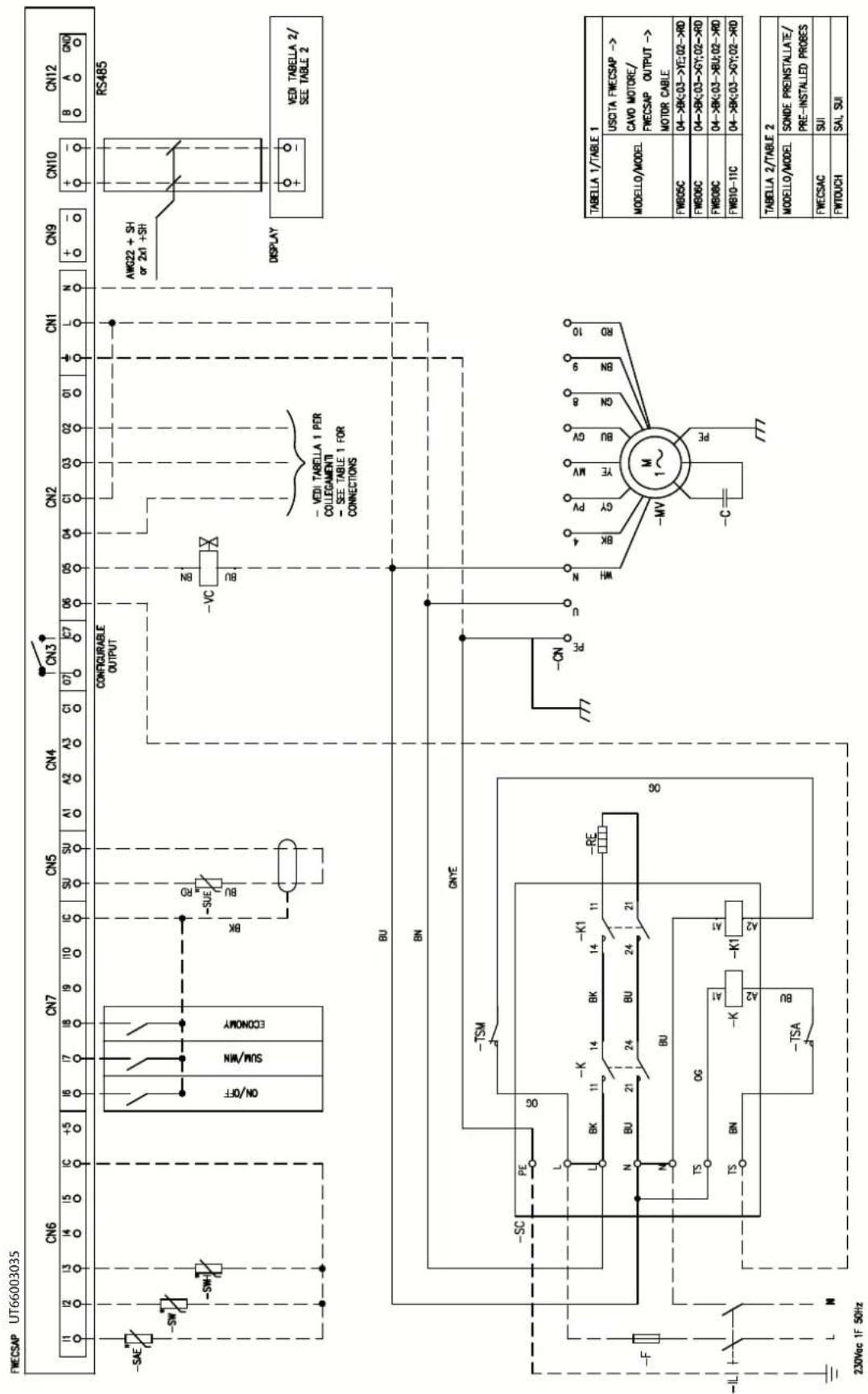

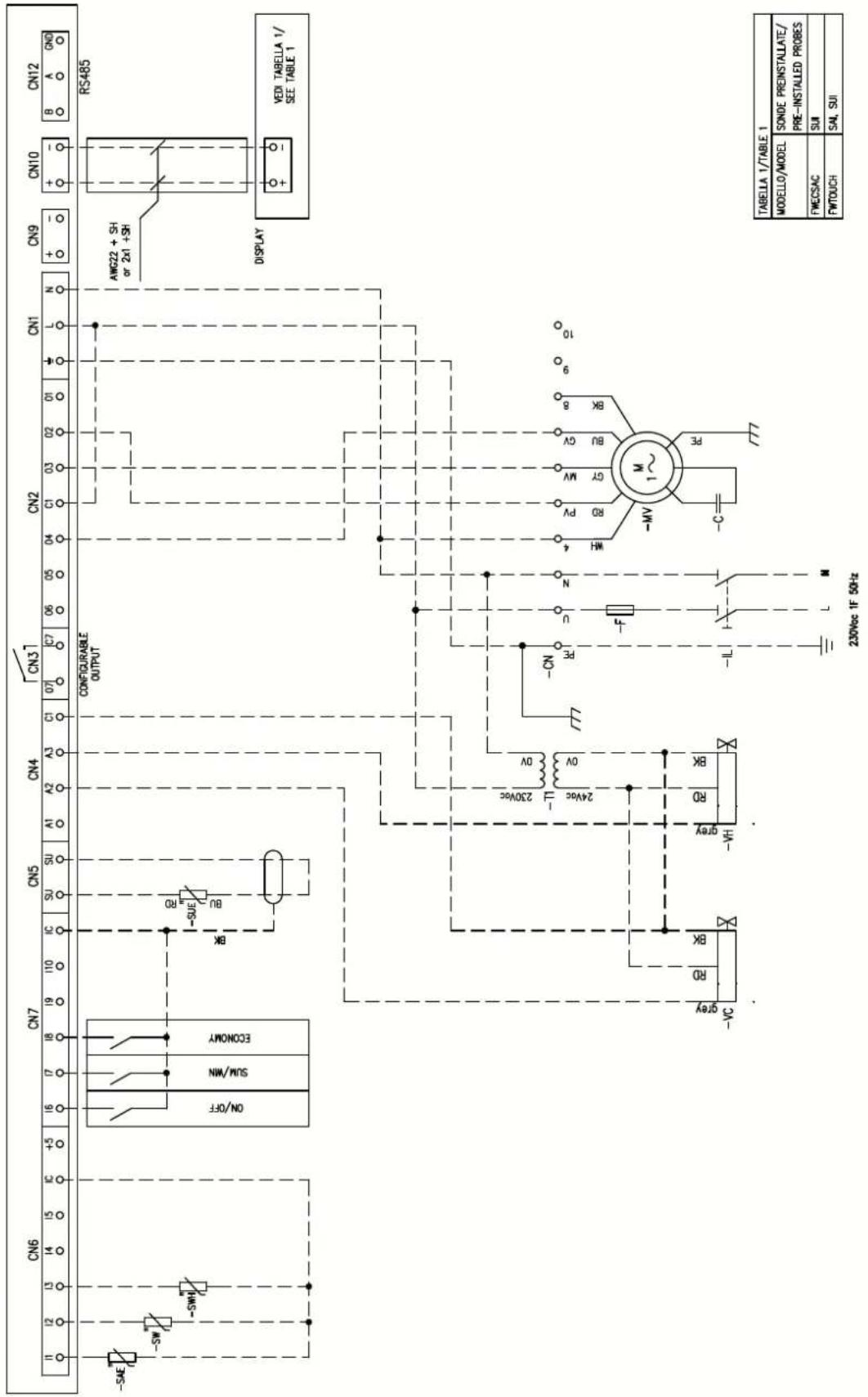

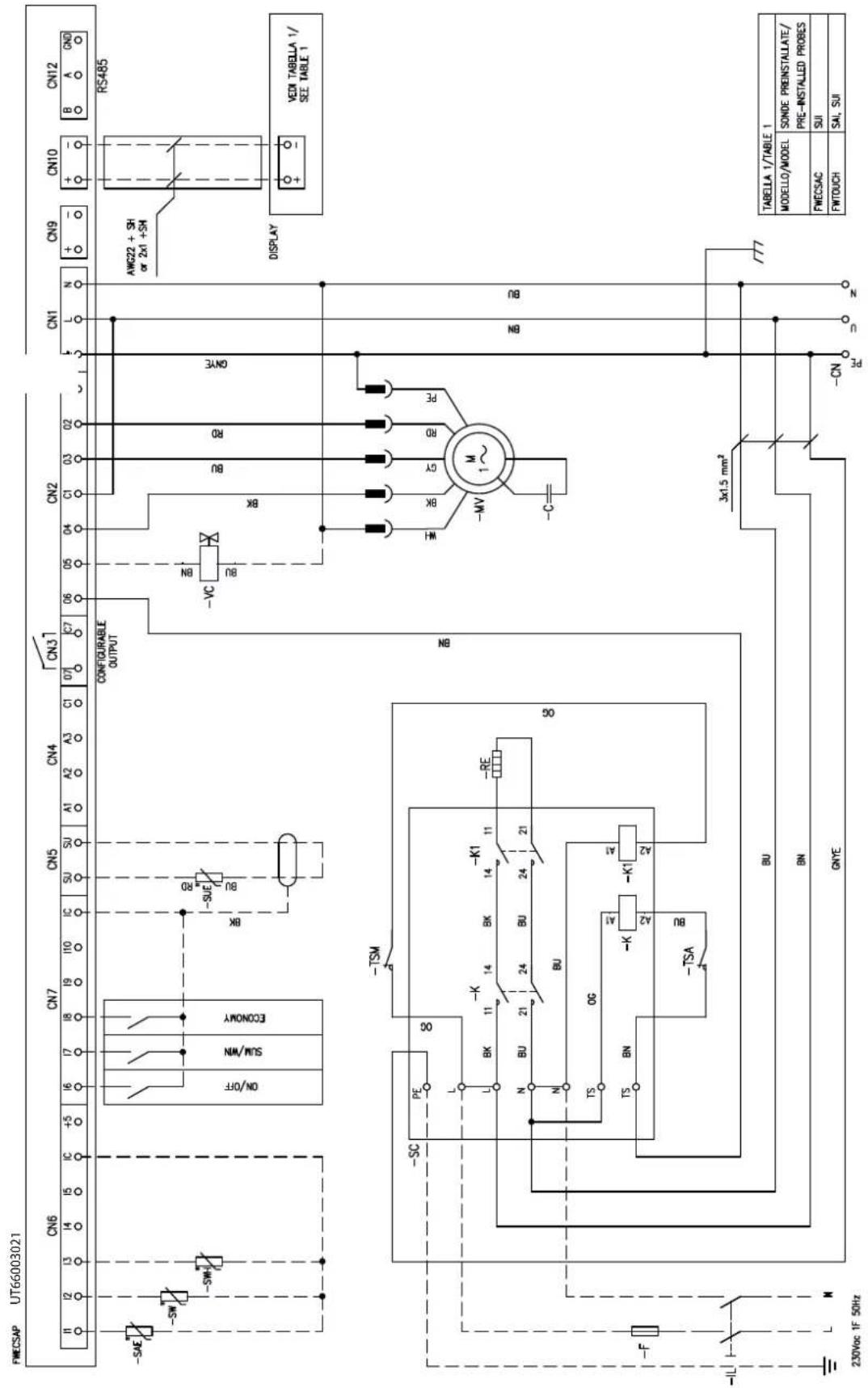

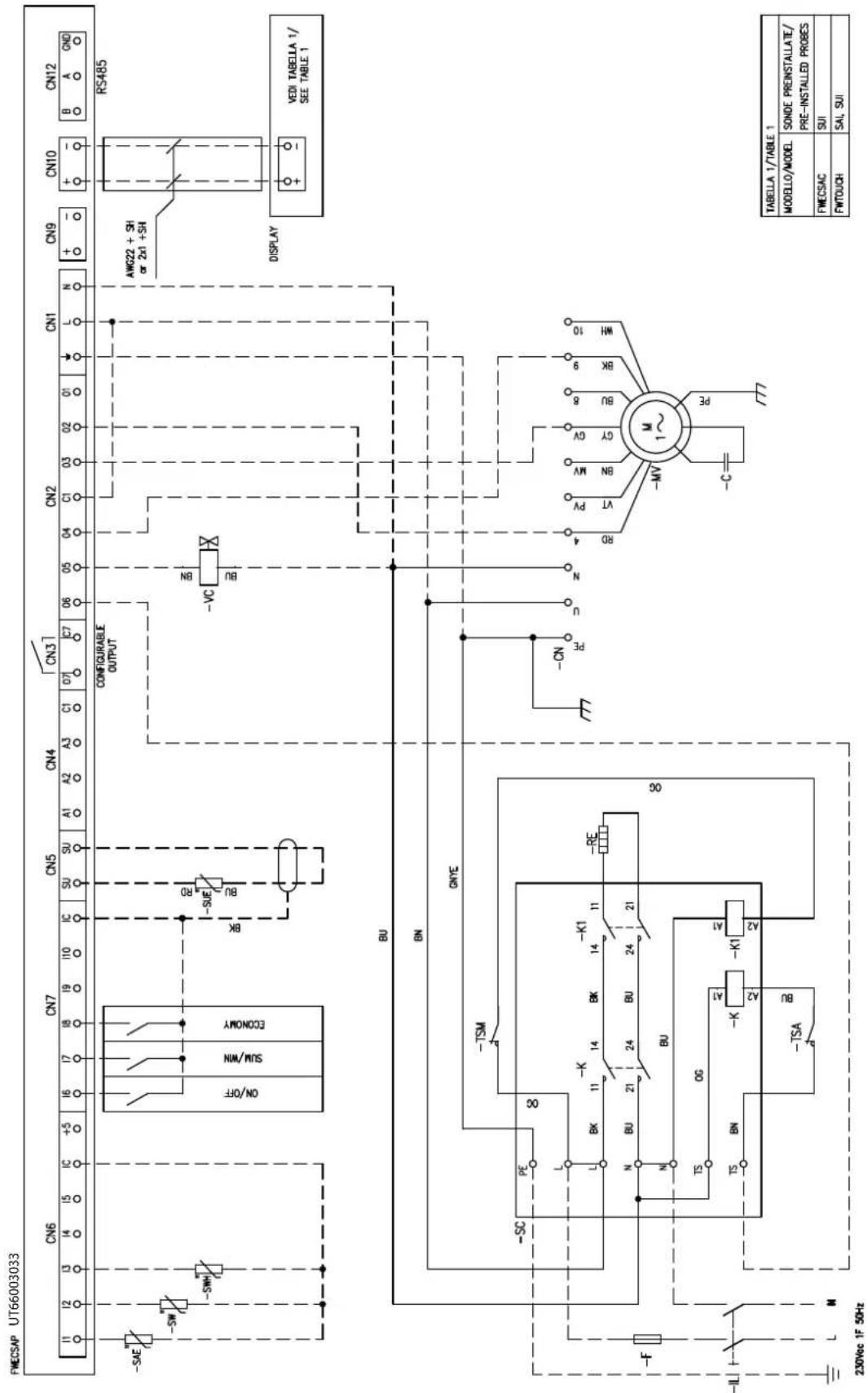

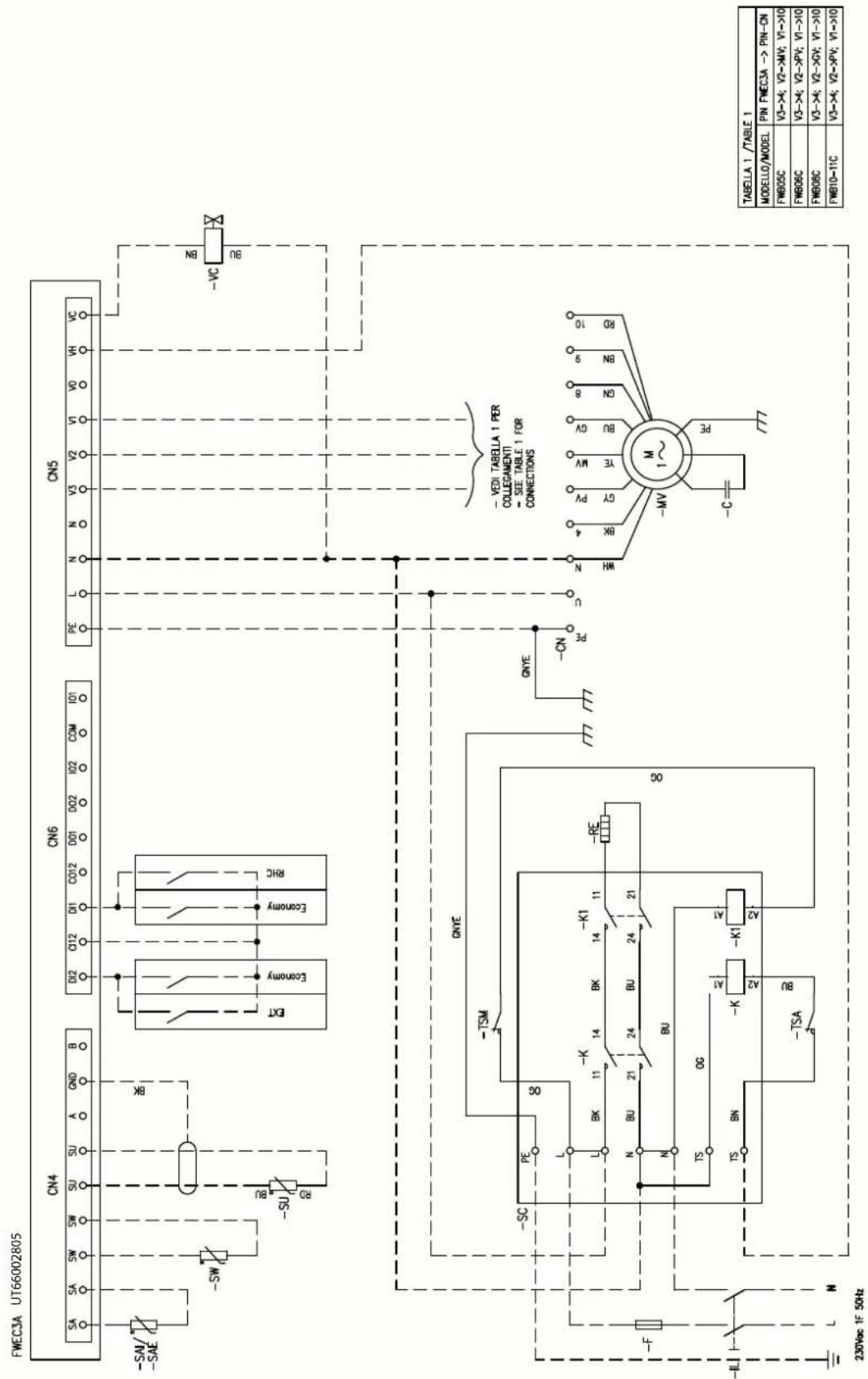

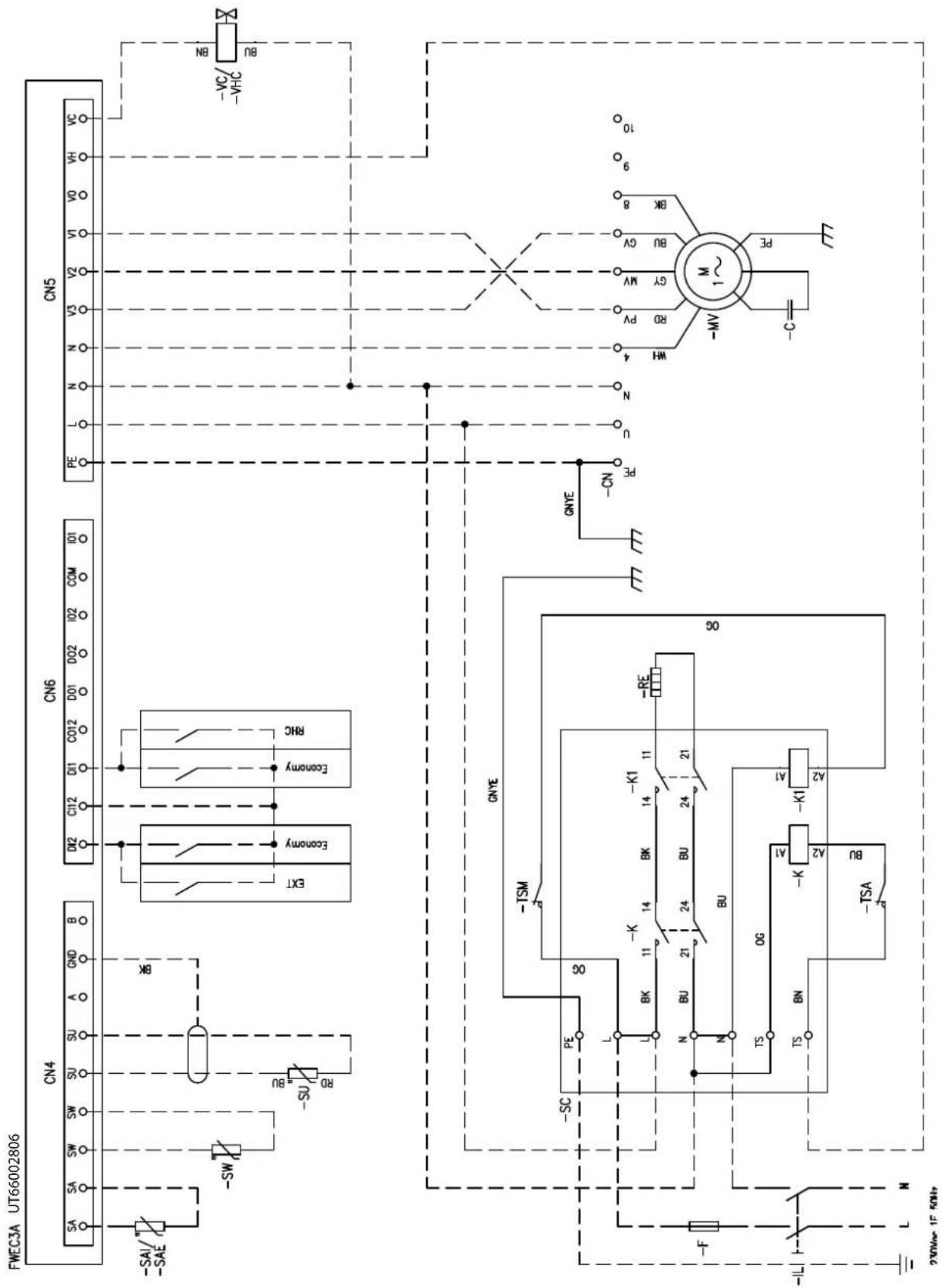

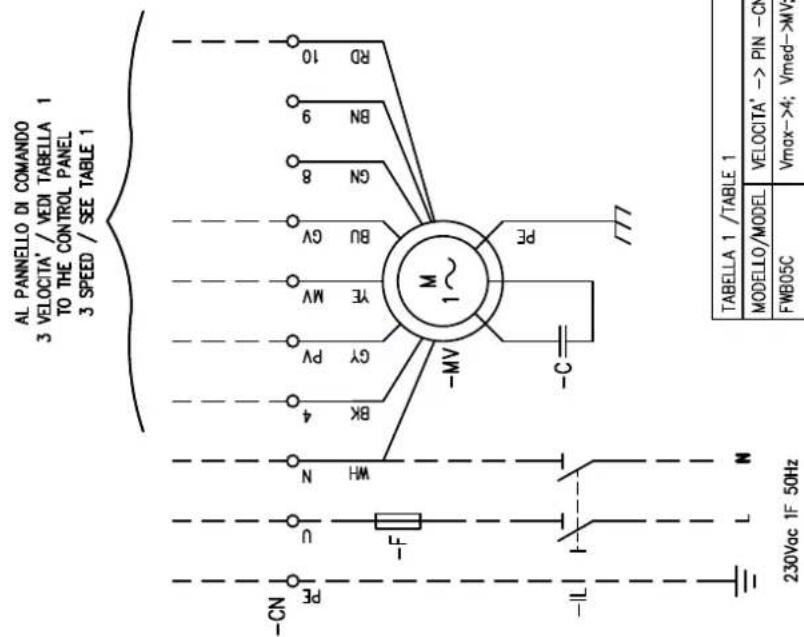

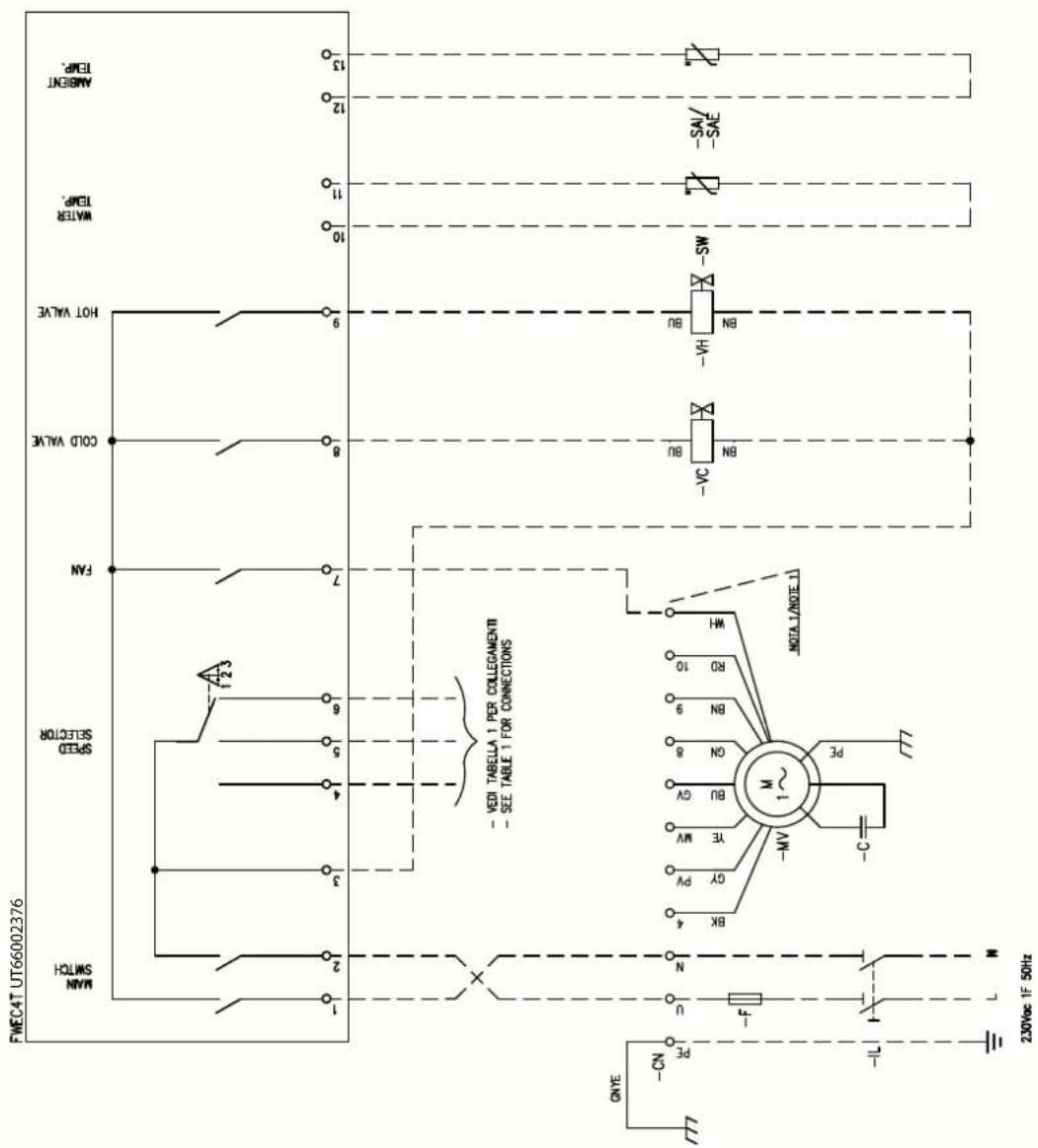

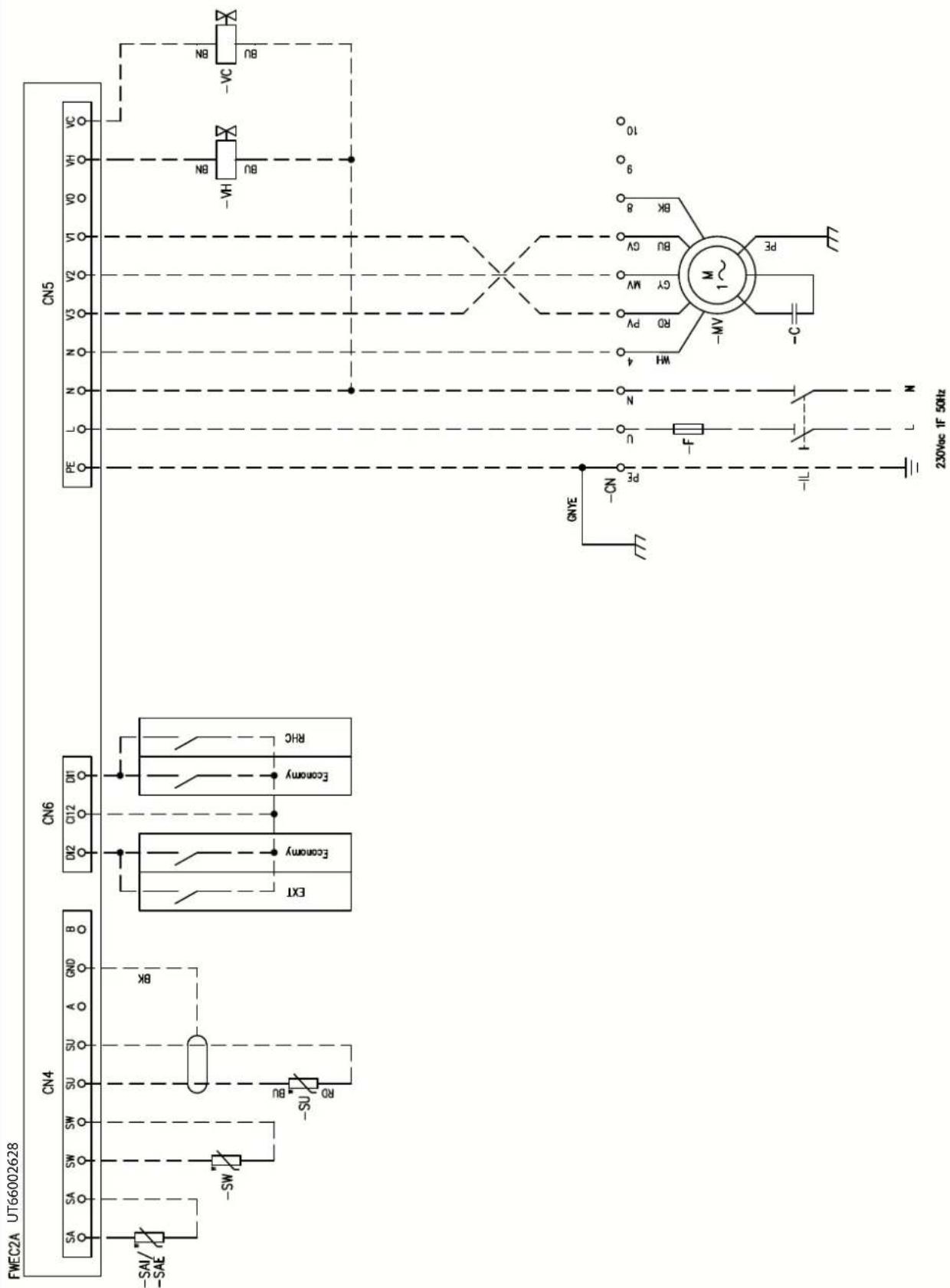

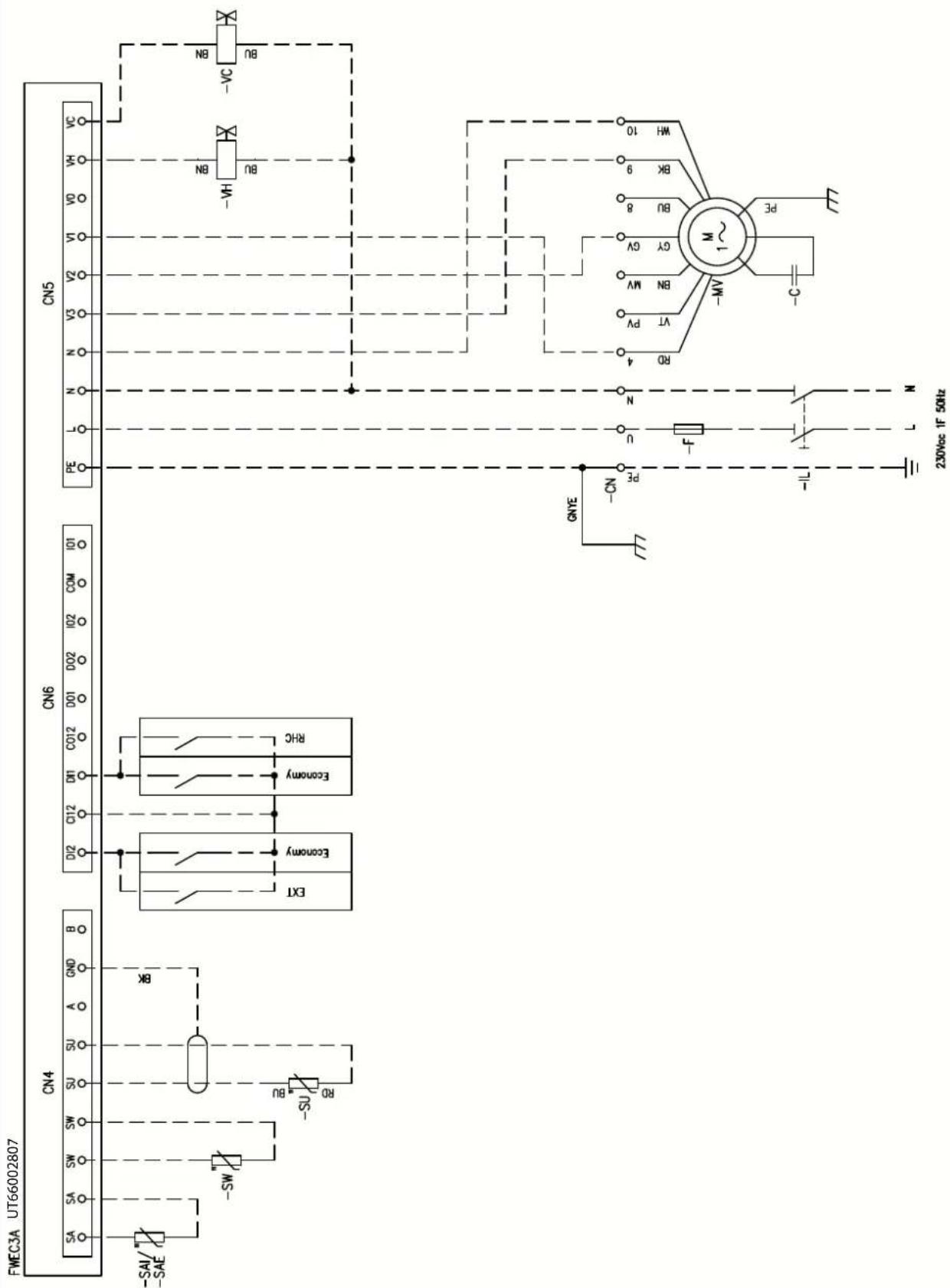

Specific for schemes with FWECSAP control

This manual is not available in your language

User questions about FWB06CATN6V3 DAIKIN

Name: FWB06CATN6V3
Brand: DAIKIN
Rating: 7 (239 reviews)

Find the device manual for free FWB06CATN6V3 DAIKIN in PDF.

📄 142 pages

EN ⬇ Download 💬 AI Question

View the manual :

Pick your language and provide your email: we'll send you a specifically translated version.

Desired language Your email address

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Air Conditioning in PDF format for free! Find your manual FWB06CATN6V3 - DAIKIN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FWB06CATN6V3 by DAIKIN.

Installation, use and maintenance manual Medium static pressure ducted fan coil units 2 - 8 kW

EU – Suffich declaration of conformity	UE – Declaración de conformidad sobre seguridad	EC – Заявление о соответствии требованиям по безопасности	EU – Samsvarserklaring for sikkerhet	EU – Izjava o sukladnosti za sigurnost	EU – Varnostna izjava o skladnosti	EC – Декларация за съответствие за безопасност
EU – Sicherheits-Konformitätserklaring	UE – Dichiaración de conformidad in materia di sicurezza	EC – Заявление о соответствии требованиям по безопасности	EU – Turvallisuuden vaatimenstmuikaisuusvakuutus	EU – Biztonsági megfelelóségi nyilatkozat	EU – Ohutuse vastavusdeklaratsion	ES – Drošibas atbilseldeklaracija
EU – Déclaration de conformidad de sécurité	DE – Adjuvant cuvujóprowos yra mya porrácia	EU – Sikkerheds-overensstemelseserklaring	EU – Bezpečnostni prohlášeni o shode	UE – Deklaracja zgodnosti z wymegami bezpieczeństwa	EC – Декларация за съответствие за безопасност	EU – Vyhlásenie o zhode Bezpečnost’
EU – Conformitätsverklaring veiligilie	DE – Déclaración de conformidad relativa a segurança	EU – Konformitätsdeklaration för säkerling	UE – Declaratie de conformità de siguranti			AB – Güvenlik uygunlik beyani

17	DEDUJE NA WARS WYJACZA ODPOVEDZIALNOST, ZE PRODUKty, KOHKH LA DELEARACA DOTKY:
18	DEDUJE CA PRONE RASUNOCE CA PRODUSELA CA CERSE SE REFAE ACEASTA DELEARITA:
19	Z VSO ODGOVOROSIO ZAJAVJA, DA SO IDELKI, NA KATERE SA IBAVA NANALA:
20	KIMIATI OMA VASTUJUSI, E TOODI, MILE VONA KASOV ENDELAISLOON SIKIC:
21	JANUKAYA NA CERSE OTORAOPIOCT, NE TOOTYUMC, NA KOMO CE ONLACA TASA RAJUKAPAYAK:
22	SADO ISKIRITNE ATSKAMYBE PERSIKIA, KAD GAMNIL, KUMIWI SI DELEARJCA TALKOMA:
23	AR PINU AIBIDU APLECHE, KA ZREZKAJUYI, KARU ATILCAS SI DELEARACJA:
24	VYJLASVE NA VISTRUZ OPOVEDNOST, ZE VYROKY, NA KATORI SA OZHAJUE OTA VYJLASIE:
25	TEK SORALUUGI KANDISNE AT OLMK CZERA, BI BUNANN IGLI OLADU JINDINRI:

FWB04CAT*6V3***, FWB05CAT*6V3***, FWB06CAT*6V3***, FWB08CAT*6V3***, FWB10CAT*6V3***, FWB11CAT*6V3***, FWB15CAT*6V3***, FWB17CAT*6V3***, FWB04CAF*6V3***, FWB05CAF*6V3***, FWB06CAF*6V3***, FWB08CAF*6V3***, FWB10CAF*6V3***, FWB11CAF*6V3***, FWB15CAF*6V3***, FWB17CAF*6V3***, FWB04CAG*6V3***, FWB05CAG*6V3***, FWB06CAG*6V3***, FWB08CAG*6V3***, FWB10CAG*6V3***, FWB11CAG*6V3***, FWB15CAG*6V3***, FWB17CAG*6V3***,

01	are in conformity with the following directive(s) or regulation(s), provided that the products are used in accordance with our instructions:	09	stvačet trpebohanyin yuximnytys hine direcrtiv imu normativihx dojmentos pru uustamikvupluyamai i coortestam	17	speniaj kymog nastopujocyn dyrektyk lub rozporaczeri pod warunkom za producy uzwane sa zgodnia z naszyeni instrukcami.
02	folgendern Richtlinie od Vorschriften entsprecen, vorausgesetz, dass dese gemai unsern instruktionen verwendet werden:	10	overhoer bestemmeisne i folgende direktiv(er) er berlemmese(r), forudat al produkterne anvendes l oversstemmeise med vores instruktioner.	18	suni in conformitate cu umalcatiree directive sau regulamente, cu condja ca produce se fie utizate in conformitate cu instruktilne neaste.
03	soni conformes a lausa directiva(s) ou reglement(s) suivan(s), a condition que les produits seleni utilisés conformément à nos instructions:	11	uppyler fajnde direktiv eler forskirfjari, under forutsättning att produclera arvnds i enlighet med va rina instruktioner.	19	v sklad z nasiedno direktiv(erm) al predpisomi(-) pod pogojem, ca se izdelk uporabljav v sklad z našmi navodili.
04	in overansterming zjm met de vojgene richtil(en) of verordeningen, op voorvanie dal de producen worden gebruld overankomstig onze instrucies:	12	ir overansamnidae msd folgende direktiv(er) er forskirfjari, fontazat al producena brakas i homoid ti vala instrukjener.	20	vastavac jrgnike (jrgniste) direktiv(ce) ja madruse (mäktusle) nüreute, tingimasel, et nek kaustatase vastavusse meie juhteler.
05	esain en conformidade con a(s) siguiere(s) directiva(s) o reglement(s), semone que se utilizen de acuerdo con nuestras instruciones:	13	oval seuraalen direktiven tai auseus mukasia, edellytter eita luotita kylettän onjedenne mukasises.	21	ca a cunstamise cie cnutjata pydramisa(v) ami peuwaney (v), pri uycbve ve popykymra ce komarasaar e cunostretnae a hauhira instrucjums.
06	sono conformale alle direcite o a regulamento seguent, a sallo che i prodotti vengaro usati in conformità alle nostra istuzioni:	14	sou ve shode s naseduj(orni smirencem) nebo plesody za predokadu, ze lyto vytoky jsou použavry v souladu s našmi pokyny:	22	atlrika toluu rundylas direktlyvas arba reglamentus, su salyga, kad gamini bus eksploxtuyam laikantis mūsj instrukdiy.
07	ojuuopipovotru a te myi(g) osolouer(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) ooh(g) oah	15	u skladu sa sledetom direktivom(m) il orednomjal, uz uvej da se prozdvi korlise sudarno našmi upulama.	23	atistid sitidim direktivan va regulaim, je vien še zrosticjumi tlek lecič saskarja ar milsu instrukjärn.
08	estao em conformidade com a(s) segurte(s) direktiva(s) ou regulamento(s), desde que os produtos sejam utilizados ce acordo com as nossas instruções:	16	megfelenek az alabbi raryelv'ek'nek vagy egyeb szabalyozás'ek'nek, ha a teméveke: e'oras szerinti használjek.	24	su v zhoide s nasledu/cou(m) smericoujami alebo predpisom(m) za predokadu, ze sa vytoky použavju v zhode s našmi tokynmi.
				25	talamatranmiz dogrultusunda kutanilamas kopulysa agagdak direktiefedkreklifere vaya yönetmelégyönetmeliklere aygun olduguru beyan eer.
Machinery 2006/42/EC*Electromagnetic Compatibility 2014/30/EULow Voltage 2014/35/EU
			01 as amended,	08	conforme emendado,
			02 in der jewels giühgen Fassurg,	09	a pečitayušenj repaulnji,
			03 teljes que modifiées,	10	som bifijet,
			04 zosa gojyjd,	11	moci tligg,
			05 en su forma emindada,	12	mod fontaze antringer,
			06 e successive modifiche,	13	selaisna kin ne ovat muutetuna,
			07 ótmć sýkum potratornej,
01	following the provisions of:	10	underlagtesse af:	19	EN 60335-1: 2012 + A11: 2014 + A13: 2017 + A1: 2019 + A14: 2019 + A2: 2019,
02	gemäl den Bestimmungen in:	11	enligt bestämelsema lor:	10	kocs muudatuslega,
03	conformement aux dispositions de:	12	i herhod il bestemmeisne i:	09	a teknieme amendanima,
04	vojens de bapalingen van:	13	noudaltan sāsnaksia:	10	es modosításk rendelkezesel,
05	sigueroa las disposiciones de:	14	za dodzani ustaroveni:	11	z požnisjyni zmanami,
06	secondo le disposizioni di:	15	prema oredbama:	12	cu amendamentae respective,
07	oupuvu ve u ir prodstlyguc tan:	16	kilveli aliz:	13	kalor je bila spremenjeno,
08	segunda as disposiciones de:	17	zgoonie z postanowieniami:
09	a contratstami c nongowianami:	18	lurnánd prevecere:
01 Note*	as set out in <A> and Julged positively by <B> according to the Certificate <C>	06 Nota*	come delnato in <A> e glucato positivamente ca <B> a seni del Certificato <C>.	11 Information*	a(z) <A> alaján, a(z) <B> igazota a megfeleist, 21 3ablenekta*
02 Hinweis*	we in <A> aufgafirt und vor <B> positiv beurteit gemäl Certifikat <C>	07 Zrpeluwom*	ótmć oprjčno ota <A> kan colato bevko artó nov <B> oupuvwa je to Piototomnko <C>.	12 Mark*	a(z) <C> tanústvány szerint.
03 Remarque*	telles que defines dans <A> et évaluées positivlement par <B> conformément au Certificat <C>	08 Nota*	conforme estabelecido em <A> e avalado positivamente por <B> de acordo com o Certificado <C>.	13 Huom*	zgodnia z dokumentag <A>, pozytywara apinia <B> Šiadectivem <C>.
04 Bemerk*	zoals uvengezet al <A> en positif beoordeeld door <B> overenkonsligi hel Certificat <C>.	09 Primevanie*	kak uhaseno a <A> i podverkredno <B> collacno Caviertelentak <C>.	14 Poznámka*	aya cum se prevede in <A> si apredial poziliv de <B> conform Certificatul <C>.
05 Nota*	tal como se estabelece on <A> y valorado positivamente por <B> de acuerdo con el Certificado <C>.	10 Bemark*	Som antart <A> og positiv vurdaret af <B> i nonhold 15 Napomena*	15 Uwaga*	Kat je dolczeno v <A> in je preclo pozilivno oceno 24 Poznámka*
			ti Certifikat <C>.	16 Nota*	Koi je dolczeno v <A> in je preclo pozilivno oceno 24 Poznámka*
				17 Uwaga*	Koi je dolczeno v <A> in je preclo pozilivno oceno 24 Poznámka*
				18 Nota*	Mis on satesladud codumendis <A> je hirnaud vastavustes dokumentis <B>, vastavlt Sertifikadile <C>.
				19 Opomba*
				20 Markus*
				21 Noit*
				22 3a KIot*
				23 3a Poina*
				24 3a Sertifikatu <C>.
				25 Not*
				26 3a Sertifikatu <C>.
				27 3a Sertifikatu <C>.
				28 3a Sertifikatu <C>.
				29 3a Sertifikatu <C>.
				30 3a Sertifikatu <C>.
				31 3a Sertifikatu <C>.
				32 3a Sertifikatu <C>.
				33 3a Sertifikatu <C>.
				34 3a Sertifikatu <C>.
				35 3a Sertifikatu <C>.
				36 3a Sertifikatu <C>.
				37 3a Sertifikatu <C>.
				38 3a Sertifikatu <C>.
				39 3a Sertifikatu <C>.
				40 3a Sertifikatu <C>.
				41 3a Sertifikatu <C>.
				42 3a Sertifikatu <C>.
				43 3a Sertifikatu <C>.
				44 3a Sertifikatu <C>.
				45 3a Sertifikatu <C>.
				46 3a Sertifikatu <C>.
				47 3a Sertifikatu <C>.
				48 3a Sertifikatu <C>.
				49 3a Sertifikatu <C>.
				50 3a Sertifikatu <C>.
				51 3a Sertifikatu <C>.
				52 3a Sertifikatu <C>.
				53 3a Sertifikatu <C>.
				54 3a Sertifikatu <C>.
				55 3a Sertifikatu <C>.
				56 3a Sertifikatu <C>.
				57 3a Sertifikatu <C>.
				58 3a Sertifikatu <C>.
				59 3a Sertifikatu <C>.
				60 3a Sertifikatu <C>.
				61 3a Sertifikatu <C>.
				62 3a Sertifikatu <C>.
				63 3a Sertifikatu <C>.
				64 3a Sertifikatu <C>.
				65 3a Sertifikatu <C>.
				66 3a Sertifikatu <C>.
				67 3a Sertifikatu <C>.
				68 3a Sertifikatu <C>.
				69 3a Sertifikatu <C>.
				70 3a Sertifikatu <C>.
				71 3a Sertifikatu <C>.
				72 3a Sertifikatu <C>.
				73 3a Sertifikatu <C>.
				74 3a Sertifikatu <C>.
				75 3a Sertifikatu <C>.
				76 3a Sertifikatu <C>.
				77 3a Sertifikatu <C>.
				78 3a Sertifikatu <C>.
				79 3a Sertifikatu <C>.
				80 3a Sertifikatu <C>.
				81 3a Sertifikatu <C>.
				82 3a Sertifikatu <C>.
				83 3a Sertifikatu <C>.
				84 3a Sertifikatu <C>.
				85 3a Sertifikatu <C>.
				86 3a Sertifikatu <C>.
				87 3a Sertifikatu <C>.
				88 3a Sertifikatu <C>.
				89 3a Sertifikatu <C>.
				90 3a Sertifikatu <C>.
				91 3a Sertifikatu <C>.
				92 3a Sertifikatu <C>.
				93 3a Sertifikatu <C>.
				94 3a Sertifikatu <C>.
				95 3a Sertifikatu <C>.
				96 3a Sertifikatu <C>.
				97 3a Sertifikatu <C>.
				98 3a Sertifikatu <C>.
				99 3a Sertifikatu <C>.
				100 3a Sertifikatu <C>.

DAIKIN FWB06CATN6V3 - Daikin Europe N.V. - 1

DAIKIN FWB06CATN6V3 - Daikin Europe N.V. - 2

EU-Ecodesign declaration of conformityÜ-Ökodesign-KonformitätserklärungÜ-Déclaration de conformité en matière d'écoconceptionÜ-Conformitésverklaring ecologisch ontworpÜ-Déclaration de conformité sous classe classe scolégico	UE-Dichiarazione di conformità alla progettazione eccooperattibleÜE-Δλιμον συμμόφωστης γα τον οπολοκογικό αγδιαργόÜE-Declarazione de conformidade relativa à concezione ecológicaÜC-Satulene o coortertama trebovanima (davantia) no ekonomiaticu (Ecodesign)EU-Ovenostemmelasverklarting miljevanitig design	EU-Konformitésedoklaration für EcodesignEU-Samvarserklaring for ekodesignEU-Ecossumittelum vastimustemmukaisuavrakutusEU-Problakien o shode ekologiké konstruktzeEU-ligava o subländenat za na okoladi odizaje	EU-Ökodizijn megheliséligi gyllalkozatEU- Deklaracja zgodnosci z wymogami dotyzacymi ekoprojektuEU-Declarate de conformitate EcodesignEU-ligava o sialadnosti z zahivami na okolajako primo narmo zasnoveEU-Ökodisali vastuvasdakaratsion	EC-Декларация за съответствие е окорозаюкЕS-Ekodizaino attitikles deklaracijaES-Ekodizaina athletiflas deklaricijaEU-Vykänsele o zloda EcodesignAS-Eko-tasarm ovganiat beyare
Daikin Europe N.V.01###oculara under la sore responsabilità that the product to which this declaration resides:02###evict ou ante alleingie veränderung, dass die Produkte, auf de sich dieser Erkitung direkt:03###decile sur sa reale harmonistità que je produzi viées par la strasse de declaration:04###verklark hoey op oggen exclusivare normatilomnioid nei cui dei produzioni wereano da verklung betekking hutt:05###ocleara bajo su alleina responsabiliciarecous los productos a los que hence reference la declaraclón:06###covara scillo la propria responsabilità ore product cu questa dichiarazione si riference:07###chovaki pu cinnidocmenti(ng) ####dyvny che na myslova ma osolo strapacion i marpoone defibury:08###ocleara soo sua esculanca responsabilitadde que or produzi a que esta declarazione se refers:		09###savaniat, insochnottce pod ##ose stvele tseknastka, 4% rogerlina, i irtopteni otobactitih nach lektrae assidiato:10###erken som emansivang, az udlaylen, sorti er installat af denise erkleringderkenteri legendisk av hundamming at il de produkter som beruts av interna dekloration gäller...11###erkeneri et fullidend innamer for a produzione som tenora av amine deklarision, medderanal:12###limisticai ykinomann omala vastuilan, alla liamin limiculson tarkillamati tudktest14###probaluje na sesy vytroch coporednost, ze proudu, iderych se prorhian: ykl:15zyjuluja pod sejujivo vasilion omognostrada da su provozi da koje se ovai igava onoci:16###les violinosige tudskien ujelenili, hogy a formakel, melyeue ni nyitalkozai varlokiotic	17###odiranje na vehana melyezna odopwoldzarnović, ze uzupeztona, kolyčih ta deklaranja dolyczy:18###secaria a systepa dispanderne ca produzne la care se referà asevelà deciarajce:19###z os odopwornazla jipävä, da sa repova, na kalere se igiva natalic:20###finitate ames twitelvi valdislade, at klonedova and kranistomila ovalatactotec:21###pruizopona-se da deri o toskočnict, ve upoycynicate, sa kwarta do orace tics jupramapayce:22###dokratne seve abraikonybe lissu deklanoya, kad produkta, su kurnesi si deklaranta nasjuta:23###ar ulina aditiba splintana, ka turpink minille zastikburi, au kaimen affeces di deklaricija:24###yehuwa na cristita coporednost, ze vystbyk, ra folene sa udivuje bite orlakecer:25###sanzen kevi cosumluigi alinda bu oldirim fijal abugu (Cover beyes eder:
FWB04CAT6V3*, FWB05CAT6V3**, FWB06CAT6V3**, FWB07CAT6V3**, FWB08CAF6V3**, FWB09CAF6V3**, FWB10CAF6V3**, FWB11CAF6V3**, FWB15CAT6V3**, FWB17CAT6V3**,FWB04CAF6V3**, FWB05CAG6V3**, FWB06CAG6V3**, FWB08CAG6V3**, FWB10CAG6V3**, FWB11CAG6V3**, FWB15CAF6V3**, FWB17CAF6V3**,FWB04CAG6V3**, FWB05CAG6V3**, FWB06CAG6V3**, FWB08CAG6V3**, FWB10CAG6V3**, FWB11CAG6V3**, FWB15CAG6V3**, FWB17CAG6V3*, , 0, 1, 2, 3, ..., 9, 8, 5, 6, 7, 8, 9, 10, 11
01are in conformity with the following directive(s) or regulations(s) as amended:02folpencchi Richtlinia/oder Vorschriftler in der jeweils gülligen Fassung entphonemen:satisforti a la cu aux directive(s) suivaten(s) et a la cu aux regierentations(s), telles quaterniques:a fin oversteinierung zijn med de volgende richt(en) of erwerening(en), zoals gevolgi,jestaller en conformidade com labi, squikenlosi, directivizi, o regumente(s), en su forme argumentado:sono conformen dar se segmente directive s neglemente e superactive modulator:01#eva maguiya u maing acelodinje(s) ovid(s) na corsooput(s), oies, spromocrit(s)(on):02estde om conformidade com a(s) segmente(s) directiva) ou regulament(s), conforme erenancio:		09steveneet prebovanem umyloxy-yušu nieke darvintne irie normativenb documents z deksitzующейreduktivs:10overholder basenklademe i folgende direktive/eller bestandem(s), som itkyet:11upplityer kluyance direktiv eller regiatek, mad litlog:12ei oversteinende met folgende direkt(ter) eller fortafliiter, med fontatie erindinger13recauditor seuranda direktive/la matenditaik sekladura kiut na erat mudetura:14joue ve shode a statidujcimi normenu a phodiaty v planklen zveles:15u situata se slidejceden(m) derivikom(m) il otripticem(s), kako e uymiaryano andamaninna:16megleberek az alabiti intyvel(y)eyek ve egydo szadljedza(a)ink, a kegelsztesnek megelekter	17spelnaja wymogi nastupajycych dyrektyk lu o rozorzajdet, z półzieszygini zimianami:18surl in conformizie cu umlokzone directive sau regulamente, cu amandamente respective:19u sialada z celadicje direktio(c)yi ali ondipsicmi-i, koi (ja bice komminijeno v):20vastasu jagriniste direkti/cne rödefede vii neude mudetud nučetele:21coropert ni creujo un poewisjati u portemensje, c'orma urea camennar:22allinia totilu unco de direkti/direktiary sane opgemintus y i redicajas:23acholi sildim direkti/sui neguliam ar prodgium:24u v choice s nadishonho(n) simentou(n) a predpisminiy oplinen:25dagjri(d)jelye apigadiak direkti/direktiere veyo ykinesatigejyordmetilere ugyan oruğumu beyan eder:
Ecodesign: Directive 2009/125/ECCommission regulations:Airconditioning (EU) 2016/2281
01and comply with the following standards(s) or other normative documents(s):02and dem v logener Standards(oder anderer hohen empraktionsparcheter:sont er conformité avec to les nomales standard ou d'abuts(s) document(s) normatis(s):03en uviblan sem da volgende normen(s) of anderer(s) normalis(s) document(s)(on):04y campen com b(s) siglement(s) normatis(s) u otr(s) document(s) normatis(s):05e rigida te norme c i documenti normalis forfalli di seguito:06zo (so u cuypave o rino aculeadits(s) mote(m)) (r to roa radiclofo(s) revoverant(s) typopiet(s):07e curprenta(s) seglades normatis(s) cu culto eucumare normative aplicatives:EN 1397.		08steverat prebovanem yvoudy/yušu nieke darvintne irie normativenb documents:10eg restehlder folgende standards(ter) eller craste normative documenter:11upplityer kluyance standards(ter) eller andra normande document:12ej sanameran med folgende standards(ter) eller andraanarel normyvende dokumenter:13jnoudivalat soucamun standardsion i suholden normativena assikojen vaalismatisa:14joue ve shode a statidujcimi normanti noco hymi normativeni im dorymu:15u situata se siveoicn standards(m) i drug num normativen dokumentum(s);16es mageliwana az sialdo azubring(y)ink ve egydo sevajido dokumentum(juplek.	17spontisja wymogi nasidajycych nome oraz inrych dokumentów narmalizischjyedic:18si se conformatez amizandavari standante sau autor documente normatico:19in urocazau rasenijm standancem al cragem zavazajcijm documentor:20looda vasap algemise (jagminiske) standanda (standardie) ydi muie nermokumenta (normodumentide):21o ocna formate na cochranee straccy(s) yemi kurperma##y kypuretor(s):22afaltina lobiusias standatus sbia kitus normatis documentus:23u ordot kildem standardsn via oblen normatisjden documenters:24u si v chite s neledicovac(s) hyrmou(s) abi lohy (y) normaliny(i) dokumenting(s):25ve apagidasi standacodantamdarava vaya djer normali belgden@belgkera oxtoguru beyan eder:
Hiromitsu IwasakiDirectorOstend, 3rd of January 2022DAIKIN EUROPE N.V.Dazndvoordestraat 300, B-8400 Oostende, Belgium

EU – RoHS declaration of conformityEU – RoHS-KonformitätverkörungUE – Déclaration de conformità RoHSEU – Conformitätskreklaring RoHS	UE – Déclaration de conformidad RoHSUE – Déclarazione di conformità RoHSEE – Διάμηση συμφόρωση την την περογομά της χρυγηρο συμφύλων επεδιανευν ευσίων (RoHS)	UE – Déclaration de conformidade relativa à restituiçade utilização de determinadas substancias perigouesEC – Заявление о соответствии требованиям Депротивы RoHS	EU – RoHS-overensystemmeleserklaringEU – Konformitätskrakation for RoHSEU – Samvaranklaring for RoHSEU – RoHS-vastimustenmukalsausvakuotas	EU – Probélizien o shodé RoHSEU – Izgiva o sukslimost za ograničenje opasnih tvani (RoHS)EU – RoHS megfelešnági nyliatkozatUE – Deliracija zgodností z dysktywny RoHS	UE – Declarisie de conformitate RoHSEU – Izgiva o skladnost z direktive RoHSEU – RoHS vastuvasdeklarationsEC – Депларация за съответствие с директната за ограничимане на опасните вещества	ES – P/WNA abilities des clavracijaES – RoHS abilitiesodes deklaracijaEU – Vyhlásenie o zhode RoHSAB – RoHS sygnulik beyam
Daikin Europe N.V.#1 ♂️ decers under la sole responsibility that the products to whom this declaration relates.2 ♂️ erklart und some alleignede Verantwortung, caixa de Procedura, and die sich diese Endüring bezieht.3 ♂️ decers sous secede responsabilidade que les products vieds na presente déclaración.4 ♂️ merkiant (terá) op ingen esculente varialwedeil/tilidad de los produzen macrog desbezvolving betrekking heeft.5 ♂️ decers sur una extra responsabilidade que las productions a los que heca referenciada a declaracion.6 ♂️ dichiara su proñita responsabilitabie cho i prodotti cui questa dichiarazione si riferlos.7 ♂️ bot-zu os atrockitechii (ng, eudilyt om ta predivo stra otroic ovoplațica o napoclo 5fykum).8 ♂️ decers sads sua exclusive responsabilidade que os productions a que esta declarația se refere		09 ♂️ засовет, ясочиляється под соки ставтственкість чу одзагити, якотоцькім стихотся настовище засовленік10 ♂️ orklator som encorovate, at uodnyt, som or cemfalal af domne orklating.11 ♂️ orklator ogorpsako na hucodinsanag all'de do produciti som berčih av denna deklaration glider.12 ♂️ orklator ef hildendig, anova fer for produzione som belenes av onere beclinacijen, innoesener af.13 ♂️ orklator vorsomov na volsa vastuivas, alla bana fer hirculanset belachstari v tormel.14 ♂️ promoklaje na mou vyseni ocpodností. Za produčke, theyrých se promoleni lyvi.15 ♂️ izemlaje pod syljedvo vlastitom odgovornolča da su prozed na koye sa osa oviza adresi.16 ♂️ teljes febloskige zutablanki kjedentil hogy a termelek, meyotrie e wilykozat voradizati.			17 ♂️ deklanje na wistera výklyzona odpoledbannot, ze uzdazenia, quiych na deklanča odyczy.18 ♂️ duzalaj je prochte dispondere ca produsse la care se reland accasiči coclarije.19 ♂️ zvo odgovornojdo svajle, ata se napteve, na kizere se izgva namala.20 ♂️ dinitopia noči stadiival vastudat, et Kledovce odkarlatocini alla kullasod tooted.21 ♂️ zuprapnja na cava omnočnović, spapogmente, as curta od omnočnă transprejuje.22 ♂️ savitina sero alevisorovie liasis doklarovja, kad producta, su kuraisi si dlutilacija sujiabit.23 ♂️ ar plini utiboliu solcdina, ka turpnički nimbile zastidljumi, az varcen altificas fi dlutilacijaj.24 ♂️ výhlauje na vlasrtu zooprednost, ze výhdyky, na Khoré sa citalujke loto výhlásenie.25 ♂️ temamen terci soraimlučja altinda bu sládmini ilgili olduju zramitei beyan eder.
FWB04CAT6V3*, FWB05CAT6V3**, FWB06CAT6V3**, FWB08CAT6V3**, FWB10CAT6V3**, FWB11CAT6V3**, FWB15CAT6V3**, FWB17CAT6V3**,FWB04CAF6V3**, FWB05CAF6V3**, FWB06CAF6V3**, FWB08CAF6V3**, FWB10CAF6V3**, FWB11CAF6V3**, FWB15CAF6V3**, FWB17CAF6V3**,FWB04CAG6V3**, FWB05CAG6V3**, FWB06CAG6V3**, FWB08CAG6V3**, FWB10CAG6V3**, FWB11CAG6V3**, FWB15CAG6V3**, FWB17CAG6V3***,= 0,1,2,...,3,4,...,2
01 are in conformity with the following directies(s) or regulation(s), as amenove.02 folgenden/ Roithlich oder Vorschriften in der jeweša gütigen Forsun entspracher.collardit a la sua direcittici s'avaikretesi y a la cu os relegamentario (y), titulos o'amendales.03 in conformidad líge mit de volgente socijfin (y) of verdendenje, zoid gewijsce.04 estan en conformidad com la(s) seguinelli (y) directives(a) o regiamenti(s), as su forma omnindada.sone conformi con le seguri di reflexive o regiamenti i, successive modifiche.05 čivo opluvlo za myn, pradovod(n) obylki (y) com ovestrovati(o), detu, paramorof(n)(y);exellic om conformidade com a(s) seguinelli (y) directives(a) o regulamento(s), sovorima omnindado:		09 отменют требованием розянула ижке дератия или нормительных охранятков в действующий органами.10 ovadender bestammeldes la folgende dieselikei eller bestammelisi, som tijefet.11 apäkier folgende direkti eller regieleni, med Bilgg.12 an iovemesterneste med folgende direkti erler forssirlijk, mec foreste endinger.13 noudafatav seszavio dieselireti za marádykla sedislama lain ne ovat musultinai.14 java ve shodá s naldaljutici amrémocii a plesody v platheim zénž.15 a shadu sa sjiyeckcjeni dieselinkomeni (ii propion/mu), kaie je zemljenimo amandaminar.16 maglaviatik az alkoio inaryselyek neyk vagy egyola szurbakcsicijoujkan, a biopsicilislenik maglaviatik.			17 speziela myrogi nastogujajych dyectwy lub rozporządzet, z poželnijzym zmaramiri.18 sunt in conformitate cu artitidele directive sul regulatoriae, cu armentamentele reselective.19 u skladu z nasvekti dracikonyi onyi ali predipcrom (ii), ko je bio spemerijeno v.20 vastanid julgimide diskivinde evelutene vii renda musultad situatine.21 citraopari na stratafma, zporčenitva i portano(n), y c toscine kvančeniec.22 atlinika totaus eurocytas diskivinde afo regiamenti u ji rediklos.23 elbiti lodiim diskivinde vni regulama ar prozjumen.24 ka a zmlsta s valadovou vani smertovu(ve) a prostipsom (ni) doisonne.25 engijlidiigi sakrye aguadiav diskivdektriflere neya yvedratrigo/ponsettitkera aguer oldajuna bosan odor:
RoHS (2) 2011/65/EU (°)
01 following the productions of:02 geniatici dan dispositions in:03 conformement aux dispositions de:04 volgono de beplinger van:05 siguierec nas dispositions de:06 secondo e disposizioni di:07 compuero pa ta, projepisierung, voor:08 segundo en disposizioni de:09 a contrastmenti c niososus inservan:		10 unter aspartikel af.11 retigt benatisterne för:12 I tenvoi oltersmeltevere i:13 nourcaliter skainiskiä14 za dodzieni astranović.15 praena ovidianna:16 Kebner aizj17 egnetie e procavorevaniemi18 tumand prevedente.		EN IEC 63000,
01 Note* as not out in <40.02 Hinweis* over in <40> aufgeti?03 Remarque* ze que celhi caris <40.04 Bemeink* zoals vermeid in <40.05 Note* come sa asitablen en <40.		06 Note* odlinoato nel <40.07 Ejugisloomy* olwa, kolopförs #### ore <40.08 Note* tal como estabeldedo em <40.09 Prämencenare* kao, yazada no <40.10 Denmark* som anteri <40.		11 Information* asigl <40.12 Merk* som dot frekmenter i <40.13 Haum* joka ce esletby asiakvirasa <40.14 Potrimark* jak biru voredeno i <40.15 Napomena* kao je zlotzen o <40.	16 Magiagnozas* ayj <40, aayjien,azgortze z ookumentarze <40,asecam este stabilii in <40.18 Opomena* not je dolcieno e <40.20 Markas* ayj on nolidatum dokumentis <40.	21 Šzámencesa* KRISTE E KIKOMOBAK O <40.22 Pastaba* kalu natalityla <40.23 Platzime* kalu nochta <40.24 Potrimark* ako bolo odecetne i <40.25 Not* <40, do sestridigi<40.
# Restriction of Certain Hazardous Substances in electrical and electronic equipment

1 BEFORE STARTING THE INSTALLATION PROCEDURE.... p. 6
2 INTENDED USE ...... p. 6 INSTALLATION SITE ...... p. 6
3 UNIT DESCRIPTION...... p. 6
3.1 FWB-C: PERFORMANCE AND COMPACTNESS IN RECESSED CEILING INSTALLATIONS ..... p. 6
3.2 MAIN COMPONENTS.... p.7 ACCESSORIES.... p.7 FACTORY MOUNTED KIT VALVES.... p.8
4 DIMENSIONS p.9
5 INSTALLATION.... p. 9 INSTALLATION REQUIREMENTS.... p. 9
5.1 ASSEMBLY OF UNITS p. 10
6 CHECKS BEFORE STARTUP.... p. 10
7 USE p. 10
8 MAINTENANCE ...... p. 11 CLEANING THE AIR FILTER.... p. 11 CLEANING THE HEAT EXCHANGER .... p. 11
9 TROUBLESHOOTING p.11
10 RATED TECHNICAL DATA ...... p. 12
11 WEIGHTS.... p. 13
12 FIGURES....p. 86

Thermal carrier fluid: water

Water temperature: 5 °C ÷ 90 °C

Air temperature: -20 °C ÷ 40 °C

Control voltage: 230 V

Maximum operating pressure: 16 bar

Limit of room air relative humidity: RH<85% not

condensing

Carefully read this manual.

Installation and maintenance should be carried out by technical personnel qualified for this type of machine, in compliance with current safety regulations.

When receiving the unit please check its state verifying if any

damage occurred during the transport.

For installation and use of accessories, please refer to the relative technical sheets.

Identify the model of the FWB-C fan coil following the indications on the packing container.

DAIKIN FWB06CATN6V3 - SAFETY SYMBOLS - 1

Carefully read this manual.

DAIKIN FWB06CATN6V3 - SAFETY SYMBOLS - 2

Warning

DAIKIN FWB06CATN6V3 - SAFETY SYMBOLS - 3

Use personal protective equipment

done by an authorized installer and must comply with applicable legislation. Units must be treated at a specialized treatment facility for reuse, recycling and recovery. By ensuring this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health. For more information, contact your installer or local authority.

WARNING: the unit hasn't dangerous components according to the classification of Regulation 1357/2014.

DAIKIN FWB06CATN6V3 - USE SUITABLE PPE (GLOVES FOR REFRIGERANT, PROTECTIVE GOGGLES) - 1

WARNING: Electrical and electronic products may not be mixed with unsorted household waste. Do NOT try to dismantle the system yourself: the dismantling of the system, treatment of the refrigerant, of oil and of other parts must be

Daikin will not accept any liability for damage or injury caused as a result of installation by non-qualified personnel; improper use or use in conditions not allowed by the manufacturer; failure to perform the maintenance prescribed in this manual; use of spare

parts other than original factory parts.

Equipment designed for ambient air conditioning and intended for use in civil comfort applications.

When choosing an installation site, you should observe the following rules:

— The air conditioning unit should not be placed immediately under a socket
— Do not install the unit in places where inflammable gases or powders are present
— Do not expose the unit to sprays of water; do not install the

unit in laundry room

— Install the fan coil on walls or ceilings able to withstand its weight. Keep a clear space all around the unit to assure the proper functioning and accessibility for maintenance
— Store the unit in its packing container until you are ready to install it to prevent dust from infiltrating inside it.

The ducted unit FWB-C was designed for conditioning environments where it is required the installation of units in medium head performance and reduced overall dimensions.

The range covers an air flow rate from 300 to 1200 m ^3 /h distributed over 8 models. The heat exchanger allows the use of FWB-C in the most different conditions.

The bearing structure in fact accommodates a heat exchanger of 3 or 4 rows to which it is possible to combine an additional heat exchanger of 1 or 2 rows for exceptional performance even at low temperature differentials.

Heat exchanger can be optimized for centralized applications such as district cooling. FWB-C was designed to ceiling horizontal installation.

The main condensate drip tray is situated inside the structure of the unit and is at a positive pressure relative to the drain outlet to facilitate condensate drainage.

A wide range of wall-mounted controllers is available, including microprocessor controllers with display.

Electric heating elements complete with safety devices are available to integrate the hydronic operation.

Realized in galvanized steel sheet, thermally and acoustically insulated by self-extinguishing panels class 1. Height reduced to facilitate installation in a horizontal position, in false ceilings.

The bearing structure contains the tank for collecting and discharging condensate.

High efficiency standard with 3 rows, but also available with 4 rows upon request, heat exchangers are made of copper tube and alluminium fins secured to the tubes by mechanical expansion. It is fitted with brass manifold and an air valve. The heat exchanger, usually with left hand water connections can be turned by 180°. Available upon request high efficiency heat exchanger optimized for district cooling application.

Double suction centrifugal fans made with ABS or aluminium, with statically and dynamically balanced forward-curving blades,

directly coupled to the electric motor.

Single-phase asynchronous multi-speed electric motor with permanently connected capacitor and thermal protector, mounted on vibration-damping supports.

Washable air filter, made of acrylic fibre, filtration class G3, applied on the air intake; may be pulled out from below.

Air intake from the front or bottom of the unit, according to system requirements.

The bearing structure allows to combine a large range of accessories in suction and air delivery in order to obtain the optimized unit configuration.

Electronic microprocessor control panels with display

		FWTOUCH	User interface with display in Dibond material available in:FWTOUCHB-BlackFWTOUCHW-WhiteFWTOUCHG-Grey
		FWECSAP	Circuit board for FWECS control
		FWECSAC	User interface with display for FWECS controller
		FWEC1A	FWEC1A Microprocessor control with display
		FWEC2A	FWEC2A Microprocessor control with display
		FWEC3A	FWEC3A Microprocessor control with display
		FWFCKA	FWEC*A control spacer for wall mounting
		FWEC2T	Electronic controller FWEC2T for 2 pipes system, FWEC4T for 4 pipes system
		FWEC4T
		FWHSKA	Humidity sensor for FWEC2A/3A, FWECS
		FWTSKA	Water sensor for FWEC1A/2A/3A and FWECS controllers

Electromechanical control

YFSTA6 Fan stop thermostat

Power interface and regulating louver controllers

EPIMSB6

Power interface for connecting in parallel up to 4 fun coil units to the one controller

Electrical heating elements

Heating element with installation kit, relay box and safety devices

Accessories

PLT**NPLI**C

Plenum can be installed either on the air intake or air delivery of the unit.PLT**C is insulated plenumPLT**N isn't insulated plenum

		CDRP1A Condensate drainage pump kit
		EDPD Auxiliary water drip tray
Additional coil
		EAHD**A Additional heat exchanger
Filter
		FG4T*AA Air filter G4
Valves
		2-way valves, ON/OFF or MODULATING actuator, 230 V or 24 V power supply, hydraulic kit, for additional heat exchanger
		2-way valve, ON/OFF or MODULATING actuator, 230 V or 24 V power supply, hydraulic kit, for main heat exchanger
		3-way valves, ON/OFF or MODULATING actuator, 230 V or 24 V power supply, hydraulic kit, for additional heat exchanger
		3-way valves, ON/OFF or MODULATING actuator, 230 V or 24 V power supply, hydraulic kit, for main heat exchanger
		2-way valves pressure independent, ON/OFF actuator, 230 V power supply, hydraulic kit, for main and additional heat exchanger

The kit valves are available in different configurations:

ON/OFF or MODULATING motor driven 2-way valve (table 1 page 89)
ON/OFF or MODULATING motor driven 3-way valve (table 2 page 89)
Pressure independent ON/OFF motor driven 2-way valve (refer to Pressure independent manual FC66006204)

connected to the control panel for FWB-C fan coils, control the room temperature by stopping the water flow through the heat exchanger.

The kit includes:

- valve

• electrothermal actuator

- plumbing kits for installing the valve on the heat exchanger.

For Kv and hydraulic characteristics of 2, 3 way valves refer to tables 3-4-5 page 90.

For other information refer to specific technical manual.

Factory mounted 3 way kit valve
DAIKIN FWB06CATN6V3 - FACTORY MOUNTED KIT VALVES - 1


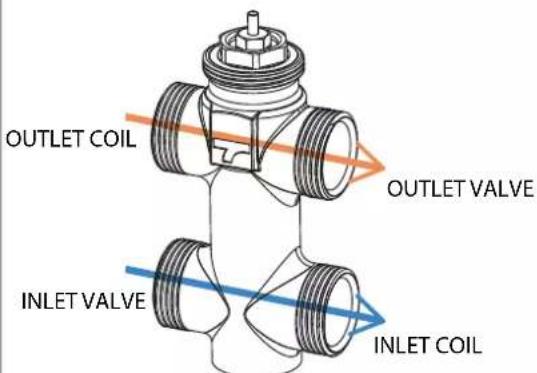

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Factory mounted 2 way kit valve
DAIKIN FWB06CATN6V3 - FACTORY MOUNTED KIT VALVES - 2

Factory mounted 3 way kit valve: 1) On mode; 2) By-Pass mode
DAIKIN FWB06CATN6V3 - FACTORY MOUNTED KIT VALVES - 3

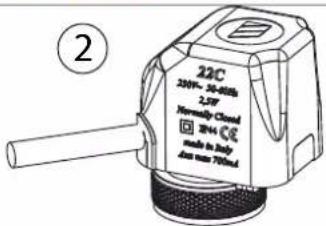

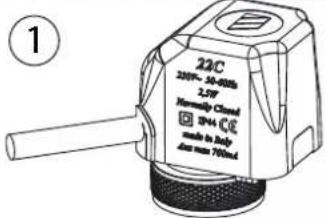

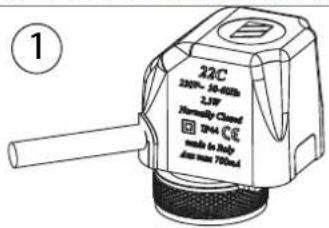

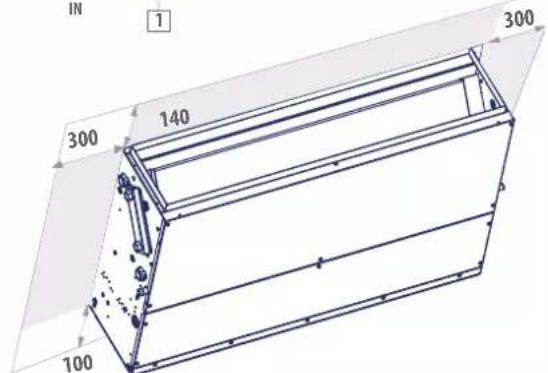

At p. 86-87 FWB-C dimensional data and position of plumbing connections are shown.

WARNING: unit installation and start-up must be entrusted to competent personnel and performed in a workmanlike manner, in accordance with current regulations.
⚠ WARNING: Install the ducted unit, the line switch (IL) and/or all remote controls in a position out of the reach of persons who are in the bathroom or in the shower.
IMPORTANT: It is advisable to install any accessories on the standard unit prior to positioning the latter, making reference to the technical sheets. The air intake and outlet have a rectangular cross-section, with pre-cut holes for fastening the available accessories upon request.

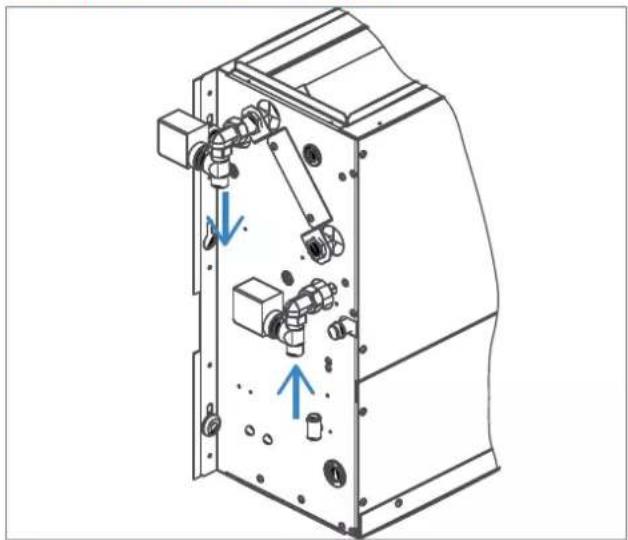

The heat exchanger connections can be switched over to the opposite side by carrying out the following steps (Heat exchanger changing water side connections- p. 88):

— remove the upper closing panel.
— remove the collecting condensate tray.
— remove the heat exchanger module by taking out the fastening screws (2 per side).
— turn the heat exchanger by 180^ (on the vertical axis) and screw it back into the unit again.
— reassemble the tray and the upper closing panel.

— Vent air from the exchanger while the pumps are off. For this purpose use the air vent valves situated next to the exchanger connections.
— All ducts, especially the outlet ducts, must be insulated with anti-condensation material.
— An inspection panel must be provided in proximity to the unit to enable maintenance and cleaning operations.
— The unit must be installed on the basis of design and technical considerations, carrying out an aeraulic assessment and considering the BACK PRESSURE offered by the PIPING applied to the outlet to avoid the problem of failure to change speed: this responsibility cannot fall on the product but on the installation;
— Install the unit with the appropriate inspection hatches for routine and special maintenance of the fan coils: for mechanical, electrical and hydraulic replacement;
— Install the control panel on the wall; choose an accessible position from where functions may be easily set and which is suitable for taking temperature readings, where applicable. Avoid positions directly exposed to sunlight or direct currents of hot or cold air and make sure there are no obstacles which may preclude a correct temperature reading.

In normal operation, particularly with the fan at minimum speed and ambient air with high relative humidity, condensation may form on the air outlet and on some external parts of the unit.

To avoid such issues while always remaining within the operating limits envisaged for the unit, it is necessary to limit the inlet temperature of the water inside the heat exchanger. In particular, the difference between the air dew point ( T_A, D_P ) and the inlet water temperature ( T_W ) must NOT exceed 14 °C, according to the following relationship: TW>TA, DP-14 °C

Example: in the case of ambient air at 25^ C with 75% relative humidity, the dew point temperature is about 20^ C and therefore the inlet temperature of the water in the battery must be greater than:

— 20-14 = 6 °C in order to avoid condensation on a fancoil equipped with a valve.
— 20-12 = 8 °C If the valve kit accessory can not be installed.

Fan coil with valve
		Air temperature dry bulb (°C)
		21 23 25 27 29 31 33
Relative humidity %	40 55 55 55
	50 55 55 68
	60 55 55 79 17
	70 55 68 911 13
	80 56 810 1214 16
	90 68 1012 1416 18

Fan coll without valve
		Air temperature dry bulb (°C)
		21 23 25 27 29 31 33
Relative humidity %	40 6666666
	50 66666810
	60 666791113
	70 66810111315
	80 681012121618
	90 8101214141820

In the event the indoor unit is stopped for a prolonged period, with the fan stopped and circulation of cold water in the heat exchanger, condensation may also form on the unit's exterior. In this case it is advisable to install the 3-way (or 2-way) valve accessory in order to stop the flow of water in the coil when the fan is stopped.

During wintertime periods of shut down, drain water from the system, to prevent ice from forming. If anti-freeze solutions are used, check for their freezing point using the table below.

% Glycol by weight	Freezing temperature (°C)	Capacity adjustment	Pressure drop adjustment
0 0 1,00 1,00
10	-4	0,97 1,05
20	-10	0,92 1,10
30	-16	0,87 1,15
40	-24	0,82 1,20

Make the electrical connections with the power supply disconnected, in accordance with current safety regulations.

All the wiring must be done by qualified personnel.

Electrical intakes are shown on the rating labels on the units.

During installation, strictly abide by the indications on the wiring diagram for the unit-control panel combination.

Electrical wirings:

Base Electrical Connections: pag. 91;
FWECSAP on board + ON/OFF VALV: pag. 93;
FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): pag. 96;
• FWECSAP on board + MOD. VALV: pag. 99;
FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
• FWECSAP remote + ON/OFF VALV: pag. 105;
FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;
FWECSAP remote + MOD. VALV: pag. 111;
FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
• FWEC1A: pag. 117;
FWEC1A + Supplementary Heating Element (EH): pag. 120;
• FWEC2A: pag. 123;
FWEC2A + Supplementary Heating Element (EH): pag. 126;
• FWEC3A: pag. 129;
FWEC3A + Supplementary Heating Element (EH): pag. 132;
• FWEC2T: pag. 135;
FWEC4T: pag. 138;

WARNING: COMMON motor wire = WHITE, wrong connection may cause serious damages to the motor.

Insert the vibration dampers provided in the 4 slots indicated for ceiling installation

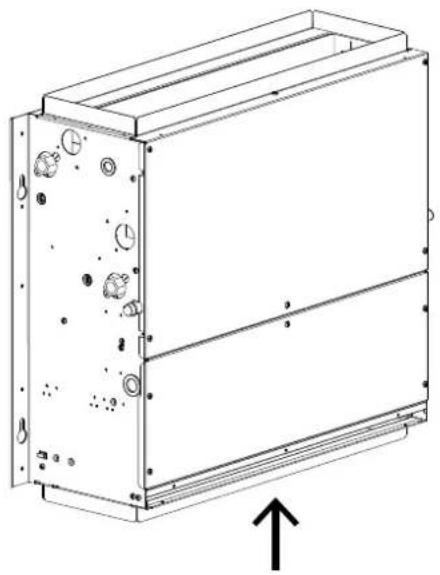

Fasten the base unit to the ceiling or wall using the 4 slots provided.

— It is recommended to use 8MA threaded bars plus screw anchors of adequate capacity to bear the weight of the unit, and to prepare the positioning of the unit using 3 8MA bolts (2 in the lower part, 1 in the upper part as shown in figure p. 89) and two washers for each bar. Before tightening the lock nut, adjust the main nut so as to assure that the unit is properly inclined so as to facilitate condensate drainage

(figure p. 89). To obtain the proper inclination, tilt the unit so that the intake side is slightly lower (approximately 10 mm) than the outlet side. Make the plumbing connections to the heat exchanger and, where the cooling function is to be used, to the condensate drainage outlet. Use one of the two tray drain outlets, which can be seen on the outside of the unit side panels

— To connect the unit to the drainage line, use a flexible rubber hose and secure it to the pre-selected drain pipe ( 3/8") using a metal clamp (use the drain outlet situated on the plumbing connection side).

— Check that the unit is installed in such a way as to guarantee the required inclination.
— Check that the drainage outlet is not clogged (by masonry debris etc.).
— Check the tightness of the plumbing connections.

— Make sure the electric wires are tightly connected (carry out this check with the power supply OFF).
— Make sure that air has been eliminated from the heat exchanger.
— Power the fan coil and check its performance

To use the fan coil refer to the instructions on the control panel available as accessory.

WARNING: For safety reason, do not introduce your fingers or other pointed objects in the air outlet grilles.
DANGER: The unit may be used by children of at least 8 years of age and by persons with reduced physical, sensory, or mental capabilities, or who lack experience or the necessary knowledge, provided that they are supervised or after they have received instructions relating to the safe use of the unit and understand the inherent dangers. Children must not play with the unit. Cleaning and maintenance to

be carried out by the user must not be performed by unsupervised children.

For safety reasons, before carrying out any maintenance or cleaning jobs, turn off the unit by moving the fan speed selector to "Off" and putting off the main switch (0 position).

⚠️ DANGER! Due caution must be taken while carrying out maintenance: some metal parts may cause injuries; wear protective gloves.

The maintenance requirements of FWB-C ducted units are limited to periodic cleaning of the air filter and heat exchanger and

checks on the efficiency of condensate drainage.

Maintenance may be performed only by specialised personnel.

Whenever starting up the unit after it has not been used for a long time, check that there is no air in the heat exchanger.

The motor requires no maintenance since it has self-lubricating bearings.

Disconnect the unit from the power supply by setting the main switch on 0 (OFF).

To clean the air filter proceed as follows:

Access the unit via the inspection panel and take out the air filter as shown in figure (p. 141).
If the filter is on the inside of the intake grille, remove the

latter and then proceed to carry out the steps described below.

Clean the filter with warm water or, in the event of dry dust build-up, using compressed air.
Allow the filter to dry and then fit it back in place.

Air filter dimensions, see figure: p. 88.

It is advisable to check the condition of the exchanger before the start of every summer season to make sure that the fins are not obstructed by dirt.

To access the heat exchanger, remove the outlet panel (whether of the type with collars or a rectangular flange) and the drip tray. On reaching the exchanger, clean it with compressed air or

low-pressure steam taking care not to damage the fins.

Before the start of every summer season, check the efficiency of condensate drainage.

Adequate periodic maintenance will ensure save both energy and cost savings.

If the unit is not working properly, before calling a service engineer carry out the checks indicated in the table below.

If the problem cannot be solved, contact your dealer or the nearest service centre.

PROBLEM CAUSE SOLUTION
The unit fails to work	No power supply Restore the power supply
	The automatic safety cutout has tripped Call a service centre for assistance
	The on/off switch is on Start the unit by moving the switch to ON
The unit provides insufficient cooling or heating	The air filter is dirty or clogged Clean the air filter
	An obstacle is obstructing the air intake or outlet Remove the obstacle
	Air is trapped inside the heat exchanger Call the installer for assistance
	There are open windows and/or doors Close windows and/or doors
	The minimum speed has been selected	Select medium or maximum speed
The unit “leaks” water	The unit has not been installed with the correct inclination	Call the installer for assistance
The unit “leaks” water	The drainage outlet is clogged	Call the installer for assistance

» 2 pipes

FWB-C			04 05 06 08
Speed			min med	max min	med max	min med	max	min med	max
Declared speed			2,5,7	1,5,7	1,6,7	1,4,7
Rated air flow (E) m3/h			109 246	276 171	275 341	195	360 402	305	532 652
Available static pressure (E) Pa			10 50 63	19 50 77	19 50 63	17	50 75
Power input	(E) W		24	57	82	34	69	106	34	85	106	76	143	192
Maximum current absorption		A	0,40			0,56			0,56			1,10
Total cooling capacity	(1)(E)	kW	0,92 1,72	1,90 1,27	1,90 2,27	1,57 2,69	2,96	1,92 3,17	3,68
Sensible cooling capacity	(1)(E)	kW	0,61 1,21	1,34 0,89	1,34 1,59	1,07 1,86	2,03	1,42 2,39	2,81
FCEER class	(E)		D			D			D			E
Water flow	(1) l/h		160 306	340 222	389 408	274	476 527	343	568 664
Water pressure drop	(2)(E)	kPa	2	5	6	3	6	8	3	7	9	3	8	11
Heating capacity	(3)(E)	kW	0,88 1,81	1,99 1,33	1,98 2,35	1,59 2,80	3,10	2,35 3,71	4,31
FCCOP class	(E)		D			D			D			D
Water flow	(3) l/h		153 315	346 231	345 408	276	488 538	408 644	749
Water pressure drop	(3)(E)	kPa	1	4	5	2	5	7	2	6	8	4	9	11
Standard coil - number of rows			3			3			4			3
Total sound power level	(4) dB(A)		32 49	29 39	50 54	39 50	54	38 52	58
Inlet + radiated sound power level	(4)(E) dB(A)		30 47	50 37	48 52	37 48	52	36 50	56
Outlet sound power level	(4)(E) dB(A)		29 46	49 37	47 52	36 47	51	35 49	55
Water content - standard coil		dm3	1,20			1,20			2,20			1,60
Power supply cable type			M07V-K			M07V-K			M07V-K			M07V-K
Cross-section area of power cables	(5)	mm2	1,00			1,00			1,00			1,50
Safety fuse F		A	1			1			1			2
Fuses type			gG			gG			gG			gG

FWB-C			10 11 15 17
Speed			min med max min		med max min med max min med max
Declared speed			1,6,7 1,6,7 5,6,7 5,6,7
Rated air flow (E) m3/h			333	687	760	333	687	760	1050	1163	1289	1050	1163	1289
Available static pressure (E) Pa			12 50 61	12 50 61	40 50 53 40	50 60
Power input	(E) W		76	167	192	76	167	192	235	280	332	235	280	332
Maximum current absorption		A	1,10			1,10			2,10			2,10
Total cooling capacity	(1)(E)	kW	2,22 4,22 4,63 2,44 4,79 5,23 6,15 6,66 7,21 6,91 7,49 8,12
Sensible cooling capacity	(1)(E)	kW	1,60 3,09 3,39 1,70 3,33 3,64 4,51 4,88 5,79 4,83 5,23 5,67
FCEER class	(E)		D			D			D			D
Water flow	(1) l/h		394	753	828	432	850	930	1095	1191	1295	1225	1333	1448
Water pressure drop	(2)(E)	kPa	2	7	8	3	10	12	13	16	18	20	23	26
Heating capacity	(3)(E)	kW	2,54 4,76 5,17 2,63 5,03 5,49 6,68 7,22 7,80 7,18 7,80 8,46
FCCOP class	(E)		D			D			D			D
Water flow	(3) l/h		442	827	898	457	875	955	1162	1256	1357	1248	1356	1472
Water pressure drop	(3)(E)	kPa	2	7	8	3	9	11	12	14	16	17	20	23
Standard coil - number of rows			3			4			3			4
Total sound power level	(4)	dB(A)	38 55 58 38 55 58 61 63 69 61 63 69
Inlet + radiated sound power level	(4)(E)	dB(A)	36 53 56 36 53 56 59 61 67 59 61 67
Outlet sound power level	(4)(E)	dB(A)	35 52 55 35 53 55 58 60 66 58 60 66
Water content - standard coil		dm3	2,50			3,30			2,50			3,30
Power supply cable type			NOV-K			NOV-K			NOV-K			NOV-K
Cross-section area of power cables	(5)	mm2	1,50			1,50			1,50			1,50
Safety fuse F		A	2			2			2			2
Fuses type			qG			qG			qG			qG

(1) Water temperature 7°C / 12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity) according to ENI 397:2021

(2) Water temperature 7°C / 12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity)

(3) Water temperature 45°C / 40°C, air temperature 20°C

(4) Sound power measured according to standards ISO 3741 and ISO 3742

(5) The shown section is to be considered as the minimum recommended section. The cables must be chosen in compliance with CFI UNFI 35024/1, standard.

(E) EUROVENT certified data

Power supply 230-1-50 (V-ph-Hz)

» 4 pipes

FWB-C			04 05 06 08
Speed			min med max min med max min med max min med max
Declared speed			2,5,7 1,5,7 1,6,7 1,4,7
Rated air flow (E) m3/h			109 243	270 170 272	336 195 357	398 302 524	642
Available static pressure (E) Pa			10 50 63	19 50 77 19	50 63 17 50	75
Power input (E) W			24 57 82	34 69 106 34	85 106 76	143 192
Maximum current absorption A			0,40 0,56 0,56 1,10
Total cooling capacity	(1)(E) kW		0,92 1,70	1,86 1,26	1,88 2,24 1,57	2,67 2,93 1,89	3,13 3,64
Sensible cooling capacity	(1)(E) kW		0,61 1,20	1,31 0,88 1,33	1,57 1,07	1,84 2,01 1,41	2,35 2,78
FCEER class	(E)		D			D			D			E
Water flow	(2) l/h		160 302	333 221 335	404 274 473	522 339 562	656
Water pressure drop	(2)(E) kPa		2	5	6	3	6	8	3	7	9	3	8	11
Heating capacity	(3)(E) kW		1,14 1,93	2,06 1,55	2,07 2,32 2,09	3,09 3,29 2,80	3,82 4,24
FCCOP class	(E)		D			D			C			D
Water flow	(3) l/h		100 169	180 136 181	204 183 271	288 245 334	371
Water pressure drop	(3)(E) kPa		1	2	3	2	3	3	2	3	4	3	5	6
Additional coil - number of rows			1			1			1			1
Total sound power level	(4) dB(A)		28 49 52	39 50 54	36 47 51	38 52 58
Inlet + radiated sound power level (4)(E)	dB(A)		26 47 50	37 48 52	37 48 52	36 50 56
Outlet sound power level	(4)(E)	dB(A)	25 46 49	36 47 51	36 47 51	35 49 55
Water content - additional coil		dm3	0,47 0,47 0,59 0,59
Power supply cable type			N07V-K			N07V-K			N07V-K			N07V-K
Cross-section area of power cables	(S)	mm2	1,00 1,00 1,00 1,50
Safety fuse F		A	1			1			1			2
Fuses type			gG			gG			gG			gG

FWB-C			10 11 15 17
Speed			min mod max min mod max min med max min mod max
Declared speed			1,6,7 1,6,7 5,6,7 5,6,7
Rated air flow (E) m3/h			333	683	755	333	683	755	1050	1163	1289	1050	1163	1289
Available static pressure (E) Pa			12 50 61	12 50 61 40	50 60 40 50 60
Power input (E) W			76 167	92 76 167	192 235 280 332	235 280 332
Maximum current absorption A			1,10 1,10 2,10 2,10
Total cooling capacity	(1)(E) kW		2,22 4,20	4,60 2,44 4	76 5,20 6,15	6,66 7,21 6,91	7,49 8,12
Sensible cooling capacity	(1)(E) kW		1,60 3,07	3,36 1,70 3	31 3,62 4,51	4,88 5,29 4,83	5,23 5,67
FCEER class	(E)		D			D			D			D
Water flow	(2) l/h		394	749	822	432	846	925	1095	1191	1295	1225	1333	1448
Water pressure drop	(2)(E) kPa		2	7	8	3	10	12	13	16	18	20	23	26
Heating capacity	(3)(I) kW		3,40 5,17	5,45 3,40 5,17	5,45 6,42	6,73 7,06	6,42	6,73 7,06
FCCOP class	(E)		D			D			D			D
Water flow	(3) l/h		297 452	477 297 452	477 562 590	618	562 590	618
Water pressure drop	(3)(E) kPa		6	13 14	6	13 14	19 21 22	19 21 22
Additional coil - number of rows			1			1			1			1
Total sound power level	(4) dB(A)		38 55 58	38 55 58 61	63 69 61 63	69
Inlet + radiated sound power level (4)(E)	dB(A)		36 53 56	36 53 56 59	61 67 59 61	67
Outlet sound power level	(4)(E)	dB(A)	35 52 55	35 52 55 58	60 66 58 60	66
Water content - additional coil		dm3	0,97 0,97 0,97 0,97
Power supply cable type			N07V-K			N07V-K			N07V-K			N07V-K
Cross-section area of power cables	(5)	mm2	1,50 1,50 1,50 1,50
Safety fuse F		A	2			2			2			2
Fuses type			g6			g6			g6			g6

(1) Water temperature 7°C / 12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity) according to FN139/2021

(2) Water temperature 7°C / 12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity)

(3) Water temperature 65°C / 55°C, air temperature 20°C

(4) Sound power measured according to standards ISO 3/41 and ISO 3/42

(5) The shown section is to be considered as the minimum recommended section. The cables must be chosen in compliance with CEI - UNEL 35024/1, standard.

(1) EUROVENT certified data

Power supply 230-1-50 (V-ph-Hz)

11 WEIGHTS

FWB-C		04	05	06	08	10	11	15	17
2 pipes	kg	24,4	25,4	33,0	36,0	45,0	45,0	51,0	51,0
4 pipes	kg	25,8	26,8	34,6	37,6	47,5	47,5	53,5	53,5

1 PRIMA DI INIZIARE L'INSTALLAZIONE .....p. 15
2 UTILIZZO PREVISTO ......p. 15

LUOGO DI INSTALLAZIONE ......p. 15

3 DESCRIZIONE DELL'APPARECCHIO ......p. 15

3.1 FWB-C: PRESTAZIONI E COMPATTEZZA NELLE INSTALLAZIONI AD INCASSO A SOFFITTO....p. 15
3.2 COMPONENTI PRINCIPALI....p. 16 ACCESSORI....p. 16 KIT VALVOLE MONTATE IN FABBRICA....p. 17
4 DATI DIMENSIONALI....p. 18
5 INSTALLAZIONE....p.18 AVVERTENZE PER L'INSTALLAZIONE....p.18
5.1 MONTAGGIO UNITÀ....p. 19
6 VERIFICA FUNZIONALE....p. 19
7 USO p. 20
8 MANUTENZIONE....p. 20 PULIZIA DEL FILTRO ARIA....p. 20 PULIZIA DELLA BATTERIA DI SCAMBIO TERMICO....p. 20
9 RICERCA DEI GUASTI....p. 20
10 DATI TECNICI NOMINALI....p. 21
11 PESI p.22
12 FIGURE....p. 86

Kit valvole 2 vie montate in fabbrica
DAIKIN FWB06CATN6V3 - TROUBLESHOOTING - 1

Kit valvole 3vie montate in fabbrica 1) On mode ; 2) By-Pass mode
DAIKIN FWB06CATN6V3 - TROUBLESHOOTING - 2

Base Electrical Connections: pag. 91;
• FWECSAP on board + ON/OFF VALV: pag. 93;
FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): pag. 96;

FWECSAP on board + MOD. VALV: pag. 99;
FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
FWECSAP remote + ON/OFF VALV: pag. 105;
FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;
FWECSAP remote + MOD. VALV: pag. 111;
FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
• FWEC1A: pag. 117;
FWEC1A + Supplementary Heating Element (EH): pag. 120;
FWEC2A: pag. 123;
• FWEC2A + Supplementary Heating Element (EH): pag. 126;
• FWEC3A: pag. 129;
FWEC3A + Supplementary Heating Element (EH): pag. 132;
FWEC2T: pag. 135;
FWEC4T: pag. 138;

4 DONNÉES DIMENSIONNELLES.... p. 27

5 INSTALLATION p.27

AVERTISSEMENTS POUR L'INSTALLATION.... p. 27

5.1 MONTAGE DE L'UNITÉ.... p. 28

6 VÉRIFICATION FONCTIONNELLE ...... p. 28

7 UTILISATION p.29

8 ENTRETIEN p.29

NETTOYAGE DU FILTRE À AIR ...... p. 29

NETTOAYAGE DE LA BATTERIE D'ÉCHANGE THERMIQUE.... p. 29

9 RECHERCHE DES CAUSES D'ANOMALIE..... p. 29

10 DONNÉES TECHNIQUES NOMINALES ..... p. 30

11 POIDS.... p.31

12 FIGURE.... p. 86

LIMITES DE FONCTIONNEMENT

Kit vanne 3 voies montè en usine: 1) On mode ; 2) By-Pass mode
DAIKIN FWB06CATN6V3 - RICERCA DEI GUASTI - 1

DAIKIN FWB06CATN6V3 - RICERCA DEI GUASTI - 2

DAIKIN FWB06CATN6V3 - RICERCA DEI GUASTI - 3

DAIKIN FWB06CATN6V3 - RICERCA DEI GUASTI - 4

Base Electrical Connections: pag. 91;
FWECSAP on board + ON/OFF VALV: pag. 93;
• FWECSAP on board + ON/OFF VALV + Supplementary

Heating Element (EH): pag. 96;

• FWECSAP on board + MOD. VALV: pag. 99;
- FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
- FWECSAP remote + ON/OFF VALV: pag. 105;
- FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;
• FWECSAP remote + MOD. VALV: pag. 111;
- FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
• FWEC1A: pag. 117;
• FWEC1A + Supplementary Heating Element (EH): pag. 120;
- FWEC2A: pag. 123;
- FWEC2A + Supplementary Heating Element (EH): pag. 126;
• FWEC3A: pag. 129;
• FWEC3A + Supplementary Heating Element (EH): pag. 132;
• FWEC2T: pag. 135;
• FWEC4T: pag. 138;

Base Electrical Connections: pag. 91;
• FWECSAP on board + ON/OFF VALV: Abb. 93;
FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): Abb. 96;
• FWECSAP on board + MOD. VALV: Abb. 99;
FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): Abb. 102;
• FWECSAP remote + ON/OFF VALV: Abb. 105;
FWECSAP remote + ON/OFF VALV + Supplementary Heating

Element (EH): Abb. 108;

• FWECSAP remote + MOD. VALV: Abb. 111;
- FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): Abb. 114;
• FWEC1A: Abb. 117;
- FWEC1A + Supplementary Heating Element (EH): Abb. 110;
• FWEC2A: Abb. 123;
- FWEC2A + Supplementary Heating Element (EH): Abb. 126;
• FWEC3A: Abb. 129;
• FWEC3A + Supplementary Heating Element (EH): Abb. 132;
- FWEC2T: Abb. 135;
• FWEC4T: Abb. 138;

Kit de à 2 vias montadas en fàbrica
DAIKIN FWB06CATN6V3 - DONNÉES DIMENSIONNELLES - 1

Kit de à 3 vias montadas en fàbrica 1) On mode ; 2) By-Pass mode

DAIKIN FWB06CATN6V3 - DONNÉES DIMENSIONNELLES - 2

Base Electrical Connections: pag. 91;
FWECSAP on board + ON/OFF VALV: pag. 93;
FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): pag. 96;
FWECSAP on board + MOD. VALV: pag. 99;
FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
• FWECSAP remote + ON/OFF VALV: pag. 105;
FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;
• FWECSAP remote + MOD. VALV: pag. 111;
FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
• FWEC1A: pag. 117;
• FWEC1A + Supplementary Heating Element (EH): pag. 120;
FWEC2A: pag. 123;
FWEC2A + Supplementary Heating Element (EH): pag. 126;
• FWEC3A: pag. 129;
FWEC3A + Supplementary Heating Element (EH): pag. 132;
FWEC2T: pag. 135;
• FWEC4T: pag. 138;

Tvornički ugrađen komplet 2-smjernog ventila 1) On mode ; 2) By-Pass mode
DAIKIN FWB06CATN6V3 - DIMENSIONES - 1

DAIKIN FWB06CATN6V3 - DIMENSIONES - 2

DAIKIN FWB06CATN6V3 - DIMENSIONES - 3

DAIKIN FWB06CATN6V3 - DIMENSIONES - 4

Na str. p. 86-87 navedeni su podatci o dimenzijama FWB-C-a i položaji hidrauličkih priključaka.

Base Electrical Connections: pag. 91;
FWECSAP on board + ON/OFF VALV: pag. 93;
FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): pag. 96;
FWECSAP on board + MOD. VALV: pag. 99;
FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
• FWECSAP remote + ON/OFF VALV: pag. 105;
FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;
• FWECSAP remote + MOD. VALV: pag. 111;
FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
FWEC1A: pag. 117;
FWEC1A + Supplementary Heating Element (EH): pag. 120;
FWEC2A: pag. 123;
FWEC2A + Supplementary Heating Element (EH): pag. 126;
• FWEC3A: pag. 129;
FWEC3A + Supplementary Heating Element (EH): pag. 132;
FWEC2T: pag. 135;
• FWEC4T: pag. 138;

Base Electrical Connections: pag. 91;
• FWECSAP on board + ON/OFF VALV: pag. 93;
FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): pag. 96;
• FWECSAP on board + MOD. VALV: pag. 99;
FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
• FWECSAP remote + ON/OFF VALV: pag. 105;
FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;
• FWECSAP remote + MOD. VALV: pag. 111;
FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
• FWEC1A: pag. 117;
FWEC1A + Supplementary Heating Element (EH): pag. 120;
FWEC2A: pag. 123;
FWEC2A + Supplementary Heating Element (EH): pag. 126;
• FWEC3A: pag. 129;
FWEC3A + Supplementary Heating Element (EH): pag. 132;
FWEC2T: pag. 135;
• FWEC4T: pag. 138;

Base Electrical Connections: pag. 91;
• FWECSAP on board + ON/OFF VALV: pag. 93;
• FWECSAP on board + ON/OFF VALV + Supplementary

Heating Element (EH): pag. 96;

• FWECSAP on board + MOD. VALV: pag. 99;
- FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
• FWECSAP remote + ON/OFF VALV: pag. 105;
- FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;
- FWECSAP remote + MOD. VALV: pag. 111;
- FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
• FWEC1A: pag. 117;
• FWEC1A + Supplementary Heating Element (EH): pag. 120;
• FWEC2A: pag. 123;
• FWEC2A + Supplementary Heating Element (EH): pag. 126;
• FWEC3A: pag. 129;
• FWEC3A + Supplementary Heating Element (EH): pag. 132;
• FWEC2T: pag. 135;
- FWEC4T: pag. 138;

1 Water connections standard heat exchanger
2 Water connections additional heat exchanger
3 Condensate discharge

DAIKIN FWB06CATN6V3 - Legenda - 1

1 Water connections standard heat exchanger
2 Water connections additional heat exchanger
3 Condensate discharge

[Non-Text]
[Non-Text]
[Non-Text]

1 Hidraulični priključci standardne zavojnice
2 Hidraulični priključci dodatne zavojnice
3 Odvod kondenzata

» FWB KIT VALVE

Tab. 1

2 way valve kit (*)

FCU Models Sizes

2 way valve kit 230V on/off single heat exchangers

2 way valve kit 230V on/off additional heat exchangers

2 way valve kit 24V on/off single heat exchangers

2 way valve kit 24V on/off additional heat exchangers

2 way valve kit 24V proportional single heat exchangers

2 way valve kit 24V proportional additional heat exchangers

Body Watts single heat exchangers

Body Watts additional heat exchangers

ActuatorWatts 230V on/off

ActuatorWatts 24V on/off

ActuatorWatts 24V proportional

FWB-C

04 - 05 - 06 - 08

E2MV2B07A6

E2MV2B07A6 E2MV

E2V207A6 E2M2V207A6

E2MPV207A6

E2MPV207A6 21B

112 213112 22CX2

30NC2-2 22CX24NC

2 -2 EMUJC-010

FWB-C

10 - 11 - 15 - 17

E2MV2B10A6

E2MV2B07A6 E2MV

E2V210A6 E2M2V210A6

E2MPV210A6

E2MPV210A6 21B

134 213112 22CX2

30NC2 - 2 22CX24NC

2 -2 EMUJC-010

(*) Note: 2 way valve kit E2M** is suitable both for standard and additional heat exchanger.

lab. 2	3 way valve kit (")
ICU Models Sizes	3 way valve kit230V on/off 2 pipes	3 way valve kit230V on/off 4 pipes	3 way valve kit 24Von/off 2 pipes	3 way valve kit 24Vproportional 2 pipes	3 way valve kit24V proportional4 pipes	Body Watts 2pipes (single heatexchangers)	Body Watts 4pipes (additionalheat exchangers)	ActuatorWatts230V on/off	ActuatorWatts24V on/off	ActuatorWatts 24Vproportional
FWB-C	04-05	E4V2N050V3WA	E4V1N080V3WA	E4V2N05024WA	E4V2N05P24WA	E4V1N08P24WA	413112	413112	22CX230NC2-2	22CX24NC2-2	EMUJC-010
FWB-C	06-08	E4V2N080V3WA	E4VHM080V3WA	E4V2N08024WA	E4V2N08P24WA	E4VHN08P24WA	413134	413112	22CX230NC2-2	22CX24NC2-2	EMUJC-010
FWB-C	10-11-15-17	E2MV10B6	E4VHX170V3WA	E4V2N17024WA	E2MPV10A6	E4VHN17P24WA	413134	413112	22CX230NC2-2	22CX24NC2-2	EMUJC-010

(*) Note: each 3 way valve kit, for standard coil or additional coil, includes: 1 valve + 1 actuator + 1 plumbing kit.

» TABLE 3: HYDRAULIC CHARACTERISTICS

NOTE (*): 3 way 4 ports valves are the standard ones, NC, used only in mixing mode

» 2 AND 3 WAY KIT VALVE PRESSURE DROPS

*(1) In Eurovent conditions: COOLING: Tw 7/12°C, Tair 27/19°C (47%); HEATING: Tw 45/40°C, Tair 20°C.
*(2) In Eurovent conditions: COOLING: Tw 7/12°C, Tair 27/19°C (47%); HEATING: Tw 65/55°C, Tair 20°C.
*(3) 3 way valve kits includ 2 lockshields.

Make the electrical connections with the power supply disconnected, in accordance with current safety regulations.

Check that the mains electricity supply is compatible with the voltage shown on the unit rating plate.

• IL: Circuit breaker (not supplied)
• F: Fusible 2A (not supplied)
• CN: Terminal board vite/faston
- MV: Fan motor
• C: Pre-wired to motor condenser
- VC: ON/OFF valve cold water/hot (2-pipes system) ON/OFF valve cold water (4-pipes system)
• VH: ON/OFF valve hot water (4-pipes system)
BN: Brown = valves power supply phase BU: Blu = valves power supply neutral
• SAI: Pre-installed indoor air temperature probe
• SAE: Remote air temperature probe
- SW: Water temperature probe
- SWH: Water temperature probe for additional hot coil (4-pipes system). Available in option only with SW.
- SUI: Pre-installed relative humidity indoor probe
• SUE: Remote relative humidity probe

SC: Relay box
RE: Heating element
TSA: Thermostat
TSM: Thermalfuse
K: Thermostat consent relay
K1: Thermalfuse consent relay

Hydraulic characteristics

Valve Part Number DN DN (mm) /Max working pressure PN (Bar) Kvs Kvs_bypass

ΔPs maximum static differential pressure at the ends of the valve against which the valve can open [bar]

413112(*) 1/2"M 15

413134(*) 3/4"M 20

T1: Transformer 230Vac/24Vac (not supplied)

- VC 0-10: modulating valve cold water/hot (2-pipes system) Modulating valve cold water (4-pipes system)

- VH 0-10: Modulating valve hot water (4-pipes system) RD: Red = +24Vac valves power supply BK: Black = 0V valves power supply /GND control signal GY: Grey = control signal 0-10 Vdc valves

WARNING: With FWECSA and FWEC controls is possible to manage until 4 speeds. It's mandatory to use O1 input for FWEC and V1 input for FWECSA. Wire the 4 speeds cables in ascending order (min to max speed) from input 1 to 4. Every selected speed cable which isn't shown in wiring diagrams for the selected unit isn't "Eurovent certified".

» Base electrical connection for FWB-C 04
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 1

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 2

TABELLA 1 /TABLE 1
MODELLO/MODEL	VELOCITA' -> PIN -CN
FWB05C	Vmax->4; Vmed->MV; Vmin->10;
FWB06C	Vmax->4; Vmed->PV; Vmin->10;
FWB08C	Vmax->4; Vmed->GV; Vmin->10;
FWB10-11C	Vmax->4; Vmed->PV; Vmin->10;

UT66002005

» Base Electrical connection for FWB-C 15-17

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 3

» Electrical connection FWB-C 04 +FWECSAP on board+VALV.ON/OFF

FWECSAP UT66003020
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 4

FWECSAP UT66003022
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 5

TABELLA 1/TABLE 1
MODELLO/MODEL	USCITA FWECSAP ->CAVO MOTORE/FWECSAP OUTPUT ->MOTOR CABLE
FWB05C	04(BK)->BK;03(BU)->YE;02(RD)->RD
FWB06C	04(BK)->BK;03(BU)->GY;02(RD)->RD
FWB08C	04(BK)->BK;03(BU)->BU;02(RD)->RD
FWB10-11C	04(BK)->BK;03(BU)->GY;02(RD)->RD

TABELLA 2/TABLE 2
MODELLO/MODEL	SONDE PREINSTALLATE/PRE-INSTALLED PROBES
FWECSAC	SUI
FWTOUCH	SAI, SUI

» Electrical connection FWB-C 15-17 + FMECSAP on board + VALV.ON/OFF

FWECSAP UT66003024
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 6

TABELLA 1/TABLE 1
MODELLO/MODEL	SONDE PREINSTALLATE/PRE-INSTALLED PROBES
FWECSAC	SUI
FWTOUCH	SAI, SUI

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 7

» Electrical connection FWB-C 05-11 + FWECSAP on board + VALV,ON/OFF + EH100V36A

FWECSAP UT66003023
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 8

FWECSAP UT66003025
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 9

» Electrical connection FWB-C 04 + FWECSAP on board + MOD. VALV.

FWECSAP UT66003026
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 10

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 11

» Electrical connection FWB-C 15-17+ FWECSAP on board + MOD. VALV.

FWECSAP UT66003030
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 12

TABELLA 1/TABLE 1
MODELLO/MODEL	SONDE PREINSTALLATE/PRE-INSTALLED PROBES
FMECSAC	SUI
FWTOUCH	SAI, SUI

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 13

» Electrical connection FWB-C 05-11 CA + FWECSAP on board + MOD. VALV.+EH100V36A

FWECSAP UT66003029
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 14

TABELLA 1/TABLE 1
MODELLO/MODEL	USQITA FWECSAP CAVO MOTORE/ FWECSAP OUTPUT MOTOR CABLE
FMB05C	04(BK)→BK;03(BU)→YE; 02(RD)→RD
FMB06C	04(BK)→BK;03(BU)→GY; 02(RD)→RD
FMB08C	04(BK)→BK;03(BU)→BU; 02(RD)→RD
FMB10-11C	04(BK)→BK;03(BU)→GY; 02(RD)→RD

TABELLA 2/TABLE 2
MODELLO/MODEL	SONDE PREINSTALLATE/PRE-INSTALLED PROBES
FWECSAC	SUI
FWTOUCH	SAI, SUI

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 15

» Electrical connection FWB-C 04 CA + FWECSAP remote + ON/OFF/VAL.

FWECSAP UT66003032
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 16

TABELLA 1/TABLE 1
MODELLO/MODEL	SONDE PREINSTALLATE/PRE-INSTALLED PROBES
FWECSAC	SUI
FWTOUCH	SAI, SUI

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 17

» Electrical connection FWB-C 15-17+ FWECSAP remote + ON/OFF VALV..

FWECSAP UT66003036
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 18

TABELLA 1/TABLE 1
MODELLO/MODEL	SONDE PREINSTALLATE/PRE-INSTALLED PROBES
FWECSAC	SUI
FWTOUCH	SAI, SUI

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 19

» Electrical connection FWB-C 05-11 + FWECSAP remote + ON/OFF VALV.+EH100V36A

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 20

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 21

» Electrical connection FWB-C 04 + FWECSAP remote + MOD. VALV.

FMECSAP UT66003038
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 22

TABELLA 1/TABLE 1
MODELLO/MODEL	SONDE PREINSTALLATE/ PRE-INSTALLED PROBES
FWECSAC	SUI
FWTOUCH	SAI, SUI

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 23

» Electrical connection FWB-C 15-17+ FWECSAP remote + MOD. VALV.
FWECSAP UT66003042
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 24

TABELLA 1/TABLE 1
MODELLO/MODEL	SONDE PREINSTALLATE/ PRE-INSTALLED PROBES
FWECSAC	SUI
FWTOUCH	SAI, SUI

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 25

» Electrical connection FWB-C05-11+ FWECSAP remote + MOD.VALV. + EH0100V36A

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 26

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 27

» Electrical connection FWB-C04 + FWEC1A
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 28

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 29

» Electrical connection FWB-C 15-17 + FWEC1A

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 30

» Electrical connection FWB-C 04 + FWEC1A+EH060V3A
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 31

» Electrical connection FWB-C 05-11 + FWEC1A+ EH100V36A

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 32

» Electrical connection FWB-C 15-17 + FWEC1A-EH200V36A
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 33

» Electrical connection FWB-C 04 + FWEC2A
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 34

TABELLA 1 /TABLE 1
MODELLO/MODEL	PIN FMEC2A -> PIN-CN
FWB05C	V3->4; V2->MV; V1->10
FWB06C	V3->4; V2->PV; V1->10
FWB08C	V3->4; V2->GV; V1->10
FWB10-11C	V3->4; V2->PV; V1->10

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 35

» Electrical connection FWB-C 15-17+ FWEC2A
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 36

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 37

» Electrical connection FWB-C 05-11+FWEC2A+EH100V36A

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 38

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 39

» Electrical connection FWB-C 04 + FWEC3A
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 40

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 41

TABELLA 1 /TABLE 1
MODELLO/MODEL	PIN FMEC3A -> PIN-CN
FWB05C	V3->4; V2->MV; V1->10
FWB06C	V3->4; V2->PV; V1->10
FWB08C	V3->4; V2->GV; V1->10
FWB10-11C	V3->4; V2->PV; V1->10

» Electrical connection FWB-C 15-17 + FWEC3A
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 42

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 43

» Electrical connection FWB-C 05-11 + FWEC3A+ EH100V36A

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 44

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 45

» Electrical connection FWB-C 04 + FWEC2T

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 46

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 47

TABELLA 1 /TABLE 1
MODELLO/MODEL	PIN FWEC2T-> PIN -CN
FWB05C	6->10;5->8;4->4
FWB06C	6->10;5->9;4->4
FWB08C	6->10;5->GV;4->4
FWB10/11C	6->10;5->9;4->4

NOTA 1: SCOLLEGARE CAVO WH DA MORSETTO N SU -CN E COLLEGARE A PIN 7 SU FMEC2T
NOTE 1: DISCONNECT THE WH CABLE FROM TERMINAL N ON -CN AND CONNECT TO PIN 7
ON FMEC2T

» Electrical connection FWB-C 15-17 + FWEC2T

FWEC2T UT66002625
DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 48

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 49

» Electrical connection FWB-C 05-11+FWEC4T

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 50

TABELLA 1 /TABLE 1
MODELLO/MODEL	PIN -CN
FWB05C	6->10; 5->8; 4->4
FWB06C	6->10; 5->9; 4->4
FWB08C	6->10; 5->GV; 4->4
FWB10-11C	6->10; 5->9; 4->4

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 51

» Standard inlet - Aspirazione standard - Aspiration standard - Standard Luftansaugung - Aspiración estándar - Standardní sání - Standardní usis - Standard elszívás - Стандартное засывание

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 52

» Cleaning the air filter - Pulizia filtro aria - Nettoyage du filtre à air - Reinigung des Luftfilters - Limpieza del filtro de aire - Čištění yzduchového filtru - Čiščenje filtra zraka - Levegőszůrő tisztítása - Чистка воздушного фильтра

DAIKIN FWB06CATN6V3 - Specific for schemes with FWECSAP control - 53
