| Product Type | Steel Hose Reel |
| Brand | Aqua Joe |
| Model | BDL-A0047 |
| Dimensions | 24,9 cm (W) x 107,9 cm (H) x 25,9 cm (D) |
| Weight | 4,5 kg |
| Material | Thick solid steel, brass faucet |
| Storage Capacity | Hose up to 16 mm diameter and 38 m length |
| Anchoring System | Two stakes |
| Compatibility | Standard garden hoses |
| Package Contents | Upper and lower poles, S-type nut, M6 x 50 screw, hose reel, manuals |
| Assembly Required | Yes: interlock the poles, fix the hose reel with screw and nut |
| Usage | Push into ground, connect water supply to rear inlet, attach hose to front faucet |
| Maintenance | Call Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE |
| Warranty | 2 years from date of purchase for residential use |
| Customer Service | 1-866-SNOWJOE (1-866-766-9563) / help@snowjoe.com |
| Serial Number | On the adhesive label (model SJ-SHSBB-GRY) |
| Recyclable Material | Recyclable packaging |
| Safety Warning | Do not install in loose soil or mulch; wear closed-toe shoes |
| Country of Origin | Not specified in the manual |
Frequently Asked Questions - BDL-A0047 Aqua Joe
User questions about BDL-A0047 Aqua Joe
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Garden hose in PDF format for free! Find your manual BDL-A0047 - Aqua Joe and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BDL-A0047 by Aqua Joe.
USER MANUAL BDL-A0047 Aqua Joe
© 2018 by Snow Joe ^® , LLC
All rights reserved. Original instructions.
SAVE THESE INSTRUCTIONS
© 2018 by Snow Joe ^® , LLC
© 2018 by Snow Joe ^® , LLC

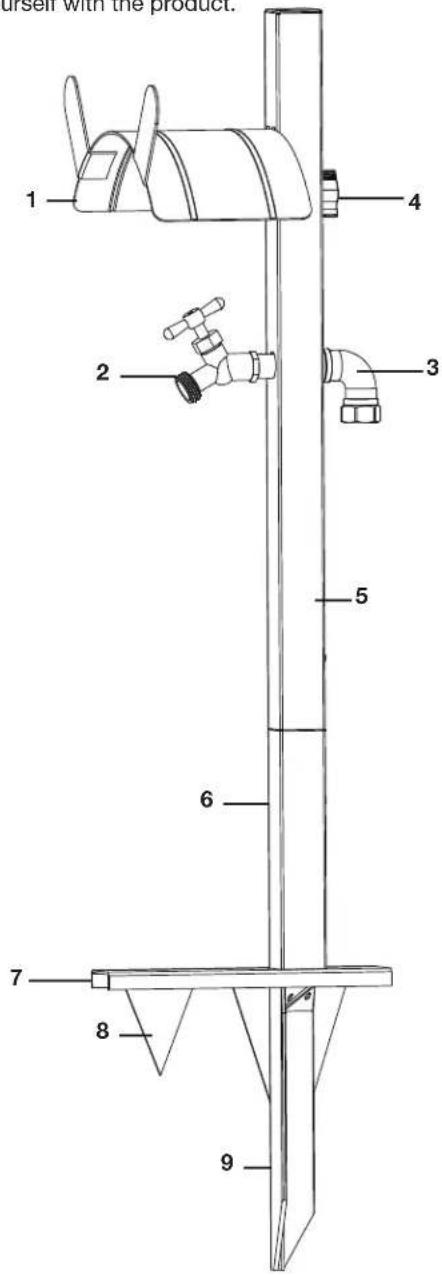

Read the owner's manual and safety instructions carefully before using the steel garden hose holder. Compare the illustration below to the steel garden hose holder in order to familiarize yourself with the product.
Save this manual for future reference.
- Hose holder
- Front faucet
- Rear inlet
- S-type nut
- Top post
- Bottom post
- Base
- Secondary stake
- Primary stake
Technical Data
Product Dimensions: 9.8 in. W x 42.5 in. H x 10.2 in. D (24.9 cm W x 107.9 cm H x 25.9 cm D)
Anchoring System 2-Point Secure Anchor System
Storage Capacity Up to 125 feet of 5/8-inch hose
Material Heavy gauge solid steel construction + brass spigot
Weight 9.9 lbs (4.5 kg)
Fits standard garden hose
Unpacking
Carton Contents
- Top and bottom posts
- S-type nut
- M6x50 screw
-
Hose holder
• Manuals + Registration card -
Carefully remove the steel garden hose holder and check to see that all of the above items are supplied.
-
Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you nd damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe *+ Sun Joe * customer service center at 1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging material until you are ready to use the steel garden hose holder. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.
IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. These items can be swallowed and pose a su ncation risk!
- Slide the top post over the connecting post until the push button locks into place in its respective hole on the top post (Fig. 2).
Fig. 2
Top
post
push
buttons
Connecting post
Bottom
post
- Insert the hose holder into the corresponding holes on the assembled hose stand post (Fig. 3 and Fig. 4).
Fig. 3
Hose holder
Assembly
m WARNING! To avoid serious personal injury, read and understand all safety instructions provided.
- To assemble the hose stand post, take the top and bottom post and t together by sliding the top post over the connecting post. Depress the push button on the
Assembled
hose stand
post
EN

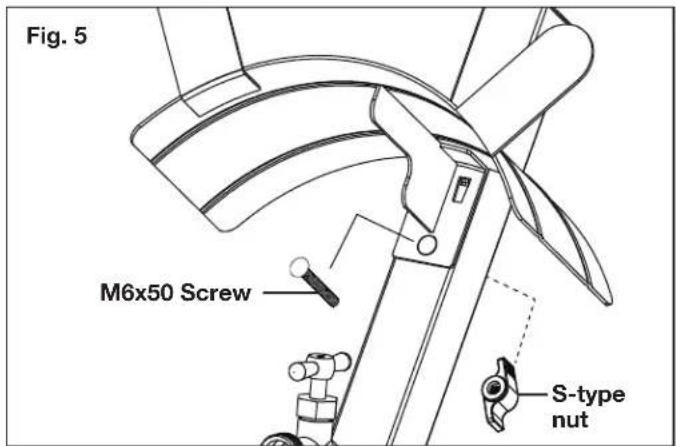

- Using the M6x50 screw and s-type nut, secure the hose holder in place (Fig. 5).
Operation
- Wearing work boots or other appropriate close-toed shoes, firmly step down on the base and push the primary and secondary stakes completely into the ground (Fig. 6). Make sure your steel garden hose holder is secure before use.
⚠ WARNING! Do not install your steel garden hose holder in soft ground or mulch.

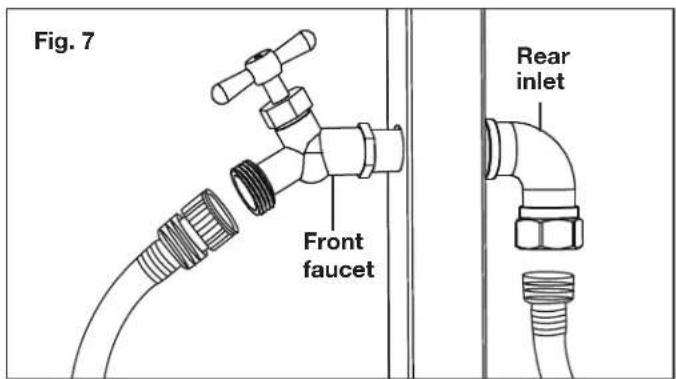

- Connect your water source to the rear inlet (Fig. 7).
- Connect your hose to the front faucet (Fig. 7).
Service + Support
If your Aqua Joe ^® SJ-SHSBB-GRY steel garden hose holder requires service or maintenance, please call Snow Joe ^® + Sun Joe ^® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.
Model + Serial Numbers
When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the steel garden hose holder. Copy these numbers into the space provided below.
SNOW JOE® + SUN JOE® CUSTOMER PROMISE
ABOVE ALL ELSE, Snow Joe ^® + Sun Joe ^® are dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We think it's important that you know what you can expect from us. That's why we created the Snow Joe ^® + Sun Joe ^® promise.
OUR PROMISE: Snow Joe® + Sun Joe® warrant new products for two years from the date of purchase. If your product does not work, or there's an issue with a specific part, we will fix this by either sending you a free replacement part or by sending you a new or comparable product at no charge. How cool is that! Before you know it, you'll be back in action cutting, sawing, mowing, washing and...?
PRODUCT REGISTRATION:
Snow Joe ^® , LLC (“Snow Joe ^® + Sun Joe ^® ”) strongly encourages you to register your purchase. You can register online at snowjoe.com/ProductRegistration, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at help@snowjoe.com. Failure to register your product purchase will not diminish your warranty rights. However, registering your purchase will allow Snow Joe ^® + Sun Joe ^® to better serve you with any of your customer service needs.
WHO CAN SEEK WARRANTY COVERAGE?
This Warranty is extended by Snow Joe ^® + Sun Joe ^® to the owner of this new product for residential and personal household use only. This Warranty does not apply to products used for commercial, rental or re-sale purposes. Should ownership of this product change during the 2-year period, please update the product's owner information at snowjoe.com/ProductRegistration.
WHAT IS COVERED?
Snow Joe ^® + Sun Joe ^® warrants to the owner that if this product fails within 2 years from the date of purchase due to a defect in material or workmanship or as a result of normal wear and tear from ordinary household use, Snow Joe ^® + Sun Joe ^® will send a replacement part or product, as needed, free of charge and with free shipping to the original purchaser.
If, in Snow Joe ^® + Sun Joe ^® 's sole discretion, the failed product cannot be repaired with a part, Snow Joe ^® + Sun Joe ^® will elect to either (A) send a new product at no charge and with free shipping or (B) refund the full purchase price to the owner.
WHAT IS NOT COVERED?
This Warranty does not apply to products that have been used commercially or in non-household applications. This Warranty does not cover cosmetic changes that do not affect performance.
This Warranty is only valid if the product is used and maintained in accordance with the instructions, warnings and safeguards contained in the owner's manual. Snow Joe ^® + Sun Joe ^® will not be responsible for the cost of any unauthorized warranty repairs. This warranty does not cover any cost or expense incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this product while waiting for a replacement part or unit under this warranty. Wearing parts like belts, augers, chains and tines are not covered under this warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are covered in full for 90-days from the date of purchase.
Repair, replacement or refund of the purchase price are the exclusive remedies of purchaser and the sole liability of Snow Joe ^® + Sun Joe ^® under this warranty. No employee or representative of Snow Joe ^® + Sun Joe ^® is authorized to make any additional warranty or any modification to this warranty which may be binding upon Snow Joe ^® + Sun Joe ^® . Accordingly, purchaser should not rely upon any additional statements made by any employee or representative of Snow Joe ^® + Sun Joe ^® . In no event, whether based on contract, indemnity, warranty, tort (including negligence), strict liability or otherwise, shall Snow Joe ^® + Sun Joe ^® be liable for any special, indirect, incidental, or consequential damages, including, without limitation, loss of profit or revenue.
Some states do not allow limits on warranties. In such states, the above limitations may not apply to you.
Outside the USA, other warranties may apply.
