USER MANUAL MC-CL945 PANASONIC

Operating Instructions

Clean with cold water every month.

Illustration of a hand holding a fan blade with a mesh pattern, showing rotational arrows (no text or symbols)

Remove the filter. Retirer le filtre.

1 month mois

Wash filter with cold water.

Let filter completely dry for 24 hours.

Important Safety Instructions 7

Parts Identification 10

To Operate Vacuum Cleaner 16

Performance/Safety Features 24

Routine Care of Vacuum Cleaner 28

Entretien de l'aspirateur / Cuidado de rutina de la aspiradora 29

Power Nozzle Care 40

Entretien de la tête motorisée / Cuidado de la Power Nozzle ..... 41

Before Requesting Service 48

Guide de dépannage / Antes de pedir servicio 49, 50

Specifications ....51

Spécifications/ Especificaciones .....51

Warranty 52

What To Do When Service Is Needed 60

Please read IMPORTANT SAFETY INSTRUCTIONS on page 7 before use. Read and understand all instructions.

TO OUR VALUED CUSTOMER

We are very pleased to welcome you to the Panasonic family of products. Thank you for purchasing this product. Our intent is that you become one of our many satisfied customers.

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your vacuum cleaner is intended only for household use. The vacuum cleaner should be stored in a dry, indoor area. Read the Operating Instructions carefully for important use and safety information.

Special care is required when vacuuming certain types of carpet or floor covering. Always check the carpet or floor covering manufacturer's recommended cleaning instructions before vacuuming.

PLEASE PAY CLOSE ATTENTION TO ALL WARNING AND CAUTION STATEMENTS.

WARNING

WARNING statements are designed to alert you to the possibility of personal injury, loss of human life, and/or damage to the vacuum cleaner and/or personal property if the instructions given are not followed.

CAUTION

CAUTION statements are designed to alert you to the possibility of damage to the vacuum cleaner and/or personal property if the instructions given are not followed.

TO AVOID ELECTRICAL SHOCK

Never vacuum damp or wet surfaces or liquids.

DO NOT store vacuum cleaner outdoors.

Replace worn or frayed power cord immediately.

Unplug from outlet when not in use and before servicing.

TO AVOID ACCIDENTS

• Except for hand-held vacuum cleaners, keep vacuum cleaner on floor - not chairs, tables, steps, stairs, etc.
• Store vacuum cleaner promptly after each use to prevent accidents such as tripping over power cord or vacuum cleaner.
• Use vacuum cleaner and accessories only in a manner intended by the manufacturer.
• Do not use an extension cord.
• Do not pull the vacuum cleaner beyond its power cord length. The plug might be damaged which can cause electrical sparking and fire.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions in this manual before assembling or using your vacuum cleaner. When using your vacuum cleaner, basic precautions should always be followed, including the following:

WARNING

To reduce the risk of fire, electrical shock, and injury:

1. Use your vacuum cleaner only as described in this manual. Use only with Panasonic recommended attachments.
2. Disconnect electrical supply before servicing or cleaning out the brush area.
3. Do not leave vacuum cleaner when plugged in. Unplug from outlet when not in use and before servicing.
4. To reduce the risk of electrical shock - Do not use outdoors or on wet surfaces.
5. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
6. Do not use with a damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, return it to a Panasonic Service Center.
7. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
8. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
9. Do not handle plug or vacuum cleaner with wet hands.
10. Do not put any objects into openings.
11. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
12. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs. Do not put on chairs, tables, etc. Keep on floor.
15. Do not use vacuum cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use in areas where they may be present. The fumes from these substances can create a fire hazard or explosion.
16. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
17. Do not use vacuum cleaner without dust cup and/or filters in place.
18. Unplug before connecting air turbine (if applicable).
19. The hose contains electrical wires. DO NOT use when damaged, cut, or punctured. Replace if cut or worn. Avoid picking up sharp objects.
20. Always turn off vacuum cleaner before connecting or disconnecting the hose, Air Turbine (if applicable) or nozzle.
21. Hold plug when rewinding onto cord reel. DO NOT allow plug to whip when rewinding.
22. You are responsible for making sure that your vacuum cleaner is not used by anyone who is unable to operate it properly.

SAVE THESE INSTRUCTIONS

THIS VACUUM CLEANER IS INTENDED FOR HOUSEHOLD USE ONLY

NOTE: Before you plug in your Panasonic vacuum cleaner, make sure that the voltage indicated on the rating plate located at the back of the vacuum cleaner is the same as your local electrical supply.

Power Nozzle and Handle

Handle Poignée Mango Lock Button Bouton de blocage Botón de cierre Handle Quick Release Button Bouton de dégagement rapide de la poignée Botón de liberación rápida del mango Telescoping Wand Tube telescopique Tubo telescópico Wand Length Adjust Button Bouton d'ajustement de longueur du tube Control de extensión ajustable del tubo Wand Button Bouton du tube Botón del tubo Wand Quick Release Pedal Pédale de dégagement rapide du tube Pedal de liberación rápida del tubo Power Nozzle Tête motorisée Power Nozzle

WARNING

Electrical Shock Hazard

Do not plug into the electrical supply until the assembly is complete. Failure to do so could result in electrical shock or injury.

POWER NOZZLE

➢ Insert wand into Power Nozzle until the wand button snaps into place.

To remove:

➢ Press wand quick release pedal and pull wand out of Power Nozzle.

HANDLE

➢ Insert handle into wand until lock button snaps in place.

➢ Be sure hose is not twisted.

To remove:

➢ Press handle quick release button and pull up on handle.

Assemblage

Ensamble

➢ Tilt the canister back.

Align the hose latch tab and notch in canister and insert hose into canister until it snaps in place.

NOTE: The vacuum cleaner will not start unless hose is fully inserted and snapped in place.

To remove:

➢ Press hose latch tab inward and pull out on hose.

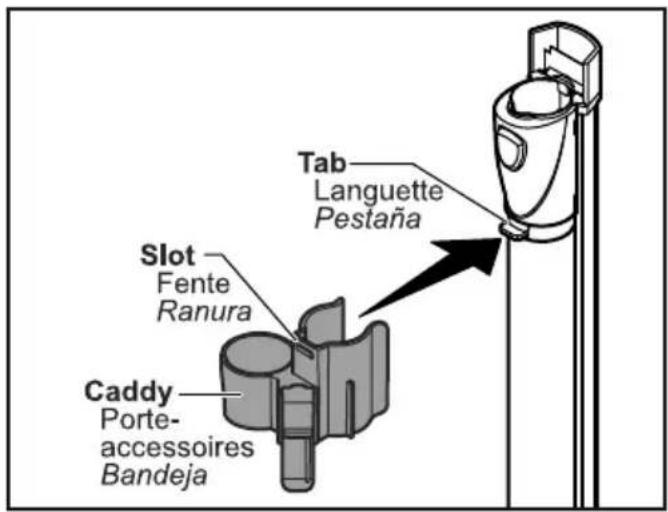

Caddy

Tab Languette Pestaña Slot Fente Ranura Caddy Porte- accessoires Bandeja

Align the tab on the wand with the slot in the caddy.
➢ Press the caddy onto the wand and snap the caddy into place

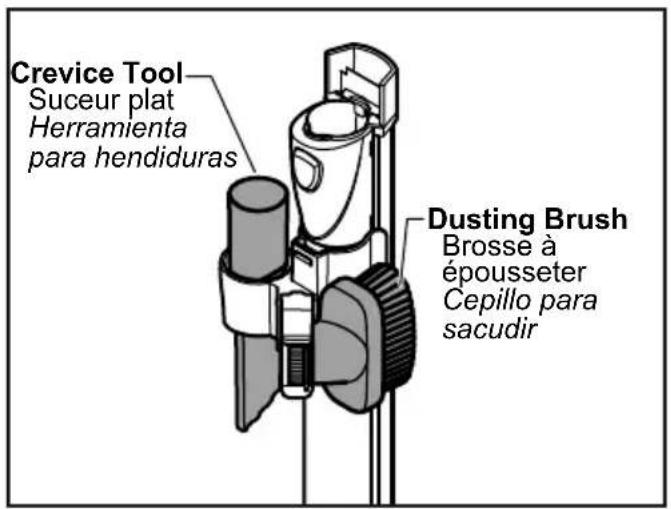

Attachments

Crevice Tool Suceur plat Herramienta para hendiduras Dusting Brush Brosse à épousseter Cepillo para sacudir

➢ Install the crevice tool and dusting brush into the caddy as shown.

Tuyau Manguera

Warning sign with magnifying glass over a device showing no text or symbols

CAUTION

Moving parts! To reduce the risk of personal injury, DO NOT touch the brush when vacuum cleaner is on. Contacting the brush while it is rotating can cut, bruise or cause other injuries. Always unplug from electrical outlet before servicing.

Use caution when operating near children.

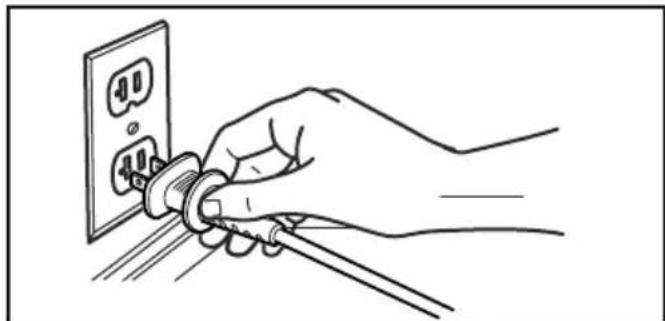

Power Cord

Line drawing of a hand inserting a plug into an electrical outlet (no text or symbols)

NOTE: To reduce the risk of electrical shock, this vacuum cleaner has a polarized plug, one blade is wider than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. DO NOT CHANGE THE PLUG IN ANY WAY. Only use outlets near the floor.

WARNING

Personal Injury and Product Damage Hazard

• DO NOT place hands or feet under the vacuum cleaner at any time.
- DO NOT plug in if switch is in ON position. Personal injury or property damage could result.
- The cord moves rapidly when rewinding. Keep children away and provide a clear path when rewinding the cord to prevent personal injury.
• DO NOT use outlets above counters. Damage from cord to items in surrounding area could occur.
- When any abnormality/failure occurs, stop using the product immediately and disconnect the power plug.

➢ Pull cord out of canister to desired length. The cord will not rewind until the cord rewind button is pushed.
Plug the polarized power cord into a 120 Volt outlet located near the floor.

Line drawing of a hand using a screwdriver to adjust or install a vacuum cleaner's air vent (no text or symbols present)

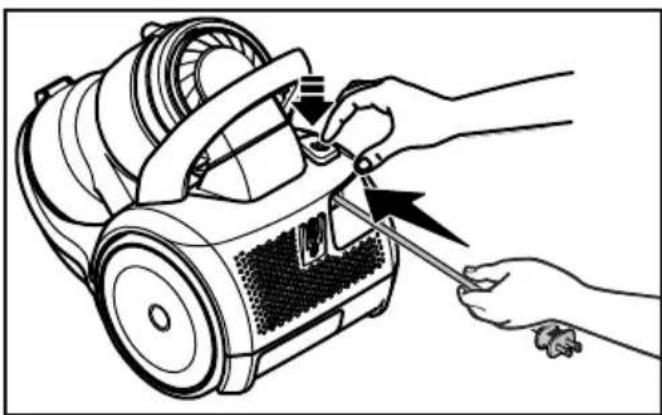

To rewind:

▶ Unplug the vacuum cleaner.
➢ Hold the plug while rewinding to prevent damage or injury from the moving cord.
➢ Push cord rewind button.

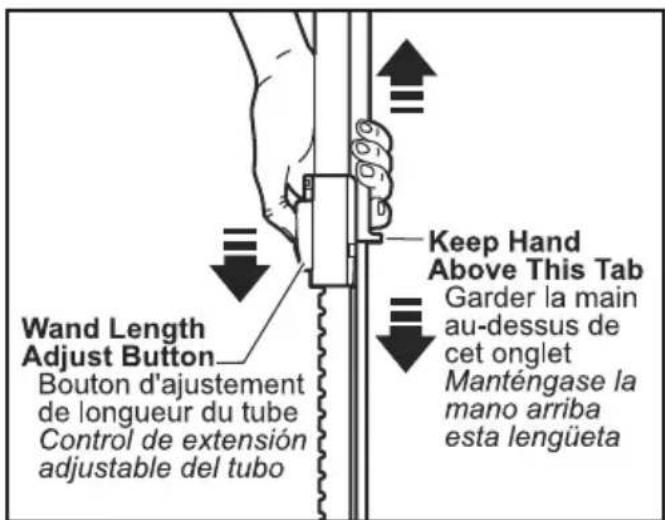

Telescopic Wand Adjustments

Wand Length Adjust Button Bouton d'ajustement de longueur du tube Control de extensión adjustable del tubo Keep Hand Above This Tab Garder la main au-dessus de cet onglet Manténgase la mano arriba esta lengüeta

The wand length is adjustable and requires no assembly.
To adjust, simply push down on the wand adjust button and slide the upper wand to the desired height.
When adjusting the wand length you may have to hold the POWER NOZZLE with your hand or foot.

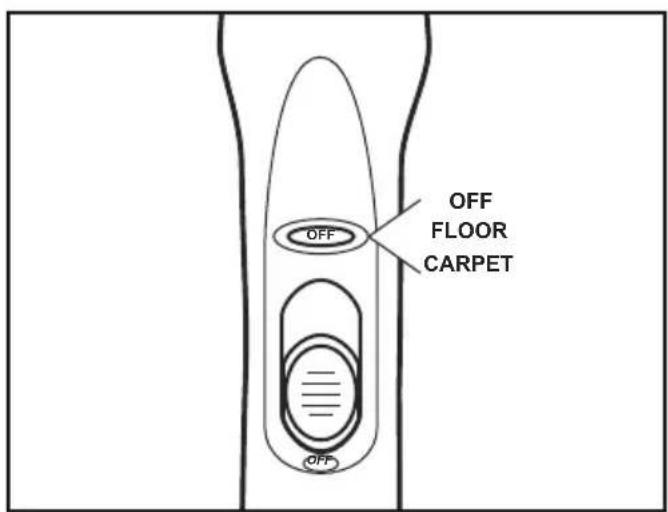

On-Off Switch

OFF FLOOR CARPET

➢ Select a switch position on handle.

OFF
➢ FLOOR - turns on canister motor only. Headlight is off.
CARPET - turns on both canister and Power Nozzle motors. Headlight is on.

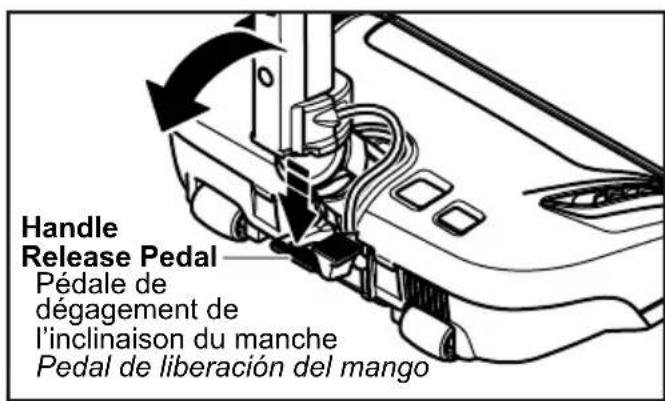

Adjusting the Handle

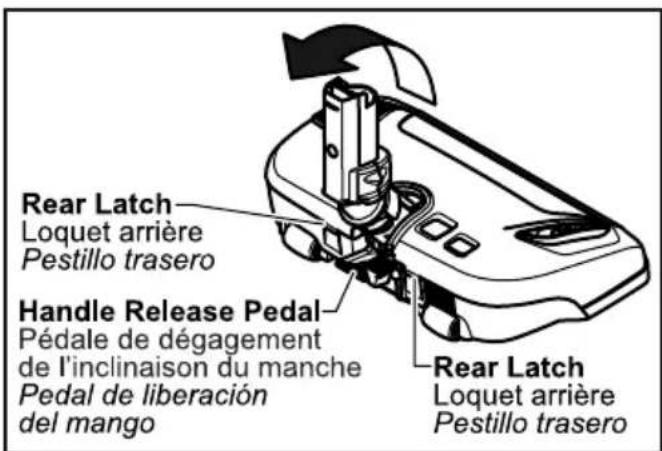

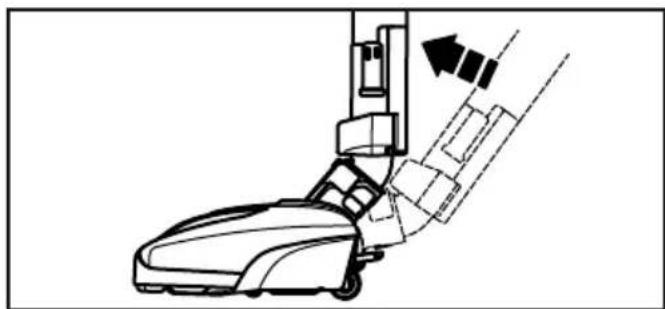

➢ Lower wand from upright position by pressing on the handle release pedal.
Select a pile height setting by pressing the small pedal on the rear of the Power Nozzle. The pile height setting shows on the indicator.

SUGGESTED PILE HEIGHT SETTINGS: For best deep down cleaning, use the XLO setting. However, you may need to raise the height to make some jobs easier, such as scatter rugs and some deep pile carpets, and to prevent the vacuum cleaner from shutting off. Suggested settings are:

HI – Shag, deep pile, super-soft, or ultra-plush carpets, and scatter rugs.

MED – Medium to deep pile.

LO – Low to medium pile.

XLO – Most carpets and bare floors.

Attention: Refer to your carpet manufacturers cleaning recommendations. Some more delicate carpets may require that they be vacuumed with the Power Nozzle agitator turned off to prevent carpet damage.

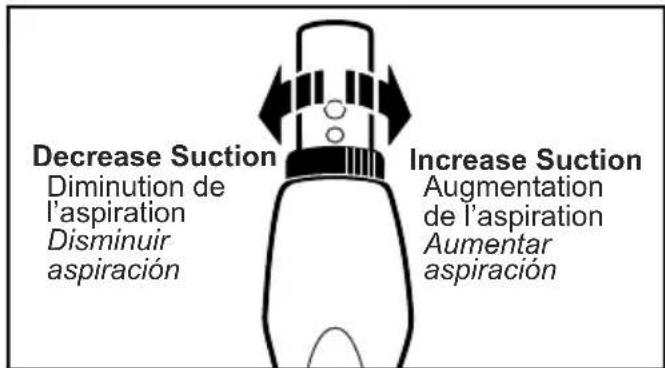

Suction Control

Decrease Suction Diminution de l'aspiration Disminuir aspiración Increase Suction Augmentation de l'aspiration Aumentar aspiración

➢ Suction control allows you to change vacuum cleaner suction for different fabric and carpet weight.
➢ Opening control decreases suction for draperies and lightweight rugs.
➢ Closing control increases suction for upholstery and carpets.

DO NOT attach or remove handle or wand while vacuum cleaner is ON. This could cause sparking and damage the electrical contacts.

ATTACHMENTS ON HANDLE

If the Power Nozzle is attached, turn off and unplug vacuum cleaner before removing handle from wand.
➢ Press handle quick release button and pull up on handle.

Slide attachments firmly on handle as needed.

Technical line drawing of a mechanical device with no visible text or symbols

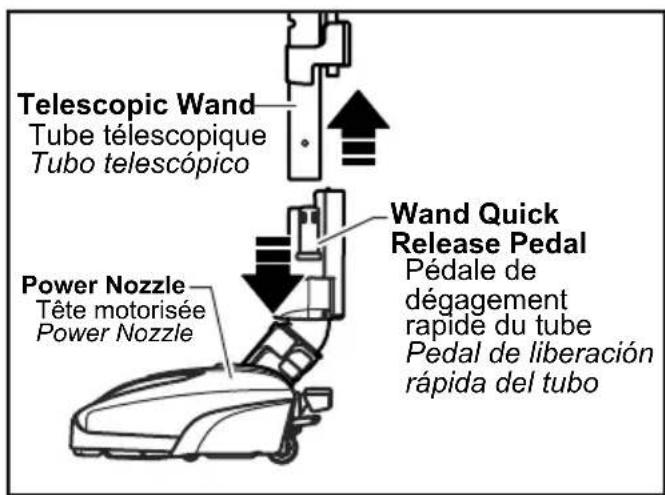

ATTACHMENTS ON WAND

If the Power Nozzle is attached, turn off and unplug vacuum cleaner before removing wand from Power Nozzle.
To remove wands from Power Nozzle, lock wand in straight-up position.

Telescopic Wand Tube télescopique Tubo telescópico Power Nozzle Tête motorisée Power Nozzle Wand Quick Release Pedal Pédale de dégagement rapide du tube Pedal de liberación rápida del tubo

➢ Press wand quick release pedal with foot and pull the wand straight up and out of Power Nozzle.

➢ Put attachments on wand as needed.

Accessoires

ATTENTION

This vacuum cleaner also has a motor protector by-pass valve which prevents motor overheating and damage. The valve opens to provide cooling air when a clog prevents normal air flow to the vacuum cleaner suction motor. You will notice a change of sound as air rushes through the valve opening.

To correct problem: Empty the dust cup and clean the primary filter and pre-filter. Check for and remove clogs, and empty dust cup if necessary. See REMOVING CLOGS (page 28).

NOTE: Do not block motor protector. NOTE: The motor protector may open when using attachments or when cleaning new carpet due to reduced airflow caused by the attachments themselves or by new carpet.

Thermal Protector

This vacuum cleaner has an internal thermal protector which automatically trips to protect the vacuum cleaner from overheating.
If a clog prevents the normal flow of air to the motor, the thermal protector turns the motor off automatically. This allows the motor to cool in order to prevent possible damage to the vacuum cleaner.
➢ Turn the vacuum cleaner off and unplug the power cord from the outlet to allow the vacuum cleaner to cool and the thermal protector to reset.
➢ Check for and remove clogs, if necessary (See REMOVING CLOGS p. 28). Also check and replace any clogged filters and empty dust cup, if necessary.
➢ Wait approximately fifty (50) minutes and then plug the vacuum cleaner in and turn back on to see if the motor protector has reset.

TO CORRECT PROBLEM:

The overload protector stops the Power Nozzle motor when the brush jams and prevents belt breakage.

NOTE: Canister motor will continue to run.

TO CORRECT PROBLEM:

▶ Unplug electrical cord.

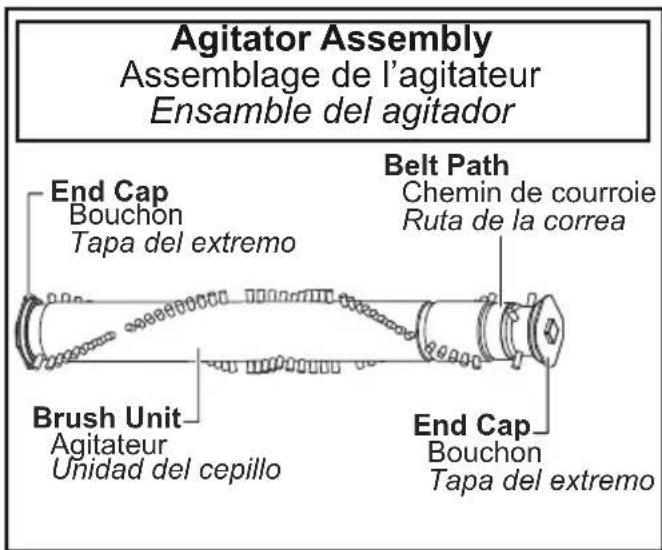

➢ Check brush and brush support areas for excessive lint build-up or jamming.

Clean jammed area.

TO RESET:

➢ Press the belt reset button on top of the Power Nozzle. Plug in and turn on vacuum cleaner.

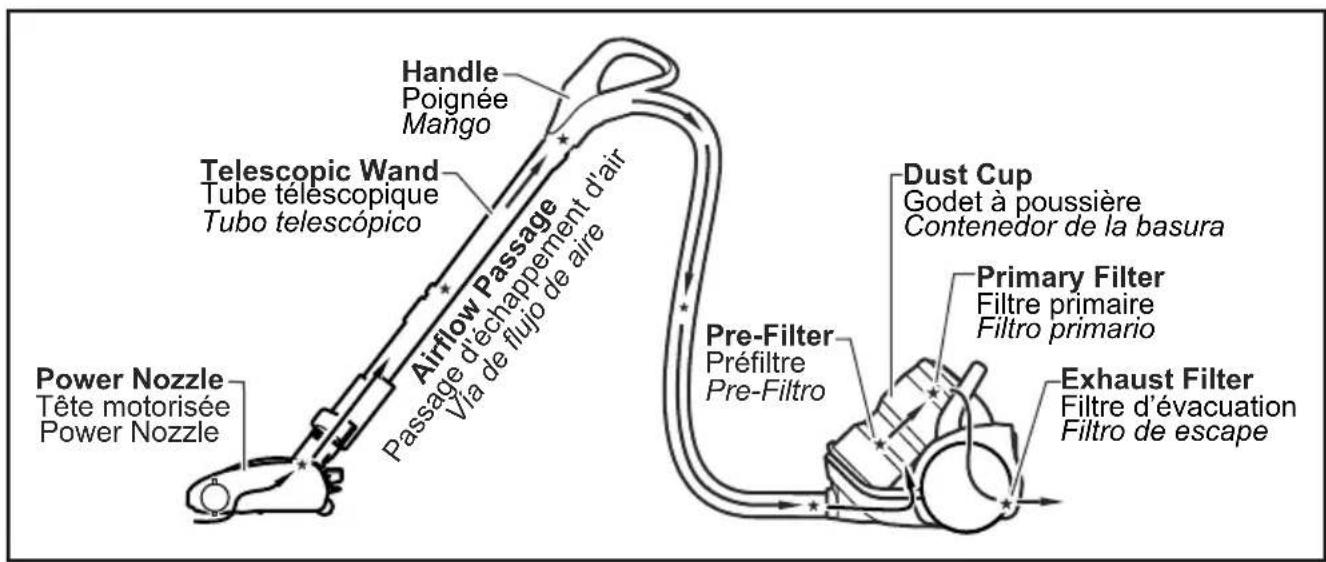

The vacuum cleaner creates suction that picks up dirt. Rapidly moving air carries the dirt to the dust cup through the airflow passages. The dust cup lets the air pass through, while it traps the dirt.

For best cleaning results, keep the airflow passage open. Check the starred areas occasionally for clogs. Turn off and unplug vacuum cleaner from outlet before checking.

Cleaning Exterior and Tools

➢ Unplug cord from wall outlet.
Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water and wrung dry.
➢ DO NOT drip water on vacuum cleaner. Wipe dry after cleaning.
➢ DO NOT clean tools in dishwasher or clothes washer.
➢ Wash tools in warm soapy water, rinse and air dry.
➢ DO NOT use tools if they are wet.

Always empty the dust cup before the dirt level reaches the "MAX" line.

➢ Turn off and unplug vacuum cleaner.

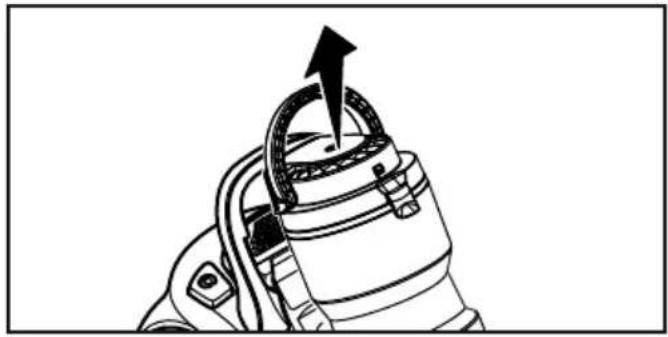

➢ Lift dust cup handle located at the top of the dust cup.
➢ Pull the handle up and lift dust cup up and out of the vacuum cleaner.
➢ Remove any clogs that might be located in the suction port or filter port area.
➢ Rotate dust cup handle to the vertical position.
➢ Hold dust cup over a trash container.

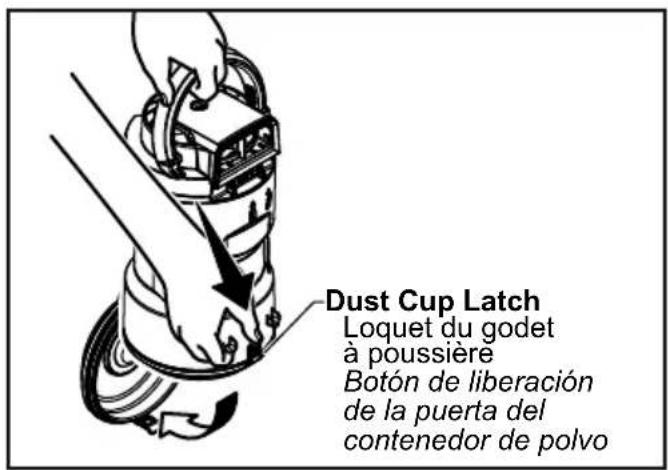

➢ Press the dust cup latch slightly outwards and downward to release the door.
The door will swing open and the debris will fall into the trash container.
➢ Shake the dust cup to release any debris that might hang in the pre-filter.
➢ After the dust cup is empty of debris, firmly close the door. Make sure you hear a “click” sound to indicate that the door is fully latched.

Technical line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

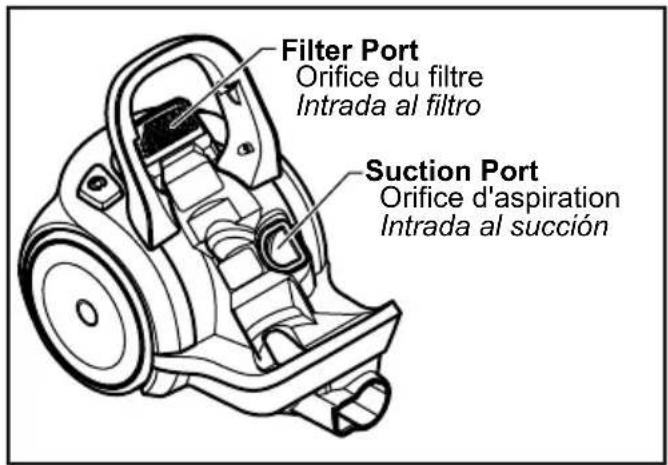

Filter Port Orifice du filtre Intrada al filtro Suction Port Orifice d'aspiration Intrada al succión

Dust Cup Latch Loquet du godet à poussière Botón de liberación de la puerta del contenedor de polvo

Illustration of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

Godet à poussière

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and directional arrows.

TO REPLACE DUST CUP

➢ Place dust cup back into vacuum cleaner by ① inserting the bottom first and ② tilting back with the dust cup handle raised.

Line drawing of a hand pressing down on a mechanical device with an arrow indicating force (no text or symbols)

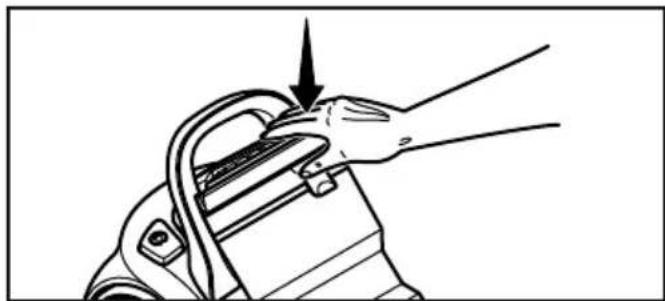

➢ Lower the dust cup handle to lock dust cup in place. A noticeable “click” should be heard.

Pre-Filter

The pre-filter is located inside the dust cup. Check the pre-filter frequently and clean when dirty.

➢ Remove the dust cup. (see DUST CUP, p. 30).

Make sure the dust cup is empty.

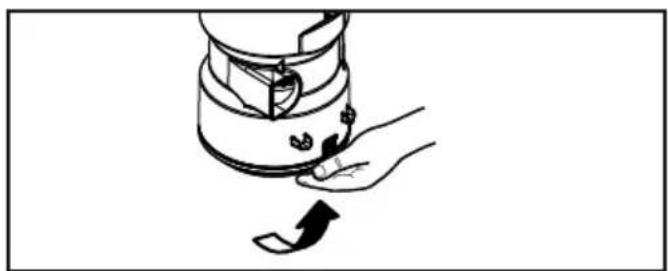

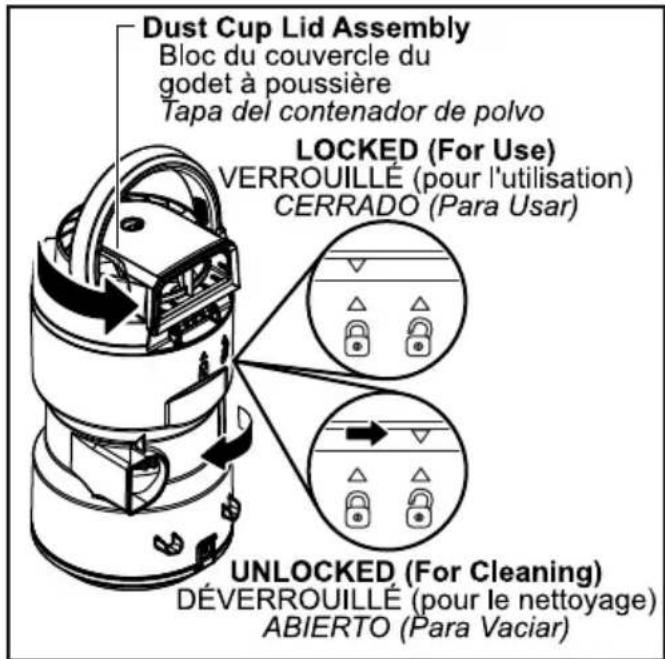

➢ Rotate dust cup lid assembly counterclockwise as indicated on the lid and lift off.

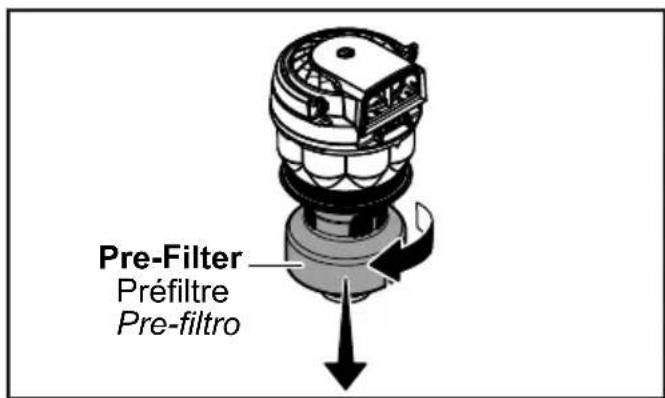

➢ Grasp pre-filter and rotate counterclockwise to remove.
Clean pre-filter by gently tapping over a trash container. Tap on several sides to ensure best cleaning.
If necessary, rinse with cold water only, DO NOT use detergent or soap. Allow parts to dry 24 hours before putting back into vacuum cleaner.
➢ DO NOT wash in the dishwasher. DO NOT install damp.

Pre-Filter Préfiltre Pre-filtro

Align the slots on the pre-filter with the alignment tabs inside dust cup lid assembly.
➢ Rotate pre-filter clockwise to lock in place.
➢ Replace the lower portion of the dust cup by aligning marks as shown, UNLOCKED (For Cleaning).
Rotate while pressing downward until marks align as shown; LOCKED (For Use).
➢ Reinstall the dust cup. (See DUST CUP, p. 30)

Latch Loquet Cierre

The primary filter is located inside the dust cup lid.

It is recommended to clean the primary filter with cold water at least every (1) month. Check the primary filter frequently and clean when dirty.

NOTE: When the cleaning of the filter no longer restores vacuum cleaner suction to full power, replace the filter. See CONSUMABLE PARTS (page 11) for filter number.

➢ Remove dust cup. (See DUST CUP, p. 30).
➢ Pull the dust cup lid latch and open the lid.
➢ Remove the primary filter.
Wash with cold water only, DO NOT use detergent or soap. Squeeze by hand and allow to air dry. Allow parts to dry 24 hours before putting back into vacuum cleaner.

DO NOT operate without primary filter installed. DO NOT wash in the dishwasher. DO NOT install damp.

To Reinstall:

➢ Place the primary filter into the dust cup lid.

Close the dust cup lid. Be sure the lid snaps in place. A noticeable "click" should be heard.
➢ Reinstall the dust cup. (See DUST CUP, p. 30)

Filtre primaire (lavable)

Exhaust Filter Changing

Exhaust Filter Tray Plateau du filtre d'évacuation Bandeja del filtro

WARNING

Fire and/or Electrical Shock Hazard Do not operate with a clogged exhaust filter or without the exhaust filter or exhaust filter tray installed.

HEPA MEDIA EXHAUST FILTER

The exhaust filter cartridge must be replaced when dirty. Replace the filter when the entire surface area is covered evenly. The filter CANNOT be washed as it will lose its dust trapping ability.

NOTE: See CONSUMABLE PARTS (page 11) for Exhaust Filter number.

Diagram showing a component being lifted into a housing, with no visible text or symbols

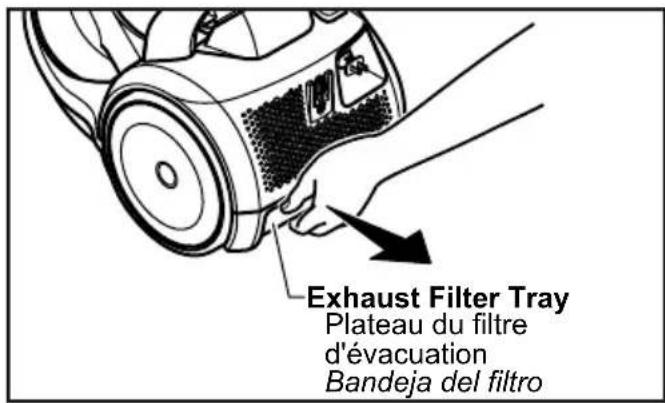

➢ Pull out and up on the exhaust filter tray to remove from the canister.

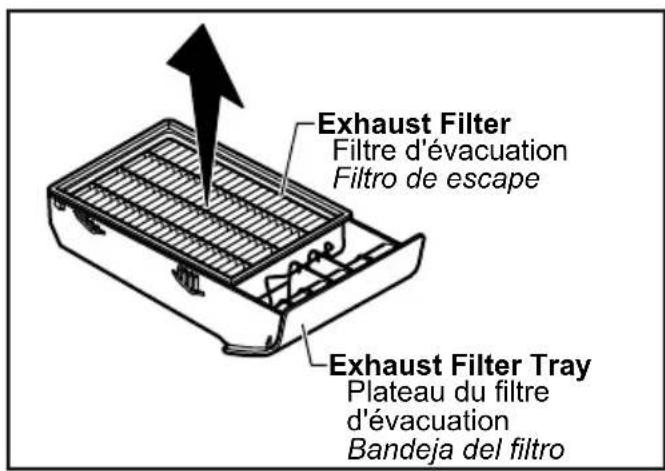

➢ Remove exhaust filter from filter tray and dispose.

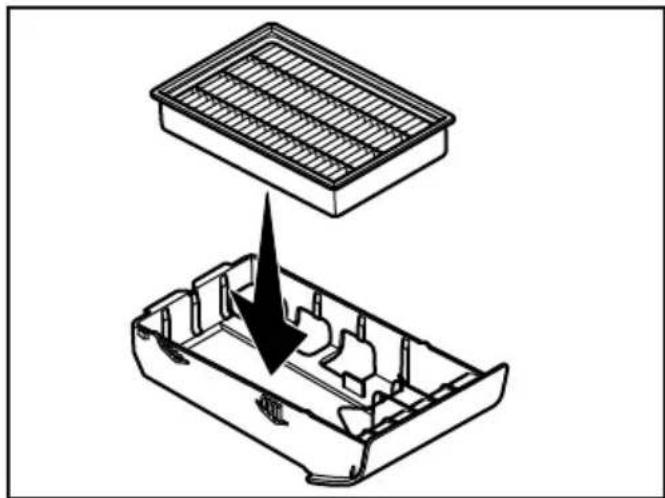

➢ Replace exhaust filter cartridge. Place the new filter cartridge into the exhaust filter tray as shown.

Diagram of a vacuum cleaner with a component inserted into a rack (no text or symbols)

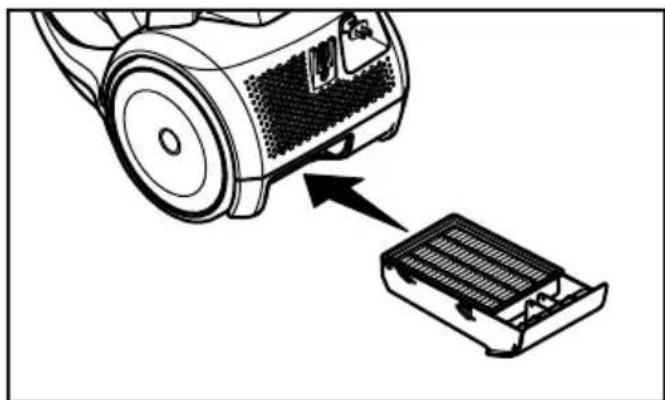

➢ Reinstall the exhaust filter tray. Press into place until it snaps closed.

Filtre d'évacuation

AVERTISSEMENT

Line drawing of a handheld electronic device with a lever and ports (no text or symbols)

Always follow all safety precautions before performing maintenance to the POWER NOZZLE.

WARNING

Electrical Shock or Personal Injury Hazard.

Disconnect the electrical supply before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting.

Belt Changing

Technical line drawing of a vehicle chassis with internal components and suspension systems (no text or labels)

TO REMOVE BELT

➢ Turn Power Nozzle upside down.

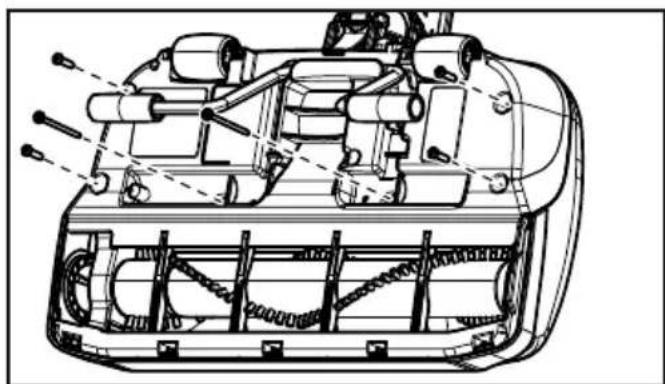

Unscrew six (6) Power Nozzle cover screws.

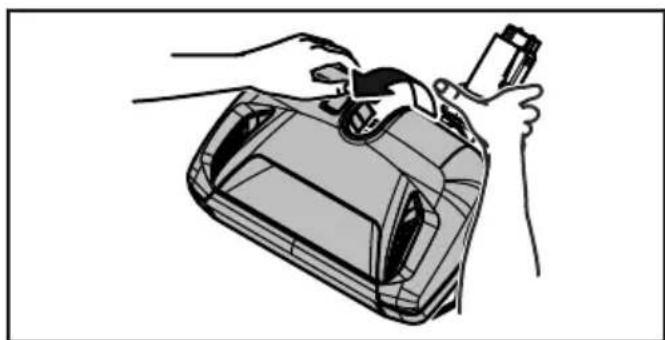

➢ Turn Power Nozzle right side up. Press handle release pedal and lower the swivel. Lift rear latches up.

Rear Latch Loquet arrière Pestillo trasero Handle Release Pedal- Pédale de dégagement de l'inclinaison du manche Pedal de liberación del mango Rear Latch Loquet arrière Pestillo trasero

To remove cover, grasp the rear and pull up.

Line drawing of a hand holding a device next to a device casing (no text or symbols)

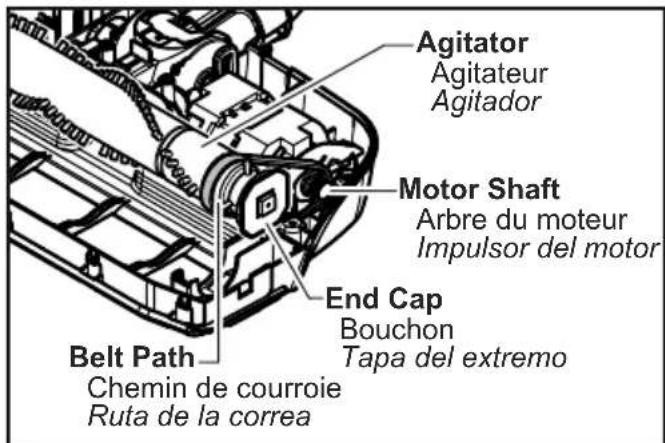

➢ Lift agitator assembly out and remove worn belt.

Clean agitator and the end caps (see AGITATOR CLEANING, p. 44).

Agitator Agitateur Agitador Motor Shaft Arbre du moteur Impulsor del motor End Cap Bouchon Tapa del extremo Belt Path Chemin de courroie Ruta de la correa

TO REPLACE BELT

➢ Install new belt in belt path on the agitator assembly, then over the motor shaft. (See CONSUMABLE PARTS for belt number, p. 11)

Mechanical assembly diagram showing internal components and a hand holding a device (no text or symbols visible)

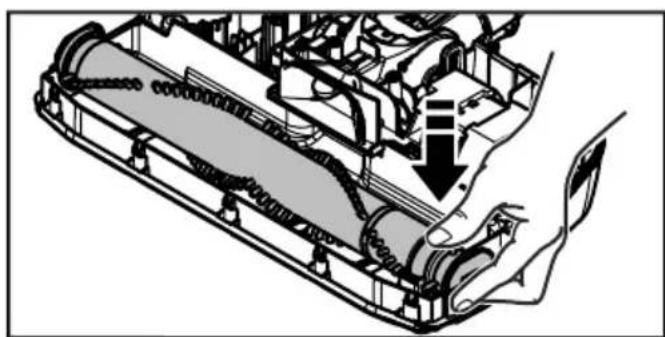

➢ Place agitator assembly into Power Nozzle.

➢ Reinstall agitator cover. Make sure there is no gap between the agitator cover and base.

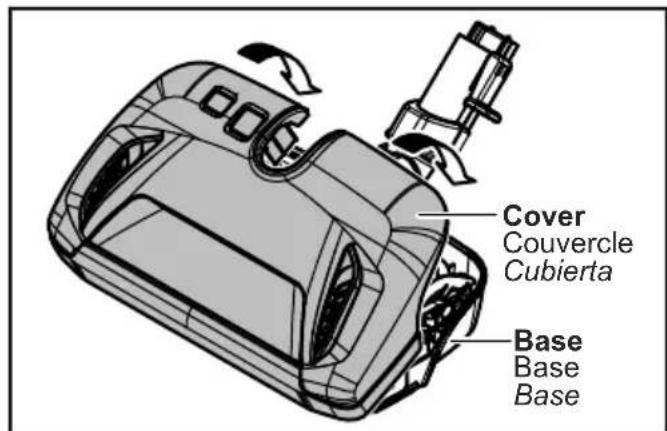

Cover Couvercle Cubierta Base Base Base

➢ Line up front of cover and base. Rest cover on front edge of base as shown.

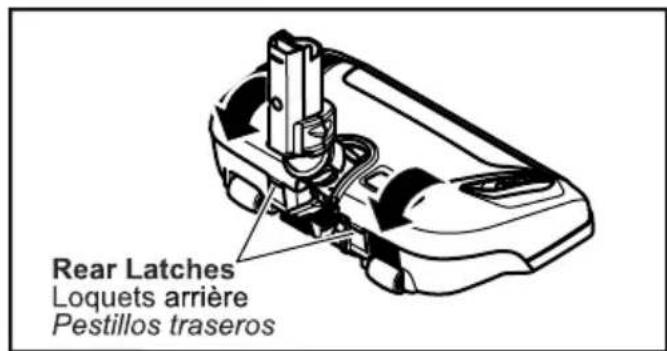

Rotate cover back. Press cover firmly until rear latches snap into place.

➢ Make sure there is no gap between the cover and base.

➢ Turn Power Nozzle upside down and replace six (6) cover screws.

Rear Latches Loquets arrière Pestillos traseros

Agitator Cleaning

Agitator Assembly Assemblage de l'agitateur Ensamble del agitador End Cap Bouchon Tapa del extremo Brush Unit Agitateur Unidad del cepillo Belt Path Chemin de courroie Ruta de la correa End Cap Bouchon Tapa del extremo

NOTE: In order to keep cleaning efficiency high and to prevent damage to your vacuum cleaner, the agitator must be cleaned every time the belt is changed.

➢ Check and remove hair, string and lint build-up frequently in the Power Nozzle agitator and end cap areas.

➢ Remove any dirt or debris in the belt path area or in the brush unit area.

Carefully remove any string or debris located on the agitator or end caps.

Technical line drawing of a mechanical device with hands operating it (no text or symbols present)

Remove POWER NOZZLE cover.
➢ Remove the light bulb by pulling straight out.
To replace the light bulb, carefully insert fully into slot.
➢ Only use a bulb rated 13V AC-9 Watts.
➢ Replace POWER NOZZLE cover.

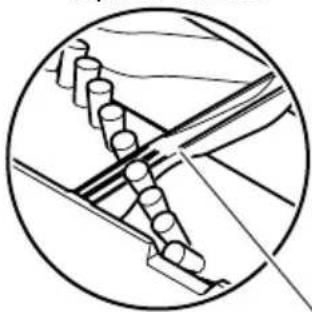

Brush Servicing

New Brushes
Nouvelles brosses Cepillos Nuevos

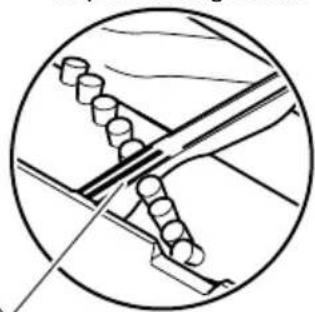

Worn Brushes
Brosses usées Cepillos desgastado

Diagram of a mechanical or electrical component with cylindrical elements and intersecting lines, enclosed in a circular frame (no text or symbols)

Pure electrical circuit lines without any symbols

Base Support Bars
Barres de support de la base Barra de soporte de la base

TO CHECK BRUSHES:

When brushes are worn to the level of the base support bar, replace the agitator. (see WHAT TO DO WHEN SERVICE IS NEEDED, p. 60)
To replace agitator assembly see BELT CHANGING, p. 40.

WARNING Electric Shock or Personal Injury Hazard.

Disconnect the electrical supply before performing maintenance to the vacuum cleaner. Failure to do so could result in electric shock or personal injury from vacuum cleaner suddenly starting.

Review this chart to find do-it-yourself solutions for minor performance problems. Any service needed, other than those described in these Operating Instructions, should be performed by an authorized service representative.

PROBLEMVacuum cleaner won't start.	POSSIBLE CAUSE1. Unplugged at wall outlet.2. Tripped circuit breaker/blown fuse at household panel3. Hose not inserted fully into canister.	POSSIBLE SOLUTION1. Plug in firmly, move switch to FLOOR or CARPET position.2. Reset circuit breaker or replace fuse.3. Check connection, reconnect hose.
Poor job of dirt pick-up.	Full or clogged dust cup.Clogged airflow passages.Dirty filters.Wrong pile height setting.Suction control is open.Hole in hose.Worn Power Nozzle agitator.Worn or broken belt.Dirty agitator or end caps.Dust cup installed incorrectly.Dust cup lid and dust cup missembled	Empty and clean dust cup.Clear airflow passages.Change filters.Adjust setting.Adjust control.Replace hose.Change agitator.See BELT CHANGING.See AGITATOR CLEANING.See DUST CUPSee PRE-FILTER
Vacuum cleaner starts but shuts off.	Hose electrical connection.Tripped overload protector in Power Nozzle.Tripped thermal protector in canister.	Check connections, reconnect hose.Reset overload protector.Reset thermal protector.
Power Nozzle will not run when attached.	Power Nozzle connections unplugged.Worn or broken belt.Dirty agitator or end caps.Tripped overload protector in Power Nozzle.Switch not in CARPET position.	Plug in firmly.See BELT CHANGING.See AGITATOR CLEANING.Reset overload protector.Move switch to CARPET position.
Vacuum cleaner picks up moveable rugs-or- Power Nozzle pushes too hard.	Wrong pile height setting.Suction too strong.	Adjust setting.Open suction control.
Light won't work.	Burned out light bulb.Tripped overload protector in Power Nozzle.	Change light bulb.Reset overload protector.
Cord won't rewind.	Dirty power cord.Cord jammed.	Clean the power cord.Pull out cord and rewind.

Guide de dépannage

Limited Warranty (Only For U.S.A.)

Panasonic Products Limited Warranty

Limited Warranty Coverage (For USA Only)

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Corporation (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Product or Part Name Parts	Labor Motor
VACUUM 1 years 1 years 1 years

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts.

This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold “as is”.

Carry-In or Mail in Service:

To find a service center please visit: http://www.panasonic.com/support

When shipping the unit, carefully pack and send it in the original (or supplied) carton. Include a letter detailing the complaint along with the bill of sales and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.

When shipping Lithium Ion batteries please visit our web site at www.panasonic.com/BatteryHandling as Panasonic is committed to providing the most up to date information.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER glass, plastic parts, temperature probes (if included) and normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, maladjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Service center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.

THE WARRANTYOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:

Consumer Affairs Department

Panasonic Consumer Marketing Company

661 Independence Pkwy

Chesapeake, VA 23320

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Shop

Accessories!

for all your Panasonic gear

Go to

www.panasonic.com/accessories

Get everything you need to get the most out of your Panasonic products

Accessories & Parts for your Camera,

Phone, A/V products, TV, Computers &

Networking, Personal Care, Home

Appliances, Headphones, Batteries, Backup

Chargers & more...

Customer Services Directory

For Product Information, Operating

Assistance, Parts, Owner's Manuals, Dealer

and Service info go to

www.panasonic.com/support

For the hearing or speech impaired

TTY: 1 877 833 8855

WARRANTY

Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

EXCHANGE PROGRAM

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Vacuum Cleaner

One (1) year

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold "as is", and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.

Parts such as disposable dust bags, filters, belts, light bulbs and agitator brushes are not covered by this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

CONTACT INFORMATION

For product information and operation assistance, please visit our Support page: www.panasonic.ca/english/support

For defective product exchange within the warranty period, please contact the original dealer.

Garantie

Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

PRODUIT PANASONIC - GARANTIE LIMITÉE

PROGRAMME D'ÉCHANGE

Consumer Affairs Department

Panasonic Consumer Marketing Company

661 Independence Pkwy

Chesapeake, VA 23320

PARTES Y SERVICIOS QUE NO ESTAN CUBIERTO POR ESTA GARANTIA LIMITADA, SON SU RESPONSABILIDAD.

If your Panasonic Vacuum Cleaner needs service, look in the yellow pages of the telephone book under HOME APPLIANCE SERVICE for your nearest Panasonic Corporation of North America authorized service center, or call, 1-800-211-PANA (7262) toll free to find a convenient servicenter. DO NOT send the product to the Executive or Regional Sales offices. They are NOT equipped to make repairs.

If you ship the product

Carefully pack and send it prepaid, adequately insured and preferably in the original carton. Attach a postage-paid letter to the outside of the carton, which contains a description of your complaint. DO NOT send the product to the Executive or Regional Sales Offices. They are NOT equipped to make repairs.

PANASONIC CORPORATION OF NORTH AMERICA

Two Riverfront Plaza

Newark, NJ 07102

World Wide Web Address

http://www.panasonic.com/repair

What to do when service is needed / Service après-vente (Canada)

For product information and operation assistance, please visit our Support page: www.panasonic.ca/english/support

For defective product exchange within the warranty period, please contact the original dealer.

Two Riverfront Plaza

Newark, NJ 07102

World Wide Web Address

http://www.panasonic.com/repair
