Product type	Electrolytic chlorinator for pool
Brand	Bestway
Model	Flowclear 58774
Maximum chlorine production	12 g/h
Compatible pump flow rate range	1.25 to 11.35 m³/h
Recommended salt concentration	3 g/L (3000 ppm)
Water temperature	10 to 36 °C
Ambient temperature	5 to 45 °C
Maximum water capacity	56,775 L
Power supply	220-240 V ~ 50/60 Hz with grounding
Safety device	Integrated ground fault circuit breaker, overload protection
Main functions	Automatic chlorination, programmable timer (1-12 h), salt concentration indication, water flow detection
Locking system	Automatic lock after 1 minute of inactivity
Digital display	Operating time, remaining time, error codes
LED indicators	Red (salt too high), Green (salt optimal), Yellow (salt low), Red (insufficient flow)
Materials	ABS plastic, titanium electrodes
Dimensions (approx.)	30 x 20 x 20 cm
Weight (approx.)	2.5 kg
Maintenance	Monthly cleaning of electrodes with a 50% water/vinegar solution
Available spare parts	Electrolytic cell, flow sensor, power cord
Warranty	2 years (see Bestway website for conditions)

Frequently Asked Questions - Flowclear 58774 BESTWAY

How to install the Flowclear 58774 chlorinator?

Install the chlorinator last on the return circuit of the filtration pump, after the filter. Secure it on a solid base (concrete or wood) of at least 18 kg. Make sure the hose connections are tight and that the flow direction is respected.

How much salt should I add to my pool?

The recommended concentration is 3 g/L (3000 ppm). Use 99.8% pure sodium chloride. Refer to the quantity table in the manual: for example, for 7570 L, add 23 kg of salt. If error code E1 appears, add 8 kg for 7570 L.

What does error code E1 on the display mean?

Code E1 indicates too low salt concentration or dirt on the electrolytic cell. Add salt according to the table or clean the cell. Also check the cell cord connections.

What does error code E2 mean?

Code E2 indicates too high salt concentration. Drain about 20% of the pool water and refill with fresh water. Wait 1 hour and repeat if necessary until the error disappears.

How to clean the electrolytic cell?

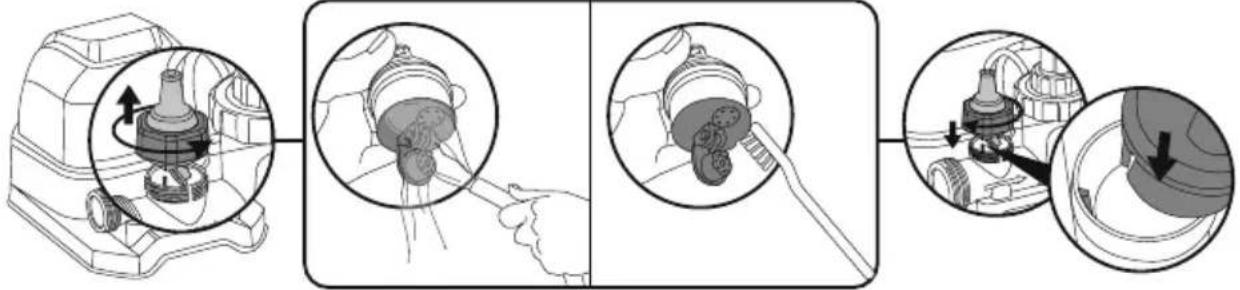

Disassemble the cell and immerse it in a solution of 50% water and 50% white vinegar for a few hours. Rinse thoroughly with clean water before reassembling. Perform this cleaning monthly.

Why is the water flow indicator red?

The red light indicates insufficient or no water flow. Check that the filtration pump is running, the valves are open, the filter and cell are clean, and the flow sensor is not blocked.

How to set the chlorinator timer?

Press the timer button briefly to set the operating time (from 1 to 12 hours). Hold the button for 3 seconds to lock/unlock. The cycle repeats automatically every day at the same time.

Can I use an extension cord with this chlorinator?

No, never use an extension cord. Plug the device directly into a grounded outlet protected by a ground fault circuit interrupter (GFCI). Place the outlet more than 1.8 m from the pool.

What is the ideal water temperature for operation?

The water temperature must be between 10 °C and 36 °C. Below or above, the chlorinator's efficiency may be reduced.

Where to find spare parts for the Flowclear 58774?

Go to the bestwaycorp.com/support website or contact Bestway customer service. Available parts include the electrolytic cell, flow sensor, and power cord.

USER MANUAL Flowclear 58774 BESTWAY

bestwaycorp.com/support ?

©2023 Bestway Inflatables & Material Corp.

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati

Trademarks used in some countries under license from/

Manufactured, distributed and represented in the European Union by/

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia

Tel: Australia: ([phone]; New Zealand: 0800 142 101

Distributed in United Kingdom by Bestway Corp UK Ltd. 8 Wentworth Road, Heathfield Industrial Estate, Newton Abbot, Devon, TQ12 6TL

Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited

Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

www.bestwaycorp.com

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

OWNER'S MANUAL

58774 Chlorinator

YouTube

Visit the Bestway YouTube channel

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS.

Carefully read, understand, and follow all information in this user manual before installing and using the Chlorinator. These warnings, instructions, and safety guidelines address some common risks, but they cannot cover all risks and dangers in all cases. Always use caution, common sense and good judgment when using the Chlorinator. Retain this information for future use. In addition, the following information can vary depending on the Chlorinator type. Keep the instruction manual in a safe place. If instructions are missing, please contact the manufacturer or search it on the website www.bestwaycorp.com.

TECHNICAL INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:

READ AND FOLLOW ALL INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF INJURY, do not permit children to use this product unless they are closely supervised at all times.

WARNING - RISK OF ELECTRIC SHOCK. Connect only to a grounding type receptacle. This product is provided with a ground-fault

circuit-interrupter. If replacement of the plug is needed, use only identical replacement parts.

CAUTION - To reduce the risk of electric shock the pool must be installed no closer than 6 feet (1.8 m) from any electrical outlet. Do not place portable appliances closer than 5 feet (1.5 m) from the pool.

WARNING: This product is not intended to be bonded to the equipotential bonding grid.

DO NOT BURY CORD. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.

WARNING - To reduce the risk of electric shock, replace damaged cord immediately.

WARNING - To reduce the risk of electric shock, do not use extension cord to connect unit to electric supply; provide a properly located outlet.

CAUTION - This product is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.

CAUTION - For continued protection against possible electric shock this unit is to be mounted to the base in accordance with the installation instructions.

CSA ENCLOSURE 3

FOR USE WITH SWIMMING POOLS ONLY.

CAUTION: TO ENSURE CONTINUED PROTECTION AGAINST SHOCK HAZARD, USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING.

WARNING: RISK OF ELECTRIC SHOCK. CONNECT ONLY TO A GROUNDING TYPE RECEPTACLE.

CAUTION: THIS PRODUCT IS FOR USE WITH STORABLE POOLS ONLY - DO NOT USE WITH PERMANENTLY-INSTALLED POOLS.

CAUTION: CONNECT ONLY TO GROUNDING TYPE RECEPTACLE PROTECTED BY A CLASS A GROUND FAULT CIRCUIT INTERRUPTER.

WARNING - RISK OF ELECTROCUTION

1) Connect only to properly grounded outlet. Do not remove ground pin.

2) Inspect cord before using - Do not use if the cord is damaged.

3) Keep Ground-Fault Circuit-Interrupter dry and off the ground.

4) Do not touch the plug with wet hands.

5) Double insulated – when servicing use only identical replacement parts.

6) Read instruction manual before using

DO NOT REMOVE THIS TAG

SAVE THESE INSTRUCTIONS.

• When working with electricity, turn the electrical power off at the circuit breaker and lock breaker door. Failure to do so will result in increased risk of shock, injury and possibly death.
  • DO NOT REMOVE THE GROUNDING PRONG OR MODIFY THE PLUG IN ANY WAY. DO NOT USE ADAPTOR PLUGS.
• Consult a qualified electrician for any questions related to the validity of your plugs grounding. Handle this product with care. Do not pull or carry this product by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to this product.
• Examine equipment before use. Notify Bestway at the customer service address listed on this manual for any manufacturing defect or missing parts at the time of purchase. Verify that the equipment components represent this product model that you had intended to purchase.
• Place this product on a solid and level ground. Pay attention to position of pool and this product, so adequate ventilation, drainage, and access for cleaning is available.
• Never place this product in an area that may accumulate water, or in an area where foot traffic will flow around the pool.
  • Atmospheric conditions may affect the performance and life span of this product.
• Unnecessary wear and tear may occur during periods of cold, heat and exposure to sun.
• Whenever possible shelter this product from these conditions. Assembly and disassembly of this product should only be performed by adults.

SETUP

CHECK LIST

To check the parts list inside the manual. Verify that the equipment components represent the model that you had intended to purchase. In case of any damaged or missing parts at the time of purchase, visit our website bestwaycorp.com/support. Drawings are for illustration purposes only. May not reflect actual product. Not to scale.

PRODUCT SPECIFICATIONS

Maximum chlorine production per hour:	12 g/h
Sand filter/Filter pump flow range:	330-3000 gal/h
Salt concentration:	3000 ppm (3 g/L)
Water temperature:	10-36°C
Ambient temperature:	5-45°C
Compatible with max water capacity:	15000 gal (56775 L)

RECOMMENDATIONS BEFORE INSTALLATION

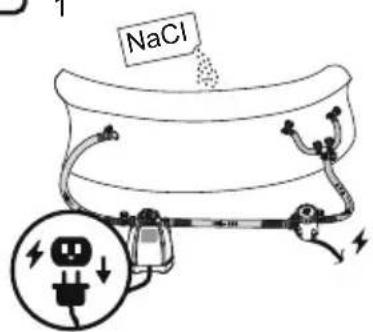

• The chlorinator must be installed at the last position of the water circulation pipe (down the direction of the water flow) as shown in "1a, 1b, 1c and 1d".
• Only use sodium chloride (NaCl) salt with a purity of at least 99.8% to fully dissolve it.
• Too low salt purity will reduce the efficiency of the chlorinator and result in low chlorine production. High salt purity may produce a salty taste to the pool water and it may cause corrosion to metal fixtures and fittings in the pool.
• The "Pool Salt Table" shows the correct amount of salt required. Refer to the different quantity of water. The salt in the pool will not automatically decrease.
• Only when the pool water is lost will the salt in the water decrease, and the evaporation of water will not cause the salt to decrease.

Pool Salt Table
Pool capacity		The amount of salt added for the first time 3.0 g/L (3000 ppm)		Display code "E1" the amount of salt that needs to be added
(gal)	(l)	(lb)	(kg)	(lb)	(kg)
2000	7570	50	23	17	8
4000	15140	100	45	33	15
6000	22710	150	68	50	23
8000	30280	200	91	66	30
10000	37850	250	114	83	38
12000	45420	300	136	100	45
14000	52990	350	159	116	53
15000	56775	375	170	125	57

If the device shows error E2, it is necessary to reduce the salt concentration: Drain about 20% of the pool water, and then refill with clean water. Wait 1 hour, and if the error still remains, repeat the operation until the E2 error disappears. In case the quantity of water of your pool is not listed in the "pool salt table", follow the below formula to calculate the correct quantity of salt to add to the pool to reach the 3000~ppm of salt concentration, or in case the E1 error appears on the display.

The amount of salt added for the first time:		The amount of salt that needs to be added if the "E1" error code displays:
(lb)Water capacity(gal)*0.025	(kg)Water capacity(l)*0.003	(lb)Water capacity(gal)*0.0084	(kg)Water capacity(l)*0.001

USING THE CHLORINATOR

	Code number	Icon Name	Illustrate

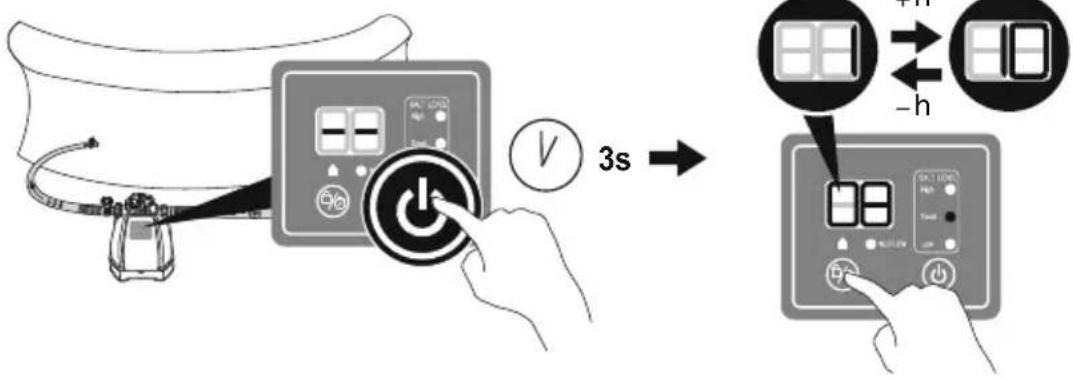

	1	[S425]	Power button Press and hold for 3s to turn on/off the chlorinator
	2	[S43Z]	Timer button Press and hold for 3s to lock/unlock, and press quickly to adjust working time
	3		Lock indicator When the lock indicator is unlit, the product is unlocked. If no button is pressed, the product will automatically lock after 1 minute and the Lock indicator will turn red.
	4		Salt concentration indicator Red: The salt concentration is too high, part of the salt should be removed from the pool water. Display shows: E2; Green: The salt concentration is at the optimal level; Yellow: The salt concentration is too low and salt needs to be added to the pool water. Display shows: E1.
	5		Water flow status indicator Shows red, no water flow or insufficient water flow
	6		Digital Display Displays running time/remaining time/fault code Power-on state/standby mode

Standby mode: At the end of the cycle, the display shows "00". At this time, the chlorinator will automatically enter the standby mode. The day after, approximately at the same time, it will automatically run again. If you unplug the Chlorinator, connect the plug the next day, and press the power button, the chlorinator will work according to the working hours set the previous day.

Recommended Pool Working Time Set Table
1. This table shows the recommended working hours for the normal maintenance of the chlorinator connected to the pool.2. For cleaning the pool, please run it at 1.5-2 times the time shown in the table for the first use, and run it according to the normal working hours once the chlorine level is reached.3. On the first use or if the water in the pool is dirty, run the chlorinator until the level of chlorine is correct or the water is clean. Refer to the working time shown in the table below.
		Working time (hours) under different ambient temperaturesPool size
Gallon 10 - 19°C(50 - L88°F) 20 - 28°C(68 - 82°F) 29 - 36°C(84 - 97°F)
2000	7570	1	1	1
4000	15140	2	2	3
6000	22710	3	4	4
8000	30280	4	5	6
10000	37850	5	6	7
12000	45420	6	7	8
14000	52990	7	8	9
15000	56775	8	9	10

It is recommended to cover the surface of the pool during the operation of the product to help increase the level of chlorine in the pool.

ATTACHING A BASE TO THE CHLORINATOR

Follow the below instructions. There must be two holes with a diameter of 8 mm and a spacing of 166 mm on the base. The product can be fixed on a cement base or a wooden platform. The total weight of the base should not be less than 18 kg to protect the chlorinator from accidentally falling over.

Technical line drawing of a mechanical device with a 165mm scale indicator (no text or symbols on the device itself)

166mm ≥18KG 2-M6 nut 2-M6 bolt

MAINTENANCE

ELECTROLYTIC CELL

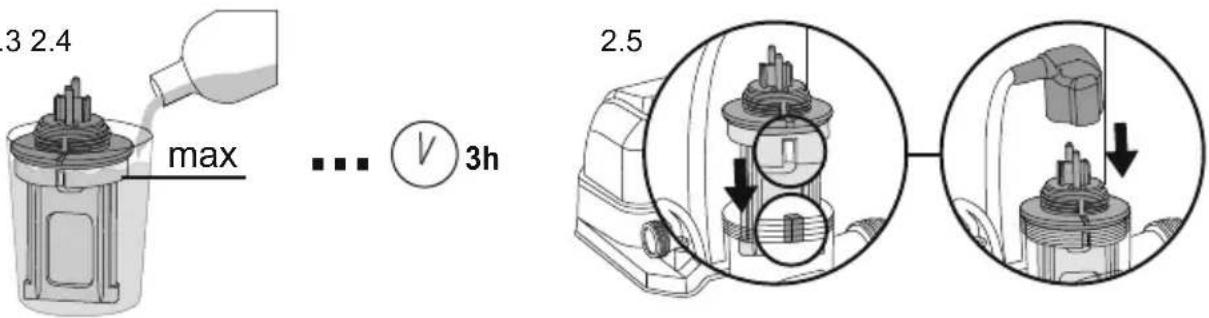

To clean the electrolytic cell, follow the instruction in the section 📋. Drawings are for illustration purposes only. May not reflect actual product. Not to scale. In order to maintain the best results, we recommend opening and checking the electrodes every month. However, if the water quality of the swimming pool is hard water (high content of calcium and magnesium ions), the electrodes may need to be cleaned manually on a regular basis. To clean the electrolytic cell, it is suggested to use a solution of 50% water/50% vinegar, or check with your pool dealer the suitable chemical product. Be sure to avoid chemical product that can damage the Titanium plate.

WATER CHEMICAL BALANCE

	Minimum	Best Value	Maximum
Available chlorine	0	0.5 - 3.0 ppm	3.0 ppm
Combined chlorine	0	0	0.2 ppm
pH value	7.2	7.4 - 7.6	7.8
Total alkalinity	40 ppm	80 - 100 ppm	120 ppm
The hardness of calcium	50 ppm	100- 250 ppm	350 ppm
Stabilizer (cyanuric acid)	10 ppm	20 - 40 ppm	50 ppm

- If the concentration of chlorine exceed the recommended level, it can be dangerous to use the pool. Test the chemical balance before using the pool. If using the test strip, check the expiration date, as the test result may be inaccurate if passed the expiration date.

It is recommended to check the level of the chemical in the water every day and before use.

STORAGE

• Remove all accessories; be sure to clean and dry all before the storage. If all the parts are not completely dry, mold may result.
• We strongly recommend disassembling the product during the off-season (winter months) and storing it in a dry place with a moderate temperature between 10^ / 50^ and 38^ / 100^ .

WARRANTY TERMS

For information concerning warranty terms, visit our website at: www.bestwaycorp.com.

TROUBLESHOOTING

Problems	Probable Causes Solutions
Insufficient chlorine concentration	The running time of the product is not long enough.The salt concentration is not enough (less than 2000 ppm).The electrolytic cell is blocked or left with dirt.Increase in swimmers.Strong exposure to the sun leads to the emission of chlorine.	Please increase the running time of the product every day. For details, please refer to "Operation Instructions".Adjust the salt concentration by referring to the "Pool Salt Table".If necessary, please disassemble the electrolytic cell for inspection and cleaning. Please refer to "Maintenance".Please increase the running time of the product every day. When the pool is not in use or the product is running, please cover the pool cover.Please increase the running time of the product every day. During the running of the product, you can cover the surface of the pool and wait 2 days before using the test paper to test.
Flocculent precipitation in water	There is too much calcium in the pool water.	Empty about 20%-25% of the pool water volume, then add clean water to reduce the hardness. If necessary, please disassemble the electrolytic cell for inspection and cleaning.
LED indicator has no display code	Not plugged in.The LED indicator fails.	Plug in the power plug.Please contact Bestway Customer Service Center for replacement.

ERROR CODES

Problems Probab le Causes Solutions
Display code "E0"	No water flow.	Make sure the filter is connected to the chlorinator and is running. See "Installation Instructions"
	The water flow is less than 280 gal/h (1050 L/h), the circulation system is blocked.	If there is a water stop valve, make sure that the water stop valve is open.Ensure that the filter element and the electrolytic cell are clean and free of dirt or impurities. Exhaust the air from the entire circulation system. Please refer to the filter manual.
	The direction of the inlet and outlet is reversed.	Check the direction of the water inlet and outlet. If necessary, readjust the water pipe. See "Installation Instructions".
	Dirt in the water flow sensor.	Make sure the water flow sensor is clean (especially the rotor). Please refer to "Maintenance".
	The power cord of the water flow sensor is loose.	Reconnect the water flow sensor firmly.
	Water flow sensor failure. Please contact Bestway Customer Service Center for replacement.
Display code "E1"	Dirt remains in the electrolytic cell.	If necessary, remove the electrode to check and clean it. Please refer to "Maintenance".
	Low salt concentration or no salt.	Add salt. Please refer to "Pool Salt Table".
	The electrolysis power cord is loose.	Make sure that the electrolytic cell line is firmly connected to the plug of the electrolytic cell.
	The electrolytic cell may fail.	Please contact Bestway Customer Service Center for replacement.
Display code "E2"	Salt concentration is too high.	Drain part of the pool water and add some clean water. Refer to "Salt and Pool Water Consumption"
Display code "E3"	Electrolytic cell short circuit.	If necessary, remove the electrode to check and clean it. Please refer to "Maintenance"

SPÉCIFICATIONS DU PRODUIT

Technical line drawing of a mechanical device with a 165mm scale indicator (no text or symbols on the device itself)

166mm ≥18KG Écrou 2-M6 Boulon 2-M6

ENTRETIEN

CONDITIONS DE GARANTIE

Technical line drawing of a mechanical device with a 160mm scale indicator (no text or symbols on the device itself)

166mm 18KG 2-M6 tuerca 2-M6 tornillo

MANTENIMIENTO

CÉLULA ELECTROLÍTICA

Technical line drawing of a mechanical device with a 166mm scale indicator (no text or symbols on the device itself)

166mm ≥18KG 2-M6 porca 2-M6 parafuso

MANUTENÇÃO

CÉLULA ELETROLÍTICA

Line drawing of a medical device with attached tubing (no text or symbols)

①

②

Diagram showing three labeled mechanical components with numbered arrows indicating direction or assembly.

1a

Diagram of a medical or laboratory procedure with labeled components and directional arrows indicating workflow steps.

1b

Diagram of a medical or laboratory procedure with labeled components and directional arrows indicating flow or movement.

1c

Diagram of a hair dryer with labeled parts and instructional arrows, showing components like bottle, printer, and spray bottle.

1d

Diagram of a gasifier system with labeled components A and B, showing fluid flow paths and valve positions.

2

Diagram of a cable connector with a plug and socket, showing wiring connections (no text or symbols)

3

NaCl V 3h

4

Diagram of a cable or plug assembly with a plug icon and wiring, no text or symbols present

5

3s - h

1

NaCl

2

3

Diagram of a cable or connector with a plug and lightning bolt symbol, no text or labels present

1

-20%

2

+20%

3

4

Diagram of a cable or connector with a plug and fuse, showing electrical connections (no text or symbols)

1.21.1 1.3

Diagram illustrating a mechanical assembly process with four sequential steps showing tool positioning and component alignment.

2.1 2.2

1 2.2 1

2.3 2.4

3 2.4 max ... V 3h 2.5

2.6

Diagram showing a mechanical device before and after assembly, with no visible text or symbols
