HBN1246SS - Basket BEST - Free user manual and instructions

Product Type	Insert Range Hood
Brand	BEST
Model	HBN1246SS
Width (nominal)	22 1/16 in (56.0 cm)
Depth	10 1/4 in (26.0 cm)
Height (approx.)	6 in (15.2 cm)
Weight (estimated)	30 lb (13.6 kg)
Power Supply	120 V, 60 Hz
Maximum Airflow	600 CFM (adjustable to 400 or 300 CFM via CRT)
Control Type	Touch (capacitive)
Connectivity	Wi-Fi and Bluetooth (Best Kitchen app, compatible with Alexa and Google Home)
Lighting	Dimmable LED (3 levels)
Filtration Type	Hybrid Baffle Filters (dishwasher safe)
Venting Options	Vertical or horizontal (6 in round, 8 in round, 3¼ x 10 in rectangular duct); recirculation possible (kit sold separately)
Special Features	Heat Sentry (safety thermostat), SMART SENSE (auto mode), Code Ready Technology (airflow reduction)
Material	Stainless Steel
Safety	Motor thermal protection, automatic shutdown in case of excessive heat
Warranty	5-year limited
Included Accessories	2 hybrid baffle filters, adapters/dampers (3¼x10, 6 in round), cabinet mounting brackets, protective strips, screw bag
Available Replacement Parts	Recirculation filters (ref. S99010464-124), recirculation kit HARKBN24
Certifications	FCC Part 15, IC RSS, ADA listed

Frequently Asked Questions - HBN1246SS BEST

How to install the HBN1246SS hood?

Installation requires cutting a hole in the cabinet to the specified dimensions (A=10 1/4 in, B=22 1/16 in). Attach the cabinet mounting brackets if necessary, then insert the hood using the Ease of Install hooks. Secure firmly with 4 screws. For more details, refer to pages 7-14 of the manual.

How to clean the filters?

Hybrid baffle filters should be cleaned frequently with warm soapy water or in the dishwasher using a phosphate-free detergent. Do not use abrasive products. For recirculation filters, they need to be replaced every 3 to 6 months.

How to connect the hood to Wi-Fi and the app?

Download the Best Kitchen app on your smartphone. Make sure Bluetooth and Wi-Fi are enabled, then press and hold the Wi-Fi/Bluetooth button on the hood for 3 seconds to activate pairing. Follow the instructions in the app to connect the hood to your Wi-Fi network.

What is the Heat Sentry feature?

Heat Sentry is a safety thermostat that activates or automatically increases the fan speed to high if it detects excessive heat above the cooking surface. It prevents overheating. When active, the display flashes and the speed cannot be changed manually.

How to reset the filter maintenance reminder?

When the fan light flashes slowly after stopping, it indicates that the filters need cleaning. To reset, turn off the fan, then press and hold the fan button while the light is flashing (within 30 seconds) until the flashing stops.

Can I use the hood in recirculation mode?

Yes, with a recirculation kit sold separately. For the HBN1246SS model, the kit is HARKBN24. It includes recirculation filters that attach behind the hybrid baffle filters. The air is filtered and then returned to the kitchen.

How to use the automatic mode (SMART SENSE)?

Press the Auto (SMART SENSE) button when the fan is off. The hood detects cooking heat and automatically adjusts the fan speed. The fan stops when the heat decreases. You can also manually adjust the speed during Auto mode to pause it.

What voice commands are available?

With Alexa or Google Home, you can say for example: "Alexa, turn on the hood", "Alexa, set fan speed to 3", "OK Google, turn off the hood light". Refer to the manual for a full list of commands.

What to do if the hood stops and restarts by itself?

The motor has a thermal protection that shuts it off in case of overheating and restarts it after cooling. If this repeats, check that the filters are clean and the ducts are not blocked. If the problem persists, contact technical support.

How to reduce the maximum airflow with the Code Ready Technology (CRT) option?

The CRT option reduces the airflow from 600 CFM to 400 or 300 CFM to comply with certain codes. Warning: this modification is irreversible. To activate, turn off the fan and light, then simultaneously press and hold the fan and light buttons for 5 seconds. Then follow the steps in the manual (page 19) to select 400 or 300 CFM.

USER MANUAL HBN1246SS BEST

INSTALLATION, USE & CARE INSTRUCTIONS

Technical line drawing of a kitchen ventilation cover with ventilation grilles and mounting brackets (no text or symbols)

best®

Safety 3-4

Installation 5-15

Recommended Tools and Accessories 5

Contents 5

Install Ductwork (Ducted Installations Only) 5

Remove the Adapter/Damper 6

Remove the Cabinet Brackets....6

Prepare the Cabinet 7-9

Prepare the Unit.... 10-11

Install the Unit 12-14

Connect Ductwork....14

Wiring 15

Install the Filters....15

Operation 16-19

Soft-Touch Control 16

WiFi-Bluetooth ^® 17-18

Heat Sentry™ 19

Code Ready™ Technology Activation....19

Maintenance and Cleaning 20

Hybrid Baffle Filters 20

Non-Ducted Recirculation Filters 20

Stainless Steel Cleaning 20

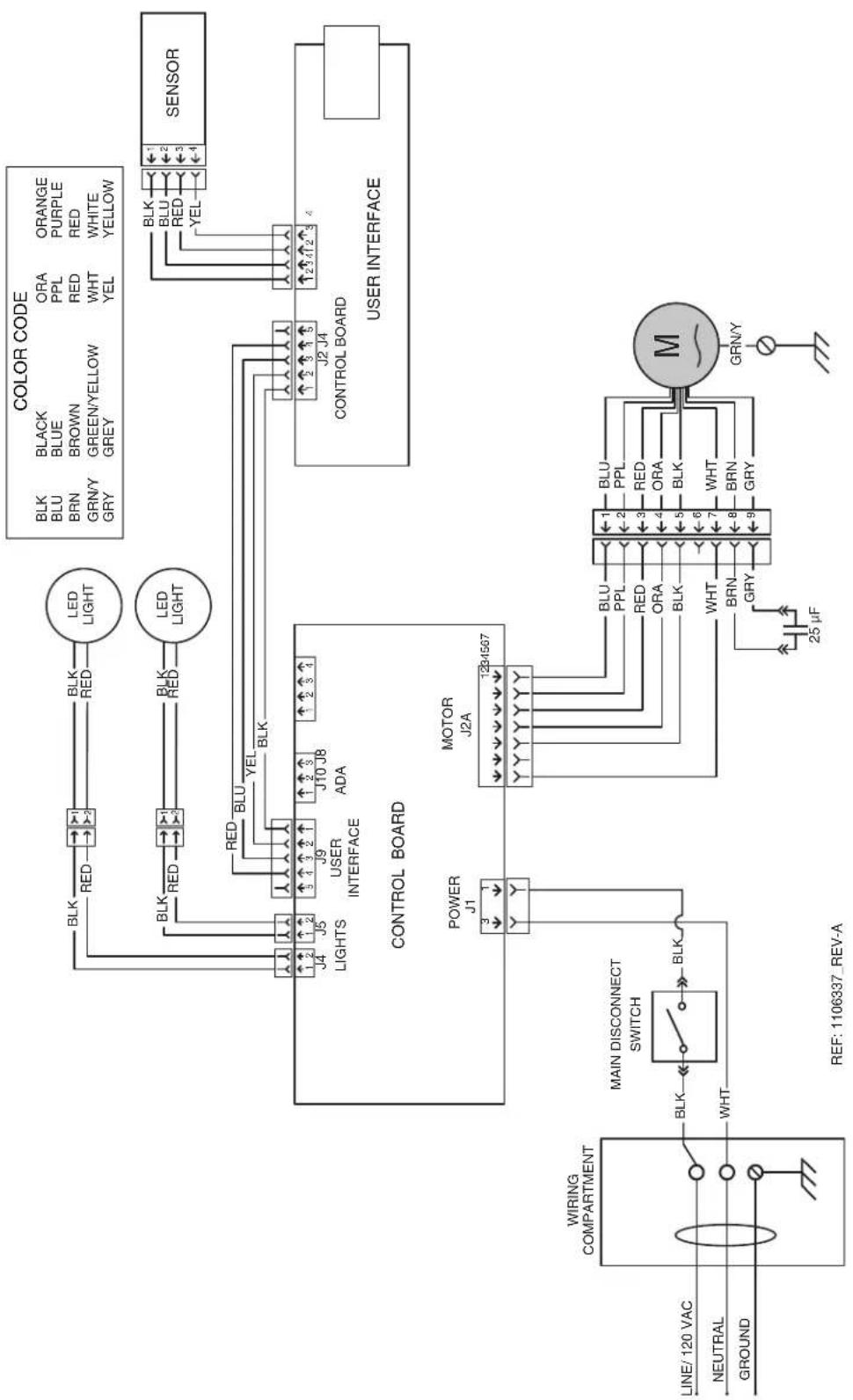

Wiring Diagram 21

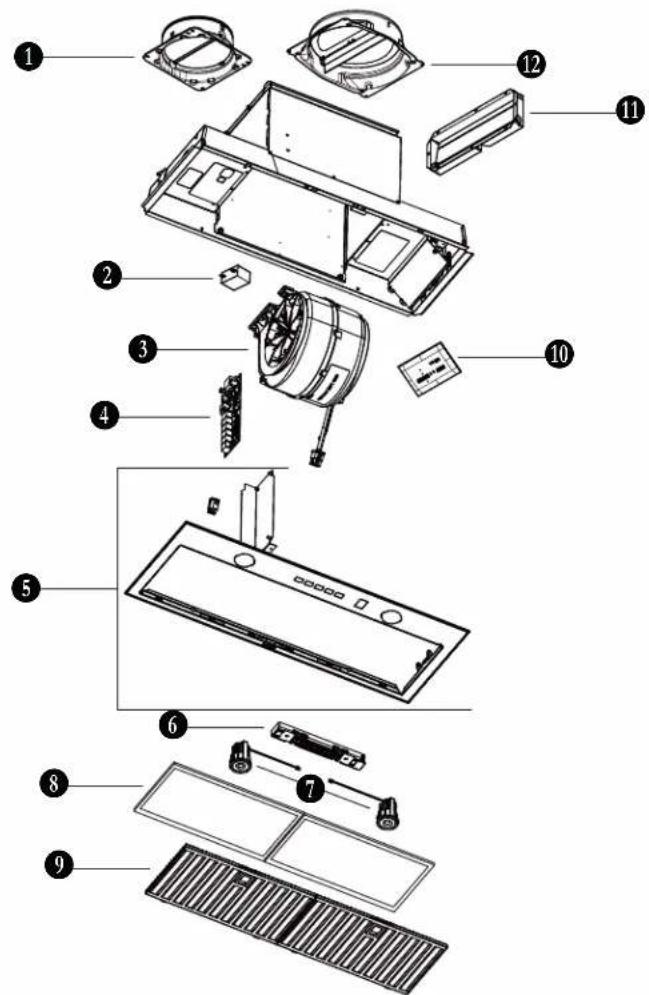

Service Parts 22

Warranty 23

To register your product, please visit our website:

In the United States - www.bestrangehoods.com

In Canada - www.bestrangehoods.ca

For Technical Support, call:

In the United States - 800-558-1711

In Canada - 800-567-3855

Installer: Leave this manual with the homeowner.

READ AND SAVE THESE INSTRUCTIONS

Intended for domestic cooking only

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
• Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
• Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

- When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

- Ducted fans must always be vented to the outdoors.

- Do not use this unit with any separate solid-state speed control device.

- To reduce the risk of fire, use only metal ductwork.

• This unit must be grounded.

- When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

- When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:\*

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
   A. You know you have a Class ABC extinguisher and you already know how to operate it.
   B. The fire is small and contained in the area where it started.
   C. The fire department is being called.
   D. You can fight the fire with your back to an exit.
   * Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

• For indoor residential use only.
• To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
  • Take care when using cleaning agents or detergents.
• Avoid using food products that produce flames under the Range Hood.
• For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
• To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
• Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
• The bottom of the hood MUST NOT BE LESS than 24" and recommended at a maximum of 30" above the cooktop for best capture of cooking impurities.
• Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood.
• Please read specification label on product for further information and requirements.

For ADA compliance installation guidelines, please type the model number into our website.

RECOMMENDED TOOLS AND ACCESSORIES

• Measuring tape
  • Phillips screwdriver no. 2
• Nut driver or socket 3/8"
• Flat blade screwdriver (to open knockout holes)
• Saw (to cut holes in cabinet)
• Sheet metal shears
• Pliers

• Metal foil duct tape
• Scissors (to cut metal foil duct tape)
- Pencil
- Wire stripper
• 2 Appropriate wire nuts
- Strain relief, 7/8" diameter (to secure house wiring cable to the hood)

CONTENTS

Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.

Make sure that the following items are included:

(2) HYBRID BAFFLE FILTERS

AMPER ASSEMBLY
(ATTACHED TO THE BACK OF THE UNIT)

(1) 8" ROUND
DAMPER ASSEMBLY

(1) 6" ROUND
DAMPER ASSEMBLY
(ATTACHED TO ONE SIDE OF THE UNIT)

CABINET BRACKETS
(ATTACHED TO THE BACK OF THE UNIT)

Pure diagram of three parallel lines with no text, numbers, or symbols

(1) PARTS BAG* CONTAINING:

(4) No. 8-18 x 1/4" METAL SCREWS

(4) No. 8-32 x 1/4" MACHINE SCREWS

(8) No. 8-15 x 5/8" PAN HEAD WOOD SCREWS

(4) No. 6-18 x 5/8" TRUSS HEAD WOOD SCREWS
* FIND PARTS BAG BEHIND THE ELECTRICAL COMPARTMENT COVER

INSTALL THE DUCTWORK (DUCTED INSTALLATION ONLY)

NOTE: To reduce the risk of fire, use only metal ductwork.

1. Decide where the ductwork will run between the insert and the outside. (FIG. 1)
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows, and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.
4. Install wall cap or roof cap (sold separately). Connect metal ductwork to cap and work back towards the hood location. Use 2" metal foil duct tape to seal the joints between ductwork sections.

ROOF CAP 8" OR 6" ROUND DUCT OR 3¼" x 10" DUCT POWERPACK INSERT HOUSE WIRING WALL CAP 3¼" x 10" DUCT 24" MIN - 30" MAX ABOVE COOKING SURFACE FIG. 1

REMOVE THE ADAPTER/DAMPER AND 6-IN. ROUND DAMPER

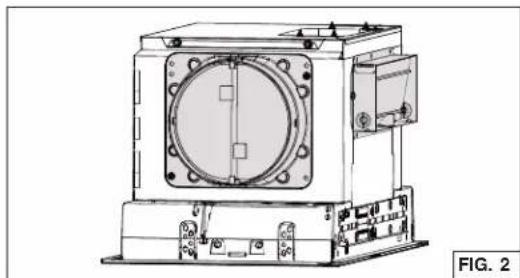

Detach and set aside the 3¼" x 10" adapter/damper and the 6-in.-round damper (grey parts in FIG. 2) from back and side of the powerpack insert by removing their 2 retaining screws. Discard the screws.

Technical line drawing of a mechanical device with mounting base and central circular component (no text or symbols)

REMOVE THE CABINET BRACKETS

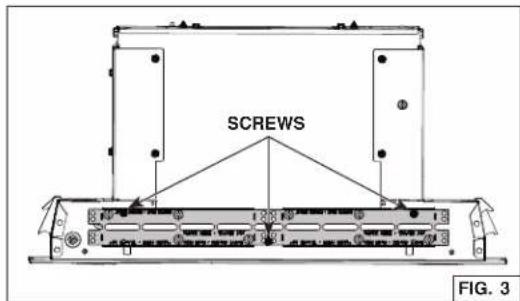

Detach the cabinet brackets (grey part in FIG. 3) from the back of the powerpack insert by removing its 3 retaining screws. Discard the screws.

SCREWS FIG. 3

Fold up and down the bracket until it is split in two separate parts (FIG. 4). Keep the brackets for possible further use.

8 1 2 3 4 5 6 7 8 9 10 11 12 13 FIG. 4

NOTE: Both cabinet brackets have one wide edge and one narrow edge (FIG. 5), to cover all installation configurations depending on cabinet widths.

Narrow edge HOLD CROWN / 2003 DOWN MARK HERE / TRACER ICI WIDE EDGE / REBOARD LARGE Wide edge FIG. 5

PREPARE THE CABINET

WARNING

The cabinet must be secured to wall studs or other wooden framework behind the drywall to support the weight of this unit. Failure to do so may cause personal injury or damage to countertop or cooktop.

NOTES: A. The unit has to be installed inside the cabinet.

B. The unit should be mounted centered laterally over the cooktop burners.

C. For back to front position, the unit must be mounted according to local building codes.

1. Cut a hole in the bottom of the cabinet, using the dimensions shown (FIG. 6).
2. Measure the remaining material of the cabinet bottom sides (C), (FIG. 7) if it is 1/4" or more, there is no need to use the cabinet brackets. Go to step 7 on page 9.
3. When there is less than 1/4" remaining material (C), carefully remove those strips. Measure the cabinet inner width (D) (FIG. 7). Refer to the table below to see which cabinet bracket edge configuration must be used.

UNIT	NARROW EDGE	WIDE EDGE
HBN1246SS	DFrom 22-1/16"to < 22-1/2"	DFrom 22-1/2"to 23"
HBN1306SS	DFrom 28-1/16"to < 28-1/2"	DFrom 28-1/2"to 29"

1. Pay attention to the Ease of Install hooks location on the unit (distance given from unit front flange, FIG. 8). Measure and mark the position of the Ease of Install hooks (shown as E in FIG. 9 on next page) on both cabinet side walls.

CUT A HOLE IN THE BOTTOM OF THE CABINET A B FIG. 6

A = 10 ^1/4 " (all units)
B = 22 1/16" (HBN1246SS)
B = 28 1/16" (HBN1306SS)

D C C FIG. 7

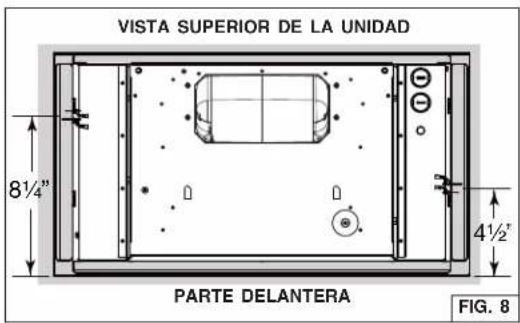

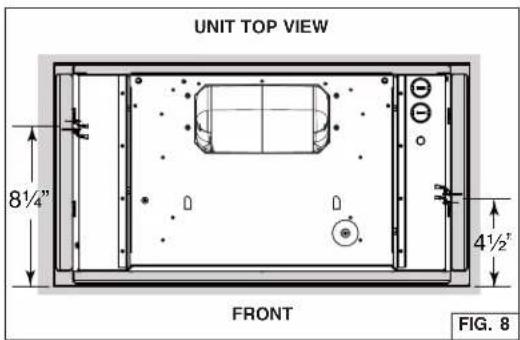

UNIT TOP VIEW 8½" 4½" FRONT FIG. 8

PREPARE THE CABINET

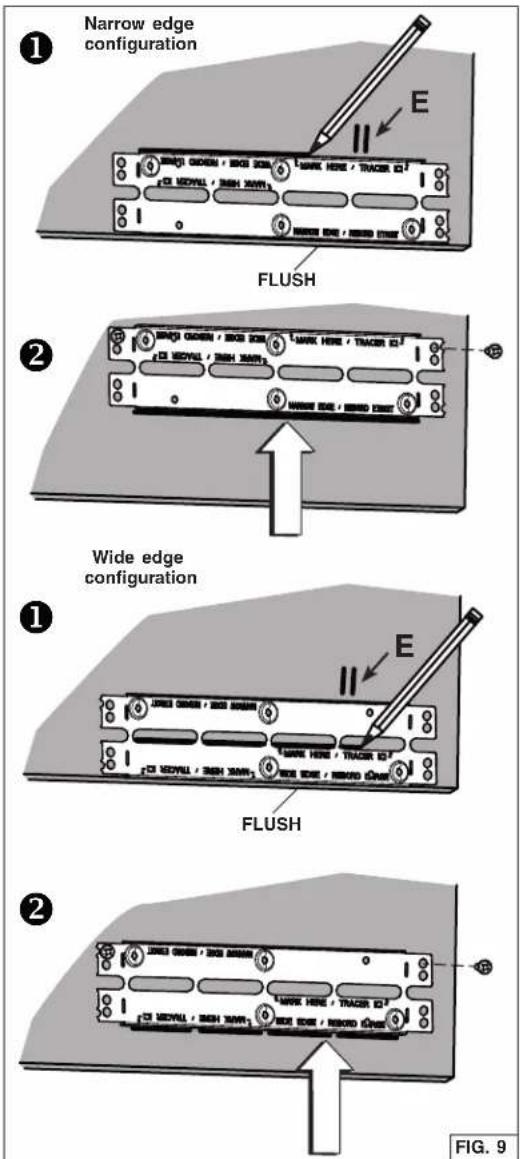

1. Install the cabinet brackets as follow (FIG. 9):

① Align the bracket flush with the bottom of the right cabinet side panel, with the hooks marked position (E) between the bottom embossed holes. For the narrow edge configuration, trace a line on the top of the bracket. For wide edge configuration, trace a line at the bottom of the central slots.

2 Lift the bracket flush with the marked lined. Assemble the bracket to the cabinet side panel using 2 no. 8 x 5/8" wood screws (included in parts bag) through the upper holes.

NOTE: Do not use the embossed holes to attach the bracket to the cabinet.

③ Repeat steps ① to ② for the left cabinet side panel.

PREPARE THE CABINET (CONT'D)

1. Measure the distance between both bottom bracket edges (F) (FIG. 10). The table below shows the appropriate distance needed.

UNIT	NARROW EDGE	WIDE EDGE
HBN1246SS	FFrom 21-7/8"to < 22-1/16"	FFrom 22-1/16"to 22-5/16"
HBN1306SS	FFrom 27-7/8"to < 28-1/16"	FFrom 28-1/16"to 28-5/16"

If the measured distance needs to be shortened, screw two no. 8-32 x 1/4" machine screws, in each bottom embossed cabinet brackets hole; this will slightly bend the bottom part of the brackets (FIG. 11). Screw both brackets until the appropriate distance is obtained.

1. There are 3 different sizes of filler included with these units, designed to fit up to 13-in. depth cabinets. For up to 15-in. depth cabinets, another set of 4 fillers is available (for HBN1246SS unit, order: HADTBN24, for HBN1306SS: order HADTBN30). Choose the filler that fits to cover the back bottom edge of the cabinet. Use 4 no. 6 x 5/8" truss head wood screws (included) to mount it (FIG. 12).

CAUTION

Never use an electric screwdriver or drill to screw the filler to the bottom edge of cabinet; use a standard screwdriver.

HORIZONTAL EXHAUST INSTALLATION ONLY

This powerpack insert is factory shipped to exhaust vertically; however, it is possible to make it exhaust horizontally (3½" x 10" ducting only).

1. Cut the hole for the horizontal exhaust through the back wall of the cabinet using the dimensions shown. (FIG. 13).

F FIG. 10

Screws in bottom embossed holes F FIG. 11

Architectural diagram of a roof structure with no visible text or symbols

CABINET BACK WALL 5½"5½" 3½" 3/4" CABINET BOTTOM FIG. 13

PREPARE THE UNIT

ALL INSTALLATIONS

1. If present, remove all protective polyfilm from the unit and/or parts.

2. Remove the hybrid baffle filters by pushing down on latch tab and tilting the filters downward (FIG. 14). Set aside the filters.

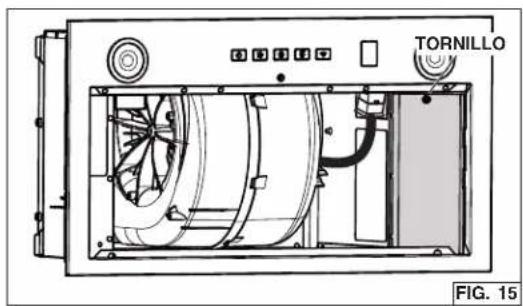

3. Disassemble the electrical compartment cover (grey part in FIG. 15) from inside the unit by removing its retaining screw. Remove the parts bag behind the cover. Set aside the parts bag and the cover along with its screw.

4. Punch out one of the two knock-out holes. Install an appropriate 7/8" diameter strain relief (not included, grey part in FIG. 16). NOTE: The HCK44 cord connection kit (optional) can be used instead of the house power cable. Refer to the instruction packed with the HCK44 cord connection kit.

HORIZONTAL EXHAUST INSTALLATION ONLY

1. Remove and discard the screw circled in FIG. 17. NOTE: This screw might be present or not.

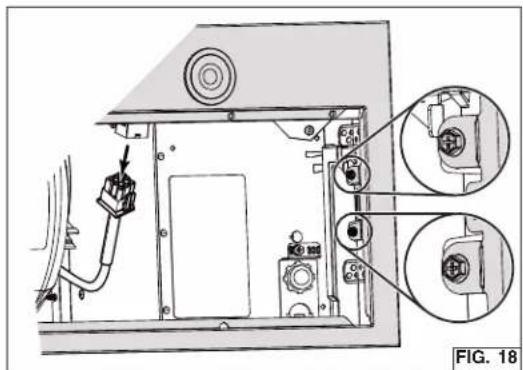

2. Unplug the blower cable from its connector on faceplate. Disassemble the faceplate from the unit by removing its 4 retaining screws (two per side, circled in FIG. 18). Set aside the faceplate along with its screws.

Technical line drawing of a cabinet or enclosure with ventilation grilles and control knobs (no text or symbols)

Technical line drawing of an industrial control panel with screw and fan components (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Interior view of a computer monitor chassis showing internal components and a close-up inset (no text or symbols)

Technical diagram of an electronic device showing internal components and wiring (no text or symbols)

PREPARE THE UNIT (CONT'D)

HORIZONTAL EXHAUST INSTALLATION ONLY (CONT'D)

1. Remove the 4 screws (two per side) retaining the blower support plate to the top of the unit (FIG. 19). Carefully lift out and set aside the blower with its support plate. The blower will be reinstalled later in the unit.

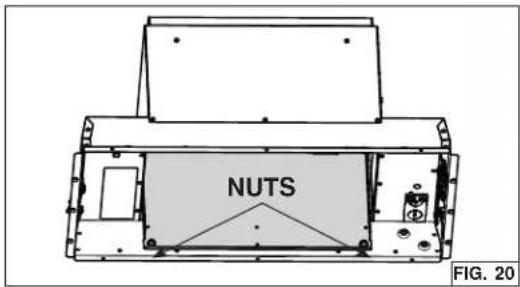

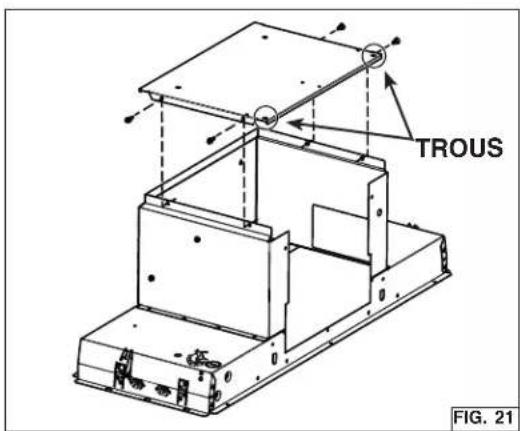

2. From inside the unit, detach the back plate (grey part in FIG. 20) by removing its both retaining nuts using 3/8" diameter socket. Set aside the nuts and plate.
3. Install the back plate on top of the unit, where the blower support plate was. Orient the holes nearby the corners towards the back of the unit. Assemble to the top of the unit using 4 screws previously removed in step 7 (FIG. 21).

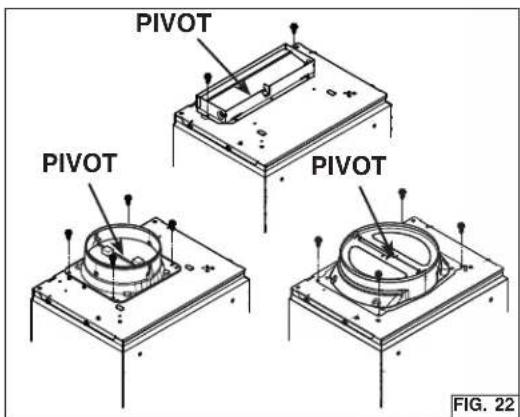

VERTICAL EXHAUST INSTALLATION ONLY

1. For rectangular ducting, use 2 included no. 8-18 x 1/4" metal screws to attach the included 3¼" x 10" adapter damper on top of the unit, over the blower exhaust opening (FIG. 22).

NOTE: The damper hinge must be towards the front of the unit.

For round ducting, use 4 included no. 8-18 x 1/4" metal screws to attach the included 6-in. round (or 8-in. round) adapter damper on top of the unit, over the blower exhaust opening (FIG. 22).

NOTE: The damper hinge must be parallel to the sides of the unit.

SCREWS SCREWS FIG. 19

NUTS FIG. 20

HOLES FIG. 21

HINGE HINGE HINGE FIG. 22

INSTALL THE UNIT

1. Run house power cable between service panel and unit location. Stub out a 2-foot length of power cable inside the cabinet. Insert the power cable in the unit through the 7/8" diameter strain relief previously installed.

NOTE: Not necessary if the optional HCK44 cord connection kit is used.

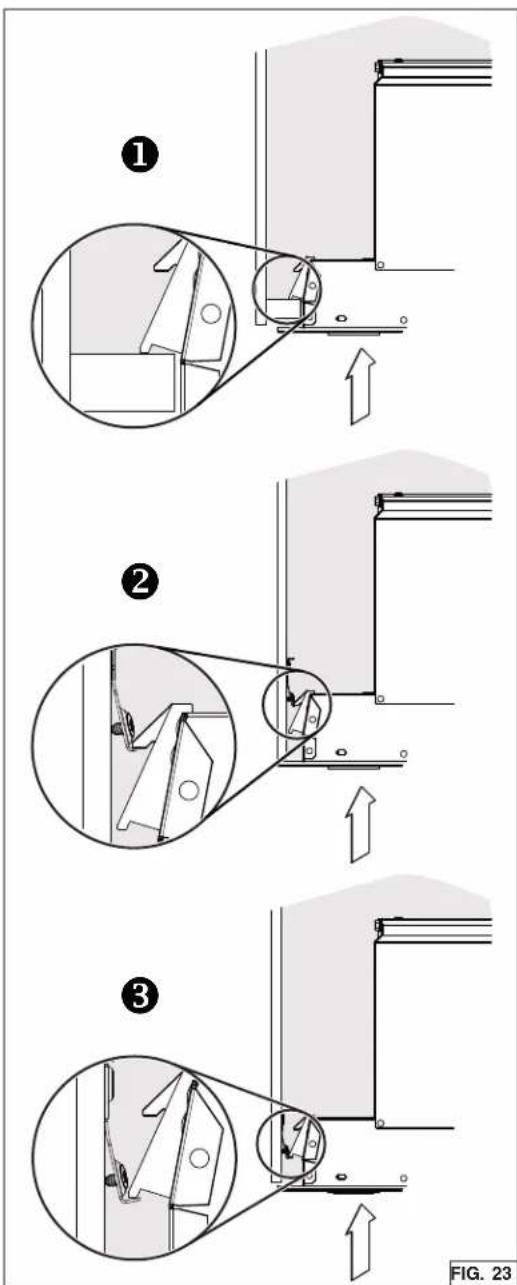

1. Insert the unit in the cabinet, until you feel a 'click' from both sides of the unit, confirming that the Ease of Install hooks rest on the top of the cabinet bottom sides ①, or cabinet brackets ② or ③ (FIG. 23). Move the unit from left to right, from rear to front and up to ensure the Ease of Install hooks are retaining the unit inside the cabinet.

NOTE: The unit will be protruding below the cabinetry until tightened.

Technical diagram illustrating three-step mechanical assembly steps with labeled components and directional arrows

NOTE: If, for any reason, the unit has to be removed from the cabinet, it is possible to disengage the Ease of Install hooks. To do so, while holding and pushing on one side of the unit, lift simultaneously Ease of Install hooks levers (1 and 2, grey parts in FIG. 24) in the other side of the unit until the hooks are retracted.

1 2 FIG. 24

INSTALL THE UNIT (CONT'D)

1. Lift the unit until contact is made between the unit flange and cabinet. Secure the unit to the cabinet using 4 no. 8 x 5/8" wood screws included in parts bag (2 screws per side). Use upper or lower holes (1, 2, 3, 4, 5 or 6) (FIG. 25).

WARNING

The Ease of Install hooks TEMPORARILY hold the unit in place. The unit MUST BE secured to the cabinet using the included 4 screws.

WARNING

Never use this unit as a shelf.

HORIZONTAL EXHAUST INSTALLATION ONLY

1. From inside the unit, slide the 3¼" x 10" adapter/damper in the horizontal duct, then attach it to the unit using aluminum duct tape all around the joint (FIG. 26). Ensure the damper opens as shown in damper side view.

2. Insert the blower with its support plate inside the unit, where the back plate was initially (A). Attach to the unit using 2 nuts previously removed in step 8 on page 11 (B) (FIG. 27).

FIG. 25

DUCT DAMPER SIDE VIEW FIG. 26

A B FIG. 27

INSTALL THE UNIT (CONT'D)

HORIZONTAL EXHAUST INSTALLATION ONLY (CONT'D)

1. Reinstall and secure the faceplate to the unit using its 4 retaining screws (two per side, circled in FIG. 28). Plug the blower cable to its connector on faceplate (FIG. 28).

Technical diagram of an electrical enclosure with labeled components and zoomed-in insets (no readable text or symbols)

CONNECT DUCTWORK

VERTICAL EXHAUST INSTALLATION ONLY

Ducted Installation

Use 6-in. round, 8-in. round or 3¼" x 10" metal duct to connect the adapter damper on the top of the unit to the ductwork above (FIG. 29, 8-in. round not shown). Seal the joint using aluminum duct tape.

Non-Ducted Installation

A non-duct kit is required for this type of installation (purchase separately). To install, follow the instructions packed with the kit. Refer to table below to find the appropriate non-duct kit according to the unit.

Unit model Non-Duct kit model
HBN1246SS HARKBN24
HBN1306SS HARKBN30

Technical illustration showing a cylindrical component being lifted by a mechanical assembly, with no visible text or symbols.

WIRING

WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

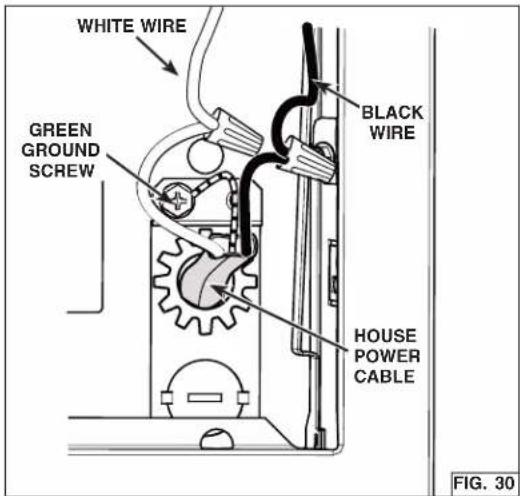

1. Using appropriate wire nuts (not included), connect house power cable to unit wiring: BLACK to BLACK, WHITE to WHITE and GREEN or bare wire to GREEN ground screw (FIG. 30).
2. Reinstall the electrical cover in the unit; ensuring the bottom tabs are inserted in their embossed location. Secure in place using its retaining screw (FIG. 31).

CAUTION

Take care not to pinch wires while reinstalling wiring cover.

INSTALL THE FILTERS

Ducted Installation

Reinstall the hybrid baffle filters.

Non-Ducted Installation

Attach the non-ducted filters (included with the HARKBN24 or HARKBN30 non-duct kit) to the back of the hybrid baffle filters using clips (provided with non-ducted filter). To order new non-ducted filters, use service part number S99010464-124 for HBN1246SS and S99010464-130 for HBN1306SS model.

WHITE WIRE GREEN GROUND SCREW BLACK WIRE HOUSE POWER CABLE FIG. 30

TABS FIG. 31

FCC/IC Statements

Contains FCC ID: 2AC7Z-ESP32WROVERE

Contains IC: 21098- ESPWROVERE

FCC COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

INDUSTRY CANADA STATEMENT

This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

SOFT-TOUCH CONTROL

Five labeled icons representing different weather and energy management functions: power, fan, sun, AUTO, and Wi-Fi.

NOTES: 1. Each time a key is pressed, a beep is emitted to acknowledge the command. To disable, when the fan and lights are OFF, press on the Lights key (③) for 5 seconds. To put it back, when the fan and lights are OFF, press again on the Lights key (③) for 5 seconds.

1. Each time a key is pressed, its backlight turns ON. When a function is turned OFF, so does the corresponding key backlight.

① Master ON/OFF:

Press this key to turn on the light and the fan at the last saved intensity. The backlights of the master ON/OFF key, fan key and light key are turned ON. When either light and fan are ON, pressing on this key will memorize the current fan speed and lighting level prior to shut them OFF.

Whenever there is an active function (light or fan is turned ON directly by pressing the fan or light key), the master ON/OFF backlight is turned ON. When the last active function is turned OFF (light or fan is turned OFF directly by pressing the fan or light key), the master ON/OFF backlight is also turned OFF.

② Fan:

When fan is OFF, a key press turns ON the fan to the last saved speed. If there was no speed saved, the fan will be set on LOW speed. To change the fan speed, press the key again until the desired speed is reached (from LOW, to MEDIUM-LOW, to MEDIUM-HIGH, to HIGH speed to OFF).

When the fan is ON (no matter the speed level), a long key press turns the fan OFF and the current fan speed setting is saved to memory.

Filter Cleaning Reminder

When the user turns the fan OFF, and the fan key backlight flashes slowly during 30 seconds, then this means it is time to clean the hood and filters. Refer to the Maintenance and Cleaning Section on page 20. This will happen every time the user turns the fan OFF (and the timer has not been reset).

Once the cleaning is done, at any time during the 30-second signal (and the fan is OFF), a long press on the fan key will reset the timer and stop the key backlight flashing.

③ Lights:

Press this key to turn ON the lights to the last saved intensity. If there was no light intensity saved, the lights will be set on LOW intensity. To change the lights intensity, press the key again until the desired level is reached (from LOW, to MEDIUM, to HIGH intensity, to OFF).

When the lights are ON, a long press turns the lights OFF and the current light intensity is saved to memory. The next time the lights are turned ON (either with the light key or the master ON/OFF key), it does so at the last saved intensity.

④ Auto (SMART SENSE):

When the fan is OFF, press this key to enable the Auto mode. When a cooking session is detected, this function will automatically start or adjust the fan speed according to the heat detected on the cooktop. The fan will automatically turn OFF when there is no longer sufficient heat detected on the cooktop.

When the hood is OFF and not in use for 3 minutes, the Auto key backlight will automatically turn OFF. Pressing any key will turn the backlight back ON.

To disable the Auto mode, press for a long time the Auto key until the backlight turns OFF.

Manual fan speed adjustment in Auto mode:

When the Auto mode is operating, it is possible to manually change the fan speed using the fan key. The Auto key backlight will turn OFF to indicate that the Auto mode is on pause (until the fan has been manually turned OFF). When the heat is sufficiently low on the cooktop, the Auto mode function will automatically be re-enabled and its backlight will turn ON.

Auto Mode Characteristics:

• The Auto Mode sensor measures the temperature related to cooking activity on the range or cooktop.
• When removing a pan or pot from a hot stove surface, the fan speed may increase. This is not unusual since the sensor detects a temperature increase.
• The fan may turn OFF when cooking at a very low temperature level, especially with induction units.
• The fan may turn OFF temporarily when adding cold or frozen items in the pan or pot. When the items heat up sufficiently, the fan will automatically turn back ON.
• When opening the door of a hot oven or when running a self-cleaning oven, the fan may start automatically.
• When starting to cook, there may be a short delay of the fan operation while the pot/pan heats up.
• After cooking is finished, it is normal for the fan to remain ON for a short period of time until the cooking surface/pot/pan cools down.

⑤ Wi-Fi/Bluetooth®:

Go to page 17.

WI-FI/BLUETOOTH®

This key is used to pair the powerpack insert (via Bluetooth ^® ) to a smart device and to connect it to your home Wi-Fi network, or deactivate Wi-Fi/Bluetooth.

ACTIVATING PAIRING MODE

Before starting this procedure, ensure fan and lights are OFF.

Press the key 3 seconds to initiate the pairing process, if the Wi-Fi/Bluetooth function was OFF, it will turn back ON. The key backlight will flash (15 secs) showing that the device is ready to be paired.

Wi-Fi/BLUETOOTH FUNCTIONALITY

To turn OFF the Wi-Fi/Bluetooth function, press the key for 3 seconds. Once the key backlight is flashing, press the Master ON/OFF key (①) for 3 seconds. The Wi-Fi/Bluetooth function and key backlight will turn OFF. To turn back ON the Wi-Fi/Bluetooth function, press the key for 3 seconds.

When the hood is OFF and not in use for 3 minutes, the Wi-Fi/Bluetooth key backlight will automatically turn OFF. Pressing any key will turn the backlight back ON.

RESETTING Wi-Fi/BLUETOOTH

To reset the Wi-fi/ Bluetooth connectivity (remove saved devices and disconnect from the Wi-Fi network), press the key for 3 seconds. Once the key backlight is flashing, press the key again for 10 seconds.

ESSENTIALS TO CONNECT YOUR Wi-Fi/BLUETOOTH UNIT

Before you connect your powerpack insert to a Wi-Fi network, you will need:

• A smart device with the latest version of iOS or Android operating system
• The smart device has access to the internet and Wi-Fi and Bluetooth are enabled
• The smart device within 5 meters (16 ft.) of the powerpack unit
• The powerpack unit is within the Wi-Fi signal range of your home network
• The name of your Wi-Fi home network (SSID) and its password
• No other Bluetooth enabled smart device nearby.

CONNECTING YOUR Wi-Fi/BLUETOOTH UNIT

1. Download the Best Kitchen app.

1. Follow the instructions in the app.
2. Scan the QR code below if you need more details for installing and using the app.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.

App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

Google Play and the Google Play logo are trademarks of Google LLC.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Best is under license.

Other trademarks and trade names are those of their respective owners.

WI-FI/BLUETOOTH® (CONT'D)

USING YOUR CONNECTED ITEM

Now that your unit is properly connected, you can experience all the functionalities through the app. Even if you are not physically close to the unit, you can control it through the app using your Wi-fi network.

VOICE CONTROL

You can control the powerpack insert through your voice assistant device (Alexa or Google Home).

USING ALEXA APP OR ALEXA SPEAKER OR DISPLAY

You can rename your powerpack insert using the Alexa app. Keep in mind that this only renames the device on Alexa's end. Here are some of the currently Alexa voice commands for your powerpack insert: Alexa, turn ON powerpack Alexa, turn OFF powerpack Alexa, set the powerpack fan ON Alexa, set the powerpack fan OFF Alexa, set powerpack fan speed to 1 Alexa, set powerpack fan speed to 2 Alexa, set powerpack fan speed to 3 Alexa, set powerpack fan speed to 4 Alexa, set the powerpack lights ON Alexa, set the powerpack lights OFF Alexa, set powerpack lights to 1 Alexa, set powerpack light to 2 Alexa, set powerpack lights to 3

USING GOOGLE ASSISTANT ENABLED SPEAKER OR DISPLAY

Say "Hey Google" and Google will start listening to your commands.
Here are some of the currently Google voice commands for your powerpack insert:
Hey Google, turn ON powerpack
Hey Google, turn OFF powerpack
Hey Google, set the powerpack fan ON
Hey Google, set the powerpack fan OFF
Hey Google, set powerpack fan speed to 1
Hey Google, set powerpack fan speed to 2
Hey Google, set powerpack fan speed to 3
Hey Google, set powerpack fan speed to 4
Hey Google, set the powerpack lights ON
Hey Google, set the powerpack lights OFF
Hey Google, set powerpack lights to 1
Hey Google, set powerpack light to 2
Hey Google, set powerpack lights to 3

FIRMWARE UPDATE

Periodic firmware updates will improve your experience using the unit. You will be able to explore new features that are added to the device and have enhanced user experience while interacting with the device. A Best user account must be created in order to take advantage of Firmware updates. When updates are available, you will be notified through the app. We recommend installing updates when they are available; it only takes a few minutes.

When a firmware is available, you will need:

• the powerpack insert connected to your Wi-Fi home network
• your smart device with the Best app properly installed and configured

HEAT SENTRY™

Your unit is equipped with a HEAT SENTRY™ thermostat.

This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.

1) If blower is OFF - it turns blower ON to HIGH speed. 2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.

When the temperature level drops to normal, the blower will return to its original setting.

NOTE: When Heat Sentry is activated, the fan key backlight flashes slowly and the fan speed cannot be changed.

WARNING

The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF. When this occurs, it is impossible to turn the blower OFF with its switch. If you must stop the blower, set the main power switch (located behind the filters, on inner side of the unit faceplate) in OFF position (if it is possible to do so safely). See inset in FIG. 32.

Technical line drawing of a mechanical device with labeled components and an inset showing a circular component (no text or symbols present)

CODE READY™ TECHNOLOGY ACTIVATION

The Code Ready Technology option allows to change the blower output from the 600 CFM factory setting to a maximum of 400 CFM or 300 CFM. Activating the CRT option will reduce the airflow, so that the powerpack insert will perform within the allowable limit of Make-Up Air (MUA) codes (to meet some building code requirements). Do not change the blower CFM setting unless this change is required by code. This change will alter the performance of the product.

IMPORTANT NOTES: 1. This change CANNOT be reverted.

1. CRT can only be set within the first 5 minutes of applying power to the unit.
2. A power outage will not deactivate the CRT.
3. Fan and lights must be OFF.

CRT PROCEDURE

A B

1. Switch power ON using the main power switch (located behind the filters) and press simultaneously on Fan (A) and Lights (B) keys for 5 seconds; Fan (A) and Lights (B) key backlights will now flash to indicate you entered the CRT menu.

400 CFM MAXIMUM AIRFLOW

1. To select the 400 CFM maximum airflow, press on the Fan (A) key for 5 seconds, then release; the Fan key backlight will now flash to indicate 400 CFM has been selected (the Light (B) key backlight will be shut).
2. A second 5-second press on the Fan (A) key and release confirms the selection; the Fan key backlight quickly flashes twice and the buzzer sounds a double beep. The user interface returns to normal operation.
3. Locate the CRT sticker near the HVI Certification label inside the powerpack insert, behind the filter. Check the proper box (400 CFM).

300 CFM MAXIMUM AIRFLOW

1. To select the 300 CFM maximum airflow, press on the Lights (B) key for 5 seconds, then release; the Lights key backlight will now flash to indicate 300 CFM has been selected (the Fan (A) key backlight will be shut).
2. A second 5-second press on the Lights (B) key and release confirms the selection; the Lights key backlight quickly flashes twice and the buzzer sounds a double beep. The user interface returns to normal operation.
3. Locate the CRT sticker near the HVI Certification label inside the powerpack insert, behind the filter. Check the proper box (300 CFM).

MAINTENANCE

ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY BEFORE CARRYING OUT ANY OPERATIONS ON THE APPLIANCE.

Hybrid Baffle Filters

The hybrid baffle filters should be cleaned frequently. Use a warm dishwashing detergent solution. The hybrid baffle filters are dishwasher safe.

Clean the filters in the dishwasher using a non-phosphate detergent. Discoloration of the filters may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filters performance. This discoloration is not covered by the warranty. To minimize or prevent discoloration, hand wash filters using a mild detergent.

Non-Ducted Recirculation Filters

The Non-Ducted Recirculation filters should be changed every 3 to 6 months. Replace more often if your cooking style generates extra grease, such as frying and wok cooking.

STAINLESS STEEL CLEANING

Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the unit. During construction/renovation, cover the unit to make sure no dust sticks to the stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

WIRING DIAGRAM
INSTALLATION AND USE & CARE INSTRUCTIONS

HBN1246SS, HBN1306SS

Exploded view diagram of a refrigerator internal components with numbered labels

KEY NO.	PART NUMBER	DESCRIPTION	HBN1246SS	HBN1306SS
1 SV	08487-36 6-	IN. ROUND ADAPTER / DAMPER	1	1
2 S9	9271379 C	APACITOR 25 μF 1 1
3 S9	7021509 B	LOWER ASS'Y 600 CFM 1 1
4	S1108581	MAIN PCB	1 1
5	S98012198-809	FACEPLATE	1
	S98012198-810	FACEPLATE		1
6	S1108775	SOFT TOUCH 5-BUTTON CONTROL	1	1
7 S9	9271694 LED	MODULE ASSEMBLY (PAIR)	1	1
8	S99010464-124	CHARCOAL FILTERS WITH CLIPS (CLIPS NOT SHOWN) (NON-DUCTED INSTALLATION ONLY, INCLUDED IN NON-DUCT KIT NO. HARKBN24) (PAIR)	1
	S99010464-130	CHARCOAL FILTERS WITH CLIPS (CLIPS NOT SHOWN) (NON-DUCTED INSTALLATION ONLY, INCLUDED IN NON-DUCT KIT NO. HARKBN30) (PAIR)		1
9	HPFBN24	HYBRID BAFFLE FILTERS (PAIR)	1
	HPFBN30	HYBRID BAFFLE FILTER (PAIR)		1
10 S	104978	PARTS BAG INCLUDING : 4 No. 8-18 x 1/4" METAL SCREWS, 4 No. 8-32 x 1/4" MACHINE SCREW SCREWS, 8 No. 8-15 x 5/8" PAN HEAD WOOD SCREWS, 4 No. 6-18 x 5/8" TRUSS HEAD WOOD SCREWS.	1	1
11 SR	740014 31⁄4"	x 10" ADAPTER / DAMPER	1	1
12	SV24383-36 8-	IN. ROUND ADAPTER / DAMPER	1	1
13 S	106565 S	ENSOR IR FOR AUTO-OPERATION (INCLUDING HARNESS) (NOT SHOWN)	1	1

FIVE-YEAR LIMITED WARRANTY FOR BEST® PRODUCTS

Warranty Period and Exclusions: Broan-NuTone LLC (the "Company") warrants to the original consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the materials or its workmanship for a period of five (5) years from the date of original purchase (or such longer period as may be required by applicable law) or a period of two (2) years from the date of service for any labor provided on the Product. The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).

THIS WARRANTY DOES NOT COVER FLUORESCENT LAMP STARTERS, TUBES AND BULBS, FUSES, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (e) any Product that has been moved from its original point of installation, (f) damage caused by exposure to salt air, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, or (j) damage caused by fire, flood or other act of God or (k) Products with altered, defaced or removed serial numbers. This warranty covers only Products sold to consumers in North America.

This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent that applicable law prohibits the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specified for the express warranty above. Some jurisdictions (which may include th eProvince of Québec or specific US states) do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer period as may be required by applicable law).

Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product. If the Product or component is no longer available, replacement may be made with a similar product of equal or greater value, at Company's sole discretion. This is your sole and exclusive remedy for breach of this limited warranty.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR, REPLACE OR REFUND, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.

The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control.

PRODUCT SPECIFICATIONS

All illustrations and specifications in this catalog are based on the latest product information available at time of production. Broan-NuTone LLC and Best® reserves the right to make changes at any time, without notice, in prices, colors, materials, specifications and models, place of manufacture and to discontinue models or equipment.

BEST 926 West State Street, Hartford, Wisconsin USA 53027 www.bestrangehoods.com 800-558-1711

BEST 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 bestrangehoods.ca 800-567-3855

best®

Hottes encastrables

Série HBN1

DIRECTIVES D'INSTALLATION, D'UTILISATION ET D'ENTRETIEN

Technical line drawing of a kitchen ventilation duct with ventilation grilles and mounting brackets (no text or symbols)

best®

Sécurité 3-4

Installation 5-15

Au Canada : www.bestrangehoods.ca

Technical line drawing of a mechanical device with mounting base and central circular component (no text or symbols)

RETRAIT DES SUPPORTS D'ARMOIRE

VIS FIG. 3

C D C FIG. 7

VUE DU DESSUS DE L'APPAREIL 8½ p0 AVANT 4½ p0 FIG. 8

PRÉPARATION DE L'ARMOIRE (SUITE)

Technical diagram showing two mechanical components with a central force F, no text or symbols present

Architectural diagram of a roof structure with no visible text or symbols

MUR ARRIÈRE DE L'ARMOIRE 5½ po 5½ po 3½ po 3/4 po BASE DE L'ARMOIRE FIG. 13

PRÉPARATION DE L'APPAREIL

TOUTES LES INSTALLATIONS

Technical line drawing of a cabinet or enclosure with ventilation grilles and control knobs (no text or symbols)

Technical line drawing of an electronic device casing with visible internal components and control knobs (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of an internal electronic device with labeled ports and components (no readable text or symbols)

Technical diagram of an electronic device showing internal components and wiring (no text or symbols)

PRÉPARATION DE L'APPAREIL (SUITE)

INSTALLATION EN ÉVACUATION HORIZONTALE SEULEMENT (SUITE)

VIS VIS FIG. 19

ÉCROUS FIG. 20

TROUS FIG. 21

PIVOT PIVOT PIVOT FIG. 22

INSTALLATION DE L'APPAREIL

Technical diagram illustrating three-step mechanical assembly steps with labeled components and directional arrows

Technical diagram of an electrical enclosure with labeled components and wiring, showing internal wiring and mounting features (no text or symbols present)

RACCORDEMENT DU CONDUIT

INSTALLATION EN ÉVACUATION VERTICALE SEULEMENT

Technical illustration showing three stages of a mechanical assembly: cylinder, plate with circular component, and rectangular block (no text or symbols)

BRANCHEMENT ÉLECTRIQUE

! AVERTISSEMENT

DÉCLARATION DE CONFORMITÉ FCC

① MARCHE/ARRÊT principal :

Technical line drawing of a device interior with labeled components and an inset showing a circular component (no text or symbols present)

ACTIVATION DE L'OPTION CODE READY ^MC TECHNOLOGY

Exploded view diagram of a refrigerator with numbered parts for identification

REPÈRE	N° DE PIÈCE	DESCRIPTION	HBN1246SS	HBN1306SS
1 SV	08487-36 A	DAPTATEUR/VOLET 6 PO ROND	1	1
2 S9	9271379 C	ONDENSATEUR 25 μF 1 1
3 S9	7021509 V	ENTILATEUR 600 PI^3/MIN 1 1
4 S1	108581 C	ARTE ÉLECTRONIQUE PRINCIPALE 1 1
5	S98012198-809	CHÂSSIS	1
	S98012198-810	CHÂSSIS		1
6 S1	108775 C	OMMANDE À EFFLEUREMENT 5 BOUTONS	1	1
7 S9	9271694 E	NSEMBLES DE MODULE DEL (PAIRE)	1	1
8	S99010464-124	FILTRES AU CHARBON AVEC CLIPS (NON ILLUSTRÉES) (INSTALLATION SANS CONDUIT SEULEMENT, INCLUS DANS LE KIT DE RECIRCULATION N° HARKBN24) (PAIRE)	1
	S99010464-130	FILTRES AU CHARBON AVEC CLIPS (NON ILLUSTRÉES) (INSTALLATION SANS CONDUIT SEULEMENT, INCLUS DANS LE KIT DE RECIRCULATION N° HARKBN30) (PAIRE)		1
9	HPFBN24	FILTRES À CHICANES HYBRIDES (PAIRE)	1
	HPFBN30	FILTRES À CHICANES HYBRIDES (PAIRE)		1
10 S1	104978	SAC DE PIÈCES INCLUANT: 4 VIS À MÉTAUX N° 8-18 x 1/4 PO,4 VIS MÉCANIOUES N° 8-32 x 1/4 PO, 8 VIS À BOIS À TÊTE CYLINDRIQUE LARGE N° 8-15 x 5/8 PO, 4 VIS À BOIS À TÊTE BOMBÉE N° 6-18 x 5/8 PO.	1	1
11 SR	740014 A	DAPTATEUR/VOLET 3 14 PO x 10 PO	1	1
12	SV24383-36 A	DAPTATEUR/VOLET 8 PO ROND	1	1
13 S1	106565	CAPTEUR INFRAROUGE POUR FONCTIONNEMENT AUTOMATIQUE(INCLUANT LE FAISCEAU DE FILS) (NON ILLUSTRÉ)	1	1

GARANTIE LIMITÉE DE 5 ANS SUR LES PRODUITS BEST ^MC

SPÉCIFICATIONS DU PRODUIT

BEST 926 West State Street, Hartford, Wisconsin USA 53027 www.bestrangehoods.com 800-558-1711

BEST 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 bestrangehoods.ca 800-567-3855

best®

Campanas empotrables

Serie HBN1

Technical line drawing of a kitchen ventilation duct with ventilation grilles and mounting brackets (no text or symbols)

Número serial:

1105023A

best®

Seguridad 3-4

Instalación 5-15

Technical line drawing of a mechanical device with central circular component and mounting base (no text or symbols)

RETIRADA DE LOS SOPORTES DE GABINETE

C D C FIG. 7

VISTA SUPERIOR DE LA UNIDAD 8½" 4½" PARTE DELANTERA FIG. 8

Technical diagram showing two mechanical components with a central force F, no text or symbols present

Architectural diagram of a roof structure with no visible text or symbols

PARED TRASERA DEL GABINETE 5½"5½" 3½" 3/4" BASE DEL GABINETE FIG. 13

Technical line drawing of a cabinet or enclosure with ventilation grilles and control knobs (no text or symbols)

Technical line drawing of an industrial machine casing with labeled components (no readable text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Interior view of a computer monitor chassis showing internal components and a close-up inset (no text or symbols)

Technical diagram of an electronic device showing internal components and wiring (no text or symbols)

Technical diagram illustrating three-step mechanical assembly steps with labeled components and directional arrows

Technical diagram of an electrical enclosure with labeled components and wiring (no readable text or symbols)

Technical illustration showing a cylindrical component being processed into a rectangular block, with no visible text or symbols.

CONEXIÓN ELÉCTRICA

ADVERTENCIA

Contiene FCC ID: 2AC7Z-ESP32WROVERE

Contiene IC: 21098- ESPWROVERE

Five labeled icons representing different weather and utility symbols: power, fan, sun, wind turbine, and Wi-Fi.

Download on the App Store

GET IT ON Google Play

Technical line drawing of a mechanical device with labeled components and an inset showing a close-up of a device (no text or symbols present)

Exploded view diagram of a refrigerator with numbered parts for identification

N.°	N.° DE PIEZA DES	CRIPCIÓN HBN1246SS HBN1306SS
1 S	V08487-36 A	DAPTADOR/COMPUERTA 6 PULG. REDONDO	1	1
2 S	99271379 C	ONDENSADOR 25 μF 1 1
3 S	97021509 V	ENTILADOR 600 PI ^3 /MIN 1 1
4 S	108581 P	LACA PRINCIPAL DE CIRCUITOS	1	1
5	S98012198-809 P	ANEL FRONTAL	1
	S98012198-810 P	ANEL FRONTAL		1
6 S	108775 C	ONTROL TÁCTIL CON 5 TECLAS	1	1
7 S	99271694 C	ONJUNTO DE MÓDULO LED (PAR)	1	1
8	S99010464-124	FILTROS DE CARBÓN CON CLIPS (NO ILLUSTRADOS) (INSTALACIÓN SIN CONDUCTO SOLAMENTE, INCLUIDO EN EL KIT DE RECIRCULACIÓN N.° HARKBN24) (PAR)	1
	S99010464-130	FILTROS DE CARBÓN CON CLIPS (NO ILLUSTRADOS) (INSTALACIÓN SIN CONDUCTO SOLAMENTE, INCLUIDO EN EL KIT DE RECIRCULACIÓN N.° HARKBN30) (PAR)		1
9	HPFBN24	FILTROS DEFLECTOR HÍBRIDO (PAR)	1
	HPFBN30	FILTROS DEFLECTOR HÍBRIDO (PAR)		1
10 S	1104978	BOLSA DE PIEZAS QUE INCLUYE: 4 TORNILLOS PARA METALES N° 8-18 x 1/4 PULG., 8 TORNILLOS PARA MADERA DE CABEZA TROCOCÓNICA N° 8 x 5/8 PULG., 4 TORNILLOS PARA MADERA DE CABEZA REDONDEADA N° 6-18 x 5/8 PULG., 4 TORNILLOS PARA METALES NO. 8-32 x 1/4 PULG.	1	1
11 S	R740014 A	DAPTADOR/COMPUERTA 3 14 PULG. x 10 PULG.	1	1
12	SV24383-36 A	DAPTADOR/COMPUERTA 8 PULG. REDONDO	1	1
13 S	1106565	SENSOR INFRARROJO PARA FUNCIONAMIENTO AUTOMÁTICO (ARNÉS DE CABLES INCLUIDO) (NO ILLUSTRADO)	1	1

GARANTÍA LIMITADA DE CINCO AÑOS PARA PRODUCTOSBEST®

BEST 926 West State Street, Hartford, Wisconsin USA 53027 www.bestrangehoods.com 800-558-1711

BEST 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 bestrangehoods.ca 800-567-3855
